INTERNATIONAL DESIGN GUIDE

Contents
vens and Warming Drawers . . . . . . . . . . . . . . . . . . 3
Cooktops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ranges and Rangetops . . . . . . . . . . . . . . . . . . . . . . 42
Cooktop Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . 59
Pro Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Shipping Weights . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.

Wolf Built- n Ovens 3
wolfappliance.com/specs
KEY FEATURES
•Dual convection: two fans for even heat distribution.
•Ten cooking modes, including the bake stone and
dehydration kits for precise, easy-to-use control.
•Self-cleaning ovens.
•Full-extension bottom rack for easier access to foods.
•Balanced door hinge system for smooth opening and
closing of the door.
E Series Ovens. The newest addition to the Wolf built-in oven family is a true partner, helping to create great meals
with ease, as well as adding a striking design feature to the kitchen. Smart technology gives the E series 10 cooking
modes, with Wolf’s innovative dual convection in single ovens and in the upper unit of double ovens. E series ovens can
be installed flush with cabinets for a contemporary, integrated look. New black glass models with tubular handles are
also available.
ICBS 30-2U/S-TH
UNFRAMED
TUBULAR HANDLE
ICBD 30-2U/S-TH
UNFRAMED
TUBULAR HANDLE
ICBS 30-2B/G-TH
BLACK GLASS
TUBULAR HANDLE
ICBD 30-2B/G-TH
BLACK GLASS
TUBULAR HANDLE
E SERIES VENS

Wolf Built- n Ovens 4
E Series Ovens
603 mm
BEHIND FRAME
708
mm
718 mm
759 mm
603
mm
CONDUIT
CHANNEL
OPEN OVEN DOOR
TOP VIEW
559
mm
25 mm*
48 mm
RIGHT SIDE VIEW
687
mm
759 mm
67
mm*
76 mm
244
mm
225
mm
*For black glass model, increase dimension by 6 mm.
762 mm SINGLE VENS
603 mm
BEHIND FRAME
1280
mm
1257
mm
718 mm
759 mm
603
mm
OPEN OVEN DOOR
TOP VIEW
67
mm*
559
mm
25 mm*
48 mm
RIGHT SIDE VIEW
759 mm
CONDUIT
CHANNEL
*For black glass model, increase dimension by 6 mm.
244
mm
225
mm
76 mm
762 mm D UBLE VENS
Interior Specifications
INTERI R CAPACITY L
762 mm Oven 127
INTERI R DIMENSI NS WHD
762 mm Oven 635 mm 419 mm 483 mm

Wolf Built- n Ovens 5
wolfappliance.com/specs
E SERIES SINGLE VENS
Required power supply:
Single phase: 220-240V AC; 50/60 Hz
3phase: 380-415V AC; 50/60 Hz
Maximum connected load:
Single phase: 4.4 kW
3phase: 4.4 kW
Total amps:
Single phase: 19 amps
3phase: 19 amps
E SERIES D UBLE VENS
Required power supply:
Single phase: 220-240V AC; 50/60 Hz
3phase: 380-415V AC; 50/60 Hz
Maximum connected load:
Single phase: 7.4 kW
3phase: 5.1 kW
Total amps:
Single phase: 32 amps
3phase: 22 amps
Refer to the wiring diagram showing the connections for
each lead to the terminal box on the unit.
Planning nformation
STANDARD INSTALLATI N
For ease of installation, Wolf recommends using 838 mm
wide cabinets with 762 mm ovens. You will need a
minimum 610 mm of usable cabinet depth. The cabinet
must be able to support 113 kg for a single oven and 181
kg for a double oven.
The oven has a face trim on all four sides and will overlap
stiles and rails. Refer to the chart for overlap dimensions.
ven Trim verlap
VEN TRIM E SERIES
Top Overlap 16 mm
Bottom Overlap 3 mm
Side Overlap 19 mm
N
L1
Single phase wiring diagram. 3phase wiring diagram.
N
L1
L2
L3
˜
FLUSH INSET INSTALLATI N
A flush inset installation requires the oven to be recessed
into the cabinet. A minimum 635 mm deep cabinet is
needed if you want the front of the oven to be flush with
surrounding cabinetry.
Electrical Requirements
IMP RTANT N TE: Be aware of local codes and ordi-
nances when installing your service.
The single and double ovens require a separate, grounded
220-240 V AC, 50/60 Hz power supply and uses the
power inlet box. Refer to the illustration below. Total amps
for single ovens is 21 and for double ovens, 37.
3N˜

Wolf Built- n Ovens 6
DIMENSION WILL VARY*
121 mm TYPICAL*
914 mm
FLOOR TO
COUNTERTOP
*Dimension must accommodate height of oven trim.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
E
724 mm
OPENING WIDTH

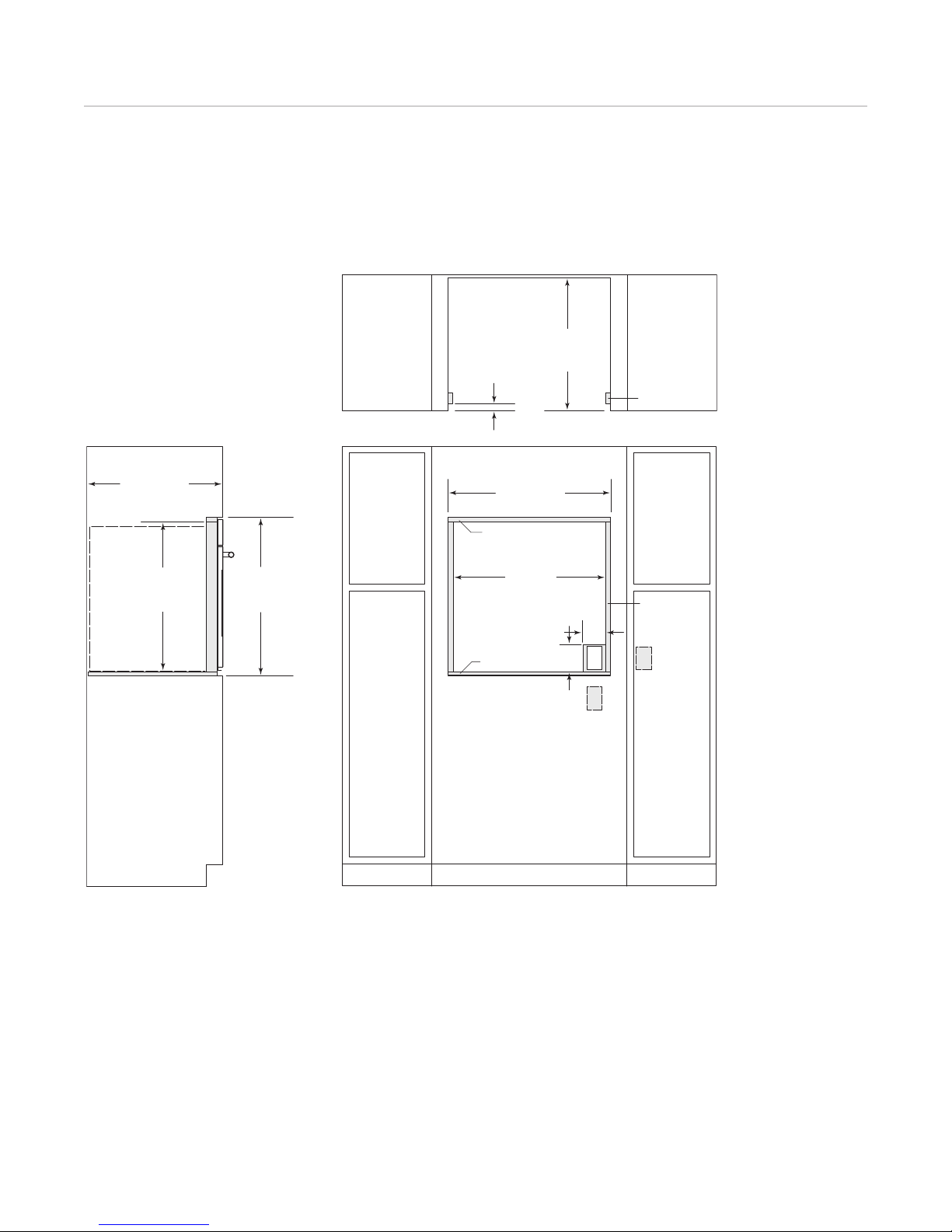

691 mm
OPENING
HEIGHT
610 mm min
OPENING DEPTH
E
127
mm
102
mm
FRONT VIEWSIDE VIEW
1702 mm
TYPICAL*

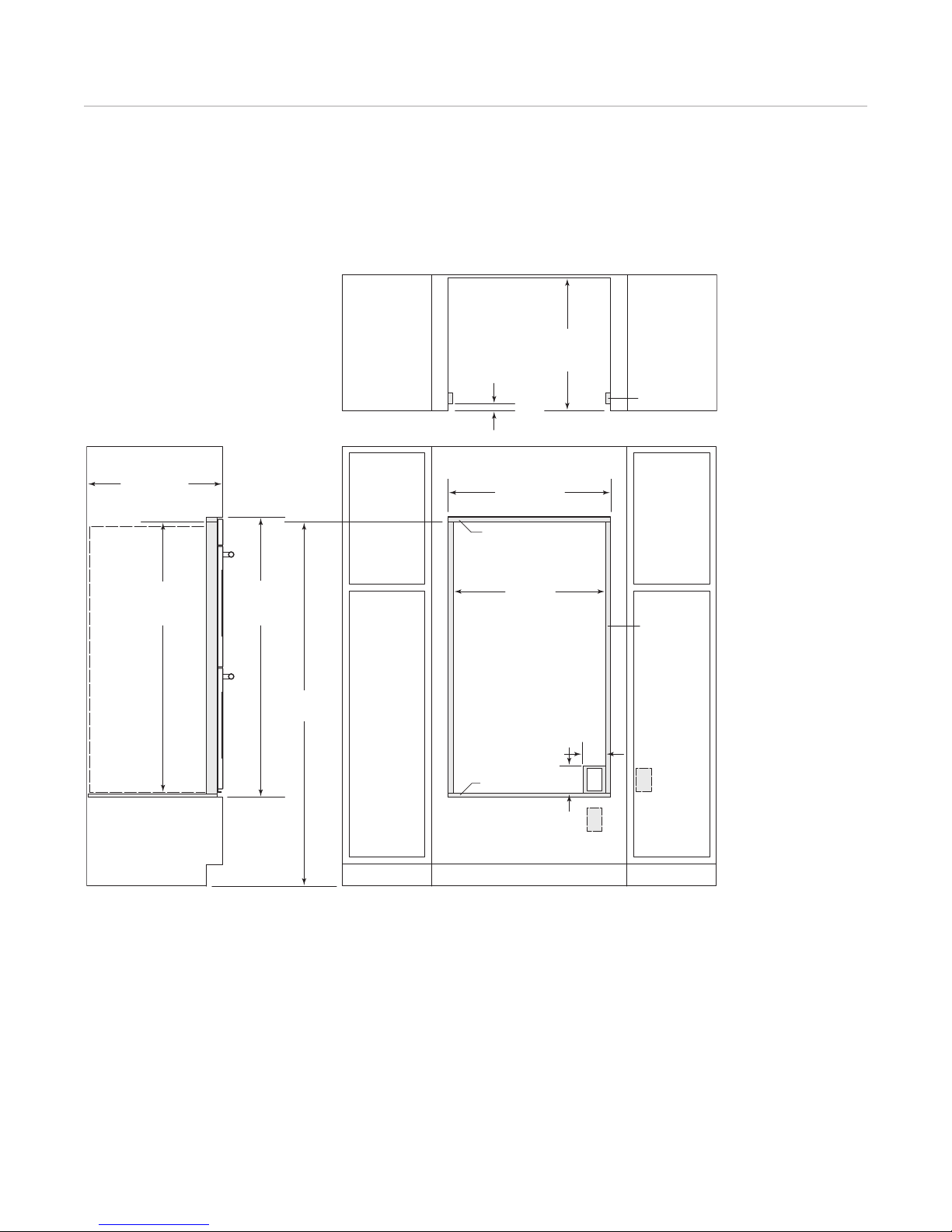

1260 mm
OPENING
HEIGHT
E
E
E
724 mm
OPENING WIDTH
E
127
mm
102
mm
610 mm min
OPENING DEPTH
*Dimension must accommodate height of oven trim.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
762 mm E Series Double Oven
STANDARD INSTALLATI N
762 mm E Series Single Oven
STANDARD INSTALLATI N

Wolf Built- n Ovens 7
wolfappliance.com/specs
691 mm
OPENING
HEIGHT
724 mm min
FLUSH INSET
HEIGHT
724 mm
OPENING WIDTH
635 mm min
CABINET DEPTH 772 mm min
FLUSH INSET WIDTH
22 mm TOP CLEAT
11 mm
PLATFORM
SIDE CLEATS
629 mm min*
FLUSH INSET
DEPTH
25 mm
*For black glass model, increase dimension by 6 mm.
NOTE: Platform must support 113 kg.
Location of electrical supply within opening may require additional cabinet depth.
Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
25 mm
SIDE CLEATS
127
mm
102
mm
EE
E
762 mm E Series Single Oven
FLUSH INSET INSTALLATI N

Wolf Built- n Ovens 8
1260 mm
OPENING
HEIGHT
1294 mm min
FLUSH INSET
HEIGHT
724 mm
OPENING WIDTH
635 mm min
CABINET DEPTH 772 mm min
FLUSH INSET WIDTH
22 mm TOP CLEAT
11 mm
PLATFORM
SIDE CLEATS
629 mm min*
FLUSH INSET
DEPTH
25 mm
*For black glass model, increase dimension by 6 mm.
NOTE: Platform must support 181 kg.
Location of electrical supply within opening may require additional cabinet depth.
Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
25 mm
SIDE CLEATS
127
mm
102
mm
EE
E
1702 mm
TYPICAL
762 mm E Series Double Oven
FLUSH INSET INSTALLATI N

Wolf Microwave Ovens 9
wolfappliance.com/specs
ICBMW30-230 ICBMW30-240
KEY FEATURES
•Built-in convection microwave oven with 40 L capacity
•230 V model output power—microwave 900W, grill
1300W and convection 1450W
•240 V model output power—microwave 900W, grill
1400W and convection 1400W
•762 mm trim allows microwave to be built in to fit
above a Wolf built-in oven
•Classic stainless steel trim
•5 auto-cook settings
•Multiple language settings
•Energy save mode
•10 convection temperature settings
•5 cook settings
•Removable 362 mm turntable and turntable support
•Removable low rack for broiling and removable high
rack for baking
•Oven door with window
•Multiple rack baking
•Safety door latches—oven will not operate unless the
door is closed
•Oven light comes on when oven is operating or door is
open
•Tight door seals
•Rear ventilation openings
Microwave Ovens. Taking the experience we’ve gained from our microwave ovens and combining that with the
expertise of convection, Wolf has brought the best of both cooking technologies together in one unit. Aside from looking
beautiful whether you use it in conjunction with an oven or not, the unit offers you all the performance you expect from
Wolf—a cooking company with a heritage of nearly 75 years in the kitchen.
C NVECTI N MICR WAVE WITH GRILL

Wolf Microwave Ovens 10
ELECTRICAL REQUIREMENTS
Connect the appliance to a single phase 230-240 V/50 Hz
alternating current via a correctly installed earth socket.
The socket must be fused with a 16 A fuse.
Planning nformation
Specifications on the following page provide overall
dimensions, rough openings and installation options for
the convection microwave oven. We have minimized the
information contained in the illustrations, concentrating on
the critical information you need to plan your installation.
Interior Specifications
INTERI R CAPACITY L
Convection Microwave with Grill 40

Wolf Microwave Ovens 11
wolfappliance.com/specs

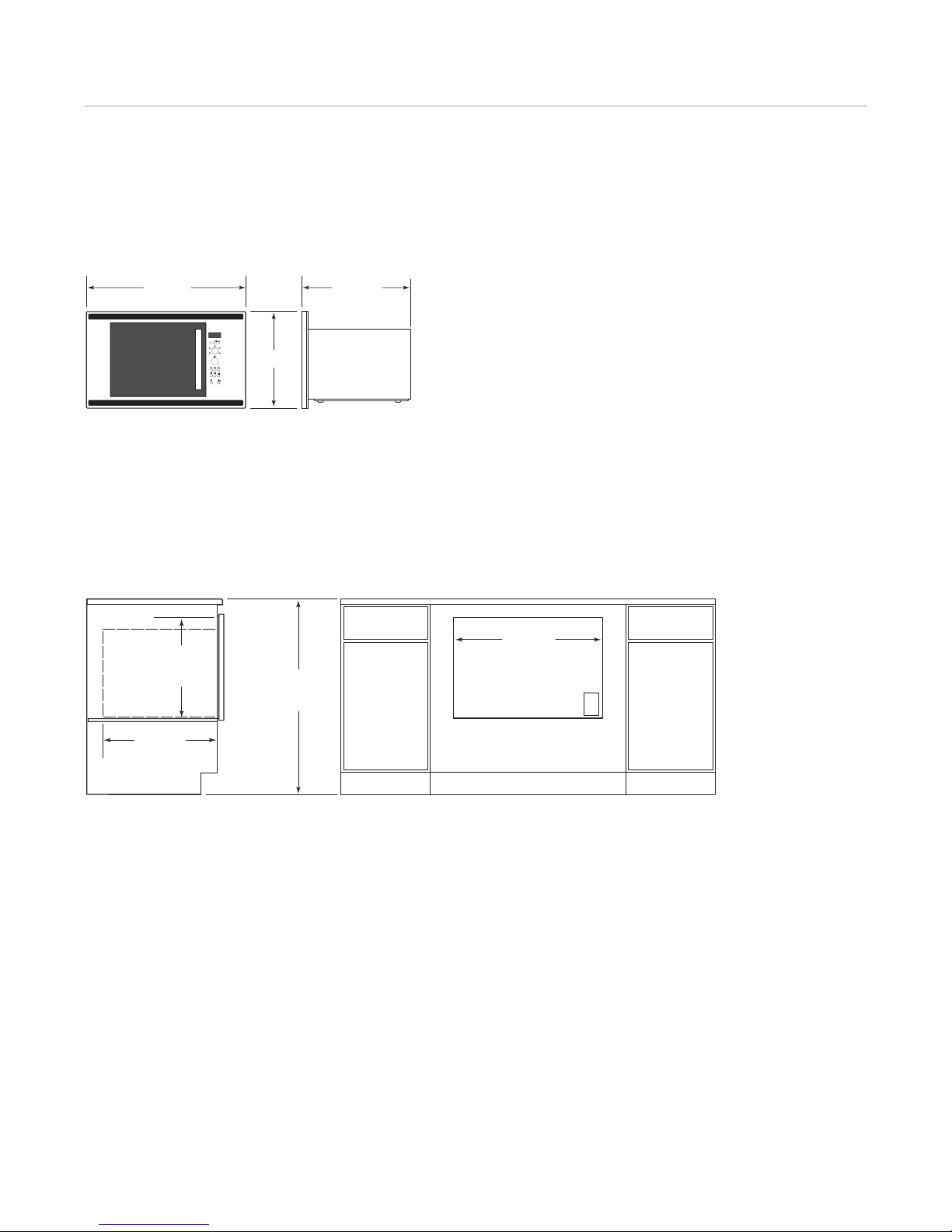

Convection Microwave with Grill
462 mm
537 mm762 mm
VERALL DIMENSI NS
FRONT VIEWSIDE VIEW
914 mm
FLOOR TO
COUNTERTOP
610 mm
OPENING DEPTH
730 mm
OPENING WIDTH
450 mm
OPENING
HEIGHT
Dashed line represents profile of unit.
E
BUILT-IN INSTALLATI N

E SERIES
PR SERIES
INTEGRATED
KEY FEATURES
•850-watt heating element with temperature control
range of 26°C to 93°C.
•Spacious 43.5 L interior capacity.
•Preset, four-hour automatic shutoff.
•Hidden electronic touch controls for sleek appearance.
•Ball-bearing drawer glides for smooth, full extension.
•UL approved for warming towels.
•Accessory six-piece container set available.
Warming Drawers. Wolf warming drawers are designed to take care of prepared foods until it’s time to serve them.
You can adjust the temperature, keeping moist foods moist and crisp foods crisp. Warming drawers are ideal for proofing
dough. Stainless steel drawer fronts are available to match the look of Wolf E series built-in ovens and sealed burner
rangetops. The integrated drawer front allows for a custom wood panel and handle. Model CBWWD30, approved for
outdoor installations, is ideal for any outdoor kitchen.
25 mm TH CK 51 mm TH CK
914 mm W DE
STAINLESS STEEL DRAWER FR NTS
51 mm TH CK
UNFRAMED
TUBULAR HANDLE
CUSTOM PANEL
Wolf Warming Drawers 12

Wolf Warming Drawers 13
wolfappliance.com/specs

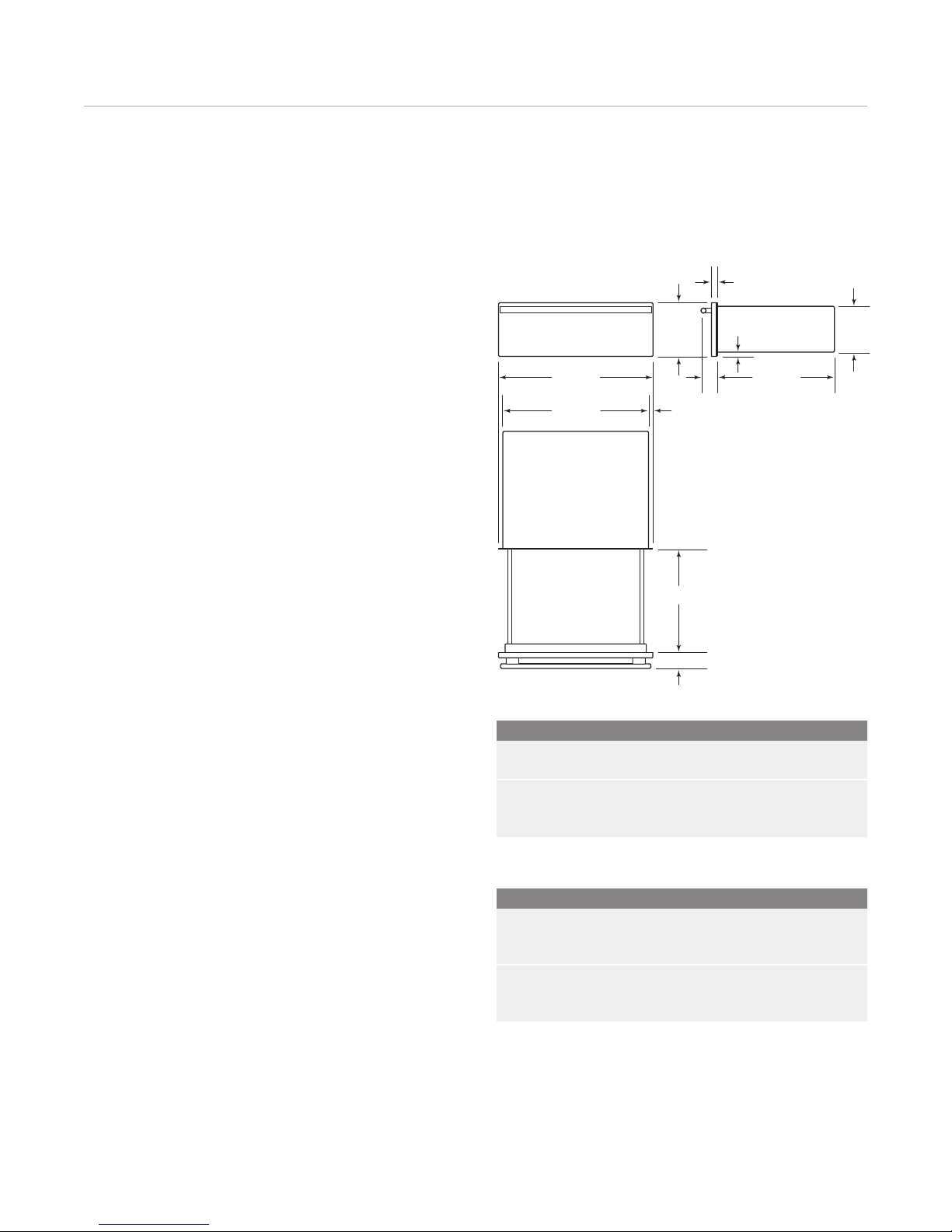

578 mm
718 mm
229
mm
264
mm
546 mm
19 mm
19 mm
A
B
B
759 mm
OR 911 mm
Warming Drawer Front
Wolf stainless steel and integrated drawer fronts allow for
many design options, but the warming drawer itself will be
the same for all applications.
When installing a Wolf warming drawer in combination
with an E series built-in oven, you may choose the stain-
less steel drawer front to match the trim and handle of
your oven. The pro series 51 mm thick drawer front with
pro handle is designed to be installed below a sealed
burner rangetop, so the panel aligns properly with the
front of the rangetop.
Keep in mind, overall dimensions for the warming drawer
remain the same, even though the drawer front may be
wider to match a Wolf 914 mm wide sealed burner
rangetop.
VERALL DIMENSI NS
Dimensions may vary ± 3 mm.
Stainless Steel Drawer Front
E SERIES AB
Tubular Handle 29 mm 89 mm
PR SERIES AB
25 mm Thick / Pro Handle 29 mm 89 mm
51 mm Thick / Pro Handle 54 mm 114 mm
Integrated Drawer Front
CUST M PANEL WHD
Typical 759 mm 264 mm 19 mm
Minimum 746 mm 254 mm 19 mm
RECESS
Overlay* 5 mm
Flush nset thickness of custom panel + 5 mm
*Cabinet face may need to be recessed to conceal warming
drawer face frame.

Wolf Warming Drawers 14
ELECTRICAL REQUIREMENTS
The warming drawer requires a separate, grounded
220-240 V AC, 50/60 Hz power supply. The service should
have a grounded 3-prong receptacle located within reach
of the power cord and flush with the back wall. Total amps
for warming drawers is 4.
Planning nformation
The warming drawer must be installed with a Wolf stainless
steel or integrated drawer front available through your Wolf
dealer. For local distributor information, visit the interna-
tional section of our website, wolfappliance.com. Specific
installation instructions are included with the drawer front.
For all installations, the warming drawer must be fully
enclosed, top and bottom.
The warming drawer platform must be able to support 91
kg. The platform must be a minimum of 25 mm above the
toe kick to allow for the warming drawer trim which
overlaps 16 mm on all four sides.
The warming drawer with E series or pro series 25 mm
thick front panel can be installed in a standard or flush
inset application. For a standard installation, the drawer
front sits proud of the cabinet face frame. A flush inset
installation requires the drawer front to be recessed to be
flush with surrounding cabinetry. Refer to the illustrations
on the following pages for minimum cabinet dimensions
for your specific installation.

Wolf Warming Drawers 15
wolfappliance.com/specs

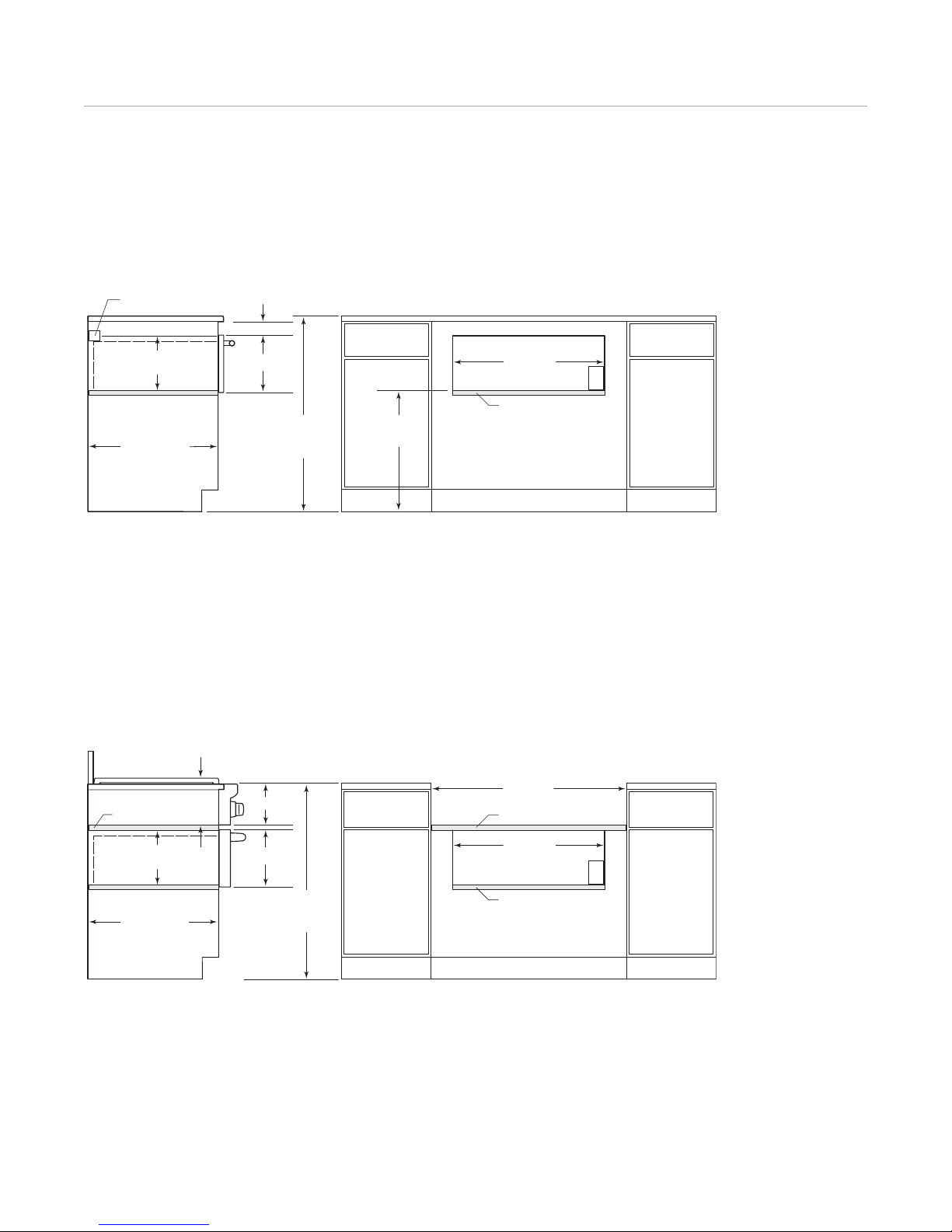

E Series, Pro Series or ntegrated Drawer Front
STANDARD INSTALLATI N
51 mm x 51 mm
ANTI-TIP BLOCK
DIMENSION
WILL VARY*
*Dimension must accommodate height of anti-tip block and drawer face overlap.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
E
610 mm min
CABINET DEPTH
727 mm
OPENING WIDTH
PLATFORM
232 mm
OPENING HEIGHT 264 mm
597 mm
TYPICAL
914 mm
FLOOR TO
COUNTERTOP
914 mm
RANGETOP OPENING WIDTH
191 mm
COOKING SURFACE
216
mm
19 mm
PLATFORM
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
914 mm
FLOOR TO
COUNTERTOP
232 mm
OPENING HEIGHT 264 mm
E
727 mm
WARMING DRAWER
OPENING WIDTH
610 mm min
CABINET DEPTH
PLATFORM
PLATFORM
51 mm Pro Series Drawer Front
STANDARD INSTALLATI N WITH SEALED BURNER RANGET P

Wolf Warming Drawers 16
51 mm x 51 mm
ANTI-TIP BLOCK
DIMENSION
WILL VARY*
597 mm
TYPICAL
*Dimension must accommodate height of anti-tip block and drawer face overlap.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
610 mm min
CABINET DEPTH
772 mm
FLUSH INSET WIDTH
727 mm
OPENING WIDTH
22 mm PLATFORM
22 mm TOP AND SIDE CLEATS
914 mm
FLOOR TO
COUNTERTOP
276 mm
FLUSH INSET
HEIGHT
232 mm
OPENING HEIGHT
E
E
SIDE CLEATS
610 mm min
FLUSH INSET
DEPTH
25 mm
TOP VIEW

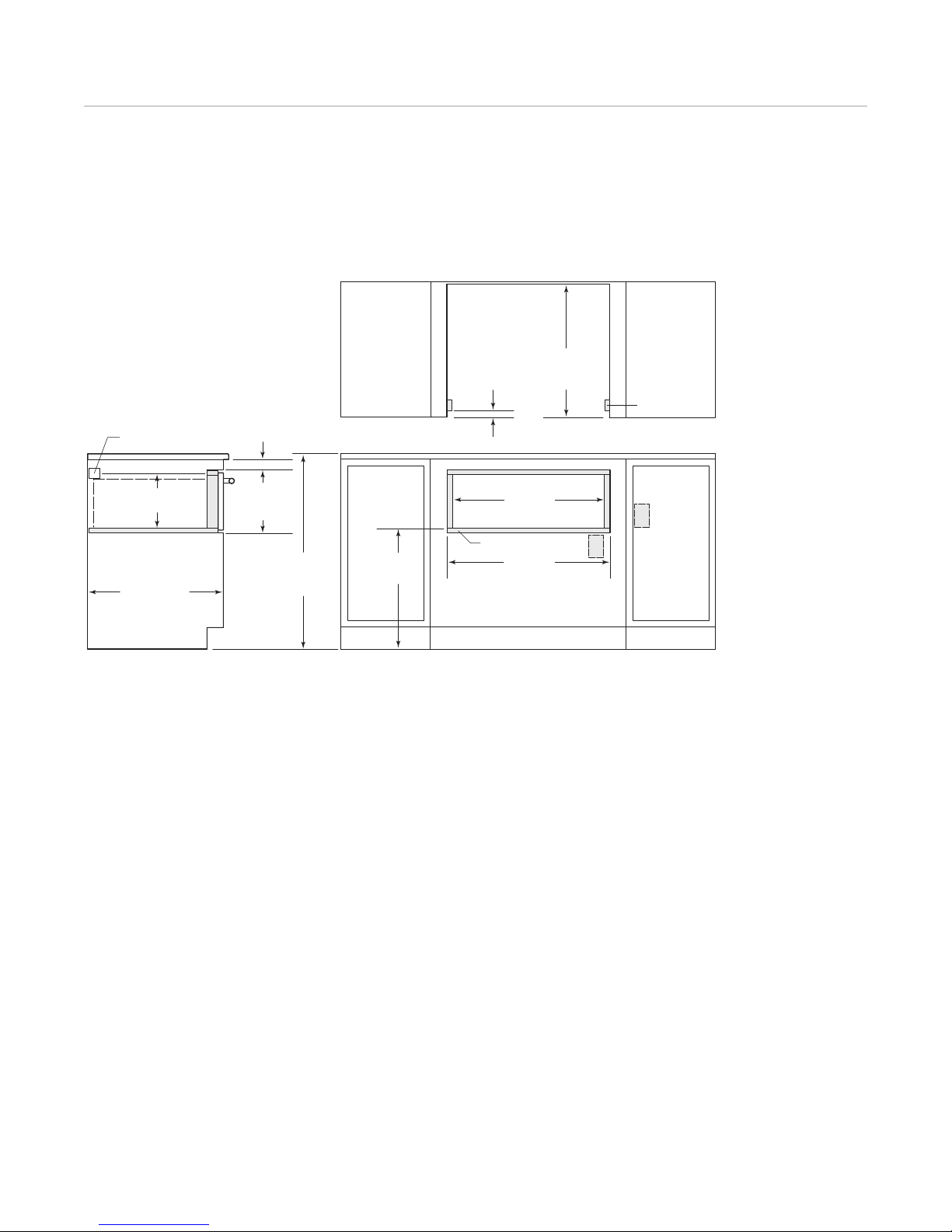

E Series, Pro Series or ntegrated Drawer Front
FLUSH INSET INSTALLATI N

Wolf nduction Cooktops 17
wolfappliance.com/specs
nduction Cooktops. Ultrafast. Exceptionally energy efficient. nduction cooking has been popular among European
chefs and homeowners for decades. ts secret is magnetism. Electromagnetic elements cause iron and magnetic stainless
cookware to heat up instantly and with perfectly distributed heat. Heat generation stops the instant you turn off the
element or remove the pan. The cooktop’s surface remains cool. Your kitchen stays cooler too. Framed induction
cooktops have stainless steel trim. Unframed models have no trim and can be mounted flush with the countertop.
KEY FEATURES
•Ceran glass-ceramic surface for scratch resistance
and easy cleaning.
•True simmer on select elements prevents scorching.
•Melt setting on select elements for gentle heat.
•nduction elements heat cookware, not the glass, for
a cooler, safer cooking surface.
INDUCTI N C KT PS
ICBCT15I/S
381 mm FRAMED
ICBCT30I/S
762 mm FRAMED
ICBCT36I/S
914 mm FRAMED
ICBCT30IU
762 mm UNFRAMED
ICBCT36IU
914 mm UNFRAMED

Wolf nduction Cooktops 18
nduction Cooktops
64 mm
32 mm 22 mm
ALL SIDES
533 mm
381 mm
CONDUIT
381 mm FRAMED
64 mm
762 mm
32 mm 22 mm
ALL SIDES
533 mm
CONDUIT
762 mm FRAMED
914 mm
64 mm
32 mm 22 mm
ALL SIDES
533 mm
CONDUIT
914 mm FRAMED
762 mm
32 mm 22 mm
ALL SIDES
533 mm
76 mm
CONDUIT
762 mm UNFRAMED
914 mm
76 mm
32 mm 22 mm
ALL SIDES
CONDUIT
533 mm
914 mm UNFRAMED
Heating Zone Diameter and Power Watts
381 mm INDUCTI N C KT P
220 mm 1800 / 3000 boost
171 mm 1200
762 mm INDUCTI N C KT P
220 mm (2) 1800 / 3000 boost
171 mm 1200
140 mm 1200
914 mm INDUCTI N C KT P
280 mm 3000 / 4000 boost
220 mm (2) 1800 / 3000 boost
171 mm 1200
140 mm 1200

Wolf Electric Cooktops 19
wolfappliance.com/specs
Electric Cooktops. Behind that sophisticated, minimalist exterior (available either with classic stainless steel trim or in
our trimless design) there lurks a high-performance cooking instrument fairly begging to be put through its paces. All the
elements feature a true simmer setting that hold sauces and stews below the boiling point. One element includes an even
lower one-touch melt setting. The 762 mm and 914 mm electric cooktops are available in unframed and framed models, with
the framed models offered in all three stainless steel trims. Unframed models can be mounted flush with the countertop.
KEY FEATURES
•Ceran glass-ceramic surface for scratch resistance
and easy cleaning.
•True simmer on select elements prevents scorching.
•Melt setting on select elements for gentle heat.
•Dual and triple heating zones to customize heat for
pans of all sizes.
•High-frequency pulsation technology for more even
heating.
•Bridge-zone element to create a larger cooking area.

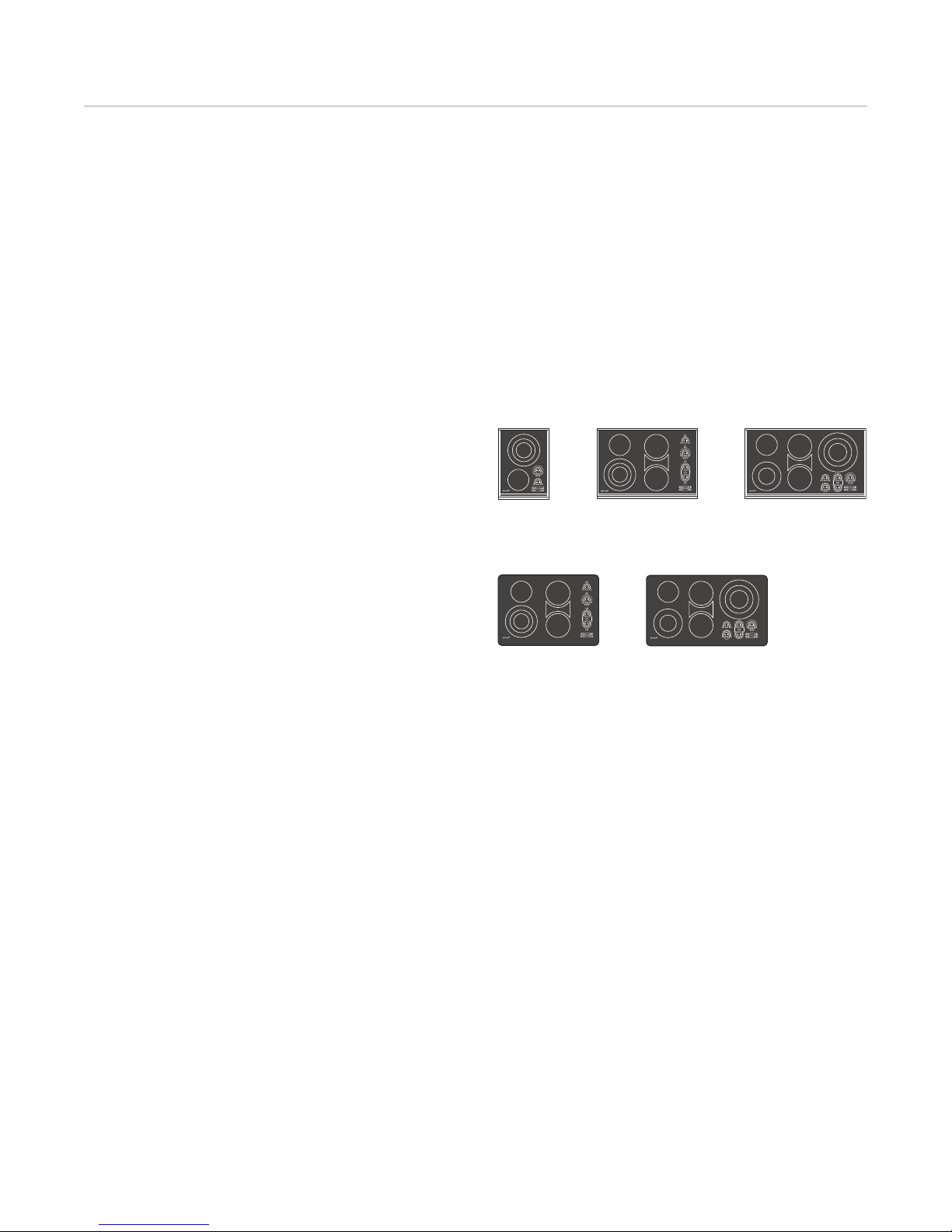

ELECTRIC C KT PS
ICBCT15E/S
381 mm FRAMED
ICBCT30E/S
762 mm FRAMED
ICBCT36E/S
914 mm FRAMED
ICBCT30EU
762 mm UNFRAMED
ICBCT36EU
914 mm UNFRAMED

Wolf Electric Cooktops 20
Electric Cooktops
22 mm
ALL SIDES
96 mm
533 mm
381 mm
381 mm FRAMED
762 mm
533 mm
22 mm
ALL SIDES
96 mm
762 mm FRAMED
914 mm
22 mm
ALL SIDES
96 mm
533 mm
914 mm FRAMED
762 mm
108 mm
22 mm
ALL SIDES
533 mm
762 mm UNFRAMED
914 mm
108 mm
22 mm
ALL SIDES
533 mm
914 mm UNFRAMED
Maximum Element Power Watts
381 mm ELECTRIC C KT P
254 mm Triple 900 / 1800 / 2500
165 mm Single 1200
762 mm ELECTRIC C KT P
254 mm Triple 900 / 1800 / 2500
(2) 203 mm Single 1800
165 mm Single 1200
Singles with Bridge—203 mm x 432 mm 4400
914 mm ELECTRIC C KT P
305 mm Triple 1050 / 2200 / 2700
229 mm Dual 700 / 2200
(2) 203 mm Single 1800
165 mm Single 1200
Singles with Bridge—203 mm x 432 mm 4400
