Wolf WWDFRONT/B User manual

Warming Drawers
INS ALLA ION GUIDE

Important Note
To ensure the safe and efficient use of Wolf equipment,
please take note of the following types of highlighted
information throughout this guide:
IMPOR AN NO E highlights information that is especially
important.
CAU ION signals a situation where minor injury or product
damage may occur if instructions are not followed.
WARNING states a hazard that may cause serious injury or
death if precautions are not followed.
Contents
WolfWarmingDrawers .........................3
Installation Considerations . . . . . . . . . . . . . . . . . . . . . . 4
Warming Drawer Specifications . . . . . . . . . . . . . . . . . . 8
Warming Drawer Installation . . . . . . . . . . . . . . . . . . . 14
ServiceInformation...........................15
Features and specifications are subject to change at any time
without notice. Visit wolfappliance.com/specs for the most
up-to-date information.
IMPOR AN NO E: Throughout this guide, dimensions in
parentheses are millimeters unless otherwise specified.

Wolf Warming Drawers 3
wolfappliance.com/specs
Warming Drawer Installation
IMPOR AN NO E: This installation must be completed
by a qualified installer or Wolf factory certified service.
Read this entire installation guide prior to installation and
save for the local inspector’s reference. The homeowner
should keep this installation guide for future reference.
IMPOR AN NO E: The warming drawer must be installed
with a Wolf stainless steel or integrated drawer front.
This appliance must be installed in accordance with
National Electrical Codes, as well as all state, municipal
and local codes. The correct voltage, frequency and
amperage must be supplied to the appliance from a dedi-
cated, grounded circuit which is protected by a properly
sized circuit breaker or time delay fuse. The proper
voltage, frequency and amperage ratings are listed on the
product rating plate.

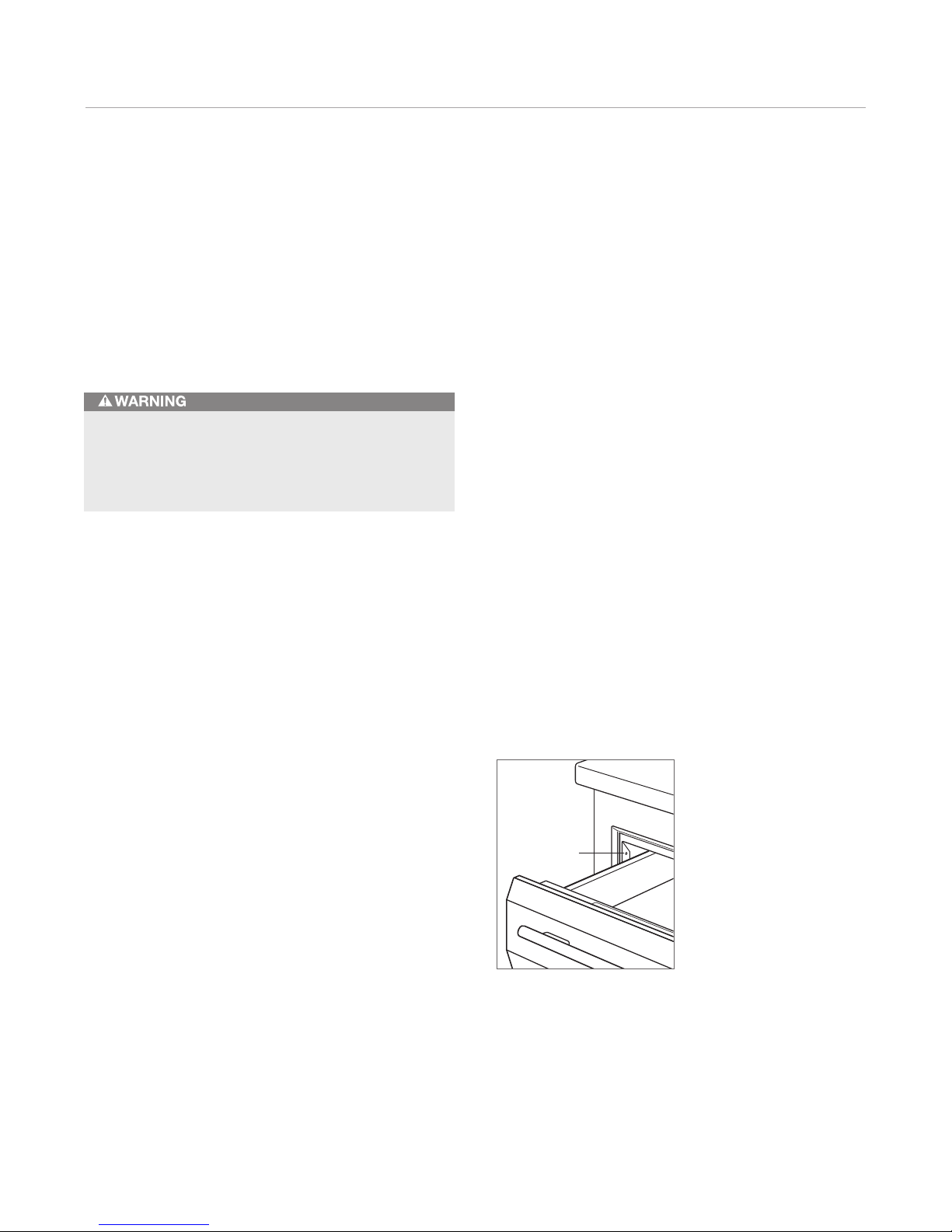

Record the model and serial numbers before installing the
warming drawer. Both numbers are listed on the product
rating plate, located on the left front floor area of the inner
cabinet. To access the rating plate, the drawer must be
fully open. Refer to the illustration below.
Wolf Warming Drawer
Model Number
Serial Number
Location of rating plate.
RATING
P ATE

Installation Considerations 4
Installation Considerations
•The warming drawer must be installed with a Wolf
stainless steel or integrated drawer front. Make sure
you have the accessory drawer front called for in your
installation. Specific installation instructions are
included with the drawer front.
•For all installations, the warming drawer must be fully
enclosed, top and bottom.
•The warming drawer platform must be able to support
200 lbs (90 kg). The platform must be a minimum of 1"
(25) above the toe kick to allow for the warming drawer
trim which overlaps 5/8"(16) on all four sides.
•Check with local utilities for electrical codes that apply
in your area. ocal codes vary. Installation, electrical
connections and grounding must comply with applica-
ble codes. In the absence of local codes, the drawer
should be installed in accordance with National Electri-
cal Code ANSI/NFPA 70-1990 or latest edition.
•Model WWD30O is CSA approved for outdoor
installations.
OOLS AND MA ERIALS REQUIRED
•Minimum 3/4"(19) thick lumber for the solid platform
that supports the warming drawer—must be able to
support 200 lbs (90 kg).
•Wood screws and hardware to install the platform.
•umber for anti-tip block.
•Power saw.
•evel.
•Drill and 1/16" bit, 1/2" bit also for integrated drawer
front application.
•Phillips screwdriver.
•2 wood screws (provided).
•Wood cleats (optional).

Installation Considerations 5
wolfappliance.com/specs
Combination Installations
Refer to the illustrations showing combination installations
on pages 10–13. Also refer to installation instructions
provided with the other Wolf products.
•The warming drawer may be installed in combination
with a Wolf built-in oven and/or microwave oven.
Additional clearance between warming drawer and
oven openings may be required. To allow the warming
drawer trim and the oven trim to meet, a 7/8"(22)
platform may be used to separate the two openings.
This will act as the support platform for the oven and
the anti-tip device for the warming drawer. An anti-tip
block may be installed at the rear of the cabinet in
place of the platform. If the warming drawer is installed
above an oven, a 7/8"(22) platform is required to allow
for clearance of overlaps.
•The warming drawer may be installed below a Wolf
cooktop or sealed burner rangetop. Allow enough
room for gas and electrical connections for the
cooktop.
•The warming drawer may be installed next to or above
another Wolf warming drawer.
•Model WWD30O may be installed below a Wolf
outdoor grill.
Electrical Requirements
Power Supply 120 V AC, 50/60 Hz
Circuit Breaker 15 or 20 amp
Receptacle 3-prong grounding-type
Electrical Requirements
The electrical supply should be located as shown in the
illustration for your specific installation on the following
pages. A separate circuit, servicing only this appliance is
required.
IMPOR AN NO E: You must follow all National Electrical
Code regulations. In addition, be aware of local codes and
ordinances when installing your service.
If two warming drawers are installed side by side, they can
operate from the same electrical outlet. A 30 amp circuit
breaker is required for this installation.
IMPOR AN NO E: When installed outdoors, a ground
fault circuit interrupter (GFCI) is required to reduce the risk
of electrical shock.

Installation Considerations 6
223/4"(578)
281/4"(718)
9"
(229)
103/8"
(264)
211/2"
(546)
3/4"
(19)
3/4"(19)
A
B
B
297/8"(759)
OR 357/8"(911)
Drawer Front Options
IMPOR AN NO E: The warming drawer must be installed
with a Wolf stainless steel or integrated drawer front.
Wolf stainless steel and integrated drawer fronts allow for
many design options, but the warming drawer itself will be
the same for all applications.
When installing a Wolf warming drawer in combination
with an series or E series built-in oven, you may choose
the stainless steel drawer front to match the trim and
handle of your oven.
The E series 2" (51) thick drawer front with pro handle, in
30" (762) and 36" (914) widths, is designed to be installed
below a sealed burner rangetop or outdoor gas grill, so
the panel aligns properly with the front of the rangetop or
grill.
Keep in mind, overall dimensions for the warming drawer
remain the same, even though the drawer front may be
wider to match a Wolf 36" (914) wide oven, sealed burner
rangetop or outdoor grill.
OVERALL DIMENSIONS
Dimensions may vary ± 1/8"(3).
Stainless Steel Drawer Front
L SERIES AB
Tubular Handle 7/8"(22) 31/2"(89)
E SERIES AB
Tubular Handle 11/8"(29) 31/2"(89)
Pro Handle 11/8"(29) 31/2"(89)
Pro Handle (2" thick) 21/8"(54) 41/2"(114)
Integrated Drawer Front
CUS OM PANEL WHD
Typical 297/8"(759) 103/8"(264) 3/4"(19)

Installation Considerations 7
wolfappliance.com/specs
Mounting holes will need to be drilled in the back of the
drawer front panel. Holes should be drilled on site to
ensure proper fit and gaps are achieved. A drilling
template is provide with the integrated drawer front.
IMPOR AN NO E: Be sure to finish the inside lip of the
opening and the front face of the platform and cleats.
These areas may be visible when the drawer is open.
IMPOR AN NO E: Be aware of the location of the
mounting holes on the warming drawer frame to make
sure screws used to attach the cleats do not interfere with
screw holes for mounting the warming drawer.
PLATFORM
TOP CLEAT
SIDE CLEAT
CABINETRY
OPENING
CLEATS AND PLATFORM
RECESSED 3/16"(5)
Recessed application. Flush inset application.
PLATFORM
TOP CLEAT
SIDE CLEAT
CABINETRY
OPENING
CLEATS AND PLATFORM
RECESSED 3/16"(5)
PLUS THICKNESS
OF DECORATIVE PANEL
Installation Options
S ANDARD, RECESSED OR FLUSH INSE INS ALLA ION
The warming drawer with E series drawer front can be
installed in a standard, recessed or flush inset application.
For a standard installation, the drawer collar and front
panel sit proud of the cabinet face frame. A recessed
installation requires the cabinetry be recessed by 3/16"(5)
so the collar is flush with the cabinet face frame but the
drawer front will sit proud. A flush inset installation
requires the drawer collar and front panel be recessed to
be flush with surrounding cabinetry. Refer to illustrations
on the following pages for minimum cabinet dimensions
for your specific installation.
INS ALL RECESSED CLEA S AND PLA FORM
For a recessed or flush inset application, you will need to
install a recessed platform and cleats into the opening.
Proper recess of the platform and cleats is critical to the
function and esthetics of the warming drawer installation.
The depth of the platform may increase with the cabinet
depth. Be sure to rigidly mount the platform so that it
can support a minimum of 200 lbs (90 kg). Refer to the
illustrations below.

Warming Drawer Specifications 8
ANTI-TIP BLOCK
DIMENSION
WILL VARY*
*Dimension must accommodate height of anti-tip block and drawer face overlap.
NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
E
24" (610) min
CABINET DEPTH
285/8"(727)
OPENING WIDTH
PLATFORM
91/8"(232)
OPENING HEIGHT 103/8"
(264)
231/2"
(597)
TYPICAL
36" (914)
FLOOR TO
COUNTERTOP
Standard Installation
L SERIES, E SERIES OR IN EGRA ED DRAWER FRON

Warming Drawer Specifications 9
wolfappliance.com/specs
DIMENSION
WILL VARY*
231/2"
(597)
TYPICAL
*Dimension must accommodate height of anti-tip block and drawer face overlap.
NOTE: Dimensions provided allow for 1/4" (6) reveal for proper air flow. Location of electrical supply within opening may require additional
cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
303/8"(772)
FLUSH INSET WIDTH
285/8"(727)
OPENING WIDTH
7/8"(22) PLATFORM
7/8"(22) TOP AND SIDE CLEATS
36" (914)
FLOOR TO
COUNTERTOP
107/8"(276)
FLUSH INSET
HEIGHT
91/8"(232)
OPENING HEIGHT E
E
SIDE CLEATS
24(610) min
FLUSH INSET
DEPTH
1" (25)
TOP VIEW
ANTI-TIP BLOCK
Flush Inset Installation
E SERIES OR IN EGRA ED DRAWER FRON

Warming Drawer Specifications 10
24" (610) min
OPENING DEPTH
*Platform must support 250 lbs (113 kg).
NOTE: Location of electrical supply within oven opening may require additional cabinet depth.
FRONT VIEWSIDE VIEW
285/8"(727)
WARMING DRAWER
OPENING WIDTH
281/2"(724)
OVEN OPENING WIDTH
E
E
MICROWAVE
OPENING
273/16"
(691)
11/2"(38) min
ESERIES
1" (25) min
LSERIES
91/8"(232) 3/4"(19)
min
PLATFORM* E
E
5"
(127)
4"
(102)
Standard Tower Installation
INS ALLA ION WI H MICROWAVE AND BUIL -IN OVEN

Warming Drawer Specifications 11
wolfappliance.com/specs
303/8"(772) min
FLUSH INSET WIDTH
SIDE CLEATS
243/4"
(629) min
FLUSH
INSET
DEPTH
1"(25)
*Platform must support 250 lbs (113 kg).
NOTE: Location of electrical supply within oven opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
105/8"
(270)
FLUSH INSET
HEIGHT
91/8"(232)
OPENING HEIGHT
E
1" (25) PLATFORM
285/8"(727)
WARMING DRAWER
OPENING WIDTH
17" (432)
OPENING
HEIGHT
181/2"(470)
FLUSH INSET
HEIGHT
271/2"(699)
STANDARD MICROWAVE
OPENING WIDTH
E
281/2"(724)
E SERIES OVEN
OPENING WIDTH
11/16"(17) TOP CLEAT
9/16"(14)
PLATFORM*
1" (25)
SIDE CLEATS
E
E
5"
(127)
4"
(102)
273/16"
(691)
OPENING
HEIGHT
281/8"
(714) min
FLUSH INSET
HEIGHT
111/16"(43) PLATFORM
Flush Inset Tower Installation
INS ALLA ION WI H S ANDARD MICROWAVE AND E SERIES OVEN

Warming Drawer Specifications 12
303/8"(772) min
FLUSH INSET WIDTH
SIDE CLEATS
243/4"
(629) min
FLUSH
INSET
DEPTH
1"(25)
*Platform must support 250 lbs (113 kg).
NOTE: Location of electrical supply within oven opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
105/8"
(270)
FLUSH INSET
HEIGHT
91/8"(232)
OPENING HEIGHT
E
1" (25) PLATFORM
285/8"(727)
WARMING DRAWER
OPENING WIDTH
187/8"(479)
OPENING
HEIGHT
201/8"
(511)
FLUSH INSET
HEIGHT
271/2"(699)
CONVECTION MICROWAVE
OPENING WIDTH
E
281/2"(724)
E SERIES OVEN
OPENING WIDTH
1/2"(13) TOP CLEAT
9/16"(14)
PLATFORM*
1" (25)
SIDE CLEATS
E
E
5"
(127)
4"
(102)
273/16"
(691)
OPENING
HEIGHT
281/8"
(714) min
FLUSH INSET
HEIGHT
15/8"(41) PLATFORM
Flush Inset Tower Installation
INS ALLA ION WI H CONVEC ION MICROWAVE AND E SERIES OVEN

Warming Drawer Specifications 13
wolfappliance.com/specs
273/16"
(691)
OPENING
HEIGHT
281/8"
(714) min
FLUSH INSET
HEIGHT
281/2"(724)
E SERIES OVEN
OPENING WIDTH
303/8"(772) min
FLUSH INSET WIDTH
281/2"(724)
DRAWER MICROWAVE
OPENING WIDTH
E
7/8"(22) TOP CLEAT
9/16"(14)
PLATFORM*
5/8"(16) PLATFORM
SIDE CLEATS
243/4"
(629) min
FLUSH
INSET
DEPTH
11/4"(32)
FOR MICROWAVE
1" (25) FOR OVEN
AND WARMING
DRAWER
*Platform must support 250 lbs (113 kg.
NOTE: Location of electrical supply within oven opening may require additional cabinet depth. Dashed line represents profile of unit.
FRONT VIEWSIDE VIEW
TOP VIEW
143/4"(375)
OPENING
HEIGHT
153/8"
(391)
FLUSH INSET
HEIGHT
1" (25)
SIDE CLEATS
105/8"
(270)
FLUSH INSET
HEIGHT
91/8"(232)
OPENING HEIGHT
E
1" (25) PLATFORM
285/8"(727)
WARMING DRAWER
OPENING WIDTH
E
E
5"
(127)
4"
(102)
Flush Inset Tower Installation
INS ALLA ION WI H DRAWER MICROWAVE AND E SERIES OVEN

Install the Warming Drawer
Unpack the warming drawer on a flat surface. Remove all
packaging materials from inside the warming drawer. Do
not discard the package containing the two wood screws
needed for installation.
Turn power off to the electrical outlet.
Slide the left corner of the warming drawer into the
opening. If the electrical outlet is installed inside the
opening, plug the power cord into the outlet. The excess
cord should be coiled behind or beside the unit. If the
outlet is located in an adjacent cabinet, thread the power
cord through the hole in the cabinet wall. Push the drawer
back into the opening until the trim meets the cabinet
front. Make sure the power cord does not get trapped
under the warming drawer.
IMPOR AN NO E: Do not lift up on the handle to push
the drawer into place.
Open the warming drawer to its full extension. Drill pilot
holes in each side hole, located toward the front on each
side of the warming drawer. Install the wood screws
provided with the unit. Refer to the illustration below.
Turn power back on to the electrical outlet.
LOCATION OF
SIDE HOLE
Location of side hole.
Anti-Tip Block
INS ALL AN I- IP BLOCKING
Install an anti-tip block against the rear cabinet wall. When
the warming drawer is installed below a built-in oven, you
may use a 7/8"(22) thick platform to allow the warming
drawer trim and the oven trim to meet. The platform will
act as an anti-tip device for the warming drawer.
An anti-tip block or platform must be installed to
prevent the warming drawer from tipping forward while
opened when loaded. Failure to do so could result in
personal injury and damage to the cabinet.
Warming Drawer Installation 14

Troubleshooting
IMPOR AN NO E: If the warming drawer does not
operate properly, follow these troubleshooting steps:
•Verify that electrical power is being supplied to the
warming drawer.
•Check electrical connections to ensure that the instal-
lation has been completed correctly.
•Refer to the troubleshooting guide in the Wolf warming
drawers use & care guide.
•If the warming drawer still does not operate properly,
contact Wolf factory certified service. Do not attempt
to repair the warming drawer yourself. Wolf is not
responsible for service required to correct a faulty
installation.
Service Information 15
Service Information
If service is necessary, maintain the quality built into your
warming drawer by contacting Wolf factory certified
service.
For the name and number of Wolf factory certified service
nearest you, check the contact & support section of our
website, wolfappliance.com or call Wolf customer service
at 800-222-7820.
When calling for service, you will need the model and
serial numbers of the warming drawer. Both numbers are
listed on the product rating plate, located on the left front
floor area of the inner cabinet. To access the rating plate,
the drawer must be fully open. Refer to the illustration
below.
wolfappliance.com/specs
The information and images in this guide are the copyright property of Wolf Appliance, Inc. Neither this guide nor any information or images contained herein
may be copied or used in whole or in part without the express written permission of Wolf Appliance, Inc. ©Wolf Appliance, Inc. all rights reserved.
Wolf, Wolf & Design, Wolf Gourmet, W & Design and the color red as applied to knobs are registered trademarks and service marks of Wolf Appliance, Inc.
Sub-Zero, Sub-Zero & Design, Dual Refrigeration, Constant Care and The iving Kitchen are registered trademarks and service marks of Sub-Zero, Inc.
(collectively, the “Company Marks.”) All other trademarks or registered trademarks are property of their respective owners in the United States and other countries.
Location of rating plate.
RATING
P ATE

WOLF APPLIANCE, INC. P. O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
816978 REV-A 1/2011
