WOLFF 700 B Manual

Slewing tower crane
English
English
WOLFF 700 B
Technical information
TI_2017-3
WOLFF 700 B

Published by
WOLFFKRAN GmbH
Austraße 72
74076 Heilbronn
Germany
Phone [phone]
Fax [phone]
www.wolffkran.com
[email protected]
Copyright
This documentation including all of its subsections is protected by copyright laws.
Any type of use or modification outside of the stringent limits of the copyright laws without permission
of WOLFFKRAN GmbH is prohibited and subject to penalties.
This applies particularly for copying, translation, microfilming and storage and processing in electronic
systems.
At the time of printing, the information, data, illustrations and notes comprised in this manual were up-
to-date.
Subject to change of design, error and typos.
Stand: 03/2017
2 TI_2017-3WOLFF 700 B

Table of contents
Schedule drawing1 5
Schedule drawing WOLFF 700 B1.1 5
Load carrying capacities2 6
Table of load carrying capacity WOLFF 700 B (1 fall operation)2.1 7
Table of load carrying capacities (kg) in meter intervals, WOLFF 700 B (1 fall operation)2.2 8
Table of load carrying capacity WOLFF 700 B (2 fall operation)2.3 9
Table of load carrying capacities (kg) in meter intervals, WOLFF 700 B (2 fall operation)2.4 10
Table of load carrying capacity WOLFF 700 B (3 fall operation)2.5 11
Table of load carrying capacities (kg) in meter intervals, WOLFF 700 B (3 fall operation)2.6 12
Tower combinations3 13
Tower combinations on foundation (slewing section with HT 23 - connection)3.1 14
Tower combinations on cross frame (slewing section with HT 23 - connection)3.2 20
Tower combinations on mobile cross frame (slewing section with HT 23 - connection)3.3 30
Foundation loads / central ballast weights / corner loads in compliance with EN 14439 /4
EN 13001
40
Foundation loads jib 30 m - 35 m4.1 41
Foundation loads jib 40 m - 70 m4.2 42
Operating speeds5 43
Out of service positions6 45
Package list7 47
Package list 700 B7.1 47
Assembly weights8 49
Counterweight blocks8.1 49
Counterweight block, 4.5 t8.1.1 50
Counterweight block, 5.97 t8.1.2 51
Counterweight block, 8.0 t8.1.3 52
Total weight jib assembly8.2 53
Assembly weight slewing section8.3 54
Assembly weight cross frame8.4 55
Table of contents
3TI_2017-3 WOLFF 700 B

Assembly weights traveling cross frame8.5 56
Required hook height for mobile cranes8.6 57
Assembly diagrams9 59
Jib attachment diagram9.1 59
Jib attachment diagram 70 m to 60 m9.1.1 60
Jib attachment diagram 55 m to 45 m9.1.2 61
Jib attachment diagram 40 m to 30 m9.1.3 62
Jib brace diagram9.2 63
Arrangement of standard railings9.3 65
Standard railings (NG) and accessories9.3.1 65
Arrangement of standard railings9.3.2 66
Support blocks for brace9.4 69
Suitable climbing devices10 71
Outer climbing devices10.1 72
Outer climbing device KWH 23 / KWH 23.110.1.1 73
Inner climbing devices10.2 74
Inner climbing device KSH 23/ KSH E 2310.2.1 75
Arrangement of counterweight blocks11 80
Table of contents
4 TI_2017-3WOLFF 700 B

1 Schedule drawing

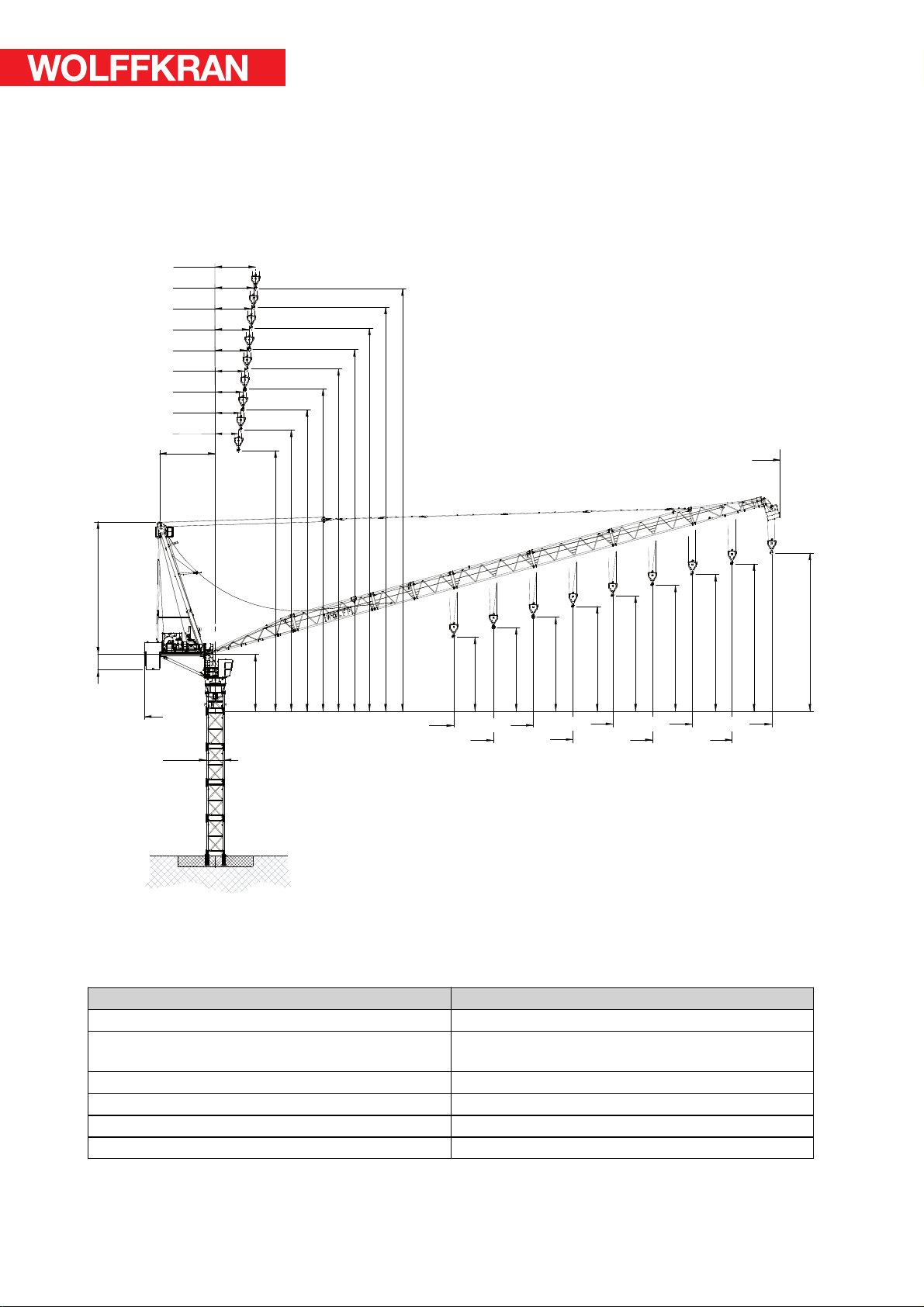

1.1 Schedule drawing WOLFF 700 B
30 m
35 m 45 m 55 m 65 m
9,3 m
10,5 m
11,8 m
13,2 m
14,5 m
15,9 m
17,2 m
19,9 m
18,5 m
31,6 m
36,8 m
41,9 m
47,1 m
52,2 m
57,3 m
62,5 m
67,6 m
72,8 m
4,1 m
4,6 m
5,1 m
5,7 m
6,2 m
6,8 m
7,3 m
3,5 m
3,0 m
7,0 m
2,3 m
30,0 t
35,0 t
40,0 t
50,0 t
50,0 t
50,0 t
50,0 t
50,0 t
50,0 t
26,5 t
22,6 t
20,0 t
17,7 t
15,0 t
12,4 t
10,0 t
7,6 t
5,4 t
71 m
16,7 m2,0m
8,9 m
7,2 m
40 m 50 m 60 m 70 m
Item Data
Crane type BGL GROUP C.0.11.710
Design Overhead travelling crane with top slewing luffing
jib, with climbing feature
Type of setup Stationary or travelling
Basis of calculation EN
Payload torque max. 8000 kNm
Hoist winch Hw 40132FU
5
1 Schedule drawing
TI_2017-3 WOLFF 700 B

2 Load carrying capacities
!
NOTICE
WOLFF-Boost
With the WOLFF-Boost function, the load is allowed to exceed the load torque
range specified for the lifting capacities by up to 10%. This is, however, sub-
ject to the restriction that hoisting gear and trolley drive (trolley crane)
respectively hoisting gear and derricking gear (luffing crane) must only be
moved alternatingly.
6
2 Load carrying capacities
TI_2017-3WOLFF 700 B

2.1 Table of load carrying capacity WOLFF 700 B (1 fall operation)
20 t
Operating radius
[m]
20 25 30 35 40 45 50 55 60 65 70
JL
[m]
70 7.3 – 28.0 20.0 20.0 18.4 15.1 12.7 10.8 9.3 8.1 7.0 6.2 5.4 LCC
[t]
65 6.8 – 31.5 20.0 20.0 20.0 17.6 14.9 12.8 11.1 9.7 8.6 7.6
60 6.2 – 34.0 20.0 20.0 20.0 19.3 16.5 14.4 12.6 11.2 10.0
55 5.7 – 35.5 20.0 20.0 20.0 20.0 17.6 15.5 13.8 12.4
50 5.1 – 37.5 20.0 20.0 20.0 20.0 18.8 16.7 15.0
45 4.6 – 39.5 20.0 20.0 20.0 20.0 19.8 17.7
40 4.1 – 40.0 20.0 20.0 20.0 20.0 20.0
35 3.5 – 35.0 20.0 20.0 20.0 20.0
30 3.0 – 30.0 20.0 20.0 20.0
JL Jib length
LCC Load carrying capacity
The load carrying capacity is related to a tower height of 40.5 m. Tower heights greater than that reduce
the maximum load carrying capacity by the weight of the additional hoisting ropes (one fall operation =
5.04 kg per meter of the hook range).
7
2 Load carrying capacities
TI_2017-3 WOLFF 700 B

2.2 Table of load carrying capacities (kg) in meter intervals, WOLFF 700 B
(1 fall operation)
Operating radi
us Jib length [m]
[m] 30 35 40 45 50 55 60 65 70
10 20000 20000 20000 20000 20000 20000 20000 20000 20000
11 20000 20000 20000 20000 20000 20000 20000 20000 20000
12 20000 20000 20000 20000 20000 20000 20000 20000 20000
13 20000 20000 20000 20000 20000 20000 20000 20000 20000
14 20000 20000 20000 20000 20000 20000 20000 20000 20000
15 20000 20000 20000 20000 20000 20000 20000 20000 20000
16 20000 20000 20000 20000 20000 20000 20000 20000 20000
17 20000 20000 20000 20000 20000 20000 20000 20000 20000
18 20000 20000 20000 20000 20000 20000 20000 20000 20000
19 20000 20000 20000 20000 20000 20000 20000 20000 20000
20 20000 20000 20000 20000 20000 20000 20000 20000 20000
21 20000 20000 20000 20000 20000 20000 20000 20000 20000
22 20000 20000 20000 20000 20000 20000 20000 20000 20000
23 20000 20000 20000 20000 20000 20000 20000 20000 20000
24 20000 20000 20000 20000 20000 20000 20000 20000 20000
25 20000 20000 20000 20000 20000 20000 20000 20000 20000
26 20000 20000 20000 20000 20000 20000 20000 20000 20000
27 20000 20000 20000 20000 20000 20000 20000 20000 20000
28 20000 20000 20000 20000 20000 20000 20000 20000 20000
29 20000 20000 20000 20000 20000 20000 20000 20000 19160
30 20000 20000 20000 20000 20000 20000 20000 20000 18380
31 20000 20000 20000 20000 20000 20000 20000 17650
32 20000 20000 20000 20000 20000 20000 19620 16960
33 20000 20000 20000 20000 20000 20000 18910 16310
34 20000 20000 20000 20000 20000 20000 18230 15710
35 20000 20000 20000 20000 20000 19340 17590 15130
36 20000 20000 20000 19700 18720 16990 14590
37 20000 20000 20000 19130 18130 16420 14080
38 20000 20000 19740 18590 17570 15880 13600
39 20000 20000 19230 18080 17040 15370 13140
40 20000 19760 18750 17590 16540 14890 12700
41 19310 18290 17120 16060 14430 12280
42 18880 17860 16680 15600 13990 11890
43 18470 17440 16260 15170 13570 11510
44 18080 17050 15860 14760 13160 11150
45 17700 16670 15470 14360 12780 10810
46 16300 15110 13980 12420 10480
47 15960 14760 13620 12070 10160
48 15630 14420 13270 11730 9860
49 15310 14090 12940 11410 9570
50 15000 13780 12620 11100 9290
51 13490 12310 10800 9030
52 13200 12010 10510 8770
53 12920 11730 10240 8520
54 12660 11450 9980 8280
55 12400 11190 9720 8050
56 10930 9470 7830
57 10690 9240 7620
58 10450 9010 7410
59 10220 8790 7210
60 10000 8570 7020
61 8360 6840
62 8160 6660
63 7970 6480
64 7780 6310
65 7600 6150
66 5990
67 5840
68 5690
69 5540
70 5400
8
2 Load carrying capacities
TI_2017-3WOLFF 700 B

2.3 Table of load carrying capacity WOLFF 700 B (2 fall operation)
40 t
Operating radius
[m]
max. LCC 20 25 30 35 40 45 50 55 60 65 70
JL
[m]
70 7.3 – 19.0 30.0 t 28.3 21.6 17.2 14.0 11.6 9.8 8.3 7.1 6.1 5.2 4.5 LCC
[t]
65 6.8 – 18.5 35.0 t 32.0 24.7 19.8 16.4 13.7 11.7 10.1 8.8 7.6 6.7
60 6.2 – 17.5 40.0 t 34.6 26.9 21.8 18.2 15.5 13.3 11.6 10.3 9.1
55 5.7 – 18.0 35.8 28.1 23.1 19.4 16.7 14.6 12.9 11.5
50 5.1 – 18.5 36.9 29.3 24.2 20.6 17.9 15.8 14.1
45 4.6 – 19.0 38.0 30.4 25.3 21.6 18.9 16.8
40 4.1 – 19.5 39.0 31.3 26.1 22.5 19.7
35 3.5 – 20.0 40.0 31.9 26.5 22.6
30 3.0 – 20.0 40.0 31.9 26.5
JL Jib length
LCC Load carrying capacity
The load carrying capacity is related to a tower height of 40.5 m. Tower heights greater than that reduce
the maximum load carrying capacity by the weight of the additional hoisting ropes (double-reeving mode
= 10.08 kg per meter of the hook range).
9
2 Load carrying capacities
TI_2017-3 WOLFF 700 B

2.4 Table of load carrying capacities (kg) in meter intervals, WOLFF 700 B
(2 fall operation)
Operating radi
us Jib length [m]
[m] 30 35 40 45 50 55 60 65 70
10 40000 40000 40000 40000 40000 40000 40000 35000 30000
11 40000 40000 40000 40000 40000 40000 40000 35000 30000
12 40000 40000 40000 40000 40000 40000 40000 35000 30000
13 40000 40000 40000 40000 40000 40000 40000 35000 30000
14 40000 40000 40000 40000 40000 40000 40000 35000 30000
15 40000 40000 40000 40000 40000 40000 40000 35000 30000
16 40000 40000 40000 40000 40000 40000 40000 35000 30000
17 40000 40000 40000 40000 40000 40000 40000 35000 30000
18 40000 40000 40000 40000 40000 40000 38790 35000 30000
19 40000 40000 40000 40000 38920 37770 36560 33960 30000
20 40000 40000 39010 37990 36920 35760 34550 32030 28250
21 38070 38070 37170 36180 35110 33950 32730 30290 26670
22 36320 36310 35500 34520 33460 32300 31080 28710 25230
23 34720 34700 33970 33020 31960 30790 29570 27260 23910
24 33250 33230 32570 31630 30580 29410 28190 25930 22710
25 31900 31880 31290 30360 29310 28140 26910 24710 21600
26 30650 30630 30100 29190 28140 26960 25740 23590 20580
27 29500 29470 29000 28100 27060 25880 24650 22550 19630
28 28430 28400 27980 27090 26050 24870 23640 21580 18750
29 27430 27400 27020 26150 25110 23930 22700 20680 17930
30 26500 26470 26140 25280 24240 23050 21820 19840 17170
31 25590 25310 24460 23420 22230 21000 19050 16450
32 24780 24530 23690 22660 21470 20230 18310 15780
33 24010 23800 22970 21940 20740 19510 17620 15150
34 23280 23110 22290 21260 20060 18830 16970 14560
35 22600 22460 21640 20620 19420 18190 16350 14000
36 21850 21040 20020 18820 17580 15770 13470
37 21270 20470 19440 18250 17010 15220 12970
38 20720 19920 18900 17700 16470 14700 12500
39 20200 19410 18390 17190 15950 14210 12050
40 19700 18920 17900 16700 15460 13740 11630
41 18450 17440 16230 15000 13290 11220
42 18010 17000 15790 14550 12870 10830
43 17590 16580 15370 14130 12460 10470
44 17190 16170 14970 13730 12070 10110
45 16800 15790 14580 13340 11700 9780
46 15420 14210 12970 11350 9460
47 15070 13860 12620 11010 9150
48 14730 13520 12280 10690 8850
49 14410 13200 11960 10380 8570
50 14100 12890 11640 10080 8300
51 12590 11350 9790 8040
52 12300 11060 9510 7790
53 12020 10780 9250 7550
54 11760 10510 8990 7310
55 11500 10260 8750 7090
56 10010 8510 6880
57 9770 8280 6670
58 9540 8060 6470
59 9320 7840 6270
60 9100 7640 6080
61 7440 5900
62 7240 5730
63 7060 5560
64 6880 5390
65 6700 5230
66 5080
67 4930
68 4780
69 4640
70 4500
10
2 Load carrying capacities
TI_2017-3WOLFF 700 B

2.5 Table of load carrying capacity WOLFF 700 B (3 fall operation)
50 t
Operating radius
[m]
20 25 30 35 40 45 50 55 60 65 70
JL
[m]
55 5.7 – 14.2 34.6 27.0 22.0 18.4 15.7 13.6 11.9 10.5 LCC
[t]
50 5.1 – 14.5 35.7 28.2 23.2 19.6 16.9 14.8 13.1
45 4.6 – 14.8 36.8 29.2 24.2 20.6 17.9 15.8
40 4.1 – 15.2 37.9 30.2 25.1 21.4 18.7
35 3.5 – 15.6 38.7 30.7 25.4 21.6
30 3.0 – 15.6 38.8 30.8 25.5
JL Jib length
LCC Load carrying capacity
The load carrying capacity is related to a tower height of 40.5 m. Tower heights greater than that reduce
the maximum load carrying capacity by the weight of the additional hoisting ropes (triple-reeving mode =
15.12 kg per meter of the hook range).
11
2 Load carrying capacities
TI_2017-3 WOLFF 700 B

2.6 Table of load carrying capacities (kg) in meter intervals, WOLFF 700 B
(3 fall operation)
Operating radi
us Jib length [m]
[m] 30 35 40 45 50 55 60 65 70
10 50000 50000 50000 50000 50000 50000 - - -
11 50000 50000 50000 50000 50000 50000 - - -
12 50000 50000 50000 50000 50000 50000 - - -
13 50000 50000 50000 50000 50000 50000 - - -
14 50000 50000 50000 50000 50000 50000 - - -
15 50000 50000 50000 49320 48270 47160 - - -
16 48720 48720 47480 46180 45130 44010 - - -
17 45800 45780 44650 43410 42360 41230 - - -
18 43190 43170 42150 40940 39890 38760 - - -
19 40870 40830 39900 38740 37690 36550 - - -
20 38770 38730 37880 36750 35710 34560 - - -
21 36880 36820 36060 34950 33910 32760 - - -
22 35150 35090 34400 33320 32280 31120 - - -
23 33580 33520 32880 31830 30790 29630 - - -
24 32140 32070 31490 30470 29430 28260 - - -
25 30810 30730 30210 29210 28170 27000 - - -
26 29580 29510 29030 28050 27010 25830 - - -
27 28450 28370 27940 26970 25940 24760 - - -
28 27400 27310 26920 25980 24940 23760 - - -
29 26420 26320 25980 25050 24010 22830 - - -
30 25500 25410 25090 24180 23150 21960 - - -
31 24550 24270 23370 22340 21140 - - -
32 23740 23500 22610 21580 20380 - - -
33 22980 22770 21890 20860 19670 - - -
34 22270 22090 21220 20190 18990 - - -
35 21600 21440 20590 19560 18360 - - -
36 20830 19990 18960 17760 - - -
37 20260 19420 18400 17190 - - -
38 19710 18890 17860 16650 - - -
39 19190 18380 17350 16140 - - -
40 18700 17900 16870 15660 - - -
41 17440 16410 15190 - - -
42 17000 15970 14760 - - -
43 16580 15550 14340 - - -
44 16180 15160 13940 - - -
45 15800 14770 13560 - - -
46 14410 13190 - - -
47 14060 12840 - - -
48 13730 12500 - - -
49 13410 12180 - - -
50 13100 11870 - - -
51 11580 - - -
52 11290 - - -
53 11020 - - -
54 10750 - - -
55 10500 - - -
56 - - -
57 - - -
58 - - -
59 - - -
60 - - -
61 - -
62 - -
63 - -
64 - -
65 - -
66 -
67 -
68 -
69 -
70 -
12
2 Load carrying capacities
TI_2017-3WOLFF 700 B

3 Tower combinations
DANGER
Usage of incorrect tower combinations.
The slewing tower crane may overturn.
1) Use the specified tower combinations.
2) If you need another tower combination that is not specified here, please
contact WOLFFKRAN to get an approved alternative setup in writing.
!
NOTICE
All tower combinations apply to free standing slewing tower cranes without
climbing gear.
!
NOTICE
All tower combinations apply to free standing slewing tower cranes without
climbing gear and without auxiliary hoist.
13
3 Tower combinations
TI_2017-3 WOLFF 700 B

3.1 Tower combinations on foundation (slewing section with HT 23 - con-
nection)
Jib length 30 m – 35 m
Item
1 4.5 m HT 23
2 9.0 m HT 23
3 13.5 m HT 23
4 18.0 m HT 23
5 22.5 m HT 23
6 27.0 m HT 23
7 31.5 m HT 23
8 36.0 m HT 23
9 40.5 m HT 23
10 45.0 m HT 23
11 49.5 m HT 23
Foundation anchors FUA 160 G
Tower height [m] 49.5
Wind category C25
14
3 Tower combinations
TI_2017-3WOLFF 700 B

Jib length 30 m – 35 m
Item
1 4.5 m HT 23
2 9.0 m HT 23
3 13.5 m HT 23
4 18.0 m HT 23
5 22.5 m HT 23
6 27.0 m HT 23
7 31.5 m HT 23
8 36.0 m HT 23
9 40.5 m HT 23
10 45.0 m HT 23
11 56.3 m BT 23
Foundation anchors FUA 210 G
Tower height [m] 56.3
Wind category C25
15
3 Tower combinations
TI_2017-3 WOLFF 700 B

Jib length 30 m – 35 m
Item
1 4.5 m HT 23
2 9.0 m HT 23
3 13.5 m HT 23
4 18.0 m HT 23
5 22.5 m HT 23
6 27.0 m HT 23
7 31.5 m HT 23
8 36.0 m HT 23
9 37.2 m VR 23/25-29
10 41.7 m UV 29
11 46.2 m UV 29
12 50.7 m UV 29
13 55.2 m UV 29
14 65.2 m BT 29
Foundation anchors FUA BT 29
Tower height [m] 65.2
Wind category C25
16
3 Tower combinations
TI_2017-3WOLFF 700 B

Jib length 40 m – 70 m
Item
1 4.5 m HT 23
2 9.0 m HT 23
3 13.5 m HT 23
4 18.0 m HT 23
5 22.5 m HT 23
6 27.0 m HT 23
7 31.5 m HT 23
8 36.0 m HT 23
9 40.5 m HT 23
10 45.0 m HT 23
Foundation anchors FUA 160 G
Tower height [m] 45.0
Wind category C25
17
3 Tower combinations
TI_2017-3 WOLFF 700 B

Jib length 40 m – 70 m
Item
1 4.5 m HT 23
2 9.0 m HT 23
3 13.5 m HT 23
4 18.0 m HT 23
5 22.5 m HT 23
6 27.0 m HT 23
7 31.5 m HT 23
8 36.0 m HT 23
9 40.5 m HT 23
10 51.8 m BT 23
Foundation anchors FUA 210 G
Tower height [m] 51.8
Wind category C25
18
3 Tower combinations
TI_2017-3WOLFF 700 B

Jib length 40 m – 70 m
Item
1 4.5 m HT 23
2 9.0 m HT 23
3 13.5 m HT 23
4 18.0 m HT 23
5 22.5 m HT 23
6 27.0 m HT 23
7 31.5 m HT 23
8 36.0 m HT 23
9 37.2 m VR 23/25-29
10 41.7 m UV 29
11 46.2 m UV 29
12 50.7 m UV 29
13 60.7 m BT 29
Foundation anchors FUA BT 29
Tower height [m] 60.7
Wind category C25
19
3 Tower combinations
TI_2017-3 WOLFF 700 B

3.2 Tower combinations on cross frame (slewing section with HT 23 - con-
nection)
Jib length 30 m – 35 m
Item
1 4.5 m HT 23 HT 23
2 9.0 m HT 23 HT 23
3 13.5 m HT 23 HT 23
4 18.0 m HT 23 HT 23
5 22.5 m HT 23 HT 23
6 27.0 m HT 23 HT 23
7 31.5 m HT 23 HT 23
8 36.0 m HT 23 HT 23
9 40.5 m HT 23 HT 23
10 45.0 m HT 23 HT 23
11 49.5 m HT 23 HT 23
Substructure KR 12-60
KR 12-60/80
KR 16-80
KR 16-80/100
Corner distance [m x m] 6.0 x 6.0
8.0 x 8.0
8.0 x 8.0
10.0 x 10.0
Substructure height [m] 1.4 1.8
Tower height [m] 50.9 51.3
Wind category C25
20
3 Tower combinations
TI_2017-3WOLFF 700 B
