WOLTURNUS Roadrunner User manual

User’s Manual
Roadrunner
Wolturnus A/S recommends that you read this manual before using the wheelchair.
GB

Wolturnus - User’s Manual 2023, v2.0
Content
RoadRunner
2

Wolturnus - User’s Manual 2023, v2.0
Content
1. Introducon 4
1.1 Foreword 4
1.2 Intended use 4
1.3 Usage 5
1.4 Service 5
1.5 CE compliance 5
1.6 Liability 5
1.7 Returns 6
2. Safety 7
2.1 Symbols 7
2.2 Standards and direcves 7
2.3 General safety instrucons 7
2.4 Safety requirements for transport, assembly
and storage 7
2.5 Safety requirements during use 8
2.6 User requirements 8
2.7 Type labels 9
3. Product Descripon 10
3.1 Roadrunner 10
4. Delivery & Preparaon 11
4.1 Delivery 11
4.2 Preparaon before use 11
5. Transport and Storage 13
5.1 Transport and storage 13
5.2 Transfer 13
6. Adjustment & Set-up 14
6.1 Adjustable featues 14
6.2 Tools 14
6.3 Set-up 15
6.4 Adjustment of the saddle 18
6.5 Adjustment of the handlebar 18
6.6 Adjustment of the chestplate 19
6.7 Adjustment of the compensator 19
7. Accessories and Equipment 20
7.1 Wheels 20
7.2 Parking brakes 20
7.3 Disc brake for frontwheel 20
7.4 Compensator 20
7.5 BodyPoint strap 20
7.6 Side support for chest plate 21
8. Cleaning and Maintenance 22
8.1 Maintance 22
8.2 Cleaning and disinfecon 23
8.3 Changing tyre 23
9. Troubleshoong 25
10. Technical data 26
11. Instrucons for reuse 28
11.1 Instrucons for reuse 28
11.2 Disposal 28
12 Environment 28
13 Manufacturer and service. 29
3
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Introducon
1 Introducon
1.1 Foreword
This user´s manual provides users and helpers with essenal informaon about the design, funcons, use and
maintenance of the Wolturnus Roadrunner, for children and adults. The manual contains the informaon neces-
sary to ensure safe use. It contains troubleshoong informaon with soluons (where/if applicable). The Road-
runner are an easy-propulsion acve sport product made with high-strength aluminum. The design make it easy
to use and operate, which can be worked independently. The Roadrunner are ideal for users who want to have
an acve life, outdoors.
The instrucons in this manual are essenal for safe and correct use of the product. Before using the Roadrun-
ner, read these instrucons carefully - pay special aenon to the safety instrucons. Furthermore, The infor-
maon provided ensures that the user gets the opmum advantage of the Roadrunners features and funcons.
Keep this user´s manual throughout the lifeme of the product: it contains informaon for future quesons and
it contains guidelines for adjusng and adapng the Roadrunner.
This user´s manual has been produced in accordance with DS EN82079-1 ’Preparaon of instrucons for use -
Structuring, content and presentaon’. It is divided into secons. The heading on each page contains the tle
of the overall secon. The footer of each page displays the page number, year, and site of origin of the user´s
manual.
1.2. Intended Use
The Wolturnus Roadrunner are designed for outdoor mobility. It is only suitable for persons who have a mobil-
ity handicap. Only equipment specied in this user´s manual may be used with the Roadrunner, and vice versa.
Wolturnus A/S does not guarantee this product if it is used with accessories or products from manufacturers
other than those specied as part of the modular system.
Use of the product for any purpose other than the aforemenoned will be considered incorrect. In the event of
incorrect use, the user - i.e. not the manufacturer - is liable for resulng damage to persons or property.
The Roadrunner may only be used by experienced users. For personal protecon and in order to ensure that the
product are used safely and correctly, it is a requirement that the user and helpers receive training and instruc-
ons prior to use of the product.
To ensure that the product are used correctly it has to be operated exclusively as described in this user´s manual.
The user bears nal responsibility for accident-free use.
RoadRunner
4

Wolturnus - User’s Manual 2023, v2.0
Introducon
1.3 Usage
The Roadrunner are of modular design and the versality makes it suitable for users who have dicules walk-
ing or who have a mobility handicap as a result of:
• Partly Paralysis
• Loss of a limb
• Limb defects or deformies
• Damaged or defecve limbs
• Other illnesses
When adapng the Roadrunner for the user, the following should be taken into account:
• Body, height and weight (max. load 120 kg.)
• Physical and mental constuon
• Age
• Surroundings
1.4 Service
In the event of quesons or problems that cannot be solved using this user´s manual, please contact Wolturnus
A/S customer service at ([phone].
Wolturnus A/S strives to provide full assistance to its customers in every respect. For Wolturnus A/S contact
informaon and a list of service locaons - go to secon 13 in this manual.
1.5 CE Compliance
The Roadrunner meet the requirements of the European Commission Direcve 93/42/EEC for medical devices.
The product is classied as a Class 1 on the basis of the classicaon criteria for medical devices in accordance
with secon lX of the direcve. It follows that Wolturnus A/S has therefore, as manufacturer with sole liability,
made a declaraon of conformity in accordance with appendix Vll of the direcve.
1.6 Liability
Wolturnus A/S’ warranty only applies if the product is used in accordance with the specied circumstances,
purpose and instrucons. The frame is covered by a 5-year warranty. Other parts manufactured by Wolturnus
are covered by a 2-year warranty.
Parts that are designed and manufactured by a third-party manufacturer and mounted on a Wolturnus Road-
runner are covered by a Wolturnus A/S warranty that is equal to the warranty provided to Wolturnus A/S by the
third-party manufacturer.
The product service and repairs may only be
carried out by authorised personnel trained by
Wolturnus A/S. In the event of problems, please
contact Wolturnus A/S
INFORMATION
Risk of injury with incorrect use
To avoid the risk of ngers geng caught in the
rear wheel spokes or wheel locks, and to avoid
the risk of pping, children should not play with
the product.
WARNING!
5
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Introducon
Wolturnus A/S is not liable for injury or damage caused by:
• Components and parts that are not authorised by Wolturnus A/S.
• Alteraon to the original surface treatment.
• Repairs or alteraons to the product that are not carried out by Wolturnus A/S. All warranty repairs has to
be carried out by Wolturnus A/S.
• Incorrect use of the product (e.g. playing basketball or rugby), or loads that exceed the construcon or
specied maximum for the product (in accordance with direcve 93/42/EEC for medical devices).
• Circumstances in which the product is used by any party other than the original owner/user.
• Circumstances involving bad weather or dangerous situaons, or in general all types of predictable negli-
gence.
• Lack of maintenance.
• Cleaning with agents that contain acid or alkaline products, with high-pressure equipment or similar.
To keep updated about this product e.g. regarding new features, satefy noce, product recalls check www.
wolturnus.dk. Contact informaon and overview concerning all of Wolturnus’s products are available at the
website - or by contacng Wolturnus A/S customer service at ([phone].
1.7 Returns
In the event that the product has to be returned to the supplier or to Wolturnus A/S, e.g. for repairs, it must be
transported in its original packaging for opmum protecon. It follows that Wolturnus A/S recommends that the
original packaging is retained throughout the lifeme of the product.
RoadRunner
6

Wolturnus - User’s Manual 2023, v2.0
Safety
2 Safety
2.1 Symbols
2.2 Standards and Direcves
All safety informaon in this user´s manual is based on applicable naonal laws and regulaons in the EU. For
other countries, a declaraon of conformity with applicable laws and naonal regulaons is required.
In addion to the safety instrucons contained in this user´s manual, the user must be familiar with and must
comply with applicable regulaons from professional associaons, concerning accident prevenon and regar-
ding environmental protecon. All informaon contained in this user´s manual must be complied at all mes
without limitaons. The product are constructed in accordance with applicable regulaons. The products
safety level is approved by CE cercaon and a declaraon of conformity.
2.3 General Safety Instrucons
• The product may p over.
• The product must only be used according to instrucon in this manual.
• The product must only be used by trained users and must not be used by any other person than the user.
• The product must only be used to transport one person at a me.
• All safety instrucons in this user´s manual and all other relevant documentaon must be kept and com-
plied with throughout the lifeme of the product. The user´s manual must always be available to the user.
• The chest upholstery is re-resistent, but can be ignited. Therefore extreme care must be taken when in
vicinity of ammable items and re i.e. lit cigarees.
• To avoid discomfort when using the product, damaged saddel or chest upholstery should be replaced as
soon as possible.
• Do not force the product over obstacles when using it on slopes.
• The product must not be used on stairs.
• Avoid geng in or out of the product while on slopes.
• Do not park on slopes that exceed 7°, even when the brake pads are acvitated.
2.4 Safety Requirements for Transport, Assembly and Storage
• Only suitable liing mechanisms must be used when transporng the product.
• When adjusng and adapng the product, all aachment features - such as screws and nuts - must be
fastened according to the instrucons in this manual.
• The product is not intended to be used as a seat when in a motor vehicle.
Warning about risk of serious accident or injury
WARNING!
Operaonal and service informaon
INFORMATION
Warning about risk of accident or injury
CAUTION!
Warning about risk of technical damage
NOTICE
7
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Safety
2.5 Safety Requirements in Usage
• The user and helpers must always ensure that the product and its safety features are in a proper and safe
condion before usage.
• The product must be inspected by a Wolturnus-authorised specialist at least once a year in order to ensure
that the product is in proper working order and safe to use.
• The product must immediately cease to be used if any feature is defecve or not operaonal or if any other
circumstance arises which could lead to injury.
• Before starng to use the product, all mechanical adjustments (posioning the saddel, accessories, etc.)
must be carried out in accordance with the user’s individual preferences, prerequirements and abilies.
These adjustments may only be carried out by specialists authorized by Wolturnus.
• 100 kg is the maximum load for the product. It must not be exceeded.
• The res must be inspected visually before use to ensure that there is sucient tread depth and correct re
pressure. The correct pressure is printed on the re.
• When used on public roads, the user must obey applicable trac rules.
• The product should not be used on slippery surfaces (e.g. ice) or on very rough terrain (e.g. on gravel or
small stones).
• Change direcon at reduced speed only.
• The product must only be lied by gripping the frame parts.
• The product must not be exposed to extreme temperatures, to high humidity or to environments with ch-
lorine (e.g. in saunas or at swimming pools).
• The product’s surface temperature can raise if it is exposed to extreme heat, e.g. in strong sunlight for an
extended period of me. There is also a risk of very low surface temperature in the event of extremely cold
weather.
• Never place ngers between the wheel spokes or between the rear wheel and the wheel locks. Cauon is
advised when travelling through narrow passages.
2.6 User requirements
• Before starng to use the product, the user and any helpers must read the user´s manual thoroughly and
be familiar with its contents.
• The product must only be used by trained users. To ensure this, the user and any helpers has to receive
instrucon in use of the chair from Wolturnus-authorised specialists.
RoadRunner
8

Wolturnus - User’s Manual 2023, v2.0
Safety
2.7 Type Labels
A type label is aached to the product. The type label includes the following informaon:
Cauon
The Roadrunners year of producon
Read the user´s manual before using the product

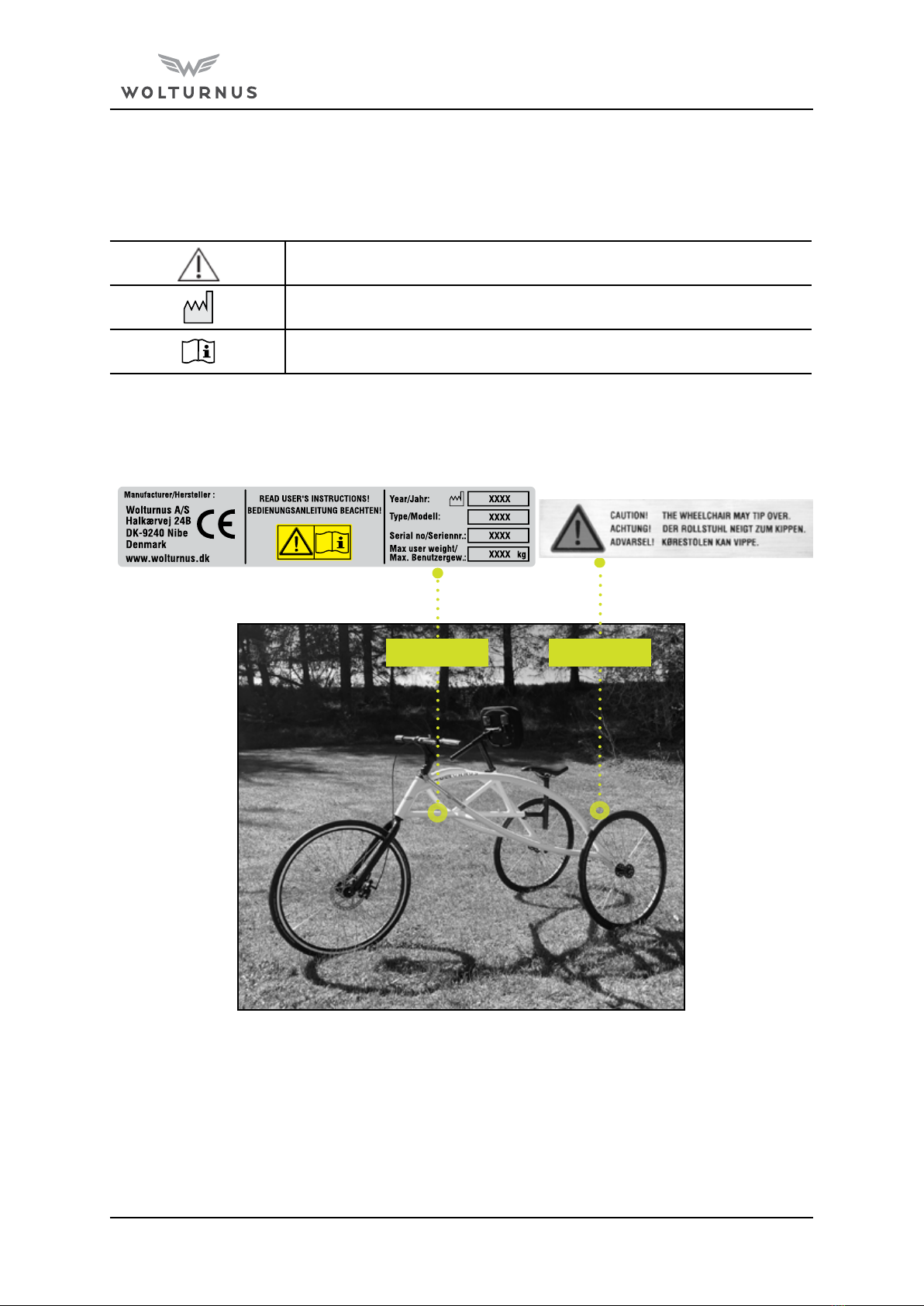

The type label is placed on the saddle tube facing forward as shown on image 1.
Image 1 Locaon of type label and lt warning.
9
RoadRunner
Typeke Varning

Wolturnus - User’s Manual 2023, v2.0
Product descripon
3 Product Descripon
3.1 Roadrunner
The Roadrunner has a frame in tempered 7020 lightweight aluminum. The Roadrunner becomes rigid and ro-
bust, while being one of the lightest products in the sport framerunning. This secures opmal energy transfer-
ring of the athlete’s forces to forward propulsion.
The Roadrunner can be tailored to the individual user’s needs and wishes, with its mul adjustable saddel,
chestplate and handlebar. Wolturnus oers several Accesory opons, which will be menoned in secon 7. Ac-
cesories and Equipment.

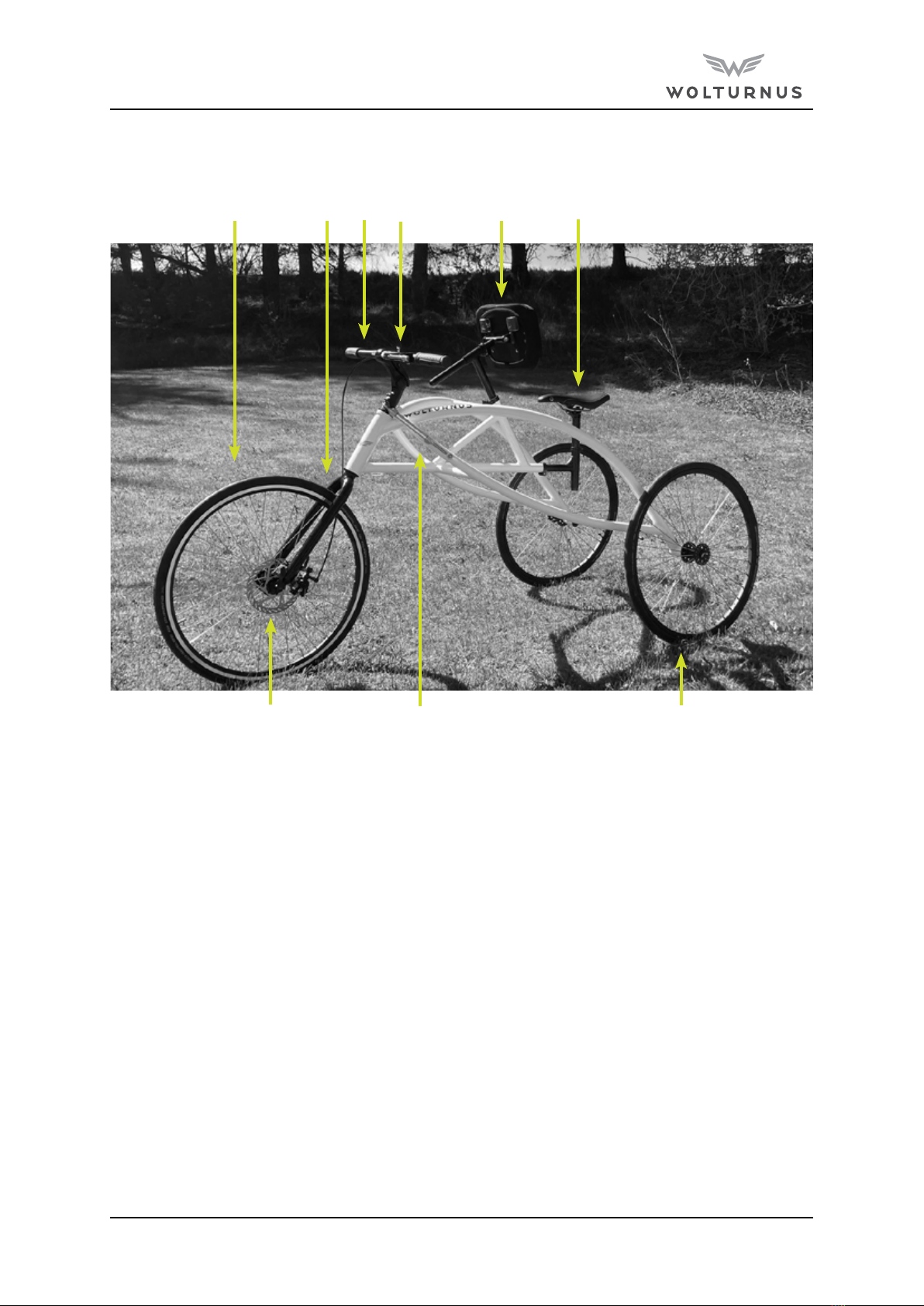

Image 2 The Roadrunner
RoadRunner
10

Wolturnus - User’s Manual 2023, v2.0
Delivery and preparaon for use
4 Delivery and Preparaons before Usage
4.1 Delivery
The delivery covers:
• The Roadrunner with main components
• The user´s manual
• Selected accessories (Accessories range. Go to secon 7 in this manual)
Wolturnus A/S delivers the product ready for use. All conguraons that are part of the order have been made
or will be set up upon delivery by the supplier or a consultant. The product is adapted to meet the user’s per-
sonal preferences and requirements.
The product’s funcons can be tested by following the instrucons in secon 6 in this manual.
Troubleshoong: see secon 9.
4.2 Preparaon before Usage
Before starng to use the product, it must be inspected to ensure that it is complete (Image 3) and that all
funcons and features are in proper working order. Wolturnus A/S delivers the product ready for use.
The range of accesories are determined by the
product conguraon that the user chooses
when ordering the Roadrunner.
INFORMATION
The Roadrunner may p over during corners.
CAUTION!
Main Components (Image 3):
1. Front wheel
2. Front fork
3. Steering bar
4. Brake handle
5. Chestplate
6. Saddle
7. Disc Brake
8. Compensator
9. Rear wheel
11
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Delivery and preparaon for use
Image 3 Main Components
RoadRunner
12
7 98
6
543
2
1

Wolturnus - User’s Manual 2023, v2.0
Transport and storage
5 Transport and Storage
5.1 Transport and storage
For transport or storage, the rear wheels can be removed. This makes it easy to handle and saves space. While
in storage keep the product in a clean and dry environment.
5.2 Transfer
The method of transfer between wheelchair and Roadrunner is individually selected reecng the preferences
of the user. The most common method is transferring from the back.
The following descripon is based on transfer without third-party help and from one wheelchair to the Roadrun-
ner.
Geng into the Roadrunner
• Park the wheelchair behind/inbetween the rear wheels of the Roadrunner.
• Slowly standup, while keeping your balance. Use the two main curved tubes on the frame as support and
posion yourselves over the saddle.
• slowly drop down unto the saddle.
Geng out of the wheelchair
• Park the wheelchair behind/inbetween Roadrunner, with the wheelchairs front towards the back of the
Roadrunner.
• Li your body upwards from the saddle using the two main curved tubes on the frame as support, and
slowly drop down into the parked wheelchair.
13
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Adjustment and set-up
6 Adjustment and set-up
6.1 Adjustable Features
The Roadrunner can be adjusted in various ways.
The following is Adjustable By the User:
• Saddle height, depth and angle
• Chestplate height, depth and angle
• Handlebar height and depth
6.2 Tools
The following tools (see image 4) are necessary for adjustments and sengs described in this secon:
• 4 mm Allen key
• 5 mm Allen key
• 8 mm wrench
• Measuring tape, a foot rule or a ruler
Risk of accident due to loose screws
Aer loosening any threaded screws, they must be replaced with new screws or secured once more with a
medium-strength thread paste (e.g. EuroLock A24.20). Aer making adjustments to the product, all screws
and all nuts must be ghtened correctly.
CAUTION!
Damaged tools or incorrect use of tools can result in injury or in damage to the product.
NOTICE
Image 4 Tools
RoadRunner
14

Wolturnus - User’s Manual 2023, v2.0
Adjustment and set-up

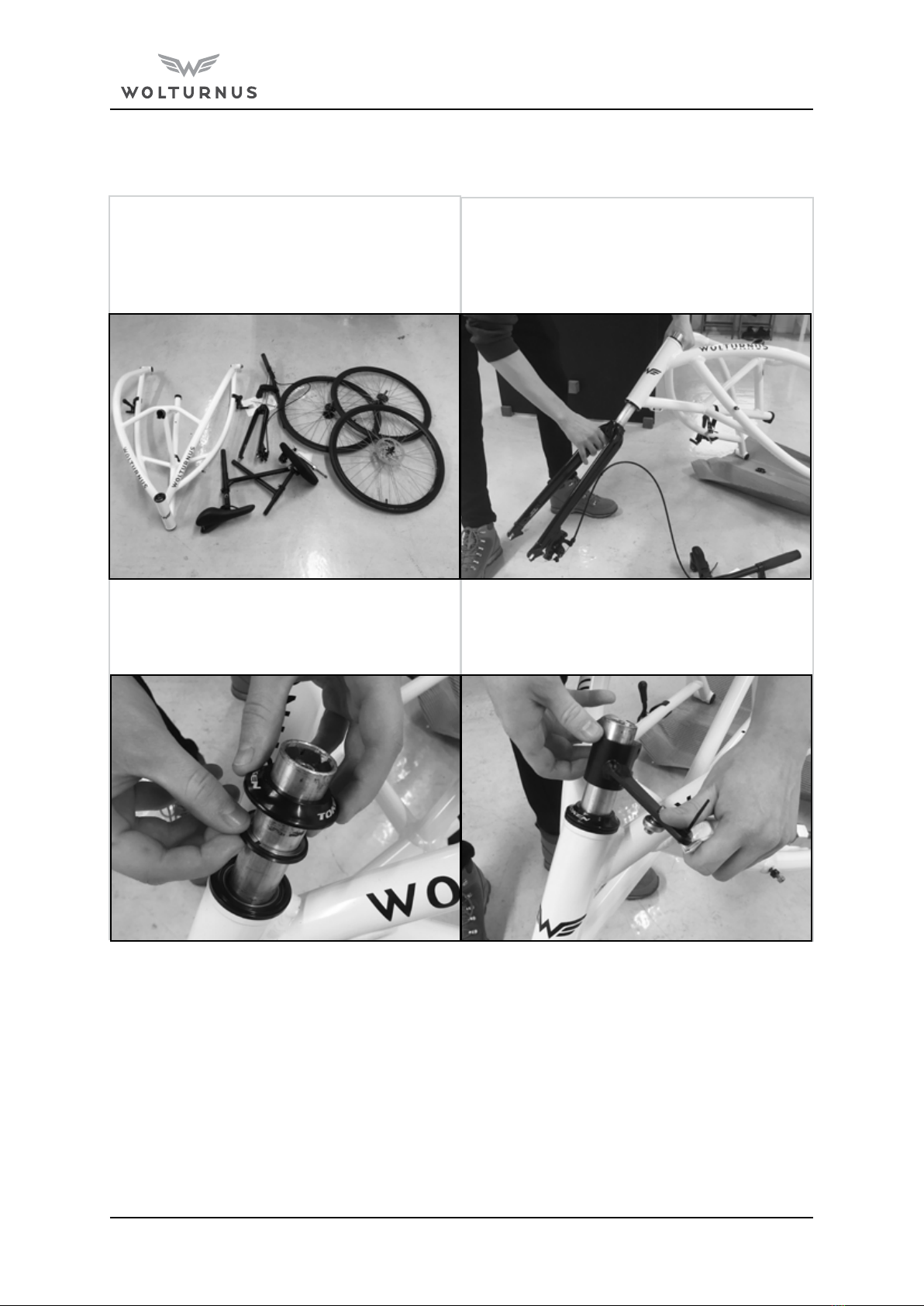

1. When the Roadrunner is received, it is disassembled
into the following parts in the cardboard box. During
setup, it’s recommended to have the frame
on a so surface.
2. Insert the front fork from the boom as shown
in the picture. The front fork must turn, so that the
cable and brake is poinng backwards.
3. Place the o-ring and headset cover over the front
fork in the order shown in the picture.
4. Place the clamp with the compensator over the
front fork. The arm with the compensator must angle
downwards and be on the same side as the welded
bushing.
6.3 set-up
15
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Adjustment and set-up
5. The end of the compensator is screwed with a
4 mm Allen key through the welded bushing on the
frame.
6. The clamp is pushed all the way down to the
headset cap and ghtened with a 5 mm Allen key. The
opening on the clamp must point straight back, so the
compensator should be pushed back while ghtening.

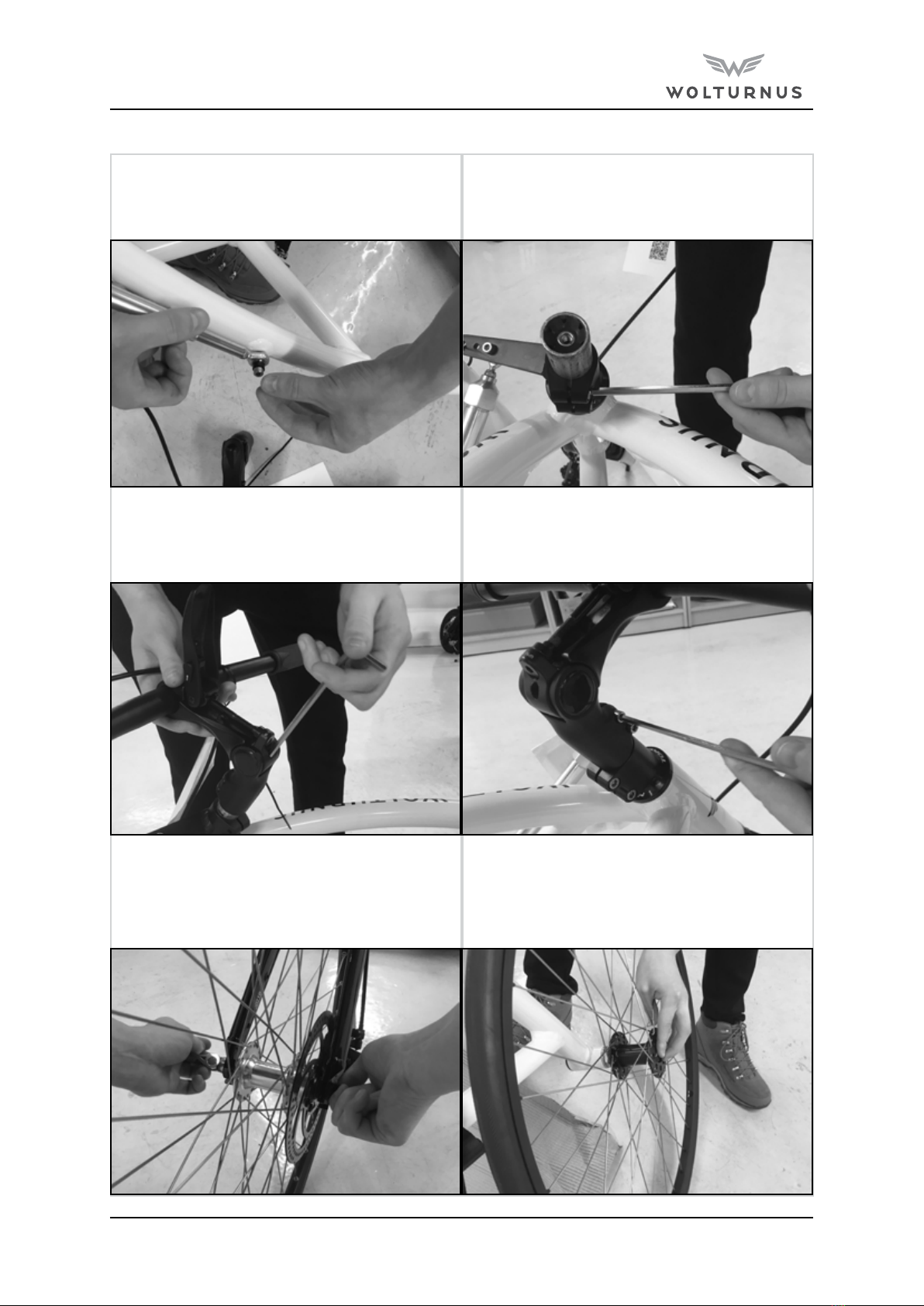

7. The handlebar must now be placed on top of the front
fork. The buon on the le side is pushed back and the
handle is lied up. There will be clearance for a 5 mm
Allen key, to clamp the handlebar to the front fork.
8. When the handlebar is clamped to the front fork
(Note! Make sure there is no gap between the hand-
lebar, clamp and fork to frame) the handlebar can be
clamped with a 4 mm Allen key so it points forward.
9. The front wheel can now be mounted on the front
fork and the quick release can ghtened so the
wheel is xed. Make sure that the brake disc is cor-
rectly placed between the brake pads.
10. Secure the rear wheels by pressing down the
buon and pushing the quick release into the
rear axle.
RoadRunner
16

Wolturnus - User’s Manual 2023, v2.0
Adjustment and set-up
11. Insert the seat post into the seat tube. 12. Place the seat post so that there is a hole
through to the quick release. Press the buon down
at the top and insert it through the tube.
13. The seat post can then be ghtened with a 5
mm Allen key when the desired posion is reached.
14. The chest plate is inserted into the tube
poinng upwards.
15. Clamp the chest plate at the desired height
and angle with a 5 mm Allen key.
16. Finally, it is important to check that the front
wheel and handlebar point forward. If they do not,
loosen the screws aached to the front fork and
straighten them. Onse secured, reghten all screws.
17
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Adjustment and set-up
6.4 Adjustment of the saddle
The saddle are fastened by bolts and a quick release which can be loosened with a 5 mm allen key. The saddle
can then be height, depth and angle adjusted to the individuals needs. To depth adjust a bolt needs to be loose-
ned and the quick release removed (see image 5 and 6). The saddle can be adjusted in intervals of 15 mm. To
height adjust loosen the bolt (see image 7) and move the saddle to the desired height. The saddle can be angle
adjusted by loosening the bolt underneath (see image 8) and then by turning the screw behind (see image 9)
6.5 Adjustment of the handlebar
The handlebar can be adjusted by pressing down on the boom with an arrow on it (see image 10). When loose-
ned one can li up the tap and rotate it to height and depth adjust the handlebar.
Image 5
Loosen the bolt to depth adjust
Image 6
Press down and li quick release
Image 7
Loosen the bolt to height adjust
Image 8
Loosen the bolt to angle adjust
Image 9
Turn the bolt to angle adjust
Image 10
Press down on the boom and li tap
Image 10
With the tap lied, the handlebar can rotate
RoadRunner
18

Wolturnus - User’s Manual 2023, v2.0
Adjustment and set-up
6.6 Adjustment of the chestplate
The chestplate are fastened by several bolts which can be loosened with a 5mm allen key. the chestplate can
then be height, depth and angle adjusted to the individuals needs (see image 11 and 12)
6.7 Adjustment of the compensator
The compensator can be adjusted to either give more or less stability in the handlebar. how s the handlebar
feels is determined by the placement of the compensator. There are mulble holes (see image 13) and the closer
the compensator is towards the frame the more easily the handlebar can be moved. The compensator can be
moved by loosening the nut with a wrench and a 4mm allen key.
Image 11
Loosen the bolt to adjust chestplate
Image 12
Loosen the bolt on both sides to adjust chestplate
Image 13
Shows the compensator seen from the side
Image 13
Shows the dirent holes for the compensator
19
RoadRunner

Wolturnus - User’s Manual 2023, v2.0
Accessories and equipment
7 Accessories and equipment
Extra accessories and equipment are available for the Roadrunner. The accessories are described in this secon.
To see the full range of accessories and order informaon go to www.wolturnus.com.
7.1 Wheels
The Roadrunner can be ordered in dirent wheel sizes ranging from 22” Schwalbe Marathon to 26” Schwalbe
Marathon. The dierent sizes can all be mounted on the same frame, making it possible to change the wheels
aer you have ordered the Roadrunner.
7.2 Parking brakes
The Roadrunner can be ordered with either push or pull parking brakes which will be clamped on to the rear
wheels (see image 15).
7.3 Disc brake for frontwheel
As a standard the Roadrunner comes with a disc brake for the front wheel, which can be operated with a brake
lever on the handlebar (see image 16)
7.4 Compensator
The Roadrunner is equiped with a high grade compensator for the steering. This makes the Roadrunner very
stable and reliable on the track.
7.5 BodyPoint strap
On the chestplate one or two BodyPoint monoex straps can be mounted (see image 14). This can be used to
help keep the user on the Roadrunner for a safe and comfortable run.

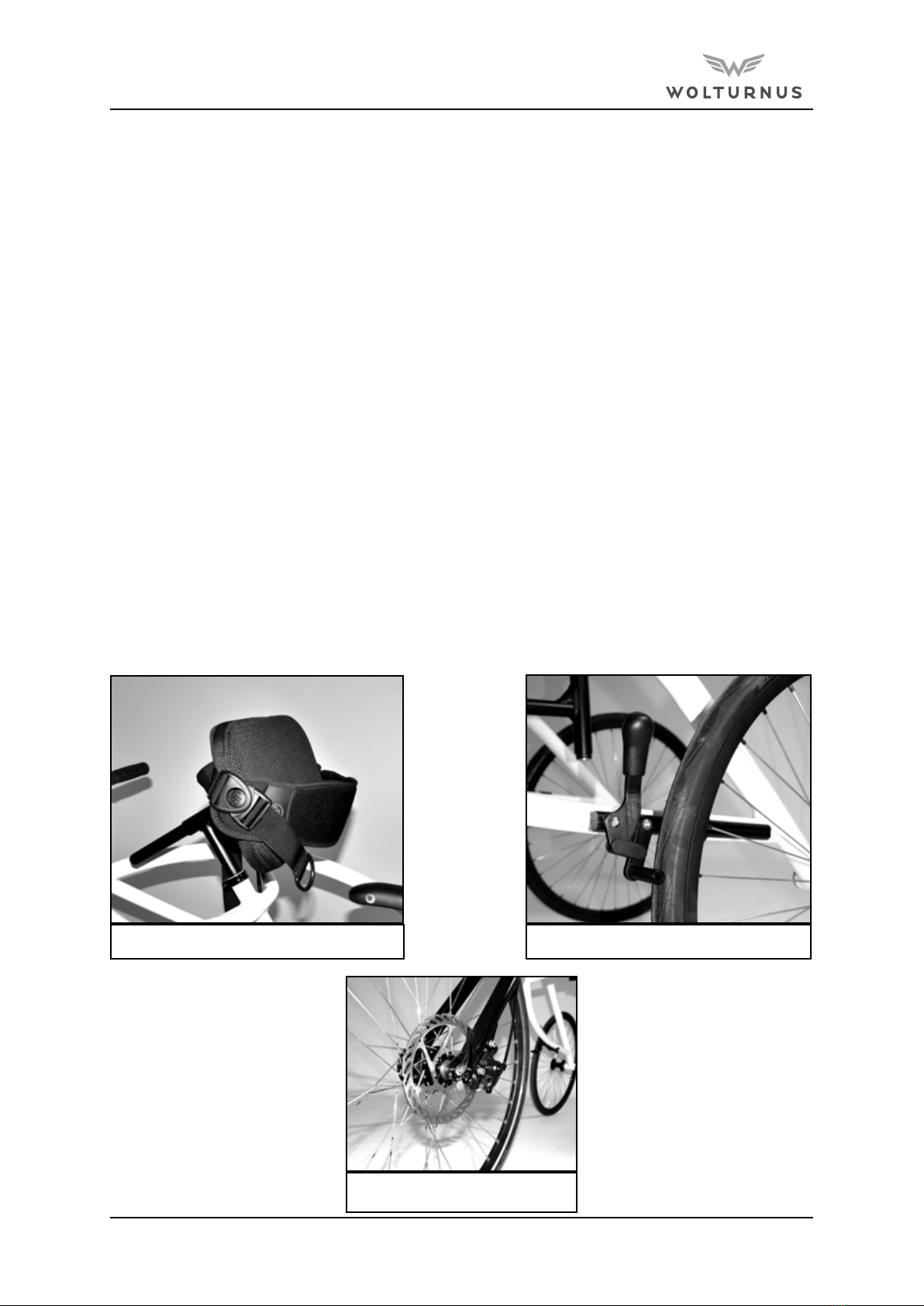

Image 14
The bodypoint strap can be ordered seperatly
Image 15
The Parking brake can be ordered seperatly
Image 16
Disc brake for frontwheel
RoadRunner
20
