WONDERFOLD WAGON W4S 2.0 Supplement

Assembly & Safety Instructions
W4S 2.0
Please keep this booklet in a safe place for the life of your WonderFold stroller.
www.WonderFoldWagon.com
www.WonderFoldWagon.com

2 3
WARNING
Important—Keep these instructions for future reference.
Avoid Serious Injury To Children From Falling Or Sliding Out:
ALWAYS use the included harnesses to secure each child.
• Never leave children unattended.
• Always set parking brake while loading and unloading children.
• This stroller unit is not intended for children under 6 months of age.
Avoid Serious Injury To Children:
• Use with caution when using stroller near traffic or in highly congested areas.
• DO NOT use stroller on stairs or escalators.
• Keep children clear when unfolding and folding the stroller.
• DO NOT let your child play with this product.
• DO NOT use the stroller while running, jogging or skating. The stroller is intended
only for up to a brisk walking speed.
Avoid Injury From Stroller Tipping Over:
• DO NOT allow more than 4 children in the stroller at any given time.
• DO NOT exceed the per bench limit of 99 lbs (49.5 lbs per seat).
• The stroller is not intended to carry children taller than 40 inches.
• DO NOT allow children to climb into stroller unassisted, or to play or hang onto
stroller.
• DO NOT overload the stroller as it may cause instability and/or damage to the
product.
• Only manufacturer approved parts and accessories should be placed on the
stroller. Non-compliant parts or accessories, such as hanging items or bags, may
cause instability.
• DO NOT place more than 11 lbs. (5 kg) in each storage basket.
• DO NOT place more than 1.1 lbs. (0.5 kg) in each storage pocket.
• ALWAYS distribute weight in the stroller as evenly as possible.
Avoid Loss Of Control Of Stroller:
• ALWAYS ensure that all locking clips, clamps and buckles are engaged and all
accessories are securely fastened before use.
• NEVER leave stroller unattended on a hill or incline even when parking brake
is set.
• ALWAYS use caution when the stroller is on uneven terrain or slopes.
• ALWAYS set parking brake when the stroller is stationary.
Avoid Pinch Injury:
• Keep fingers clear of hinged joints when folding and unfolding the stroller.
• ALWAYS keep children clear from moving parts when making adjustments to the
stroller.
See Assembly, Operation and Maintenance & Care sections for additional
warnings and usage instructions.
Parts Check List.........................................................................................................................................3
Assembly
Unfolding the stroller/Assembly of Front Wheels/Assembly of Rear Wheels.....................4
Assembly of Rear Wheels/Baseboard.................................................................................................5
Assembly of Seat/Basket........................................................................................................................6
Assembly of Frame and Canopy/ Handlebar strap.......................................................................7
Operation
Securing the Harness Assembly & Removal of the Harness....................................................8/
Parking Brake Operation/Folding the Stroller/Canopy Assembly...........................................9
Operation of the Privacy/Wind Curtains/Canopy/Handle........................................................10
Cleaning/Replacement Parts List......................................................................................................11
If any parts are either missing or broken or need for immediate assistance in assembling your
stroller, please contact your local dealer or retailer.

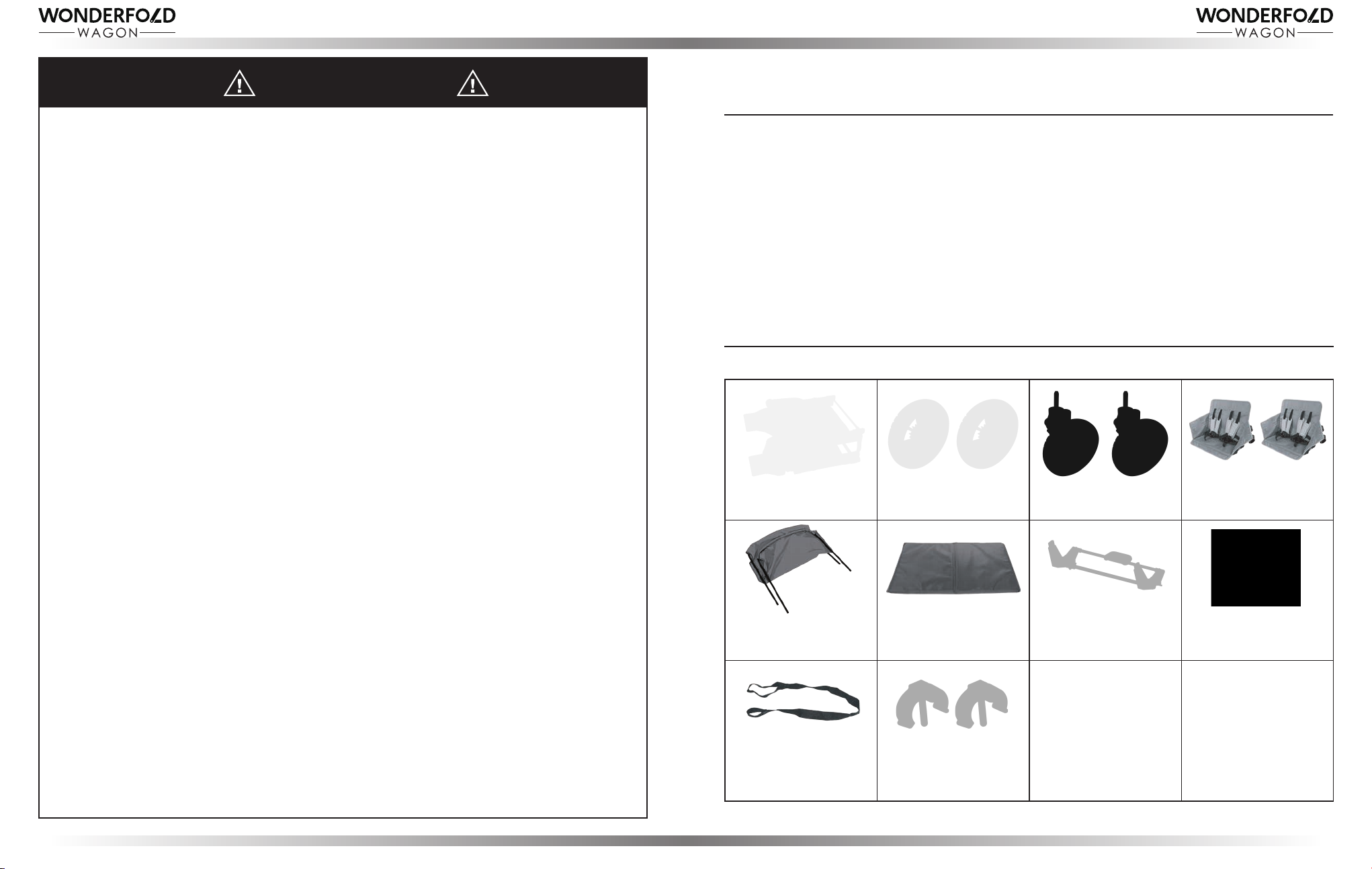

Parts Check List
1. S
1PC
troller body 4. Bench units
2PCS
6. Stroller
baseboard 1PC
2. R
assembly 2PCS
ear wheels
5. Canopy
1 SET
7. Bra
1 PC
ke set
3. F
assembly 2PCS
ront wheels
8. Rear basket
1 PC
9. Optional strap
1 PC
10. C-shaped clamp
2 PCS
(preinstalled on the brake bar)
(located underneath the fabric)

4 5
Unfolding the Stroller
1. Standing on either side of the stroller, push smoothly outward on the upper front
and rear frame tubes to unfold the stroller.
2. Ensure the upper lock on the right side of the stroller snaps into place.
3. Flip over the side pocket flaps to the outside on both sides of the stroller to cover
the frame joints.
Assembly of Rear Wheels
1. The C-shaped clamp comes pre-installed on the brake assembly. Release the
C-shaped clamp by pushing it out from the brake unit.
2. Insert the wheel axle in the brake assembly.
3. Insert the C-shaped clamp back into the rear wheel housing.
4. Pull the rear wheel axle to ensure that the rear wheel assembly is secure.
Assembly & Removal of Front Wheels
1. Insert front wheels into the front wheel housings until you hear a click.
2. After attaching the front wheels, pull down on each wheel to confirm that they are
securely locked in place.
3. To unlock and release the wheel, use a tool with a narrow point to press the metal
button at the base of the stroller frame, then pull off the wheel.
Assembly of Rear Wheels
1. Line up and connect the rear wheel assembly to the rear tube joint.
2. Check that the clips are in place on both sides of the wheel housing.
Assembly of Baseboard
1. Place the baseboard into the base of the carriage fabric nestled against the frame.
2. Press the baseboard with your hands to level and secure it in place.
Assembly

6 7
Canopy Assembly
1. Before assembling the canopy, make sure all four plastic clamps at the corners are open.
2. Insert the canopy poles into the frame slots on all four corners at the desired height.
3. Clasp to close all four plastic clamps. Canopy assembly complete.
Basket Assembly
1. Slide the basket hooks into the fixed slots on the frames under the handle bar tube.
2. Gently wiggle the basket to level it. Completed assembly shown in diagram 2.
Handle Strap Assembly
1. Locate the handle strap from the bottom of the frame located in the front.
2. Fix the handle strap onto the lower front frame tube.
3. Use as shown in diagram 3.
Seat Assembly (Seat is not suitable for children under 6 months.）
1. Place the seat into one end of the stroller.
2. Secure the hooks on both sides of the seat onto the stroller frame hand rail. Then
secure the hooks on the back of the seat onto the upper tube of the stroller frame.
3. Completed seat assembly shown in diagram 3.
4. For reclining mode, remove the seat and reposition the side hooks further forward.
Seat Mode Reclining Mode

8 9
Folding the Stroller
1. Flip the side pockets into the stroller.
2. Stand in front of the stroller, gently release the upper lock on the right hand side.
3. Grasp the folding hinge on both sides.
4. Lift up on the folding hinges with both hands until the stroller is completely folded.
Keep fingers clear of hinges to avoid pinching.
5. Secure the lower latch to lock the stroller in the folding position.
Parking Brake Operation
1. Step down gently on the parking brake pedal to lock. To test and ensure the brake is
engaged, try to push the stroller forward.
2. Lift the parking brake pedal upwards with your foot to release it.
Canopy Storage
1. Adjust the handle tube to the upright direction.
2. Roll up the canopy fabric around the horizontal part of the canopy poles.
3. Insert the combined ends of the canopy poles into the storage pocket on each side of the basket.
4. Secure the poles using the straps on the rear leg tubes and snap the fasteners.
Operation
Securing the Harness
1. With harness unbuckled, place child in seat.
Assembly & Removal of the Harness
1. Open the Velcro strips on the backside/bottom of the seat to access the belt catches.
2. Insert the belt catch perpendicularly through the front fabric and internal plastic
board as shown in diagram 2.
3. Rotate the belt catch parallel to the backrest and pull
the belt to secure in place as shown in diagram 3.
4. To remove the safety belt, rotate the belt catch perpendicularly to the backrest,
and then pull the belt and catch out.
Note: Refer to "Securing the Harness" section above for waist and center strap buckle assembly.
2. Secure child with harness by placing shoulder and waist belts over shoulders and
over thighs. Snap buckle tongues into center strap buckle.
3. Adjust each strap by pulling on the free end of the strap and move the
slide adjuster along strap.
Shoulder Belts
Waist Belts Center Strap
Two-Seater Layout
Single Seat Layout
①
②
③
④
Backrest Strap catch
Safety belt
Front fabric
Back fabric
Plastic board

Operation of the Privacy/Wind Curtains
1. Unzip the pocket located on the upper part of the inner carriage fabric.
2. Stretch out the inside curtain, and secure the bottom Velcro to the carriage fabric.
3. Repeat the same operations for the other side of the stroller.
4. To secure the curtain, pull up the Velcro, roll up the curtain and zip up the pocket.
Canopy Height Adjustment
1. Before adjusting the height of canopy, make sure all four plastic clamps at the corners are open.
2. With one hand on each horizontal part of the canopy pole, gently slide the canopy
poles up/down to desired height. Take care not to bend the poles.
3. Secure all four plastic clamps to lock canopy height.
Handle Height Adjustment
1. Press the adjustable handle button on both sides simultaneously.
2. While the buttons are pressed, position the handle up or down to desired height.
Release Clasp
10 11
One Year Limited Warranty
WonderFold warrants this product to be free from defects in material or workmanship
for a period of one year from the date of purchase when used by the original owner
according to the manufacturer's instructions.
The warranty does not apply to damage caused by product alteration, or customer/
user misuse or abuse of the product. Your sales receipt is your only record of the date
of purchase. Warranty is subject to change at any time at manufacturer's sole discretion.
Please refer to https://www.WonderFoldWagon.com/pages/warranty for the most current
version of the manufacturer warranty. Please contact WonderFold if you have any warranty
questions or if you need replacement parts: WONDERFOLD
PO BOX 2144
Temple City, CA 91780
[email protected]
1(888) 681-1526
Replacement Parts List
1. Rear Wheel
Assembly
1 PC
9. Handle Strap
1 PC
2. Front Wheel
Assembly
1 PC
3. Canopy
1 PC
6. Brake Set
1PC
4. Bench Unit
1 PC
7. Baseboard of
Stroller
1 PC
5. Carriage
Fabric
1 PC
8.
Rear Basket
1 PC
10. C-shaped
Clamp
1 PC
Cleaning the Stroller Cleaning the Seat Pad
1. Wash stroller frame with mild soap and 1. Spot clean with mild soap and
warm water solution. warm water solution.
2. Rinse and wipe with a dry cloth until fully dry. 2. Rinse and wipe with a dry cloth until fully dry.
