Woodstream Mosquito magnet executive User manual

For Outdoor Use Only

EXECUTIVE

#1440-655

Safety Instructions 3

Principal Parts 4

Assembly Instructions 5

Trap Assembly

Bug Bag Installation

Set-Up 6-7

Charging Instructions

Trap Placement

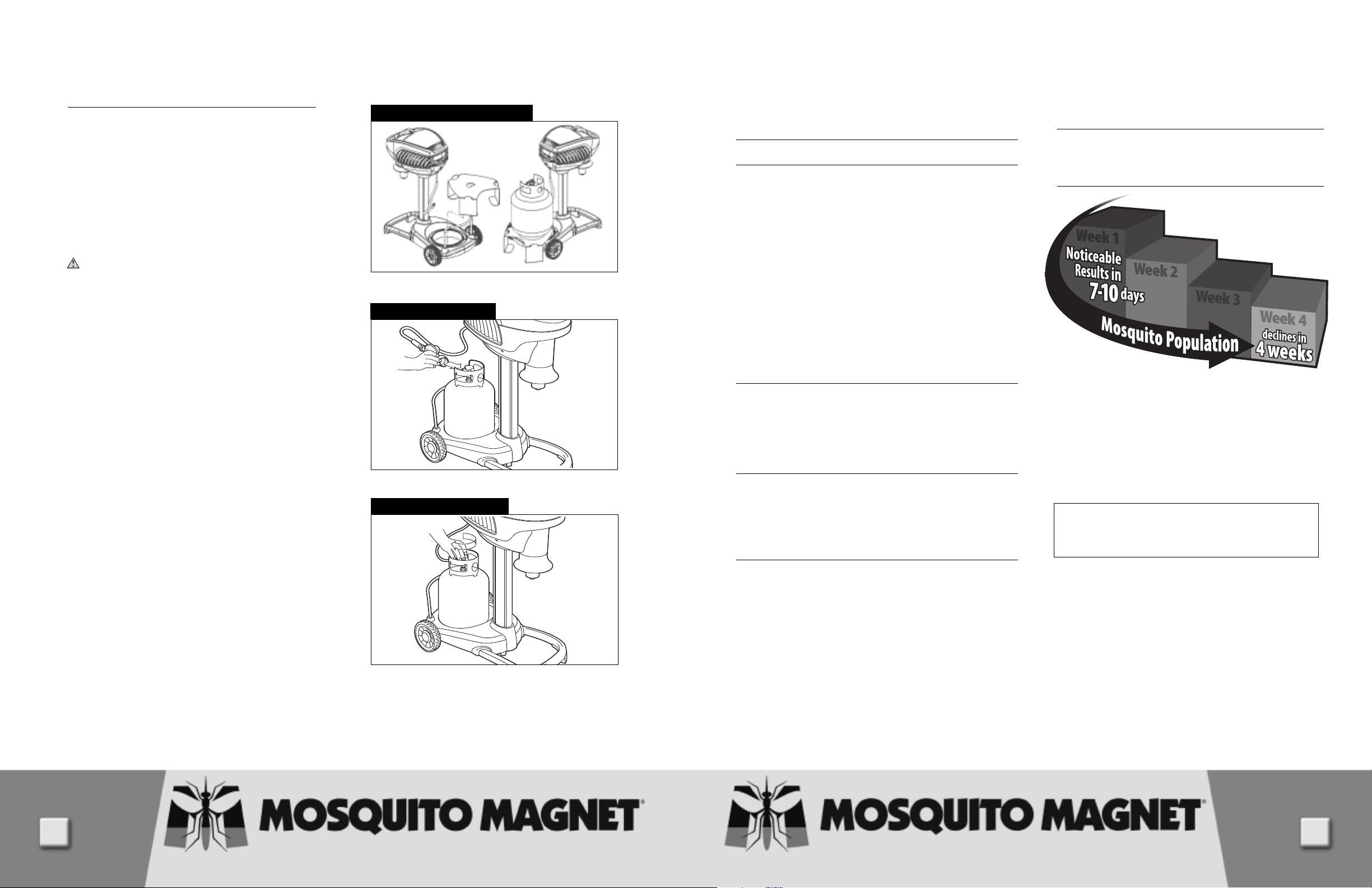

Propane Tank Installation

Instructions 8

Starting Instructions

Shut Down Instructions

When Not In Use

End of Season Storage

For Optimal Results

Smart Technology 9

Setting Fuel-Saving Modes

Fuel-Saving Modes

Cold Temperature Shutdown

Low Battery Warning

Child Safety Lock

Maintenance 10

Maintenance

Propane Tank Changing Tips

Maintenance Schedule

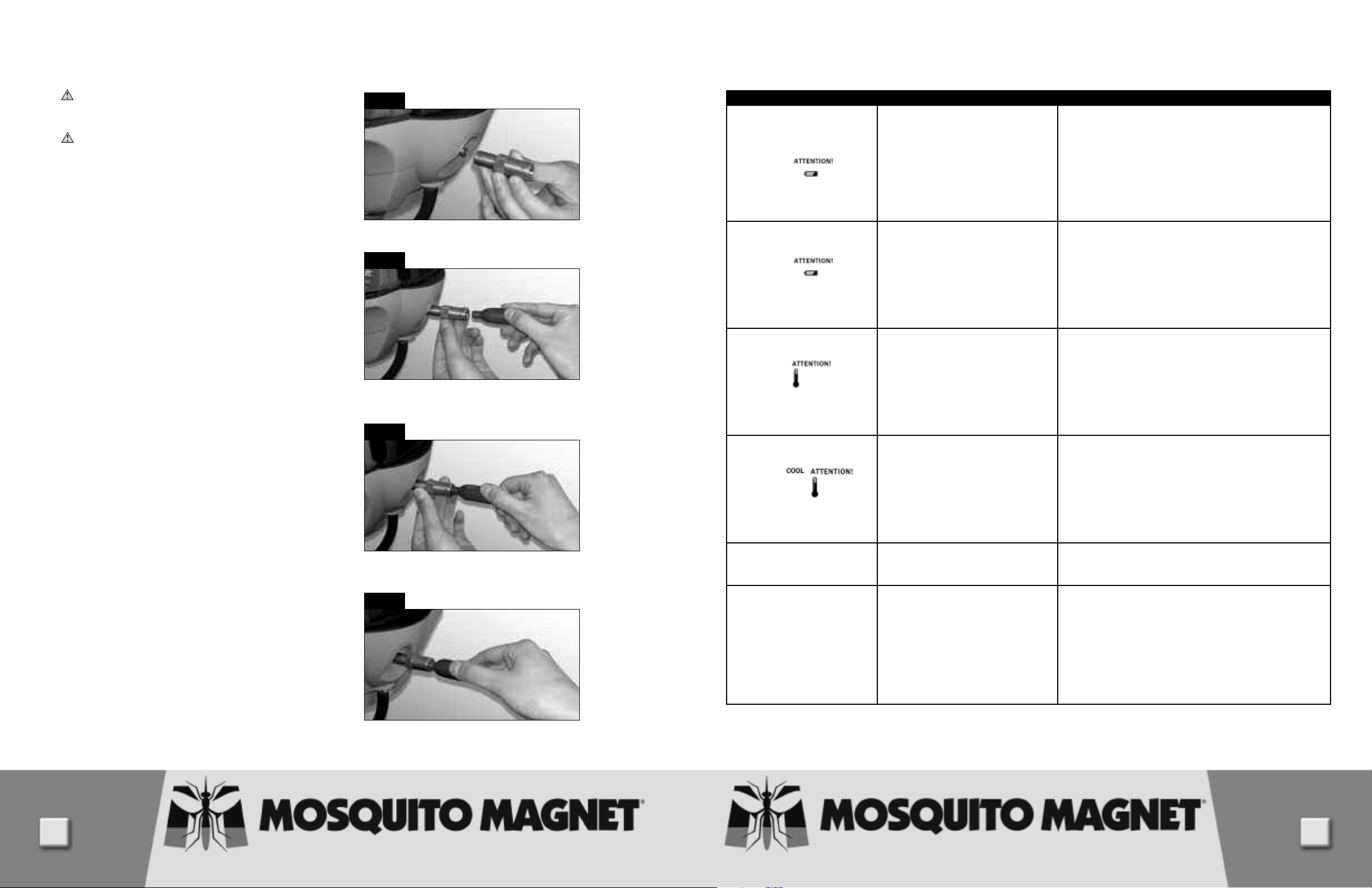

Quick Clear Valve 11

Troubleshooting 12

LED Fault Codes

How the Mosquito Magnet®Works

Mosquitoes and other biting insects use the long-range

attractant carbon dioxide (CO2) to locate people. Once in

close proximity, mosquitoes use short-range attractants

such as scents emitted from the skin, to determine which

person they are going to bite. The Mosquito Magnet

mimics a human by converting propane to CO2, with its

patented catalytic conversion technology, in combination

with a short-range attractant.

Attracted by the CO2and short-range attractant,

mosquitoes and other biting insects are drawn to

the Mosquito Magnet. When they reach the trap,

the insects are vacuumed into a bug bag by our

patented Counterflow Technology™, where they

dehydrate and die within 24 hours.

The Mosquito Magnet is silent and odorless. When

properly placed in your yard, the trap begins working

immediately. Noticeable results can be achieved in 7 to

10 days. To greatly reduce your biting insect

population, allow 4 weeks. Leave the Mosquito

Magnet out all summer long, to control the mosquito

population in your yard.

Only biting insects are targeted including mosquitoes,

no-see-ums, black flies and midges. Beneficial insects

such as butterflies, bees or moths are not targeted.

Questions or Comments

Woodstream®Corporation

69 North Locust Street

Lititz, PA 17543

United States

http://www.mosquitomagnet.com/store_locator/International/

Patented Counterflow Technology

™

Contents

Model No.: Executive:

Serial No.: Serial No.:

Type of Gas: Propane

Manifold Pressure: 100 – 110 psi

Minimum Gas

Supply Pressure: 11.0 in. WC

Input Rating: 759 Btu/Hr.

Minimum Clearances: 20 – 24”

Woodstream®Corporation

69 North Locust Street

Lititz, PA 17543

United States

www.mosquitomagnet.com

Patents:

USA: Nos. 6,145,243; 6,286,249; 6,817,140; 6,840,005;

6,848,466; 6,892,492; 7,074,830; 7,243,458; 7,281,351 and

7,293,387

Canada: Nos. 2,265,944 and 2,322,038

Europe: Nos. 1,011,324; 1,049,373 and 1,432,304

Australia: Nos. 726575 and 735984

New Zealand: Nos. 335035 and 506403

Singapore: Nos. 64595 and 117722

S. Africa: Nos. 97/8366 and 2005/08973

China: No. ZL0281957.X

Brazil: 9711492-8 and 9908104-0

Mexico: 250623 and 250272

Other patents pending

Made in USA

Welcome

Congratulations on your purchase of Mosquito Magnet®. Now you can begin to enjoy your outdoor living space again.

Mosquito Magnet is the #1 mosquito trap in North America. Backed by 18 years of research and independent

testing, Mosquito Magnet is scientifically proven to effectively reduce mosquitoes & other biting insects from your

yard.

Mosquito Magnet is easy to use. The enclosed CD-ROM provides key information for getting started. In this

manual, you’ll learn everything you need to know about how it works, optimal trap placement, maintenance,

storage and warranty information. The keys to success are trap placement, utilization of the correct attractant for

your area and routine maintenance. For optimal catch rate, you’ll need to change the propane tank and attractant

every 21 days and use the Quick Clear Cartridge every tank change.

Visit us online at www.mosquitomagnet.com for additional information regarding Mosquito Magnet tips and

testimonials.

FOR YOUR SAFETY

If you smell gas:

1. Shut off the gas to the appliance.

2. Extinguish any open flame.

3. Open lid.

4. If odor continues, immediately call your gas

supplier or your fire department.

FOR YOUR SAFETY

1. Do not store or use gasoline or other

flammable vapors and liquids in the vicinity

of this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

Parts Included

Bug Bag

Quick Clear Adapter

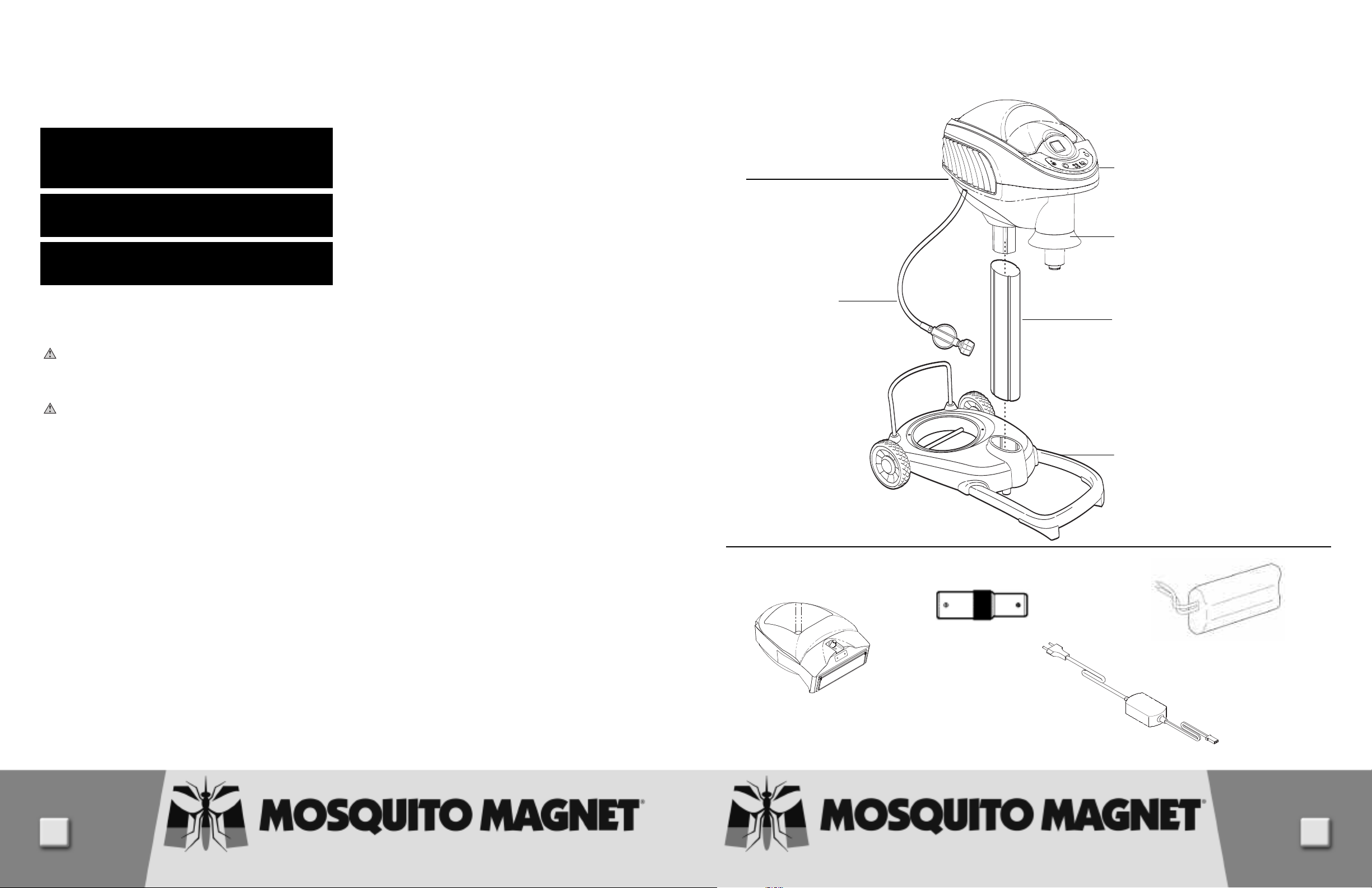

Principal Parts

Self-Contained

Executive

Regulator Hose (1)

MODE

ATTENTION

OFF

RUN

COOL

W A RM

MODE

Power Head (1)

Trumpet (1)

Support Pole (1)

Base Support (1)

Remote Battery Charger

Rechargeable Battery

Safety Instructions

• Maintain adequate clearances of 51 cm - 61 cm around air openings

into the combustion chamber, clearances from combustible material,

provisions for accessibility and for combustion and ventilating air

supply. Keep the trap area clear and free from combustible materials,

gasoline, and other flammable vapors and liquids. The appliance is

not to be used in locations where flammable vapor or explosive dust

is likely to exist.

• Do not obstruct the flow of combustion and ventilation air.

•Keep the ventilating openings of the cylinder enclosure free and clear from debris.

• Clean the trap with a water damp cloth, if necessary.

• The LP-Gas cylinder must be provided with a shut-off valve terminating

in an LP-Gas supply cylinder valve outlet specified for Connection No.

510 in the Standard for Compressed Gas Cylinder Valve Outlet and Inlet

Connections, ANSI/CGA-V-1-1977.

•The LP-Gas cylinder supply system must be arranged for vapor withdrawal

and the cylinder must include a collar to protect the cylinder valve.

• The LP-Gas cylinder used shall be constructed and marked in accordance

with the specifications for LP-Gas cylinders of the U.S. Department of

Transportation (DOT) or The National Standard of Canada CAN/CSA-B339.

• The trap shall be used outdoors only in a well ventilated space and shall

not be used in a building, garage, or any other enclosed area.

•The LP-Gas cylinder must be disconnected and removed from the

appliance, if the appliance is stored indoors.

•LP-Gas cylinders must be stored outdoors in a well-ventilated area out

of reach of children.

•Disconnected cylinders must have threaded valve plugs tightly installed

and must not be stored in a building, garage, or any other enclosed area.

• The pressure regulator and hose assembly supplied with this appliance

must be used for connection to the LP-Gas cylinder. Replacement pressure

regulators and hose assemblies must be specified by the manufacturer.

• Avoid improper use of extension cords. Keep connections away from

moisture and avoid damage to the cord.

• If the supply cord is damaged, it must be replaced by the manufacturer or

its service agent or a similarly qualified person in order to avoid hazard.

Visit www.mosquitomagnet.com

Children and adults should be alerted to the

hazards of high surface temperatures and should

stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they

are in the area of the heater. Keep out of reach of children.

Clothing or other flammable materials should not be

hung from the heater, or placed on or near the heater.

Please read and follow all safety

instructions and warnings.

Note: Some or all of the following required safety instructions for

propane powered devices may apply to your trap. Allow

trap to cool for 5 minutes before re-starting.

Warning: Improper installation, adjustment, alteration,

service or maintenance can cause injury or property damage.

Read the installation, operating and maintenance instructions

thoroughly before installing or servicing the trap.

Caution: The gas pressure regulator provided with this

appliance must be used. This regulator is set for an outlet pressure

of 11.0 in. Water Column. The minimum inlet gas supply pressure is

11.0 in. Water Column from regulator.

•This unit is not intended to be installed in or on recreational vehicles and/or boats.

•The gas supply must be turned off at the LP-Gas supply cylinder when

this appliance is not in use.

•The installation must conform with local codes or, in the absence of

local codes, with the National Fuel Gas Code, ANSI Z223. 1-1998 for US

and with the CAN1-B149 for Canada.

•To test for a gas leak, place soapy water around the connector,

regulator, and gas hose assembly. If bubbles appear, there is a gas leak.

•Inspect the hose before each use of the unit. If it is evident there is

excessive abrasion or wear, or the hose is cut, it must be replaced prior

to the unit being put into operation. The replacement hose shall be that

specified by the manufacturer.

•The trap is equipped with an internal spark. Failure to follow starting

procedure will result in the trap not starting.

•Installation and repair should be done by a qualified service person

(find service centers on www.mosquitomagnet.com). The heater should

be inspected before use and at least annually by a qualified service

person. More frequent cleaning may be required as necessary. It is

imperative that the control compartment, burners, and circulating air

passageways of the heater be kept clean.

Set-Up

Charging Instructions

1. Remove cover panel from rear of Power Head Unit

(panel snaps off).

2. The Battery Charger is not rated for Outdoor use. The

battery must be charged indoors.

3. Plug the Battery Charger into a suitable indoor outlet.

4. Connect the re-chargeable battery to the battery

charger.

5. The LED on the Battery Charger will indicate Red when

the battery is charging, when the battery is fully

charged the LED will indicate Green. The typical charge

time is less than two hours.

6. The battery charger is automatic, it will shut down to a

safe maintenance charge current when the battery is

fully charged. It will not over charge the battery. For

maximum life, do not leave the battery on the charger

for extended periods.

7. When the battery is fully charged, disconnect the

battery from the battery charger and return it in the

Mosquito Magnet Executive.

8. Insert and connect the re-chargeable battery.

9. Replace the cover panel on the rear of Power Head

Unit.

Trap Placement

1. Determine the direction of the prevailing wind.

Check local weather patterns if you are unsure.

2. Stand in the center of the area you are trying to protect

and look toward the prevailing wind.

3. Proper placement of the trap will be 10 meters in front of

you, within1.5 meters of ground cover (i.e. bushes,

flowerbeds, tree line, marshbed). Ensure that trap is not

directly against any blockades such as buildings, fences, etc.

4. It is recommended that the trap be placed in the shade.

5. Do not place trap directly above a water source

(sprinklers, hose, etc.).

6. Trap must be placed on level ground to avoid tipping

or uneven propane distribution.

7. For optimal trap placement in your yard, refer to the

instructional CD-ROM included with your trap; or, go to

www.mosquitomagnet.com to build your own yard

diagram for correct trap placement.

NOTE: Make sure cover panel is replaced; trap is not

weatherproof with cover panel removed.

Insert & Connect Battery

Remove Back Panel

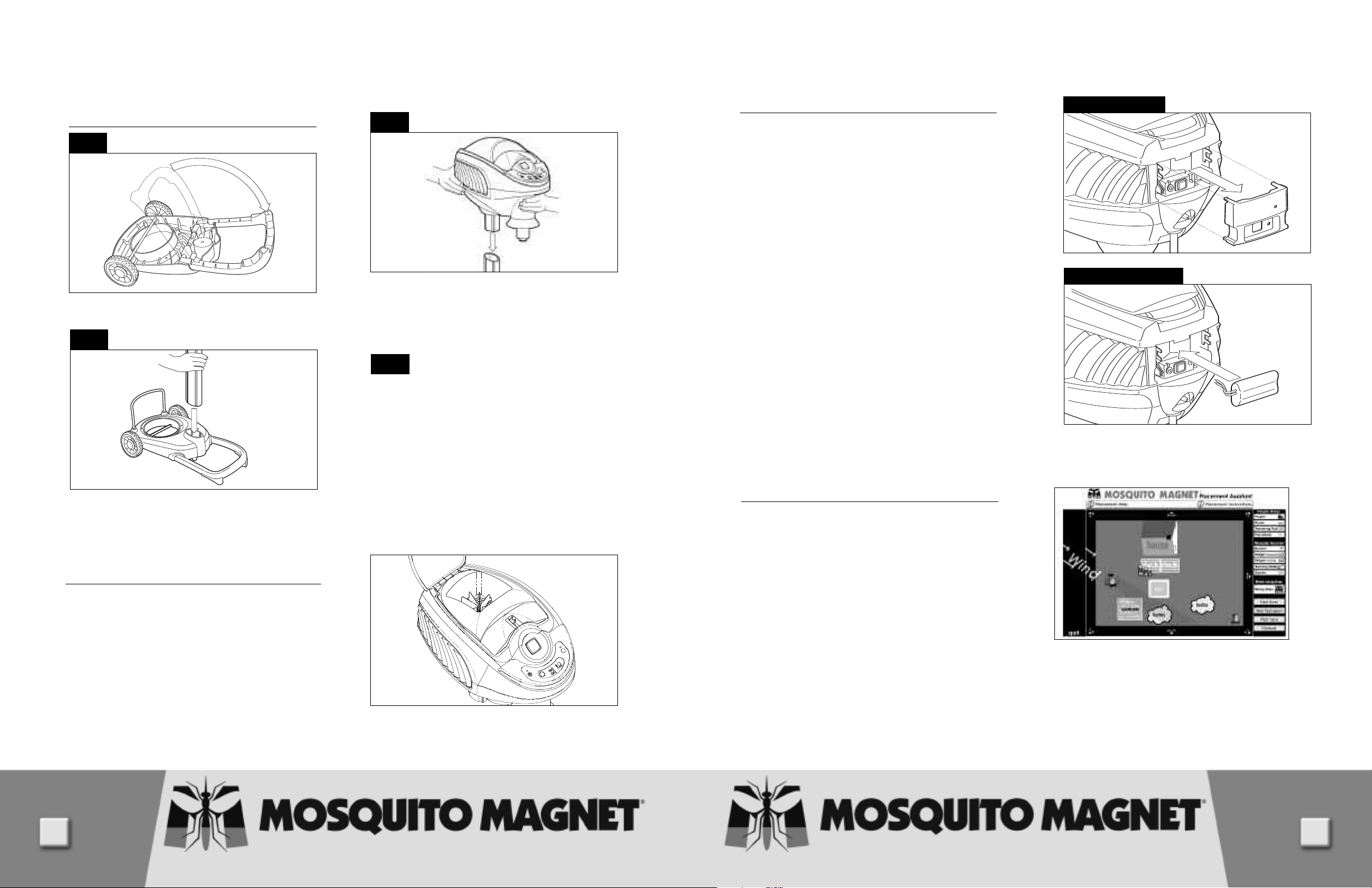

Assembly Instructions

Trap Assembly:

Place base upside down on a flat surface, unfold U-

shaped support leg until it locks in place.

Place trap power head onto pole. Press down firmly

with two hands to secure.

Assembled trap should have the front of power head/

trumpet placed farthest from the wheels in the same

direction as base U-shaped legs.

Turn base and leg assembly right-side-up and place

support pole into cavity on base.

The battery is not fully charged at the factory; charge

the battery before the first use. Under proper usage,

one charge lasts all season. See page 6 for further

details.

Step 1

Step 2

Step 3

Bug Bag Installation:

To insert Bug Bag, first engage front/open section then gently

push the back end down into place.Step 4Step 4

Step 4

OFF

RUN

CO O L

WARM

MODEATTENTION!

MODE

Instructions

Charge your battery per instructions on page 6. Under proper

usage, battery will last all season.

Starting Instructions

It is recommended that you read the entire manual before

starting the Mosquito Magnet®trap.

1. To start the trap, press and hold the ON/OFF button for

three seconds until the orange LED illuminates.

2. RUN will show on the display. WARM and the indicator

arrows will also flash on the display. The LED (indicator

above ON/OFF button) will be orange.

3. The fan will ramp from low speed to high speed after

approximately 3 minutes.

4. The display will flash WARM and the LED will be

orange for approximately 15-25 minutes while the trap

is warming up.

5. After the trap reaches operating temperature, the LED

will be green and WARM will disappear from the

display.

Shut Down Instructions

To turn off the trap, press the ON/OFF button. RUN will show on

the display. COOL and the indicator arrows will flash on the

display. The LED will be green. After a two minute cool down,

the fan will stop, the LED will turn off and OFF will show on the

display.

When Not In Use

If the unit is not in use, the gas must be turned off at the supply

cylinder. Storage of this unit indoors is permissible only if the cylinder

is disconnected and removed. Cylinders must be stored outdoors,

out of reach of children and must not be stored in a building, garage

or any other enclosed area.

End of Season Storage

Refer to the shut down instructions above prior to closing the

propane tank valve and disconnecting the regulator. Close the

propane tank valve and disconnect regulator. Also disconnect

the battery but make sure not to remove battery from trap.

Any open Mosquito Magnet®attractant should be removed and

discarded. See attractant label for disposal instructions. The

bug bag should also be discarded prior to storing the trap.

STORAGE:

The trap should be stored indoors in a garage or shed in

the off-season. Cover trumpet to prohibit insects from nesting. Cover

unit with trap cover or with a tarp and secure tightly at the bottom to

keep out dust, spider webs and other debris.

NOTE: It is recommended that you use the Quick Clear adapter

before seasonal storage to avoid build-up of

contaminants during off-season.

(see page 11).

**READ MANUAL BEFORE STARTING**

For Optimal Results Run 24 hours/day

•Your trap will begin capturing immediately with

significant reduction in the mosquito population in

7-10 days. Allow 4 weeks to significantly reduce the

mosquito population in your yard.

• Allow trap to cool for 5 minutes before re-start.

• Never spray insecticide in or around trap.

• Trap can be left running in the rain, but do not place

trap directly above a water source (sprinklers, hose,

etc.).

• If using lime or fertilizer compounds, be sure to shut

down the trap first to prevent dust or fine mist from

being drawn into trap and clogging bug bag.

Warning: Improper installation, adjustment, alteration, service or

maintenence can cause injury or property damage. Read the

installation, operating and maintenence instructions thoroughly

before installing or servicing this equipment.

Caution: The gas pressure regulator provided with this

appliance must be used. This regulator is set for an outlet

pressure 11.0 in. water column.

The gas supply must be turned off at the LP-Gas supply

cylinder when this appliance is not in use.

Set-Up

Propane Tank Installation

1. After trap is placed in its ideal location,

place propane tank onto the base.

2. Making sure propane tank is fully closed, attach

propane regulator hose to propane tank. Secure

tightly by hand. Do not use tools.

3. Turn propane on by slowly turning valve counter-

clockwise. Take care not to turn too quickly to avoid

engagement of safety valve.

DO NOT MOVE TRAP WITH TANK ATTACHED!

TANK MUST BE DISCONNECTED FROM REGULATOR

BEFORE TRAP IS RELOCATED TO AVOID DAMAGE

TO REGULATOR AND/OR TRAP. BE ADVISED,

DAMAGE CAUSED FROM FAILURE TO COMPLY

WITH THIS INSTRUCTION IS NOT COVERED

UNDER WARRANTY.

Step 1 – Propane Tank Placement

Step 2 – Attach Regulator

Step 3 – Slowly Open Valve

Maintenance

If using one of our Fuel-Saving Modes, be sure to adjust the dates on the

chart below (see chart on page 9 to coordinate the maintenance

schedule with the mode of operation).

• 21 Day Maintenance Cycle - for Optimal Performance

- Refill propane tank. 20 lb (9.07 kg) propane tank lasts

approximately 21 days with 24-hour/7-days operation.

- Replace short-range attractant cartridge.

See Mosquito Magnet®attractant label for instructions.

- Empty or replace bug bag.

- Utilize the Quick Clear adapter at every tank change.

• Periodically wipe down the outside of the trap

with a clean, water damp cloth.

• Charge your battery for 24 hours at the beginning of the season.

Propane Tank Changing Tips

When attaching the regulator knob to a tank after a tank change,

be sure to fully tighten the regulator knob onto the tank. No need

to use tools, but do turn the knob as far as possible by hand.

When this is done, loosen the knob 1/4 turn, then re-tighten to

maximize seal.

The purpose for this is to fully engage the regulator onto the tank. If

the regulator is not fully engaged, the flow of gas may be restricted

to the point where the trap will show a gas empty code. If this

occurs, press the off button, close the tank valve, and remove the

regulator from the tank. Re-attach the regulator and try again.

Possible CauseMaintenance Schedule Note: Bug bags should be replaced when half full. You can find all your accessory

needs at your local hardware or home improvement store.

Example Season 1 Season 2 Season 3 Season 4

Purchase Date

Start Up Date

SERVICE:

Seasonal Tune-Up

MAINTENANCE:
