Woodward SECM70 User manual

EC-US-L1
Product Manual
26784
(Revision D, 07/2022
)
Original Instructions

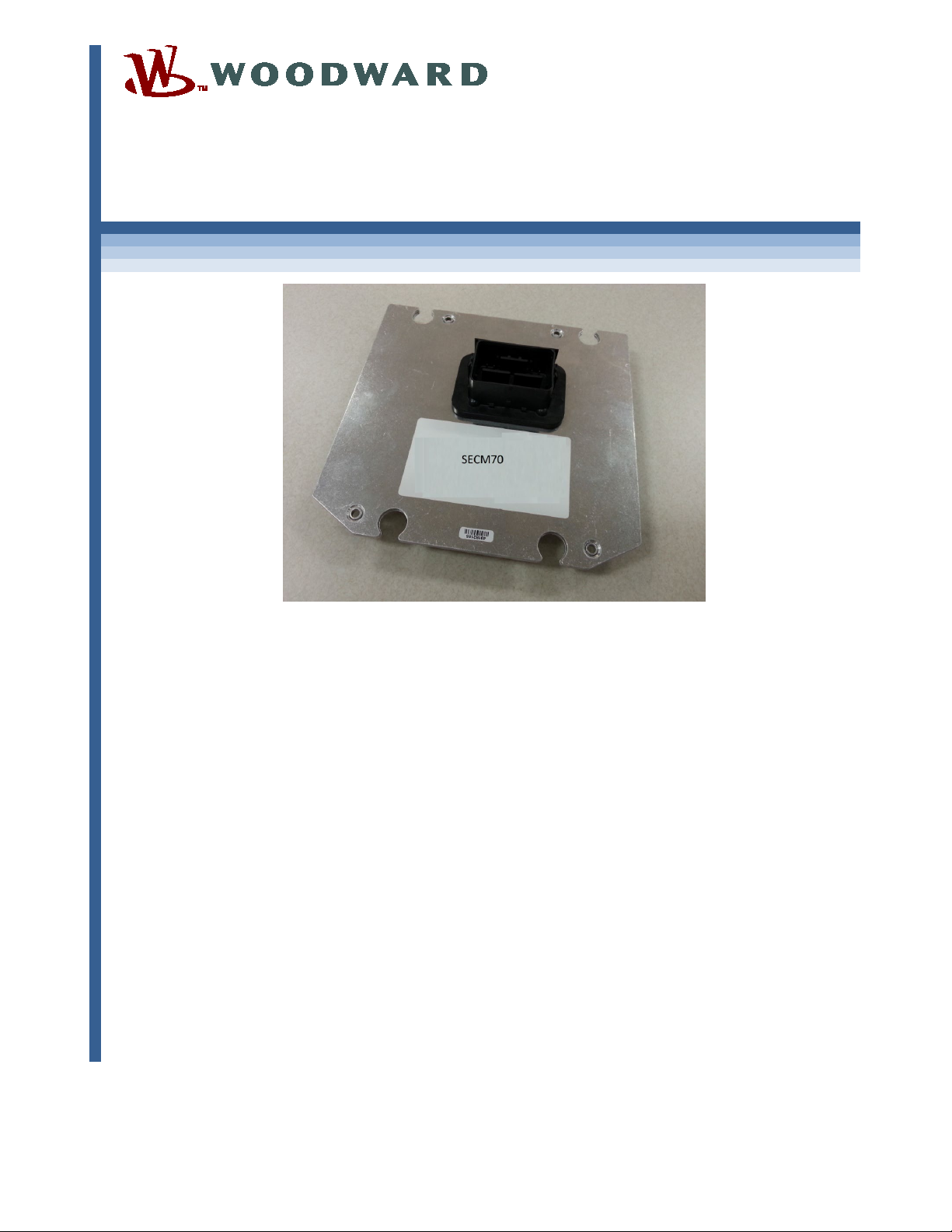

SECM70 Digital Control
Installation Manual

EC-US-L1
General
Precautions
Read this entire manual and all other publications pertaining to the work to be
performed before installing, operating, or servicing this equipment.
Practice all plant and safety instructions and precautions.
Failure to follow instructions can cause personal injury and/or property damage.
Revisions
This publication may have been revised or updated since this copy was produced.
To verify that you have the latest revision, check manual 26455, Customer
Publication Cross Reference and Revision Status & Distribution Restrictions, on
the publications page of the Woodward website:
http://www.woodward.com
The latest version of most publications is available on the publications page. If
your publication is not there, please contact your customer service representative
to get the latest copy.
Proper Use
Any unauthorized modifications to or use of this equipment outside its specified
mechanical, electrical, or other operating limits may cause personal injury and/or
property damage, including damage to the equipment. Any such unauthorized
modifications: (i) constitute "misuse" and/or "negligence" within the meaning of
the product warranty thereby excluding warranty coverage for any resulting
damage, and (ii) invalidate product certifications or listings.
Translated
Publications
If the cover of this publication states "Translation of the Original Instructions"
please note:
The original source of this publication may have been updated since this
translation was made. Be sure to check manual 26455, Customer Publication
Cross Reference and Revision Status & Distribution Restrictions, to verify whether
this translation is up to date. Out-of-date translations are marked with . Always
compare with the original for technical specifications and for proper and safe
installation and operation procedures.
Revisions—A bold, black line alongside the text identifies changes in this publication since the
last revision.
Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is
believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly
undertaken.
Manual 26784
Copyright © Woodward, Inc. 2014-2022
All Rights Reserved

Manual 26784 SECM70 Digital Control
Woodward 1
EC-US-L1
Contents
WARNINGS AND NOTICES ...............................................................................................................3
ELECTROSTATIC DISCHARGE AWARENESS...................................................................................... 5
CHAPTER 1. INTRODUCTION ............................................................................................................6
CHAPTER 2. ENVIRONMENTAL REQUIREMENTS................................................................................7
Vibration and Shock ...................................................................................................................................... 7
Temperature.................................................................................................................................................. 8
CHAPTER 3. PACKAGING ................................................................................................................9
Isolators......................................................................................................................................................... 9
Outline Drawings......................................................................................................................................... 10
Orientation................................................................................................................................................... 11
Connector Information................................................................................................................................. 12
CHAPTER 4PRODUCT SUPPORT AND SERVICE OPTIONS ...............................................................13
Product Support Options............................................................................................................................. 13
Product Service Options ............................................................................................................................. 13
Returning Equipment for Repair ................................................................................................................. 14
Replacement Parts...................................................................................................................................... 14
Engineering Services .................................................................................................................................. 15
Contacting Woodward’s Support Organization........................................................................................... 15
Technical Assistance .................................................................................................................................. 16
REVISION HISTORY .......................................................................................................................17
The following are trademarks of Woodward, Inc.:
•SECM70
The following are trademarks of their respective companies:
•TE (TE Connectivity Corporation)
•Molex (Molex, LLC)

Manual 26784 SECM70 Digital Control
Woodward 2
EC-US-L1
Illustrations and Tables
Figure 2-1. Location of Accelerometer to Measure Mounting Vibration ....................................................... 7
Figure 2-2. Random Vibration Spectrum ...................................................................................................... 7
Figure 3-1: SECM70 Isolators....................................................................................................................... 9
Figure 3-2: SECM70 Outline Drawing......................................................................................................... 10
Figure 3-3. Preferred Mounting Orientation ................................................................................................ 11

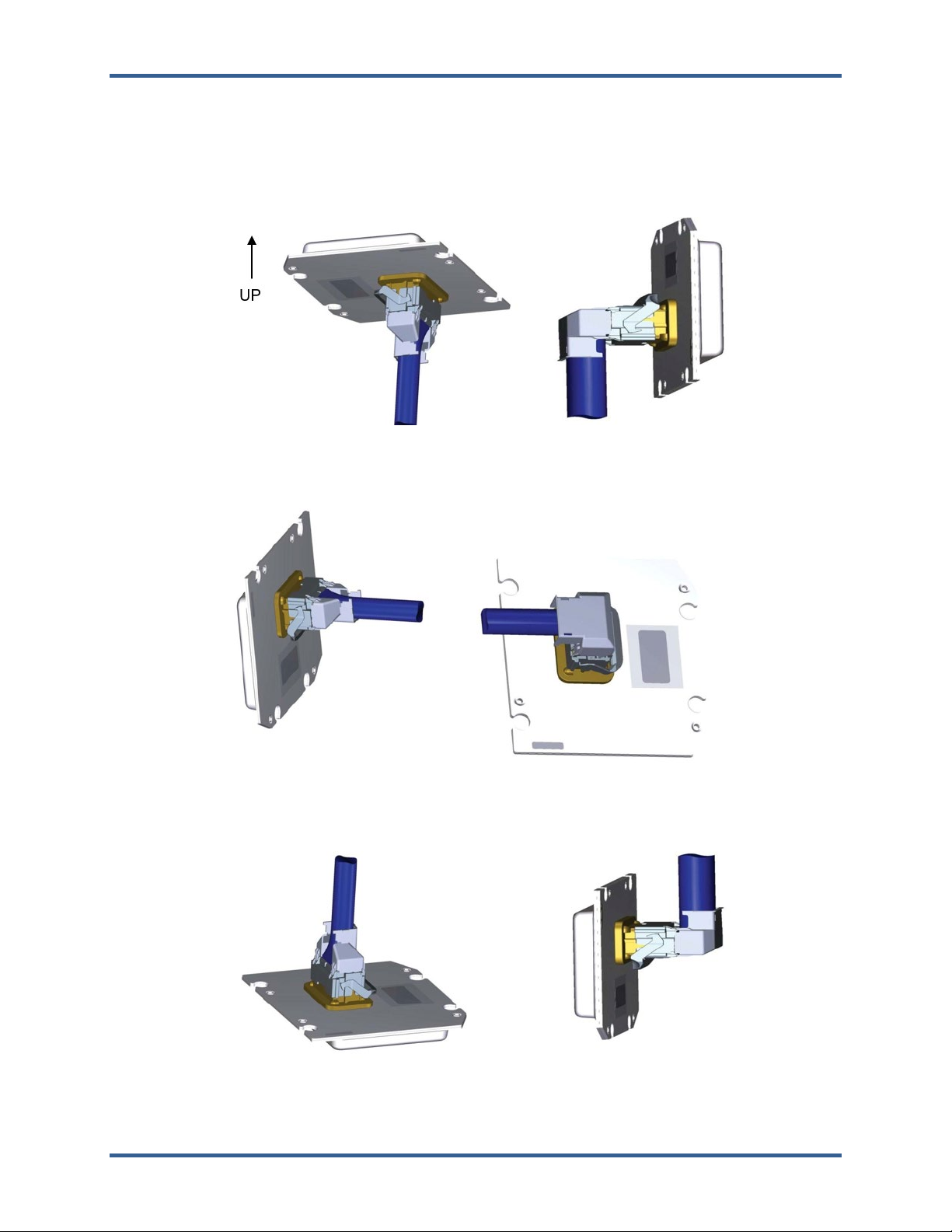

Figure 3-4. Acceptable Mounting Orientation ............................................................................................. 11
Figure 3-5. Mounting Orientation Not Recommended ................................................................................ 11
Table 1-1. SECM70 Part Numbers ............................................................................................................... 6
Table 3-1. Vibration Isolator Part Numbers................................................................................................... 9
Table 3-2. Connector System Part Numbers.............................................................................................. 12

Manual 26784 SECM70 Digital Control
Woodward 3
EC-US-L1
Warnings and Notices
Important Definitions
This is the safety alert symbol used to alert you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid possible injury or death.
•DANGER - Indicates a hazardous situation, which if not avoided, will result in death or serious injury.
•WARNING - Indicates a hazardous situation, which if not avoided, could result in death or serious
injury.
•CAUTION - Indicates a hazardous situation, which if not avoided, could result in minor or moderate
injury.
•NOTICE - Indicates a hazard that could result in property damage only (including damage to the
control).
•IMPORTANT - Designates an operating tip or maintenance suggestion.
Lockout/Tagout
LOTO
Ensure that personnel are fully trained on LOTO procedures prior to
attempting to replace or service equipment on a “live” running
engine. All safety protective systems (overspeed, over temperature,
overpressure, etc.) must be in proper operational condition prior to
the start or operation of a running engine. Personnel should be
equipped with appropriate personal protective equipment to
minimize the potential for injury due to release of hot hydraulic
fluids, exposure to hot surfaces and/or moving parts, or any moving
parts that may be activated and are located in the area of control of
the unit.
Overspeed /
Overtemperature /
Overpressure
The engine, turbine, or other type of prime mover should be
equipped with an overspeed shutdown device to protect against
runaway or damage to the prime mover with possible personal injury,
loss of life, or property damage.
The overspeed shutdown device must be totally independent of the
prime mover control system. An overtemperature or overpressure
shutdown device may also be needed for safety, as appropriate.
Personal Protective
Equipment
The products described in this publication may present risks that
could lead to personal injury, loss of life, or property damage.
Always wear the appropriate personal protective equipment (PPE) for
the job at hand. Equipment that should be considered includes but is
not limited to:
•Eye Protection
•Hearing Protection
•Hard Hat
•Gloves
•Safety Boots
•Respirator
Always read the proper Material Safety Data Sheet (MSDS) for any
working fluid(s) and comply with recommended safety equipment.
Start-up
Be prepared to make an emergency shutdown when starting the
engine, turbine, or other type of prime mover, to protect against
runaway or overspeed with possible personal injury, loss of life, or
property damage.

Manual 26784 SECM70 Digital Control
Woodward 4
EC-US-L1
Automotive
Applications
On- and Off-Highway Mobile Applications: Unless Woodward's
control functions as the supervisory control, customer should install
a system totally independent of the prime mover control system that
monitors for supervisory control of engine (and takes appropriate
action if supervisory control is lost) to protect against loss of engine
control with possible personal injury, loss of life, or property
damage.
IOLOCK
IOLOCK: driving I/O into a known state condition. When a control
fails to have all the conditions for normal operation, watchdog logic
drives it into an IOLOCK condition where all output circuits and
signals will default to their de-energized state as described below.
The system MUST be applied such that IOLOCK and power OFF
states will result in a SAFE condition of the controlled device.
•Microprocessor failures will send the module into an IOLOCK
state.
•Discrete outputs / relay drivers will be non-active and
de-energized.
•Analog and actuator outputs will be non-active and de-energized
with zero voltage or zero current.
Network connections like CAN stay active during IOLOCK. This is up
to the application to drive actuators controlled over network into a
safe state.
The IOLOCK state is asserted under various conditions, including:
•Watchdog detected failures
•Microprocessor failure
•PowerUp and PowerDown conditions
•System reset and hardware/software initialization
•PC tool initiated
NOTE—Additional watchdog details and any exceptions to these
failure states are specified in the related section of the product
manual.
Battery Charging
Device
To prevent damage to a control system that uses an alternator or
battery-charging device, make sure the charging device is turned off
before disconnecting the battery from the system.

Manual 26784 SECM70 Digital Control
Woodward 5
EC-US-L1
Electrostatic Discharge Awareness
Electrostatic
Precautions
Electronic controls contain static-sensitive parts. Observe the
following precautions to prevent damage to these parts:
•Discharge body static before handling the control (with power to
the control turned off, contact a grounded surface and maintain
contact while handling the control).
•Avoid all plastic, vinyl, and Styrofoam (except antistatic
versions) around printed circuit boards.
•Do not touch the components or conductors on a printed circuit
board with your hands or with conductive devices.
To prevent damage to electronic components caused by improper
handling, read and observe the precautions in Woodward manual
82715, Guide for Handling and Protection of Electronic Controls,
Printed Circuit Boards, and Modules.
Follow these precautions when working with or near the control.
1. Avoid the build-up of static electricity on your body by not wearing clothing made of synthetic
materials. Wear cotton or cotton-blend materials as much as possible because these do not store
static electric charges as much as synthetics.
2. Touch your finger to a grounded surface to discharge any potential before touching the control, smart
valve, or valve driver, or installing cabling connectors. Alternatively, ESD mitigation may be used as
well: ESD smocks, ankle or wrist straps and discharging to a reference grounds surface like chassis
or earth are examples of ESD mitigation.
•ESD build up can be substantial in some environments: the unit has been designed for
immunity deemed to be satisfactory for most environments. ESD levels are extremely
variable and, in some situations, may exceed the level of robustness designed into the
control. Follow all ESD precautions when handling the unit or any electronics.
oI/O pins within connectors have had ESD testing to a significant level of immunity to
ESD, however do not touch these pins if it can be avoided.
Discharge yourself after picking up the cable harness before installing it as a
precaution.
oThe unit is capable of not being damaged or improper operation when installed to a
level of ESD immunity for most installation as described in the EMC specifications.
Mitigation is needed beyond these specification levels.
External wiring connections for reverse-acting controls are identical
to those for direct-acting controls.

Manual 26784 SECM70 Digital Control
Woodward 6
EC-US-L1
Chapter 1.
Introduction
The SECM70 is a full authority engine control module capable of withstanding the environment within the
engine compartment and either on or off engine mounting. The 4 mounting feet on the controller are
designed to accept specific rubber grommets and aluminum bushings to provide both vibration isolation
as well as electrical isolation of the module case from chassis ground. This mounting hardware can be
purchased separately or ordered pre-installed on the part numbers listed above.
The purpose of this manual is to detail the installation requirements of the 70-pin Small Engine Control
Module (SECM70).
Part numbers for both production and development SECM70 units are shown in Table 1-1.
Table 1-1. SECM70 Part Numbers
Model No. Part No. Kit No.
MY15 PRODUCTION UNITS
MI-1562
1751-6719
8923-2253
MI-1563
1751-6720
8923-2254
MI-1565
1751-6722
8923-2256
MI-1566
1751-6723
8923-2257
MI-1569
1751-6756
8923-2475
MY15 DEVELOPMENT UNITS
MI-1512
1751-6713
8923-2258
MI-1513
1751-6714
8923-2259
MI-1515
1751-6716
8923-2261
MI-1516
1751-6717
8923-2262
MI-1609
1751-6755
8923-2474
MY17 PRODUCTION UNITS
MI-1752
1751-6767
8923-2583
MI-1753
1751-6768
8923-2587
MI-1754
1751-6769
8923-2581
MI-1755
1751-6770
8923-2585
MI-1756
1751-6771
8923-2579
MI-1759
1751-6784
8923-2577
MY17 DEVELOPMENT UNITS
MI-1702
1751-6772
8923-2584
MI-1703
1751-6773
8923-2588
MI-1704
1751-6774
8923-2582
MI-1705
1751-6776
8923-2586
MI-1706
1751-6777
8923-2580
MI-1709
1751-6785
8923-2578

Manual 26784 SECM70 Digital Control
Woodward 7
EC-US-L1
Chapter 2.
Environmental Requirements
Vibration and Shock
The SECM70 is designed for engine mount operation with the vibration isolators. If the SECM70 is mounted
on a bracket not provided by Woodward, the bracket needs to be evaluated in the application. It is possible
for a bracket resonance to be incompatible with the SECM70 product, causing premature failure of the
module.
The vibration integrity of the SECM70 for a given installation can be verified by measuring the vibration
spectrum of an installed unit when the engine / vehicle is operated under worse case vibration conditions.
The vibration spectrum needs to be measured with an accelerometer on the SECM70 mounting foot as
shown in Figure 2-1. If the measured spectrum is within the RV3 de-rated spectrum illustrated in red in
Figure 2-2, the mounting location is acceptable for vibration.
Figure 2-1. Location of Accelerometer to Measure Mounting Vibration
The harness must be firmly secured at a tie-down length not to exceed 150 mm from the center of the
connectors.
Random Vibration
The SECM70 shall survive Woodward’s RV3 random vibration specification (22.1 Grms / 3 hours per
axis) per Woodward procedure 3-04-6231. The RV3 random vibration profile is illustrated in Figure 2-2
(blue line). A de-rated installation RV3 vibration for a 7-year life is shown in red.
0.001
0.01
0.1
1
10
100
1000
10000
Frequency (Hz)
PSD (G^2 / Hz)
Validation Spectrum
Installation Spectrum –
7 Year Life
Figure 2-2. Random Vibration Spectrum

Manual 26784 SECM70 Digital Control
Woodward 8
EC-US-L1
Temperature
The SECM70 is designed to be thermally isolated from the mounting surface and relies on air convection
for cooling based on a minimum air flow at the worst case operation mode. The following ratings apply to
the SECM70 when installed properly:
Ambient Operating Temperature: –40 to +105 °C
Minimum Operating Airflow: 2 m/s
Heat Soak / Storage Temperature Range: –40 to +125 °C
Customers can verify the temperature in the desired mounting location by placing a thermocouple in the
air near the operating SECM70. If the external ambient conditions are not worse case, this needs to be
taken into consideration when measuring the SECM70 package temperature. If the measured air
temperature when operating at worse case (fastest) engine speed and worse case (hottest) ambient
conditions is less than 105 °C, the mounting location thermal stress is acceptable for the SECM70.
Thermal Survey
The SECM70 thermal performance shall be evaluated with a thermal survey that measures the case
temperatures of critical power components under various operating conditions. The thermal survey is
used to ensure that under worse case thermal and operating conditions electrical component ratings are
not exceeded.

Manual 26784 SECM70 Digital Control
Woodward 9
EC-US-L1
Chapter 3.
Packaging
Isolators
The SECM70 has 4 mounting feet. Figure 3-1 illustrates the isolator components and shows the isolator
pre-assembled on the module.
Figure 3-1: SECM70 Isolators
The isolators must be inspected for wear at least once per year. For on-engine mounting, Woodward
recommends replacing the vibration isolators once a year or sooner if wear is observed. Below are the
Woodward part numbers for these components.
Table 3-1. Vibration Isolator Part Numbers
Component
Woodward PN
Washer
1010-5056
Grommet
1015-1004
Bushing
1404-1031
When installing the module into customer locations, Woodward recommends using an M6, ANSI
B18.2.3.1M-1979 (R1995), ANSI B18.2.3.5M-1989, or DIN 931/DIN 933 metric hex screw with a 6 mm
ANSI B18.22M-1981 (R1990) narrow metric plain washer that has a maximum outer diameter of 18.80 mm.
Recommended torque for M6 hex screw: 57-67 in-lbs (6.5-7.6Nm).
Washer
Grommet
Bushing

Manual 26784 SECM70 Digital Control
Woodward 10
EC-US-L1
Outline Drawings
Figures 3-2 illustrates the package outline. Measurements shown are in millimeters.
Figure 3-2: SECM70 Outline Drawing

Manual 26784 SECM70 Digital Control
Woodward 11
EC-US-L1
Orientation
The SECM70 has been validated for high pressure spray and steam cleaning, however it is not
recommended to mount with the connector facing up or with the harness routed upward directly from the
module (Figure 3-5). This orientation can allow moisture to run down the harness to the wire seals in the
connectors.
Figure 3-3. Preferred Mounting Orientation
Figure 3-4. Acceptable Mounting Orientation
Figure 3-5. Mounting Orientation Not Recommended

Manual 26784 SECM70 Digital Control
Woodward 12
EC-US-L1
Connector Information
The SECM70 mating connectors, terminals, wire caps (back shells) and wire plug part numbers are listed
in Table 3-2 below. All unused pins must be plugged with the proper wire plugs to maintain environmental
integrity.
Table 3-2. Connector System Part Numbers
Item
Manufacturer PN
Woodward PN
70-pin harness connector TE 1438136-1 1635-1772
Connector kit
8923-1761
Terminals (Gold Plated)
0.64 mm for 18-20 AWG
(1.70 - 2.06 mm insulation)
TE 1393365-1 1602-1108
1.5mm (18-20 AWG)
(1.70 – 2.06 mm insulation)
Molex 33001-2004 1602-1109
1.5mm (14-16 AWG)
(2.18 – 2.69 mm insulation)
Molex 33001-2003 1602-1110
Wire Caps (Back Shells)
90° (top) exit
TE 1438133-1
1633-1007
180° exit TE 1488374-1 1633-1012
90° (side) exit
Mercury 8M0031406
1633-1013
Wire Plugs
0.64 mm
Molex 34676-001
1607-1010
1.5 mm Not available -
Hand Crimper Tools
0.64 mm (18-20 AWG) TE 6-1393462-5 8996-2162
1.5 mm (18-20 AWG)
Molex 63811-6000
8996-2164
1.5 mm (14-16 AWG) Molex 63811-5900 8996-2163
Applicator Crimpers
0.64 mm (18-20 AWG) Contact Tyco -
1.5 mm (20 AWG)
Molex 63868-2200
-
1.5 mm (18 AWG) Molex 63868-2100 -
1.5 mm (14-16 AWG)
Molex 63868-2000
-
Extraction Tools
0.64 mm terminals
TE 3-1579007-6
8996-2167
1.5 mm terminals Molex 63813-1500 -

Manual 26784 SECM70 Digital Control
Woodward 13
EC-US-L1
Chapter 4
Product Support and Service Options
Product Support Options
If you are experiencing problems with the installation, or unsatisfactory performance of a Woodward
product, the following options are available:
1. Consult the troubleshooting guide in the manual.
2. Contact the OE Manufacturer or Packager of your system.
3. Contact the Woodward Business Partner serving your area.
4. Contact Woodward technical assistance via email ([e-mail]) with
detailed information on the product, application, and symptoms. Your email will be forwarded to an
appropriate expert on the product and application to respond by telephone or return email.
5. If the issue cannot be resolved, you can select a further course of action to pursue based on the
available services listed in this chapter.
OEM or Packager Support: Many Woodward controls and control devices are installed into the equipment
system and programmed by an Original Equipment Manufacturer (OEM) or Equipment Packager at their
factory. In some cases, the programming is password-protected by the OEM or packager, and they are the
best source for product service and support. Warranty service for Woodward products shipped with an
equipment system should also be handled through the OEM or Packager. Please review your equipment
system documentation for details.
Woodward Business Partner Support: Woodward works with and supports a global network of
independent business partners whose mission is to serve the users of Woodward controls, as described
here:
•A Full-Service Distributor has the primary responsibility for sales, service, system integration
solutions, technical desk support, and aftermarket marketing of standard Woodward products within
a specific geographic area and market segment.
•An Authorized Independent Service Facility (AISF) provides authorized service that includes repairs,
repair parts, and warranty service on Woodward's behalf. Service (not new unit sales) is an AISF's
primary mission.
•A Recognized Engine Retrofitter (RER) is an independent company that does retrofits and
upgrades on reciprocating gas engines and dual-fuel conversions, and can provide the full line of
Woodward systems and components for the retrofits and overhauls, emission compliance upgrades,
long term service contracts, emergency repairs, etc.
A current list of Woodward Business Partners is available at www.woodward.com/directory.
Product Service Options
Depending on the type of product, the following options for servicing Woodward products may be
available through your local Full-Service Distributor or the OEM or Packager of the equipment system.
•Replacement/Exchange (24-hour service)
•Flat Rate Repair
•Flat Rate Remanufacture

Manual 26784 SECM70 Digital Control
Woodward 14
EC-US-L1
Replacement/Exchange: Replacement/Exchange is a premium program designed for the user who is in
need of immediate service. It allows you to request and receive a like-new replacement unit in minimum
time (usually within 24 hours of the request), providing a suitable unit is available at the time of the
request, thereby minimizing costly downtime.
This option allows you to call your Full-Service Distributor in the event of an unexpected outage, or in
advance of a scheduled outage, to request a replacement control unit. If the unit is available at the time of
the call, it can usually be shipped out within 24 hours. You replace your field control unit with the like-new
replacement and return the field unit to the Full-Service Distributor.
Flat Rate Repair: Flat Rate Repair is available for many of the standard mechanical products and some
of the electronic products in the field. This program offers you repair service for your products with the
advantage of knowing in advance what the cost will be.
Flat Rate Remanufacture: Flat Rate Remanufacture is very similar to the Flat Rate Repair option, with
the exception that the unit will be returned to you in “like-new” condition. This option is applicable to
mechanical products only.
Returning Equipment for Repair
If a control (or any part of an electronic control) is to be returned for repair, please contact your Full-
Service Distributor in advance to obtain Return Authorization and shipping instructions.
When shipping the item(s), attach a tag with the following information:
•return number;
•name and location where the control is installed;
•name and phone number of contact person;
•complete Woodward part number(s) and serial number(s);
•description of the problem;
•instructions describing the desired type of repair.
Packing a Control
Use the following materials when returning a complete control:
•protective caps on any connectors;
•antistatic protective bags on all electronic modules;
•packing materials that will not damage the surface of the unit;
•at least 100 mm (4 inches) of tightly packed, industry-approved packing material;
•a packing carton with double walls;
•a strong tape around the outside of the carton for increased strength.
To prevent damage to electronic components caused by improper
handling, read and observe the precautions in Woodward manual
82715, Guide for Handling and Protection of Electronic Controls,
Printed Circuit Boards, and Modules.
Replacement Parts
When ordering replacement parts for controls, include the following information:
•the part number(s) (XXXX-XXXX) that is on the enclosure nameplate;
•the unit serial number, which is also on the nameplate.

Manual 26784 SECM70 Digital Control
Woodward 15
EC-US-L1
Engineering Services
Woodward’s Full-Service Distributors offer various Engineering Services for our products. For these
services, you can contact the Distributor by telephone or by email.
•Technical Support
•Product Training
•Field Service
Technical Support is available from your equipment system supplier, your local Full-Service Distributor,
or from many of Woodward’s worldwide locations, depending upon the product and application. This
service can assist you with technical questions or problem solving during the normal business hours of
the Woodward location you contact.
Product Training is available as standard classes at many Distributor locations. Customized classes are
also available, which can be tailored to your needs and held at one of our Distributor locations or at your
site. This training, conducted by experienced personnel, will assure that you will be able to maintain
system reliability and availability.
Field Service engineering on-site support is available, depending on the product and location, from one
of our Full-Service Distributors. The field engineers are experienced both on Woodward products as well
as on much of the non-Woodward equipment with which our products interface.
For information on these services, please contact one of the Full-Service Distributors listed at
www.woodward.com/directory.
Contacting Woodward’s Support Organization
For the name of your nearest Woodward Full-Service Distributor or service facility, please consult our
worldwide directory at www.woodward.com/directory, which also contains the most current product
support and contact information.
You can also contact the Woodward Customer Service Department at one of the following Woodward
facilities to obtain the address and phone number of the nearest facility at which you can obtain
information and service.
Products Used in
Electrical Power Systems
Facility --------------- Phone Number
Brazil ------------- [phone]
China ----------- [phone]
Germany:
Kempen---- [phone]
Stuttgart - [phone]
India --------------- [phone]
Japan---------------[phone]
Korea---------------[phone]
Poland -------------- [phone]
United States-----[phone]
Products Used in
Engine Systems
Facility --------------- Phone Number
Brazil ------------- [phone]
China ----------- [phone]
Germany ------ [phone]
India --------------- [phone]
Japan---------------[phone]
Korea---------------[phone]
The Netherlands--[phone]
United States-----[phone]
Products Used in Industrial
Turbomachinery Systems
Facility --------------- Phone Number
Brazil ------------- [phone]
China ----------- [phone]
India --------------- [phone]
Japan---------------[phone]
Korea---------------[phone]
The Netherlands--[phone]
Poland -------------- [phone]
United States-----[phone]

Manual 26784 SECM70 Digital Control
Woodward 16
EC-US-L1
Technical Assistance
If you need to contact technical assistance, you will need to provide the following information. Please write
it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the
Woodward factory:
General
Your Name
Site Location
Phone Number
Fax Number
Prime Mover Information
Manufacturer
Engine Model Number
Number of Cylinders
Type of Fuel (gas, gaseous, diesel, dual-fuel, etc.)
Power Output Rating
Application (power generation, marine, etc.)
Control/Governor Information
Control/Governor #1
Woodward Part Number & Rev. Letter
Control Description or Governor Type
Serial Number
Control/Governor #2
Woodward Part Number & Rev. Letter
Control Description or Governor Type
Serial Number
Control/Governor #3
Woodward Part Number & Rev. Letter
Control Description or Governor Type
Serial Number
Symptoms
Description
If you have an electronic or programmable control, please have the adjustment setting positions or the menu
settings written down and with you at the time of the call.

Manual 26784 SECM70 Digital Control
Woodward 17
EC-US-L1
Revision History
Changes in Revision D—
•Added Lockout/Tagout and IOLock warnings (pages 3 and 4)
•Revised Electrostatic Discharge Awareness section (page 5)
•Corrected mounting hardware (Chapter 3):
oChanged screw size from M8 to M6 and washer size from 8 mm to 6 mm
oAdded recommended torque for M6 hex screw: 57-67 in-lbs (6.5-7.6Nm)
Changes in Revision C—
•Updated part number chart in Chapter 1
•Updated Orientation section in Chapter 3
•Added Chapter 4 – Product Support and Service Options
Changes in Revision B—
