Woxcon IPA300TR User manual

IPA300TR/ IPA300TR-P
4K IP Streaming Extender (with Preview)
All Rights Reserved
Version: IPA300/ IPA300TR-P_2020V1.0
User Manual

4K IP Streaming Extender
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
March, 2020. In the constant effort to improve the product, we reserve the right to make
functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

4K IP Streaming Extender
SAFETY PRECAUTIONS
To ensur e t h e b e s t performance from the pr o d u c t , p l ease read all i n s t r u c t i ons carefully
before using the device. Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
l Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To prev e n t f i re or shock hazard, d o n o t e x p o s e the unit to rai n , m o i s ture or install
this product near water.
l Do not put any heavy items on the extension cable in case of extrusion.
l Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with fine ventilation to avoid damage caused by
overheat.
l Keep the module away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
l Do not twist or pull by force ends of the optical cable. It can cause malfunction.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

4K IP Streaming Extender
Table of Contents
1. Product Introduction .................................................................................................... 1
1.1 About 10G Network ............................................................................................ 1
1.2 Features ............................................................................................................. 2
1.3 Package List ....................................................................................................... 2
2. Specification ................................................................................................................ 3
3. Panel Description ........................................................................................................ 4
3.1 IPA300/ IPA300TR-P Front Panel ...................................................................... 4
3.2 IPA300/ IPA300TR-P Rear Panel ....................................................................... 5
4. System Connection ..................................................................................................... 6
4.1 Usage Precaution ............................................................................................... 6
4.2 Connection Type ................................................................................................ 6
4.3 System Diagram ................................................................................................. 7
4.4 Hardware Setup ................................................................................................. 8
5. Operation of IPA Manager ......................................................................................... 10
5.1 General Information .......................................................................................... 10
5.2 PC Software Installation ............................... Hata! Yer işareti tanımlanmamış.
5.3 Web GUI Installation .................................... Hata! Yer işareti tanımlanmamış.
5.4 Device Configuration ........................................................................................ 11
5.5 Start IPA Manager ............................................................................................ 12
5.6 Video Routing Tab ............................................................................................ 13
5.6.1 Video Switching ...................................................................................... 14
5.6.2 Sending Single Source to All RX Devices .............................................. 15
5.6.3 Stopping/Starting Video .......................................................................... 15
5.6.4 Disconnecting Source from RX .............................................................. 15
5.6.5 Preset Management ............................................................................... 15
5.7 Video Wall Routing Tab .................................................................................... 17
5.7.1 Configuring a Video Wall ........................................................................ 18
5.7.2 Preset Management ............................................................................... 18
5.7.3 Removing Receiver (RX) from Video Wall ............................................. 20
5.7.4 Changing Output Resolution for Video Wall Receivers .......................... 21

4K IP Streaming Extender
5.8 Multi-View Routing Tab ..................................................................................... 22
5.8.1 Configuring a Multi-View ........................................................................ 22
5.8.2 Create user-defined Multi-view mode. ................................................... 23
5.9 HDMI Audio Routing Tab .................................................................................. 23
5.10 Analog Audio Routing Tab .............................................................................. 26
5.11 RS-232 Routing Tab ....................................................................................... 27
5.11.1 Assign Transmitter to all Receivers ...................................................... 28
5.11.2 Sending RS-232 Data from IPA Manager to a Device .......................... 28
5.12 Infrared Routing Tab ....................................................................................... 30
5.12.1 Assign Transmitter to all Receivers ...................................................... 31
5.12.2 Sending IR Data from IPA Manager to a Device .................................. 31
5.13 Global Command Options and Settings ......................................................... 33
5.13.1 Receiver (RX) Settings Options ........................................................... 33
5.13.1.1. Analog Audio Output Settings ................................................... 33
5.13.1.2. HDMI Audio Output Settings ..................................................... 33
5.13.1.3. Display EDID ............................................................................. 34
5.13.1.4. Network Setting ......................................................................... 35
5.13.1.5. RS232 ....................................................................................... 36
5.13.2 Transmitter (TX) Settings Options ........................................................ 37
5.13.2.1. Input .......................................................................................... 37
5.13.2.2. Device EDID ............................................................................. 37
5.13.2.3. Network Setting ......................................................................... 38
5.13.2.4. RS232 ....................................................................................... 39
5.14 System Management Tab ............................................................................... 40
5.14.1 Device Firmware Upgrade ................................................................... 40
5.14.2 System Backup and Restore ................................................................ 41
5.14.3 Security Settings .................................................................................. 42
5.14.4 System Logs ........................................................................................ 43
5.15 Routing Table ................................................................................................. 44
6. Operation of GUI Control ........................................................................................... 47
7. Panel Drawing ........................................................................................................... 49

4K IP Streaming Extender
8. Troubleshooting & Maintenance ................................................................................ 50
9. Customer Service ...................................................................................................... 51

4K IP Streaming Extender
1
1. Product Introduction
The IPA300TR/ IPA300TR-P is a network AV Transceiver with HDMI input and output
up to resolution 4K@60Hz 4:4:4, HDR. It is designed for HDMI transmission over IP
network with external audio and control signals at distances up to 100m over CATx
cable. It works with one control PC (Wake on LAN) and one 10GbE Switch to control a
variety of functions.
The IPA300TR/ IPA300TR-P provides one of the most advanced IP Streaming solutions
on the market utilizing AptoVision BlueRiver™ NT+ technology, which synergizes
various IP/AV standards to work together as one. It combines a variety of 4K IP
technologies and features under one unified protocol using a simplified topology.
The IPA300TR/ IPA300TR-P features uncompressed video with zero-latency from
transmitter to receiver, seamless switching, Video wall, Multi-view, 1G Ethernet, IR,
RS232, audio embedding/de-embedding, audio down-mixing, etc. It can be controlled
by the IPA Manager software.
Compares with traditional HDBaseT matrix AV Switching, IPA300TR/ IPA300TR-P
features low cost, easy installation, more interoperability and flexibility. It is ideal for
distributing AV over 10 Gigabit Ethernet in enterprises and other large-scale
installations.
1.1 About 10G Network
Unlike traditional AV extension technology, such as HDBaseT, where transmitters and
receivers are connected point to point or joined together using custom matrix switches,
the IPA300TR/ IPA300TR-P is based on the inter compatible BlueRiver™ NT+
technology and connected using standard, off the shelf 10G Layer 2/3 network
switches.
This architecture makes use of data packages that can be easily and independently
routed to the desired unit. A variety of transmission modes is possible this way, from
one unit to another unit (point to point) or one unit to many units (point to multipoint) or
many units to many units (multipoint to multipoint) with a software controllable video
wall integration.
An added benefit of packet data transmission is that each signal type (video, audio,
RS232, etc.) is routed independently and not necessarily to the same destination. For
example, the HDMI video from a particular unit is routed to other 4 units, while the
audio goes to all receivers in the setup.
This unlimitedly scalable and independent signal routing enables multiple, scalable
applications, including signal extension, splitting, switching, matrixing, and video wall
functionality.

4K IP Streaming Extender
2
1.2 Features
l BlueRiver™ NT+ technology. Flexible used as either transmitter or receiver.
l Streams uncompressed video with zero-latency, audio, and control, with the
flexibility of transmitting them together or to separate network destinations.
l Supports HDMI input and output video resolution up to 4K@60Hz 4:4:4 8bit,
1080P 3D.
l 18Gbps high bandwidth and supports HDR 10 and Dolby Vision.
l Transports RS232 and IR signal to any units by using Unicast or Broadcast IPV4
protocol or local control by API server.
l IPA300TR/ IPA300TR-P series are configurable HDCP 2.2 compliant.
l Supports arbitrary Multi-view layout.
l Supports Video Wall mode up to 5x5 screens.
l Selectable output resolutions up to 4K scaling ability.
l Transmitter route HDMI audio, external audio as an independent streaming for
receiver embedding.
l BlueRiver NT+ Series is compatible with SDVoE, offering zero-latency AV-over-IP
with true 4K@60 and video processing.
l IPA300TR-P supports video preview on the IPA manager software, while
IPA300TR can’t.
1.3 Package List
IPA300TR/ IPA300TR-P:
l 1x IPA300TR/ IPA300TR-P
l 2x Mounting Ears with 2 Screws
l 4x Plastic Cushion
l 1x 3-pin Terminal Block
l 1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

4K IP Streaming Extender
3
2. Specification
Input
Video Input
(1) HDMI
Video Input Connector
(1) Type-A female HDMI
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Input
(1) AUDIO
Audio Input Connector
(1) 3.5mm jack
Output
Video Output
(1) HDMI
Video Output Connector
(1) Type-A female HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Output
(1) AUDIO
Audio Output Connector
(1) 3.5mm jack
General
Control
(1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232,
(1) ETHERNET
Control Connector
(2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
Power Consumption
18W (Max);
Operation Temperature
-10℃ ~ +55℃
Storage Temperature
-25℃ ~ +70℃
Relative Humidity
10%-90%
Dimension (W*H*D)
230.0mm x 25mm x 120.0mm
Net Weight
0.85KG

4K IP Streaming Extender
4
3. Panel Description
3.1 IPA300/ IPA300TR-P Front Panel
①
POWER LED: The LED illuminates green when power is applied.
LINK LED: The LED indicates if data are transmitted.
l LED on: Packets are not transmitted
l LED blinking: Packets are transmitted
VIDEO LED: The LED illuminates green when the stable video signal is detected.
ETHERNET LED: The LED illuminates green if data are transmitted.
②
HDMI IN LED: The LED illuminates green when video signal is detected.
HDMI OUT LED: The LED illuminates green when video signal is detected.
TX LED: The LED illuminates green when the unit is deemed as transmitter.
RX LED: The LED illuminates green when the unit is deemed as receiver.

4K IP Streaming Extender
5
3.2 IPA300/ IPA300TR-P Rear Panel
①
DC 12V: DC port for AC power adapter connection.
②
HDMI IN: Type-A female HDMI port to connect HDMI video source device.
③
HDMI OUT: Type-A female HDMI port to connect HDMI display device.
④
10G LAN (PoE): RJ45 port to connect directly to the RX or a network switch using
a CATx cable.
⑤
IR IN: 3.5mm jack to connect an IR receiver for IR routing control.
⑥
IR OUT: 3.5mm jack to connect an IR emitter for IR routing control.
⑦
RS232: 3-pin terminal block for RS232 routing control. Supports point to point
unicast and point to multipoint broadcast configuration.
⑧
AUDIO IN/OUT: 3.5mm jack to connect an audio source or output device.
⑨
ETHERNET: RJ45 port to connect control devices (such as PC) for system control
via software and Ethernet pass-through. The PC can also be indirectly connected
to the network switch.

4K IP Streaming Extender
6
4. System Connection
4.1 Usage Precaution
l Make sure all components and accessories are included before installation.
l The system should be installed in a clean environment with proper temperature and
humidity.
l All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
l All devices should be connected before being powered on.
4.2 Connection Type
There are three types of possible applications:
Extender (Point-to-Point)
In a point-to-point configuration, there is no need for a switch. Distribute full,
uncompressed data up to 4K@60Hz 4:4:4 resolution as well as 1G Ethernet, audio and
control signals over a single copper cable.
Splitter (One-to-Many)
With only one IPA300TR/ IPA300TR-P as transmitter and one 10G Ethernet switch, any
A/V signal can be flawlessly and instantly distributed to a near limitless number of
receivers and screens, any number of times.
Matrix Switcher (Many-to-One, Many-to-Many)
The combination of switching and splitting enables a completely scalable matrix
system. Independently route video, audio and control signal from any source to any
endpoint.

4K IP Streaming Extender
7

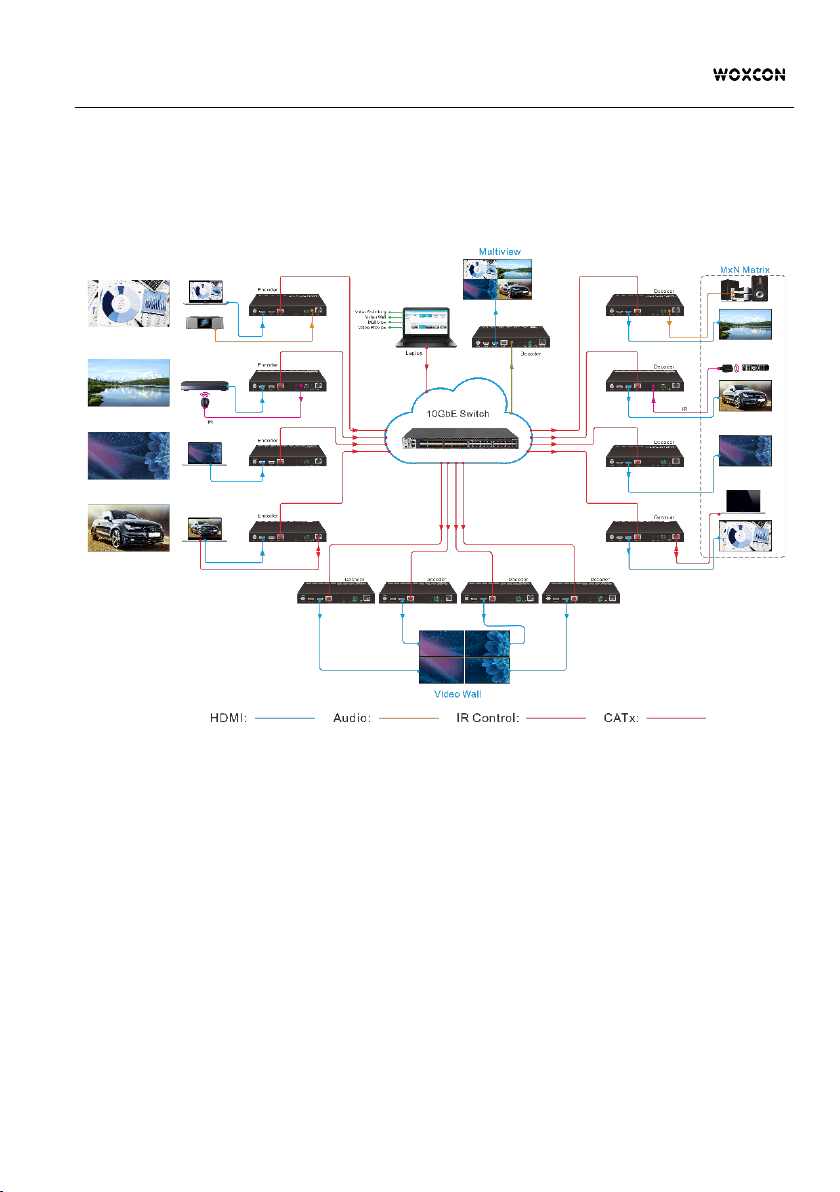

4.3 System Diagram
The following diagram illustrates typical input and output connections that can be
utilized with the IPA300TR/ IPA300TR-P:
Matrix System

4K IP Streaming Extender
8
4.4 Hardware Setup
Please follow the steps below to complete the system installation:
1) Connect the power supply (12V DC) to the power connectors (or powered by the
switch via PoE).
2) Connect the video/graphics source device to the HDMI input connector on each TX
unit.
3) Connect the video display device to the HDMI output connector on each RX unit.
4) (Optional) Connect audio sources to the audio input connector of the TX if you
want to test additional audio extension.
5) (Optional) Connect audio output device (e.g. speaker or headphone) to the audio
output connector of the RX if you want to test additional audio extension.
6) (Optional) Connect RS232 devices as needed if you want to test RS232 serial
extension between TX and RX units.
7) (Optional) Connect GbE compatible Ethernet devices as needed for testing the 1
Gig Ethernet ports of any TX or RX units.
8) (Optional) Connect compatible IR emitter modules to the IR output connectors of
any TX or RX.
9) (Optional) Connect compatible IR receiver modules to the IR input connectors of
any TX or RX.
10) Connect a 10G Ethernet cable (Cat-6a recommended) from the 10GbE port each
TX and RX unit to any available 10GBaseT port.
11) Connect the control PC to the GbE port of any IPA300TR/ IPA300TR-P device or
to a Cat-x port of the 10GbE switch (except the management/console port of the
switch).
12) The hardware setup is now complete.
l Note that any unit can also be connected directly to each other without the 10GbE
switch in the middle using Cat-x cable to test point to point functionality.
l Note that in order to test switching functionality through a 10GbE switch; you must

4K IP Streaming Extender
9
use a 10GbE layer 2, layer 3 switch with IGMP snooping capabilities. Ensure that
the IGMP snooping setting is enabled and broadcast setting is disabled using the
appropriate configuration software provided the switch manufacturer.

4K IP Streaming Extender
10
5. Operation of IPA Manager
5.1 General Information
The IPA Manager is a demonstration control software used to configure and control
signal extension, routing and switching between IPA300TR/ IPA300TR-P units.
The IPA Manager includes Web GUI version and Windows PC version.
The control PC can be connected to the ETHERNET port of any device or to any RJ45
port of the 10GbE switch except the management/console port of the switch which is
not part of the network.
Before proceeding, make sure all the units are powered ON. Then ensure that the IP
addresses of PC and all the units are on the same local area network (LAN).
Start the application by double clicking on IPA Manager.exe file. If you receive a pop-
up asking for network access confirmation, make sure that both Private and Public
networks are allowed.
Username: admin
Password: admin
Please type the username and password, and then click Login.
Upon launch, the IPA Manager’s main interface will appear as shown in the picture
below:

4K IP Streaming Extender
11
5.2 Device Configuration
Before starting the IPA Manager application, make sure it is connected either directly to
the network switch or to the Gigabit Ethernet port on one of the devices. Now launch
the application. Upon launch, the IPA Manager main window will open up in the “Video
Switching” tab. It will discover all the devices on the network and display them inside
the application.
All connected devices on the network will appear as a gray tiles within the application
window.
Each tile will identify the “Hostname” of the device. The default device “Hostname” is
the MAC address. Note that the “Hostname” can be updated at any time. The “IP
Address” of the device is also indicated within the tile. Click the ^ icon to gather more
information about the device.

4K IP Streaming Extender
12
5.3 Start IPA Manager
Start the evaluation by launching the Manager Client.
The application will start and appear as illustrated below.
First, connect to the Control Server by entering the IP address of the device running the
NT Control Server and click CONNECT.
Note:
l If the Control Server is running on the same machine, as the client, use the IP
address 127.0.0.1, which is the IPV4 loop-back address for “localhost”.
l Do not modify the default port number of 6970. The Control Server currently only
listens to port 6970.
After connecting to the Control Server, the IPA Manager will show discovered devices
as tiles. There are few things to take note of:
l The application features many different tabs to control the HDMI routing, as well as
routing of other signals such as analog audio, RS232 control, etc. The default
current tab should be "Video Switching", meaning that the video source displayed
by an RX device (Receiver).
l The top area of the user interface is labeled "Receivers". All devices detected on
the network will appear here.
l The bottom area of the user interface is labeled "Transmitters". All devices detected
on the network will appear here.

4K IP Streaming Extender
13
5.4 Video Routing Tab
The "Video Routing" tab is used to manage signal routing between TX and RX devices.
There are different video modes available:
Genlock Mode
This mode simulates a cable connection. When Genlock is selected, the output is a
byte-by-byte replication of what was received from the source.
The primary benefit is a very low (zero-frame) latency between source and displays.
The display is genlocked to the source as if it is directly connected.
In cases of the input video having a too large bandwidth to fit into a 10G network link
(e. g. 4K @60Hz, 4:4:4) the video is slightly compressed to bring the stream down
below the 10G limitation of the network.
Fast Switch Mode
Fast source switching, seamless to the human eye with about 1-2 frames transmission
delay as well as output scaling of resolution and frame rate.
Genlock Scaling Mode
This mode combines the low latency and source locking benefits of the Genlock Mode
with the output resolution (not frame rate) scaler found in the Fast Switch Mode.

4K IP Streaming Extender
14
5.4.1 Video Switching
This is an example of joining TX and RX devices in "Genlock Mode":
1) Verify that the RX tile is displaying that the device is currently in "Genlock Mode". If
Genlock is not the currently active mode, apply the setting as described:
a) Right mouse click the gear icon on the respective Receiver (RX) tile.
b) In the appearing menu, select "Genlock" as Video Mode.
2) Joining the RX to TX.
a) In the Transmitter (TX) section, select a TX by clicking on its associated active
tile using the left mouse button.
b) Hold down the left mouse button and drag the TX tile over the RX tile it is to be
joined with. Then release the mouse button to drop the TX tile onto the RX tile.
c) TX and RX are now joined.
The video source connected to the Transmitter (TX) now appears on the display
connected to the respective Receiver (RX).
If the video is not being displayed, please verify the following:
l Ensure that the network switch has been properly configured.
l Confirm that the display can support the input source resolution.
l Verify that the HDMI cable being used is of good quality. This is particularly
