Woxcon IPA100 User manual

IPA100
4K IP Streaming Extender
All Rights Reserved
Version: IPA100_2019V1.2
User Manual

4K IP Streaming Extender
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. In the constant effort to improve the product, we reserve the
right to make functions or parameters changes without notice or obligation. Please refer
to the dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

4K IP Streaming Extender
SAFETY PRECAUTIONS
To ensur e t h e b e s t performance from the pr o d u c t , p l ease read all i n s t r u c t i ons carefully
before using the device. Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
l Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To prev e n t f i re or shock hazard, d o n o t e x p o s e the unit to rai n , m o i s ture or install
this product near water.
l Do not put any heavy items on the extension cable in case of extrusion.
l Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with fine ventilation to avoid damage caused by
overheat.
l Keep the module away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
l Do not twist or pull by force ends of the optical cable. It can cause malfunction.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

4K IP Streaming Extender
Table of Contents
1. Product Introduction .................................................................................................... 1
1.1 About 10G Network ............................................................................................ 1
1.2 Features ............................................................................................................. 2
1.3 Package List ....................................................................................................... 2
2. Specification ................................................................................................................ 4
3. Panel Description ........................................................................................................ 5
3.1 IPA100E Front Panel .......................................................................................... 5
3.2 IPA100E Rear Panel .......................................................................................... 5
3.3 IPA100D Front Panel .......................................................................................... 6
3.4 IPA100D Rear Panel .......................................................................................... 7
4. System Connection ..................................................................................................... 8
4.1 Usage Precaution ............................................................................................... 8
4.2 Connection Type ................................................................................................ 8
4.3 System Diagram ................................................................................................. 9
4.4 Hardware Setup ............................................................................................... 10
5. Operation of IPA Manager ......................................................................................... 12
5.1 General Information .......................................................................................... 12
5.2 Device Configuration ........................................................................................ 13
5.3 Start IPA Manager ............................................................................................ 15
5.4 Video Routing Tab ............................................................................................ 16
5.4.1 Video Switching ...................................................................................... 17
5.4.2 Sending Single Source to All RX Devices .............................................. 18
5.4.3 Stopping/Starting Video .......................................................................... 18
5.4.4 Disconnecting Source from RX .............................................................. 18
5.4.5 Preset Management ............................................................................... 18
5.5 Video Wall Routing Tab .................................................................................... 20
5.5.1 Configuring a Video Wall ........................................................................ 21
5.5.2 Preset Management ............................................................................... 22
5.5.3 Removing Receiver (RX) from Video Wall ............................................. 24

4K IP Streaming Extender
5.5.4 Changing Output Resolution for Video Wall Receivers .......................... 25
5.6 HDMI Audio Routing Tab .................................................................................. 26
5.7 Analog Audio Routing Tab ................................................................................ 28
5.8 RS-232 Routing Tab ......................................................................................... 29
5.8.1 Assign Transmitter to all Receivers ........................................................ 31
5.8.2 Sending RS-232 Data from IPA Manager to a Device ............................ 31
5.9 Infrared Routing Tab ......................................................................................... 32
5.9.1 Assign Transmitter to all Receivers ........................................................ 33
5.9.2 Sending IR Data from IPA Manager to a Device .................................... 33
5.10 Global Command Options and Settings ......................................................... 35
5.10.1 Receiver (RX) Settings Options ........................................................... 35
5.10.1.1. Analog Audio Output Settings ................................................... 35
5.10.1.2. HDMI Audio Output Settings ..................................................... 35
5.10.1.3. Display EDID ............................................................................. 36
5.10.1.4. Network Setting ......................................................................... 37
5.10.1.5. RS232 ....................................................................................... 38
5.10.2 Transmitter (TX) Settings Options ........................................................ 39
5.10.2.1. Input .......................................................................................... 39
5.10.2.2. Device EDID ............................................................................. 39
5.10.2.3. Network Setting ......................................................................... 40
5.10.2.4. RS232 ....................................................................................... 41
5.11 System Management Tab ............................................................................... 42
5.11.1 Device Firmware Upgrade .................................................................... 42
5.11.2 System Backup and Restore ................................................................ 43
5.11.3 Security Settings ................................................................................... 44
5.11.4 System Logs ......................................................................................... 45
5.12 Routing Table ................................................................................................. 46
6. Operation of GUI Control ........................................................................................... 50
7. Panel Drawing ........................................................................................................... 52
8. Troubleshooting & Maintenance ................................................................................ 53

4K IP Streaming Extender
9. Customer Service ...................................................................................................... 54

4K IP Streaming Extender
1
1. Product Introduction
The IPA100 series is a network AV Transmitter/Receiver with HDMI and DP inputs up to
4K/60Hz/4:4:4, HDR. It is designed for HDMI/DP transmission over IP network with
external audio and control signals at distances up to 100m over copper cable. It works
with one control PC (Wake on LAN) and one 10GbE Switch to control a variety of
functions.
The IPA100 series provides one of the most advanced IP Streaming solutions on the
market utilizing AptoVision BlueRiver™ NT+ technology, which synergizes various
IP/AV standards to work together as one. It combines a variety of 4K IP technologies
and features under one unified protocol using a simplified topology.
The IPA100 series features uncompressed video with zero-latency from transmitter to
receiver, seamless switching, Video wall, 1G Ethernet, IR, RS232, audio
embedding/de-embedding, audio down-mixing, etc. The control PC merge all functions
into Web-GUI, it means that user control system functions over multiple OS which
support browser anywhere in the same local area network.
Compares with traditional HDBaseT matrix AV Switching, IPA100 features low cost,
easy installation, more interoperability and flexibility. It is ideal for distributing AV over
10 Gigabit Ethernet in enterprises and other large-scale installations.
1.1 About 10G Network
Unlike traditional AV extension technology, such as HDBaseT, where transmitters and
receivers are connected point to point or joined together using custom matrix switches,
the IPA transmitter and receiver units are based on the inter compatible BlueRiver™
NT+ technology and connected using standard, off the shelf 10G Layer 2/3 network
switches.
This architecture makes use of data packages that can be easily and independently
routed to the desired unit. A variety of transmission modes is possible this way, from
one transmitter to one receiver (point to point) or one transmitter to many receivers
(point to multipoint) or many transmitters to many receivers (multipoint to multipoint)
with a software controllable video wall integration.
An added benefit of packet data transmission is that each signal type (video, audio,
RS232, etc.) is routed independently and not necessarily to the same destination. For
example, the HDMI video from a particular transmitter is routed to 4 receivers, while the
audio goes to all receivers in the setup.
This unlimitedly scalable and independent signal routing enables multiple, scalable
applications, including signal extension, splitting, switching, matrixing, and video wall
functionality.

4K IP Streaming Extender
2
1.2 Features
l AptoVision BlueRiver™ NT+ technology. NT1000 chip is implemented in the
transmitter and NT2000 chip is implemented in the receiver.
l Streams uncompressed video with zero-latency, audio, and control, with the
flexibility of transmitting them together or to separate network destinations.
l Supports HDMI 2.0 and video resolution up to 4K@60Hz 4:4:4 8bit, 1080P 3D.
l 18Gbps high bandwidth and supports HDR 10 and Dolby Vision.
l Automatically detect and switch HDMI and DP inputs.
l Transmits and receive RS232 and IR to any units by using Unicast or Broadcast
IPV4 protocol or local control by API server.
l IPA100 series are configurable HDCP 2.2 compliant from transmitter to receiver.
l Allows a video source to be stretched across multiple displays.
l Seamless switching between different transmitters with selectable output
resolutions up to 4K scaling ability.
l Transmitter route HDMI audio, external audio as an independent streaming for
receiver embedding.
l BlueRiver NT+ Series is compatible with SDVoE, offering zero-latency AV-over-IP
with true 4K/60 and video processing.
1.3 Package List
IPA100E:
l 1x IPA100E Transmitter (TX)
l 2x Mounting Ears with 6 Screws
l 4x Plastic Cushion
l 1x 3-pin Terminal Block
l 1x Power Adaptor (12V DC 2A)
l 1x User Manual

4K IP Streaming Extender
3
IPA100D:
l 1x IPA100D Receiver (RX)
l 2x Mounting Ears with 6 Screws
l 4x Plastic Cushion
l 1x 3-pin Terminal Block
l 1x Power Adaptor (12V DC 2A)
l 1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

4K IP Streaming Extender
4
2. Specification
IPA100E
Video Input
(1) HDMI, (1) DP
Video Input Connector
(1) Type-A female HDMI, (1) DisplayPort
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
DP Input Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Input
(1) AUDIO
Audio Input Connector
(1) 3.5mm jack
Control
(1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232,
(1) ETHERNET
Control Connector
(2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
IPA100D
Video Output
(1) HDMI
Video Output Connector
(1) Type-A female HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 8bit
Audio Output
(1) AUDIO
Audio Output Connector
(1) 3.5mm jack
Control
(1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232,
(1) ETHERNET
Control Connector
(2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
General
External Power Supply
Input: AC 100~240V, 50/60Hz, Output: 12V DC 2A
Power Consumption
TX:19W (Max);
RX:21W (Max)
Operation Temperature
-10℃ ~ +55℃
Storage Temperature
-25℃ ~ +70℃
Relative Humility
10%-90%
Dimension (W*H*D)
224.0mm x 49.2mm x 110.0mm
Net Weight
TX:1.15KG; RX:1.18KG

4K IP Streaming Extender
5
3. Panel Description
3.1 IPA100E Front Panel
①
POWER LED: The LED illuminates red when power is applied.
②
LINK LED: The LED indicates if Ethernet packets are transmitted.
l LED off: Packets are not transmitted
l LED blinking: Packets are transmitted
③
HDMI LED: The LED illuminates green when the HDMI video source is selected.
④
DP LED: The LED illuminates green when the DP video source is selected.
3.2 IPA100E Rear Panel
①
DC 12V: DC port for AC power adapter connection.
②
DP IN: DisplayPort input port to connect DP video source device.
③
HDMI IN: Type-A female HDMI port to connect HDMI video source device.
LINK DPHDMI
1234
HDMI IN AUDIO IN IR IN RS232
Tx Rx
IR OUT DC 12V ETHERNET
123456789

4K IP Streaming Extender
6
④
10G LAN: RJ45 port to connect directly to the RX or a network switch using a
CATx cable.
⑤
IR IN: 3.5mm jack to connect an IR receiver for IR routing control.
⑥
IR OUT: 3.5mm jack to connect an IR emitter for IR routing control.
⑦
RS232: 3-pin terminal block for RS232 routing control. Supports point to point
unicast and point to multipoint broadcast configuration.
⑧
AUDIO IN: 3.5mm jack to connect an audio source.
⑨
ETHERNET: RJ45 port to connect control devices (such as PC) for system control
via software and Ethernet pass-through. The PC can also be indirectly connected
to the network switch.

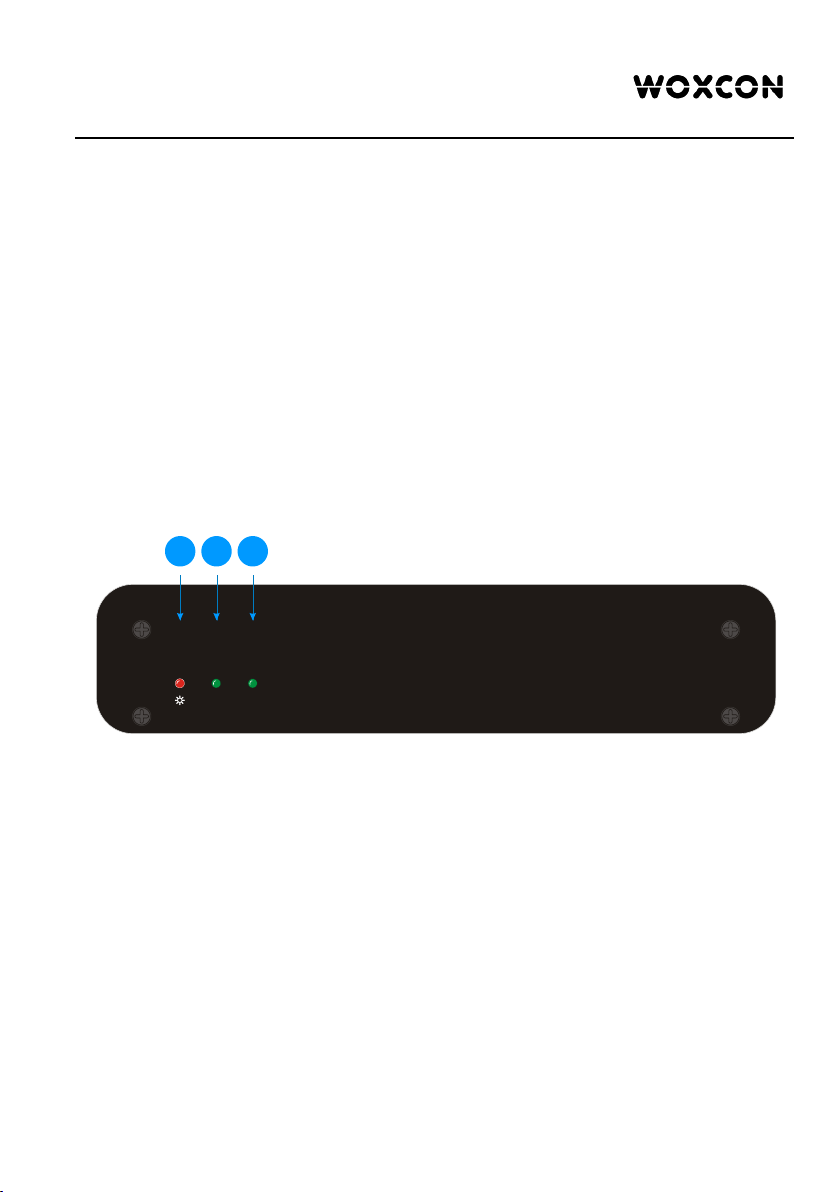

3.3 IPA100D Front Panel
①
POWER LED: The LED illuminates red when power is applied.
②
LINK LED: The LED indicates if Ethernet packets are received. It also indicates if
FPGA SERDES can detect a valid signal.
l LED off: Packets are not received and RX SERDES is NOT linked.
l LED blinking: Packets are received and the RX SERDES IS linked.
l Steady light: Packets are not transmitted and the RX SERDES is linked.
③
HDMI LED: The LED illuminates green when there is HDMI video output.
LINK HDMI
123

4K IP Streaming Extender
7

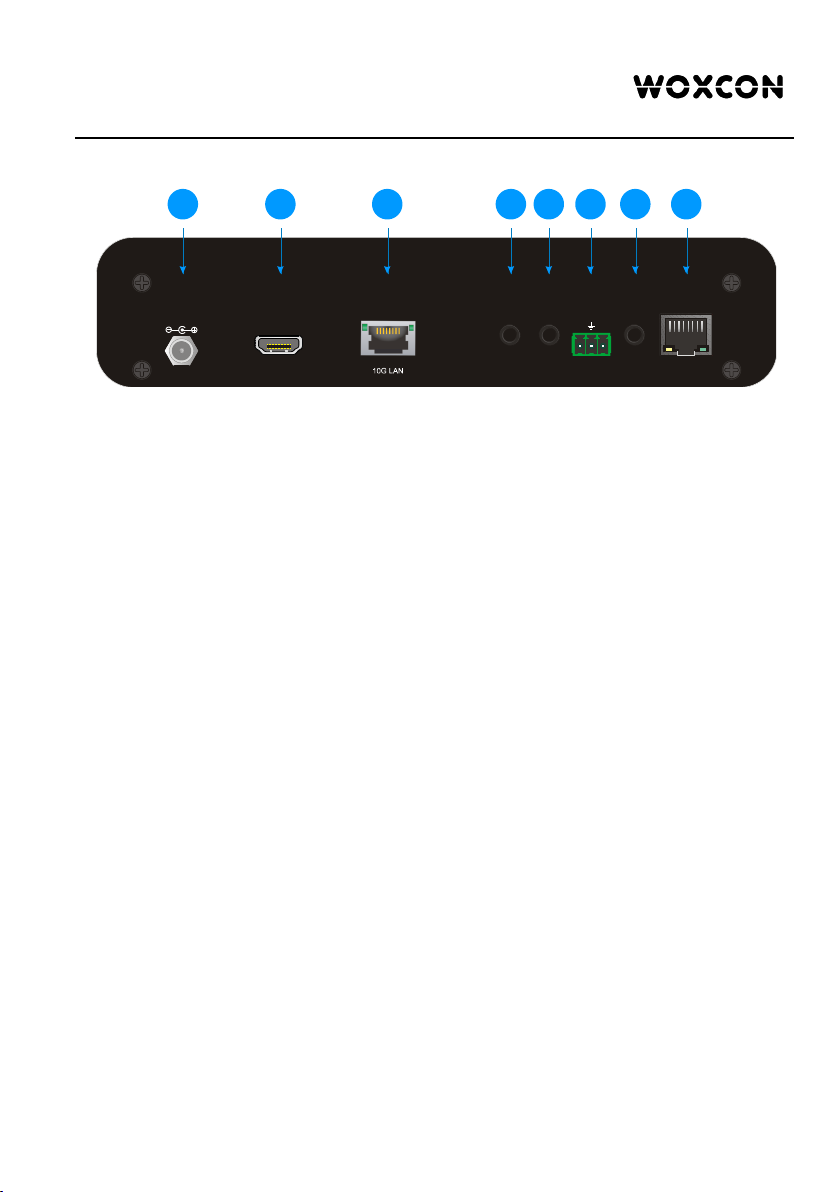

3.4 IPA100D Rear Panel
①
DC 12V: DC port for AC power adapter connection.
②
HDMI OUT: Type-A female HDMI port to connect HDMI display device.
③
10G LAN: RJ45 port to connect directly to the TX or a network switch using a
CATx cable.
④
IR IN: 3.5mm jack to connect an IR receiver for IR routing control.
⑤
IR OUT: 3.5mm jack to connect an IR emitter for IR routing control.
⑥
RS232: 3-pin terminal block for RS232 routing control. Supports point to point
unicast and point to multipoint broadcast configuration.
⑦
AUDIO OUT: 3.5mm jack to connect audio output device.
⑧
ETHERNET: RJ45 port to connect control devices (such as PC) for system control
via software and Ethernet pass-through. The PC can also be indirectly connected
to the network switch.
HDMI OUT AUDIO OUT
IR IN RS232
Tx Rx
IR OUT DC 12V ETHERNET
12345678

4K IP Streaming Extender
8
4. System Connection
4.1 Usage Precaution
l Make sure all components and accessories are included before installation.
l The system should be installed in a clean environment with proper temperature and
humidity.
l All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
l All devices should be connected before being powered on.
4.2 Connection Type
There are five types of possible applications:
Extender (Point-to-Point)
In a point-to-point configuration, there is no need for a switch. Distribute full,
uncompressed data up to 4K@60Hz 4:4:4 resolution as well as 1G Ethernet, audio and
control signals over a single copper or fiber cable.
Splitter (One-to-Many)
With only one IPA transmitter and one 10G Ethernet switch, any A/V signal can be
flawlessly and instantly distributed to a near limitless number of receivers and screens,
any number of times.
Matrix Switcher (Many-to-One, Many-to-Many)
The combination of switching and splitting enables a completely scalable matrix
system. Independently route video, audio and RS232 control signal from any source to
any endpoint. The IPA allows for on-the-fly upgrading and a virtually unlimited number
of I/O ports.

4K IP Streaming Extender
9
Video Wall
Create and manage video walls in setups up to 5x5 screens. The IPA100 series
product line features full bezel correction and instant seamless switching of full
bandwidth source material as well as further innovative features for video wall
management.

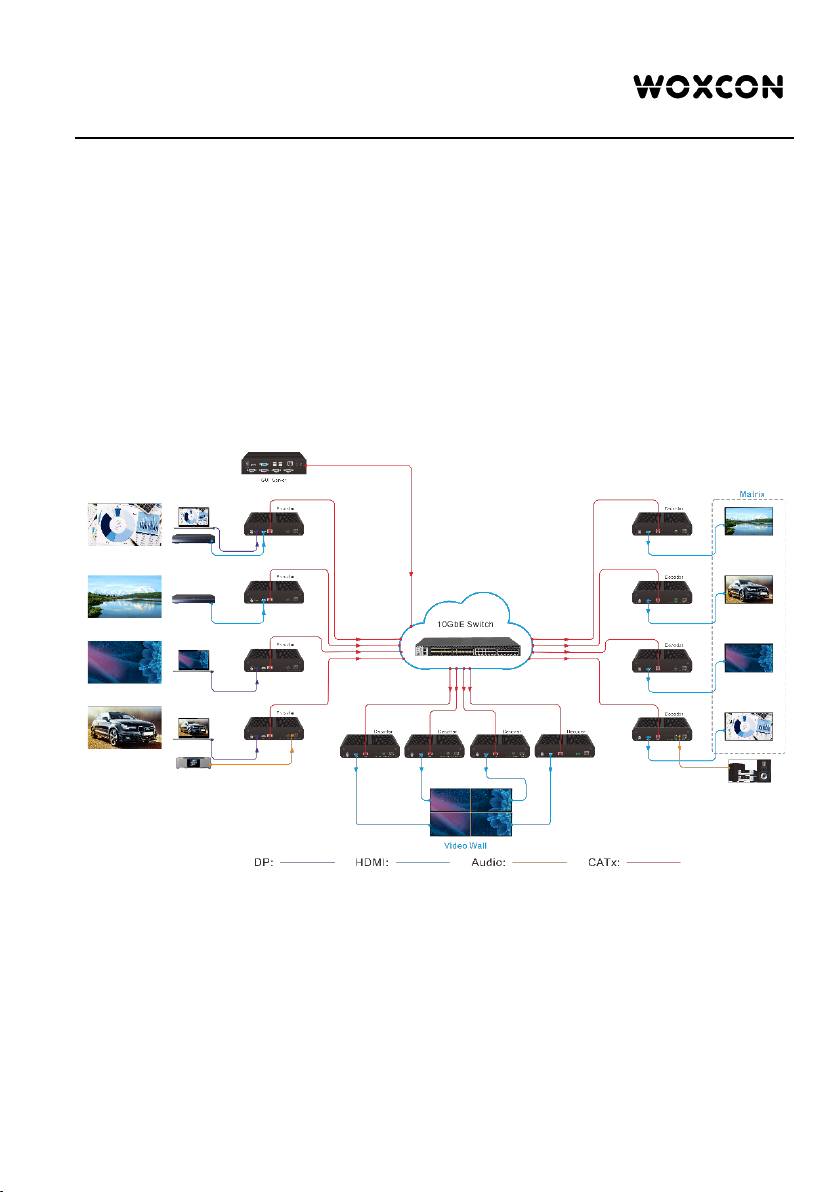

4.3 System Diagram
The following diagram illustrates typical input and output connections that can be
utilized with the IPA extender:
Matrix System

4K IP Streaming Extender
10
4.4 Hardware Setup
The IPA100 extender set you have received include one transmitters (TX) and one
receivers (RX).
Please follow the steps below to complete the system installation:
1) Connect the power supply (12V DC) to the power connectors.
2) Connect the video/graphics source device to the HDMI input connector on each TX
unit.
3) Connect the video display device to the HDMI output connector on each RX unit.
4) (Optional) Connect audio sources to the audio input connector of the TX if you
want to test additional audio extension.
5) (Optional) Connect audio output device (e.g. speaker or headphone) to the audio
output connector of the RX if you want to test additional audio extension.
6) (Optional) Connect RS232 devices as needed if you want to test RS232 serial
extension between TX and RX units.
7) (Optional) Connect GbE compatible Ethernet devices as needed for testing the 1
Gig Ethernet ports of any TX or RX units.
8) (Optional) Connect compatible IR emitter modules to the IR output connectors of
any TX or RX.
9) (Optional) Connect compatible IR receiver modules to the IR input connectors of
any TX or RX.
10) Connect a 10G Ethernet cable (Cat-6a recommended) from the 10GbE port each
TX and RX unit to any available 10GBaseT port.
11) Connect the control PC to the GbE port of any IPA100E / IPA100D device or to a
Cat-x port of the 10GbE switch (except the management/console port of the
switch).
12) The hardware setup is now complete.
l Note that any TX can also be connected directly to a RX without the 10GbE switch

4K IP Streaming Extender
11
in the middle using fiber cable or Cat-x cable to test point to point functionality.
l Note that in order to test switching functionality through a 10GbE switch; you must
use a 10GbE layer 2, layer 3 switch with IGMP snooping capabilities. Ensure that
the IGMP snooping setting is enabled and broadcast setting is disabled using the
appropriate configuration software provided the switch manufacturer.
l Switch list: The below table contains the Ethernet switches validated and known to
work with IPA series device.
Manufacturer
Model Number
BlackBox
LGB5028A
Netgear
ProSAFE PLUS XS708E
Netgear
ProSAFE Smart XS708T/712T/716T/728T/748T
Netgear
M4300 Series
Netgear
M7300-24XF XSM7224S
Speed-NT
UK-6000 Series
Extreme Network
Summit X670 Series
Arista Networks
7050X Series
Note that NetGear M4300 Series are recommended.

4K IP Streaming Extender
12
5. Operation of IPA Manager
5.1 General Information
The IPA Manager is a demonstration control software used to configure and control
signal extension, routing and switching between IPA TX and IPA RX units.
The IPA Manager does not directly communicate with or control the IPA TX/IPA RX
devices. Instead it communicates using a separate process. The IPA Control Server
functions as a proxy between the IPA Manager clients; and IPA end points (TX/RX) on
the network.
The IPA Manager can be used on any Windows PC using Microsoft .Net framework 4.0
or later Windows version.
The PC running the Control Center can be connected to the ETHERNET port of any
device or to any RJ45 port of the 10GbE switch except the management/console port
of the switch which is not part of the network.
Before proceeding, make sure all IPA units are powered ON. Then ensure that the IP
addresses of PC and all IPA units are on the same local area network (LAN).
Start the application by double clicking on IPA Manager.exe file. If you receive a pop-
up asking for network access confirmation, make sure that both Private and Public
networks are allowed.
Username: admin
Password: admin

4K IP Streaming Extender
13
Please type the username and password, and then click Login.
Note: Offline Mode can be used for testing purposes.

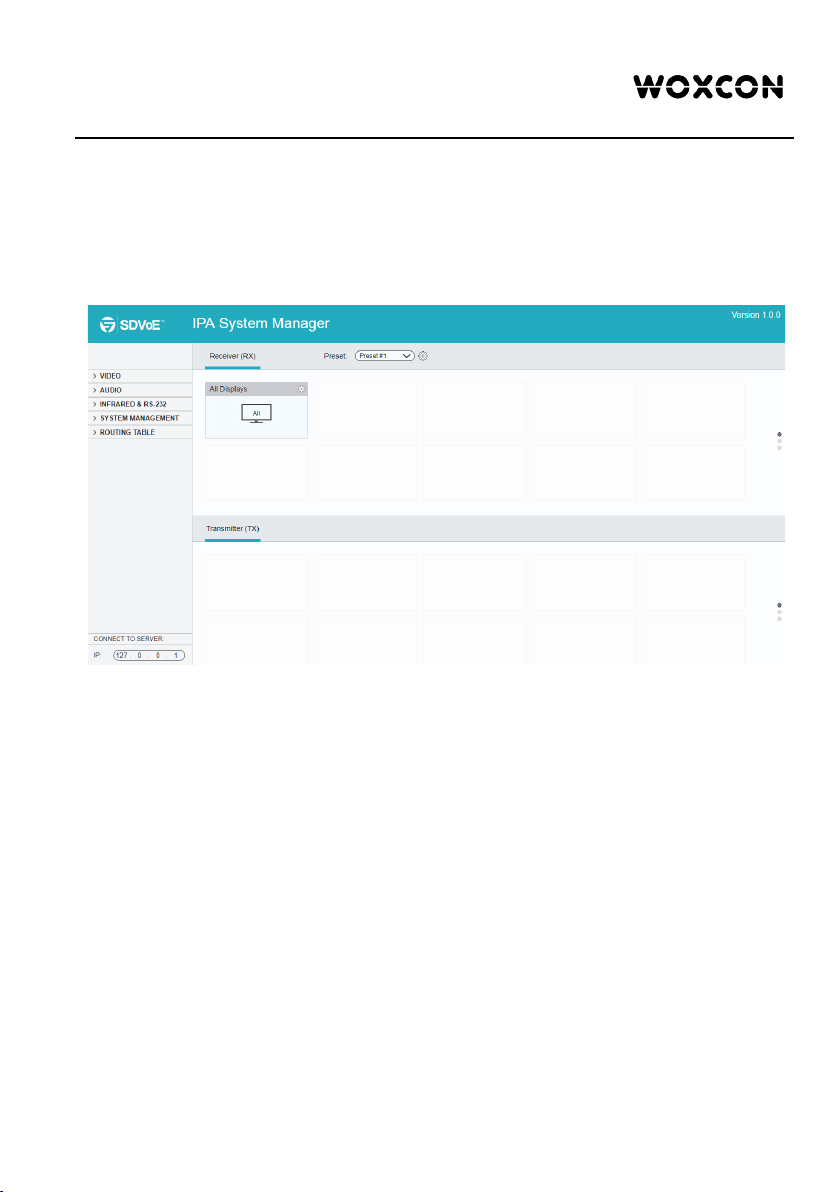

Upon launch, the IPA Manager’s main interface will appear as shown in the picture
below:
5.2 Device Configuration
Before starting the IPA Manager application, make sure it is connected either directly to
the network switch or to the Gigabit Ethernet port on one of the devices (TX or RX).
Now launch the application. Upon launch, the IPA Manager main window will open up in
the “Video Switching” tab. It will discover all the TX and RX devices on the network and
display them inside the application.
All connected devices on the network will appear as a gray tiles within the application
window.
Each tile will identify the “Hostname” of the device. The default device “Hostname” is
the MAC address. Note that the “Hostname” can be updated at any time. The “IP
Address” of the device is also indicated within the tile.

4K IP Streaming Extender
14
If a source device is connected to the video port of the TX, a picture illustrating a
source device will appear within the respective tile along with information about the
video feed. Similarly, if a display device is connected to the RX, an illustration of a
display will appear within the corresponding RX tile. If no device is visible within the tile,
it means that the device is connected and detected but no source (or display) device is
connected to the TX (RX).

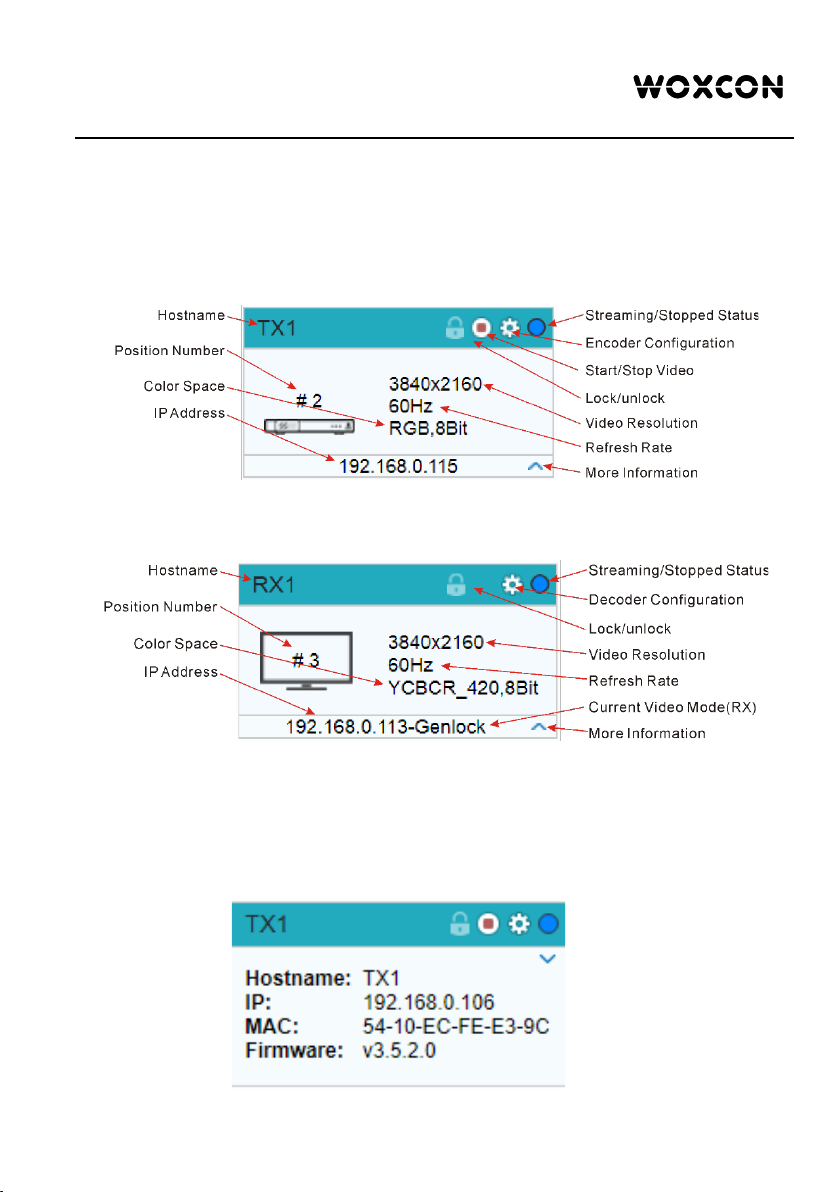

TX device tile info
RX device tile info
Click the ^ icon to gather more information about the device. Take the source device
TX1 as an example:
