WRC NTX.3 User manual

NTX is a new generation high quality 1/10 scale Touring nitro car.
NTX is supplied in a box,you can download the Instruction manual from www.wrc-racing.com
Its use is intended for more than 16 years old persons with experience on rc model car field.
Children and all the persons without this requirement MUST have direct supervision of a
knowledgeable adult responsible.
Please don't hesitate to contact WRC support at [email protected] for any problem or
question.
Also kindly visit our website www.wrc-racing.com to find last updates, set-up information, option
parts and other information.
W.R.C. world racing car s.r.l.
Via A. Volta 2 Bis
36040 Brendola (VI)
ITALY
Phone: [phone]
E-mail: [email protected]
Website: www.wrc-racing.com
CUSTOMER SUPPORT
WRC guarantees this model kit to be free from defects in both material and workmanship within 30
days of purchase.
The total monetary value under warranty will in no case exceed the cost of the original kit
purchased.
This warranty doesn't cover any compnents damaged by use or modification or as result of wear.
Part or parts missing from this kit must be reported within 30 days of purchase.
No part or parts will be sent under warranty without proof of purchase.
If you find a defective or missing part, contact the local distributor.
Customer service and support will be provided through local hobby store.
No warranties are expressed or implied that cover damage caused by what is considered normal
use or cover or imply how long any model cars' components or electric components will last before
requiring replacement.
Due to the high performance level of this model car you will need to periodically maintain and
replace consumable components; any and all warranty coverage will not cover replacement of any
part or component damaged by neglect, abuse or improper or unreasonable use.
This includes but is not limited to damage from crashing, excessive moistur, improper use or no
maintenance or user modifications which compromise the integrity of components.
Warranty will not cover compnents that are considered consumable on RC model car.
WRC doesn't pay nor refund on any component sent from WRC or its distributor for warranty.
WRC reserves the right to make final determination of the warranty status of any component or part
Use only original WRC spare part:
WARRANTY
Assemble the kit only away from the reach of children.
Follow the building and operating instructions using the utmost care.
Don't put any part of your body inside rotating and moving elements as this may cause damage or
serious injury.
Check and clean the model before putting it away.
Don't use your model car in public places or in roads and areas where it could generate conflict with
person or vehicular traffic.
The model car is controlled by radio: you MUST put great care to avoid loss of radio control always
keeping a safety margin all around your model in order to prevent any collision.
Operating frequency: check and be sure it is clear and not shared with anybody at same time; it could
cause loss of control of the RC model.
Always turn on your transmitter before you turn on the receiver in the car and always turn off the
receiver before you turn off your transmitter.
Keep the wheels of the model off the ground when checking the operation of the radio equipment.
Disconnect the battery pack before storing your model.
GENERAL INFORMATION
Instruction Manual MUST be read and fully understood before to start building and operating
functions.
Always keep Instruction Manual in safety place, ready to be consulted for any reference you need.
Use only original WRC spare parts.
SAFETY PRECAUTIONS
INTRODUCTION

TECHNICAL INFORMATION
- BODY: PROTOTIPE MODEL (NOT INCLUDED)
- ADJUSTABLE FRONT TOE, CAMBER AND CASTER
- ADJUSTABLE REAR TOE AND CAMBER
- BUMPER /FRONT BACKSTOP
- ALUMINIUM CHASSIS
- FULL BALL BEARING
- CARBON RADIO PLATE
- TRANSMISSION: TRIPLE BELT 4WD
- FRONT DIFFERENTIAL: DIFFERENTIAL GEAR
- REAR DIFFERENTIAL: DIFFERENTIAL GEAR
- FRONT AND REAR ADJUSTABLE ANTI-ROLL BARS
- PIVOT BALL SUSPENSIONS
TECHNICAL DATA
- LENGHT .............................................392 MM.
- WIDTH .....................adjustable 195-200 MM.
- WHEEL BASE ............adjustable 258-263 MM.
ADDITIONAL ITEMS NEEDED FOR COMPLETION (REQUIRED BUT NOT INCLUDED IN THE KIT)
ENGINE AND MUFFLER
TOOLS REQUIRED
THESE TOOLS ARE NOT INCLUDED IN THE KIT BUT ARE REQUIRED FOR PROPER ASSEMBLY
2 LOW PROFILE STEERING SERVO
TRANSMITTER
THE FOLLOWING ITEMS ARE NEEDED FOR COMPLETION OF THE NTX; THEY ARE NOT INCLUDED IN THIS KIT (UNLESS NOTED) AND
SHOULD BE OBTEINED FROM YOUR LOCAL HOBBY SHOP.
BE SURE TO READ THE INSTRUCTION COMPLETELY PRIOR TO ASSEMBLY
NOTICE:
RECEIVER
BATTERIES
FOR TRANSMITTER
AND RECEIVER
WHEEL - TYRES - INSERTS
FUEL AND FUEL PUMP
2
STARTER GLOW
PLUG IGNITER
STARTER
ALLENS:
1.5 mm
2 mm
2.5 mm
3 mm
SOCKET
5mm
SIDE CUTTERS COMBINATION PLIERS
TOOL FOR
TURNBUCKLES/NUTS
SOCKET
7mm
GREASE OILS:
5000 CST
BEARING OIL
LEXAN BODY

A
A
SCALA 1.5 : 1
03360
92009
M2.5 x6
95006
03089-13
97006
Ø2x9
03297-7
03303-4
Use some silicone oil
during assembly
03303-1
03089-8
METAL GEAR
03225
5x10x0.1
03360
03303-1
95006
03089-13
97006
Ø2x9
03089-8
METAL GEAR
Use some silicone oil
during assembly
03225
5x10x0.1
03089-14
03089-8
METAL GEAR
03089-12
92009
M2.5 x6
03297-7
90006
10_15_4
03294

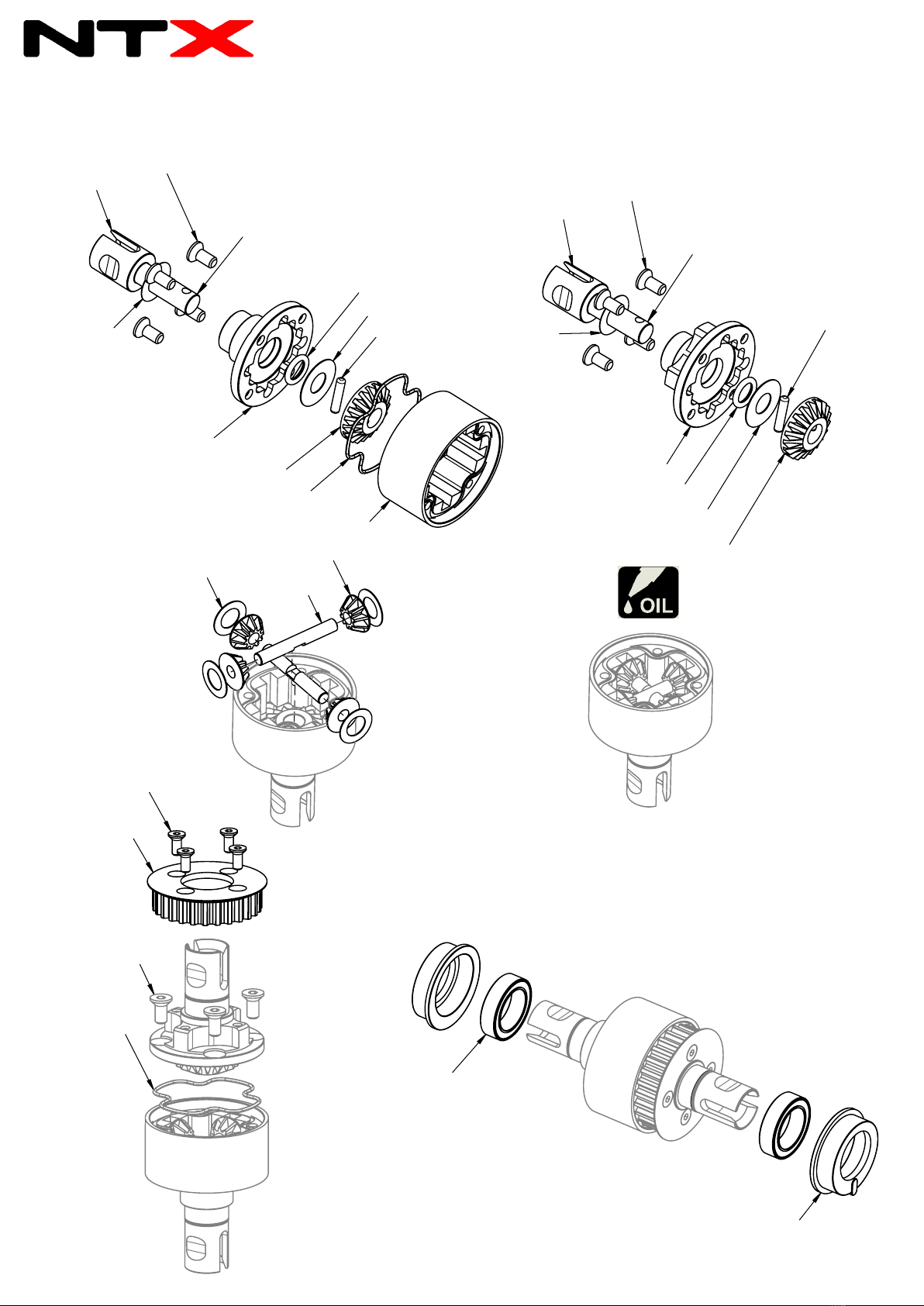

REAR DIFFERENTIAL ASSEMBLY
Fill the differential up to the top of the
pin.
DO NOT fill the diff. to the top of the
housing.
SILICONE OIL 100.000
BAG.1
3

03361
92009
M2.5 x6
03297-3
95006
03089-13
03297-7
03089-6
PLASTIC GEAR
97006
Ø2x9
03297-5
03225
5x10x0.1
Use some silicone oil
during assembly
03361
92009
M2.5 x6
03297-2
95006
03089-13
97006
Ø2x9
03089-6
PLASTIC GEAR
03225
5x10x0.1
Use some silicone oil
during assembly
03089-14
03089-9
03089-6
PLASTIC GEAR
92009
M2.5 x6
03355
27 T
92022
M2 x 4
03297-7
90006
10_15_4
03294
4
BAG.2
FRONT DIFFERENTIAL ASSEMBLY
Fill the differential up to the top of the
pin.
DO NOT fill the diff. to the top of the
housing.
SILICONE OIL 1.000.000

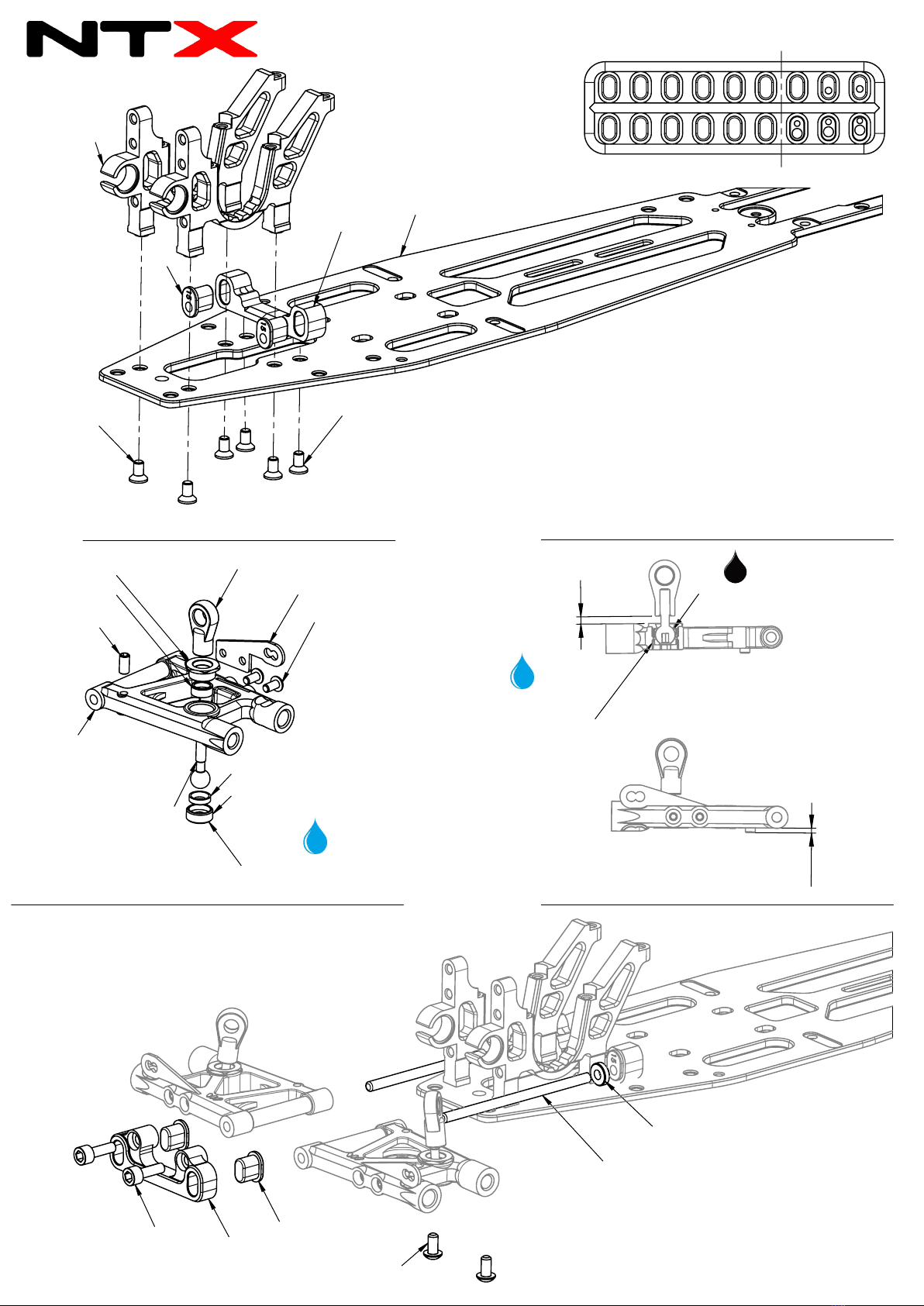

03300-2
03301
03363
92001
M3 x6
92001
M3 x6
BAG.5
X2
03095
03086-1
03328-1
98001
M3X6
03328-S
03137-2
03136-1
03137-2
93010
M2.5 x 5
03137-3
03137-3
APPLY THREADLOCK
(BLUE)
03328-H (hard)
OPTIONAL
1,4
X2
91001
M3X10
03237
Ø3x55
93001
M3 x6
03387
3x7x3
5

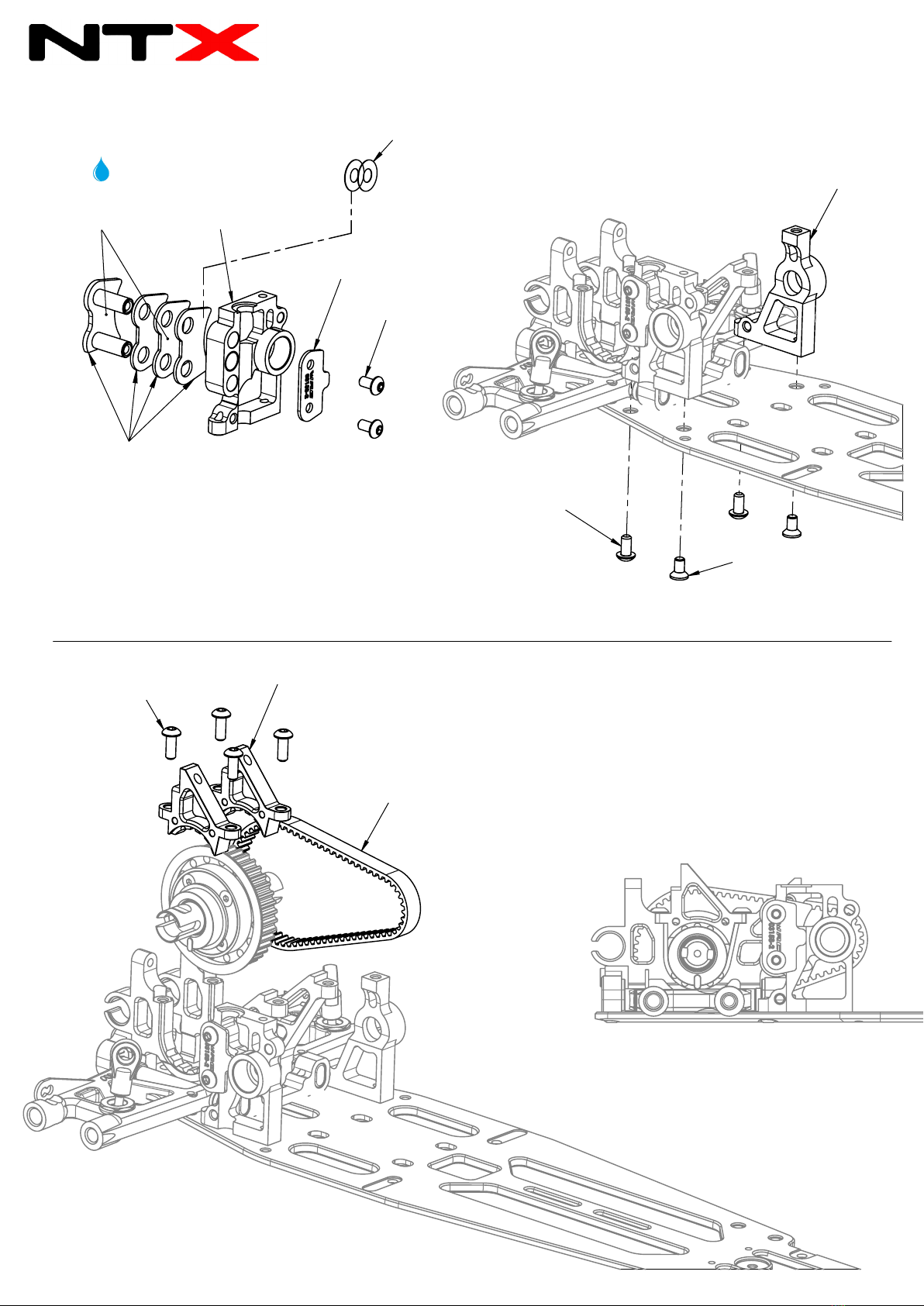

03301-2
03095
A
A
2
APPLY THREADLOCK
(BLUE)
LUBRICATE
Rear Front
BAG.3
BAG.4

03159
03158-2
03304-1
93001
M3 x6
PUT SHIMS
TO ADJUST BRAKE
EXCURSION
93001
M3 x6
92001
M3 x6
03304
93002
M3 x8
03385-4
177 T
PLEASE NOTE THE ORIENTATION OF
THE EXCENTERS
6
03300-6
5X10X0.2
APPLY GLUE
ON THESE
FACES
BAG.5

98000
M3x3
03069-3
90019
5x8x2.5 Flanged
98000
M3x3
03069-3
03034-1
98000
M3x3
90008
6x10x3 Flanged
90008
6x10x3 Flanged
03355
03370
99001
Ø 8
03355-20T
03365
03397
97016
Ø2x12
03355-18T
99004
Ø 6
98012
M4x4
Additional
Bearing 90001
6x10x3 Optional
Additional
Bearing 90001
6x10x3 Optional
REAR ANTI ROLL BAR
7
BAG.6
OPTIONAL
Ø
Ø 2 03378
ANTI ROLL BAR
COD
OPTIONAL
03378-6 Ø 2.6
03378-3
STANDARD IN KIT
Ø 2.3

93003
M3 x10
98003
M3X4
03241-1
03350
03351
03241-1
26,8
B
B
14.5
99004
Ø 6
97020
Ø2.5x10
97004
Ø2x8
03185
93001
M3 x6
93001
M3 x6
03307-3
90019
5x8x2.5 Flanged
03186
OPTIONAL
03347-49 54T 49T 03347-54
OPTIONAL
OPTIONAL
COD (1ST)
03347-52 52T
03347-53 53T
STANDARD
SPEED GEAR
STANDARD
03347-48
03347-47
COD (2ND)
OPTIONAL
47T
48T
03348
92010
M2.5 x 5
03347-53 03347-48
90001
6x10x3
03349
90001
6x10x3
92010
M2.5 x 5
CLUTCH ADJUST
8
BAG.7

03321-1
03321-2
97005
Ø2x10
03358
03069
03247
92023
M2.5x8
03337-3 03337-1
90006
10x15x4
90006
10x15x4
00100-2
00141
98000
M3x3
03359
LUBRICATE
LUBRICATE
03069
98004
M3x12
INOX
CC
8
03069
98004
M3x12
INOX
APPLY
THREADLOCK
(BLUE)
2.5
2.5
9
BAG.8
X2

93001
M3 x6
03069
03308
BAG.9
92002
M3x8
03302
00136-1
03137-2
03136-1
03313-S
03134
92001
M3x6
03137-2
03137-3
03137-3
2
A
A
APPLY THREADLOCK
(BLUE)
LUBRICATE
03313-H (hard)
OPTIONAL
03086-1
03379
03086-1
X2
16
10
X2

03283
03293
92004
M3 x12
92001
M3 x6
92001
M3 x6
03293-1
BAG.1o
03245-1
Ø3x74
03387
3X7X3
HEX. 1.5
APPLY THREADLOCK
(BLUE)
98013
M3 x20
99004
Ø 6
03355-19T
90008
6x10x3
flanged
03298
90008
6x10x3
flanged
97016
Ø2x12
03372
03355-25T
99004
Ø 6
97016
Ø2x12
93001
M3 x6
11

93002
M3 x8
03286 03385
186 T
PLEASE NOTE ORIENTATION
OF THE EXCENTERS
03034
98000
M3x3
90019
5x8x2.5 Flanged
98000
M3x3
03069-3
03069-3
98000
M3x3
12
Ø 2.6
STANDARD IN KIT
03327-6
Ø 2.803327-8
OPTIONAL
COD
ANTI ROLL BAR
03327-3 Ø 2.3
Ø
OPTIONAL
BAG.11

03366
96002
M3 x8
93001
M3 x6
96000
M3 x14
96002
M3 x8
03055-2
93001
M3 x6
03035-4
03055-2
03069
93001
M3 x6
03055-2
NOT INCLUDED
NOT INCLUDED
03289-3
93001
M3 x6
03325
93004
M3 x12
90007
5x8x2.5
03367 93001
M3 x6
92001
M3 x6
90007
5x8x2.5
93001
M3 x6
03368
93009
M2 x 5
03086-1
98005
M3X8
03086-1
03069
03086-1
03003-1 03379
13
BAG.12

03375
92000
M3 x4
02050-1
03076
95000
95000
93002
M3 x8
03345
FUEL TANK
92000
M3 x4
92000
M3 x4
93003
M3 x10
93003
M3 x10
97016
Ø2x12
03068
03080
03311-1
95000
95000
93002
M3 x8
03076
03356-5
92001
M3 x6
03356
03069
94003
M3x3
03356
03356
03035-6
03356-8
03356-6
03356-7
0,5
PLEASE NOTE
THE ORIENTATION
03309
OPTIONALS
03376
90021
4x7x2.5
03356-7
92001
M3 x6
92001
M3 x6
90021
4x7x2.5
14
BAG.13

03339
93001
M3 x6
93002
M3 x8
OPTIONAL
93002
M3 x8
93004
M3 x12
03095 93001
M3 x6
93002
M3 x8
03075
95000
03322
97010
Ø3x50
93001
M3 x6
93009
M2 x 5
03287
93009
M2 x 5
3
PLEASE NOTE THE
PISITION OF THE
CASTER SCHIMS
15

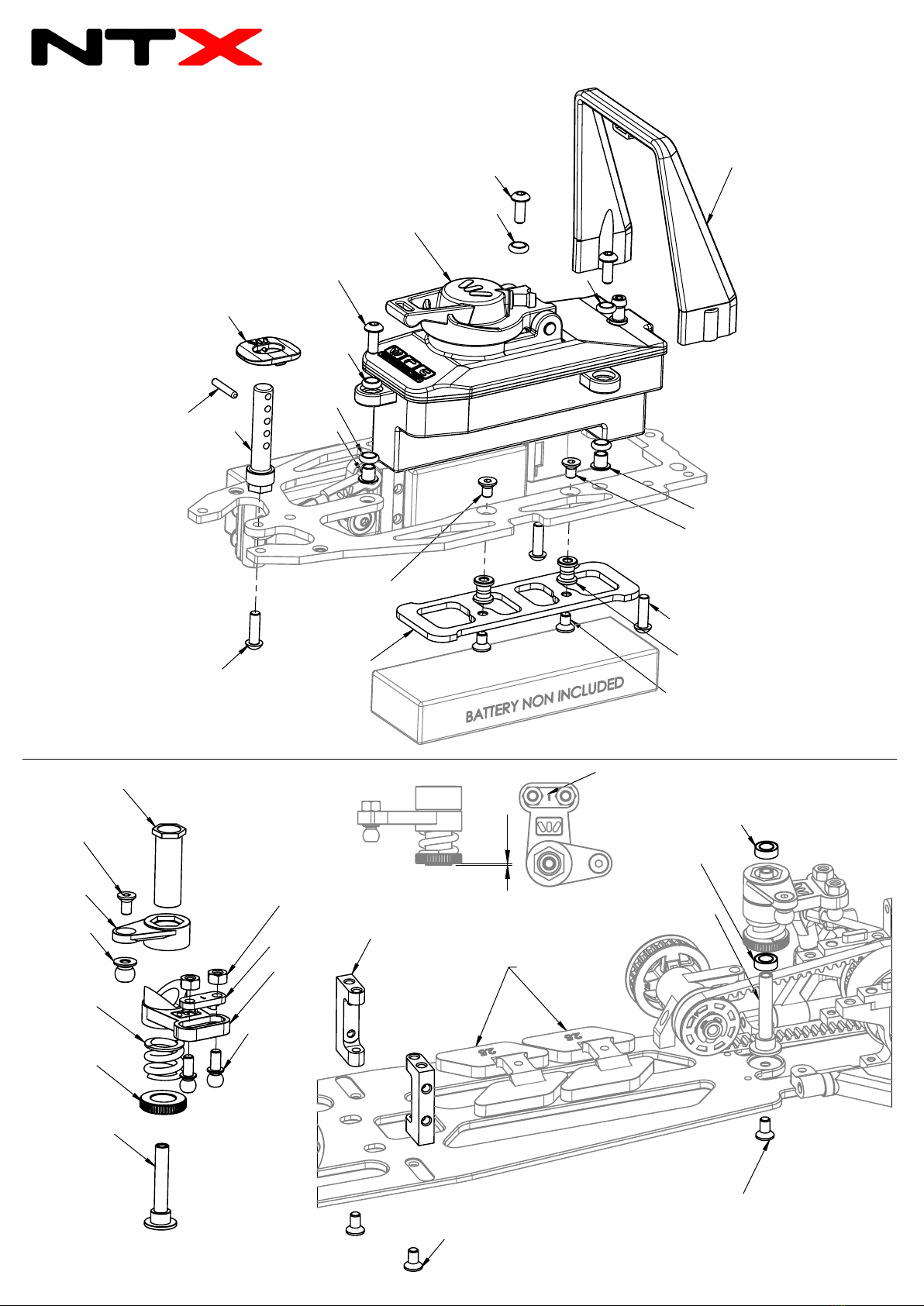

BAG.14

Lubricate
2.5
98000
M3x3
03359
00141
00100-1
03324
03324
03358
97005
Ø2x10
03321-2
03321
03035-6
93001
M3 x6
93004
M3 x12
03320
Lubricate
2 mm
90006
10x15x4
X2
X2
16
BAG.15

17
03385-1
390T
93004
M3 x12
03408
90007
5X8X2.5
03367
94003
M 3x3
03362
92001
M3 x6
03003 03061 03003
30
45mm
BAG.16
X2

03170-7
03170-13
95000
02043-4
02043-10
95013
12x1
03170-1
03170-14
03086
03170-11
99003
02043-4
3 HOLES
03170-4
03086
03086
12.5
3
3
CODE CST
SO-200 200
SO-300 300
SO-400 400
SO-500 500
SO-600 600
SO-700 700
SO-800 800 (IN KIT)
P-ONE SHOCKS OIL
6
5
43
2
1

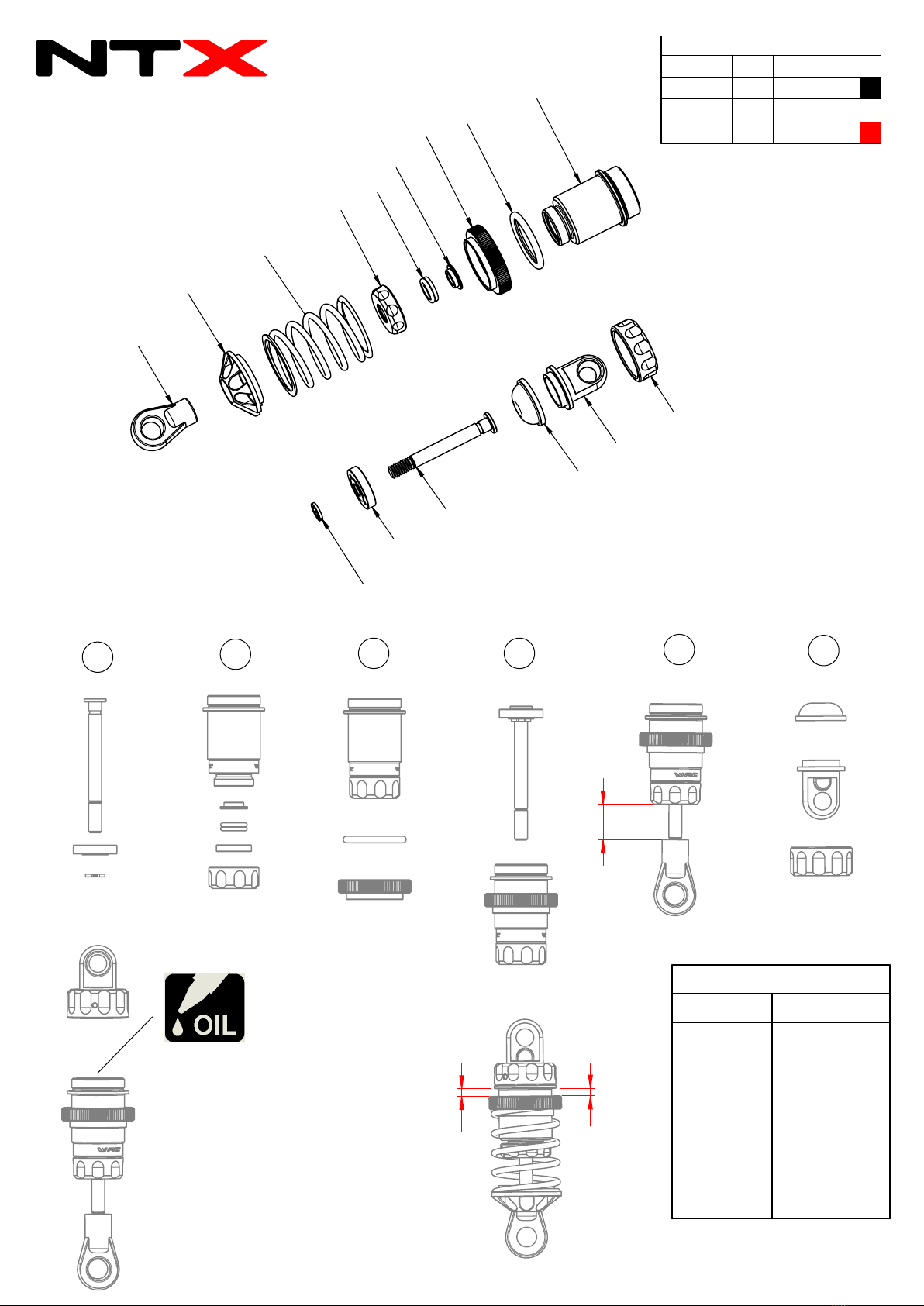

SHOCK FILLING
Fully extend the piston rod so the
piston is at the bottom of the shock
body.
Hold the shock upright and fill the
shock body with shock oil as in the
picture.
Let the oil settle and allow air bubbles
to rise to the top.
Slowly move the piston up and down
until no more air bubbles appear.
Add shock oil as necessary.
Pull the piston rod most of the way out
of the shock bod.
Let the shock rest for 5 minutes to
allow the air bubbles to scape.
COLOUR
WIRE
mm
1.6
03398-6
1.5
03398-5
SPRINGS
COD
03398-7 1.7
BLACK IN KIT
RED
WHITE
18

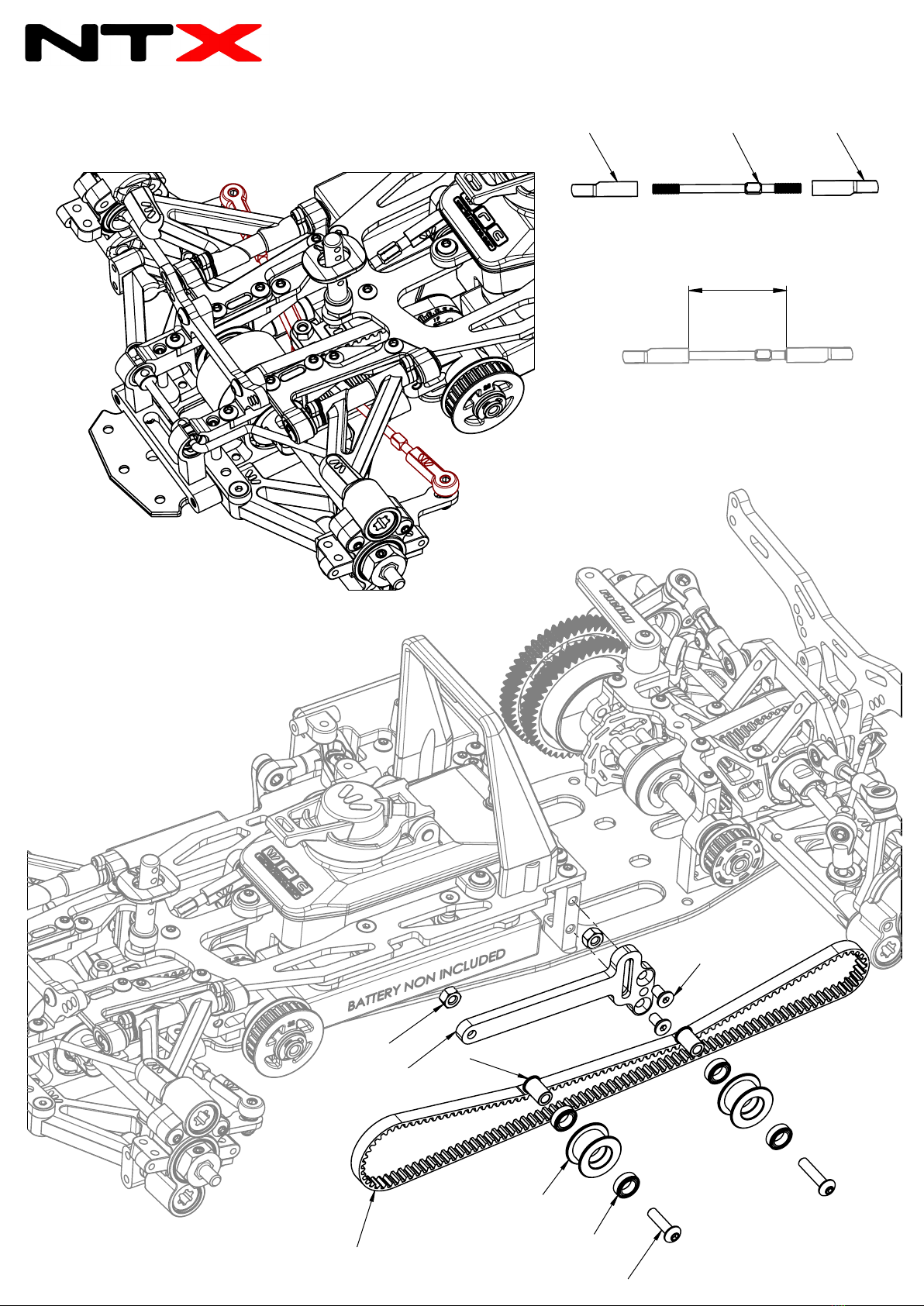

FRONT - REAR
BAG.17

93001
M3 x6
03069
03069 98013
M3X10
03069
03069
03069 93001
M3 x6
03069
93012
M3 x5
93012
M3 x5
98013
M3X10
19
BAG.17
