wtw MIQ/24V User manual

OPERATING MANUAL
ba64114e05 03/2018
IQ SENSOR NET
MIQ/24V
IQ SENSOR NET POWER SUPPLY MODULE (NOMINAL INPUT VOLTAGE 24 V AC/DC)
Power
!
OK

MIQ/24V
2ba64114d05 03/2018
Copyright ©2018 Xylem Analytics Germany GmbH
Printed in Germany.

MIQ/24V List of contents
3
ba64114e05 03/2018
MIQ/24V - List of contents
1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 How to use this component operating manual . . . . . . . . . 4
1.2 Features of the MIQ/24V . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1.1 Safety information in the operating manual . . . . . 6
2.1.2 Safety signs on the product . . . . . . . . . . . . . . . . . 6
2.1.3 Further documents providing safety information
6
2.2 Safe operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.1 Authorized use . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2.2 Requirements for safe operation . . . . . . . . . . . . . 7
2.2.3 Unauthorized use . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 User qualification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Installation in the IQ SENSOR NET . . . . . . . . . . . . . . . . . . 8
3.3 Safety requirements on the electrical installation . . . . . . . 8
3.4 Electrical connections: General instructions . . . . . . . . . . 9
3.5 Connecting the 24 V AC/DC supply . . . . . . . . . . . . . . . . 11
4 Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . 14
4.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1 General data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.2 MIQ/24V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Overview MIQ/24V
4ba64114d05 03/2018
1Overview
1.1 How to use this component operating manual
Structure of the
IQ SENSOR NET
operating manual
Fig. 1-1 Structure of the IQ SENSOR NET operating manual.
The IQ SENSOR NET operating manual has a modular structure like the
IQ SENSOR NET system itself. It consists of a system operating manual and the
operating manuals of all the components used.
Please file these component operating manuals into the ring binder of the
system operating manual.
IQ Sensor Net Operating Manual
System
Operating
Manual
(Ring Binder)
Operating
Manual
IQ Sensor
Operating
Manual
MIQ Module
Operating
Manual
(e.g. Fieldbus)
Option
Components and Options

MIQ/24V Overview
5
ba64114d05 03/2018
1.2 Features of the MIQ/24V
General
characteristics
The MIQ/24V power supply supplies the IQ SENSOR NET with its operational
voltage. The operational voltage is forwarded to the consumers in the following
ways:
In the case of stacked mounting, via the IQ SENSOR NET contacts on the front
and rear of the module
In the case of distributed mounting, via the IQ SENSOR NET SNCIQ cable
In the case of sensors, via the SACIQ sensor connecting cable.
With the standard MIQ module housing, the MIQ/24V has the same character-
istics as all MIQ modules regarding stability, leakproofness and weather resis-
tance. It also provides the same wide variety of installation options (stacked
mounting, canopy mounting, tophat rail mounting, etc.).
The number of MIQ/24V that are required depends on the number of consumers
in the system and their power requirement as well as on the overall loss of power
in the IQ SENSOR NET cables. Instructions for determining the correct number of
power modules are given in the INSTALLATION chapter of the system operating
manual.
Terminal strip The MIQ/24V has the following electrical connections on the terminal strip inside
the housing:
1 x 24 V AC/DC, two-pole
3 x SENSORNET connection.

Safety instructions MIQ/24V
6ba64114d05 03/2018
2 Safety instructions
2.1 Safety information
2.1.1 Safety information in the operating manual
This operating manual provides important information on the safe operation of
the product. Read this operating manual thoroughly and make yourself familiar
with the product before putting it into operation or working with it. The operating
manual must be kept in the vicinity of the product so you can always find the
information you need.
Important safety instructions are highlighted in this operating manual. They are
indicated by the warning symbol (triangle) in the left column. The signal word
(e.g. "CAUTION") indicates the level of danger:
NOTE
indicates a situation where goods might be damaged if the actions mentioned
are not taken.
2.1.2 Safety signs on the product
Note all labels, information signs and safety symbols on the product. A warning
symbol (triangle) without text refers to safety information in this operating
manual.
2.1.3 Further documents providing safety information
The following documents provide additional information, which you should
observe for your safety when working with the measuring system:
Operating manuals of other components of the IQ SENSOR NET system
(power supply modules, controller, accessories)
Safety datasheets of calibration and maintenance equipment (e.g. cleaning
solutions).
WARNING
indicates a possibly dangerous situation that can lead to
serious (irreversible) injury or death if the safety instruc-
tion is not followed.
CAUTION
indicates a possibly dangerous situation that can lead to
slight (reversible) injury if the safety instruction is not fol-
lowed.

MIQ/24V Safety instructions
7
ba64114d05 03/2018
2.2 Safe operation
2.2.1 Authorized use
The authorized use of the MIQ/24V consists of its use as a power supply module
in the IQ SENSOR NET. Only the operation according to the instructions and tech-
nical specifications given in this operating manual is authorized (see chapter 5
TECHNICAL DATA). Any other use is considered unauthorized.
2.2.2 Requirements for safe operation
Note the following points for safe operation:
The product may only be operated according to the authorized use specified
above.
The product may only be operated under the environmental conditions men-
tioned in this operating manual.
The product may only be supplied with power by the energy sources men-
tioned in this operating manual.
The product may only be opened if this is explicitly described in this operating
manual (example: connecting electrical lines to the terminal strip).
2.2.3 Unauthorized use
The product must not be put into operation if:
it is visibly damaged (e.g. after being transported)
it was stored under adverse conditions for a lengthy period of time (storing
conditions, see chapter 5 TECHNICAL DATA).
2.3 User qualification
Target group The IQ SENSOR NET MIQ/24V was developed for online analysis. Some mainte-
nance activities, e.g. changing the membrane caps in D.O. sensors, require the
safe handling of chemicals. Thus, we assume that the maintenance personnel
is familiar with the necessary precautions to take when dealing with chemicals
as a result of their professional training and experience.
Special user
qualifications
The following installation activities may only be performed by a qualified electri-
cian:
Connection of the MIQ/24V to the power supply.
Connection of external, line voltage-carrying circuits to relay contacts (see
module manual of the relay output module).

Installation MIQ/24V
8ba64114d05 03/2018
3 Installation
3.1 Scope of delivery
MIQ module
Accessory set, including:
– 4 x cable glands (clamping range 4.5-10 mm) with seals and blind plugs
– 4 x ISO blind nuts M4 with suitable cheese-head screws and plain wash-
ers
– 2 x countersunk screws M3x6 to close the module lid
(+ 2 replacement screws)
– 1 x contact base with fixing screws
Accessory kit, including
– 1 x extension M16x1,5. to M20x1.5 with O-ring
– 1 x cable gland
Operating manual.
3.2 Installation in the IQ SENSOR NET
The IQ SENSOR NET provides a number of options for integrating the MIQ/24V
mechanically and electrically in the system (stacked mounting, distributed
mounting, etc.). The individual types of installation are described in detail in the
INSTALLATION chapter of the system operating manual.
3.3 Safety requirements on the electrical installation
Electrical equipment (e.g. motors, contactors, cables, lines, relays) must meet
the following requirements:
Conformity with national regulations (e.g. NEC, VDE and IEC)
Suitability for the electrical conditions at the installation site
– Maximum operating voltage
– Maximum operating current
To achieve optimum heat transfer, it is recommended to always
place the power supply module at the back of a module stack.
If there are several power supply modules in the IQ SENSOR NET, it
is helpful if all the power supply modules are connected to a single
power supply. As a result, the system can be easily switched on and
off from a single location.

MIQ/24V Installation
9
ba64114d05 03/2018
Suitability for the environmental conditions at the installation site
– Temperature resistance (minimum and maximum temperature)
– Stability against UV light when used outdoors
– Protection against water and dust (Nema or IP protection class).
Suitable fusing of the electrical circuit
– Overcurrent fuses (in accordance with the technical data of the device
input or output)
– Overvoltage class II surge limiters
Suitable disconnecting device (e. g. switch or circuit breaker) for the mains
supply of permanently mounted equipment with separate mains connection
– in compliance with the following regulations
- IEC 60947-1
- IEC 60947-3
– in the vicinity of the equipment (recommendation)
Flame-resistant (cables and lines),
in compliance with the following regulations
– UL 2556 VW-1 (for USA, Canada)
– IEC 60332-1-2 (outside of USA, Canada)
3.4 Electrical connections: General instructions

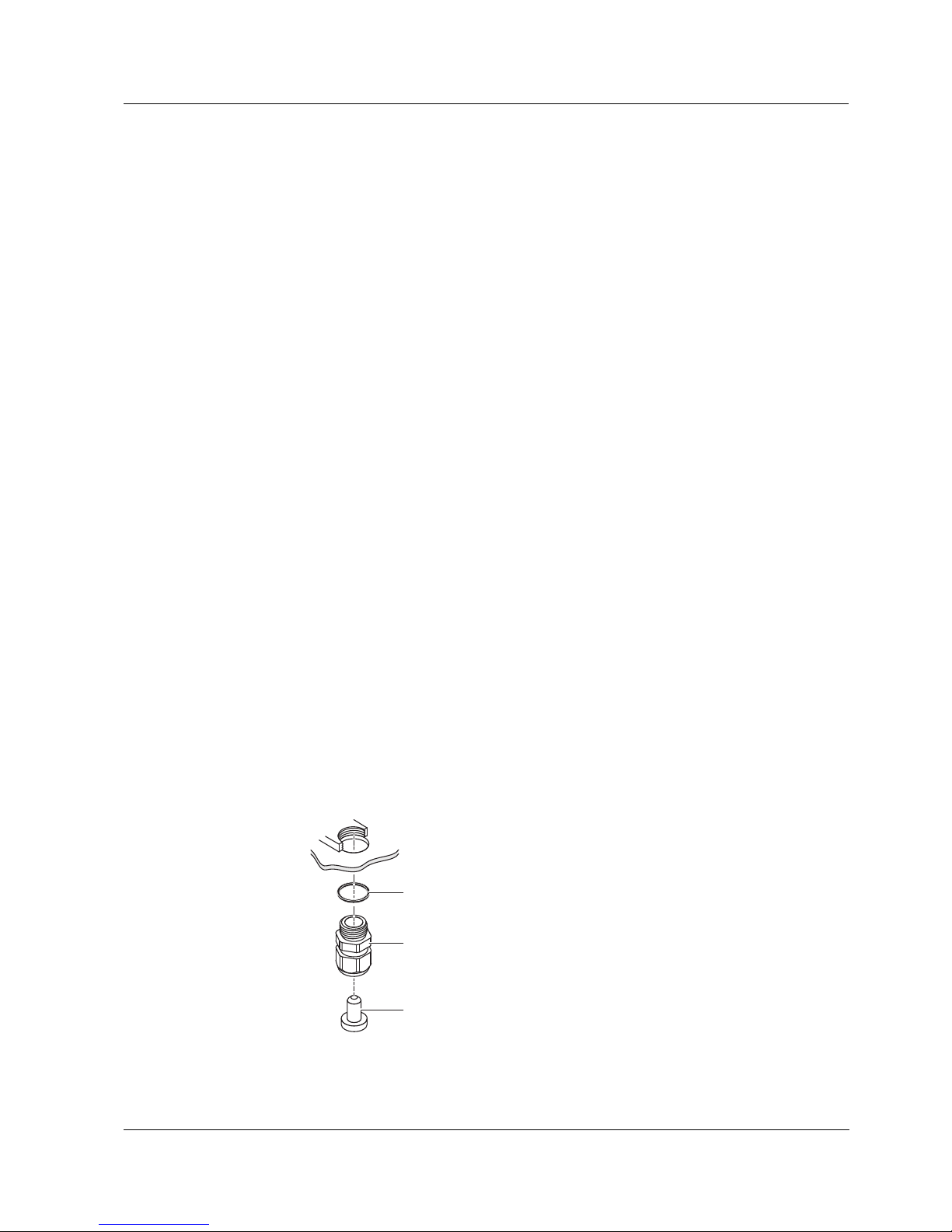

Cable glands All electric cables are fed from below via prepared openings in the enclosure of
the MIQ/24V. Cable glands with different clamping ranges are included with the
MIQ/24V to provide sealing between the cable and enclosure as well as for
strain relief. Select the matching cable gland for the respective cable diameter:
Small, clamping range 4.5 to 10 mm. This cable gland is suitable for all
IQ SENSOR NET sensor cables.
sealing ring 20 x 15 x 1 mm
cable gland M16
blind plug

Installation MIQ/24V
10 ba64114d05 03/2018

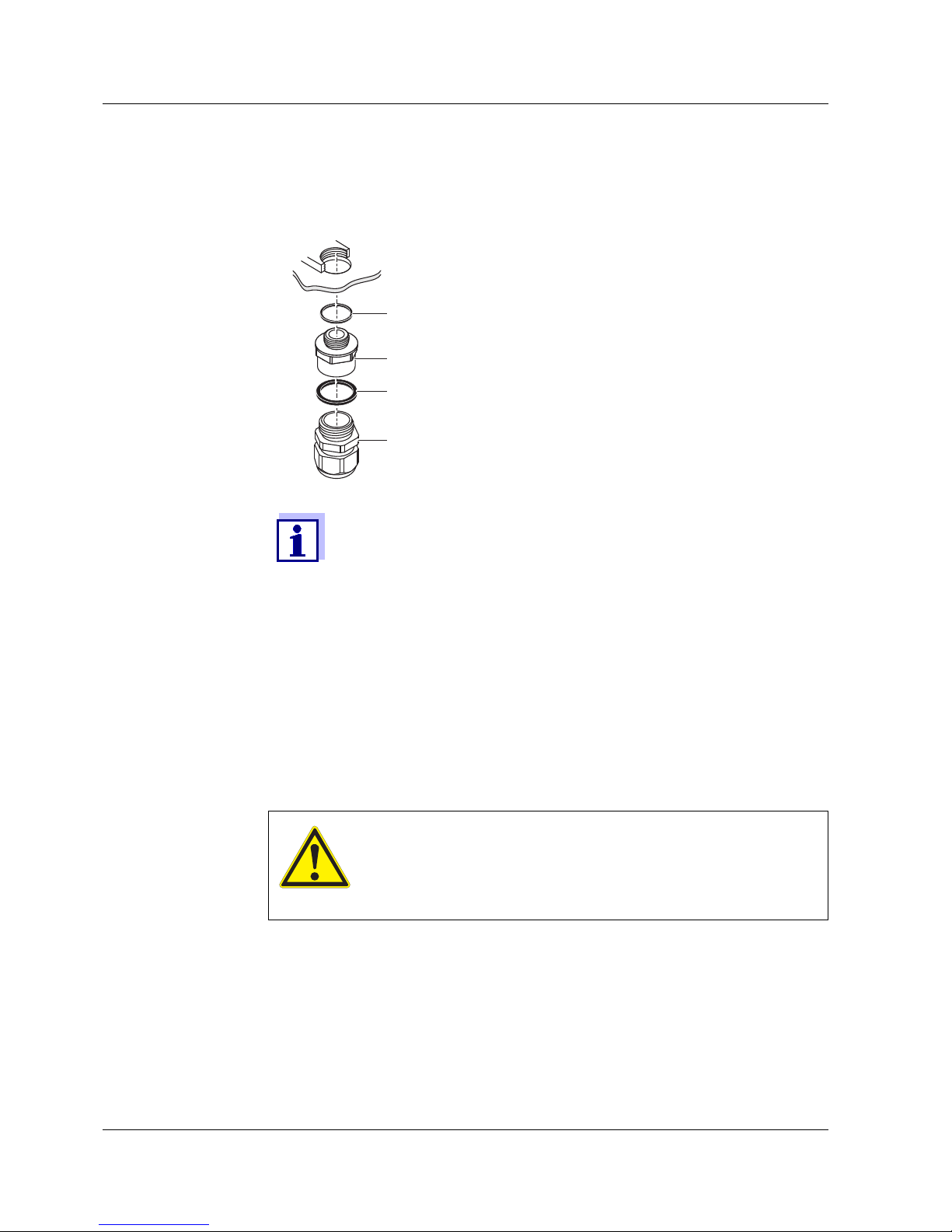

Large, clamping range 7 to 13 mm. This cable gland is required for cable
sheaths with an outside diameter of more than 10 mm and is screwed into the
enclosure via an extension piece.
General
installation
instructions
Observe the following points when attaching connecting wires to the terminal
strip
Shorten all wires to be used to the length required for the installation
Always fit all the ends of the wires with wire end sleeves before connecting
them to the terminal strip
Any wires that are not used and project into the enclosure must be cut off as
closely as possible to the cable gland.
Screw a small cable gland with sealing ring into each remaining free opening
and close it with a blind plug.
If necessary, you can order more large cable glands in a set of 4
pieces (Model EW/T, Order No. 480 051).
sealing ring 20 x 15 x 1 mm
extension piece M16/M20
sealing ring 24 x 19 x 2 mm
cable gland M20
WARNING
No free wires must be allowed to project into the housing.
Otherwise, there is a danger of electric short circuit that
may cause fire. Always cut off any wires that are not in use
as closely as possible to the cable gland.

MIQ/24V Installation
11
ba64114d05 03/2018
3.5 Connecting the 24 V AC/DC supply
Materials required Wire end sleeves, suitable for the power line, with suitable crimping tool
1 x cable gland with sealing ring (included in scope of delivery of MIQ/24V).
Tools Cable stripping knife
Wire stripper
Phillips screw driver
Small screw driver.
Preparing the
24 V AC/DC line
WARNING
If the power supply is connected incorrectly, it may repre-
sent a danger to life from electric shock. Pay attention to
the following points during installation:
The power supply must fulfill the specifications given
on the nameplate and in chapter 5 TECHNICAL DATA
(Safety Extra Low Voltage SELV).
The MIQ/24V may only be connected to the 24 V AC/DC
supply by a qualified electrician.
The connection of the MIQ/24V may only be carried out
when the supply is not carrying any voltage.
When installed in a building, a switch or power switch
must be provided as a disconnecting device for the
MIQ/24V.
The interrupt facility must:
– be installed in the vicinity of the MIQ/24V, easily
accessible by the user, and
– identified as a disconnecting device for the MIQ/24V.
Battery systems should be protected against total discharge. The
MIQ/24V does not have an integrated protection against total
discharge.
1 Cut off the cable to the required length.
2 Strip the cable insulation for approx. 45 mm.
3 Bare the wires 1 and 2 and fit them with wire end sleeves.

Installation MIQ/24V
12 ba64114d05 03/2018
Fig. 3-1 Prepared 24 V AC/DC cable.
Connecting the the
24 V AC/DC line
Fig. 3-2 Connecting the 24 V AC/DC cable.
ca. 45 mm
wire 1
wire 2
4 Open the module.
5 Screw the cable gland (pos. 1 in Fig. 3-2) with the sealing ring (pos. 2)
into the module housing.
6 Loosen the coupling ring (pos. 3).
1
3
2
X11 X10 X6X9 X5X8 X4X7
SENSORNET 2SENSORNET 3
RED
ROT
RED
ROT
SHIELD
SCHIRM
SHIELD
SCHIRM
GREEN
GRÜN
GREEN
GRÜN
X3 X2 X1
SENSORNET 1
RED
ROT
SHIELD
SCHIRM
GREEN
GRÜN
ON
EIN
OFF
AUS
SN TERMINATOR
24 V AC/DC
T 1,6 A
POWER INPUT

MIQ/24V Installation
13
ba64114d05 03/2018
7 Feed the 4 V AC/DC line through the cable gland into the
module housing.
8 Connect the wires 1 and 2 to the terminal strip. Make sure that the cable
assignment agrees with the specification on the terminal label under the
terminal strip.
9 Tighten the coupling ring (pos. 3).
WARNING
No free wires must be allowed to project into the housing.
Otherwise, there is a danger of electric short circuit that
may cause fire. Always cut off any wires that are not in use
as closely as possible to the cable gland.
10 Close the module.

Maintenance and cleaning MIQ/24V
14 ba64114d05 03/2018
4 Maintenance and cleaning
4.1 Maintenance
The MIQ/24V requires no special maintenance. The general maintenance of
IQ SENSOR NET components is described in the IQ SENSOR NET system
operating manual.
4.2 Cleaning
The cleaning of IQ SENSOR NET components is described in the IQ SENSOR NET
system operating manual.

MIQ/24V Technical data
15
ba64114d05 03/2018
5 Technical data
5.1 General data
Dimensions

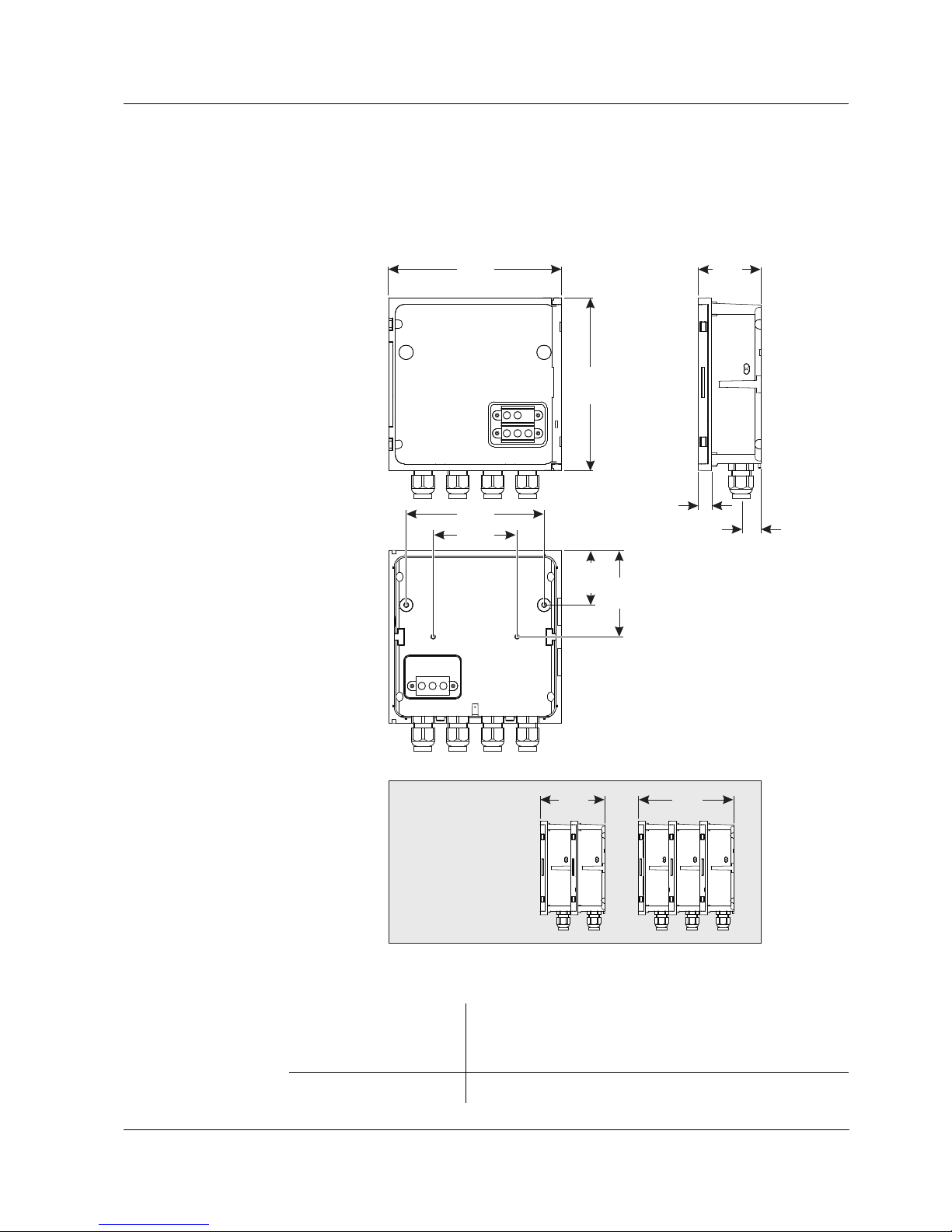

Fig. 5-1 Dimension drawing of MIQ module (dimensions in mm)
Mechanical
structure
100 148
144.0
115.0
70.0
144,0
45.0
72.0
52.2
11.0
16.5
Side view:
Front view:
Rear view:
Stack mounting:
Maximum number of
MIQ modules in a mod-
ule stack
3
Enclosure material Polycarbonate with 20 % glass fiber

Technical data MIQ/24V
16 ba64114d05 03/2018
Cable glands
Ambient
conditions
Meter safety
EMC product and
system
characteristics
Weight Approx. 0.5 kg
Type of protection IP 66 (not suitable for conduit connection).
Suitable for cable
sheath diameter
4.5 - 10 mm or
9.0 - 13 mm
Temperature
Mounting/installation/
maintenance
+ 5 °C ... + 40 °C (+ 41 ... +104 °F)
Operation - 20 °C ... + 55 °C (- 4 ... + 131 °F)
Storage - 25 °C ... + 65 °C (- 13 ... + 149 °F)
Relative humidity
Mounting/installation/
maintenance
≤80 %
Yearly average ≤90 %
Dew formation Possible
Site altitude Max. 2000 m above sea level
Applicable norms – EN 61010-1
– UL 61010-1
– CAN/CSA C22.2#61010-1
EN 61326 EMC requirements for electrical resources for con-
trol technology and laboratory use
– Resources for industrial areas, intended for indis-
pensable operation
– Interference emission limits for resources of class
A
System lightning pro-
tection
Noticeably extended qualitative and quantitative
protective characteristics as opposed to EN 61326
FCC, class A

MIQ/24V Technical data
17
ba64114d05 03/2018
5.2 MIQ/24V
Electrical data
Power supply Nominal voltage: 24 V AC/DC
- 15 % / + 20 %
Safety Extra Low
Voltage (SELV)
AC Frequency: 50/60 Hz
in accordance with
IEC 60038
Connection: 2-pole
Line cross-section of connection:
Europe: 1.5 ... 4.0 mm2
USA: AWG 14 ... 12
Fuse rating on the operator side:
16 A maximum
Power consumption Approx. 25 W
Output voltage Max. 24 VDC via the IQ SENSOR NET (for details, see
chapter TECHNICAL DATA of the IQ SENSOR NET sys-
tem operating manual).
Power output Up to 40 °C ambient temperature: 18 W;
Above 40 °C: the power output decreases linearly to
14 W at 55 °C.
Instrument internal
fuses
5 x 20 T 1.6 A, with UL approval
Manufacturer: Littlefuse
Type: Series 218
CAUTION
If the original fuse needs to be replaced, it may only be re-
placed by a fuse of the same type and manufacturer.
Power output [W]
Ambient temperature [°C]
40 50 6020 300-30 -20 -10 10
0
2
4
6
8
10
12
14
16
18
20
Admissible ambient temperature -25 … +55 °C

Technical data MIQ/24V
18 ba64114d05 03/2018
Terminal
connections
Cable glands
IQ SENSOR NET con-
nections
3
Additional connectable SENSORNET terminator
(terminating resistor)
Terminal type Screw-type terminal strip, accessible by raising the
lid
Terminal ranges Solid wires: 0.2 ... 4.0 mm2
AWG 24 ... 12
Flexible wires: 0.2 ... 2.5 mm2
Suitable for cable
diameter
4.5 ... 10 mm and 7.0 ... 13 mm
CAUTION
Only the line cross-sections specified under ELECTRICAL
DATA, page 17 can be used for the 24 V AC/DC connection.

What can Xylem do for you?
We're a global team unified in a common purpose: creating innovative solutions to
meet our world's water needs. Developing new technologies that will improve the way
water is used, conserved, and re-used in the future is central to our work. We move,
treat, analyze, and return water to the environment, and we help people use water
efficiently, in their homes, buildings, factories and farms. In more than 150 countries, we
have strong, long-standing relationships with customers who know us for our powerful
combination of leading product brands and applications expertise, backed by a legacy
of innovation.
Xylem Analytics Germany GmbH
Dr.-Karl-Slevogt-Str. 1
82362 Weilheim
Germany
Xylem Analytics Germany
Sales GmbH & Co. KG
WTW
Dr.-Karl-Slevogt-Str. 1
82362 Weilheim
Germany
Tel.:
Fax:
E-Mail
Internet:
[phone]
[phone]
wtw[email protected]
www.WTW.com
Service address:
®
For more information on how Xylem can help you, go to xyleminc.com.
