Wurtec S3 Communicator User manual

1
WURTEC, INC.
6200 BRENT DR. TOLEDO, OH 43611

2
GENERAL WARNINGS
1. Use only manufacturer-approved DC power supply for external power source.
2. Use only manufacturer-approved battery for backup power source.
3. Ambient temperature not to exceed 0° C to 40° C.
4. Remove both the external power and the battery power supplies when performing maintenance
or upgrading equipment.
11-598-CC COMMAND CENTER PACK LIST
(1) Command Center enclosure p/n: 11-598-CC
(1) Battery p/n: SP12-9
(1) Battery cable p/n: 10049004
(1) Power supply assembly with power cord p/n: 10049005
11-10044346 FXS LINE CARD KIT PACK LIST
(1) FXS line card p/n: 11-701
(2) Card guide p/n: CBG-2-01
(2) Screw terminal plug p/n: 284506-2
11-10044347 2FXS LINE CARD KIT PACK LIST
(1) 2FXS line card p/n: 11-10002047
(2) Card guide p/n: CBG-2-01
(2) Screw terminal plug p/n: 284506-2
DESCRIPTION AND INTENDED USE
The Wurtec S3 Command Center is a telecommunications device capable of placing and connecting
calls between emergency elevator telephones and services on a PSTN. The Wurtec S3 Command
Center along with the Wurtec S3 Communicator emergency elevator telephones are designed to fulfill
the communications safety requirements for elevators as described in the ASME A17.1 elevator safety
code.
The S3 Command Center is intended to be installed and operated in a temperature-controlled, low-
humidity, low-ambient audible noise environment that is protected from dirt and airborne particles.
INSTALLATION TOOLS REQUIRED
1. 3/32” slot screwdriver
2. Wire strippers/cutters – typically 24-22 AWG dependent on cable used at installation site
PROTECTIVE GEAR REQUIRED
1. Safety glasses
2. ESD strap

3
PHYSICAL SETUP
1. Location / mounting arrangements
a. Typically located in the lobby, security desk, machine room, or fire command
room, but not limited to these locations.
b. Must be mounted vertically in an indoor temperature-controlled area.
i. Operating Temp: 0-40° C
2. Electrical requirements & connections
a. External power: 24V
b. External current: Max. 3A
c. Battery Voltage: 12VDC
d. Battery type: Rechargeable 9Ah
3. TELCO line requirements & connections
a. TELCO voltage: 24-52VDC
b. TELCO current: 23mA
4. Installing expansion cards
a. Power must be off prior to installing cards.
b. Install Internal/External cards first, beginning with slot one and installing
additional cards consecutively.
5. Station minimum wiring requirements
a. TELCO to Command Center – 24AWG UTP
b. Command Center to elevator – 24AWG STP; conform to ASME A17.1
c. Command Center to station – 24AWG UTP
d. Command Center to Command Center (future) – 24AWG UTP / 4 pair CAT 5

4
OPERATOR INTERFACE & INITIAL CONFIGURATION
1. Labeled diagram of operating devices and display
1. See diagram below:
SAVE
Enabled when changing settings
STOP
Enabled in site ID recording mode
HOLD
Displays at home screen. Press to
hold current call
EXIT
Enabled in programming menu
JOIN
Displayed on home screen.
Joins a call in progress
MENU
Displayed on home screen.
Access to the settings
BACK
Displays once you are in the
programming menu SELECT KEY
Selects highlighted item
END ALL CALLS
Disconnects all calls in progress
NUMBER PAD
12 key standard dial pad
PAGE ON/OFF
Page all phones connected
to command center
SPEAKER ON/OFF
Enable/disable speaker phone
ARROW KEYS
Scroll up, down, left and right to
highlight desired selection
COVERSATION VOLUME
Increase the in-call volume
MENU VOLUME
Increase the volume locally
012 EXT 012 0
STATUS INFO
Displays the voltage and
current of highlighted line
EXT:012 -047V 000mA
000 EXT 000 0
___ ___________________ _
001 EXT 001 !
002 EXT 002 0
003 EXT 003 0
004 EXT 004 0
005 CAR NO5 0
006 EXT 006 0
007 EXT 007 0
008 EXT 008 1
009 EXT 009 0
010 EXT 010 0
011 EXT 011 0
013 EXT 013 0
014 EXT 014 0
015 EXT 015 X
J OI N
ME N U HOL D
Wu r t e c
S- 3 Command Cent er V1. 0
12:00:00 01/01/2016
HOME SCREEN EXAMPLE
Incoming call
Customized extension label
Line in use
Highlighted line
External line- not connected

5
2. Reading the display
a. Status info and line labels
i. LCD will display EXT on the far left and below that the phone will
display the default extensions.
a. Lines are numbered 001-016 as default.
i. Internal phone lines are always ODD numbers.
ii. External phone lines are always EVEN numbered.
ii. The text in the middle will display either the line name or the voltage
and current of the line if the line names option is disabled.
iii. The text to the far right displays the status of each line.
a. 1 will display if phone line is OFF hook.
b. 0 will display if phone line is ON hook.
c. X will display if phone line is not connected.
d. ! will display if there is an incoming call or call on hold.
b. Color change
i. The Command Center will sense whether an external phone line is
connected to the external card or in use and display a color code for
each. Internal lines will indicate whether on or off hook.
a. Green - shows a good connection to a line and on standby (0).
b. Yellow - shows a line in use/off hook (1).
c. Red - indicates an external card is inserted, but no line is
connected (X) or an incoming call (!).
3. Initial power up
1. Before applying any power, ensure you have all expansion cards properly inserted
in their slots. You should also have all external and internal phone line connections
in place.
2. Ensure output from power supply is ~24V.
3. Upon power up, the Command Center will determine what type of expansion
cards are installed.
i. Internal lines will be displayed with ODD numbered extensions starting
with Line 001 at the top and continuing down to 015 if applicable.
1. Displayed as FXS.
ii. External lines, if installed, will be displayed as EVEN numbered extensions
starting with line 002 at the top and continuing down to 016 if applicable.
1. Displayed as FXO.

6
4. Accessing & configuring programmable parameters
a. Remote programming - All programming options that can be accessed locally can
also be accessed remotely.
i. RESERVED FOR FUTURE RELEASE
a. Command Center - press * to enter programming mode.
b. S3 Communicator - see S3C manual.
b. Recording site message
i. Press MENU button on the left side of the display.
ii. Press SELECT button to access the SITE MESSAGE.
iii. Press SELECT on the highlighted RECORD option and record site ID
message.
a. Press STOP on lower right of display to stop recording.
b. Scroll down to highlight REVIEW and press SELECT to review
recorded message.
iv. Repeat step iii until satisfied with message.
v. To delete message, highlight DELETE and press SELECT.
vi. Press EXIT to go to the home screen or press BACK to return to the menu
screen.
c. Password (RESERVED FOR FUTURE RELEASE)
i. To change password or disable password:
a. Press MENU button on left side of display.
b. Scroll down until you have highlighted PASSWORD.
c. Press SELECT to access password, then change as needed.
i. Once password is changed, you will not be able to
access programming menus without it.
ii. If circumstances arise that the password is lost and the phone cannot be
accessed, you will need to call tech support to reset the password.
d. Line Name menu option
i. Line information defaults to displaying the extension of the line followed
by the line status (voltage and then current).
ii. To change this to display the extension and line name, you will need to
enable line names in the preferences menu.
a. Press MENU button on left side of display.
b. Scroll down until you have highlighted PREFERENCES.
c. Press SELECT to access preferences menu.
d. Scroll down to highlight LINE NAMES and press SELECT.
e. 0 will toggle to 1, enabling the line names to be displayed.

7
f. Press SAVE on right side of display before exiting.
g. To restore line status display, just toggle 0 back to 1.
e. Programmable line name and extension
i. Line names and extension numbers are all programmable with a full
range of alphabet, 0-9, and special characters.
a. To access this function, press MENU button on left side of
display.
b. Scroll down until LINE NAMES is highlighted.
c. Press SELECT to begin changing line names.
i. Highlight the value you would like to change by
pressing the < (LEFT) or > (RIGHT) arrow key.
ii. Change the value by pressing the ^ (UP) or v (DOWN).
iii. Continue these steps until you have reached the
desired designation for this line, and then press SAVE
to store values.
d. Press BACK to return to previous menu or EXIT to return to
home screen.
f. External line display (RESERVED FOR FUTURE RELEASE)
i. The external lines can be configured to be displayed or hidden from user.
a. Press MENU button on the left side of display.
b. Scroll down until you have highlighted PREFERENCES.
c. Press SELECT to access preferences menu.
d. Scroll down to highlight EXTERNAL LINES and press SELECT.
e. 1 will toggle to 0, turning off external line display.
f. Press SAVE on right side of display before exiting.
g. To restore external line display, just toggle 0 back to 1.
5. Initial tests
1. To make sure you have a good telephone line, you can make an outside call from
the Command Center using the keypad. This is a good time to verify emergency
numbers also.
i. Lift handset or press SPEAKER ON/OFF.
ii. Press 9, 9, then the number you wish to dial. If the line is good, you will be
able to connect to an outside line. If the line is bad, or not connected, you
will get a busy tone.
iii. Return handset to receiver or press SPEAKER ON/OFF (if phone was on
speaker).

8
BASIC OPERATION/USE FROM THE COMMAND CENTER
1. Answering a station call
a. Answering a call is very similar to a standard telephone with a speakerphone and
handset options.
i. When the Command Center is ringing, you have the option to pick up the
handset and talk to the party.
1. If you would like to switch to speakerphone, press the SPEAKER
ON/OFF button and place the handset back on the receiver.
ii. You can leave the handset on the receiver and press the SPEAKER ON/OFF
button as well to answer the phone on speakerphone.
1. If you have answered using speakerphone button and want to use
handset, simply lift handset and continue conversation.
b. If the call is from an S3 Communicator, you will need to press 1 to talk to the party
or 2 to listen to the site ID message if the phone is not set to immediate two-way
calling.
2. Calling a station
a. There are multiple ways to call a station from the Command Center:
i. Using SELECT while handset is off hook.
1. Scroll ^ (UP) or v (DOWN) until you have highlighted the desired
extension.
2. Press SELECT on the highlighted extension and wait for an answer.
3. If you would like to communicate on speakerphone, press the
SPEAKER ON/OFF button and then place the handset on the
receiver.
ii. Using SELECT while handset is on the hook.
1. Scroll ^ (UP) or v (DOWN) until you have highlighted the desired
extension.
2. Press SELECT on the highlighted extension and wait for an answer.
3. Call will automatically be on speakerphone.
4. If you desire to use handset just lift it off the receiver and continue
conversation.
3. Ending a station call
a. How you end the call depends on whether the call is on speakerphone or through
the handset.
i. If you are communicating through the handset, you simply place the
handset back on the receiver.

9
ii. If you are communicating through the speakerphone (handset will be on
receiver) then you will need to press SPEAKER ON/OFF which will
disconnect the call.
iii. If you are unsure, pressing the END ALL CALLS button will disconnect all
active calls. This is explained further in the section titled “Ending call with
multiple stations”.
4. Holding a station call
a. Due to code compliance, the process of placing a call on hold may be different
from what you are accustomed to with a call waiting-enabled device. The
operation is embedded in the system to ensure callers will not be unanswered.
i. If you are connected to 1 caller with the Command Center, you will only be
able to place that caller on hold if the phone is on speakerphone.
ii. When another caller is calling in, the HOLD button will become active on
the right side of the display.
iii. Press the HOLD button and 2-way communication will automatically be
enabled with that second caller.
iv. If another call is ringing through, you can press HOLD again and be
connected to that call.
v. See “Answering a call with a call on hold” section for more info on holding
calls.
5. Answering a station call with a call on hold
a. Answering a call while a call is on hold is as easy as pressing HOLD and the next
call in the queue will be answered.
b. You are not able to select which car you talk to when there are multiple calls. The
priority is dictated by the caller that called in first and whether the call has already
been answered. This is executed internally by the Command Center.
c. See “Holding a station call” for additional information.
6. Joining multiple station calls
a. Joining a call or calls is a feature of the Command Center and can be accomplished
by pressing JOIN on the left side of the display for calls that are in progress. This
function does not join two calls together, but rather joins in on a call already in
progress.
i. To join a call, 1 or more phones connected to the Command Center have
to be on an active call.
1. You will be able to see that they are on a call by looking at the
display (the line on a call will be yellow with a “1” on the far right
indicating line is in use).

10
2. Press JOIN to connect the Command Center to the call.
3. You will now be able to communicate with everyone that is active
on this call.
4. You may disconnect from this conversation at any time by hanging
up the Command Center. The calls you joined will stay active until
they have disconnected themselves, or you press the END ALL
CALLS button.
7. Calling multiple stations (paging)
a. Calling multiple stations is accomplished by pressing the PAGE ON/OFF button.
i. The Command Center will ring any phone that is connected to it.
1. This is a one way call only and is for the Command Center to make
announcements.
2. Command center will connect S3 Communicator phones
automatically. Other phones on the line may have to be manually
picked up.
a. S3 Communicator phones set up for line sharing will not
answer a page due to the added menu option required to
reach the phone.
3. The page function will remain “on” until you press END ALL CALLS
to disconnect from all lines that were affected by the page.
a. While page is “on”, placing the handset on the receiver or
pressing SPEAKER ON/OFF will not disconnect the phone
as it typically would in a call. Switch to speakerphone by
placing the handset on the receiver, and switch back to
handset mode by lifting the handset.
8. Ending call with multiple stations
a. To end a call on multiple stations, the easiest and fastest way is to press the END
ALL CALLS button. This of course depends on whether you want disconnect from
one or all of those calls, because pressing that button will end ALL calls.
b. If you just wish to disconnect from one call at a time, then you may do so by
hanging up the phone on a call, which will bring the next call up in the queue to
be answered. This call can be ended by hanging up also and so on down the line
until they have all been ended.
i. You cannot hang up one by one if page was initiated. In this case, you must
END ALL CALLS.

11
9. Calling outside line
a. The Command Center can connect to an outside line if a valid external line is
present. There are two ways to accomplish this:
i. Scroll ^ (UP) or v (DOWN) to highlight the external line and press SELECT.
When you hear the dial tone, you can dial an external number.
ii. Another (and the most common) way is to press SPEAKER ON/OFF or to lift
the handset off the receiver. When you hear a dial tone, press 99 to get an
outside line followed by the number you wish to call.
10. Answering outside line
a. Answering a call from an outside line is basically the same as answering a station
call.
i. When Command Center is ringing you have the option to pick up the
handset and talk to the party.
1. If you would like to switch to speakerphone, press the SPEAKER
ON/OFF button and place the handset back on the receiver.
ii. You can leave the handset on the receiver and press the SPEAKER ON/OFF
button as well to answer the phone on speakerphone.
1. If you have answered using speakerphone button and want to use
handset, simply lift handset and continue conversation.
b. If the call is from an S3 Communicator, you will need to press 1 to talk to the party
or 2 to listen to the site ID message if the phone is not set to immediate two-way
calling.
BASIC OPERATIONS FROM A STATION
1. Answering Command Center call
a. Answering a call from the Command Center depends on what device is being
called. The main devices that will be attached to the Command Center will be:
i. S3 Communicator - you will not need to do anything at the S3C to answer
this call.
ii. S3 Communicator Master Station - same as the standard S3Communicator,
but you can also lift the handset to talk after the call has been established.
iii. Any POTS telephone connected to the Command Center can pick up and
have immediate two-way calling.
2. Calling Command Center
a. Dial extension 0 from any station connected to the Command Center.

12
3. Ending Command Center call
a. To end a Command Center call from a station depends on the device being called.
i. S3 Communicators will disconnect automatically when the Command
Center ends the call.
ii. Any other phone on the line – place the phone back on the hook or see
what the manufacturer of that particular phone requires to end a call.
4. Holding Command Center call
a. If you are on a phone that is capable of holding a call, you will need to refer to that
manufacturer’s instructions on how to do so. The Command Center extension that
you are connected to will stay on hold indefinitely until you remove the hold.
5. Calling another station
a. To call another station from a station, you must know the extension that the other
station is connected to.
i. You may call only 1 station at a time from any 1 station.
ii. If a station is already on a call, you will get a busy tone notifying you of this
status.
6. Answering station call
a. Refer to “Answering Command Center call”.
7. Ending a station call
a. Refer to “Ending Command Center call”.
8. Calling outside line
a. To connect to an external/outside line, lift the handset off the receiver. When you
hear a dial tone, press 99 to get an outside line, followed by the number you wish
to call.
9. Answering outside line
a. Answering a call from an outside line is much like answering a call from the
Command Center: it depends on what device is being called. Devices that may be
calling are:
i. S3 Communicator - you will not need to do anything at the S3C to answer
this call.
ii. S3 Communicator Master Station - same as standard S3 Communicator,
but you can also lift handset to talk after call has been established.
iii. Any POTS telephone connected to the Command Center can pick up and
have immediate two-way calling.

13
BASIC OPERATION FROM AN S3 COMMUNICATOR STATION
1. Programming the S3 Communicator
a. Full programming instructions for the S3C are located in the instruction booklet
that came with the phone, on our website Wurtec.com, or by contacting technical
support.
2. Calling Command Center
a. Program the extension 0 as an EMERGENCY NUMBER in the phone.
i. Example:
1. Press EMERG PHONE NUMB shortcut button.
2. Press 1 for first number.
3. Enter 0 then # to save.
4. * then 0 to disconnect from menu.
ii. From an S3C Master Station, there is no need to program the number because
it has a keypad on the front of the phone to dial as you would a regular
telephone.
1. Press TALK/END.
2. Enter 0 to call Command Center.
3. Calling outside line
a. To program the phone to call an outside line you must first program a 99 then *
before the number.
i. Example:
1. Press EMERG PHONE NUMB shortcut button.
2. Press 2 for second number.
3. Enter 9-9-*-[PHONE NUMBER] then # to save.
4. * then 0 to disconnect from the menu.
ii. From an S3C Master Station, there is no need to program the number because
it has a keypad on the front of the phone to dial as you would a regular
telephone.
1. Press TALK/END.
2. Enter 99 and then the number you wish to call.
4. Calling another station
a. Program the extension as an EMERGENCY NUMBER in the phone.
i. Example, to call extension 1 as the emergency number:
1. Press EMERG PHONE NUMB shortcut button.
2. Press 3 for third number.
3. Enter 1 then # to save.
4. * then 0 to disconnect from menu.

14
ii. From an S3C Master Station, there is no need to program the number because
it has a keypad on the front of the phone to dial as you would a regular
telephone.
1. Press TALK/END.
2. Enter the number of the station you wish to call.
5. Answering calls
a. Calls to an S3C will be answered automatically. When the S3C picks the phone up,
you will hear an audible beep and the LED will start flashing. The call will end
automatically as well and gives you an audible “they have hung up” followed by
the LED shutting off.
CONNECTING TO OTHER COMMAND CENTERS
Calls can be placed from one Command Center to another, similarly to an elevator phone or an
outside line. Additional hardware and cabling is required to accomplish this as shown in figure 1. The
elevator phone block depicts elevator phones capable of sharing a single line as with the Wurtec S3
Communicator phones.
Figure 1: Block diagram representation showing connections required for Command Center to Command
Center communications along with Telco and elevator phone connections.

15
In this scenario Command Center 1 can call Command Center 2 or vice versa via the following steps:
1. Select the extension that the other Command Center is connected to, in this case EXT 001.
2. The other Command Center will answer with its automated response asking for the
number of the phone that you would like to talk to.
3. To ring the other Command Center, directly dial 0.
With S3 Communicators configured to share a line as the elevator phones connected to Command
Center 1, a call can be placed from Command Center 1 to any of the phones via the following steps:
1. Select the extension that the phones are connected to, in this case EXT 003.
2. The S3 Communicators will respond with their automated response asking which phone
(1 – 8 or 0 for all) you want to talk to.
Likewise, to place a call from Command Center 2 to any of the S3 Communicators:
1. Select the extension that the other Command Center is connected to, in this case EXT 001.
2. The other Command Center will answer with its automated response asking for the
number of the phone that you would like to talk to.
3. Dial the extension that the phones are connected to, in this case 3.
4. The S3 Communicators will respond with their automated response asking which phone
(1 – 8 or 0 for all) you want to talk to.
Calling from Command Center 1 to an outside line works the same way as outlined above with a single
Command Center:
1. Dial 99 from the Command Center to get the dial tone from the outside line, then the
number that you want to call.
To place a call to the outside line from Command Center 2 in this scenario:
1. Dial 99 to get a dial tone from Command Center 1.
2. Dial 99 again to get a dial tone from the outside line, then the number that you want to
call.

16
ADVANCED OPERATIONS
1. Programming S3C from Command Center
a. You can program any S3C that is connected to the Command Center or accessible
through an external line. Full programming instructions for the S3C are located in
the instruction booklet that came with the phone, on our website Wurtec.com, or
by contacting technical support.
2. Ethernet connectivity
a. RESERVED FOR FUTURE RELEASE
3. USB firmware upgrade support
In addition to allowing the user to modify and store configuration parameters, the
Command Center firmware is field-upgradeable to allow users to have access to new
functionality and features as they become available.
To upgrade the Command Center firmware a Windows 7 or greater laptop or PC with a
USB 2.0 and internet connection is required. In addition, the laptop or PC must have the
Microchip FLIP software application installed. The FLIP software can be installed by
selecting the “FLIP x.x.x.x for Windows (Java Runtime Environment included)” link at :
https://www.microchip.com/developmenttools/ProductDetails/FLIP
Where x.x.x.x is the latest version of the FLIP application.
The Command Center firmware can be obtained by request from:
[email protected] on request.
To perform a firmware update on the Command Center:
1. Open the Command Center enclosure and locate the F/W Update and Reset
pushbuttons on the S3Pbx PCB and shown in Figure 2 (next page).

17

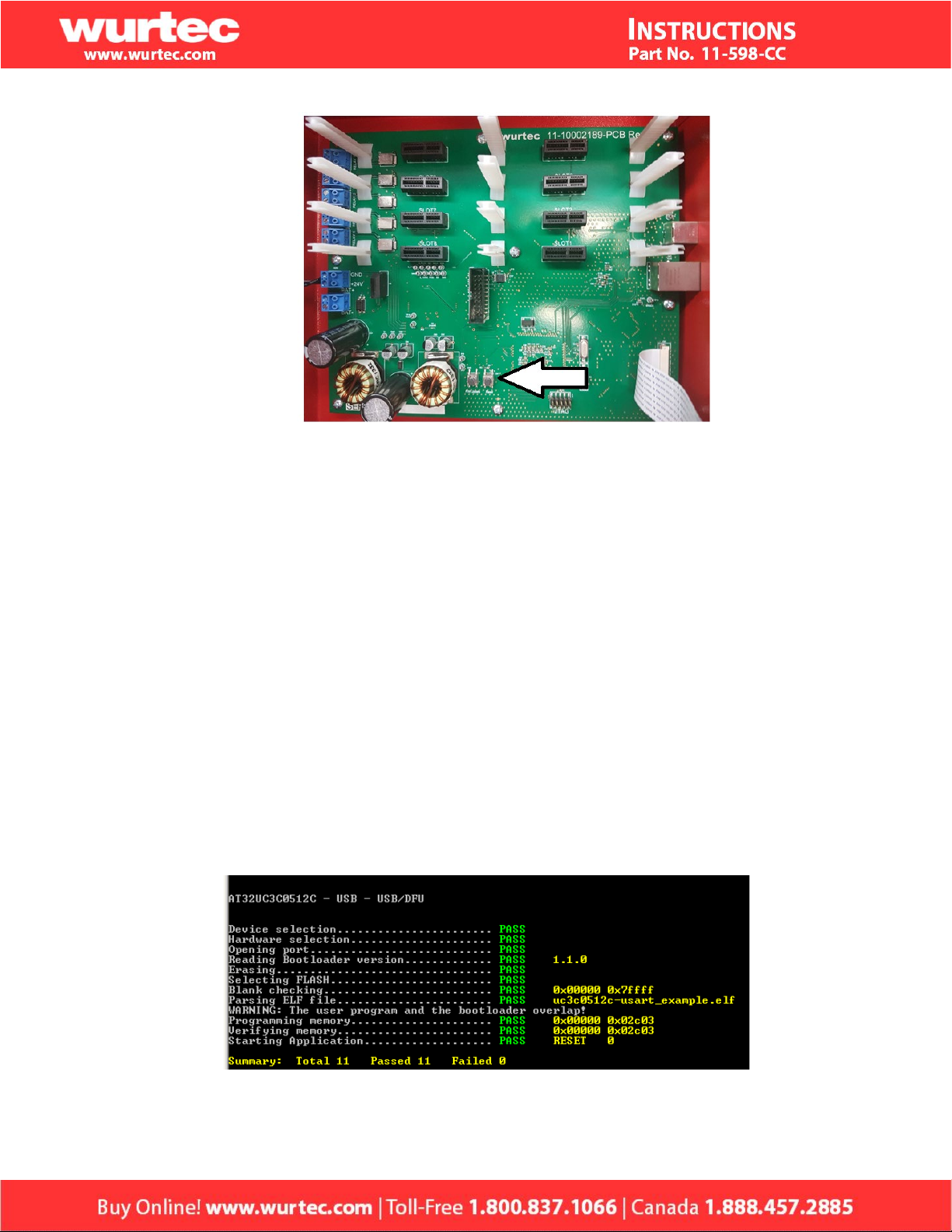

Figure 2: Command Center S3Pbx PCB F/W Update and Reset pushbuttons.
2. Press and hold both pushbuttons for at least 2 seconds.
3. Release the Reset pushbutton while still pressing the F/W Update pushbutton.
4. After at least 1 second, release the F/W Update pushbutton.
5. Connect the laptop or PC to the Command Center with a USB cable.
6. Open a CMD line window and type:
batchisp -device at32uc3a0512 -hardware usb -operation erase F blankcheck
loadbuffer "%DFUISP_PATH%" addrange 0x80002000 0x8007ffff program verify
start reset 0
Where %DFUISP_PATH% is the path and file name for the firmware obtained from
Wurtec. For example: C:\Users\user1\Desktop\S3PbxIsp.hex.
7. Type <enter> and wait until the firmware update successfully completes as shown
similarly in figure 3.
Figure 3: Typical batchisp CMD window output upon successful firmware update.

18
8. If the Command Center hasn’t restarted after about a minute, press and hold the
Reset button for about a second, then release.
9. After the Command Center has been restarted, the firmware version number can
be verified by going to Menu->Status from the idle screen and confirming that
the version number in the firmware file name received from Wurtec is the same as
show in the “FW Ver” field on the Status screen.
10. Disconnect the USB cable and close the Command Center enclosure.
TROUBLESHOOTING
1. Keypad not working
a. Ensure Command Center is powered up.
b. Ensure phone is off hook if you are attempting to use number pad.
2. Arrow keys not working
a. This function is disabled when on a call.
b. Ensure Command Center is powered up.
3. Have a good phone line, but hear a busy tone when attempting to call out
a. You must first dial 99 to get an outside line. If you do not, you will get a busy tone.
b. Make sure the display on the Command Center shows the external line as green
and “0” as the status when phone is on hook.
i. If the external line is displayed as red and has “X” as the status, the
Command Center does not recognize a good line.
ii. Verify you have at least 24VDC on the line.
4. Command Center does not respond to Touch Tone when calling remotely
a. Verify the phone you are using is not set to “pulse” dialing. All S3 products will
only recognize tone dialing.
b. Using a land line telephone, the Command Center should respond to touch tones
with no problems.
c. If using a cell phone, it may be because of bad cell reception or just may not work
at all with some phones. In this case, it is recommended you use a land line or be
onsite to perform any programming.
5. Handset is not working
a. Verify the handset is connected properly to the Command Center and at the base
of handset.
b. If the phone is on speakerphone, the handset is disabled.
i. While phone is on speakerphone, place handset back on receiver.

19
ii. If at some point the Command Center was placed on speaker without
returning the handset back to the receiver, both may not function
properly and you will need to ensure phone is on hook by returning
handset to receiver and turning off speakerphone.
TECHNICAL SUPPORT
Tech support can be reached at [phone] or toll free at [phone], Monday through Friday,
8:00 a.m. to 5:00 p.m. EST>
DAILY CHECKS
The Command Center is intended to be self-sufficient, so minimal maintenance is required to keep it
in operating condition. The Command Center will display any warning messages or error conditions
that are detected until acknowledged, so it should be checked at a minimum of once per day.
MAINTENANCE
The Command Center battery is the only component that will require regular maintenance and should
be replaced at least once every 5 years.
CERTIFICATES AND COMPLIANCE
FCC Part 15, Class A
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case
the user will be required to correct the interference at his own expense.
