XENO XDR960 User manual

XDR960 4 Channel DVR
User manual

Safety Information
Note:


Note:
* WARNING:
Improper use of this equipment can cause severe bodily injury or equipment damage.
** Caution:
Improper use of this equipment can cause equipment damage.
Note:

3 | H.264 Digital Video Recorder
RISK OF ELECTRIC SHOCK

User’s Manual | 4
Contents
CHAPTER 1:DVR USER MANUAL
1GETTING STARTED 7
1.1 Checking Supplied Items 7
1.2 Connecting Peripheral Device 8
1.3 System Startup and Shutdown 10
2EXPLANATION FOR EACH FUNCTION 12
2.1 Front Panel 12
2.2 Rear Panel 12
2.3 IR Remote Controller(*Option) 15
3OPERATION 16
3.1 User Log-in 16
3.2 Quick Startup Wizard 17
3.3 Live Display Mode 18
3.4 PTZ Operation 23
3.5 Call Monitor Operation 24
3.6 Playback of Recorded Video 25
3.7 Search Recording Image 27
3.8 DST Setting 31
3.9 Screen Saver 32
4SETTING 33
4.1 System 34
4.2 Device 42
4.3 Record 47
4.4 Network 50
4.5 Backup 55
4.6 Quick Setup 57
5WEB SURVEILLANCE 58
5.1 Web Login 58
5.2 Web Configuration 59
5.3 Web monitoring 61
5.4 Web Playback 64
6CMS USER GUIDE 67
6.1 PC REQUIREMENT 67

5 | H.264 Digital Video Recorder
6.2 INSTALL 67
6.3 UNINSTALL 69
6.4 BASIC OPERATION 70
6.5 CMS FUNCTIONS 79
6.6 CMS SETUP 85
7ACS USER GUIDE 93
7.1 System Requirement 93
7.2 Install 93
7.3 Uninstall 95
7.4 Basic Operation 95
7.5 Advanced Operation 101
7.6 ACS Setup 104
8MAC ACS USER GUIDE 111
8.1 System Requirement 111
8.2 Install 111
8.3 Basic Operation 112
9FACE STAMP SOFTWARE 121
9.1 Face Stamp Software Set-up 121
10 MOBILE PHONE SOFTWARE USER GUIDE 129
10.1 iPhone application software 129
10.2 Android application software 139
10.3 Using WAP+3G Connection 149
11 APPENDIX :DYNDNS SITE REGISTRATION 151
12 APPENDIX :NETWORK SETUP FOR EXTERNAL USAGE 153
13 APPENDIX :SPECIFICATION 154

User’s Manual | 6

7 | H.264 Digital Video Recorder
1GETTING STARTED
1.1 Checking Supplied Items
Make sure that you have the following items supplied with yourDVR. If any of these items are missing or damaged, notify your
vendor immediately. Keep the packing utilities for moving or storage purposes afterwards.
Items
Quantity
User Manual
(DVR & Software)
Quick Start Guide
1 Set
1 Set
CD (Manual & Software)
Rubber Mount
1 Set
1 Set (4 Pieces)
12V DC Adaptor
Power Cable
1 Set
USB Mouse
1 Set
Ground Screw
1 Set
(1piece Vmax960HFlex
Rear / 1piece )

User’s Manual | 8
1.2 Connecting Peripheral Device
This section describes howtoconnect peripheral devices efficientlyto the DVR.
Install the DVR on flat surface. If required, attach a rubber mount for installation. If a19-inch rack is used with 1.5U Height
case, it is recommend to install the system on a shelf and use 2.5~3U (1U=1.75 inch or 4.45 cm) space for proper ventilation.
4 Channel DVR Compact Case Dimensions: 11.0” W x 1.9” H x 9.6” D
8 Channel DVR Compact Case Dimensions: 11.0” W x 1.9” H x 9.6” D
NOTE
Install the system in a location with good ventilation to prevent overheating.

9 | H.264 Digital Video Recorder
16 Channel DVR Compact Case Dimensions: 11.80” W x 2.16” H x 12.46” D
WARNING !
When connecting power cord to the system, it is strongly recommended first to plug the power cord to
the system and then plug the other side of power cord into the wall socket.

User’s Manual | 10
1.3 System Startup and Shutdown
1.3.1 System Startup
After connecting peripheral devices such as cameras, monitors and a mouse to the DVR, power up the DVR by connecting
DC12V 3Aadaptor to the power jack on the rear panel. The boot log will display as shown below. Please wait until the boot
process completes.
Login with ‘User Name’at the login window which will appear as shown below.
Thereis only oneAdministratorAccount configurable in theDVR system. It is assigned with an unchangeable User IDmarked
as ‘admin’. The default password is empty (No Password). Administrator account has full access to the DVR and its
configurable parameters. TheAdministratorAccount also has the ability to create new users and to assign rights to the new
user accounts. Those newusers created by ‘admin’account can also login with a specific password set by ‘admin’account.
NOTE
Do not forget the administrator’s password that was set for the first time. In case the password is lost,
contact your vendor.
NOTE
The mouse is included. In case you need to replace it, it is highly recommended to choose well-known
major brands such as DELL, MICROSOFT, LOGITECH, or SAMSUNG.

11 | H.264 Digital Video Recorder
1.3.2 System Shutdown and change password
Option 1. Click the Shutdown button and input password on pop-up to power off the DVR
Option 2. Click the right button on the mouse and select the Shut Down to power off the DVR.
NOTE
It is not recommended to disconnect the power cable abruptly from the back of the DVR because it may
affect the DVR and Hard Drive.
The default password for ‘admin’account is none. Therefore, just click ‘Enter’button on the dial pad. If you changed the
password for ‘admin’account, please type in the changed password to login.
NOTE
User can type in the password using the virtual keyboard or the numeric buttons on the IR remote
controller.

User’s Manual | 12
2EXPLANATION FOR EACH FUNCTION
2.1 Front Panel
4/8 Channel DVR Compact Case
16 Channel DVR Compact Case
2.2 Rear Panel
No.
Items
Functions
1
LED Indicator
Indicate System Status
Power, Record, Network
2
USB Port
USB Port (Ver. 2.0) for Mouse Operation, Backup Device or Firmware Update

13 | H.264 Digital Video Recorder
4 Channel DVR Compact Case
8 Channel DVR Compact Case
16 Channel DVR Compact Case
No.
Name
Description
1
Video-In
Camera inputs (Supports NTSC/PAL)
2
Audio-In
Audio Input Device (with Amplifier)

User’s Manual | 14
3
Audio-Out
Audio Output Device (with Amplifier)
4
Video-Out
Main Composite Monitor Output
5
Spot-Out
Spot Composite Monitor Output
6
USB Port
USB 2.0 Port for Mouse Operation, Backup Device, or Firmware Update
7
HDMI Port
HDMI Output
8
LAN Port
100Mbps RJ45 Ethernet Connection Terminal
9
Power Input
Power Supply Connection 12 VDC at 3.33Amps for 4Channel and 8Channel
12VDC at 6.67Amps for 16Channel
10
Sensor Input
Sensor Input
11
Alarm Output
Alarm Output
12
RS-485 Port
PTZ Dome Camera or External Keyboard Controller connection
Note
Carefully check whether the specifications of the peripheral devices match the DVR’s specifications.

15 | H.264 Digital Video Recorder
2.3 IR Remote Controller(*Option)
In order to use IR Remote Controller, the ID of the IR Remote Controller must be same as the ID of the DVR.
(Default ID # for DVR and IR Remote Controller is “1”.)
If you have more than two DVRs, you are able to control them individually with just one remote controller by setting up
‘Remote ID’. (The Remote ID is adjustable from ‘1’up to ‘8’.)
The function buttons of the IR Remote Controller are as below.
No.
Functions
1
Instant (Emergency) Recording Button
2
Numeric Button
3
Auto-Sequence Button on Live Display Mode
4
Freeze Button
5
Call Monitor Button
6
Channel Selection Button
7
Instant Playback Button
8
Search Button
9
OK (Select) Button
10
Audio Mute Button
11
Playback Button on Search Mode
(Fast Backward/Playback/Stop/Fast Forward)
12
Exit Button
13
Display Mode Button
14
Zoom Button
15
Bookmark Button
16
Zoom In & Out Button
17
Backup Button
18
PTZ Button
19
Direction Button (Up/Down/Right/Left)
20
Menu Button
21
ID Select Button (DVR1 ~ DVR8)

User’s Manual | 16
3OPERATION
3.1 User Log-in
The DVR has various setting categories. The administrator can set the system password and <User> to prevent unauthorized
changes to setting values and alteration of recorded file.
Enter the <Admin> or <User> password which had been set by usingthe virtual keyboard.
NOTE
1) <LOGIN> window will be permanently displayed in monitor as above picture until user logs in with the
right ID and password.
2) If it is set asAuto Log-In, DVR does not require LOG-IN. (Please refer to 4.1.2 User.)

17 | H.264 Digital Video Recorder
3.2 Quick Startup Wizard
Quick Startup Wizard is specially designed to make it much easier for the major DVR settings such as Time/Date setup,
Record setup, Network setup and Quick setup. When the DVR boots up, the Quick StartupWizard operates automatically. It
can be disabled by setting in the main menu.
Adjust the date & time for the DVR.
Setting this before the DVR starts
recording will prevent and time
conflict, which may result in data loss.
See section 4.1.1 System Info for
more information.
See section 4.4 Network for more
information on setting up the DVR for
external connection.
Use the DVR recording calculator to
setup the best recording parameters
for your needs. See section 4.6 Quick
Setup for more information.

User’s Manual | 18
3.3 Live Display Mode

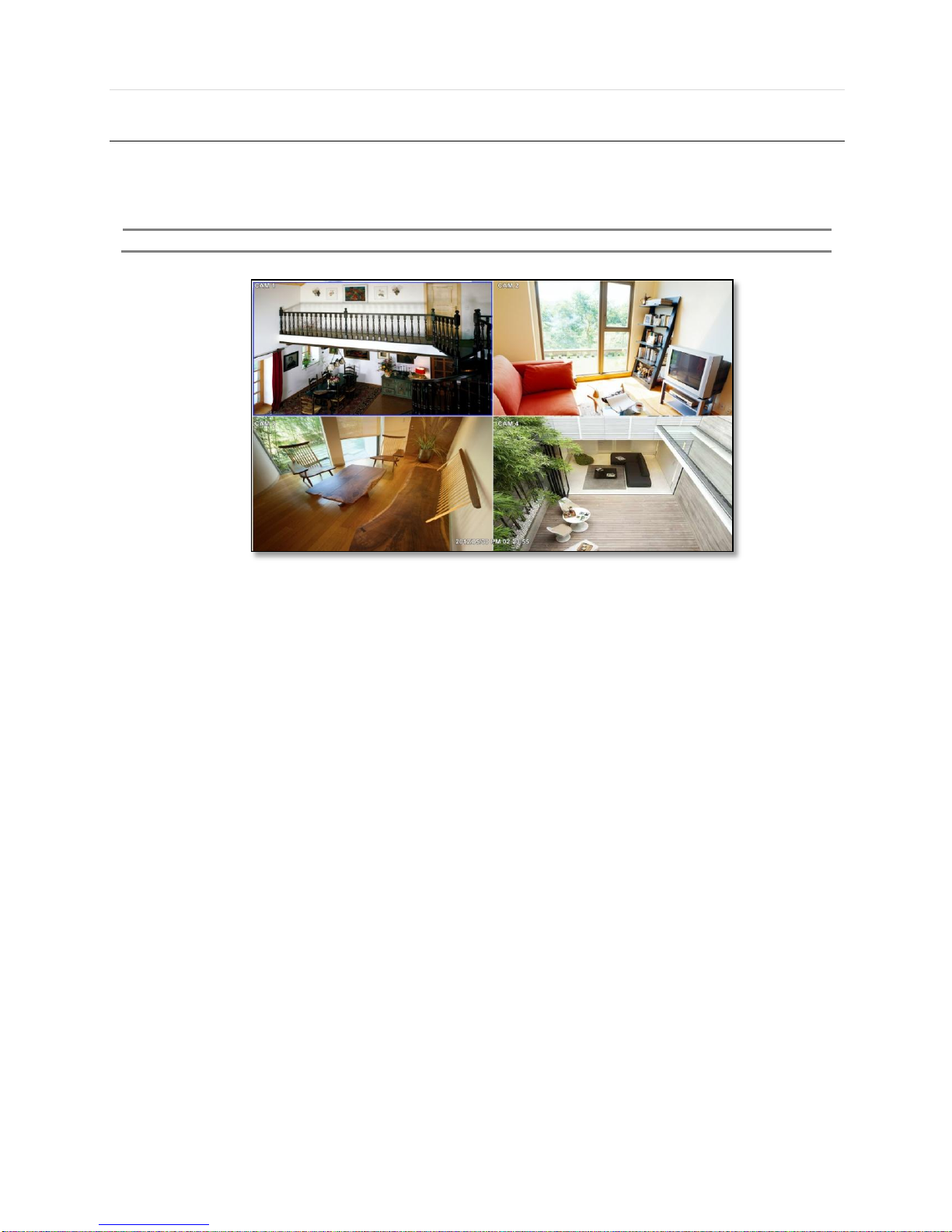

3.3.1 Full HD(1080p) Live Display
Full HD Live Display can be supported in live mode by using its HDMI and VGA output.
NOTE
In playback mode, the maximum resolution is 960x480 / 960x576(NTSC/PAL).
<Full HD Live Display>

19 | H.264 Digital Video Recorder
3.3.2 Channel Selection
Channel selection can be done by following one of the steps below:
1. CH1~CH16 buttons in the IR Remote Control.
2. 1~16 virtual buttons at the bottom of the GUI display.
The display mode can be changed by pressing the ‘MODE’ button on the DVR’s front panel.
The live images can be displayed in real-time in 1, 4, 9, 16 screen splits. Whenever the left/right arrow button on the front
panel or IR remote controller is pressed, the screen will be sequentiallychanged.
[1 Ch] [4 Ch]
[9 Ch] [16 Ch]
To select channel by mouse, click target channel single time to display in full screen. To return to previous display mode,
click the screen again.
To view the pop-up menu, right click anywhere on the display screen.
NOTE
To properly select a channel using the mouse, the user is required to perform a slow and clear click of the
left mouse button.

User’s Manual | 20
3.3.3 Icons
The live mode display’s icons or messages will be indicated on the screen to indicate the system mode or status.
Below are the icon categories that are indicated on the monitor:
Icon to be shown
at Left-upper corner on each channel screen
Icon to be shown
at Left-bottom corner on full screen.
Continuous Recording
Sequence display on
Motion Detection Recording
Digital zoom on
Sensor Activating Recording
Audio Channel
Continuous+ Motion Recording
Continuous + Sensor Activating
Recording
Emergency Recording
FaceStamp Recording
NOTE
If you cannot find any colored-mark in the top right corner of the live screen mode, then it means that the
system does not record any image. In this case, you need to check recording schedule or camera of the
main setup menu.
The sliding menu for display will be appeared when mouse cursor move into bottom and right click of mouse enale to access
pop-up-menu.
To show the menu bar, move the mouse’s cursor to the
bottom of the screen. The menu bar will be displayed.
To hide the menu bar, move the mouse’s cursor away
from the menu bar.
Menu Bar
Menu button. When pressed, System Setup, Search, Backup, Logout will appear.
Screen split options- Select from single channel, 4 channel, 9 channel, or 16 channel display.
Sequence- if pressed, the system will start displaying all the channels in sequence mode. To
stop, press the button again, or right click on the screen and select ‘SEQUENCE’
CH. Buttons- view a specifc channel in full screen mode.
Instant (emergency) recording- The system will record video based on the panic record settings
(Default: 30FPS @ 960x480).
PTZ mode- Control any supported PTZ cameras by moving the mouse pointer.
Go to Instant playback.
HDD usage indicator- Indicates the percentage of your HDD being used. If it shows 60%, then
60% of HDD space has been used.
