Xer Fit 2500 INTERVAL User manual

1
USER'S MANUAL
ITEM NO.: X-ERIFT 2500 INTERVAL
PLEASE READ ALL INSTRUCTION IN THE OWNER'S MANUAL
CAREFULLY BEFORE ASSEMBLY AND USE THE TREADMILL.AND
KEEP IT FOR FUTURE REFERENCE.

2
CONTENT
CONTENT --------------------------------------------------------------------------------------------------------------------------------1
IMPORTANT SAFETY PRECAUTIONS ----------------------------------------------------------------------------------2-3
ASSEMBLY INSTRUCTIONS -------------------------------------------------------------------------------------------------3-6
FOLDING & UNFOLDING INSTRUCTIONS ------------------------------------------------------------------------------7
GROUNDING METHODS ----------------------------------------------------------------------------------------------------------8
OPERATION GUIDE -------------------------------------------------------------------------------------------------------------9-14
SAFETY EXERCISES --------------------------------------------------------------------------------------------------------------14
WARM-UP EXERCISES -----------------------------------------------------------------------------------------------------------15
MAINTENANCE INSTRUCTIONS --------------------------------------------------------------------------------------------16
BELT ADJUSTMENT ----------------------------------------------------------------------------------------------------------------17
EXPLODED DRAWING -------------------------------------------------------------------------------------------------------------18
PARTS LIST -------------------------------------------------------------------------------------------------------------------------19-21
ERROR CODE AND SIGNIFICANCE----------------------------------------------------------------------------- 22

3
IMPORTANT SAFETY PRECAUTIONS
WARNING: Before starting any exercise program, consult with your physician or health professional，
especially the person who is above 35 years old people or has some health problems before. We take no
responsibility for any troubles or hurt due to above reasons. Don't power on until you finish assembling the
treadmill.
ATTENTIONS:
1. When using this treadmill, keep attaching the safety pull pin rope to your clothes or belt.
2. Do not plug anything into any parts of this equipment, or it may damage.
3. Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may interfere
with proper ventilation. Also, do not place the treadmill near water or outdoors.
4. Never start the treadmill while you are standing on the walking belt. After turning the power on and
adjusting the speed control, there may be a pause before the walking belt begins to move, always stand on
the foot rails on the sides of the frame until the belt is moving.
5. Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing that
could become caught in the treadmill. Always wear running or aerobic shoes with rubber soles.
6. Keep small children or pet away from the treadmill during operation.
7. Do not do exercise for 40 minutes after meal.
8. The treadmill is only used for adults.
9. Always hold the handrails when initially walking or running on the treadmill, until you are familiar with the
use of the treadmill.
10. The treadmill is for indoor equipment, do not use outdoor. Position the treadmill on a clean, level surface.
Note the treadmill made by special equipment. Please do not modify，only use original parts.
11. The power cord of motorized treadmill is specialized. If the power cord is damaged, please purchase it
from distributor.
12. If the treadmill should suddenly increase in speed due to an electronics failure or the speed inadvertently
increased, the treadmill will come to a sudden stop when the pull pin is disengaged from the console.
13. Do not use an extension power cord. Do not put a weight object on the power cord or put the power cord
near the high temperature heat, otherwise it can cause fire or electric shock injury or accident
because of poor contact.
14. When the treadmill is not being used, the power cord should be unplugged and the safety pull pin
removed. Note the power cord of motorized treadmill made by special equipment, and if it is broken, please
contact distributor quickly.
15. The treadmill is for home use only.

4
16. The treadmill maximum user weight is 130kgs.
17. Please do not overuse the treadmill so can avoid any injury and do not use incorrect way for your
safety.
18. When the treadmill is not being used, please keep the safety pull pin in the safety place to avoid the
other use.
WHEN YOU OPEN THE CARTON, YOU WILL FIND THE BELOW SPARE PARTS:
1 Main frame 1set
D7 Flat washer M10
8PCS
D23 Round hex bolt
M10*15 4PCS
C15 Safety key 1set
D36 Allen wrench T6 1 PC B6 Silicon oil 1 PC D24Round hex bolt
M10*55 4 PCS
D41Screw driver 1PC
D40 Cross self-tapping bolt
ST4.2*20 6PCS
B26 Left side cover 1PC B27 Right side cover
1PC
C29 MP3Line 1PC
B28 Bottle cup 2PCS
C19 Power line 1PC
Assembly instruction

5

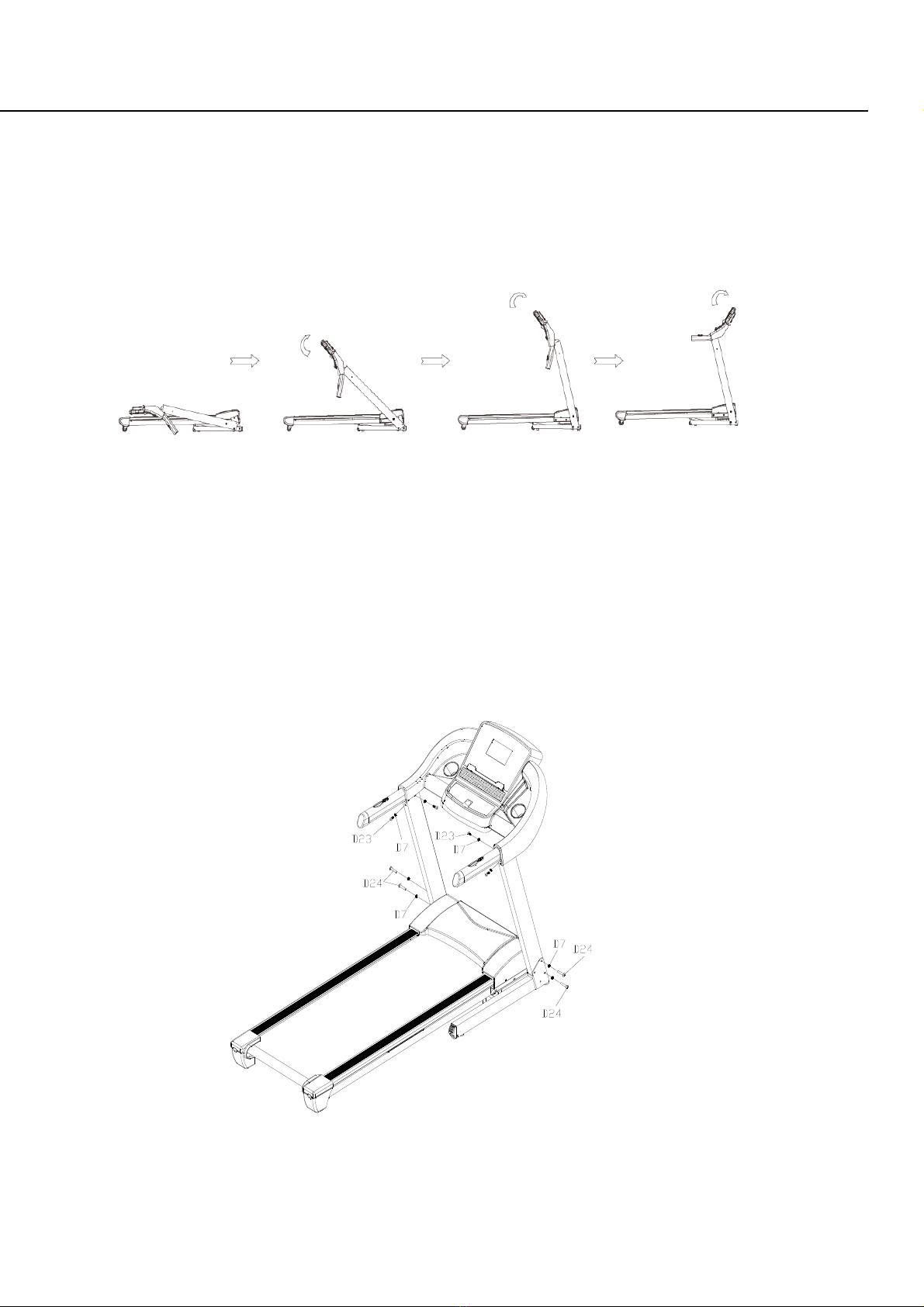

STEP 1：According to the following steps, lift up the computer bracket. Be careful not to
damage the cables when folding.
STEP 2：Secure the treadmill with Bolt M10*15 (D23),M10*55(D24) and Washer (D7).

6

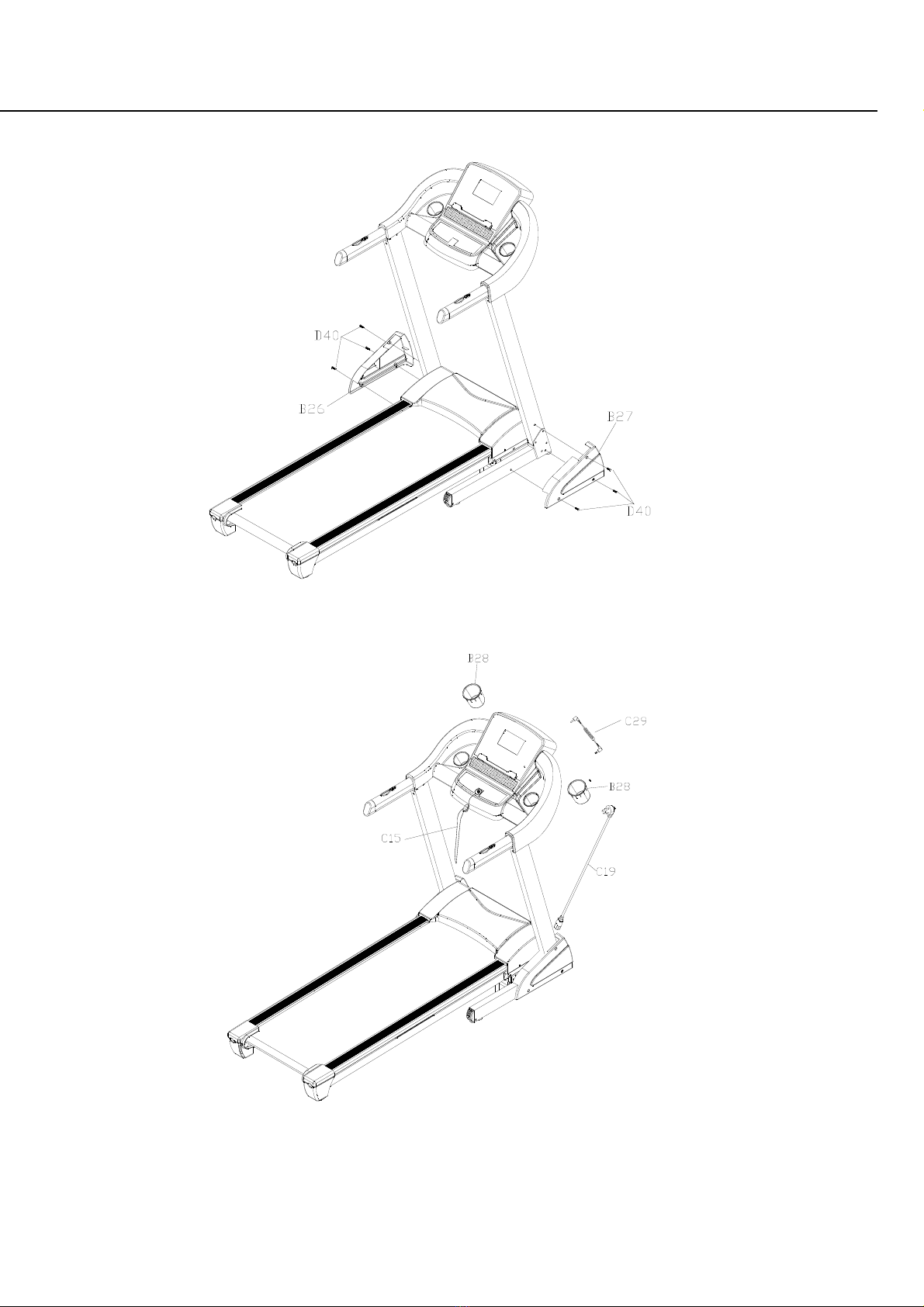

Step 3:Attach the front cover L(B26)&R(B27) to the base frame with bolt (D40).
Step 4：Put on the safety key (C15),MP3 line(C29),Bottle cup(B28) and plug in the power
line(C19)
ATTENTION: Must confirm complete assembly as required above and lock all bolts. Do the
following operations after checking everything is OK. Before you use the treadmill, please
read the instructions carefully.

7
Lift up the deck and push forward until you
hear "click" that made by hydraulic cylinder,
meaning it is locked into position.
Push the safety sleeve with your foot
lightly and pull down the machine at the
same time as the arrow direction. Then
the machine will fall down smoothly.
Unfolding instruction
Folding instruction

8
This product must be grounded. If it should malfunction or breakdown, grounding provides a
path of least resistance for electric current to reduce the risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
DANGER – Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the product –
if it will not fit the outlet, Please find a proper outlet installed by a qualified electrician.
.This product is for use on a nominal 220-volt circuit and has a grounding plug . Make sure
that the product is connected to an outlet having the same configuration as the plug. No
adapter should be used with this product.
Grounding Methods

9

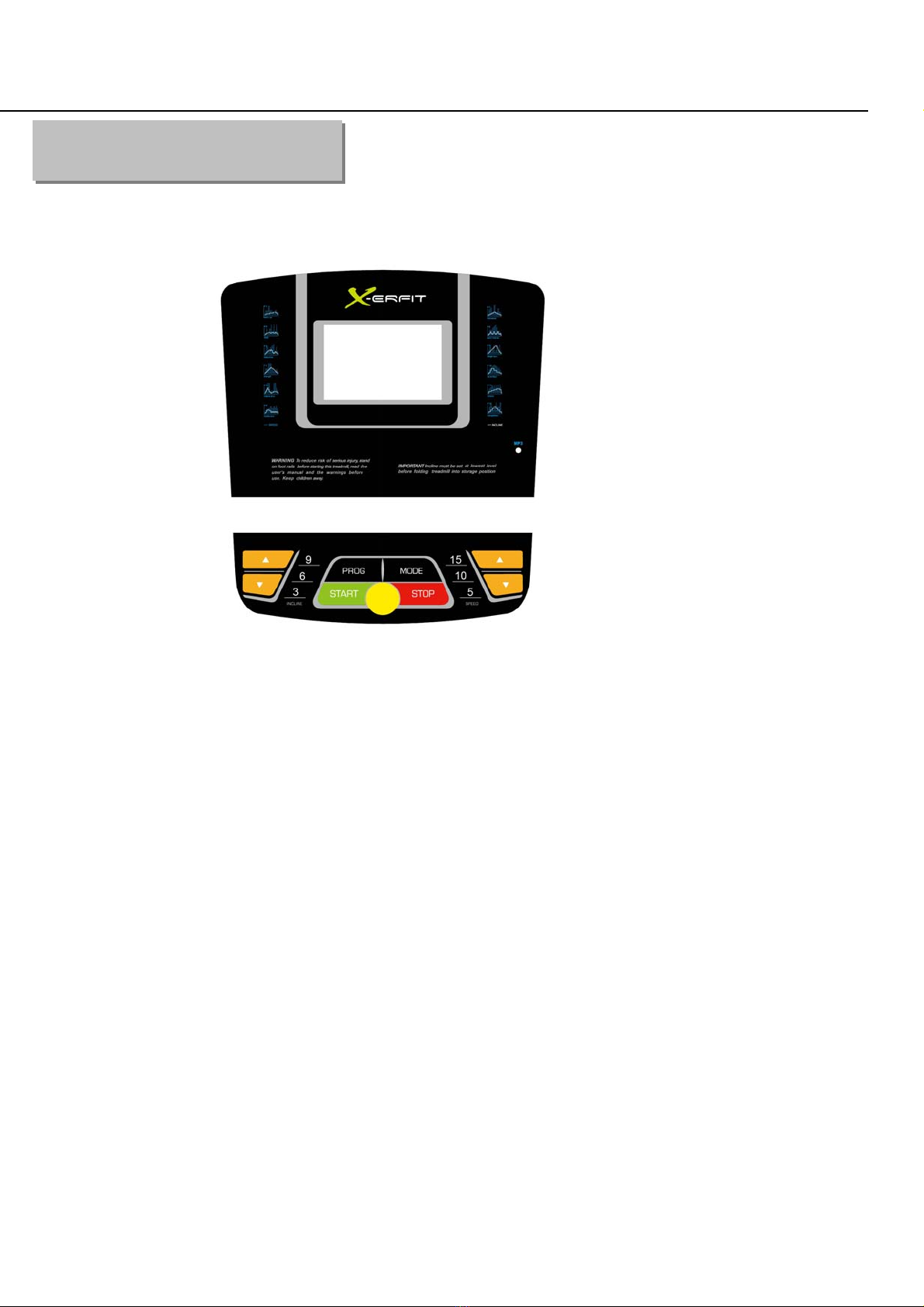

1.1. WINDOW DISPLAY
1.2. START
Normal start after 5 seconds countdown
1.3 PROGRAM
1 manual mode，15 pre-set programs, 3 users, 1 body fat program
1.4. SAFETY LOCK FUNCTION
The window shows"---" when take away the safety lock and the treadmill will stop quickly with "didi"
alarm noise. And put the safety lock on, the computer will display for 2 seconds and the date count
down to “0”
1.5.BUTTON FUNCTION
1.5.1. START/STOP
“START”--When the treadmill is not running, press this button to start, speed is “0.8”.
“STOP”--When the treadmill is running, press this button to stop, then set program default and then
return to manual mode after stopped.
1.5.2 “PROGRAM” BUTTON
When the treadmill is not running, press this button can circle choose from manual mode to pre-set
Mode P1-P15, U1-U3 and body fat, H1-H3.
Operation Guide

10
1.5.3 “MODE” BUTTON
When the treadmill is not running, press this button to choose countdown
modes:”H-1”,”H-2”,”H-3”;:H-1” is the time countdown mode, and “H-2” is the distance countdown
mode, “H-3” is the calorie countdown mode; press the “SPEED+/-” or “INCLINE+/-“button to adjust
the data. After that, press the “START” button to start this treadmill
1.5.4 “SPEED +/- “BUTTON
SPEED +/– --Adjust speed when treadmill start, the increment is 0.1km/time in kilometer. Press the
button more than 2 seconds, and it will be up or down more rapidly.
1.5.5 SPEED QUICK BUTTON
Press the speed quick button 5km/h,10km/h,15km/h to adjust the speed directly when the treadmill
is running
1.5.6 “INCLINE+/-” BUTTON
INCLINE +/ – --Adjust incline when treadmill start; the increment is 1 level/time. Press the button
more than 2 seconds, and it will be up or down more rapidly.
1.5.7 INCLINE QUICK BUTTON
Press the incline quick button 3,6,9 to adjust the incline directly when the treadmill is running
1.5.8 Bluetooth ON/OFF button
Press ON start the Bluetooth function. Press OFF stop the Bluetooth function
1.5.9 Bluetooth control
Once start the Bluetooth function, you can control the product through your Android tablet or I-pad.
1.6. DISPLAY FUNCTION
1.6.1 SPEED
Display running speed
1.6.2 TIME
Display the running time or countdown time
1.6.3 DISTANCE
Display the running total distance or distance countdown.
1.6.4 CALORIE
Display the calorie or calorie countdown
1.6.5 INCLINE

11
Display the incline
1.6.6 PULSE
Display pulse data
1.6.7 ALL WINDOW DISPLAY DATA RANGE
TIME：0:00 – 99.59(MIN)
DISTANCE: 0.00 – 99.9(KM)
CALORIES: 0.0 – 999 (C)
SPEED: 0.8-20.0(km/h)
PULSE: 50 – 200 (BPM)
INCLINE：0 – 15
1.7PULSE FUNCTION
When the treadmill is running, hold the hand pulse about 5 seconds, it will display pulse data. The
pulse data range is 50-200 times/ minute. It has heart-shaped graphics when testing pulse. This
data is only for reference and to be used as a guide only. It can not be treated or used as medical data.
1.8PROGRAM EXERCISE CHART
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
P01
SPD 9 9 10 10 11 11 12 12 13 13 14 14 12 12 10 10
INC 1111111111111111
P02
SPD 10 10 10 10 10 5 12 12 12 12 5 5 14 14 14 8
INC 1111111111111111
P03
SPD 5 5 14 14 5 5 14 14 5 5 14 14 5 14 14 5
INC 0000000000000000
P04
SPD 8 8 10 10 12 12 8 8 10 10 12 12 10 10 8 8
INC 1233220044332100
P05
SPD 8 8 12 12 16 16 12 12 17 17 12 12 16 16 10 10
INC 0000000000000000
P06
SPD 8 9 10 11 12 13 14 10 11 12 13 14 13 12 11 9
INC 0000000000000000
P07
SPD 8 10 14 10 15 10 15 10 15 10 15 10 15 10 13 8
INC 0000000000000000
P08
SPD5797579757975795
INC 3455345534553451
P09
SPD 10 10 14 14 10 14 14 10 16 16 10 14 14 10 16 10
INC 0000000000000000
P10
SPD 10 10 12 12 12 14 14 16 14 14 12 12 12 10 10 8
INC 0000000000000000
P11 SPD 12 14 14 16 16 12 12 14 14 16 16 12 12 14 16 12

12
INC 0000000000000000
P12
SPD 10 16 10 16 10 16 10 17 10 18 10 14 10 12 10 8
INC 0000000000000000
P13
SPD 10 10 12 12 14 14 10 10 12 12 14 14 10 12 14 8
INC 2255332255332531
P14
SPD 10 10 15 14 13 12 11 10 9 10 11 12 13 14 15 10
INC 0034567898765430
P15
SPD 5 14 14 5 14 14 5 14 14 5 14 14 5 14 14 5
INC 0000000000000000
1.9 Manual model operation
1.9.1 Press start key, time count down 5 seconds, then treadmill will start to work with initial speed 0.8km/h
1.9.2 Press speed +/-, you can adjust the speed
1.9.3 Press incline+/-, you can adjust the incline
1.9.4 Press stop, you can stop treadmill at working state
1.9.5 Press quick speed key, you can quickly adjust the speed you want
1.9.6 Press quick incline key, you can quickly adjust the incline you want
1.10 3 COUNTDOWN FUNCTION PARAMETER DATA
Countdown time initial setting 15：00 minutes，setting range 5：00---99：00 minutes , each step 1：00.
Countdown calorie initial setting 50therm, setting range 10---990 term，each step 1.
Countdown distance initial setting 0.8km，setting range 0.5---99.9 km，each step 0.1
Scan cycle switch order is: manual, time, distance, calories.
1.11 BODY TESTER（FAT）
At the beginning state, press “ PROGRAM” continually to enter “FAT“ body fat test，window display
“FAT”. Press “MODE” to enter (F1 SEX, F2 AGE, F3 HEIGHT, F4 WEIGHT). Press “SPEED+”,
“SPEED-” to set. After setting, the computer will display F5 and grasp the hand pulse, the window
will display your body quality index.
The body quality index is to test the relation between height and weight.
The body FAT suits for any male and female to adjust the weight according together with other
body quality index. The ideal FAT should be between 20-25, if under 19, it means too thin. If
between 25 and 29, it means overweight, if over 30, it means obesity. (The data is just for reference only
and can not be used or treated as medical data)
01 Sex 01 Male 02 Female

13
02 Age 10------99
03 Height 100----200
04 Weight 20-----150
05 FAT≤19 Under weight
FAT= (20---25) Normal weight
FAT= (25---29) Over weight
FAT ≥30 Obesity
1.12 User Program
Besides 15 pre-set programs, there are 3 user-defined programs, each user program has 16 segments, and
the running time of each user’s program is equal. The user can set the desired speed and incline before
exercise.
User can choose the data “TIME”—“SPEED” segment 1….segment 16,
And user can choose incline from “INCLINE” segment 1……segment 16 at the same,
And display the defaulted data for User’s revise; press "SPEED+" and "SPEED-" to adjust
speed. Press” INCLINE+” and “INCLINE-“ to adjust incline. Press "MODE" button and your
choice will be set. Press “STOP” key to return to last segment setting any time.
1.13 OTHERS
1.13.1The system will enter into power saving mode automatically if there is not any action within 10
minutes under IDLE MODE and there is no display and backlit on the computer. Press any key to
resume the system.
1.13.2Countdown time, countdown calorie and countdown distance, you just can set one of them at
one time, press last item to set running, the setting parameter is countdown, others display normal
data
1.13.3 The standard data of calorie is 70.3 kilocalorie/km.
1.13.4MP3 audio function: Insert the MP3 line in the input hole of the right side in the computer.

14
Please consult professional staff before exercise. They can help recommend exercise rate/intensity and time
according to your age and health condition. When running, if you feel chest tightness or chest pain,
irregular Heartbeats, short of breath, dizziness or other unwell, please stop immediately! And consult
professional before you want continually to do exercise. If you often use treadmill, you can choose normal
walk speed or jog speed.
If you have no experience or can't make sure the best testing speed, you can reference below
standard:
Speed 0.8-3.0 km weak constitution people.
Speed 3.0-4.5 km sedentary or not often exercise people.
Speed 4.5-6.0 km walking quickly people.
Speed 6.0-7.5 km fast walk people.
Speed 7.5-9.0 km jogger.
Speed 9.0-12.0 km intermediate speed runner.
More than 12.0 km excellent runner.
ATTENTION：It is suitable for walker to choose less than or equal to 6 km speed.
SAFETY EXERCISE

15
It is better to do some warm-up exercise. Warm the muscle easy
stretch, so use 5-10 mins to warm-up. Then stop and according
below method to do stretch exercise for five times, and each
foot do 10 seconds or more every time. After running, do those
stretch exercises again
1. Reach Down ：Knees slightly bent and body slowly bent
forward, back and shoulders relax, trying to touch toes. Keep
10-15 seconds and relax. Repeat 3 times(See picture l).
2. Hamstrings Stretches: Sitting on a clean cushion, put one
leg straight, the other inward and close to the inside of the
straight leg. Try to touch your toes with your hands. Keeping
for 10 to 15 seconds, and relax. Repeat 3 times for each leg
(See picture 2).
3. Crus and Feet Tendon Stretches: Standing with two
hands on the wall or tree, one leg behind. Keeping your legs
straight and the heel on the ground, tilt to the wall or tree. Keep
10 to 15 seconds, and relax. Repeat 3 times for each leg (See
picture 3).
4. Quadriceps Stretches: Keeping your balance with your left
hand holding on the wall or table, then stretch your right heel
toward your buttocks slowly, until you feel very tense in the front
of your thigh. Keep10 to 15 seconds, and relax. Repeat 3 times
for each leg (See picture 4).
5. Sartorius (Inner Muscles of the Thigh Muscle Stretches:
Sitting down with your soles opposite and knees outward Pull
your feet toward your groin Keep 10 to 15 seconds，and relax.
Repeat 3 times (See picture 5).
Warm-up Exercise

16
WARNING：Please make sure you pull out the treadmill's power plug before cleaning or
maintaining the product.
CLEANING：General cleaning of the unit will greatly prolong the treadmill's life.
Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on
either side of the walking belt and also the side rails. This reduces the build up of foreign
material underneath the walking belt. Make sure the shoes are clean. The top of the belt may
be cleaned with a wet soapy cloth. Be careful to keep liquid away from inside the motorized
treadmill frame or from underneath the belt.
WARNING：Always unplug the treadmill from the electrical outlet before removing the motor
cover. At least once a year remove the motor cover and vacuum under the motor cover.
This treadmill's walking belt and deck are equipped with a pre-lubricated, low maintenance
deck system. The belt/ deck friction may play a major role in the function and life of your
treadmill, thus requiring periodic lubrication. We recommend a periodic inspection of the
deck.
We recommend lubrication of the deck according to the following timetable:
Light user (less than 3 hours/ week) Every 60 days
Medium user (3-5 hours/ week) Every 45 days
Heavy user (more than 5 hours/ week) Every 30 days
We suggest you buy lubricating oil from local distributors.
Pay attention, and for any other maintenance ,please ask professionals for help.
Maintenance Instruction

17

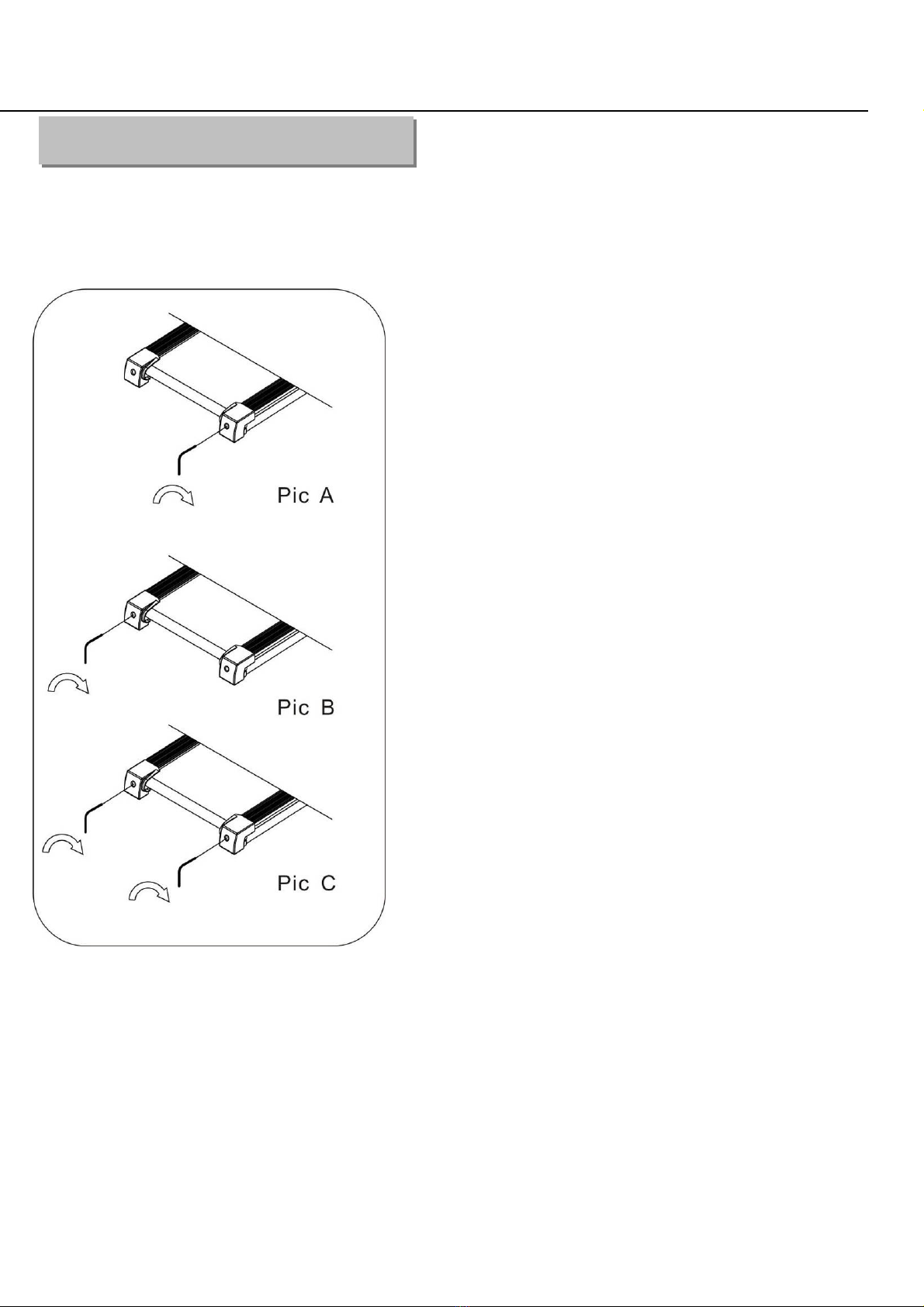

Place treadmill on a level surface. Make treadmill run at approximately 6-8 km/h, observe the
running belt deviation.
If the belt has drifted to the right, unplug the
safety lock and power switch, and turn the
right adjusting bolt 1/4 turn clockwise, then
insert the power switch and safety lock, make
the treadmill run, observe the running belt
deviation. Repeat above steps until the
running belt is placed in the middle. See
picture A
Once the treadmill belt swerving to the left,
unplug the safety lock, turn off the power, then
with the left adjusting bolt clockwise rotation 1 /
4 turn, and turn on the safety lock and power
to make treadmill run,checking the deviation
of the treadmill belt. Repeat the above steps
until the belt is centered. See picture B
The treadmill belt will gradually stretch after
above steps or after a period of time using.
Unplug the safety lock, and turn off the power,
with the two adjusting bolt clockwise rotation 1
/ 4 turn, and turn on the safety lock and power
to make treadmill run, then standing on the
belt to confirm the tightness. Repeat the above
steps until the belt moderate tightness.
See picture C
Belt Adjustment

18
Parts list
Exploded Drawing

19
A Welding parts
No. Description Specification Qty
A1 Main frame 1
A2 Base frame 1
A3 Left upright tube 1
A4 Right upright tube 1
A5 Computer bracket 1
A6 Incline bracket 1
A7 Filter bracket 1
A8 Running board support tube 1
B Plastic parts
No. Description Specification Qty
B1L Console left cover 1
B1R Console right cover 1
B2 Console bottom panel 1
B3 Console chip set 1
B3-1 Overlay 1
B3-2 Membrane key 1
B3-3 Console panel 1
B4 High cushion 4
B5 Rubber cushion 2
B6 Silicon oil 1
B7 Handle bar foam 2
B8 Handrail End cap 2
B9 EVA cushion 1
B10 Foot pad 2
B11 Air cushion 2
B12 Small cushion 2
B13 Adjust wheel 2
B14 Motor side cover 2
B15 Left rear cover 1
B16 Right rear cover 1
B17 Motor top cover 1
B19 Transport wheel 2
B20 Foot pad 4
B21 Transport wheel plug 2
B22 Inner plug 4
B23 Protect wire cap 1
B25 Side rail 2
B26 Left front cover 1
B27 Right front cover 1

20
B28 Bottle 2
B29 EVA cushion 1
B30 Bookcase 1
C Electric and drive parts
C1 DC motor 1
C3 Controller 1
C4 Front roller 1
C5 Rear roller 1
C6 Motor belt 210-J7 1
C7 Running belt 1
C8 Running board 1
C9 Incline motor 1
C12 Handle pulse left keyboard 1
C13 Handle pulse right keyboard 1
C15 Safety key 1
C16 Filter 1
C17 Inductor 1
C18 Cylinder 1
C19 Power line 1
C20 Overload protector 1
C21 Power switch 1
C22 Single line 3
C23 Single line 1
C24 Computer bottom wire 1
C25 Computer upper wire 1
C26 Outlet 1
C27 Grouding single wire 1
C28 Magnetic ring 1
C29 MP3 line 1
D Hardware parts
D1 Cross head bolt M5*20 6
D2 Incline bushing 2
D3 Flat washer M8 13
D4 Nut M8 8
D5 Spring washer M5 1
D6 Round head hex bolt M10*45 3
D7 Flat washer M10 13
D8 Nylon Nut M10 3
D9 Cross bolt M6*40 2
D11 Cross bolt M6*25 2
D12 Cross head self taping bolt ST4.2*16 25
D13 Round head hex bolt M8*55 1
