Xer Fit 550 ELLIPTICAL User manual

Drawing for Assembly
BUILT FOR HEALTH
BRUKERMANUAL
for
550 ELLIPTICAL

Exploded drawing
O

Parts List
No
Description
Unit
A
computer
1PCS
A-1
screw
4PCS
B
fixed handlebar assembly set
1SET
B-1
end cap for handlebar
2PCS
B-2
foam grip for handlebar
2PCS
B-3
handpulse
2PCS
B-4
fixed handlebar
1PCS
B-5
pulse sensor
2PCS
B-6
screw
2PCS
C-L
upper handlebar (left)
1PCS
C-R
upper handlebar (right)
1PCS
C-1
end cap for upper handlebar
2PCS
C-2
foam grip
2PCS
C-3
cover for upper handlebar (left, front)
1PCS
C-4
cover for upper handlebar (left, rear)
1PCS
C-5
cover for upper handlebar (right, front)
1PCS
C-6
cover for upper handlebar (right, rear)
1PCS
D
handlebar post
1PCS
D-1
screw
4PCS
D-2
curve washer
4PCS
D-3
bushing
2PCS
D-4
screw
2PCS
D-5
screw
2PCS
D-6
cable (upper)
1PCS
E
front stabilizer
1PCS
E-1
transportation wheel for front stabilizer
2PCS
E-2
screw
2PCS
F
rear stabilizer
1PCS
F-1
end cap for rear stabilizer
2PCS
F-2
screw
2PCS
G
main frame
1SET

G-1
cable (lower)
1PCS
G-2
fixing set for sensor
1PCS
G-3
cover for handlebar post
1PCS
G-4
screw
1PCS
G-5
bearing
2PCS
G-6
wave washer
1PCS
G-7
flat washer
1PCS
G-8
c-type
1PCS
G-9
belt
1PCS
G-10
star nut
2PCS
G-11R
chain cover (right)
1PCS
G-11L
chain cover (left)
1PCS
G-12
screw
6PCS
G-13
screw
8PCS
G-14
DC cable
1PCS
G-16
axle for handlebar
1PCS
H
pedal(R, L)
2SET
J
lower handbar
2SET
J-1
bushing
4PCS
J-2
bushing
2PCS
J-3
bearing
4PCS
J-4
screw
4PCS
K
pedal arm (R, L)
2SET
K-1
cap for pedal arm
2PCS
K-2
screw
8PCS
K-3
cover for pedal arm (left)
2PCS
K-4
cover for pedal arm (right)
2PCS
L
axle assembly set
1SET
L-1
big pulley
1PCS
L-2
axle
1PCS
L-3
hex. bolt
3PCS
L-4
bushing
1PCS
M
cross
2SET

M-1
screw
8PCS
M-2
flat washer
8PCS
M-3
disc
2PCS
M-4
cap for disc
2PCS
N
magnet assembly set
1SET
N-1
magnet set
1PCS
N-2
flat washer
2PCS
N-3
spring washer
2PCS
N-4
hex. bolt
2PCS
O
gear box
1PCS
P
idler set
1PCS
P-1
flat washer
1PCS
P-2
nylon nut
1PCS
P-3
wave washer
2PCS
P-4
hex. bolt
1PCS
P-5
flat washer
1PCS
P-6
hex. bolt
1PCS
P-7
idler wheel
1PCS
P-8
hex. bolt
1PCS
P-9
spring
1PCS
Q
flywheel assembly set
1SET
Q-1
flywheel
1PCS
Q-2
nut
3PCS
Q-3
axle for flywheel
1PCS
Q-4
flat washer
1PCS
Q-5
bearing
1PCS
Q-6
bearing
1PCS
Q-7
bushing
1PCS
Q-8
nut
2PCS
R
adaptor
1PCS
S
hardware set
1SET
S-1
semi-circle washer
8PCS
S-2
nut
4PCS

S-3
carriage bolt
4PCS
S-4
flat washer
2PCS
S-5
hex. bolt
2PCS
S-6
flat washer
2PCS
S-7
flat washer
2PCS
S-8
washer
2PCS
S-9
screw
2PCS
S-10
carriage bolt
4PCS
S-11
flat washer
2PCS
S-12
nylon nut
6PCS
S-13
knob for pedal
4PCS
S-14
flat washer
4PCS
S-15
spring washer
4PCS
S-16
hex. bolt
1PCS
S-17
spring washer
1PCS
S-18
flat washer
1PCS
S-19
carriage bolt
4PCS
S-20
nylok screw
2PCS
S-21
flat washer
2PCS
S-22
screw
4PCS
S-23
cover for handlebar
1PCS

Assembly Stage #1
1. Fasten front stabilizer (E) to the main frame by using 2 screws (S-10), 2 curve washers (S-1),
and 2 nts (S-2).
2. Fasten rear stabilizer (F) to the main frame by using 2 screws (S-10), 2 curve washers (S-1),
and 2 nts (S-2).
3. After assembly, the Trainer can be adjusted to slightly uneven ground by adjusting the
height of the foot caps at the back. The pre-assembled transportation wheels in the front
allow easy moving of the Elliptical.
S-10 Carriage Bolt M8
B
oxSpanner(1)
S-2 Acorn Nut
for M8 Bolt
S-1 Curved washer for ?8*?19*2T bolt(4)

Assembly Stage #2
1.Pull the cable (D-6) out of the handlebar post before assembling.
2.First, loosen the pre-assembled screws.
3.Connect the cable upper (D-6)by pushing the head into the notch of the cable lower (G-1) coming
from the main frame (see drawing). Connect the cables completely.
4.Put the cover (G-3) and handlebar post (D) into the main frame and fix it with 4 screws (D-1) and 2
curve washers (D-2).
5.Insert the axle (G-16) through the handlebar post.
A
llenKey(1)
B
oxSpanner(1)

Assembly Stage #3
1. Assemble the pedal arms (K-L, K-R) to the disc by flat washers (S-6, S-7, S-8)), and
screws (S-5).
2. Tighten the axle by using 1 flat washer (S-4), 1 flat washer (S-21) and 1 bolt (S-20) in each side.
3. Tight the screw (S-9) with flat washer (S-11) and nut (S-12) to connect the pedal arm and lower
swing arm in each side.
S-5 a
llenboltM8*2 0L(2)
Flatwasher
?
1
7.5*?
25*0
.3T (2)
S-4
S-12 lock nut for M8 bolt (2)
S-11 Flat Washer for£ p8*
£ p16*1T Blot (2)
¡ @
S
-7Flatwasher?
8
.5*?
25*
2T(2)
S-9 Allen Bolt M8xP1.25x55mm (2)
S
-6Flatwasher?
3
8.1*D 17* 2T(2)
s
teelw asher£ p
8
.5*39*1.5T¡]2¡^
S-8
B
oxSpanner(2)
A
llenKey(2)
S-20 Hex bolt
(movable handlebar)(2)
£ p £ p

Assembly Stage #4
1. Put pedal (H-L, H-R) onto the pedal arm and tighten it by using 4 knob (S-19), 2 spring washers
(S-15), 4 flat washer (S-14), 4 knobs (S-13) in each side
Please note that the left and right pedals need to be placed in identical positions.
2. Assemble the covers (K3, K4) on to the pedal arms with 4 screws (K-2) in each side.
Spring Washer
?6*2t(4)
S-15
Knob (foot pedal)
M6*P1.0 (4)
S-13
Flatwasher
?
6*? 1
6*2T (4)
S-14
B
oxSpanner(1)
S-19 Carriage Bolt M6

Assembly Stage #5
1. Mount the fixing handlebar (B) onto the handlebar post (D) and tighten with thehandlebar clamp,
washer (S-18), spring washer (S-17) and bolt (S-16). And put the cover (S-23) on.
2. Assemble the upper handlebar (C-L, C-R) by bolt (S-3), curve washer (S-1), and nut (S-12).
3. Put the cover (C3, C-4) on the left handlebar with screws (S-22). And then, put the cover (C5,
C-6) on the right handlebar with screws (S-22).
A
llenKey(1)
B
oxSpanner(1)
Allen Bolt M7*P1.0*30L(1)
S-16
S-17
Spring Washer
?7*2t(1)
Regular Washer
?7*1t(1)
S-18
S-3 Carrage Bolt
M8x40mm (4)
S-1 Curved washer for ?8*?19*2T bolt(4)
S-2 Acorn Nut
for M8 Bolt
S-22 Screw
M3*15L(4)

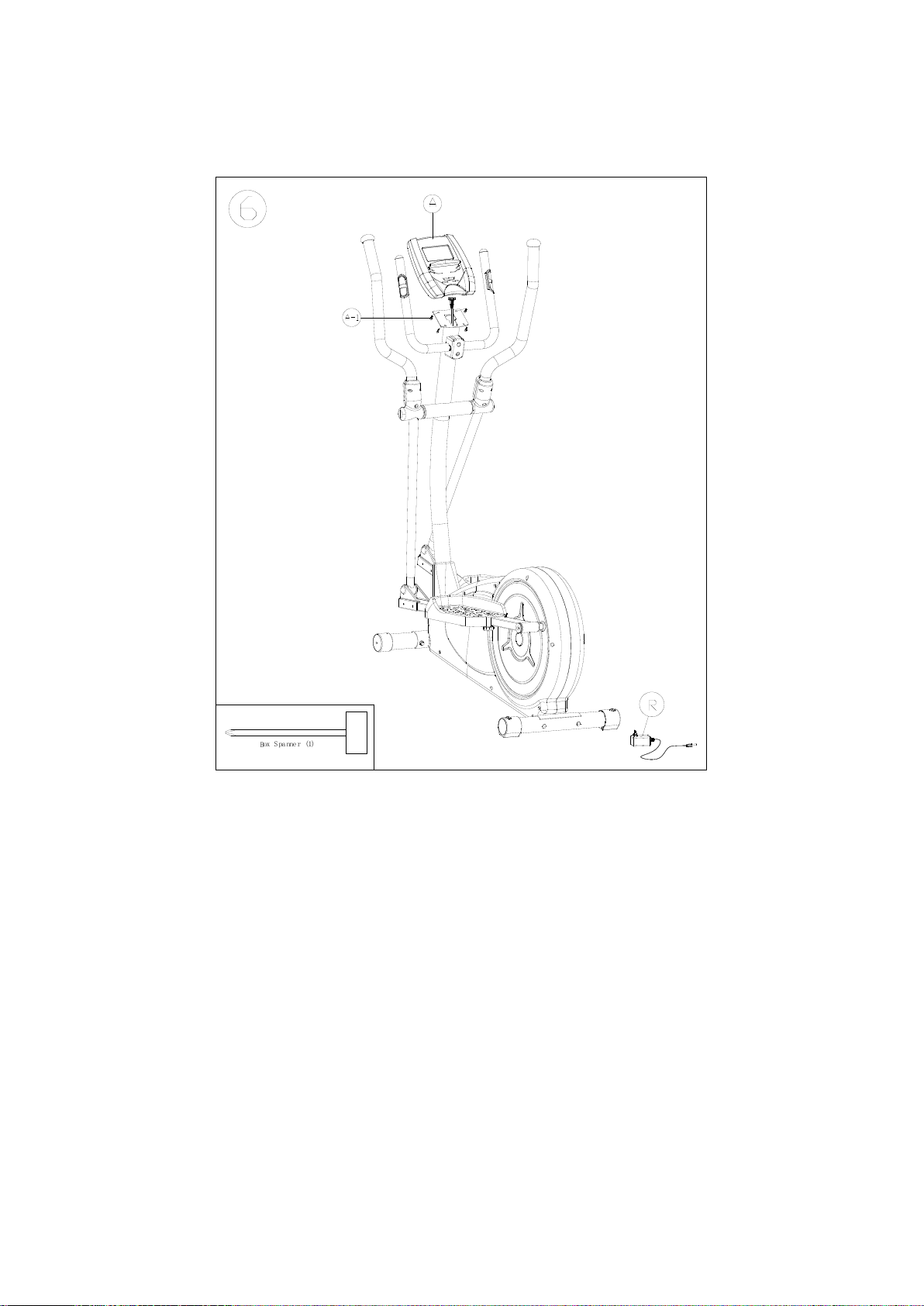

Assembly Stage #6
1. Connect cable wire (upper) and Heart rate cable (upper) to the back of the computer.
2. Mount the computer (A) on the plate with 4 screws(A-1).
3. Connect the adaptor ( R ) between the crosstrainer and the plug.
B
oxSpanner(1)

TOOLS
Knob (foot pedal)M6*P1.0 (4)
S-13
A
llenKey(1)
B
oxSpanner(2)
Allen Bolt M7*P1.0*30L(1)
S-16
S-12 lock nut for M8 bolt (6)
S
-6Flatwasher
?
3
8.1*D 17* 2T(2)
Flatwasher
?
1
7.5*?
25*0
.3T (2)
S-4
Flatwasher
?
6*? 1
6*2T (4)
S-14
S-17
Spring Washer
?7*2t(1)
Regular Washer
?7*1t(1)
S-18
VT2200
S-19 Carrage bolt
M6*P1.0*50L (black)(4)
VT-2200
S-3 Carrage Bolt M8x40mm (4)
S-2 Acorn Nut for M8 Bolt
S-10 Carriage Bolt M8
VT-2200
S-1Curved washer for ?8*?19*2T bolt(8)
S-5 a
llenboltM8*2 0L(2)
S-9 Allen Bolt M8xP1.25x55mm (2)
S-11 Flat Washer for£ p8*
£ p16*1T Blot (2)
¡ @
s
teelw asher£ p
8
.5*39*1.5T¡]2¡^
S-8
S
-7Flatwasher
?
8
.5*?
25*
2T(2)
Spring Washer ?6(4)
S-15
VT2200
S-20 Hex bolt
(movable handlebar)(2)
£ p £ p
S-22 Screw M3*15L(4)

1/1 1/1
1/1
1/1
1/1
1/1
1/1
1/1
1/1 1/1
1/1
1/1
1/1
1/1 1/1
1/1
1/1
1/1
S-3 Carrage Bolt M8x40mm(4)
S-2Acorn Nut for M8Bolt
S-10CarriageBo ltM8
DEJET RE21
Knob (foot pedal)M6*P1.0 (4)S-13
A
llenKey(1)
BoxSpanner( 2)
Allen Bolt M7*P1.0*30L(1)S-16
S-1Curvedwas her for?8*?19*2T bolt(8)
S-5
a
llenboltM8*2 0L(2)
S-12 lock nut for M8bolt(2)
S-9Allen Bolt M8xP1.25x55mm (2)
S-11 Flat Washer for£ p8*
£ p16*1TBlot(2)
¡ @
S
-6Flatwasher
?
3
8.1*D 17* 2T(2)
s
teelw asher
£ p
8
.5*39*1.5T¡]2¡^
S-8
S
-7Flatwasher
?
8
.5*
?
25*
2T(2)
Spring Washer ?6(4)
S-15
Flatwasher
?
1
7.5*
?
25*0
.3T (2)
S-4
Flatwasher
?
6*
?
1
6*2T (4)
S-14
S-17
Spring Washer
?7*2t(1)
Regular Washer
?7*1t(1)
S-18
VT2200
VT2200
DEJET RE21
S-19 Carrage bolt
M6*P1.0*50L (black)(4)
S-20 Hexbolt
(movable handlebar)(2)
£ p £ p
S-22 Scre w M3*15L(4)

INSTRUCTION MANUAL OF SM2705-67
BUTTON FUNCTION:
MODE/ENTER
In stop mode, confirm all exercise data setting(Time, DST,CAL, Pulse, etc),
and enter into program.
RESET
Press it in the STOP mode, return to the main menu. Press the mode 2s at
any time, buzzer sound 1s and LCD display 2s then return to the main menu
as “TOTAL RESET”.
START/STOP
To start or stop the system.
RECOVERY
If no pulse input, no use to press the mode. When pulse is displayed, press
it to recovery. It will display F1~F6 after 1minute, press it again to check out.
UP
To select training mode and increase the function or value up.
DOWN
To select training mode and decrease function or value down.
POWER ON
When power on, buzzer sound for 1 second. At the same time, LCD full display 2 seconds and
then wheel diameter. After that, enter into normal training mode to select.
ENTER TRAINING MODE
When enter into training mde, MANUAL(MAN) flash 1Hz in the dot matrix. Press UP& DOWN to
choose from MANUAL→PROGRAM→User program→H.R.C→WATT. Press ENTER/MODE to
enter the mode. If press START without selection, directly enter into MANUAL MODE and start.
PROGRAM SETTING
In STOP mode, press P1, P2, P3, ~, P12 to enter relevant program accordingly quickly. Or in the
START mode, Select the program under training mode, press UP&DOWN to choose one from
P0, P02, P03, ~, P12.
PROGRAM SETTING LEVEL
Adjust the level in start mode. When using ▲/▼ to adjust, cannot recycle the level(▲can only
increase to Level32, ▼can only decrease to 1).
ADJUSTING MANUAL LEVEL
Adjust the manual level in start mode. Press ▲/▼ to increase or decrease one level. If hold on
for 1.5s, will +/- 2levels per second and stop when releasing.
ADJUST THE VALUE (Eg. TIME, DISTANCE, CALORIES, PULSE etc.)
1. Select TIME, DISTANCE, CALORIES, PULSE in Manual mode. Use ▲/▼ to adjust the
value Recyclely.
2. When in PROGRAM, User program, H.R.C, WATT mode, only can set the time.
3. Use ▲/▼ to increase or decrease one level; Press ▲/▼ for 1.5s, +/- 8 levels per second and
stop when releasing.
H.R.C
If select H.R.C mode, need set age first and confirm by MODE. It will display preset value in
PULSE area according to age. If select TARGET, it will display 100 and flash in PULSE area.
Use ▲/▼ to adjust the target value(30~230) and can be recycle.
User Program

In User PROGRAM mode, user may press ▲/▼ to select program drawing（each timer shift
corresponding Level value), display and flash in the inserted drawing. It will light after setting.
When setting, the figures and Letters in LOAD Window displaying to be set. LOAD value flash
at 1Hz. Press mode to confirm the value after setting. A complete PROGRAM drawing timer
shift has 20 steps need to be set. Then it will run as the set program. When come to 9th step, it
scroll and shift to lest and so on. If you want to pause the program halfway, press mode 2s.
The unset timer shift will save last time value.
WATT
When entering, the WATT value is flashing to be set(preset value=120). User press ▲/▼to set
WATT value. After Starting, it will adjust automatically according to the WATT value user
inserted and exercise status.
SLEEP MODE
No signal(SENSOR, KEYBOARD, PULSE value display) input over 4 minutes, system will
enter SLEEP MODE. All set and calculated value will be saved. When power on and start
next time, it will go on with the calculated value.
FUNCTION
TIME
Display range 0:00~99:99 ; Setting range 0:00~99:00
DISTANCE
Display range 0.00~99.99 ; Setting range 0~99.90km
CALORIES
Display range 0~9999 ; Setting range 0.00~9990
PULSE
Display range P-30~230 ; Setting range 0-30~230
WATT
Display range 0~999 ; Setting range 10~350
SPEED
0-99.9KM
RPM
0~999
INSPECTION FOR ABNORMAL CONDITION
LCD display E-2: Inspect the electronic watch and console 5PIN connecting cable for
peeling
off and poor contact.
LCD no drawing:
1. Check whether the adapter is well inserted into the AC plug seat.
2. Check the adapter DC pin is plugged into the machine or not, whether contact poorly.
3. Check the electronic watch and console 12 PIN connecting cable for peeling off and
poor contact.
4. Check DC JACK connecting cable is loose or not.
5. Check the internal 12PIN connecting cable of the electronic watch is loose or not.
