Hints and Tips User Guide 1-1
1
Hints and Tips
Navigation
Printer Status
The Printer Status is the default view of the user interface. The main function of the Printer
Status window is to monitor the printer.
Back/Forward Buttons (Upper right of screen)
• Switch from one area to another (similar to Internet browser).
• Stores last three areas accessed.
You can quickly get back to the starting point of the Printer Status view by clicking the back
button multiple times. Alternately, the Printer Status screen is also available as the first access
button (top left) on the Menu screen.

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-2 Hints and Tips User Guide
Menu Screen
The following information pertains to the previous Menu Screen. Specific areas are identified.
Back and forward buttons - Not applicable on the menu screen.
All service access buttons - Selecting a service button will advance you to the window for
that service.
Left square-shaped button - reduces the transparency of the Menu screen to view
previous user interface prior to opening Menu screen.
Right square-shaped button - Increases opacity allowing for ease-of-viewing Menu
options.
Return button - Switches interface back, prior to opening Menu screen (also highlighted
menu button).
A
C
B
D
A
B
C
C
D

Xerox 490/980 Color Continuous Feed Printing System Hints and Tips
Hints and Tips User Guide 1-3
Properties - For Jobs and Queues
Use the [Previous] and [Next] buttons for switching the view between jobs. (Note: buttons will
not switch between tabs)
Radio buttons - Selected left to right due to interdependence.
Choose one option from the left before making a selection on the right, if applicable.
Object Interactions
User Interface Objects
•Selectable/actionable objects - Used for interaction.
•Un-selectable fields/buttons grayed - Viewing only.

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-4 Hints and Tips User Guide
Other Selectable / Interaction Controls
Active Access Button
Active Toggle Buttons (act like radio buttons)
Other Non-Interaction Objects
Text Fields that are Read-only

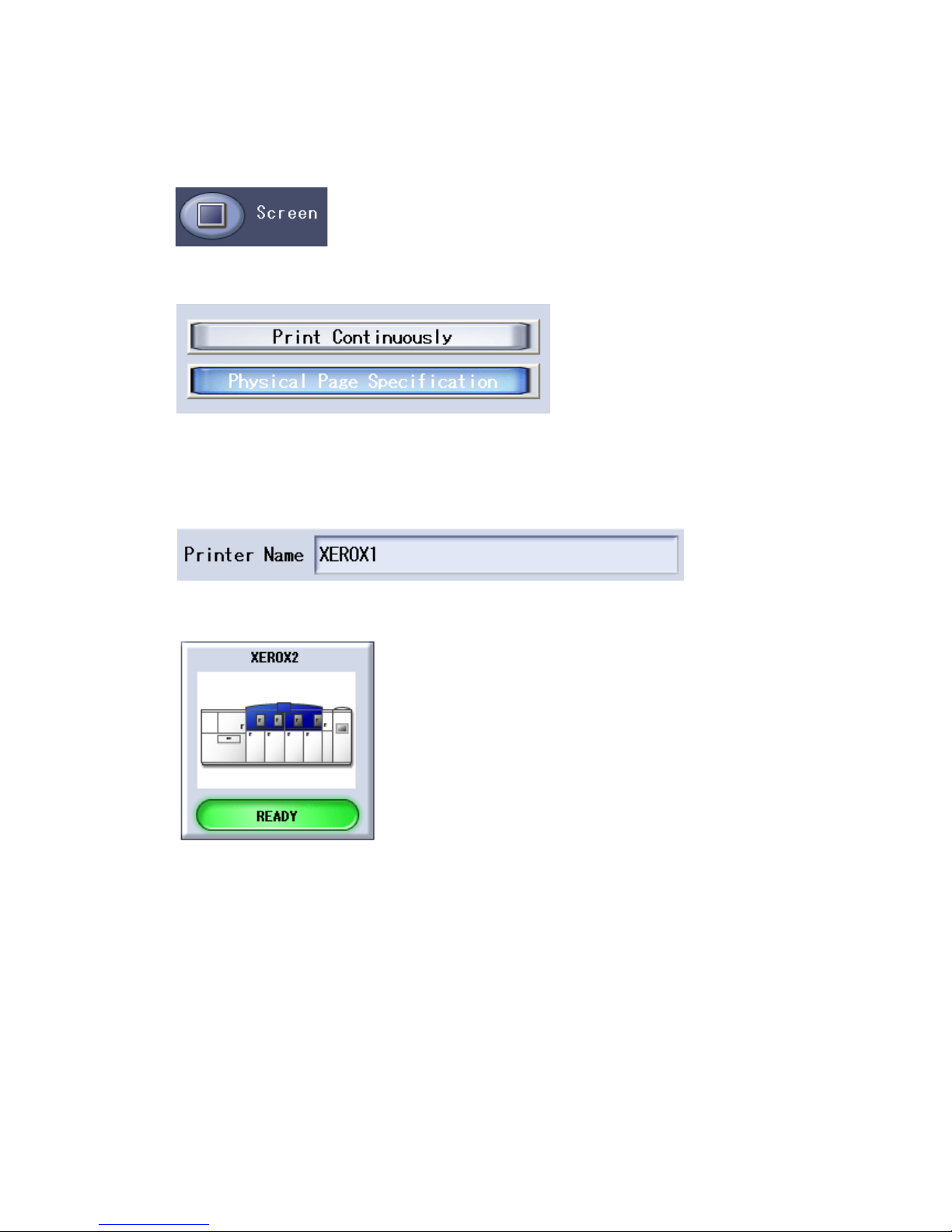

Although this control appears to be a button, it is not. When viewed from the “Printer Status”
screen, it is meant to display the device status only.

Xerox 490/980 Color Continuous Feed Printing System Hints and Tips
Hints and Tips User Guide 1-5
From the “Printer Configuration” tab of the Printer Management screen, this control may be
drag-and-dropped to change the configuration of the printing line.
Capacity indicator is Read-only
Status Display is Read-only

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-6 Hints and Tips User Guide
Nomenclature Inconsistencies
•Fixation Adj. - should read Fuser Adj.
•Mark tab and Sensor tab under Printer Management are no longer available.
•Mark Printing tab should read Trans/Flash tab on UI/Paper Settings.
•System Management/System Environment should read Definition File tab.
•Transcription - should read Transfer.
Terminology, Abbreviations and Units
Terminology
•Active Job - Lists all Active jobs.
•Completed Job - Lists the completed jobs.
•Do not accept - Indicates the job input is not accepted, if set in the job queue information.
•Do not release - Indicates the job input processing is not released, if set in the job queue
information.
•Forced Printing - Prints all data stored in RIP buffer.
•Held Job - Lists all held jobs.
•Input of Job Name - User inputs a job name here.
•Logical Pages - Data that can be printed on a physical sheet of paper. Same as “page”.
•mb - Megabytes “MB”.
•Paper setting tab - Paper settings are displayed/editable.
•Pin Fee Hole/Pin Feed Hole - Pin-fed paper stock.
•Physical Pages - Physical sheet of paper on which data prints. Same as “Sheet”.
•Reouput - Reprints the selected completed jobs.
•System Page - Displays data per job status.
•The displayed number of job is N - Total jobs in selected area.
•Timed Job - Scheduled printing of a job.
Abbreviations
•BS - Back Space.
•Config Change End - End printer configuration activity.
•Dens/Pos Adjust - Density/Position Adjust.
•DUP - Duplex (marks).
•EUC - Kanji code type.
•FTP- File Transfer Protocol.
•REG - Color Registration (Marks).
•ROC - Registration of Color.
•ROF - Registration of Form.
•TOF - Top of Form.

Xerox 490/980 Color Continuous Feed Printing System Hints and Tips
Hints and Tips User Guide 1-7
Units
gsm - grams per meter squared; also used as label to indicate “paper weight”
Input/Output Spool Sizes
The following measures can be displayed in two parts.

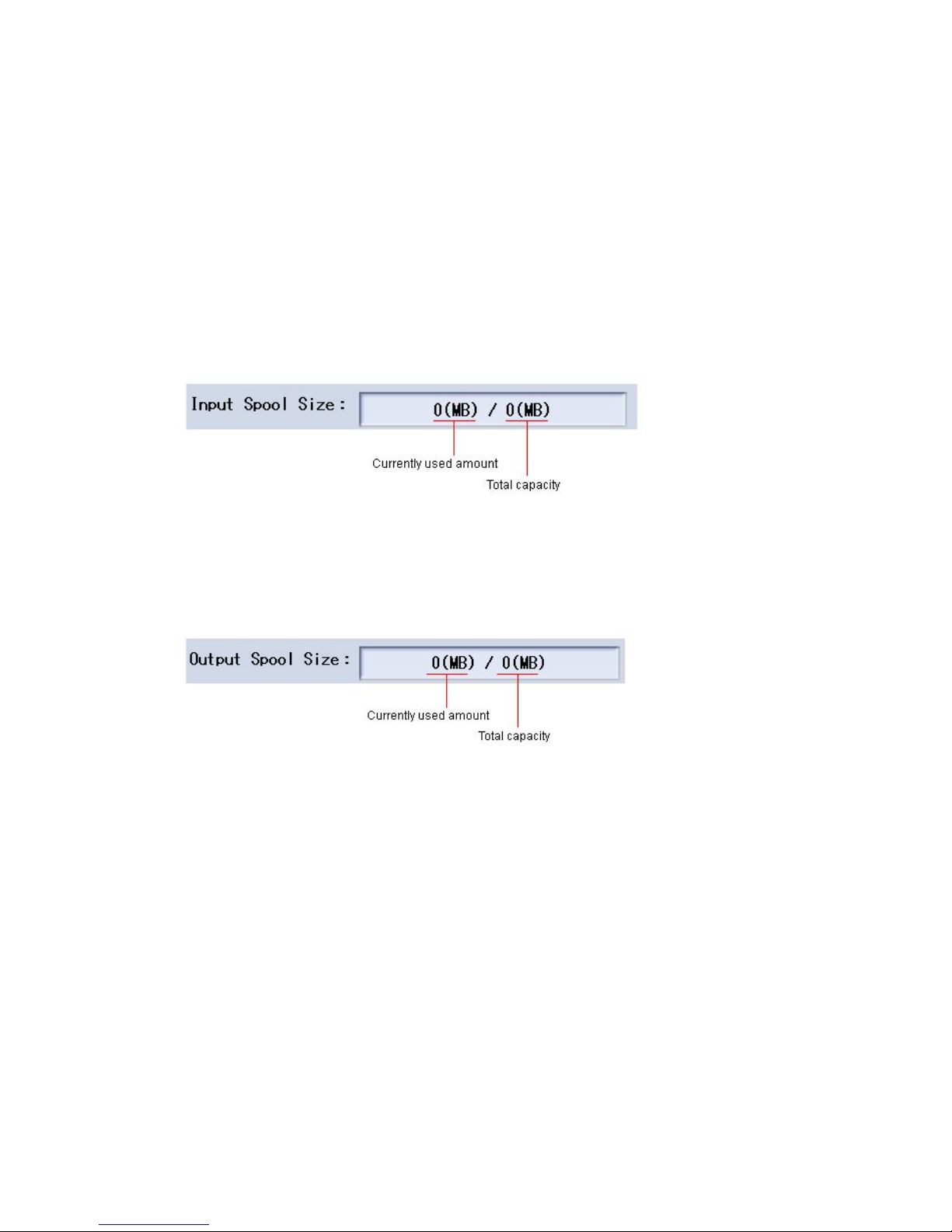

Input Spool Size: 0 (MB) / 0 (MB) - The Input Spool Size is displayed as the amount of the input
spool currently used over the total capacity of the input spool (current used [MB] / total
capacity [MB]).
Output Spool Size: 0 (MB) / 0 (MB) - The Output Spool Size is displayed as the amount of the
output spool currently used over the total capacity of the output spool (current used [MB] /total
capacity [MB])
Copy Count Display: Copies: ___ / ___ (current number printed / of total).

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-8 Hints and Tips User Guide
Paper Size
Paper size is specified in terms of whole inches and 1/6 inch (length), 1/10 inch (width) for
pinless paper. Pinfed paper width must be whole inch and 1/2 inch only:
Paper Length: __ __ / 6 inch
Paper Width: __. __ / 10 inch (pinless)/1/2 inch (pinfed)
The paper length and width are entered by specifying two values for each. The first value (on
the left) is in whole inches and the second value (on the right) is in fractions of an inch. Note
that length and width have different base denominators for the second value. The denominator
for length is 6 and for width is 10.
The sum of the two values is taken as the paper length or width value. For example, to enter 8.5”
as the paper length, you would enter 8 in the first box and 3 in the second box because 3/6” is
equivalent to 0.5”. To enter 8.5 as the paper length, you would enter 8 in the first box and 5 in
the second box because 5/10 is equivalent to 0.5”.

Xerox 490/980 Color Continuous Feed Printing System Hints and Tips
Hints and Tips User Guide 1-9
Critical Information - Printer Status

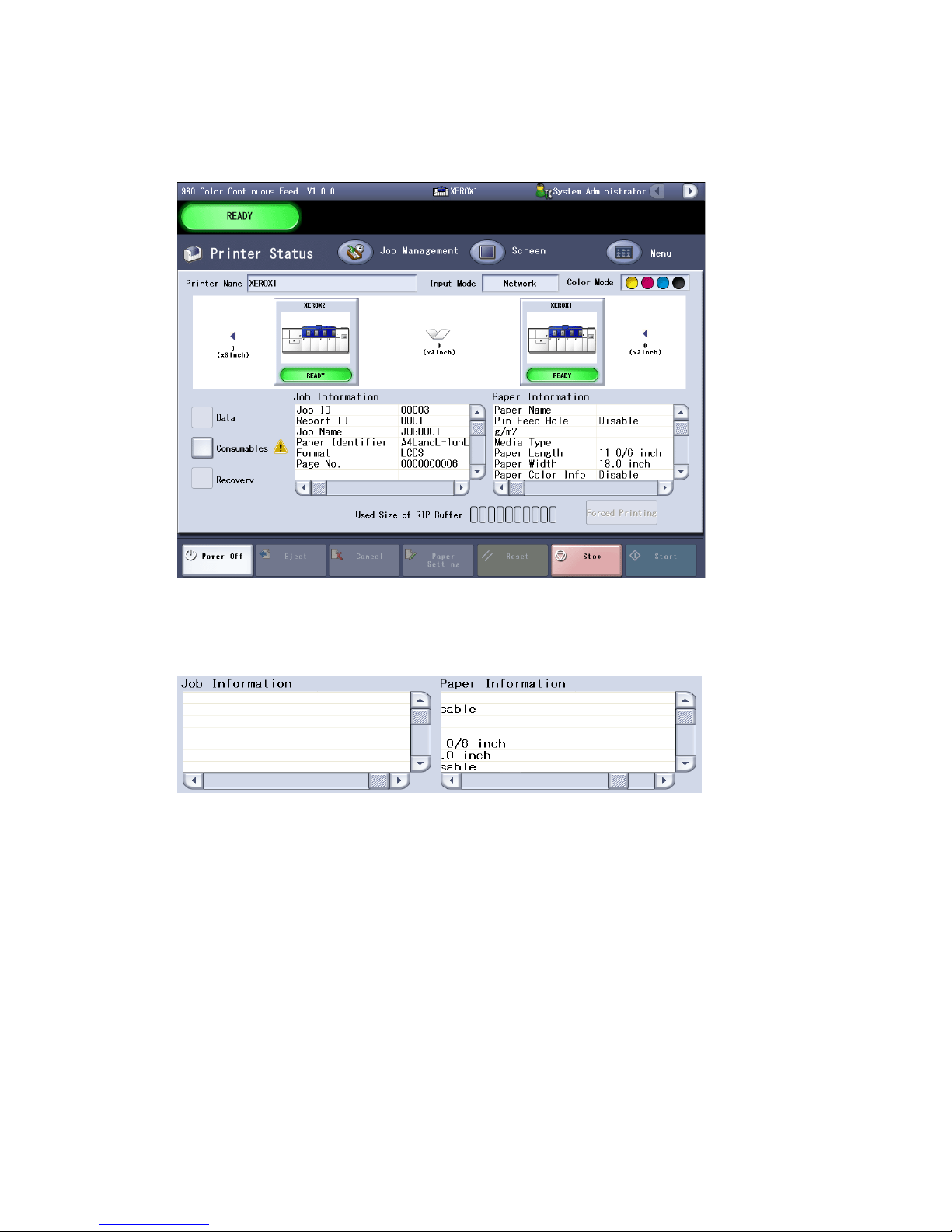

For detailed information about the Printer Status view, refer to the Customer Documentation.
The Job Information and Paper Information displays may have been scrolled horizontally off
the display area. To view, use the scroll bar and scroll to the left.

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-10 Hints and Tips User Guide
Corrections to UI
The following changes are being incorporated into the user documentation but are not
currently reflected on the UI.
Path from Main Menu Present Required Change Comments
Printer Status Paper identifier Imposition File Impacts the
majority of
screens
Printer Status/Paper
Setting/Trans/Flash
Transcription
Fixation
Front Side
Back Side
Transfer Fuser
Side 1
Side 2
Paper Setting/Check Front
Back
Side 1
Side 2
Job Management/
Active/Job/Hold
Hold for job was
selected. When printing
it stop print. Are you
sure you want to do
this?
Hold for job was selected.
Status of job has
changed. Are you sure
you want to do this?
Job Management/Active
Job/Cancel
Cancel for job was
selected. When printing
it stop print. Are you
sure you want to do
this?
Cancel for job was
selected. The job will be
cancelled. Are you sure
you want to do this?
Job Management/Active
Job/Delete
Delete for job was
selected. When printing
it stop print. Are you
sure you want to do
this?
Delete for Job was
Selected. The job will be
deleted. Are you sure you
want to do this?
Queue Management/
Delete
It will be deleted. Are
you sure you want to
delete it?
Queue will be deleted.
Are you sure you want to
delete?
Resource Management/
System Resource/Stock
Set/Delete
Cannot delete Stock Set
because it is a system
default.
Stock Set is a system
default folder and cannot
be deleted.
Resource Management/
System Resource/Stock
Set/Rename
Cannot rename the
specified Stock Set
because it is a system
default.
Stock Set is a system
default folder and cannot
be renamed.
Resource Management/
Color Resource/Resource
Set/Delete
Cannot delete Resource
Set because it is a
system default.
Resource Set is a system
default folder and cannot
be deleted.
Resource Management/
Color Resource/Resource
Set/Rename
Cannot rename the
specified Resource Set
because it is a system
default.
Resource Set is a system
default folder and cannot
be renamed.

Xerox 490/980 Color Continuous Feed Printing System Hints and Tips
Hints and Tips User Guide 1-11
Resource Management/
LCDS Resource
LCDS Resource Delete the LCDS Tab
Printer Manager/Sensor Sensor Setting ROF Sensor Apply
Printer Manager/Mark Front Side
Back Side
Setting
Side 1
Side 2
Apply
Printer Manager/
Consumables
Replacement of
developer cannot be
cancelled once stated.
Are you sure you want
to start it?
Replacement of
developer cannot be
canceled once started.
Are you sure you want
to start? (Remove the
word it).
Same change for
all developer
colors.
Printer Manager/
Consumables/Black
To n e r Re f i l l
*Check the labels for
toner container, toner
refill door, and toner
hopper. Then refill the
toner of the same color
Step 1 second bullet:
*Ensure the labels for
toner container, toner
refill door, and toner
hopper are the same
color.
Same change for
all Toner colors.
Printer Manager/
Consumables/Black
To n e r Re f i l l
2.Holding the knob (d)
pull out the toner
receptacle (3)
frontward.
2.Holding the Handle (d)
pull the toner cartridge
drawer (e) forward.
Same change for
all toner colors.
Printer Manager/
Consumables/Black
To n e r Re f i l l
3.Holding the handles
(f) remove the empty
toner cartridge upward.
*Keep the empty
cartridge because it will
be used as waste toner
container later. *After
removing the cartridge,
clean out dust and
residual around the
toner refill.
3. Grasp the handles (f),
lift and remove the
empty toner cartridge.
First bullet: The empty
toner cartridge will be
used as waste toner
container.
2nd bullet: *After
removing the cartridge,
clean the residual toner
from the toner refill
area.
Same change for
all Toner colors.
Printer Manager/
Consumables/Black
To n e r Re f i l l
*Be sure to insert the
cartridge along the
guide (g).
Step 5: delete bullet Same change for
all Toner colors.
Printer Manager/
Consumables/Black
To n e r Re f i l l
6.Holding the knob (d)
push in the toner
cartridge (e) receptacle,
then close the toner
refill door.
6.Holding the handle (d)
push in the toner
cartridge drawer.
Add step 7. Close the
toner refill door.
Same change for
all Toner colors.
Printer Manager/
Consumables/Black
Waste Toner Container
1. On the back of the
printer station, make
sure the waste toner
container indicator (a)
is lit.
1.On the back of the
printer station, make sure
the waste toner
container indicator lamp
(a) is lit.
Same change for
all Waste Toner
Container colors.
Path from Main Menu Present Required Change Comments

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-12 Hints and Tips User Guide
Printer Manager/
Consumables/Black
Waste Toner Container
2.Open the printer rear
cover (b) corresponding
to the illuminating
waste toner container
replacement indicator.
2.Open the printer rear
door corresponding to
the illuminating indicator
lamp.
Same change for
all Waste Toner
Container colors.
Printer Manager/
Consumables/Black
Waste Toner Container
*If you replace the
container during
printing, install the new
container within 3
minutes after releasing
the level.
Step 3: re-write bullet as
follows: *When replacing
the container during
print operation, install
the new container
within 3 minutes.
Same change for
all Waste Toner
Container colors.
Printer Manager/
Consumables/Black
Waste Toner Container
4. Hold and pull the
knob (d) frontward until
it stops.
4. Hold and pull the
drawer handle (d)
forward until the drawer
stops.
Same change for
all Waste Toner
Container colors.
Printer Manager/
Consumables/Black
Waste Toner Container
up upward Same change for
all Waste Toner
Container colors
Printer Manager/
Consumables/Black
Waste Toner Container
6. Hold and push the
knob (d) in until it stops.
6.Holding the drawer
handle (d) slide the toner
container into the
machine.
Same change for
all Waste Toner
Container colors.
Printer Manager/
Consumables/Black
Developer
cover
indicated
Step 2:
door developer
Same change for
all Developer
colors.
Printer Manager/
Consumables/Smoke
Filter Replacement
*Start the operation of
the replacement
procedure after a new
Smoke Filter is opened
before the Smoke Filter
is replaced while
printing, and it prepares
it in places exchanged
easily.
*Replace the Smoke
Filter after release the
lock lever of smoke
door, and complete the
operating procedure
(label display 2-8) until
the lock lever of smoke
door is set within 30
seconds.
re-write bullets as follows:
*Before starting this
procedure, ensure a new
Smoke Filter is opened
and ready to install.
*The new Smoke Filter
must be installed and
the lock lever reset
within 30 seconds after
removing the old smoke
filter.
Path from Main Menu Present Required Change Comments

Xerox 490/980 Color Continuous Feed Printing System Hints and Tips
Hints and Tips User Guide 1-13
Printer Manager/
Consumables/Smoke
Filter Replacement
*You can replace the
Smoke Filter during
printing.
*Either the right or left
indicator is lit.
Step 2:
re-write bullets as follows:
*The Smoke Filter can
be replaced during
printing operation,
when either the right or
left indicator is lit.
Printer Manager/
Consumables/Smoke
Filter Replacement
5.There is black packing
of new Smoke Filter (d)
up, and it inserts it in
the box. *Confirm the
label to avoid putting it
upside down.
Step 5: Install the new
Smoke Filter (d) with
the arrow pointing up.
Add warning symbol with
the following text: When
installing the Smoke
Filter, ensure that the
arrow on the label is
pointing up.
Printer Manager/
Consumables/Smoke
Filter Replacement
interior
Step 6:
machine
Printer Manager/
Consumables/Smoke
Filter Replacement
Step 7: Close the smoke
door, move the lever (b)
to the lock position.
Step 7: Close the smoke
filter door and move the
lever (b) to the lock
position.
Printer Manager/
Consumables/Smoke
Filter Replacement
*Refer to “End
procedure of 4.3.3
articles of consumption
exchange” for the end
procedure of the articles
of consumption
exchange
Step 8: re-write bullet as
follows:
*Dispose the old smoke
filter as industrial waste.
Printer Manager/
Consumables/Kit A
(Black) Replace
cover
Step 1:
door
Same change for
all Kit A colors
Printer Manager/
Consumables/Kit A
(Black) Replace
Step 2: Open the toner
filter box door (b).
Step 2: Open the bag
filter door (b).
Same change for
all Kit A colors.
Printer Manager/
Consumables/Kit A
(Black) Replace
frontward, then Step 3: forward and Same change for
all Kit A colors.
Printer Manager/
Consumables/Kit A
(Black) Replace
4. Holding the toner
filter (e) on both sides,
pull it out frontward.
*After removing the
toner filter, wipe out
remaining dust and spilt
toner.
4. Grasp the bag filter (e)
on both sides and
remove.
Re-write bullets as
follows:
*Clean dust and spilled
toner.
Same change for
all Kit A colors.
Printer Manager/
Consumables/Kit A
(Black) Replace
then Step 5:
and
Same change for
all Kit A colors
Path from Main Menu Present Required Change Comments

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-14 Hints and Tips User Guide
Printer Manager/
Consumables/Kit A
(Black) Replace
6. Place the new line
filter (g), push it in until
it stops, and then lower
the filter retainer (f).
6. Insert the new line
filter (g) in the machine
and lower the filter
retainer (f).
Same change for
all Kit A colors.
Printer Manager/
Consumables/Kit A
(Black) Replace
7. Along the guide (h),
push in the toner filter
(e) until it stops.
7. Insert the bag filter (e)
along the guide (h).
Same change for
all Kit A colors
Printer Manager/
Consumables/Kit A
(Black) Replace
8. Place the guide (h) in
the arrow direction.
Then holding the
handle (c), push it in to
secure the toner filter.
Close the toner filter
box door.
8. Replace the guide (h)
in the arrow direction.
Push the handle (c) in to
secure the bag filter.
Close the bag filter door.
Same change for
all Kit A colors.
Printer Manager/
Consumables/Kit B
(Black) Replace
1. Open the printer front
cover (a) where the Kit B
you want to replace is
installed.
1. Open the printer front
door matching the Kit B
color.
Same change for
all Kit B colors.
Printer Manager/
Consumables/Kit B
(Black) Replace
3. Pulls to the front with
the knob (d) of a
cleaner brush, and
removes from the brush
(e).
3. Pull the knob (d)
forward to remove from
the brush (e).
Delete the bullet.
Same change for
all Kit B colors.
Printer Manager/
Consumables/Kit B
(Black) Replace
4. Attach the collector
bag (that is included in
Kit B) (f) to the opening
of the cleaner brush.
Holding the collector
bar that is included in
the bag. Then push it in
to the extent the
Cleaner brush will be
pulled out with the bar.
Re-write Step 4 as
follows:
4. Attach the collector
bag (f) to the opening of
the cleaner brush.
Holding the collector bar
inside the bag, push the
bar firmly into the brush.
(refer to figure on the
next screen)
Same changes or
all Kit B colors.
Printer Manager/
Consumables/Kit B
Delete the “5.” and start
with the *
Same change for
all Kit B colors.
Printer Manager/
Consumables/Kit B
(Black) Replace
5. Pull back the collector
bar along with the
cleaner brush (b) in
small steps. Contain the
Cleaner brush in the
bag (f) and then detach
the bag from the brush
opening.
*After removing the
cleaner brush, wipe out
dust, paper dust, and
spilt toner with non-
woven cloth.
Change number to 5 and
re-write as follows:
5. Slowly pull out the
collector bar along with
the cleaner brush (b).
Contain the Cleaner
Brush in the bag (f) and
remove the bag from the
brush opening.
Re-write bullet as follows:
*Clean dust and toner
with non-woven cloth.
Same change for
all Kit B colors.
Path from Main Menu Present Required Change Comments

Xerox 490/980 Color Continuous Feed Printing System Hints and Tips
Hints and Tips User Guide 1-15
Printer Manager/
Consumables/Kit B
(Black) Replace
Re-number to step 6 Same change for
all Kit B colors.
Printer Manager/
Consumables/Kit B
(Black) Replace
8. Hold the Cleaner
Blade Knob (d) with
your left hand, pull it
slightly frontward, and
remove the knob.
Re-number to step 7 and
re-write as follows:
7. Pull the Cleaner Bade
Knob (d) slightly forward
and remove.
Same change for
all Kit B colors.
Printer Manager/
Consumables/Kit B
(Black) Replace
9. Wrap up the Cleaner
Blade with the collector
bag (f). Pull out the bag
to take out the Cleaner
Blade into the bag.
Re-number to step 8 and
re-write as follows:
8. Insert the Cleaner
Blade into the collector
bag (f). Pull out the bag
removing the Cleaner
Blade.
Same change for
all Kit B colors.
Printer Manager/
Consumables/Kit B
(Black) Replace
10. Attach the knob to
the new Cleaner Blade
(b), insert it along the
guide, and tighten the
thumb nut.
Re-number to Step 9 and
re-write as follows:
9. Attach the knob to the
new Cleaner Blade (b) by
inserting along the guide
and tighten the thumb
nut.
Same changes for
all Kit B colors
Printer Manager/
Consumables/Kit B
(Black) Replace
, then cover Re-number to step 10
and change:
and
door
Same change for
all Kit B colors
Printer Manager/
Consumables/Transfer
Roller Cleaner (Black)
Replace
1: Open the printer 1
top cover.
Delete “1”
1. Open the printer top
cover.
Printer Manager/
Consumables/Transfer
Roller Cleaner (Black)
Replace
3: Holding the knobs (b),
slightly move the
Transfer Roller Cleaner
frontward (1), and then
lift it up (2).
Step 3: Holding the
handles (b), slightly
move the Transfer Roller
Cleaner forward (1), and
lift up (2).
Same change for
all Transfer Roller
Cleaner colors.
Printer Manager/
Consumables/Transfer
Roller Cleaner (Black)
Replace
5. Holding the knobs (b)
on the new Transfer
Roller Cleaner, install it
on the machine (1), (2).
Step 5: Holding the
handles (b), install the
new Transfer Roller
Cleaner in the machine
(1) and push toward the
rear of the machine (2).
Add a line space, and
add a caution symbol
for the following
statement: Be careful
not to touch damage the
guide roller on the new
Transfer Roller Cleaner.
Same change for
all Transfer Roller
Cleaner colors.
Maintenance/Software/
Software Info
Remove LCDS
information
Path from Main Menu Present Required Change Comments

Hints and Tips Xerox 490/980 Color Continuous Feed Printing System
1-16 Hints and Tips User Guide
Maintenance/Fault Info/
Delete
It will be deleted. Are
you sure you want to
delete it?
The log file will be
deleted. Are you sure you
want to delete?
Maintenance/Control
Info/Save
Do you execute Save? Do you want to save the
information?
Same change for
all the colors (K, C,
M, Y)
Maintenance/Control
Info/Restore
Do you execute
Restore?
Do yo want to restore the
information?
Same change for
all the colors (K,
C,M,Y)
Maintenance/Control
Info/Initialize
Do you execute
Initialize?
Do you want to initialize? Same change for
all the colors
(K,C,M,Y)
Maintenance/Control
Info/Export
Do you execute Export? Do you want to export
the information?
Same change for
all the colors
(K,C,M,Y)
Maintenance/Control
Info/Print
Do you execute Print? Do you want to print the
information?
Same change for
all the colors
(K,C,M,Y)
Maintenance/Control
Info/Export
Do you execute
Display?
Do you want to display
the information?
Same change for
all the colors
(K,C,M,Y)
Maintenance/Printer
Config
Single Simplex
Software Upgrade killing to deleting
Resource Management/
Open a file
Paper Identifier
Repaint
Front
Back
Imposition File
Refresh
Side 1
Side 2
Paper Setting/Basic Info Front
Back
Side 1
Side 2
Paper Setting/Pre-
printed Info
Print Side
Print Back Side
Print Side 1
Print Side 2
Select printer name and
System Properties is
displayed
Setting
Paper Identifier
Apply
Imposition File
CMS Option Tool/Print
Colorimetric Pattern
Colorimetric Color Test
CMS Option Tool/
Customer Ink
Characteristics
Ink Toner
Delete the word Ink
CMS Option Tool/Paper
Information
Delete the word Ink
Path from Main Menu Present Required Change Comments
