Xhorse CONDOR XC-007 User manual

Automatic Key Cutting Machine - CONDOR XC-007
1
CONDOR
Automatic Key Cutting Machine
XC-007
User Manual
V1.2

Automatic Key Cutting Machine - CONDOR XC-007
2
Table of Contents
1）Safety Precautions and Warnings --------------------------------------------3
2）General Information -------------------------------------------------------4
3）Packing List --------------------------------------------------------------5
4）Overview
4.1 Machine overview ------------------------------------------------------8
4.2 Specification --------------------------------------------------------9
5）Installation
5.1 Cutter installation --------------------------------------------------10
5.2 Cutter release -------------------------------------------------------11
5.3 Clamp installation ---------------------------------------------------12
5.4 Clamp base wiring ----------------------------------------------------13
6）Operating instructions
6.1 Leveling cutter and probe ---------------------------------------------14
6.2 X1 Initialization ----------------------------------------------------16
6.3 X2 Initialization ----------------------------------------------------18
6.4 Factory mode ---------------------------------------------------------19
1. Enter factory mode ---------------------------------------------------19
2. Calibration method 1 (using dual probe) ---------------------------20
3. Calibration method 2 (cutting a blank key) ------------------------21
6.5 Key cutting method 1 (Known key blank name and bit code) ---------------22
6.6 Key cutting method 2 (From key database) ------------------------------23
6.7 Key cutting method 3 (Copy key from existing key) ----------------------26
6.8 Find bitting ---------------------------------------------------------28
7）Online Update ------------------------------------------------------------31

Automatic Key Cutting Machine - CONDOR XC-007
3
1．Safety Precautions and Warnings
To prevent personal injury or damage to machine, read this instruction manual first
and observe the following safety precautions:
Always work on machine in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep protection mask closed when machine is working.
Keep clothing, hair, hands, tools, test equipment, etc. away from all moving
parts.
Keep an eye on machine when machine work, do not far from machine.
Do not use damage or loosen power cord.
Unplug the power cord when not in use for a long time.
Do not place machine in wet, oily, dusty area.
Do not place any tool, container on the machine.
Place the machine on a level and firm surface.
Keep the machine clean and dry.
Turn off the power immediately when any exception occurs.

Automatic Key Cutting Machine - CONDOR XC-007
4
2．General Information
Thank you for choosing CONDOR XC-007 Automatic Key Cutting
Machine.
This manual includes the use of equipment notes, please read this manual carefully
before use so that you can correctly use it.
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or
otherwise, without permission. Due to continuous product improvement, the information
contained in this manual is subject to change without notice.

Automatic Key Cutting Machine - CONDOR XC-007
5
3. Packing List
The whole package covers the following items, if missing, please contact your dealer.
Name
Quantity
Description
2.5mm Cutter
1
Cutting tool
(Ø2.5×Ø6×40L )
1.5mm Cutter
1
Cutting tool
(Ø1.5×Ø6×40L )
1.0mm Probe
2
Detection tool
(Ø1.0×Ø6×40L )
4mm Allen wrench
1
Tool for pads installation
2mm Allen wrench
1
Tool for probe installation
Spindle drive belt
1
Spares.
(Ø 3mm X Ø 75mm)
Power cord
1
(L 1.5m)
USB cable
1
Connect machine to PC.
(L 2.0m)
Brush
1
Tool for clean machine

Automatic Key Cutting Machine - CONDOR XC-007
6
X1 Fixture
1
Fixture
X2 Fixture
1
Fixture
Keymachine body
1
Protective cover
1
Pads
4
Install with 4mm allen wrench
Driver CD
1
Quality certificate
1
Packing List
1

Automatic Key Cutting Machine - CONDOR XC-007
7
User manual
1
Note:
-- Replace the cutter regularly to ensure good cutting results.
-- Spindle drive belt and timing belt stepper motor requires regular inspections
degree of wear, excessive wear and tear please change to ensure the accuracy of
the cutting force and the machine is running.
-- Please use the 10A fuse.

Automatic Key Cutting Machine - CONDOR XC-007
8
4. Overview
4.1 Machine Overview
Protective cover
7’Touch screen
LED lights
Operation buttons
Cutter
Key locking knob
Clamp lock
Clamp
Cutter installation knob
Spindle lock button
Emergency stop button
Probe

Automatic Key Cutting Machine - CONDOR XC-007
9
4.2 Specifications
Input Voltage
AC110V/220V
Input Frequency
47~63Hz
Consume
220W
Packing Dimensions
L 460×W 520×H 620 (mm)
Machine Dimensions
L 336×W 407×H 490 (mm)
Display
800×480
Spindle Speeds
12,000 rpm
USB
USB2.0
Working Temperature
0~50℃
Humidity
10~90%
Net Weight
31Kg
Gross Weight
35Kg

Automatic Key Cutting Machine - CONDOR XC-007
10
5. Installation
5.1 Cutter installation
Cutter installation steps:
1）Put the cutter into the jacket.
2）Press and hold "Spindle lock button".
3）Turn clockwise "Cutter installation knob", "Spindle lock button" will take
advantage into the positioning hole on spindle; continue turn clockwise until
the cutter tightens.

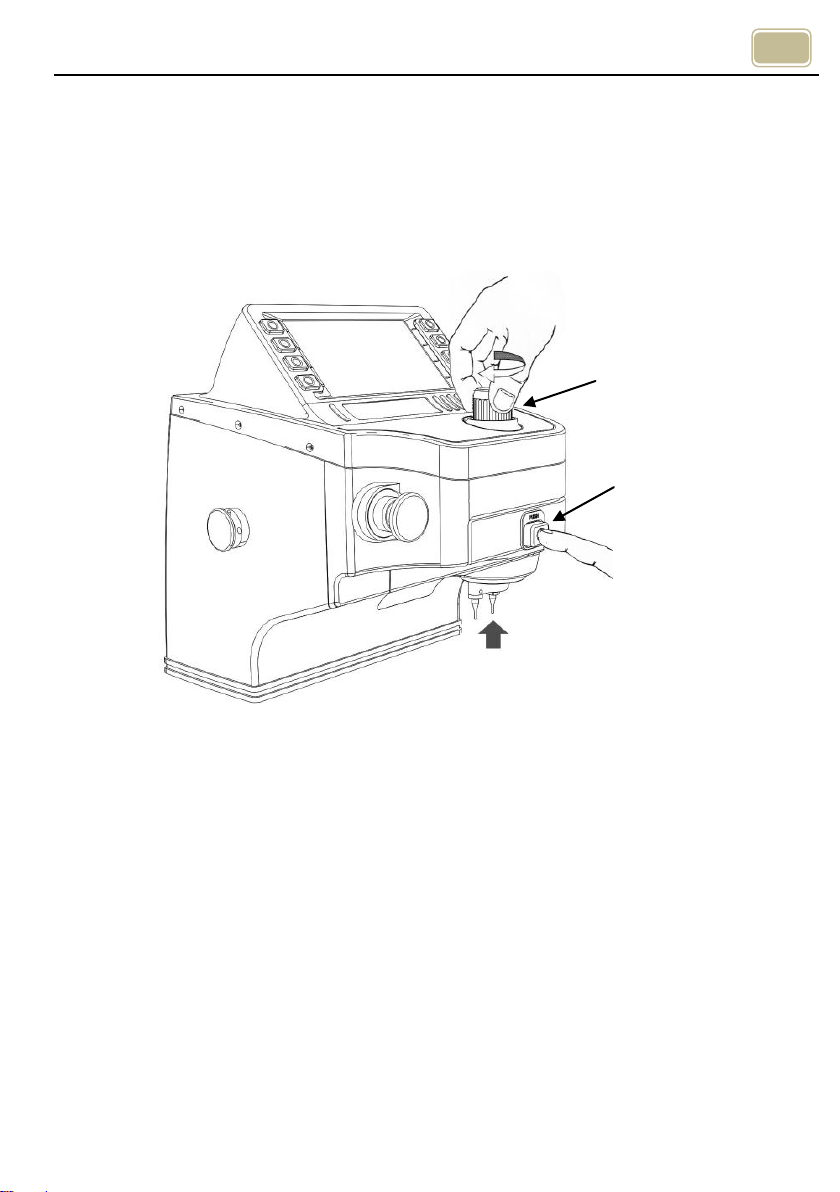

Cutter installation knob
Spindle lock button

Automatic Key Cutting Machine - CONDOR XC-007
11
5.2 Cutter release
Cutter release steps:
1）Press and hold "Spindle lock button", turn counterclockwise "Cutter
installation knob" to loosen cutter.
2）Hold the cutter when loosen it to prevent fallen damage to cutter.
3）If the cutter chuck tightly, pat down "Cutter installation knob" gently.

Automatic Key Cutting Machine - CONDOR XC-007
12
5.3 Clamp installation
Clamp installation steps:
1）Turn counterclockwise "Locking wrench" to loosen.
2）Pull out "Locating pin pull handle".
3）Push the clamp from the right side of the clamp base, choose corresponding anchor
point according to the key type.
4）Turn counterclockwise "Locking wrench" to tighten clamp.

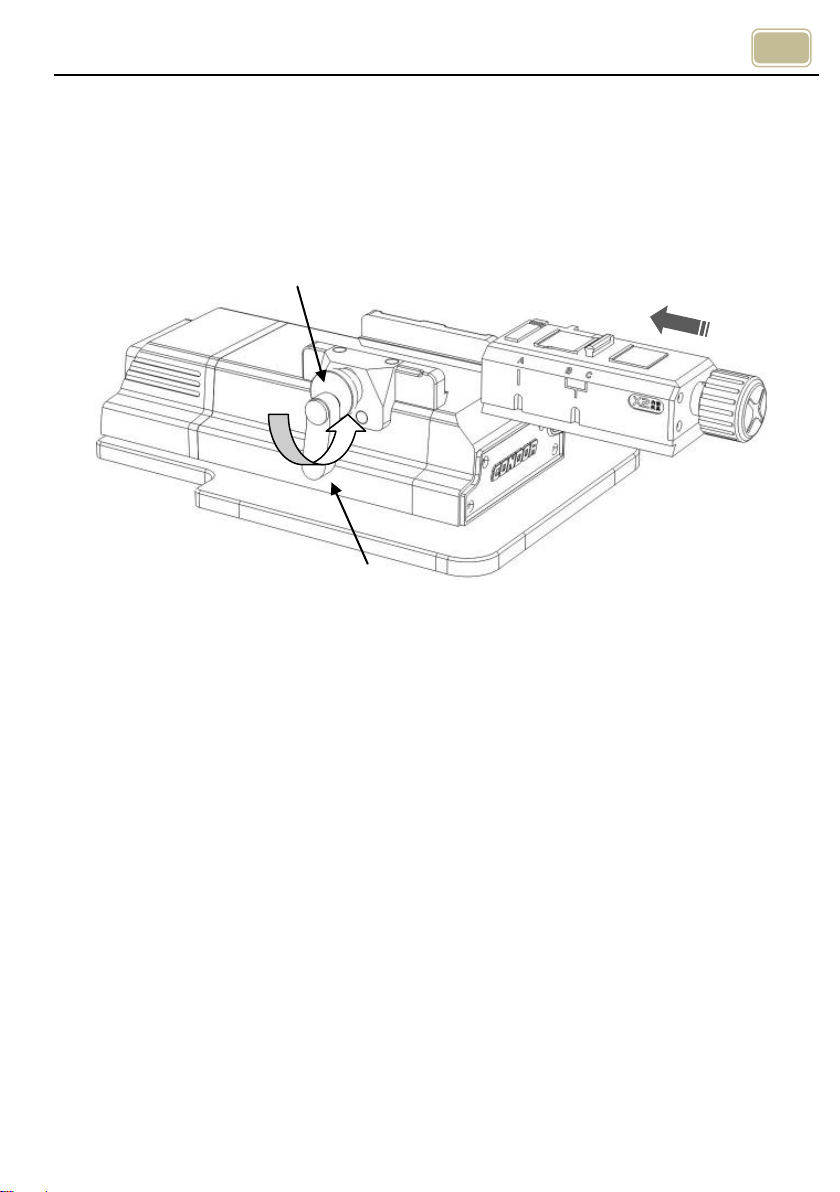

Locating pin pull handle
Locking wrench

Automatic Key Cutting Machine - CONDOR XC-007
13
5.4 Clamp base wiring
1）Connect wire to the connector and tighten.

Automatic Key Cutting Machine - CONDOR XC-007
14
6. Operating instructions
Please initial device before use:
6.1 Leveling cutter and probe

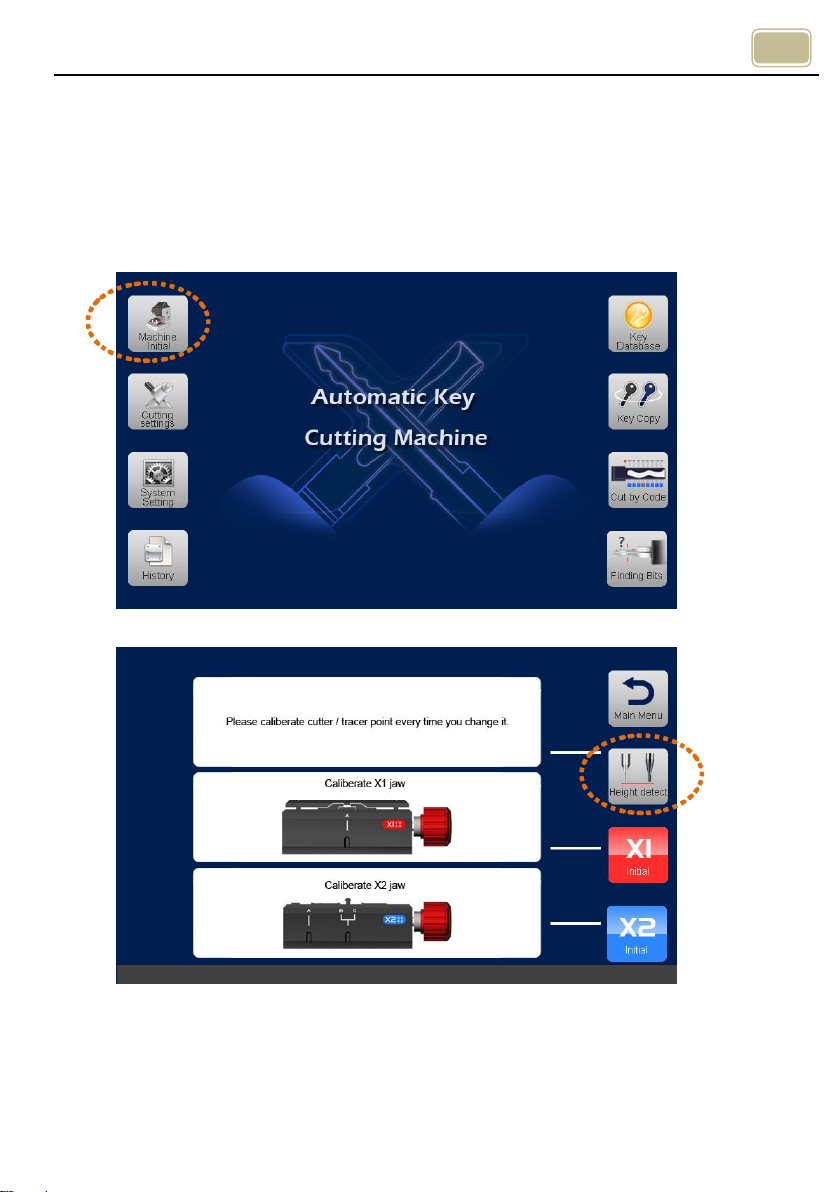

1）Click "Machine Initial" button
2）Click "Height detect" button

Automatic Key Cutting Machine - CONDOR XC-007
15

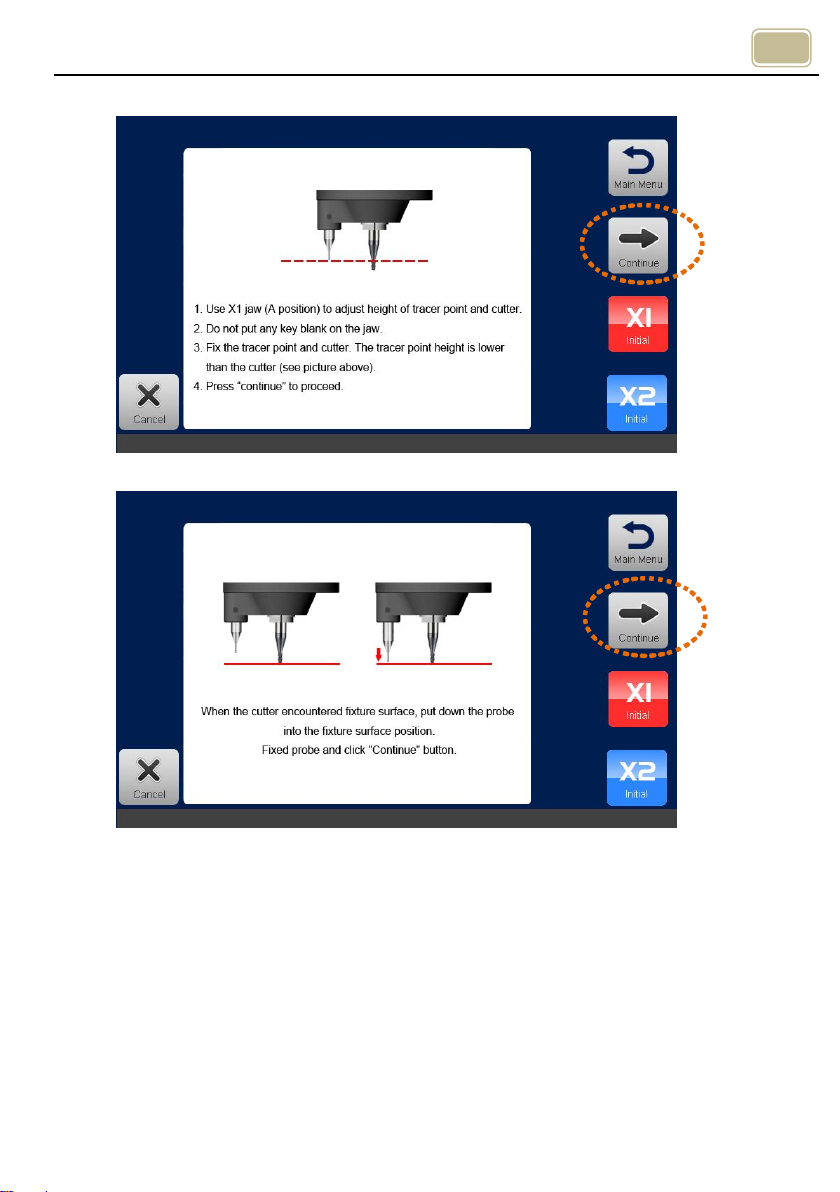

3）Follow the steps on the screen, then click "Continue" button
4）Follow the steps on the screen, then click "Continue" button

Automatic Key Cutting Machine - CONDOR XC-007
16

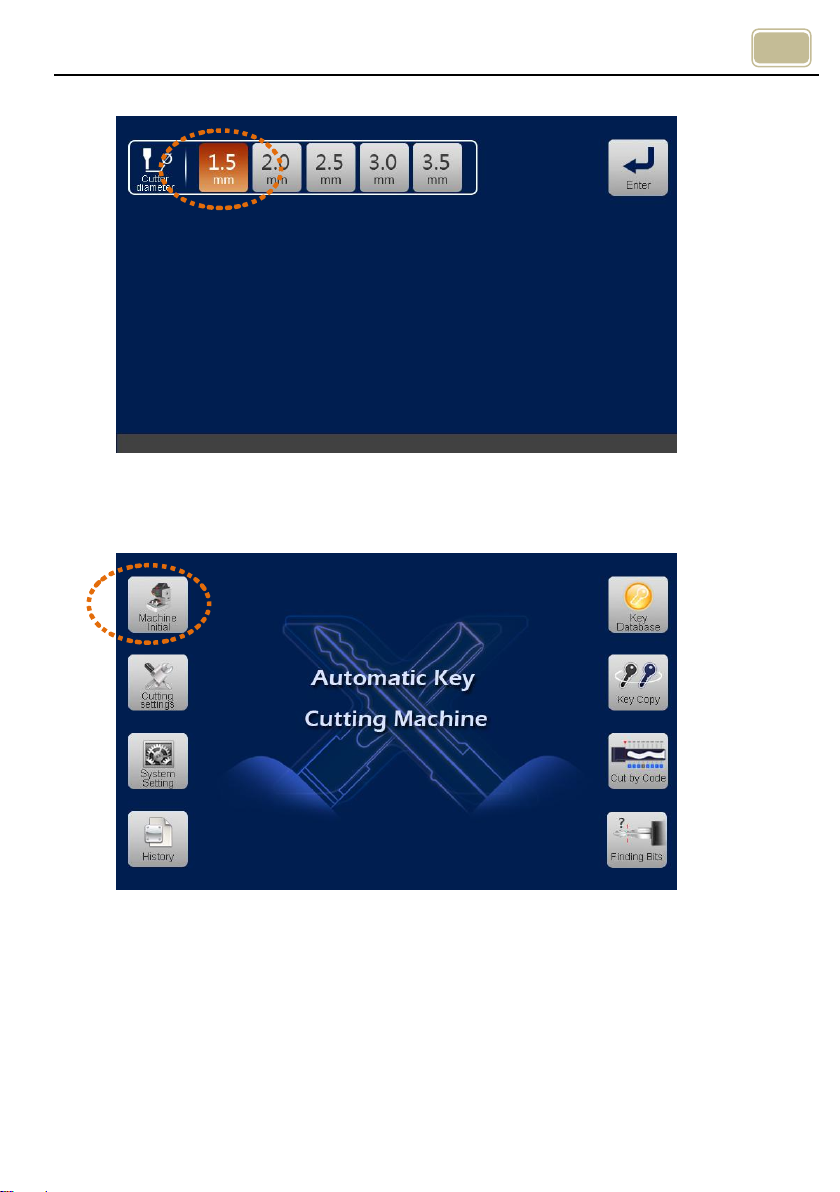

5）Select cutter diameter, click "Enter" button to finish
6.2 X1 Initialization
1）Click "Machine Initial" button

Automatic Key Cutting Machine - CONDOR XC-007
17
2）Click "X1 Initial" button
3）Follow the steps on the screen, then click "Continue" button

Automatic Key Cutting Machine - CONDOR XC-007
18
6.3 X2 Initialization

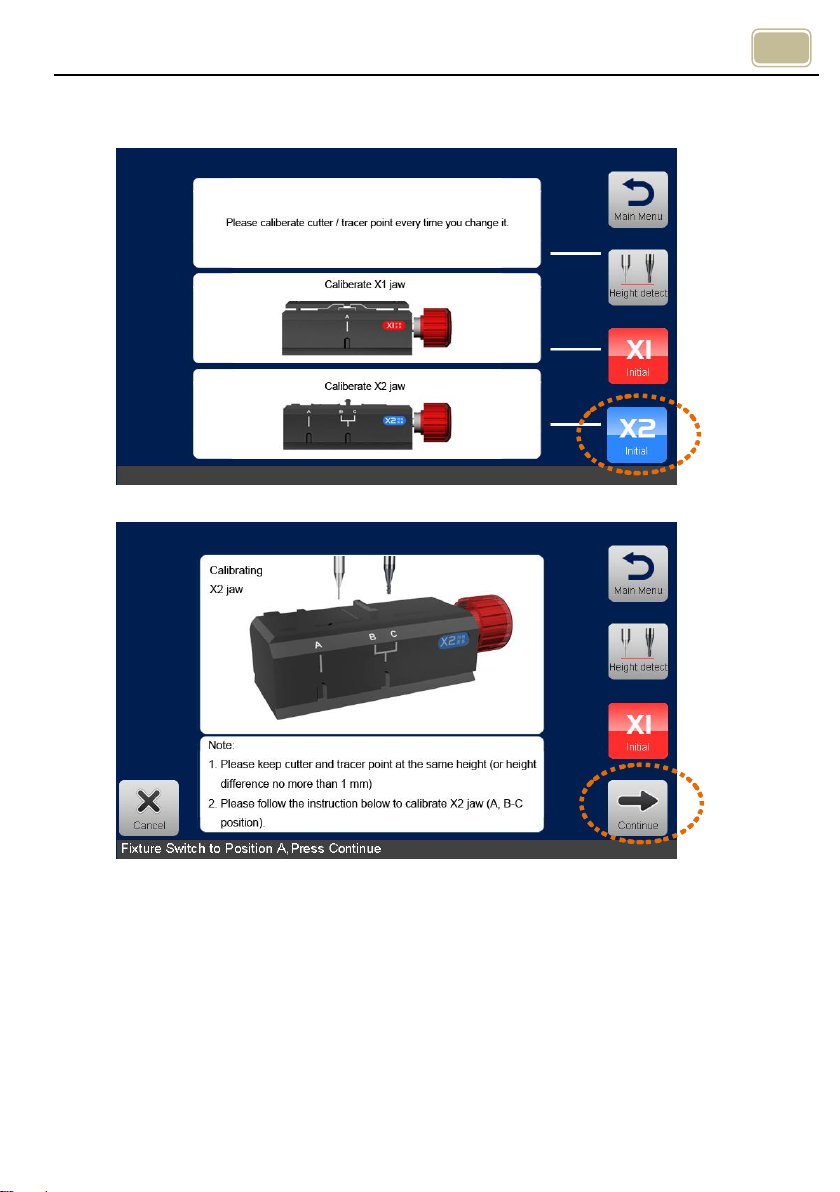

1）Click "X2 Initial" button
2）Follow the steps on the screen, then click "Continue" button

Automatic Key Cutting Machine - CONDOR XC-007
19
3）Follow the steps on the screen, then click "Continue" button
6.4 Factory mode
1）Enter factory mode

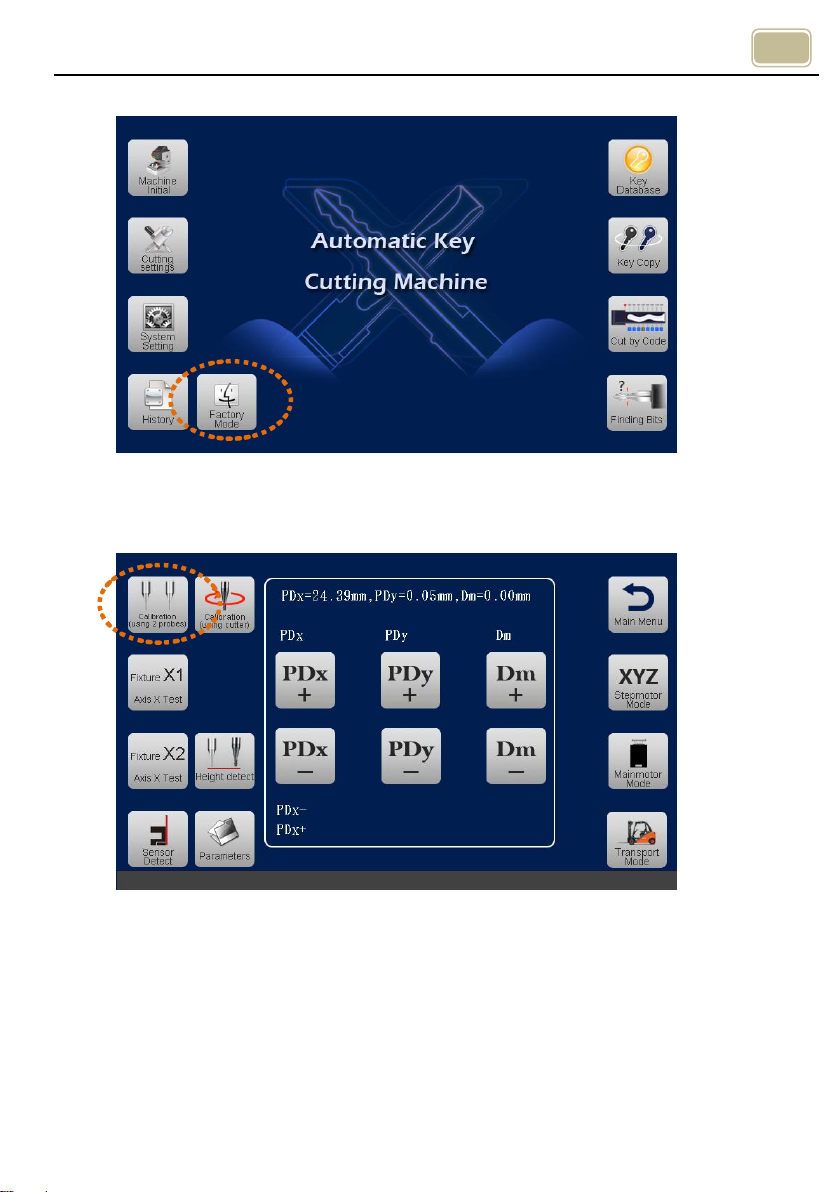

Press and hold BOTH A and B button, then power on the machine.
A
B

Automatic Key Cutting Machine - CONDOR XC-007
20
Click "Factory Mode" button
2）Calibration method 1 (using dual probe)
