Xiaomi Roborock S7+ User manual

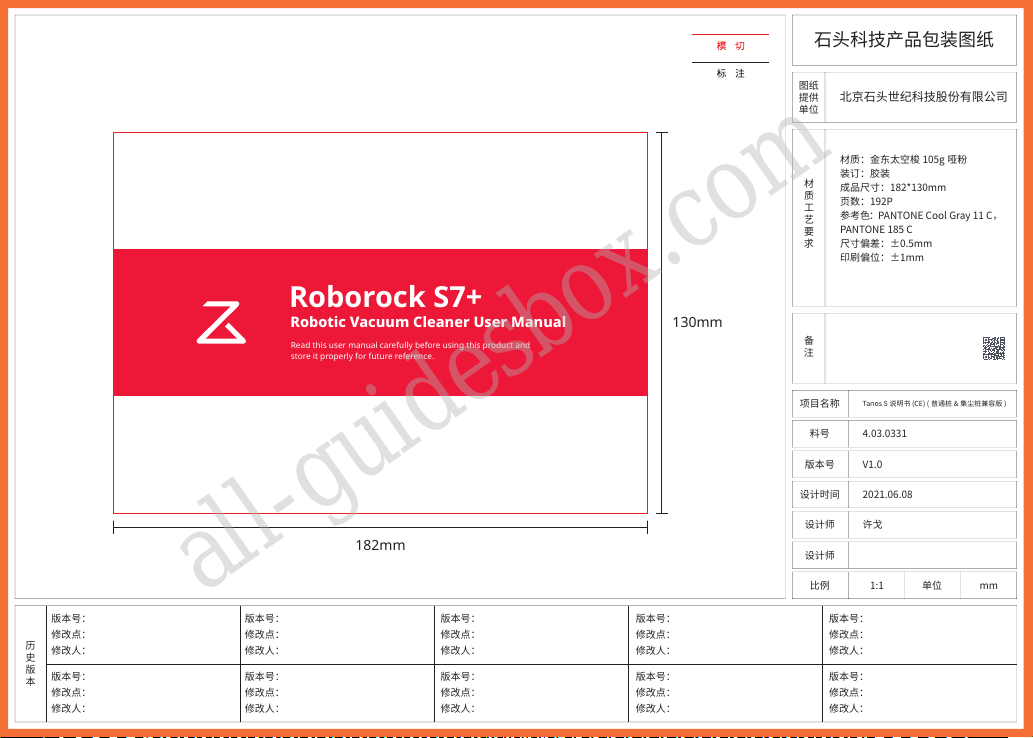

石头科技产品包装图纸
北京石头世纪科技股份有限公司
图纸
提供
单位
材
质
工
艺
要
求
历
史
版
本
备
注
项目名称 Tanos S 说明书 (CE) ( 普通桩 & 集尘桩兼容版 )
4.03.0331
V1.0
2021.06.08
许戈
料号
版本号
设计时间
设计师
设计师
比例 1:1 单位 mm
材质：金东太空梭 105g 哑粉
装订：胶装
成品尺寸：182*130mm
页数：192P
参考色：PANTONE Cool Gray 11 C，
PANTONE 185 C
尺寸偏差：±0.5mm
印刷偏位：±1mm
182mm
130mm
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：
版本号：
修改点：
修改人：

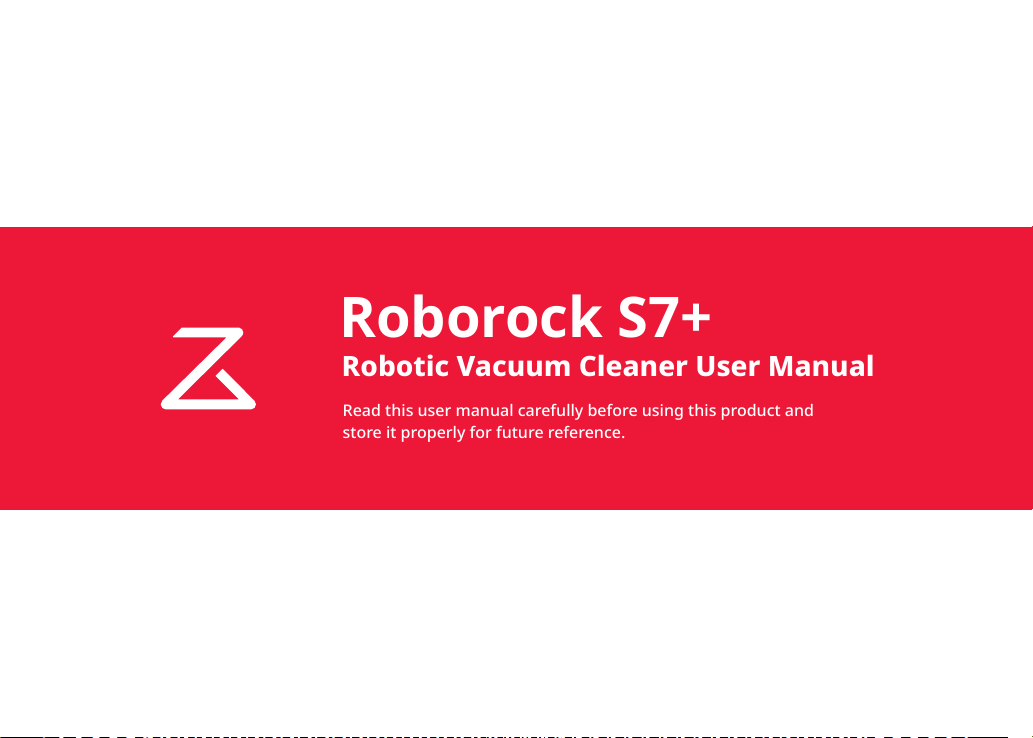

Roborock S7+
Read this user manual carefully before using this product and
store it properly for future reference.
Robotic Vacuum Cleaner User Manual
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

Roborock S7+
Read this user manual carefully before using this product and
store it properly for future reference.
Robotic Vacuum Cleaner User Manual
All manuals and user guides at all-guidesbox.com

All manuals and user guides at all-guidesbox.com

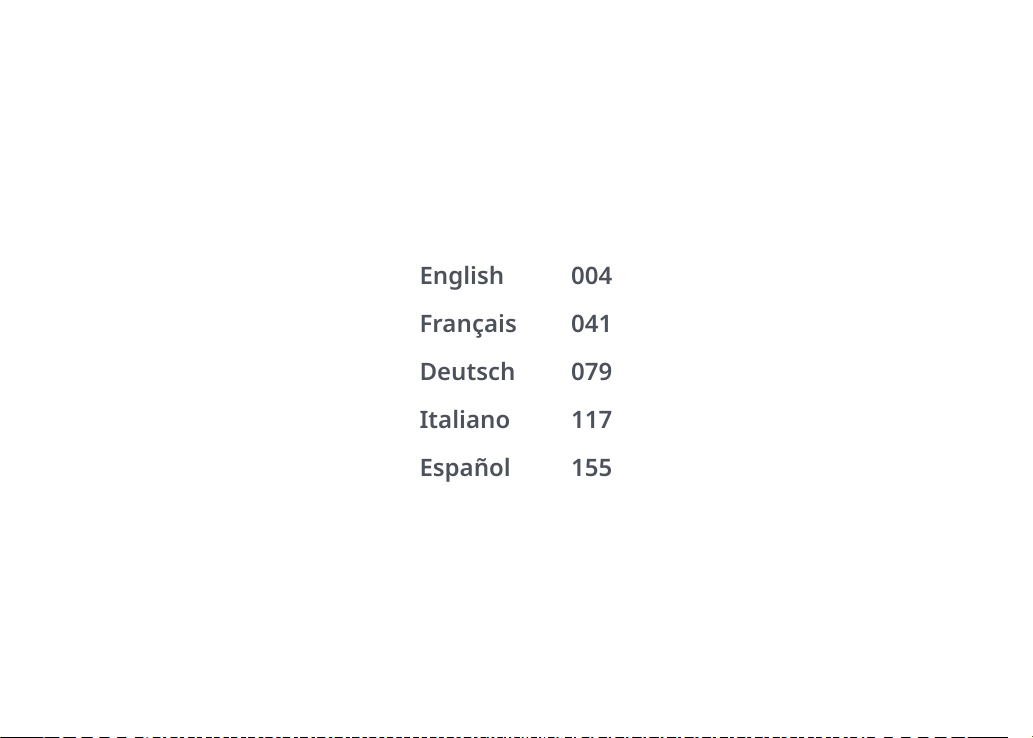

English 004
Français 041
Deutsch 079
Italiano 117
Español 155
All manuals and user guides at all-guidesbox.com

004

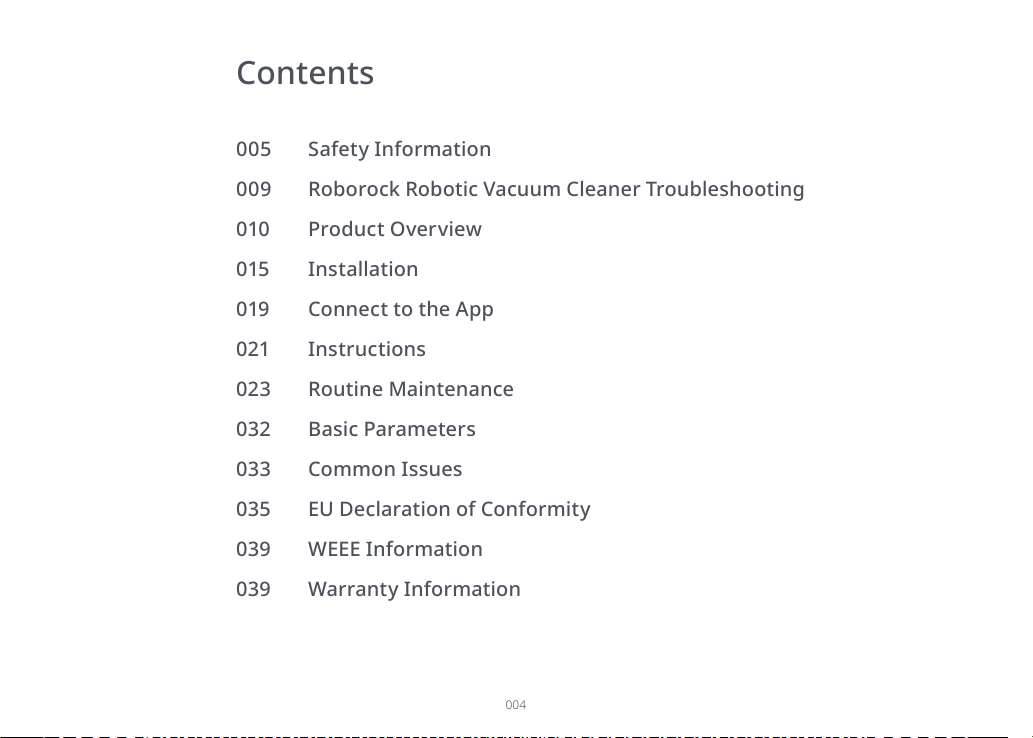

Contents
005 Safety Information
009 Roborock Robotic Vacuum Cleaner Troubleshooting
010 Product Overview
015 Installation
019 Connect to the App
021 Instructions
023 Routine Maintenance
032 Basic Parameters
033 Common Issues
035 EU Declaration of Conformity
039 WEEE Information
039 Warranty Information
All manuals and user guides at all-guidesbox.com

005
Restrictions
•This product is designed for indoor oor cleaning only, do not use it outdoors
(such as on an open-ended terrace), on any surface other than the ground (such
as a sofa), or in any commercial or industrial environment.
•Do not use this product on elevated surfaces without barriers such as the oor
of a loft, an open-ended terrace, or on top of furniture.
•Do not use the product when the ambient temperature is higher than
40°C (104°F), lower than 4°C (39°F).
•Before using the product, move wires o the ground or place them to the side to
prevent them being pulled on by the cleaner.
•To prevent blocking the product and to avoid damage to valuables, remove light-
weight items (such as plastic bags) and fragile objects (such as vases) from the
oor before cleaning.
•Children should be supervised to ensure that they do not play with the appliance.
•This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
product by a person responsible for their safety (CB).
Safety Information
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

006
Safety Information

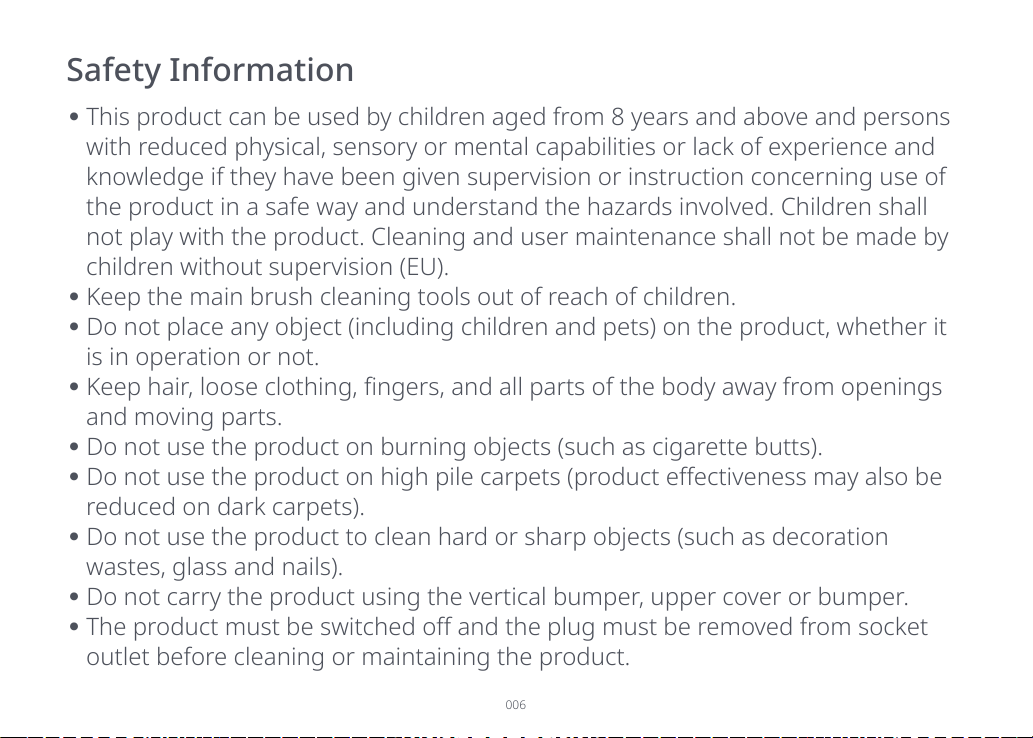

•This product can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the product in a safe way and understand the hazards involved. Children shall
not play with the product. Cleaning and user maintenance shall not be made by
children without supervision (EU).
•Keep the main brush cleaning tools out of reach of children.
•Do not place any object (including children and pets) on the product, whether it
is in operation or not.
•Keep hair, loose clothing, ngers, and all parts of the body away from openings
and moving parts.
•Do not use the product on burning objects (such as cigarette butts).
•Do not use the product on high pile carpets (product eectiveness may also be
reduced on dark carpets).
•Do not use the product to clean hard or sharp objects (such as decoration
wastes, glass and nails).
•Do not carry the product using the vertical bumper, upper cover or bumper.
•The product must be switched o and the plug must be removed from socket
outlet before cleaning or maintaining the product.
All manuals and user guides at all-guidesbox.com

007
•Do not charge non-rechargeable batteries.
•For the purposes of recharging the battery, only use the detachable supply
unit roborock CDZ11RR, CDZ12RR, AED01HRR or AED02HRR provided with this
product.
•Do not dismantle, repair or modify the battery or charging dock.
•Keep the charging dock away from heat (such as radiators).
•Do not wipe the charging contacts with wet cloth or wet hands.
•If the power cord is damaged, stop using it immediately. It must be replaced by
the manufacturer, its service agent, or similarly qualied persons to avoid a hazard.
•Make sure the product is powered o before shipment.
Safety Information

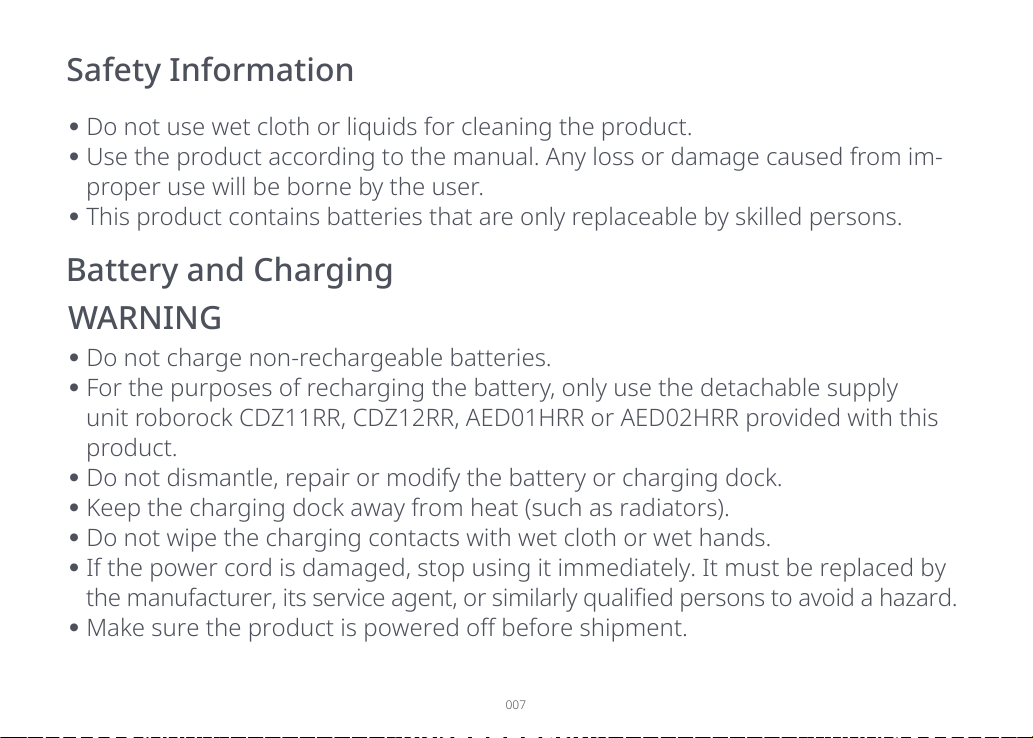

Battery and Charging
WARNING
•Do not use wet cloth or liquids for cleaning the product.
•Use the product according to the manual. Any loss or damage caused from im-
proper use will be borne by the user.
•This product contains batteries that are only replaceable by skilled persons.
All manuals and user guides at all-guidesbox.com

008
•Use of the original packaging is advised.
•If placing the robot into storage, charge it fully and turn it o before placing it in
a cool dry place. Recharge it at least every three months to prevent the battery
over discharging.
•To satisfy RF exposure requirements, a separation distance of 20 cm or more
should be maintained between this device and persons during device operation.
To ensure compliance, operations at closer than this distance is not recommended.
•The antenna used for this transmitter must not be co-located in conjunction with
any other antenna or transmitter.
Safety Information
All manuals and user guides at all-guidesbox.com

009

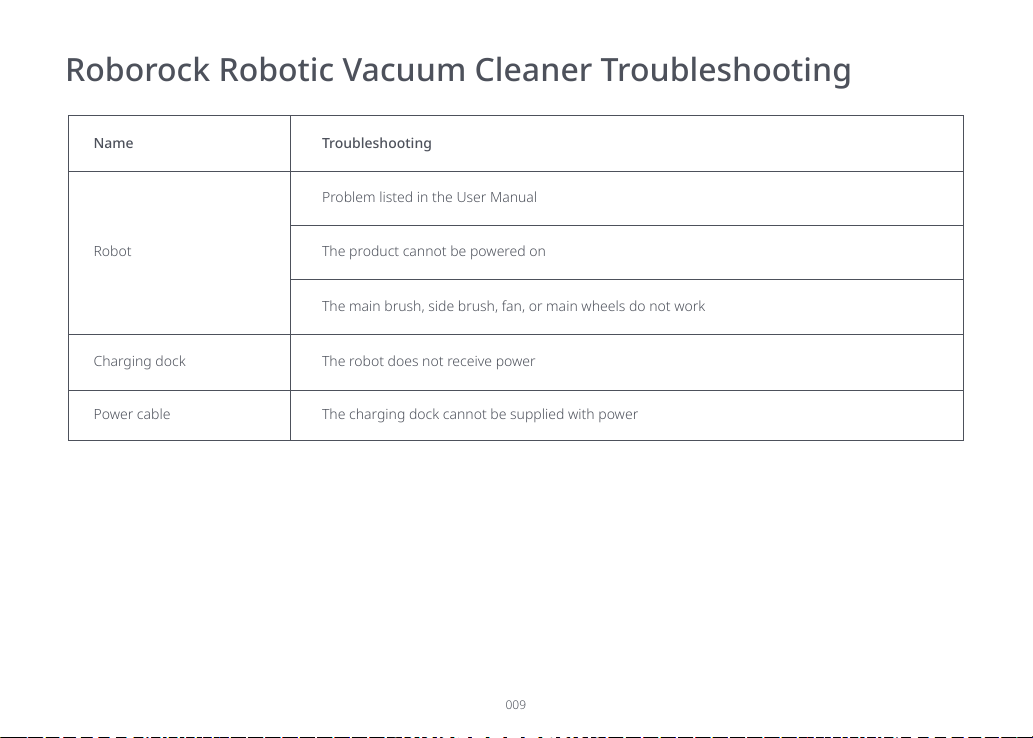

Roborock Robotic Vacuum Cleaner Troubleshooting
Name Troubleshooting
Robot
Problem listed in the User Manual
Charging dock
The product cannot be powered on
The main brush, side brush, fan, or main wheels do not work
Power cable
The robot does not receive power
The charging dock cannot be supplied with power
All manuals and user guides at all-guidesbox.com

010
Robot
Clean/Power
•Press to clean
•Press and hold to
turn on/o
Power Indicator
Dock
•Press to return to the dock
Note: Press any button to pause the robot when cleaning or returning to
the dock.
Spot Clean/Child Lock
•Press to Spot clean
•Press and hold for 3 seconds
to turn the child lock on/o
•White: Vacuuming
•Blue: Vacuuming and mopping
•Orange: Alert
•Green: Docking/Recharging
Status Indicator Light
Product Overview
•White: Battery level ≥ 20%
•Red: Battery level < 20%
•Breathing: Charging or
starting up
•Flashing red quickly: Error
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

011
Parts List
Product Overview
Auto-Empty Dock
VibraRise Mop Cloth Mount
VibraRise Mop Cloth
Power Cable
MAX
All manuals and user guides at all-guidesbox.com

012
Robot
System Reset
Air Vent
VibraRise Mop
Cloth Mount
Water Tank
WiFi Indicator
Air inlet
Product Overview
Dustbin
Filter Cover
Filter Cover Latch
Air Inlet
Washable Filter
All manuals and user guides at all-guidesbox.com

013
Robot and Sensors
Dock Locator
Bumper
LiDAR Sensor
Vertical
Bumper
Water Tank
Latch
Cli Sensors
Omni-Directional
Wheel
Wall Sensor
Charging Contacts
Carpet Sensor
Side Brush
Main Wheel
Main Brush
Main Brush
Cover Latch
Product Overview
All manuals and user guides at all-guidesbox.com

014
VibraRise Module
Water Tank Stopper
Water Filter
Electric Water Tank
Water Tank Latch
Mop Cloth Attachment Slot
VibraRise Mop Cloth Mount
VibraRise Mop Cloth
Attachment Area
Mop Cloth Mount Latch
Vibration Module
Product Overview
All manuals and user guides at all-guidesbox.com

015
Important
Tidy cables and loose items from the ground and move any
unstable, fragile, precious, or dangerous objects to prevent
personal injury or property damage due to things becoming
tangled in, struck by, or knocked over by the robot.
1. If using this robot in a raised area, always use a secure physical
barrier to prevent accidental falls that may result in personal
injury or property damage.
2.
Note: When using the robot for the rst time, follow it throughout its whole cleaning route and watch for major obstacles. The robot will be able to clean by itself in future uses.
Installation
All manuals and user guides at all-guidesbox.com
all-guidesbox.com

016
Mopping the oor
Note: To prevent excessive buildup of dirt on the mop, oors should be vacuumed at
least three times before the rst mopping cycle.
1. Remove the water tank
2. Fill the water tank
Release the water tank latch and slide the tank backward.
Open the water tank, ll it with water, and close it tightly.
Note:
•Fill with water only. Cleaning uids and/or disinfectants may corrode the water tank.
•Use cold/room temperature water only. Hot water may cause water tank deformation.
3
Power on and charge the robot
For details on how to use the dock,
please refer to Roborock Auto-Empty
Dock User Manual.
Press and hold the button to power on the robot. When
the power light goes on, place it on the dock to charge. To
maintain the performance of the high-performance lithium-ion
rechargeable battery pack, keep the robot charged.
Note: The robot may not turn on when the battery is low. In this case, place the robot
directly onto the dock to charge.
2
1
The power indicator color
indicates the battery level:
•White: Battery level ≥ 20%
•Red: Battery level < 20%
Installation
All manuals and user guides at all-guidesbox.com

017
3. Reinstall the water tank
Slide the water tank along the grooves until you hear it click in
place.
4. Install the VibraRise mop cloth
Wet the VibraRise mop cloth and squeeze to remove excess wa-
ter. Slide it along the attachment slot and stick it rmly in place.
Installation
Note: Only use the ocial VibraRise mop cloth with this product.
5. Install the VibraRise mop cloth mount
Slide the VibraRise mop cloth mount along the bottom of the
water tank until you hear it click in place.
Note: Clean the VibraRise mop cloth after 60 minutes of mopping to maintain water ow
and cleaning quality.
Click
Click
Click
All manuals and user guides at all-guidesbox.com

018

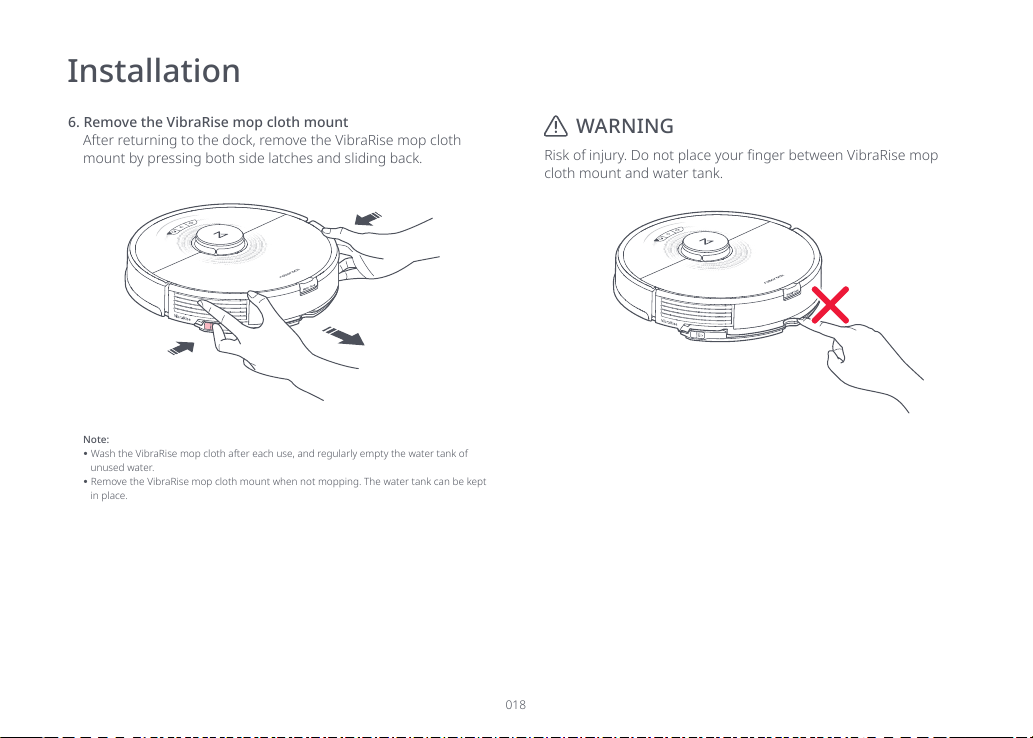

6. Remove the VibraRise mop cloth mount
After returning to the dock, remove the VibraRise mop cloth
mount by pressing both side latches and sliding back.
Note:
•Wash the VibraRise mop cloth after each use, and regularly empty the water tank of
unused water.
•Remove the VibraRise mop cloth mount when not mopping. The water tank can be kept
in place.
Installation
Risk of injury. Do not place your nger between VibraRise mop
cloth mount and water tank.
WARNING
All manuals and user guides at all-guidesbox.com

019

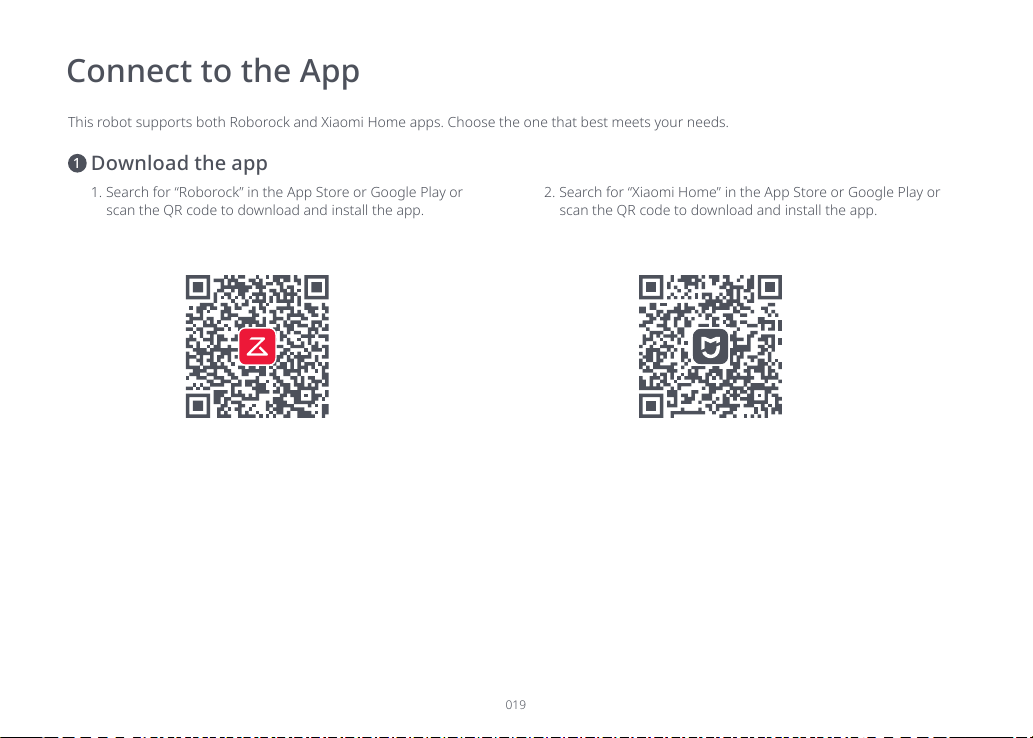

This robot supports both Roborock and Xiaomi Home apps. Choose the one that best meets your needs.
1. Search for “Roborock” in the App Store or Google Play or
scan the QR code to download and install the app.
2. Search for “Xiaomi Home” in the App Store or Google Play or
scan the QR code to download and install the app.
Connect to the App
Download the app
1
All manuals and user guides at all-guidesbox.com
