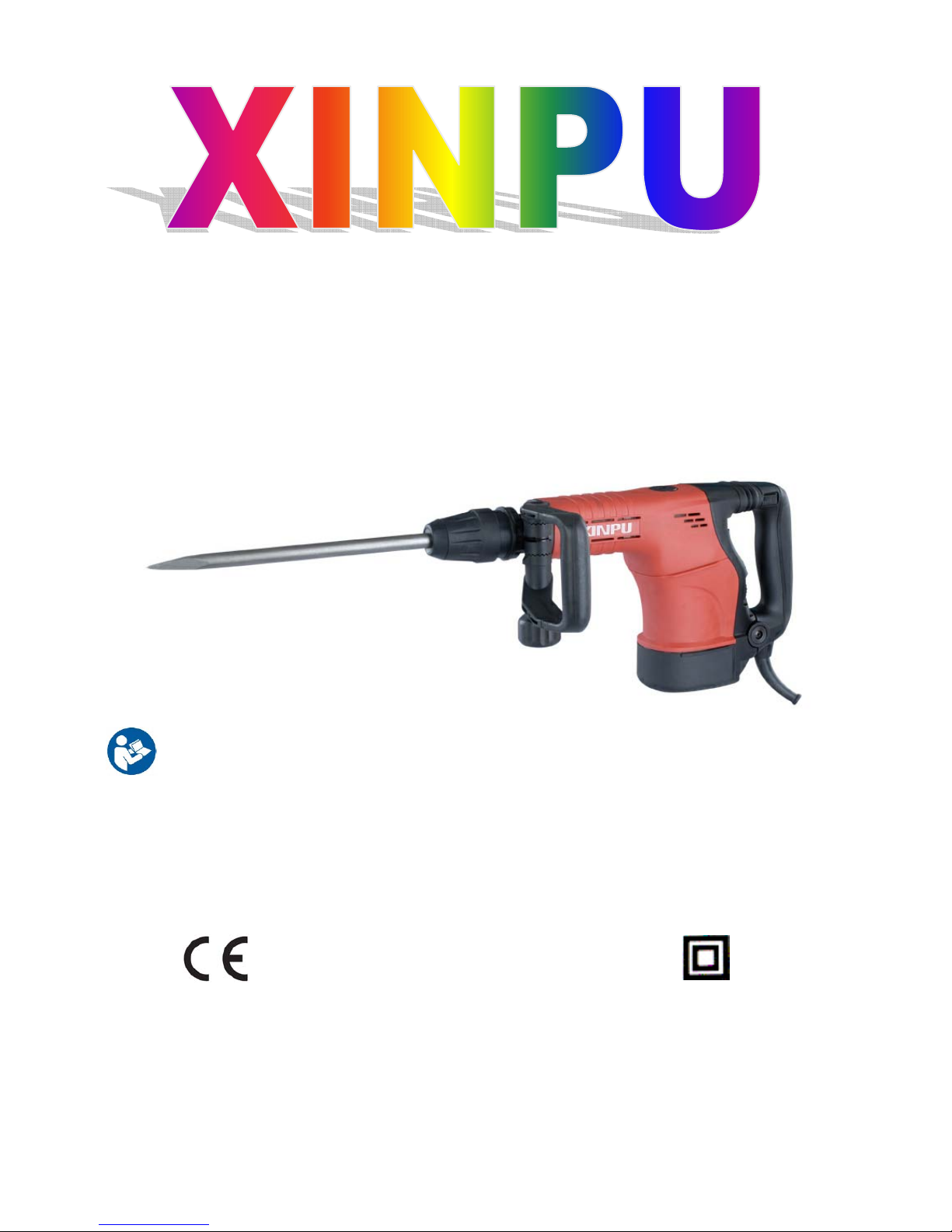

Xinpu XP-G50VB User manual

Demolition Hammer
Model:XP-G50VB
HANDLING INSTRUCTIONS
Original Instructions
Before using this demolition hammer, please carefully read though these HANDLING
INSTRUCTIONS. Ensure that you know how the machine works, and how it should be operated.
Maintain the machine inaccordance with the instructions, and make certain that the machine
work correctly, please store this instriation and other enclosed documents with the machine
together.
BJ2013
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

list:
General Power Tool Safety Warnings
Special Warning for Electric hammer
Safety instructions
Applications
Technical Data
Accessories
Name of the parts
Prior to operation
Assembly
Operation
Lubrication
Maintenance and Service
Warranty
Environment
General Power Tool Safety Warnings
WARNING：
Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery
operated (cordless) power tool.
1) Work area
a) Keep work area clean and well lit. Cluttered and dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tools in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal
injuries.
c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying
power tools with your finger on the switch or plugging in power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of these devices can reduce dust related ha2ards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b) Do not(use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tools operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control;
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions and in
the manner intended for the particular type of power tool, taking into account the working
conditions and the work to be performed. Use of the power tool for operations different from
intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement

parts. This will ensure that the safety of the power tool is maintained.
Special Warning for Electric hammer
• Wear ear protection. Exposure to noise can cause hearing loss.
• Use auxiliary handle with the tool. Loss of control can cause personal injury.
• Hold Power tool by insulated gripping surfaces, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a
“live” wire may make exposed metal parts of the power tool “live” and could give the operator an
electric shock.
• Wear a dust mask.
•When working with the power tool, always hold it firmly with both hands and provide foe a
secure stance. The power tool is guided more secure with both hands.
• Do not use the power tool with a damaged cord. Do not touch the damaged cord and pill the
plug from the outlet when the cord is damaged while working. Damaged cords increase the risk of
an electric shock.
• Before beginning work, check the working area (e.g. with a metal detector) to ensure that no
concealed electric cables or gas and water pipes are present. Contact with electric lines can lead to
fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes
property damage or may cause an electric shock.
• In case of damages the replacement of the plug or the supply cord shall always be carried out by the
manufacturer of the tool or his service organization
Residual risks
Even when the power tool is used as prescribed it is not possible to eliminate all residual risk factors.
The following hazards may arise in connection with the power tool’s construction and design:
a) Injuries and damage to property to due to broken accessories that are suddenly dashed.
b) Health defects resulting from vibration emission if the power tool is being used over longer period of
time or not adequately managed and properly maintained.
c) Lung damage if don’t use dusk mask.
d) Hearing damage if don’t use ear protection.
Warning! This power tool produces an electromagnetic field during operation. This field may under
some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal
injury, we recommend persons with medical implants to consult their physician and the medical implant
manufacturer before operating this power tool.

In this operator's manual/or machine’s labels following symbols are used:
Accordance with essential applicable safety of European directives
Double insulation
Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the
instruction in this manual.
Indicate electrical shock hazard.
Immediately unplug the plug from the main electricity in the case that the cord gets damage
and during maintenance.
Wear ear and eye protection.
Read all safety warnings and all instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Waste electrical products should not be disposed of with house hold waste, Please recycle where
facilities exist. Check with your local Authority or retailer for recycling advice.
2. Safet
y
instructions

Applications
The power tool is intended for chiseling work in concrete, brick, masonry and asphalt as well as for
driving in and compacting, when using the respective accessories.
Technical Data
Demolition Hammer XP-G50VB
Rated Voltage 220-240V~
Frequency 50Hz
Rated input 1200W
Impact frequency 2700～3700 min-1
Weight (without cord) 6.3kg
Protection class 回
The values given are valid for nominal voltages [U] of 220-240V. For lower voltages and models for
specific countries, these values can vary.

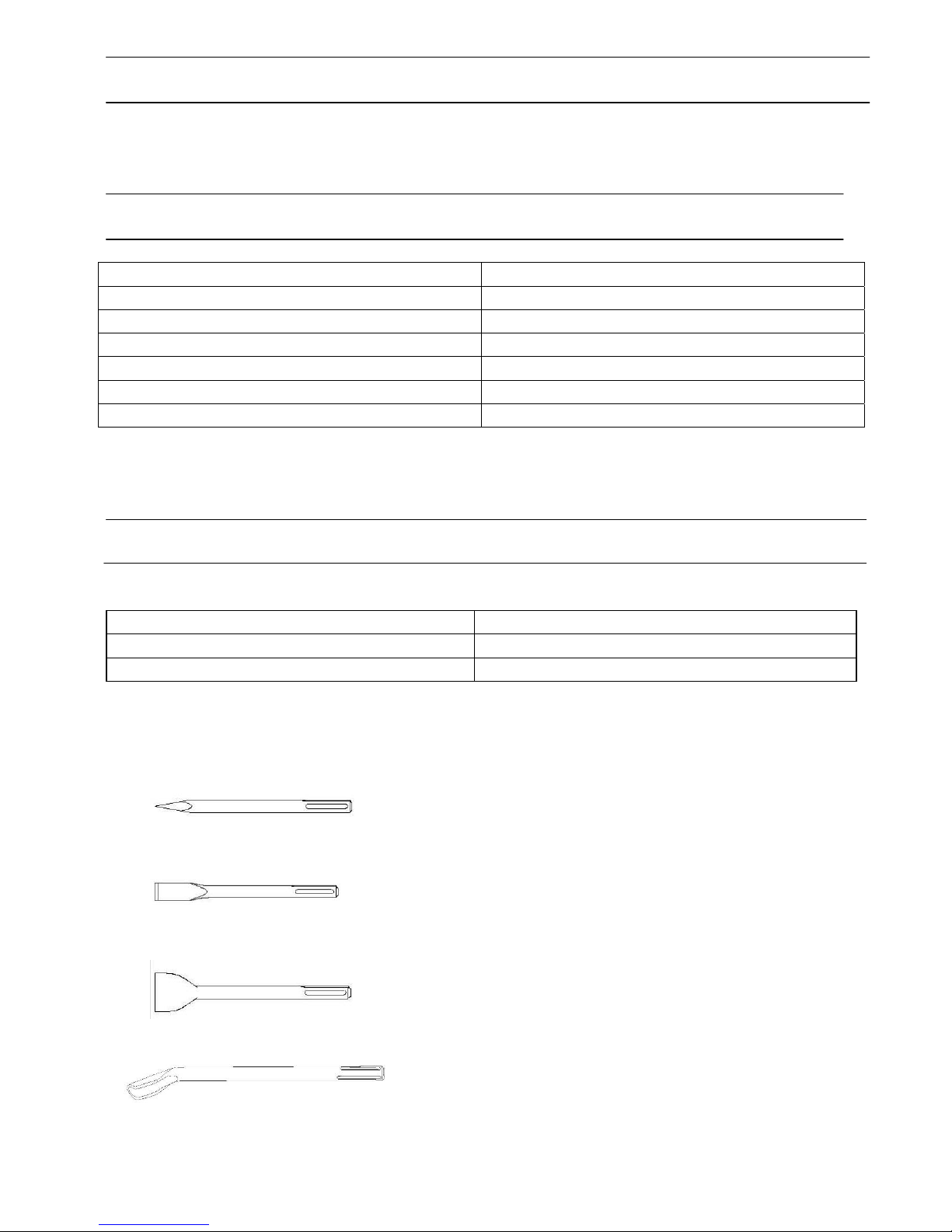

Accessories
Standard accessories
One bottle of grease 30g
Bull point chisel (18×350mm) 1 piece
Carbon brush (7×17×26mm) 1 couple
OPTIONALACCESSORIES (sold separately)
1. Tine Chisel: 18*400mm (SDS max )
2. Flat Chisel : 18*400mm (SDS max )
3. Big Flat Chisel : 18*400mm (SDS max )
4. Goose Chisel :18*400mm (SDS max )

5. Surface Roughing (Hammering)
(1)BushingTool (2)Shank
6. Tamping (Hammering)
(1) Rammer (2) Shank (150 x 150 mm)
Optional accessories are subject to change without notice.
Name of the parts
1. Hammer rod protector
2. Protective lining
3. Movelimitedring
4. Oil tank cover
5. Shock Absorption system
6. Switch
7. Speed Adjuster Function Knob
8. Indicator
9. Fan cover
10. Side Handle
11. Function Knob
Prior to operation
1. Power source
Ensure that the power source to be utilized conforms to the power requirements which specified on the
name plate of the hammer.
2. Extension cord
When the work area is removed from the power source, use an extension cord of sufficient thickness and
rated capacity. The extension cord should be kept as short as practicable.
Assembly
Side Handle(with soft synthetic rubber padding)
Operate your power tool only with the Side Handle 10.
The Side Handle 10 can be set to any position(360°circumrotate) for a secure and low-fatigue working
posture.
Loosen the Function Knob 11, rotate the Side Handle 10 around the axis of the power tool to the required
position and tighten the Function Knob 11 again.

Changing the tool
Before any work on the power tool itself, pull the mains plug.
With the SDS-max tool holder. Simpler and easier tool changing is possible without additional aids.
The Hammer rod protector1largely prevents the entry of drilling dust into the tool holder during operation.
When inserting the tool, take care that the Hammer rod protector 1 is not damaged.
A damaged Hammer rod protector1should be changed immediately. We recommend having this carried
out by an after-sales service.
Inserting (see figure A)
Clean and lightly grease the shank end
of the tool.
Insert the tool in a twisting manner into
the tool holder until it latches itself.
Check the latching by pilling the tool.
Removing (see figure B)
Push back the Protective lining 2and remove
the tool.
CAUTION: The insert tool may become hot during
Use. There is a risk of burning the hands. Wear
Protective gloves when changing insert tools.
Operation
Observe correct mains voltage! The voltage of the power source must agree with the voltage specified
on the type plate of the power tool.
Switchaction
To start the power tool, press the switch.
To stop the power tool, pull the switch fully then release it.
NOTE：
Power tools have the function of preventing start after unexpected
power-off，Into power when the switch is in the “on”state or the
power supply break off，the power tools must re-enable the startup
switch .
If the function failure，please go to the customer service for repair that is commissioned by our Company,
Repairs to the electrical section of the tool may be carried out only by trained electrical specialists.

Sometimes the power tool does not begin the striking the stroke even the motor keep running, because oil
inside become thick. If the power tool is used at a low temperature, or it is used after a long idle time, this
demolition hammer should be kept running for above 5 minutes to warm up.
Changing the Chiselling Position (Vario-lock)
The chisel can be locked in 12 positions. In this manner, the optimum working position can be set for each
application.
Insert the chisel into the tool holder.
Push the Move limited ring 3forward and turn the chisel to the required position with the Move limited
ring 3.
Release the Move limited ring 3and turn the chisel until it latches.
Shock absorption Equipment 5
The XP-G50VB is equipped with an active vibration reduction system, which cuts vibration of that of the
without Active Vibration Reduction. This may significantly reduce the exposure level over the total
working period. protect the operator form the effects of vibration.
Setting the Impact Rate
The electronic control enables stepless speed preselection in accordance with the material to be worked.
The constant electronic control keeps the preselected impact rate nearly constant between no-load and
load conditions.
Select the impact rate with the Speed Adjuster Function Knob 7 according to the material.
LUBRICATION
This machine is of full air-tight construction to protect against dust and to prevent lubricant leakage.
Therefore, the machine can be used without lubrication for long periods. Replace the grease as described
below.
1. Grease replacement
Ask for grease replacement at the nearest XINPU Authorized Service Center. Proceed for replacement
of grease.
2. Grease replenishment
CAUTION:
Before replenishing the grease, turn the power off and pull out the power plug.
(1) Remove the oil tank cover 4 and wipe off the grease inside.
(2) Supply 30g of XINPU Grease (Standard accessory, contained in tube) to the crank case.
(3) After replenishing the grease, install the oil tank cover 4securely.
NOTE:
The XINPU Grease is of the low viscosity type. If necessary purchase from an XINPU
Authorized Service Center.

Maintenance and check
Before any work on the power tool itself, pull the mains plug.
For safe and proper working, always keep the power tool and the ventilation slots clean.
1. Inspecting the drill bits
Use a dull accessory, such as bull point, cutter, etc., will cause motor malfunction and
efficiency degraded. Replace with a new one when your accessory is abased.
2. Check all external parts of the tool for damage at regular intervals. Do not operate the tool if parts are
damaged. If necessary, your power tool should be repaired at a xinpu authorized service center .
3. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Any loose
should be tighten immediately, failure to do maybe cause serious hazard.
4. Inspecting the carbon brush
The motor employs carbon brushes which are consumable parts. When they become worn to
or near “wear limit”, it could result in motor trouble. When an auto-stop carbon brush is equipped,
the motor will stop automatically. At that time, replace both carbon brushes with new ones which
have the same carbon brush.
In addition, always keep carbon brushes clean and ensure that they slide freely within the
brush holders.
5. Replacing carbon brushes
1. Loosen the four set screws and remove the tail fan cover 9.
2. Remove the brush caps and carbon brushes.
3. After replacing the carbon brushes, tighten the brush caps securely and install the tail fan cover
with securely tightening four set screws.
6. Indicator 8
The power tool is equipped with a service indicator and power supply indicator.
When plug the supply cord into the power outlet. The indicator lamp lights green. If a fault in the
electric supply is detected, without the indicator lighting.
When the carbon brushes are worn out, the power tool switches itself off. The indicator lamp
lights red.
Warranty
For the condition of warranty, please refer to the separately provided warranty card.
Environment
Faulty and /or discarded electrical or electronic apparatus have to be collected at the appropriate
recycling location.
NOTE:
Repair, modification and inspection of Xinpu Power Tools must be carried out by a Xinpu Authorized
Service Center.

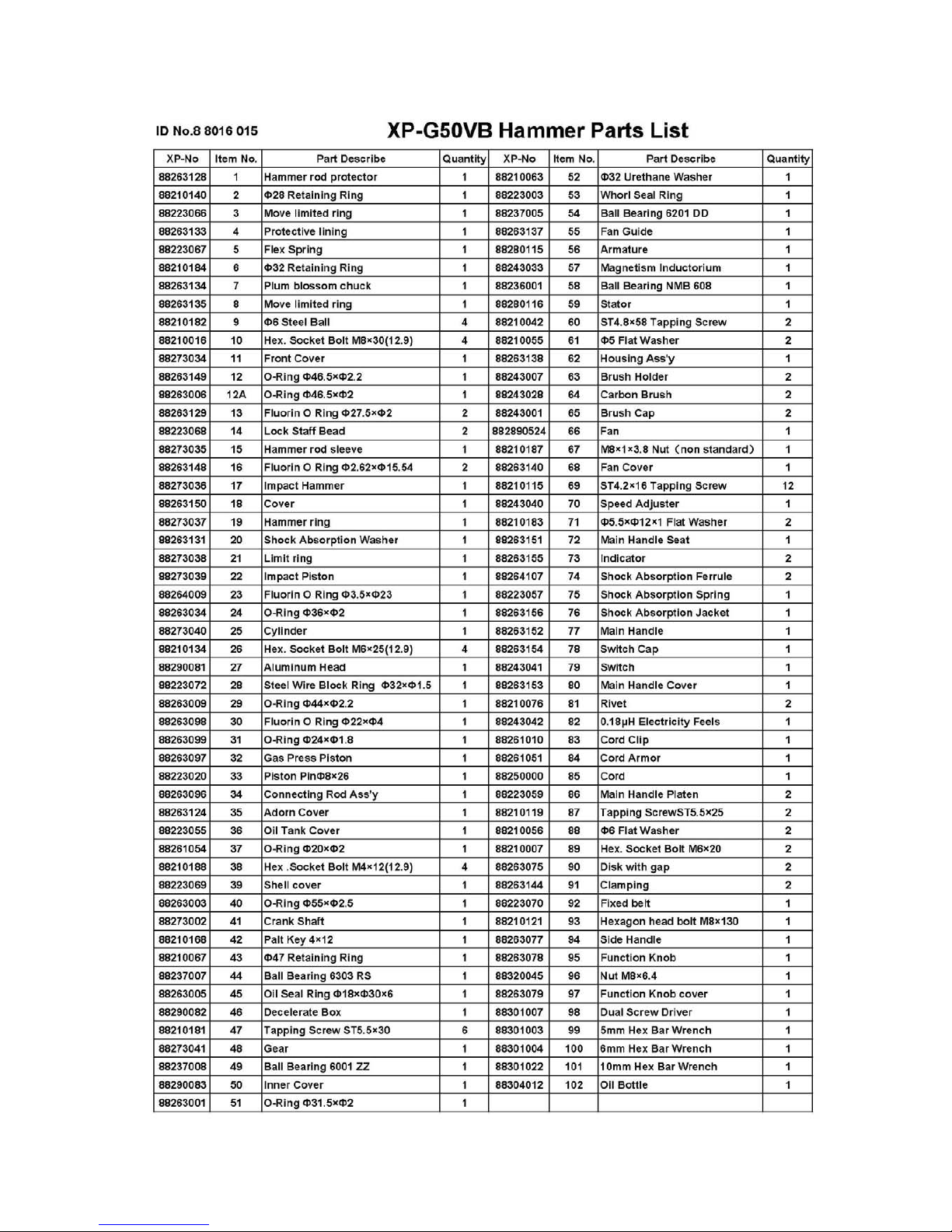

This Parts List will be helpful it presented with the tool to the Xinpu Authorized Serivde Center when
requesting repair or other maintenance.
In the operation and maintenance of power tools, the safety regulations and standards prescribed in each

country must be observed.
MODIFICATIONS
Xinpu Power Tools are constantly being improved and modified to incorporate the latest technological
advancements.
Accordingly, some parts may be changed without prior notice.
NOTE:
Due to XINPU’S continuing program of research and development, the specifications herein are subject to
change without prior notice.
