Xinpu XP-G80BD User manual

Demolition Hammer
Model:XP-G80BD
HANDLING INSTRUCTIONS
Before using this XINPU demolition hammer, please carefully read though these
HANDLING INSTRUCTIONS. Ensure that you know how the machine works, and how it should
be operated. Maintain the machine inaccordance with the instructions, and make certain that the
machine work correctly, please store this instriation and other enclosed documents with the
machine togeth
Bj:2014
Zhejiang Xinpu Industrial & Commercial Co., Ltd.
106, No. 330 National Road, Huajie Industrial Zone, Yongkang City, Zhejiang 321300, P. R. China

2
Application
This hammer should be applied to breaking concrete, chipping off concrete, grooving, bar cutting,
and driving piles in installation of piping and wiring, unitary facility installation, machinery installation
water supply, and drainage work, interior jobs, harbor facilities and other civil engineering work etc..
Contents
1. Machine information
2. Safety instruction
3. Assembly
4. Operation
5. Maintenance
6. Warranty
7. Environment
Technical specifications
Machine Type XP-G80BD
Voltage AC 22-240V
Frequency 60Hz
Input power 1700W
Impact rate 1500/min
Weight(w/o cord) 19.3kg
Impact energy 55J
Standard accessories
Hexagon bar wrench 6mm(for M8) 1 piece
Hexagon bar wrench 5mm(for M6) 1 piece
Hexagon bar wrench 4mm(for M5) 1 piece
Amphibious screwdriver 1 piece
One bottle of grease 60g
Bull point chisel(28*410mm) 1 piece
flat chisel(28*410mm) 1 piece
Carbon brush 1 couple
1. Machine information

3

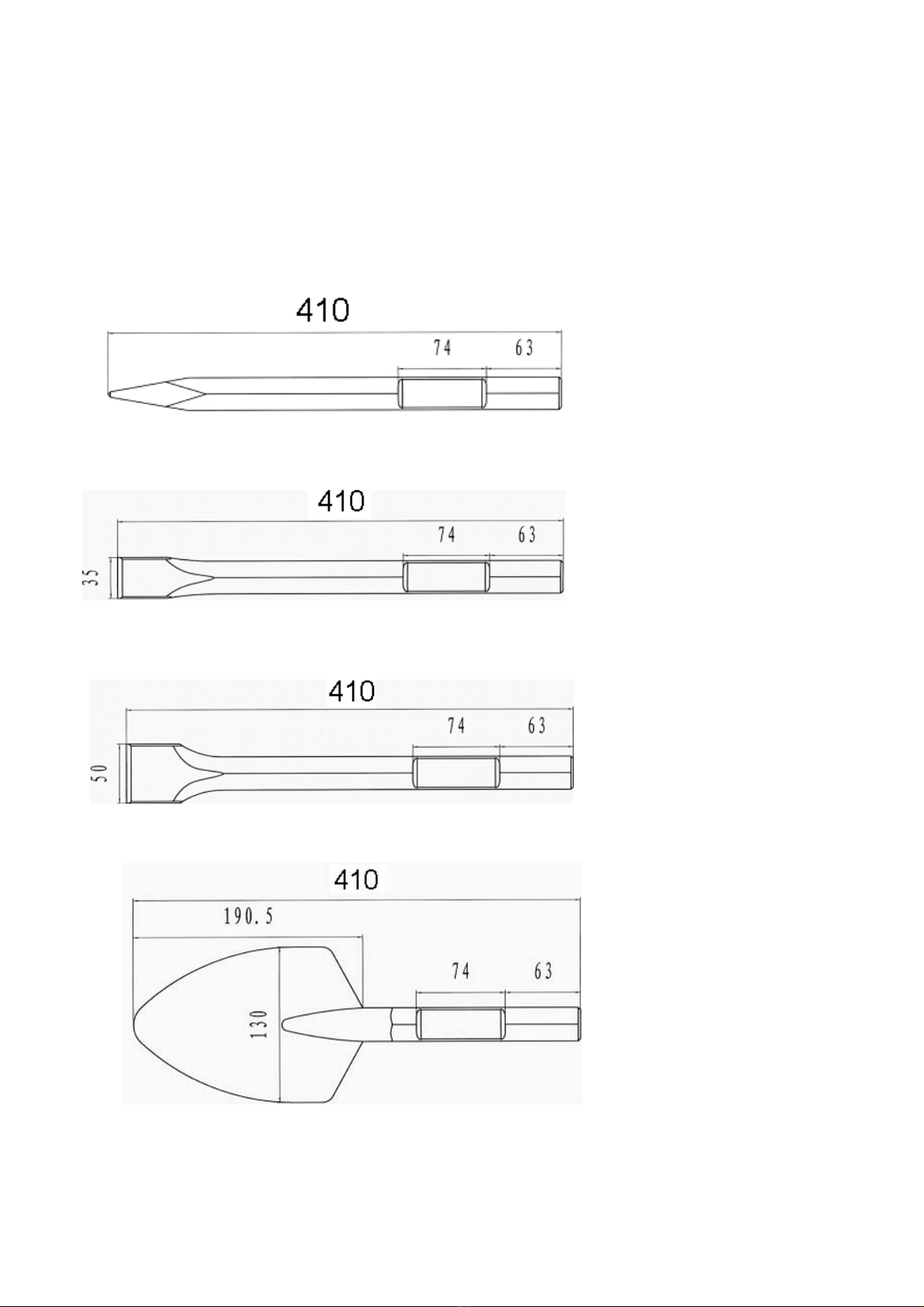

Optional accessories (sold separately）
Notice: Optional accessories (sold separately) are recommended only for XINPU tool for specified
purpose in manual, any other brand accessories or attachments used may present risk of injury.
1. Bull point Hexagon size28*410 length (Unit: mm)
2. Flat chisel Hexagon size28*410 length (Unit: mm)
3. Cutter Hexagon size28*410 length (Unit: mm)
4. Scoop Hexagon size28*410 length (Unit: mm)

4
In this operator's manual/or machine’s labels following symbols are used:
Read the manual carefully
Double insulation
Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the
instruction in this manual.
Indicate electrical shock hazard.
Immediately unplug the plug from the main electricity in the case that the cord gets damage
and during maintenance.
Wear ear and eye protection.
Faulty and /or discarded electrical or electronic apparatus have to be collected at
the appropriate recycling location.
V …………………… Volts
A…………………… Amperes
Hz …………………… Hertz
AC/~ …………………… Alternating current
Kg …………………… Kilograms
/min …………………… Revolutions or reciprocation per mintute.
J…………………… Joule
2. Safet
y
instructions

5
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to
losecontrol.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase
the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use a power tool while you are tired or under the influence of drugs, alcohol or

6
medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of
the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with
the power tool or these instructions to operate the power tool. Power tools are dangerous in the
hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts
and any other condition that may affect the power tool's operation. If damaged, have the
power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.

7
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement
parts.This will ensure that the safety of the power tool is maintained.
b) If the replacement of the supply cord is necessary, this has to be done by the manufacturer or
his agent in order to avoid a safety hazard.
Additional Safety Rules for Hammer
1. Wear ear protectors. Exposure to noise can cause hearing loss.
2. Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
3. Hold power tools by insulated gripping surfaces, when performing an operation where the
cutting tool may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire
may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
4. Wear a dust mask.
5. Be sure the bit is secured in place before operation.
6. Under normal operation, the machine is designed to produce vibration, the screws and bolts can come
loose, causing a breakdown and accidents. Check tightness of them carefully before running.
7. In cold weather or a long time tool not be used, please keep the tool running without load a few
minutes to warm up the grease inside, otherwise hammering function is difficult to get.
8. Be sure you stand stably and no one is below when you using tool is in high location.
9. Hold the tool firmly with two hands.
10. Don't touch any moving parts.
11. Don't leave the tool running itself, operate tool only when hand-held.
12. Don't point the tool to anybody for the bit could fly out in case.
13. Don't touch the BIT OR PARTS CLOSE TO THE BIT immediately after operation, they may
extremely hot and could burn your skin.
14. Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized
serve center to check and repair.
15. Parts replace: Only original XINPU's parts can be used to replace by authorized service center.
16. Right use accessories and parts: Don't use other parts and accessories which not mentioned in the
manual otherwise may cause injuries!
17. Special attention to voltage: Before connect the power tool, please make sure the rated voltage on
the tool can match the power supply, otherwise the power tool may be damaged and cause injuries.
18. Don't wipe plastic part with solvent: Solvent such as gasoline, thinner, alcohol etc. these kind of
chemical material, are not allowed to use, water or soap are recommended!
19. In case of damages the replacement of the plug or the supply cord shall always be carried out by the
manufacturer of the tool or his service organization

8

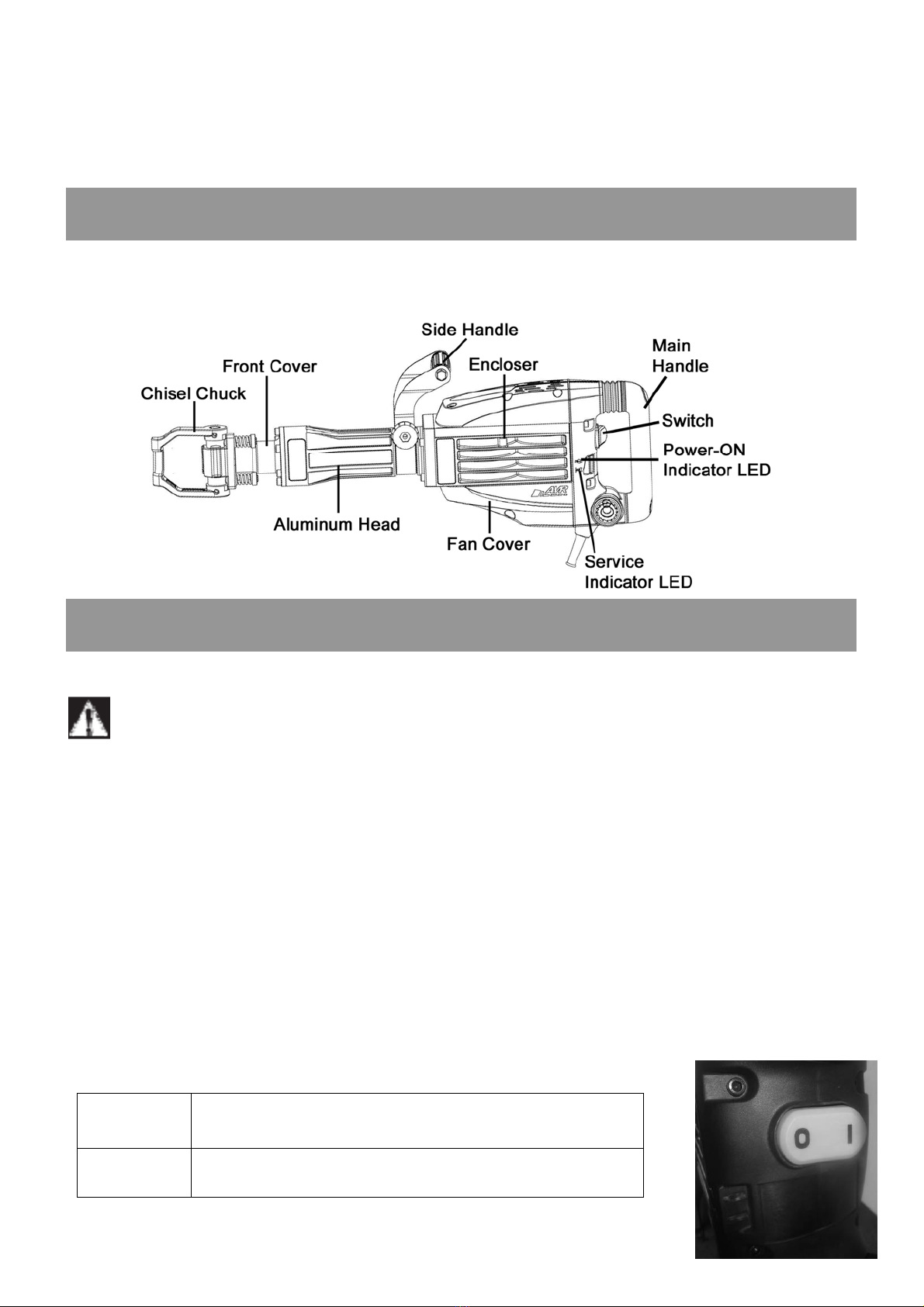

Name of the parts
Prior to operation
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up use of this products.
1. Power source
Ensure that the power source to be utilized conforms to the power requirements which
specified on the name plate of the hammer.
2. Power switch
Ensure that the power switch is in the position of OFF. If the plug is connected to power
receptacle while the power switch is in ON position, the demolition hammer will start operation
immediately, which can cause serious accident!
3. Extension cord
When the work area is removed from the power source, use an extension cord of sufficient
thickness and rated capacity. The extension cord should be kept as short as practicable.
Switch operating
Observe correct mains voltage! The voltage of the power source must agree with the voltage specified
on the type plate of the power tool.
For low temperatures, the power tool reaches the full impact rate only after
Switch ON To start the power tool, Press the switch towards
arrow “I” direction
Switch OFF To switch off the power tool, Press the switch
towards arrow “0” direction.
3. Assembl
y
4. O
p
eration instructions

9
a certain time.
This start-up time can be shortened by striking the chisel in the power tool
against the floor one time.
Indicator LEDS
The green power-ON indicator LED lights up when the tool is plugged. If indicator led does not
light up, the mains cord or the controller may be detective. The red service indicator LED lights
up when the carbon brushes are worn out to indicate that the tool needs servicing.
Mounting tool bits
Warning: before do it, make sure unplug the machine!
Chisels come with or without collars. Figure 1 shows installation of a chisel without a collar (the included
chisel is without a collar). Figure 5 shows installation of a chisel with a collar
Note: If the Chisel doesn't slide in easily, apply grease to the loading end of the Chisel.
1. Pull the lock lever to the side, just far
enough to allow the Clisel to be inserted, as
shown in Figure 1.
Figure 1
Note: Flat Notch on Collar-less Chisel must
face the Lock lever.
2. Insert Chisel with the Flat Notch facing the Lock
Lever, as shown in Figure 2.
Figure 2
3. Slide the Chisel in as far as it will go.
4. Pull the Lock Lever back until it locks the Chisel into
place. See figure 3.
Note: Lock Lever will not lie flat against the chuck.
Figure 3
5. When to Chisel is installed, there will be
approximately 1-3/4'' of play along the Flat Notch of

10
the shank. See Figure 3. Physically check that the
Chisel is secure before operating.
1. Pull the Lock Lever open about 70-80° to
the second engaging position, as shown in
Figure 4.
Figure 4
2. Insert the collared Chisel.
3. Slide the Clisel in as far as it will go.
Figure 5
4. Return the Lock Lever to its original position
to lock the Chisel in place. see figure 6.
figure 6
5. Physically check that the Chisel is secure
before operating. The Chisel will have
approximately 1-3/4'' of play, but should not
come out when pulled.
GREASE AND OIL FILLING
Warning! Pull plug from power before any operations.
Demolition hammer mechanical part is easy to get worn and lose impact energy if
without enough lubrication, recommend filling grease and oil after 6 months usage. The
steps as follows:

11
图1图2图3
图4 图5图6
图7
图8
1. Loosen the four screws and Washers between aluminum head and gear box by 6mm HEX
head wrench.(See Fig1)
2. Disassemble the aluminum head, cylinder and piston.(See Fig2)
3. Clean the inside of aluminum head, must be free of metal chip and granular dust (See Fig3)
4. Clean the piston and cylinder.
a) Clean the cylinder both inside and outside, especially clean the inside of cylinder, must
be free of metal chip and granular dust. If the conditional, recommend washing by
gasoline.
b) Clean the surface of piston. If the conditional, recommend disassembling the O-ring and
washing the piston by gasoline.
c) At the same time, check the wearing condition of O-ring. If the Outside Diameter (O.D.)
of O-ring is less than the piston O.D., please replace the O-ring to get proper

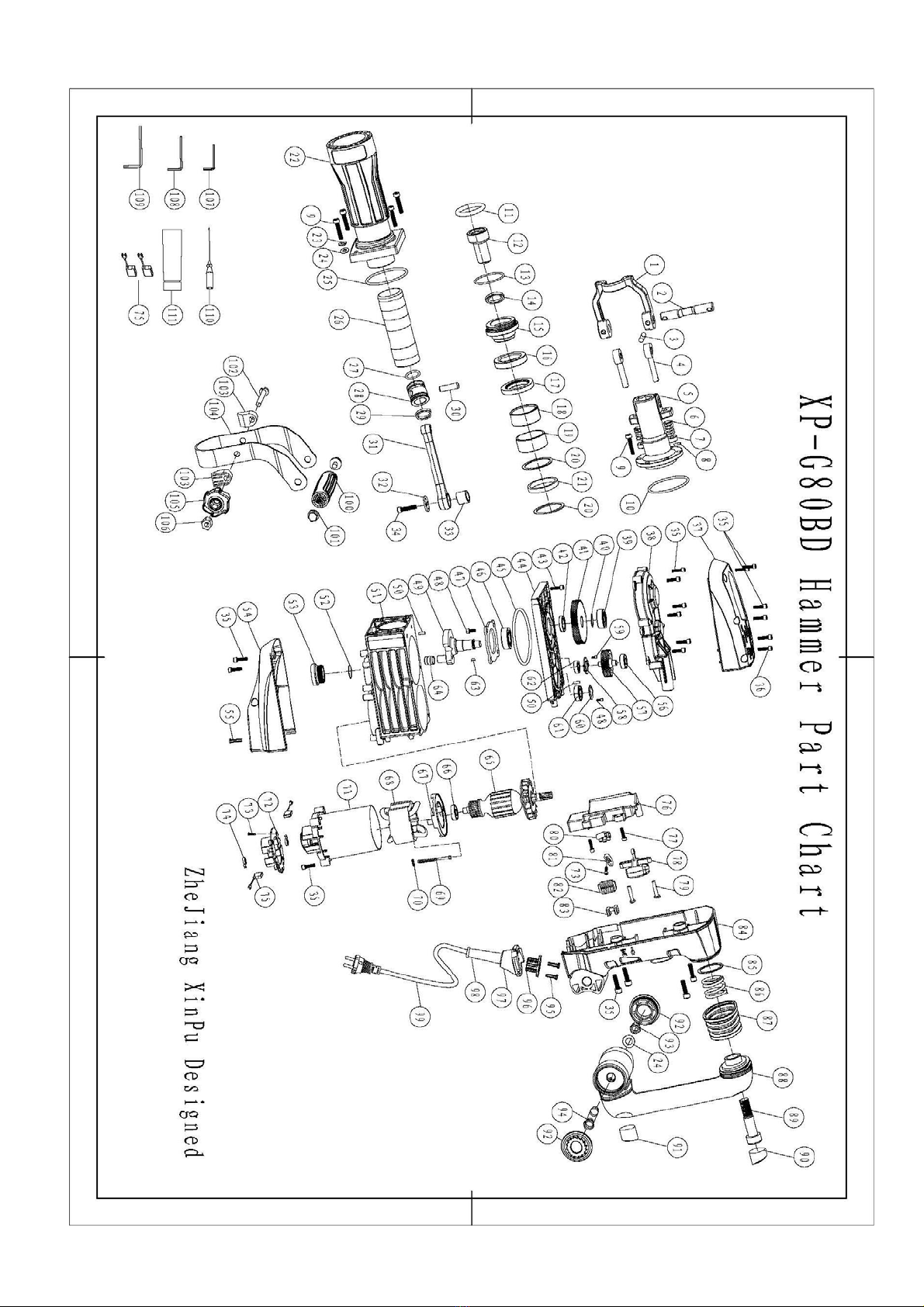

performance.(Please contact with our authorized dealer to purchase, See the part List).
5. Fill the grease into the aluminum head, please make sure cleaned inside before filling.
a) Recommend the grease from manufacturer site, there is a tube of 60g grease included
the case. (Please contact with our authorized dealer to purchase, See the part List).
Fill the 45g
grease into
the aluminum
head bottom
Fill the 5g grease
into the Piston
Fill the 10g
oil into the
cylinder

12
Notice：Please fill the 45g grease into the aluminum head bottom (See Fig 4 and Fig 5)
7. Fill the 10g oil in the cylinder; please make sure it is clean before filling. (See Fig 6)
8. Fill the 5g grease into the piston. please make sure it is clean before filling. (See Fig 7)
9. Assemble back(See Fig 8)
a) Assemble the piston into cylinder, please make sure if the O-ring has been assembled.
b) Assemble the cylinder into aluminum head.
c) Tighten the 4 inner HEX head screws; be careful of no missing spring washer. If tighten
the screws by electrical or pneumatic driver, please check the torque of screw by 6mm
wrench to make sure tightening properly.
d) If the conditional, can put glue on the screw and then screw in(repeat the step above C)
*Suggestion: All above operations to be carried out by our authorized service agent.
Maintenance and inspection
Before do any maintenance, ensure unplug the plug.
1. Inspecting the demolition hammer
Use a dull accessory, such as bull point, cutter, etc., will cause motor malfunction and
efficiency degraded. Replace with a new one when your accessory is abased.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure that they are properly tightened. Any
loose should be tighten immediately, failure to do maybe cause serious hazard.
3. Inspecting the bit retainer
The retainer may become loose due to excessive use. Make sure the bit shank position is
hold securely, if any wear or damage is found, ask the authorized service people to maintenance.
4. Maintenance the motor
The motor is the heart of the machine, please avoid any damage to the winding, or any
water and oil to wet it.
5. Carbon brush replacements
When the carbon brushes are worn out, the power tool switches itself off, and also the red
indicator light of carbon brush will turn on. The power tool must then be sent to an after-sales
service agent.
When you have to replacement the carbon brushes by yourself, please following the order：
(1) Loosen the six set screws and remove the fan cover.
(2) Remove the helical spring and carbon brushes.
(3) After replacing the carbon brushes, install the helical spring and fan cover, with securely
tightening six set screws.
(4) Remark: after carbon brush replacement, please make sure all of the screws are tightened
enough!
6. Cleaning
Clean the machine regularly with a soft cloth, preferably after each use. Solvent such as gasoline,
thinner, alcohol etc.. These kind of chemical materials are not allowed to use, water or soap are
recommended!
7. Warranty
For the condition of warranty, please refer to the separately provided warranty card.
Environment
Faulty and /or discarded electrical or electronic apparatus have to be collected at the
appropriate recycling location.

13

14
