XMark Fitness XM-4417 User manual

Owner’s Manual
8/09
XM-4417
Read all precautions and
instructions in this manual before
using this equipment.
FID BENCH with PREACHER

2
Table of Contents
Important Safety Information 4
Assembly
5-8
Parts List 9
Exploded View 10
Warranty Information 11
3
Before You Begin

3
MODEL: XM-4417
XM-4417
This manual will guide you through the assembly process. If at any time you
are having trouble with the assembly or use of this product, then please contact
When calling please have the following product information available:
Model Name :
Date Mfg.:
Serial #

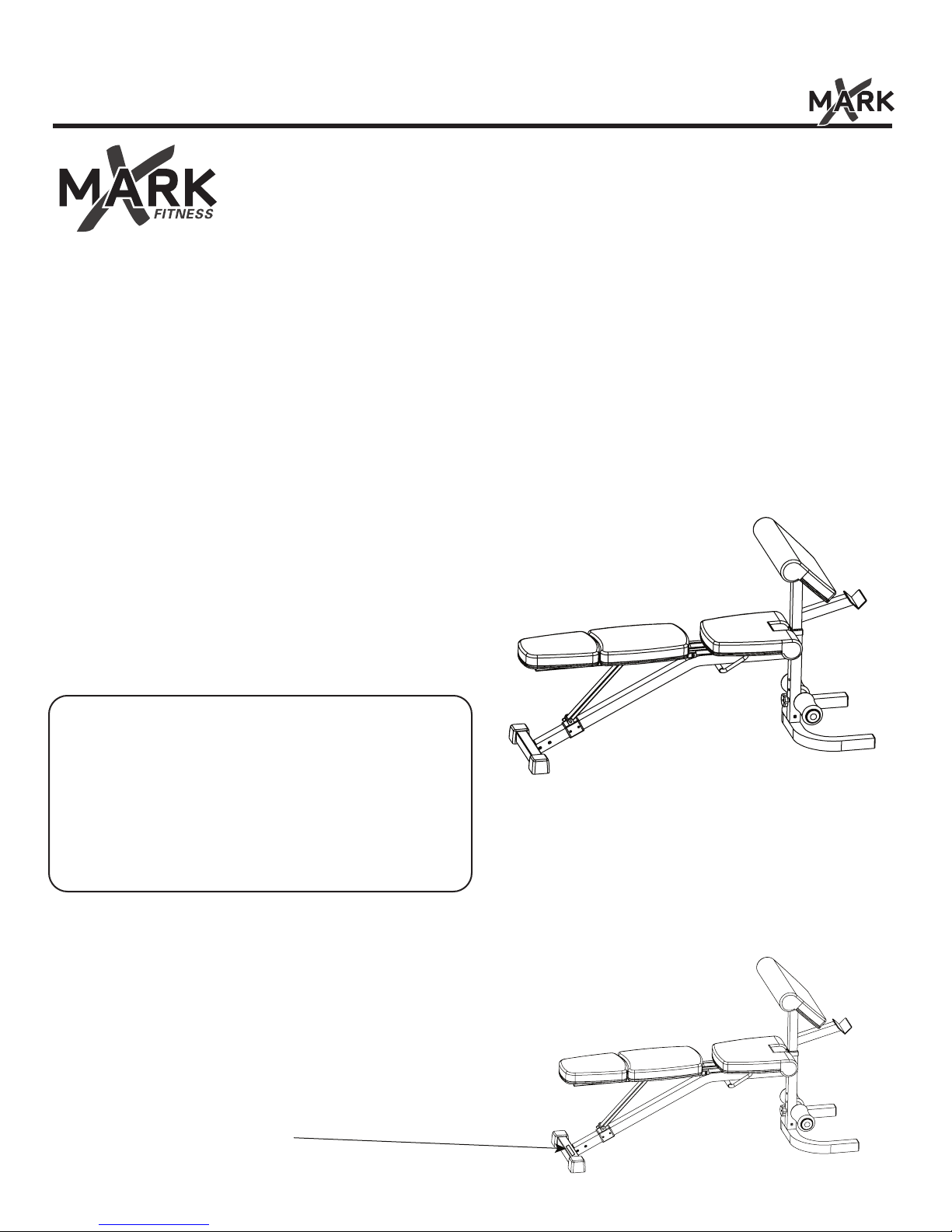

Model Name Decal Location
Before You Start
REGISTRATION CARD
QUESTIONS?
CALL 1-800-719-4605
Monday-Friday
8:30 a.m.-5:00 p.m.
(Central Standard Time)
MAILING ADDRESS
7501 Trammel Drive
Shreveport, LA 71108
THANK YOU for making this unit a part of your exercise
program.
XMARK Fitness assures the very best in value,
appearance, durability and biomechanics.
XMARK FITNESS SERIES
XMARK Fitness
To avoid unnecessary delays in warranty parts and to insure that a permanent
record of your purchase is on file with our company, be sure to send in the war-
ranty registration card or register online at www
.xmarkfitness.com within 10 days
of purchase.
us at our
XMARK Fitness help line. We have trained service technicians on site to
take care of you, our valued customer.

NOTE: Hand tighten bolts and nylon nuts until machine is fully
assembled.
SAFETY PRECAUTIONS
SAFETY INFORMATION WARNING!
Prior to assembly, remove components from the box and verify that all the listed parts
were supplied.
Before using this unit or starting any exercise program, consult your physician.
This is especially important for persons over the age of 35 and/or persons with pre-
existing health problems. XMARK Fitness assumes no responsibility for personal
injury or property damage sustained by or through the use of this product.
It is the owner’s responsibility to ensure that all users of this unit have read the
Owner’s Manual and are familiar with safety information and precautions.
• This unit should only be used on a level surface and is intended for indoor use
only. XMARK Fitness recommends an equipment mat be placed under the unit to
protect the floor or carpet and for easier cleaning.
• Wear comfortable, good-quality walking or running shoes and appropriate cloth-
ing. Do not use this unit with bare feet, sandals, socks or stockings!
• Always examine your unit before using to ensure all parts are in working order.
• Do not leave children unsupervised near or on the unit.
• Service to your unit should only be performed by an authorized service represen-
tative, unless authorized and/or instructed by a XMARK Fitness technician. Failure
to follow these instructions will void the warranty.
Important Safety Information
4

5

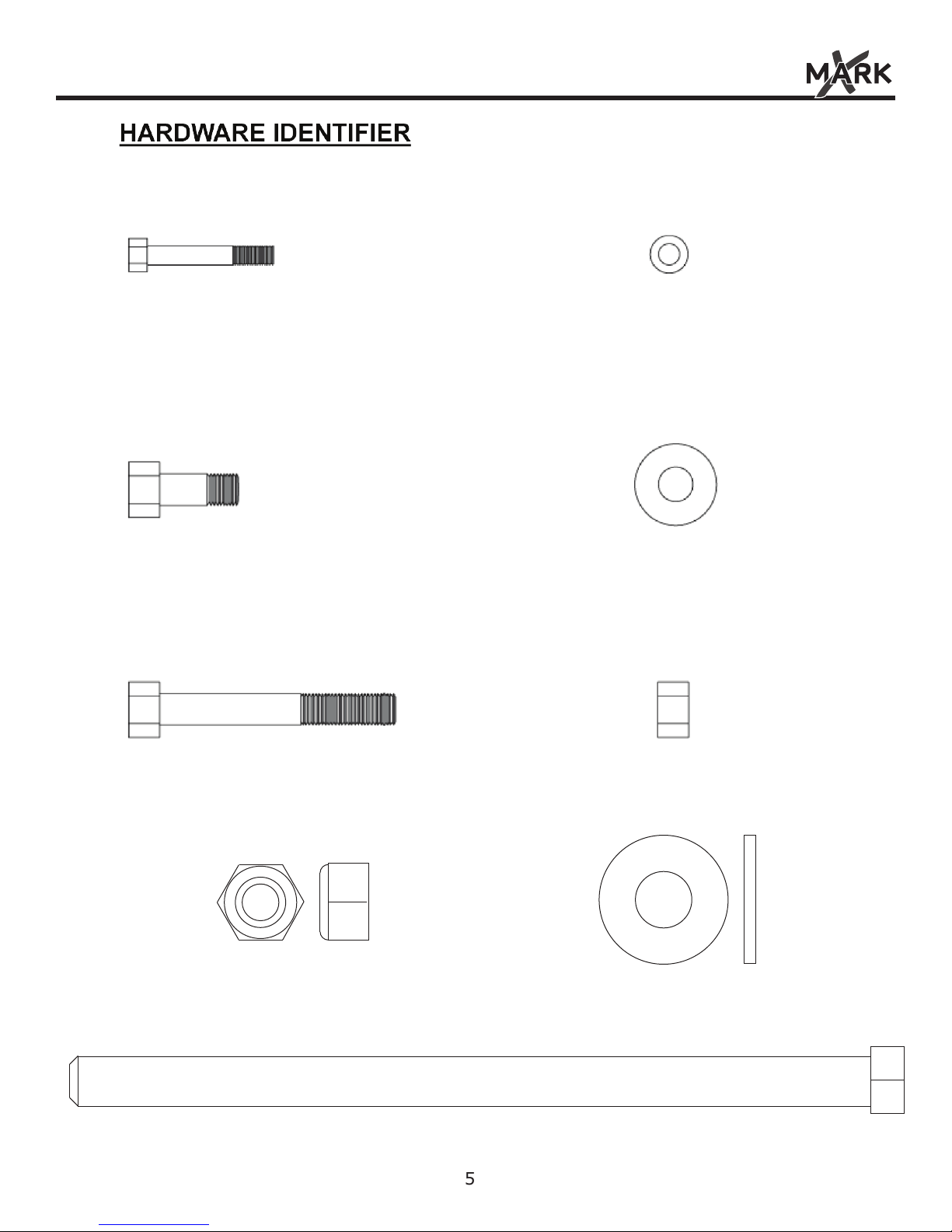

Assembly
M12X180 mm Bolt (31)
Washer M12 (33 )
Locknut,M12 (34)
Washer M6 (27)
Washer M10 (25)
Locknut M10 (35)
M10X70 Bolt(23)
M10X20 Bolt (22)
M6X40 Bolt(24)

6
NOTE: Hand tighten bolts and lock nuts until machine is fully assembled.
Assembly

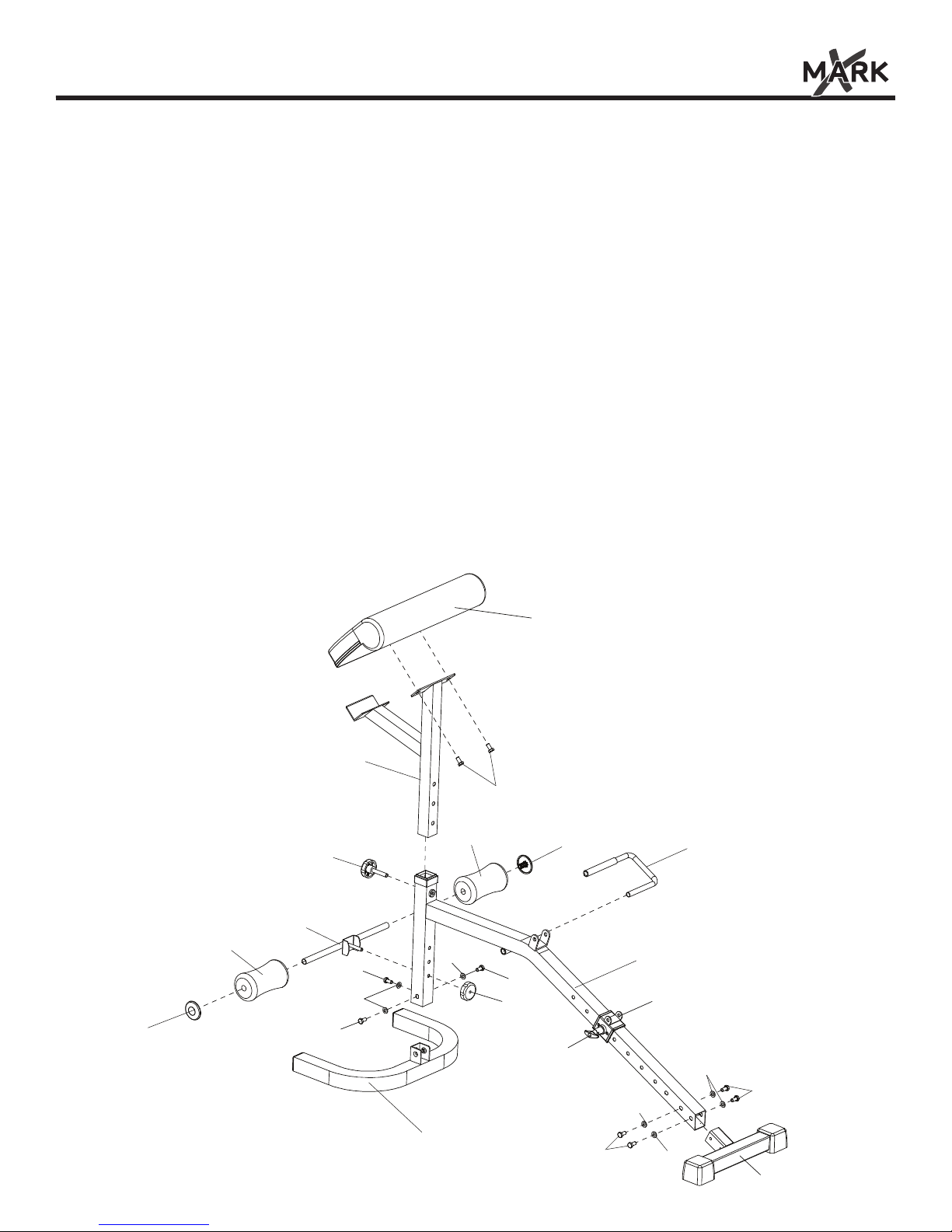

STEP 1
A) Attach the U-ShapedFront Base (#7) to the front part of the Main Frame (#5) and
secure with three washers M10 (#25), three M10X20 Bolts (#22).
C) Insert the rear base (#13) into the rear part of the Main Frame (#5) with four M10X20 Bolts
and four washers M10 (#25).
D) Attach Foam Roller Tube (#11) to the front part of Main Frame (#5) and tighten with
Knob Nut (#15). Slide foam rollers (#20) onto both ends of the Foam Roller Tube
F) Insert Arm Curl Stand (#4) into the Main Frame (#5), secure the Arm Curl Stand with
knob bolt (#14).
E) Attach the Curl Pad (#1) to the top of the Arm Curl Stand (#4) two M10X20
Bolts (#22).
(#22)
using
using Foam Roller Caps (18).
secure
B) Pull the Pop Pin (#12) as far as it will go and slide Adjustment Tube Carriage (#10)
onto the the rear part of the Main Frame (#5).
(#11) and
G）Inset the short end of the Seat Adjustment Bar (#30) into the Main Frame (#5) as shown.
1
22
4
14
5
10
12
22
22
22
25
25 15
7
11
20
20
18
18 30
25
25
25
22
22
13

7
Assembly

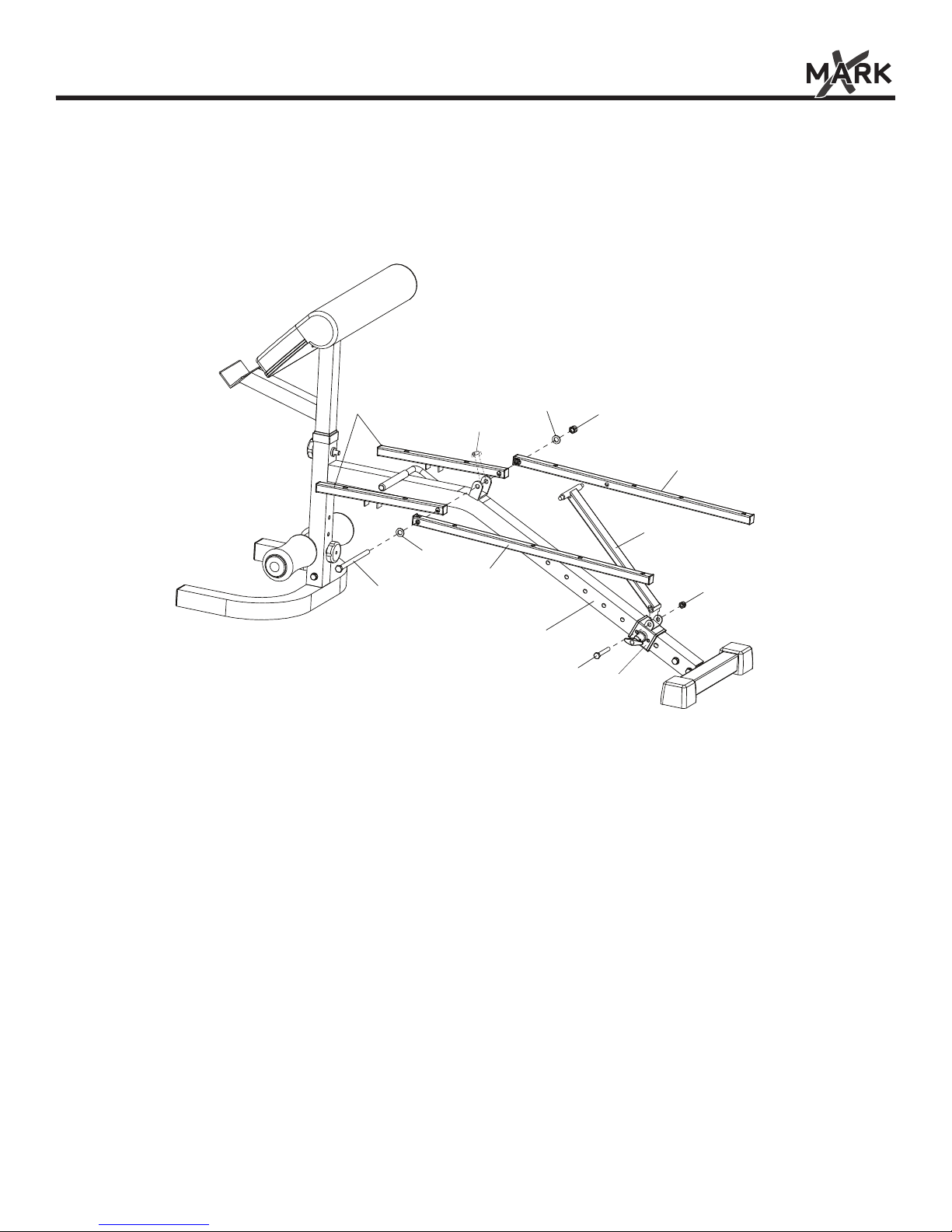

STEP 2
34
33
32
29
9
9
8
35
23
5
33
31
Attach the Seat Supports (#29) and the Backrest Supports (#9) to the Main Frame (#5)
with one M12X180mm Bolt (#31), two M12 Washers (#33), one Plastic Sleeve (#32) and
one M12 Lock Nut (#34). DO NOT TIGHTEN THE BOLT AND THE LOCK NUT.
Attach the Adjustment Tube (#8) to the Adjustment Tube Carriage (#10) and using one
M10X70 Bolts (#23) and one M10 Lock Nut (#35).
10
NOTE: Hand tighten bolts and lock nuts until machine is fully assembled.

Assembly
8
STEP 3
6
3
2
29
9
24
24 24
24
24 24
24
24 24
27
27 27
27 27
27
27
27
27
Attach Seat Pad (#2) to Seat Supports (#29) using four Washers M6 (#27)
and four M6X40 Bolt (#24). Insert the top end of the Adjustment Bar (#8) into the
holes on both the Backrest Supports (#9). Upper Back Pad (#3) and Lower Back
Pad (#6) to Backrest Support (#9) using eight Washers M6 (#27) and eight M6X40
Bolts (#24).
NOTE: Hand tighten bolts and lock nuts until machine is fully assembled.

9
XM-4417 Parts List
Parts List
1 307040000557 Curl Pad 1
2 307040000756 Seat Pad 1
3 307040000757 Upper Back Pad 1
4 204043001503 Arm Curl Stand 1
5 204054701503 Main Frame 1
6 307040000758 Lower Back Pad 1
7 204022810503 Front Base 1
8 204022804503 Adjustment Tube 1
9 204056001503 Backrest Support 2
10 204022803503 Adjustment Tube Carriage 1
11 204056002503 Foam Roller Tube w/ U-Bracket 1
12 802900300002 Pop Pin 1
13 204022801503 Rear Base 1
14 307010001308 Knob Bolt 1
15 307010001333 Knob Nut 1
16 307010000270 Square End Plug 50 2
17 307010000747 Plastic Bushing 2
18 307010000404 Foam Roller Cap 2
19 307010000210 Square Plug 25 8
20 307010001917 Foam Roller 2
21 307010000042 Square End Foot 50 2
22 306010020036 Bolt M10X20 9
23 306010020047 Bolt M10X70 1
24 306010020010 Bolt M6X40 12
25 306010023108 Washer M10 7
26 307010002107 Protective Foam 1
27 306010023106 Washer M6 12
28 307010000714 Plastic Collar 1
29 204022806503 Seat Support 2
30 204022807002 Seat Adjustment Bar 1
31 306010020089 Bolt M12X180 1
32 307990000005 Plastic Sleeve 1
33 306010023105 Washer M12 2
34 306010022505 Lock Nut M12 1
35 306010022504 Lock Nut M10 1
36 299056004500 BOLT PACK 1
37 308030000324 MANUAL XM-4417 1
Key NO. Part No. Description Qty

10

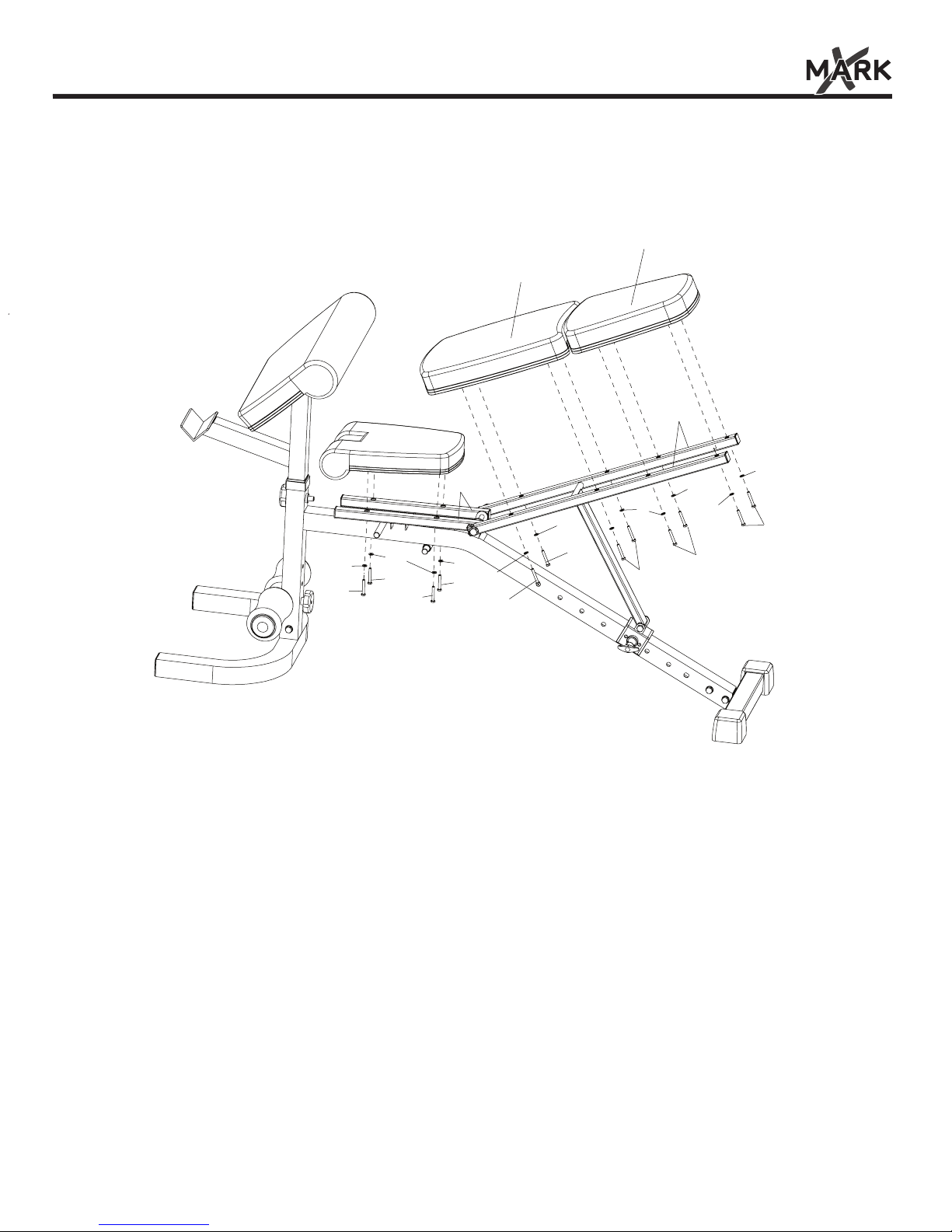

Exploded View
