XMark Fitness XM-7615 User manual

Owner’s Manual
8/09
XM-7615
ROTARY LEG MACHINE

Table Of Contents
Important Safety Information 3
Before You Start 4
Assembly 5-10
Parts List 11
Exploded View 12
Warranty Information 13
2

NOTE: Hand tighten bolts and nylon nuts until machine is fully
assembled.
SAFETY PRECAUTIONS
SAFETY INFORMATION WARNING!
Prior to assembly, remove components from the box and verify that all the listed parts
were supplied.
Before using this unit or starting any exercise program, consult your physician.
This is especially important for persons over the age of 35 and/or persons with pre-
existing health problems. XMARK Fitness assumes no responsibility for personal
injury or property damage sustained by or through the use of this product.
It is the owner’s responsibility to ensure that all users of this unit have read the
Owner’s Manual and are familiar with safety information and precautions.
• This unit should only be used on a level surface and is intended for indoor use
only. XMARK Fitness recommends an equipment mat be placed under the unit to
protect the floor or carpet and for easier cleaning.
• Wear comfortable, good-quality walking or running shoes and appropriate cloth-
ing. Do not use this unit with bare feet, sandals, socks or stockings!
• Always examine your unit before using to ensure all parts are in working order.
• Do not leave children unsupervised near or on the unit.
• Service to your unit should only be performed by an authorized service represen-
tative, unless authorized and/or instructed by a XMARK Fitness technician. Failure
to follow these instructions will void the warranty.
Important Safety Information
3

MODEL: XM-7615
This manual will guide you through the assembly process. If at any time you
are having trouble with the assembly or use of this product, then please contact
When calling please have the following product information available:
Model Name :
Date Mfg.:
Serial #
Model Name Decal Location
Before You Start
REGISTRATION CARD
QUESTIONS?
CALL 1-800-719-4605
Monday-Friday
8:30 a.m.-5:00 p.m.
(Central Standard Time)
MAILING ADDRESS
7501 Trammel Drive
Shreveport, LA 71108
4
THANK YOU for making this unit a part of your exercise
program.
XMARK Fitness assures the very best in value,
appearance, durability and biomechanics.
XMARK FITNESS SERIES
XMARK Fitness
To avoid unnecessary delays in warranty parts and to insure that a permanent
record of your purchase is on file with our company, be sure to send in the war-
ranty registration card or register online at www
.xmarkfitness.com within 10 days
of purchase.
us at our
XMARK Fitness help line. We have trained service technicians on site to
take care of you, our valued customer.

Assembly
5

Assembly
NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
Step 1
Attach the Rear Base (#2) and the Front Frame (#3) to the Main Frame (#1); Using:
• four M12*80 Button Head Cap Screws (#19)
• eight Φ13*Φ24*1.5 Flat Washers (#18)
• four M12 Nylon lock Nuts (#20)
Attach one Pop Pin (#31) to the Main Frame (#1).
6

Assembly
NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
Step 2
Attach the Big Roller Pad (#39) to the Swing Tube (#8); Using:
• two Φ52*Φ68*12.7 Collars (#37)
• two M8*6 screws (#34)
Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
7

Assembly
NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
Step 3
Attach the Right Handle (#11) and the Left Handle (#12) to the Main Frame (#1); Using:
• two M12*80 Button Head Cap Screws (#19)
• four Φ13*Φ24*1.5 Flat Washers (#18)
• two M12 Nylon lock Nuts (#20)
Attach the Side Angle Frame (#4) to the Main Frame (#1) and the Front Frame (#3); Using:
• four M12*80 Button Head Cap Screws (#19)
• eight Φ13*Φ24*1.5 Flat Washer (#18)
• four M12 Nylon lock Nut (#20)
• two 128*70*5 Plates (#21)
Attach the Stopper Prong (#17) to the Front Frame (#3).
8

Assembly
NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.

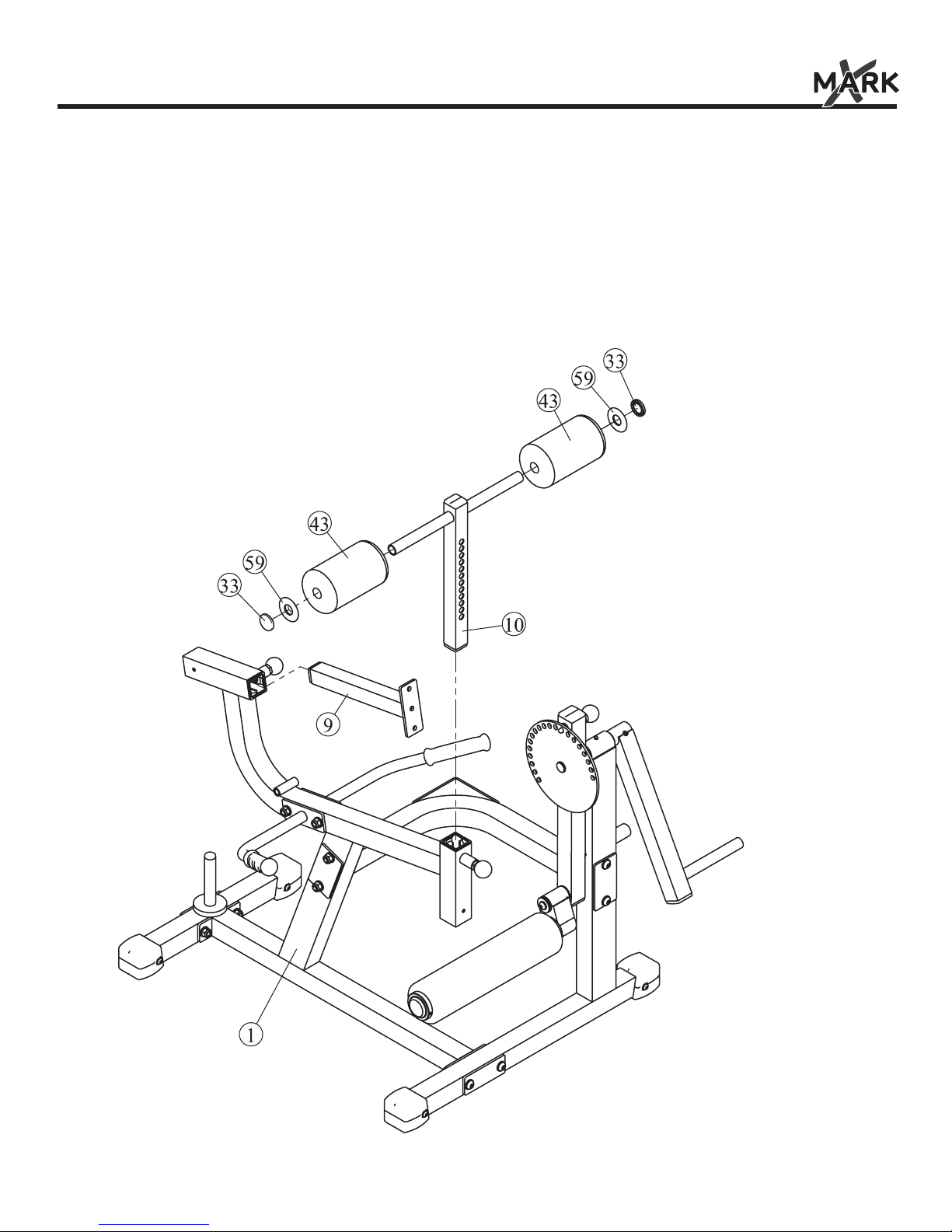

Step 4
Attach two Foam Padding Φ22*Φ110*180 (#43) to the Adjustable Roller Pad Frame (#10), Using：
• two Me tal End Cap (#33)
• two Plastic Washer Φ60*Φ25.7*3 (#59)
Attach the Adjustable Roller Pad Frame (#10) to the Main Frame (#1).
Attach the Back Adjustable Bar (#9) to the Main Frame (#1).
9

Assembly
NOTE: Wrench tighten bolts and Nylon Lock nuts.
Step 5
Attach the Back Pad (#16) to the Back Adjustable Bar (#9); Using
：
• two M10*25 Button Head Cap Screws (#28)
• two Φ11*Φ23*2 Flat Washers (#27)
Attach the Seat Pad (#15) to the Seat Bracket (#13), Using
：
• four M10*25 BHCS (#28)
• four Φ11*Φ23*2 Flat Washer (#27)
Attach the Seat Bracket (#13) to Main Frame (#1), Using
：
• one M12*Φ12*150 Shaft W/Screw(#14)
• two Φ13*Φ24*1.5 Flat Washers (#18)
• two M12 Nylon lock Nuts (#20)
• one Φ10*110*50 L Pin (#32)
Attach one Adapter (#56) or one Spring Collar (#29) to The Weight Holder (#7), using:
• one M8*12 Screw (#58)
Attach one Adapter (#56) to The Rear Base (#2), using:
• one M8*12 Screw (#58)
10

XM-7615 Parts List
Parts List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
42
43
44
45
46
47
48
50
51
52
53
54
55
56
57
58
59
61
62
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
22
10
12
2
1
4
1
1
1
7
7
1
1
2
1
2
2
4
3
2
2
1
4
2
2
1
2
1
1
4
3
8
8
1
1
1
2
2
2
2
1
1
P00282
P00283
P00284
P00458
P00459
P00460
P00206
P00668
P00285
P00073
P00650
P00649
P00286
P00007
P00074
P00075
P00387
P00034
P00626
P00562
P00651
P00209
P00545
P00127
P00543
P00669
P00134
P00597
P00569
P00114
P00203
P00539
P00062
P00122
P00138
P00182
P00461
P00006
P00076
P00153
P00201
P00061
P00546
P00653
P00009
P00147
P00154
P00211
P00636
P00136
P00559
P00022
P00560
P00643
P00566
P00121
P00140
H00004
M00024
Main Frame, XM-7615
Rear Base, XM-7615
Front Frame, XM-7615
Frame, Side Angle XM-7615
Leg Frame, XM-7615
Circular Plate w/ Shaft
Weight Holder
Swing Tube, XM-7615
Back Adjustable Bar, XM-7615
Adjustable Roller Pad Frame, XM-7615
Handle, Right XM-7614
Handle, Left XM-7615
Seat Bracket, XM-7615
Shaft w/ Screw
Seat Pad, XM-7615
Back Pad, XM-7615
Stopper Prong
Flat Washer Φ13*Φ24*1.5
Button Head Cap Screw M12*80
Nylon Lock Nut M12
Plate, XM-7615
Long Pop Pin XM Series
Bronze Bushing ID25.4
Pivot Tension Pin
Plastic Washer
Washer 38*10.5*4
Flat Washer Φ11*Φ20*2
Button Head Cap Screw M10*25
Spring Collar
Grease Fitting
Pop Pin XM Series
L Pin
Metal End Cap
Screw M8*6
Glide Sleeve
Plug 44.5
Collar
Plug 50.8
Big Roller Pad
Foot Cap, Right 50.8 XM Series
Hand Grip
Foam Padding Φ110*Φ22*180 XM SERIES
Rubber Sleeve
Spring Clip Collar
Round Plug 25.4
Rubber Bumper
Foot Cap, Left 50.8 XM Series
Plug 38
Button Head Cap Screw M8*25
Flat Washer Φ9*Φ16*1.6
Hex Key S4
Wrench 17-19
Hex Key S6
Adapter
Plug 48
Screw M8*12
Plastic Washer
Bolt Pack, XM-7615
Owner's Manual XM-7615
Ref # Part # Description Qty
11

Exploded View
12

XMARK FITNESS
LIMITED LIFETIME WARRANTY
This Warranty applies only in the United States and Canada to
products manufactured or distributed by XMARK Fitness under
the XMARK Fitness brand name. This product is backed by a
lifetime warranty, excluding only expendable parts such as paint,
finish and vinyl. This warranty extends only to you, the original
purchaser. It is not transferable to anyone who subsequently
purchases the product from you.
XMARK Fitness warrants that the product you have purchased for non-commercial,
personal, family, or household use from XMARK Fitness is free from defects in materials or workmanship under normal use during the
warranty period. Your sales receipt, showing the date of purchase of the product, is your proof of the date of purchase. This warranty
becomes VALID ONLY if the product is assembled / installed according to the instructions / directions included with the product.
• In a light institutional setting, XMARK Fitness will extend a one year limited parts warranty and a lifetime frame warranty to the
original purchaser.
• During the warranty period XMARK Fitness will repair or replace (at XMARK Fitness’ option) the product if it becomes defective,
malfunctions, or otherwise fails to conform with this Warranty under normal use. In repairing the product, XMARK Fitness may
replace defective parts with new, or at the option of XMARK Fitness, serviceable used parts that are equivalent to new parts in
performance. All exchanged parts and products replaced under this warranty will become the property of XMARK Fitness.
XMARK Fitness reserves the right to change manufacturers of any part to cover any existing warranty.
• This warranty DOES NOT COVER shipping charges, export taxes, custom duties and taxes, or any other charges associated
with transportation of the parts or product. To obtain warranty service, you must contact an XMARK Fitness customer service rep-
resentative at our phone number located in this manual. Any parts determined to be defective must be returned to XMARK Fitness
to obtain warranty service. You must prepay any shipping charges, export taxes, custom duties and taxes, or any other charges
associated with transportation of the parts or product. In addition, you are responsible for insuring any parts or product shipped
or returned. You assume the risk of loss during shipment. You must present XMARK Fitness with proof-of-purchase documents
(including the date of purchase). Any evidence of alteration, erasure, or forgery of proof-of-purchase documents will be cause
to void this warranty.
• This warranty does not extend to any product not purchased from XMARK Fitness. This Limited / Lifetime Warranty does not
extend to any product that has been damaged or rendered defective; (a) as a result of accident, misuse, or abuse; (b) by the
use of parts not manufactured or sold by XMARK Fitness; or (c) by modification of the product. Product on which the serial
number has been defaced or removed is not eligible for warranty service. Should any product submitted for warranty service be
found ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon XMARK Fitness’
receipt of payment or acceptable arrangements for payment.
EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, XMARK FITNESS MAKES NO OTHER WARRANTIES, EXPRESSED
OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABLILITY AND FITNESS FOR A PARTICULAR PURPOSE.
XMARK FITNESS EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED/LIFETIME WARRANTY. ANY
IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS WARRANTY. NEITHER XMARK
FITNESS NOR ANY OF ITS AFFILIATES SHALL BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
This Limited / Lifetime Warranty gives you specific legal rights and you may also have other rights that may vary from state to state.
This is the only express warranty applicable to XMARK Fitness branded products. XMARK Fitness neither assumes nor authorizes
anyone to assume for it any other express warranty.
Warranty


XMARK Fitness
7501 Trammel Drive
Shreveport, LA 71108
Customer Service: 1-800-719-4605
