XPower B-16 User manual

STAND PET DRYER
OWNER’S MANUAL
Model No. B-16
XPOWER MANUFACTURE, INC.
220 Clary Avenue
San Gabriel, CA 91776 USA
Tel: [phone]; Fax: [phone]
www.xpower.ws

Table of Contents
Introduction .............................................................................................................................. 1
Operation / Instructions............................................................................................................... 2
Instructions for Professional Features………………………………………………………………………………………3
Adjustment / Accessories.............................................................................................................4
Specifications / Assembly ............................................................................................................5
Dryer Parts List ..................................................................................................................................... 6
Installation Tips and Hints …………...............................................................................................7
Safety Instructions ......................................................................................................................... 8
Warranty / Service ...................................................................................................................... 9
Maintenance Instructions / Troubleshooting .................................................. ............................. 10
Warranty Registration Form ......................................................................................................11

Introduction
XPOWER B-16 Stand Pet Dryers are designed and engineered to be powerful, super lightweight, energy-efficient and
safety certified professional level pet dryers. The B-16 model comes with many unique, revolutionary features. Its
BRUSHLESS DC MOTOR produces large volumes of air and wide range of air adjustment. The ANION TECHNOLOGY
provides negative ionization and gives the dryer a low static drying capability. The XPOWER B-16 Stand Dryer comes with
a variable stepless speed control that gives you a full range of control of motor speed, from 0 to 300 rated CFM, with duo
temperature settings for all your pet drying needs. The B-16 Stand Dryer is essential for those who desire better
grooming for pets and greater profits for the business.
Special Features:
• Stepless Motor Speed Control -variable airflow settings from 0 CFM to a high volume of 300 CFM.
• Powerful Brushless DC Motor - revolutionary, high performance, maintenance free and energy-efficient brushless
motor for reliability and worry-free operation, ensuring quality performance and many years of service.
• Rotating Nozzles - swivels 360° for different drying directions.
• Patented Leg Stand - sturdy and foldable 5-leg stands with lockable casters.
• Air Filter - easy-to-clean air filter helps blow clean air and keeps debris and pet hair from coming into the motor.
• Hydraulic Pole Stand - adjustable height up to 5 ft.
• Anion Technology - produces negative ionization for low static pet drying capability.
- 1 -

Operation / Instructions
XPOWER B-16 Stand Dryers are designed for hands-free pet drying.
1. Carefully follow the assembly instructions. Inspect the unit completely for any shipping damage or
missing parts.
2. Upon assembly, place the dryer on a flat surface. Plug the electrical cord into a 3-prong GFCI outlet.
3. Turn on the AIR FLOW switch to desired speed.
4. If heat is required, turn heat switch to position 1 (for low heat) or position 2 (for high heat).
5. All Dryers in operation must be supervised at all times.
6. Use the stand adjustment handle to set the desired height and make sure to tighten the handle
afterwards.
- 2 -

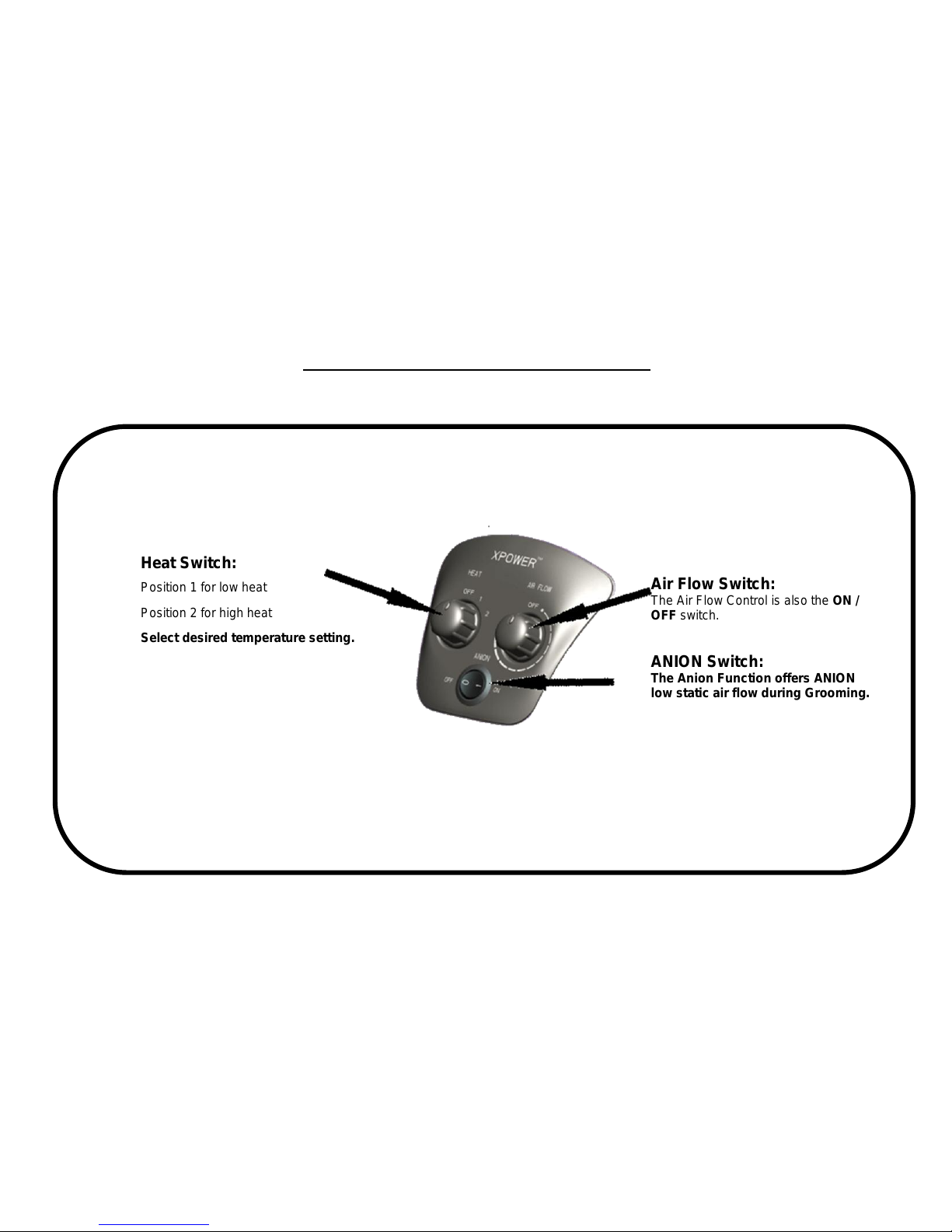

Instructions for Professional Features
Heat Switch:
Position 1 for low heat
Position 2 for high heat
Select desired temperature
setting.
Air Flow Switch:
The Air Flow Control is also the ON /
OFF switch.
ANION Switch:
The Anion Function offers ANION
low static air flow during Grooming.
Heat Switch:
Position 1 for low heat
Position 2 for high heat
Select desired temperature setting.
- 3 -

Accessories - Filter
A filter is included in the XPOWER B-16 Pet Dryer, which will
help prevent small debris and pet hair from entering the unit.
To clean the filter, remove the filter from the unit and wash
with warm soapy water, rinse with clean water and let dry
thoroughly before reinstalling.
Filter located at the
bottom of motor
Turn handle clockwise to
tighten, counter- clockwise
to loosen.
Tiltable head for different angle
positions
Hydraulic height adjustment
Adjustment / Accessories
- 4 -

Specifications
Assembly
1. Unfold the patented foldable 5-leg stand. Attach the five wheels to the stand base. Attach the lower
stand pipe to the base by screwing the pipe to the center screw in the base.
2. Attach the dryer motor to the top stand pipe.
3. Attach the air outlet flexible nozzle and straight pipe to the dryer motor assembly.
4. Plug the unit, turn on the switch and start using your XPOWER Stand Dryer.
Volt / Cycle
115 V / 50-60Hz
Cord Length
13 Ft.
Motor
1/4 HP
Rated Airflow
300 CFM
Max. Amp
12 Amps.
Heater
Duo Setting
Weight
17 Lbs.
Housing
ABS
Speeds
Variable (Stepless)
Safety Marks
ETL / C-ETL
ANION
YES
Filter System
YES
- 5 -

- 6 -

Installation Tips and Hints
- 7 -
Part # 8 & # 9
Open Foldable Stand Legs and push Leg Wheels in to Foldable Stand Legs.
Part # 6 & # 7
Make sure parts 6 & 7 are screwed together tightly until the pipe comes in contact with the foot stand.
Part # 3 & # 4
Connect Upper Stand Pipe to Dryer Motor Assembly.
Part # 2 & # 3
There are notches on both straight hose and motor. Assemble and align them properly before joining
them together, then screw them in tightly.

Safety Instructions
WARNING: IMPORTANT SAFETY PRECAUTIONS!
PLEASE READ COMPLETELY BEFORE USING PRODUCT!
When using electrical appliances, especially when children or animals are present, basic safety precautions
should always be followed to reduce the risk of fire, electric shock, and personal injury. These include, but are
not limited to the following:
Do not leave the dryer and animal
unattended while the product is in use.
Unplug dryer when not in use.
Do not use extension cords with the dryer
product.
Do not unplug unit by pulling on cord.
Do not expose dryer to rain or water.
Unplug unit before attempting any
maintenance or service.
Do not let air-intake get clogged.
Do not direct dryer air towards eyes or ears
of people or pets.

Never use dryer with a damaged cord/plug or
when unit has been dropped, damaged, or
exposed to rain/water. Please call our
Technical Department for service or repair.
Do not use any other nozzles not intended
for use with the dryer.
Do not operate without filter in place.
Keep filter clean, as a dirty filter limits
air intake and may damage the motor or
cause overheating.
Plug only into a properly grounded
receptacle. Always confirm that the
amperage rating of the electrical outlet
complies with the Dryer + Vacuum
rating.
Do not use product for anything other
than its intended purpose.
Do not attempt to perform any service
or maintenance not outlined in the
instruction manual.
- 8 -

XPOWER Limited Warranty
XPOWER Warranty covers the unit from defects in materials and craftsmanship. The Warranty covers normal
use for a term of one year from original date of purchase; including parts, labor and one way shipping.
XPOWER ‘motor housing’ is covered for a term of five years from the date of the original purchase.
Important!
The Warranty does not cover signs of misuse including, but not limited to, a unit that has been dropped, subjected to
water damage, tampered with, or has been subject to improper voltage use and/or unauthorized maintenance and
repairs.
The POWER CORD and FILTER are not covered by the warranty.
Service
For Warranty service and parts replacement, you must:
1. Call 1-855-855-8868 for an RMA (Return Merchandise Authorization) number.
2. Have proof of purchase.
3. Use the original undamaged packaging or an Industrial certified packaging method.
The end user will be responsible to ship back the unit (with RMA Number showing on the shipping label) to the
XPOWER Service Department. XPOWER to inspect, assess and advise the repairs needed and the applicable
costs.
- 9 -

PROBLEM
POSSIBLE CAUSE
SOLUTION
Pet Dryer not running
No power input
Plug in the dryer; check circuit breaker
Air Flow Switch not turned on
Turn on the Air Flow switch
Unit fan jammed
Contact our Service Department
Pet Dryer vibrates
excessively
Fan out of balance
Contact our Service Department
Maintenance Instructions
To keep the dryer clean, use a damp cloth to wipe the surface of the housing.
Never clean the unit with water.

When not in use, unplug and store the XPOWER Pet Dryer in a dry indoor place out of reach of children.

Always disconnect the XPOWER Pet Dryer from its power source before performing any maintenance or
cleaning.
Clean the filter as often as necessary to avoid loss of airflow.
Troubleshooting
For any problems not listed below, call your local distributor or contact our Service Department.
- 10 -

- 11 -
WARRANTY
Please complete and mail or fax this form for your product warranty. For multiple units, please serial numbers on a separate sheet of paper.
Address: XPOWER INC., 220 Clary Avenue San Gabriel, CA 91776, USA
Tel: [phone] (

TO:
XPOWER MANUFACTURE, INC.
220 CLARY AVENUE
SAN GABRIEL, CA 91776, USA
TEL: [phone]; FAX: [phone]
From: __________________________________
___________________________________
___________________________________
