XPower B-27 User manual

OWNER’S MANUAL
MODEL: B-27 (115V/60Hz)
Nozzles
included
XPOWER MANUFACTURE, INC.
220 Clary Avenue
San Gabriel, CA 91776, USA
Tel: [phone] Fax: [phone]
www.xpower.ws
PLEASE READ AND SAVE THESE INSTRUCTIONS
DOUBLE MOTOR PET DRYER

TABLE OF CONTENTS
Introducon ........................................................................................................................................
Operaon ............................................................................................................................................
Specificaons ......................................................................................................................................
Important Safety Instrucons .............................................................................................................
Save These Instrucons ......................................................................................................................
Parts List .............................................................................................................................................
Maintenance .......................................................................................................................................
Warranty / Service ..............................................................................................................................
Warranty Registraon Form ...............................................................................................................
1
2
2
3
4
5
6
8
9

INTRODUCTION
The XPOWER B-27 Professional Double Motor Pet Dryer is the first addion to our new XPOWER
X-TREME Line. Much like the B-5, the B-27 X-TREME Blaster was designed to be extremely quiet,
lightweight and powerful. This 6HP double motor blaster provides 3x the power to dry pets quickly
while saving you me– whether small or large breeds with short or long hair!
Special Features:
• Remarkably quiet.
• Powerful 6HP motor.
• Opmal Integraon of motor and housing design.
• High impact and rugged ABS housing material.
• Easy-to-change and washable filters.
• Variable speed switch.
• 9 . heavy duty flexible PU hose.
• Heavy duty styling nozzles for different pet drying applicaons.
• Compact, lightweight and portable, ideal for professional grooming.
- 1 -

1. Place the dryer on a flat surface. Plug the electrical cord into a 3-prong GFCI outlet.
2. Connect the hose to the front hose connector and aach the desired nozzle. Turn on
switch to desired speed. It is necessary to close the Bleed hole on hose while drying.
3. Unit in use must be monitored at all mes.
SPECIFICATIONS
- 2 -
Volt / Cycle 115 V / 60 Hz
Horse Power 6 HP
Amp 20 A
Motor Brush Double Motor
Max Airflow 180 CFM
Speeds Control Variable
Unit Size 17.7 x 6.3 x 9.3 inch
Cord (Length / Dia) 10 / 14 AWG
Hose Length 8 / PU
Housing Material ABS
OPERATION

- 3 -
SAFETY INSTRUCTIONS
WARNING: IMPORTANT SAFETY PRECAUTIONS!
When using electrical appliances, especially when children or animals are present, basic safety
precauons should always be followed to reduce the risk of fire, electric shock, and personal injury,
including, but not limited to the following:
• Do not leave the dryer and animal unaended while the product is in use.
• Unplug dryer when not in use.
• Do not use extension cords with the product.
• Do not unplug unit by pulling on cord.
• Do not expose dryer to rain or water.
• Unplug unit before aempng any maintenance or service.
• Do not let air-intake get clogged.
• Do not direct dryer air towards eyes or ears of people or pets.
• Never use dryer with a damaged cord/plug or when unit has been dropped, damaged, or
exposed to rain/water. Please call our Technical Department for service or repair.
• Do not use any other nozzles not intended for use with the dryer.
• Do not operate without filter in place. Keep filter clean, as a dirty filter limits air intake and may
damage the motor or cause overheang.
• Plug only into a properly grounded receptacle. Always confirm that the amperage rang of the
electrical outlet complies with the Dryer rang.
• Do not use product for anything other than its intended purpose.
• Do not aempt to perform any service or maintenance not outlined in the instrucon manual.

This appliance is for use on a
nominal 115V circuit, and has a
grounding plug that looks like the
plug illustrated in sketch A. Make
sure that the appliance is
connected to an outlet having the
same configuraon as the plug. No
adaptor should be used with this
appliance.
SAVE THESE INSTRUCTIONS
HOUSEHOLD and COMMERCIAL USE
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfuncon or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock. This appliance is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug
must be plugged into an appropriate outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
- 4 -
GROUNDING
PIN
Grounding methods
METAL SCREW
OUTLET BOX
COVER OF GROUNDED
(A)

17
3
1
45
8
2
910 11
12 13 14 15 16
19 20 21
18
6
7
1 LeHousing 8 Motor 15 Crossed cover
2 Right Housing 9 Motor rubber sleeve 16 Inlet filter
3 Switch 10 Dustproof cover 17 Hose
4 Air outlet grid 11 Motor filter 18 Round groomer rake
5 Motor rubber sleeve 12 Dust case 19 Cone nozzle
6 PCB board 13 Dust case filter 20 Flat nozzle
7 Brush 14 Rear cover 21 Square nozzle
PARTS LIST
- 5 -
请更新这部分内容

MAINTENANCE
Product Maintenance:
1. To keep the Pet Dryer clean, use a damp cloth to wipe the surface of the housing.
2. Never clean the unit with water.
3. When not in use, unplug and store the Pet Dryer in a dry indoor place and keep out of reach of
children.
4. Always disconnect the unit from its power source before performing any maintenance.
5. Clean the filter as oen as necessary to avoid loss of airflow.
6. Any other servicing should be performed by an authorized service representave.
Cleaning Dryer Dust Case, Rear Cover and Filters:
The Filter System for the XPOWER B-27 Pet Dryer (including dust case, rear cover and filters) should
be kept clean regularly. If the dust case is full of dirt or the filters become heavily coated, the air
output and input of your Dryer will reduce and this can cause damage to the motors or cause the
motors to overheat. You should never operate the dryer without filters in place.
Service and / or replace the motor brush every 500 hours of use.
The motor brushes (pair)should be replaced aer every 500 hours of use. We strongly recommend
you have a professional or skilled person to replace the brushes, or contact XPOWER Services Dept.
IMPORTANT!
Always turn off the unit and disconnect from electrical outlet before cleaning.
- 6 -

1.Turn the rear cover
counter-clockwise to
remove the cover.
2.Take the complete set of dust
case and rear cover out of the
unit. Keep the rear cover on
top so that the hair and dirt are
in the dust case.
3.Dump the dirt out of the
dust case.
4. Rinse all filters(motor filter, dust case filter, inlet filter) with water.
5. Reinstall in reverse order when all parts are completely dried.
- 7 -

XPOWER LIMITED WARRANTY
XPOWER warrants this product to be free from defects in material and workmanship for a
period of one (1) year from the date of original purchase.
Wearable parts including but without limitaon, filters, motor brushes, hoses and power
cords are excluded from the warranty.
The liability of XPOWER is limited solely to the cost of the repair or replacement of the unit at
XPOWER’s discreon. This warranty does not cover normal wear of parts and does not apply
to any unit that has been tampered with or used for commercial purposes. This limited
warranty does not cover damage caused by misuse, abuse, negligent handling or damage due
to faulty packaging or mishandling in transit. This warranty does not cover damage or defects
caused by or resulng from damages from shipping or repairs, service or alteraons to the
product or any of its parts, which have been performed by a repair person not authorized by
XPOWER.
SERVICE
For Warranty service and parts replacement, you must:
A. Call 1-626-285-3301 for a RMA (Return-Merchandise-Authorizaon) number.
B. Have original proof of purchase.
C. Use the original undamaged packaging or an Industrial cerfied packaging method.
The end user will be responsible to ship back the unit (with RMA Number showing on the shipping
label) to the XPOWER Service Department. XPOWER to inspect, assess and advise the repairs
needed and the applicable cost.
- 8 -

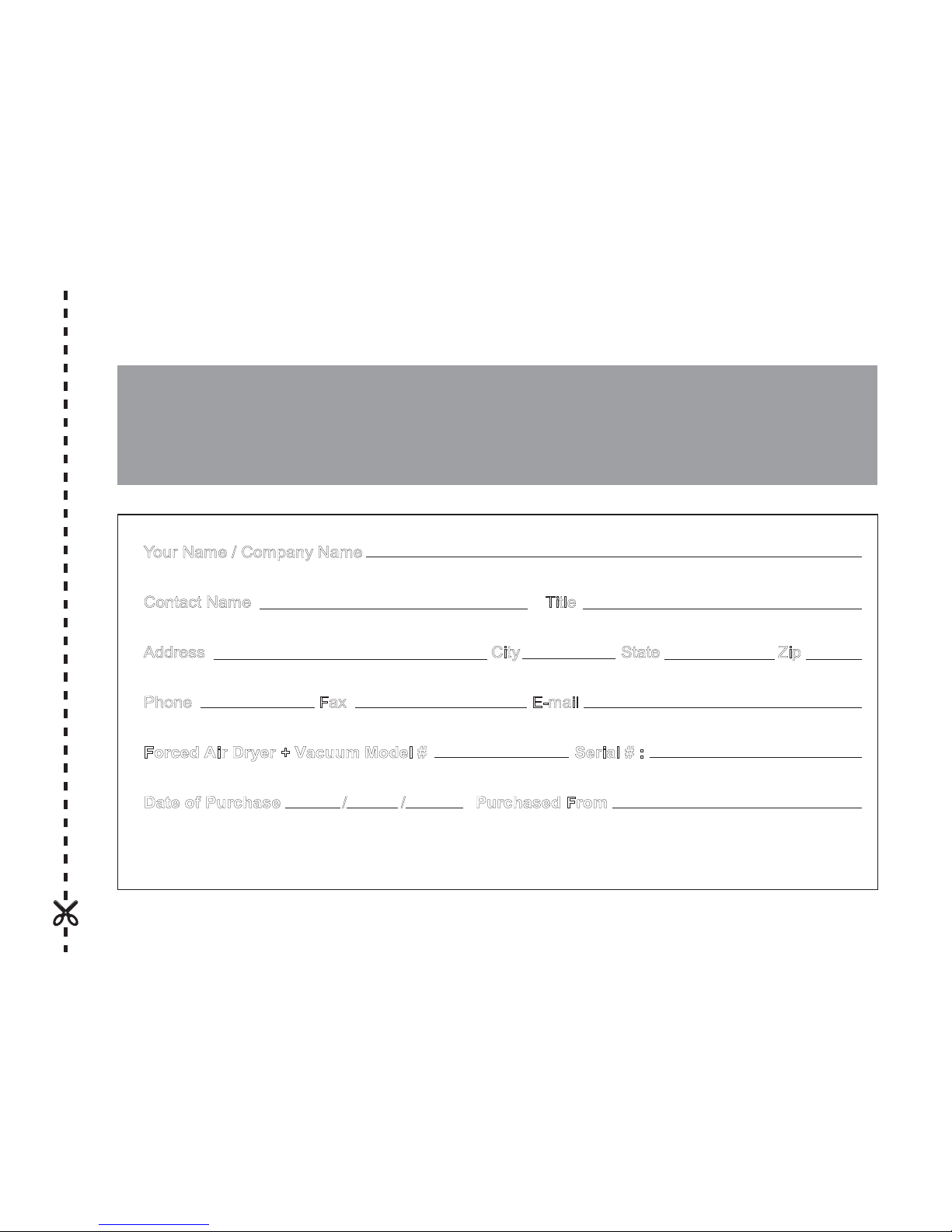

Your Name / Company Name
Contact Name Title
Address City State Zip
Phone Fax E-mail
Forced Air Dryer + Vacuum Model # Serial # :
Date of Purchase / / Purchased From
WARRANTY REGISTRATION
Please complete and mail or fax for your product warranty. For mulple units, please list serial numbers on a separate sheet of paper.
