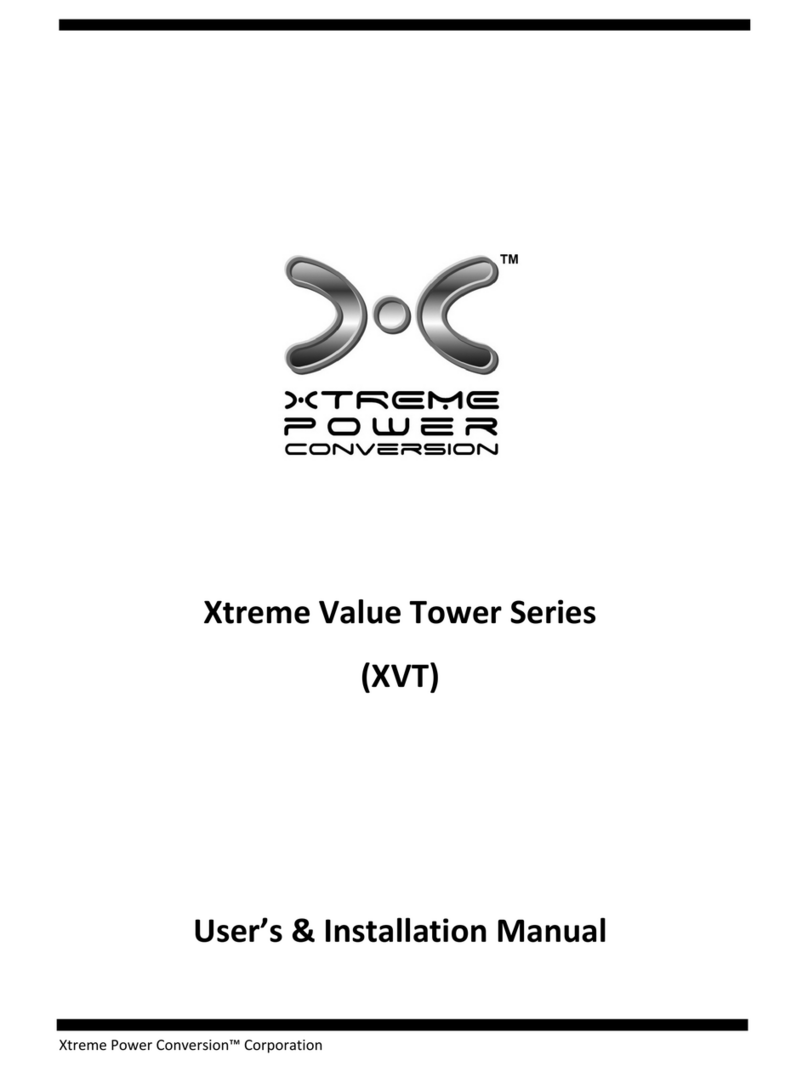

Xtreme power conversion Xvt series Operating manual

Xtreme Value Tower Series

(XVT)

User's and Installation Manual

their merchantability, or fitness for any particular purpose. In no event shall

be liable for lost profits, goodwill, or any other special or consequential damages.

Any changes to this must be approved by an corporate officer.

Life Support Disclaimer

protection products are not designed, intended or authorized for use

in systems intended to support or sustain life, or for any other application in which

the failure of the product could create a situation where personal

injury or death may occur. Under no circumstances should the Buyer purchase or use

products for any such unintended or unauthorized application, if the

Buyer does not comply with this, the Buyer shall indemnify and hold

and its officers, employees, affiliates, resellers, partners and distributors harmless

against all claims, costs, damages and expenses, and reasonable attorney fees arising

out of, directly or indirectly, any claim or personal injury or death associated with

such unintended or unauthorized use, even if such claim alleges that

was negligent regarding the design or manufacture of the productt.

Logistics and Shipping

Unless otherwise stated, the warranty period begins on the date the

product is shipped to the customer when shipped from an owned

facility. In cases in which products are purchased through and shipped from a

Distributor or a Reseller, the warranty period begins 60 days from the date of

shipment from .

If a product is found to be defective, will, at its sole

discretion either ship the customer a new replacement product or repair the returned

product. The customer must return the defective unit to within 30 days

of issuance of the RMA.

All standard ground shipping charges, within the continental United States, will be

paid by the customer, however, may choose to pay for shipping

depending upon circumstances.

All shipments of products to must be prepaid. Shipments arriving

collect to will be refused and returned to the customer.

In cases in which chooses to pay for the shipping and if the customer

requests air shipment from , the customer will be responsible for the

difference between the air freight charges and standard ground freight charges.

Note: In cases of improper use, shipping damage due to improper packing or retest

(no trouble found), the customer will be liable all shipping charges.

Shipping List

Xtreme

Power

Xtreme Power

Xtreme Power Xtreme Power

Xtreme Power

TABLE OF CONTENTS

Safety Instructions..................................................................................2

Description............................................................................................. 3

Determining Power Requirements......................................................... . 3

Hardware Installation Guide...................................................................4

Software: Quick Installation.......................................................5,6,7,8,9

Battery Replacement Instructions...................................................1 0 , 1 1

LED Indicators.............................................................................................12

Troubleshooting Guide..............................................................................13

Specifications .........................................................................................1 3 ,14

Obtaining Service........................................................................................15

Limited Product Warranty ...................................................................15,1 6

Shipping List................................................................................................. 16

Attention: To safely interact with and enjoy all the features and benefits of these

Uninterruptible Power Supplies (UPS's), please read and follow all

installation and operation instructions completely. These UPS's are designed to

provide power protection for connected electronic equipment.

Please read this manual before installing the XVT Series UPS, models XVT-600,

XVT-800, XVT-1200, XVT-1500 as it provides important information that should be

followed during installation and maintenance of the UPS and batteries allowing you

to correctly set up your system for the maximum safety and performance. Included is

information on customer support and factory service if it is required. If you

experience a problem with the UPS please refer to the Troubleshooting section in

this manual to correct the problem. If the problem is not corrected, please collect

enough information so that the Technical Support Department can more effectively

assist you.

CAUTION: Any changes or modifications not expressly approved by the guarantee

of this device could void the user's authority to operate the equipment.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B

Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna.

(2) Increase the separation between the equipment and receiver.

Xtreme Power

-1-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

-16-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

No.Number

1 1

UPS

User's and Installation Manual

Intelligent monitoring software

USB Computer port cable

Inclusion of items

-15-

OBTAINING SERVICE

If the UPS requires Service:

1. Use the TROUBLESHOOTING section to eliminate obvious causes.

2. Verify there are no circuit breakers tripped.

3. Call your dealer for assistance. If you cannot reach your dealer, or if t he y c an no t

resolve the problem call or fax Technical Support at the following numbers;

Voice phone_, Fax line_ or Contact at 800-582-4524 . Please have the

following information available BEFORE calling the Technical Support Department:

A. Your name and address.

B. Where and when the unit was purchased.

C. All of the model information about your UPS.

D. Any information on the failure, including LEDs that may not be illuminated.

E. A description of the protected equipment, including model numbers if possible.

F. A technician will ask you for the above information and, if possible, help solve

your problem over the phone. In the event that the unit requires factory service,

the technician will issue you a Return Material Authorization Number (RMA #).

G. If the UPS is under warranty, the repairs will be done at no charge. If not, there

will be a charge for repair.

4. Pack the UPS in its original packaging. If the original packaging is no longer available,

ask the Technical Support Technician about obtaining a new set. It is important to

pack the UPS properly in order to avoid damage in transit. Never use S t y r o f o a m

beads for a packing material.

A. Include a letter with your name, address, daytime phone number, RMA number,

a copy of your original sales receipt, and a brief description of the problem.

5. Mark the RMA # on the outside of all packages. The factory cannot a cc ep t a n y

package without the RMA # marked on the outside.

6. Return the UPS by insured, prepaid carrier to: Call at 800-582-4524.

XVT Series UPS Warranty

Limited Two Year Product Warranty

XVT Series UPS products are warranted free from defects in material and

workmanship for two years from date of purchase. This warranty is limited to

repairing or replacing, at sole option. Any defective component,

circuit board or module contained within the product only when it is returned with an

Return Material Authorization (RMA) number to .

may, at its sole discretion, offer field repairs with warranty coverage

limited to parts and labor only.

Batteries

Batteries, included in this product are warranted for one year. Batteries are deemed

defective by sole discretion.

Limitations of Warranty

This limited warranty does not cover any losses or damage resulting from shipment

to or from the customer, or from improper installation, inappropriate environment,

abuse, modifications, adjustments, or unauthorized repair.

Exclusive Remedies

Except as set forth herein and except as to title, there are no warranties, express or

implied, or any affirmations of fact or promises by for the products,

Xtreme Power

Xtreme Power Xtreme Power

Xtreme Power

Xtreme Power's

Xtreme Power

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

(3) Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

(4) Consult the dealer or an experienced radio/TV technician for help. Any special

Accessories needed for compliance must be specified in the instruction.

CAUTION: A shielded-type power cord is required in order to meet FCC emission

limits and to prevent interference to the nearby radio and television reception. It is

essential that only the supplied power cord be used. Use only shielded cables to

connect I/O devices to this equipment.

CAUTION: Any changes or modifications not expressly approved by the guarantee

of this device could void the user's authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS

(S A V E THESE IN S T RUCTIO N S )

This manual contains important safety instructions. Please read and follow all

instructions carefully during installation and operation of UPS. Read this manual

thoroughly before attempting to unpack, install, or operate.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and

humidity controlled indoor area, free of conductive contaminants. (Please see

specifications for acceptable temperature and humidity range).

To reduce the risk of electric shock, do not remove the cover. Qualified

CAUTION!

Service Personnel must perform repairs and maintenance. No user serviceable parts

inside.

CAUTION! Hazardous live parts inside can be energized by the battery even when

the AC input power is disconnected.

CAUTION! UPS must be connected to an AC power outlet with fuse or circuit

breaker protection. Do not plug into an AC wall outlet that is not grounded. If you

need to de-energize this equipment, turn off and unplug the UPS.

CAUTION! To avoid electrical shock, turn off the UPS and unplug it from the AC

power source before servicing the battery or installing a computer component.

DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT!

does not sell products for life support or medical applications. DO

NOT use these UPS' in any circumstance that would affect operation or safety of any

life support equipment or with any medical applications or patient care.

DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or

electric shock, do not use with or near an aquarium. Condensation from the

aquarium can cause the UPS to short out.

Xtreme Power

NOTICE Not for use in a computer room as defined in the Standard for Protection

of Electronic Computer/Data Processing Equipment.

NOTICE Statement indicating that the socket-outlet shall be installed near the

equipment and shall be easily accessible.

-2-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

SPECIFICATIONS

-14-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

DESCRIPTION

Battery/Surge Outlets

Provides battery-powered/surge outlets for the connected equipment and insures

uninterrupted operation of your equipment during a power failure.

Power Switch

Can be used as a master on/off switch for equipment connected to the battery-

powered outlets.

Power On Indicator

This LED is illuminated when the utility condition is normal and the UPS outlets are

providing power, free of surges and spikes.

Circuit Breaker

The circuit breaker that provides overload and fault protection.

USB

Port/protocol that provides communications between the UPS and PC.

Network Surge Protection: One in, One out RJ45 surge protection.

HOW TO DETERMINE THE POWER REQUIREMENTS OF

YOUR EQUIPMENT

1. M ak e su r e t h a t t h e t o ta l Vol t - A mp ( VA ) re q u i rem e n t s o f y o ur comp uter ,

monitor and peripheral e quipm en t does not exceed the ma x i m um VA r a t i ng

for the XVT-600, XVT-800,XVT-1200 an d XVT-1500. T he maximum VA values

would be 600VA, 800VA, 1200VA and 1500VA, respectively.

2. Ensure that the equipment plugged into the battery-powered outlets does not

exceed the UPS's rated capacity. If UPS's rated capacities are exceeded, an

overload condition may occur and cause the UPS to shut down and trip the circuit

breaker.

3. If the power requirements of your equipment are listed in values other than Volt-

Amps (VA), convert Watts (W) or Amps (A) into VA by doing the calculations

below. Note: The equation below only calculates the maximum amount of VA that

the equipment can use, not what is typically used by the equipment at any given

time. Users should expect usage requirements to be approximately 60% of below

value to estimate power requirements:

Watts (W) x 1.83 = VA or Amps (A) x 120 = VA

Add the totals for all of the equipment and multiply this total by 0.65 to calculate

actual requirements.

Note: Many factors can affect the amount of power that your computer system

will require. The total load that you will be placing on the battery-powered

outlets should not exceed 85% of the UPS's capacity.

-3-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

AVR

BATTERY

CHARGER

INVERTER

RELAY

INPUT

OUTPUT

RELAY

Model XVT-600 XVT-800 XVT-1200 XVT-1500

Capacity

Input

Output

Protection

Battery

Indication

Phase

Voltage Range

Frequency

Voltage(b attery mode)

Waveform

Frequency

Transfer Time

Compliance with IEEE 587

Short Circuit Circuit breaker

Type

Recharge

Backup Time

Charge Current

F1,F2,F3

Batt ery Configu rati on

AC Mode

Charging Battery

Battery Mode

Battery Low

Environment

Audib le Noise at 1m(3 ft)

Temperature

Humidity

Physic al

Outlets

Net Weight(lbs)

Net Dimension

(WxDxH) (In)

Shipping Weight

(lbs)

Shipping Dimension

(WxDxH) (In)

600VA/360W 800VA/480W

1200VA/720W

1500 VA/90 0W

Single phase

94-144Vac±5Vac

60Hz±5Hz

120Vac±12%

Pure Sine Wave(Typical)

AC mode-follow utility, Battery mode-60Hz±0.5Hz

＜0.5Hz (Battery operation)

Typical 4ms, max 11ms

12V Sealed non-spillable lead acid, maintenance free

After full discharge, 10 hours to 90% capacity

≥6 min at 50% load

1.5A(max)

30A/32Vx2 40A/32Vx2 25A/32Vx3 30A/32Vx3

1x12V/7AH 1x12V/9AH 2x12V/7AH 2x12V/9AH

Green LED on, Red LED off, No Alarm

Yellow LED on

Green and Yellow LED off, Red LED on, Alarm fast beep

＜45dB

0 to 35 C

0%-90% Non-Condensing

Green and Yellow LED off, Red LED flash, Alarm slow beep

15.3 16.8 27.6 31.3

3.74x14.57x6.22

4.92x16.93x8.7 4.92x16.93x8.7

17.6 19.2 29.8 32.4

6.1x16.22x10.2

6: NEMA 5-15R

6.1x16.22x10.2

7.48x18.89x12.75 7.48x18.89x12.75

Input Protection

Hardware Installation Guide

1. Your new UPS may be used immediately upon receipt. However, c h a r g i n g t h e

battery for at least 4-hours is recommended to ensure tha t th e b a t t e r y ' s

maximum charge capacity is achieved. Charge loss may occur d u r i n g s h i p p i n g

and storage. T o r e c h a r g e the battery, plug the power cord int o t h e A C w a l l

outlet and turn the pow e r switch on. Note: units will charge the

b a t t e r y with the power switch on or off.

2. With the UPS off and unplugged, connect your com pute r, mon itor , a n d a n y

e x ter n a l ly powered data storage device (Zip drive, T a pe d ri v e , e t c…) i n t o

the bat t e r y p o we r supplied outlets. DO NOT plug a laser printer, copier, space

heater, v a cu um or ot h e r large electrical device into the UPS. The power

demands of these devices will overload and possibly damage the UPS.

3. To protect a fax, single line phone or modem, connect a t eleph on e c ab le f ro m

the w a l l jack outlet to the IN jack of the UPS. Connect a telephone cable from

the OUT ja c k t o the modem port on your computer. The OUT jack can be u s e d

to protect a single line t e l e p h o n e o r f a x m a c h i n e .

4. Plug the UPS into a 2 pole, 3 wire grounding receptacle (AC wall outlet). Make

su re t he wall branch outlet is protected by a fuse or circuit break er and d oes

n ot s e r v i c e equipment with large inrush electrical demands (e.g. refrigerator,

copier, etc…). Note: DO NOT use extension cords, power or surge strips on t h e

input or the output of the UPS.

5. Depress the power switch to turn the UPS on. The power on LED i n d i c a t o r

w i l l illuminate and the UPS will “beep” once.

6. If an overload is detected, a n audi ble al arm wi ll sou nd and t he UP S wi ll e m i t

one long beep every 2.4 seconds. To correct this, turn the UPS off and unplug at

l ea st o ne p i e c e of equip me nt from t he ba ttery -p ow er ed out le ts . W ai t 10 -

seconds. M a k e s u r e t h e circuit breaker is depressed and then turn the UPS on.

7. Your UPS is equipped with an auto-charge feature (all units). Wh e n t h e U P S i s

plugged into an AC wall outlet and there is an acceptable AC voltage present, t h e

b a t t er y wi l l a u t o m a t i c a l l y r e c h a r g e .

8. To maintain optimal battery charge, leave the UPS p lu gg ed i nt o a n A C wa l l

outlet w i t h the power switch turned on at all times.

9. To store your UPS for an extended period, cover and store it with the battery

f u l l y charged. Recharge the battery every two months to maintain battery life.

Xtreme Power

-4-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

-13-

2. Alarm

TROUBLESHOOTING

Problem Possible Cause Solution

Full-time surge

protection outlets

stop providing power

to equipment.

Circuit breaker has tripped due

to an overload.

Turn the UPS off and unplug at least

one piece of equipment. Wait 10-

seconds, replace the fuse with a fuse of

like size and rating, and then turn the

UPS on.

Battery not fully charged. Recharge the battery for at least 4-

hours.

The UPS does not

supply expected

runtime. The Battery is defective. Contact Xtreme Power UPS about

replacement batteries at

The on/off switch is designed to

prevent damage by rapidly

turning it off and on.

Turn the UPS off. Wait 10-seconds and

then turn the UPS on.

The UPS is not plugged into an

AC wall outlet.

Connect the UPS to an 110/120V 60Hz

AC wall outlet.

The battery is defective. Contact Xtreme Power UPS about

replacement batteries at

The UPS will not

turn on.

Mechanical problem. Contact Xtreme Power

The UPS shuts down

when there is a loss

of AC power.

The UPS is not providing

battery power.

Shutdown your computer and turn the

UPS off. Wait 10-seconds and turn the

UPS back on.

This should reset the UPS.

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

Alarm indication Unit status

buzzer every 5s DC start

buzzer every 1s self test

2 buzzer every 1s low battery

4 beep every 2.4s overload

3buzzers every 1s overheat

input is off, long beep, power off after 5s short circuit

Quickstart Software Installation Guide

1. Locate the USB Cable inside of the box.

2. In se rt o ne en d o f US B c ab le i nt o t he U PS a nd t he o th e r i n t o t h e U S B p o r t

o n your computer.

3. Insert the CD into the computer.

4. When t h e s o f t w a r e i n t e r f a c e r e q u e s t s a s e r i a l n u m b e r l o c a t e a n d input

t h e serial number on the CD software jacket into the software interface.

5. Follow the software prompts

6. Quickstart Software Installation Guide

-12-

Note: Batteries are considered HAZARDOUS WASTE and must be disposed of

properly at an appropriate recycling facility or return them to the supplier. Contact

your local government for more information about proper disposal and recycling of

batteries.

Servic ing of batteries should be performed or supervised by personnel

knowledgeable about batteries and the required precautions.

When replacing batteries, replace with the same type and number of batteries or

battery packs.

CAUTION: Do not dispose of batteries in a fire. The batteries may explode.

CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful to the

skin and eyes. It may be toxic.

CAUTION: A battery can present a risk of electrical shock and high short-circuit

current. The following precautions should be observed when working on batteries:

a) Remove watches, rings, or other metal objects.

b) Use tools with insulated handles.

c) Wear rubber gloves and boots.

d) Do not lay tools or metal parts on top of batteries.

e) Disconnect charging source prior to connecting or disconnecting battery terminals.

f) Determine if battery is inadvertently grounded. If inadvertently grounded, remove

source from ground. Contact with any part of a grounded battery can result in

electrical shock. The likelihood of such shock can be reduced if such grounds are

removed during installation and maintenance.

DEFINITIONS FOR LED INDICATORS

1. LED indication

Note: ＊means any situation

M o d e l # X V T -6 00 X V T -8 00 X V T -1 20 0 X V T -1 50 0

B a tte ry

Q T Y /R a ting 1 x 1 2 V / 7A H 1 x 1 2 V / 9A H 2 x 1 2 V / 7A H 2 x 1 2 V / 9A H

LED1(green) LED2(yellow) LED3(red) Unit Status

ON ＊ OFF On AC power

OFF OFF FLASH ON BATTERY

＊ ON ＊ Charge

overheat

Low battery

Overload protection

＊＊ ON

Short circuit

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

-5-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

Input user name, company name and serial number into the software

interface. Note: serial number is on the CD software jacket.

Choose installation location and click “next(N)”

-6-

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

-11-

6. Remove the defective battery from the battery compartment.

7. Disconnect the battery positive (red) wire from the battery positive (+) terminal.

8. Turn the power switch on, to discharge the UPS.

9. Disconnect the battery negative (black) wire from the battery negative (-) terminal.

10. Set the defective battery aside.

11. Connect the battery negative (black) wire to the battery negative (-) terminal on

the new battery.

12. Connect the battery positive (red) wire to the battery positive (+) terminal on the

new battery.

Note: Some sparking may occur, this is normal.

13. Install the new battery into the battery compartment. DO NOT pinch the battery

wires in between the battery and the case.

14. Reinstall the battery compartment door and the retaining screws.

15. Properly dispose of the old batteries at an appropriate recycling facility or return

them to the supplier in the packing material for the new batteries.

16. The UPS is now ready for normal operation.

Retaining

Screws

XVT-600, XVT-800, XVT-1200 and XVT-1500 User's Manual Uninterruptible Power Supply (UPS)

REPLACING THE BATTERY

(QUALIFIED SERVICE PERSONNEL ONLY)

CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before

servicing the battery. Service the battery under the supervision of Qualified Service

Personnel knowledgeable of batteries and their precautions.

CAUTION! Use only the specified type of battery. See your dealer for replacement

batteries.

CAUTION! The battery may present risk of electrical shock. Do not dispose of

battery in a fire, as it may explode. Follow all local ordinances regarding proper

disposal of batteries.

CAUTION! Do not open or mutilate the batteries Released electrolyte is harmful to

skin and eyes and may be toxic.

CAUTION! Although the battery system voltage is only 12VDC and 24VDC, the

battery can present a high risk of short circuit current and electrical shock. The

short circuit current capability of the battery is sufficient to burn wire or tools very

rapidly producing molten metal. Observe these precautions when replacing the

battery:

1. Remove all watches, rings or other metal objects.

2. Only use tools with insulated handles.

3. Do not lay tools or metal parts on top of battery or any terminals.

4. Wear protective eye gear (goggles), rubber gloves and boots.

5. Disconnect the charging source before connecting or disconnecting the ba tter y

terminals.

6. Determine if the battery is inadvertently grounded. If inadvertently grounded,

remove the source of ground. Contact with a grounded battery can result in

electrical shock! The likelihood of such shock will be reduced if; such grounds

are removed during installation and maintenance (applicable to a UPS and a

remote battery supply not having a grounded circuit).

BATTERY REPLACEMENT PROCEDURE

(QUALIFIED SERVICE PERSONNEL ONLY)

Note: The XVT-600, the XVT-800, the XVT-1200, and the XVT-1500 have user

replaceable batteries.

1. Turn off and unplug all connected equipment.

2. Turn the UPS off and unplug the UPS's power cord from the AC wall outlet.

3. Turn the UPS upside down.

4. Remove the retaining screws from the battery compartment door.

5. Remove the battery compartment door.

-10-
