Thank you for selecng this Uninterrupble Power Supply (UPS). It provides you with protecon for connected
equipment. Please read this manual before installing the NXRT-Series UPS models NXRT-1000, NXRT-1500, NXRT-
2000 and NXRT-3000 as it provides important informaon that should be followed during installaon and main-
tenance of the UPS and baeries, allowing you to correctly set up your system for the maximum safety and per-
formance. Included is informaon on customer support and service, if it is required. If you experience a problem
with the UPS, please refer to the Troubleshoong secon in this manual to correct the problem. If the problem is
not corrected, please collect informaon so that the Technical Support personnel can more eecvely assist you.

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 5
Uninterrupble Power Supply
EMC Statements - FCC Part 15
Noce: Pursuant to secon 15 of the FCC rules, this product has been tested and thereby complies to the condi-
ons of a Class B (700-1500VA) and Class A (2000-3000VA) digital device, which have been established for oering
sucient protecon against dangerous interference for installaon in a residenal area. Installaon and use of the
equipment should comply with the instrucons provided in order to avoid such interference due to the amount
of radio frequency energy that is radiated and generated by the equipment. In spite of this, we cannot assure that
a certain amount of interference may not occur in some installaons. If, by turning on and o, it can be deduced
that your radio or television recepon is found to be inuenced by harmful interference from the equipment, it is
recommended to use one of the following prevenve measures:
• Place the receiving antenna in a separate locaon or orientaon.
• Ensure a greater distance is achieved between the receiver and the equipment.
• Ensure that your equipment is connected to an outlet on a separate circuit than the receiver.
• Contact a technician experienced with radio and TV or a dealer for further assistance.
ICES-003
This Class B Interference Causing Equipment meets all requirements of the Canadian Interference Causing Equip-
ment Regulaons ICES-003. Cet appareil numerique de la classe B respecte toutes les exigencies du Reglement sur
le materiel brouilleur du Canada.
Declaraon of Conformity Request
Units labeled with a CE mark comply with the following standards and direcves:
• Harmonic Standards: EN 50091-1-1, EN 62040-1-1 1st / IEC 62040-1-1 1st and EN 50091-2 / EN62040-2
1st / IEC 62040-2 1st.
• EU Direcves:73/23/EEC, Council Direcve on equipment designed for use within certain voltage limits:
2006/95/EC, Amending Direcve 93/68/EEC and 73/23/EEC
89/336/EEC, Council Direcve relang to electromagnec compability
2004/108/EC, Amending Direcve 92/31/EEC and 89/336/EEC relang to EMC
The EC Declaraon of Conformity is available upon request for products with a CE mark.
IMPORTANT SAFETY INSTRUCTIONS: (SAVE THESE INSTRUCTIONS)
• This Manual Contains Important Instrucons that should be Followed during Installaon and Maintenance
of the UPS and Baeries.
• The equipment can be operated by any individuals with no previous experience.
• WARNING: Intend for installaon in a controlled environment. Maximum ambient temperature 40°C.
• CAUTION: Risk of electric shock. Refer to top or rear or boom of UPS for cauonary markings.
• CAUTION: Risk of electric shock. Heat sinks are live. Disconnect unit before servicing.
• CAUTION (UPS Having Internal Baeries): Risk of electric shock - Hazardous live parts inside this unit are
energized from the baery supply even when the input AC power is disconnected.

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 6
Uninterrupble Power Supply
• CAUTION (No User serviceable Parts): Risk of electric shock, do not remove cover. No user serviceable
parts inside. Refer servicing to qualied service personnel.
• CAUTION (Non-isolated Baery supply): Risk of electric shock, baery circuit is not isolated from AC in-
put, hazardous voltage may exist between baery terminals and ground. Test before touching.
• WARNING (Fuses): To reduce the risk of re, replace only with the same type and rang of fuse.
• CAUTION: Do not disconnect baery connector under load.
• ATTENTION: Hazardous through electrical shock. Also with disconnecon of this unit from the mains,
hazardous voltage sll may be accessible through supply from the baeries. The baery supply should
therefore be disconnected in the plus and the minus pole when maintenance or service work inside the
baery cabinet or UPS is considered.
• CAUTION (For any pluggable only): With the installaon of this equipment it should be prevented, that
the sum of the leakage current of the UPS and connected consumer does not exceed 3.5 mA.
• CAUTION (For permanent connecon only): HIGH LEAKAGE CURRENT, Earth connecon essenal before
connecon supply
• WARNING: Intend for installaon in a controlled environment.
• CAUTION: Do not dispose of baeries in a re, the baery may explode.
• CAUTION: Do not open or mulate the baery, released electrolyte is harmful to the skin and eyes.
• CAUTION: A baery can present a risk of electric shock and high short circuit current. The following pre-
cauon should be observed when working on baeries:
A. Remove watches, rings or other metal objects.
B. Use only tools with insulated handles.
C. Wear rubber gloves and boots.
D. Do not lay tools or metal parts on top of baeries.
E. Disconnect charging source prior to connecng or disconnecng baery terminals.
• To reduce the risk of electric shock, disconnect the UPS from the mains supply before installing a computer
interface signal cable. Reconnect the powers cord only aer signaling interconnecons have been made.
• Servicing of baeries should be performed or supervised by personnel knowledge of baeries and the
required precauons. Keep unauthorized personnel away from baeries.
• CAUTION: When replacing baeries, replace with the same type and number of baeries: One Sealed lead
acid baery, rated 12 V, 8.5 Ah max.
• CAUTION: To reduce the risk of re, use only No. 26 AWG or larger telecommunicaon line cord.
• CAUTION (FOR 1500VA HV Only): To reduce the risk of re. Connect only to a circuit provided with 20
amperes maximum branch circuit overcurrent protecon in accordance with the Naonal Electric Code,
ANSI/NFPA 70”.

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 7
Uninterrupble Power Supply
• CAUTION (FOR 3000VA Only): To reduce the risk of re. Connect only to a circuit provided with 30 amperes
maximum branch circuit overcurrent protecon in accordance with the Naonal Electric Code, ANSI/NFPA
70”.
• CAUTION (FOR 700-2000VA Only): To reduce the risk of re. Connect only to a circuit provided with 20
amperes maximum branch circuit overcurrent protecon in accordance with the Naonal Electric Code,
ANSI/NFPA 70”.
The instrucons contained within this safety manual are deemed important and should be closely followed at all
mes during installaon and follow-up maintenance of the UPS and baeries.
CAUTION
The unit has a dangerous amount of voltage. If the UPS indicator is on, the unit’s outlets may have a
dangerous amount of voltage even when not plugged into the wall outlet because the baery may
connue to supply power.
Care should be taken to undertake installaon indoors, free from electrically-conducve parcles
which are under temperature and humidity control, in order to reduce the risk of electric shock.
It is best to disconnect the device using the power supply cord. Ensure that the equipment is placed
in a posion near the outlet where easily accessible.
Except for replacing the baeries, all servicing on this equipment must be carried out by qualied
service personnel.
Before conducng any maintenance, repair, or shipment, rst ensure that everything is turned o
completely and disconnected.
For addional safety instrucons, please use the Safety Manual as a reference.
Special Symbols
The following symbols used on the UPS warn you of precauons:
RISK OF ELECTRIC SHOCK - Please observe the warning that a risk of electric shock is present
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to the operator’s manual for addional informaon,
such as important operang and maintenance instrucons.
SAFE GROUNDING TERMINAL - Indicates primary safe ground
LOAD ON/OFF – Pressing the buon turns on/o the output receptacles and the indicator light.
RJ45 RECEPTACLE – The receptacle provides network interface connecons and telephone or telecommu-
nicaons equipment should not be plugged into it.
Please do not discard of the UPS or the UPS baeries as the UPS may have valve-regulated lead-acid bat-
teries. Please recycle baeries appropriately.

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 8
Uninterrupble Power Supply
Introducon
The informaon provided in this manual covers single phase T90 700–3000VA, uninterrupble power systems,
their basic funcons, operang procedures, and emergency situaons, also including informaon on how to ship,
store, handle and install the equipment. Only detailed requirements of the UPS units are described herein, and
installaon must be carried out in accordance with this manual. Electrical installaons must also carefully follow
local legislaon and regulaons. Only qualied personnel should conduct these installaons as failure to acknowl-
edge electrical hazards could prove to be fatal.
Product Descripon
Several dierent kinds of sensive electrical equipment stay protected by a UPS (Uninterrupble Power System)
including computers, workstaons, process control systems, telecommunicaons systems, sales terminals, other
crical instrumentaon, etc. The purpose of the UPS is to protect these systems from poor quality ulity power,
complete loss of power, or other associated problems.
Electrical interference abounds in many forms causing problems in AC power, from lightning, power company ac-
cidents and radio transmissions to motors, air condioners, and vending machines, among others. So protecon of
sensive electrical equipment is vital to protect against power outages, low or high voltage, slow voltage uctua-
ons, frequency variaons, dierenal and common-mode noises, transients, etc.
In order to prevent power line problems reaching crical systems causing damage to soware, hardware and
causing equipment to malfuncon, the UPS helps by maintaining constant voltage, isolang crical load output if
needed, and cleaning the ulity AC power.
Double Conversion Online Technology
A double conversion on-line technology UPS provides completely isolated, clean, uninterrupted single-phase pow-
er to your crical systems, while maintaining the baeries for their maximum potenal. In the event that the
power failure lasts longer than the UPS backup me, the UPS will shut down avoiding baery damage. When the
input AC voltage returns, the UPS will automacally return online to recharge the baeries.
As shown in block diagram:
• An input lter reduces transients on the mains
• For maintaining full baery charge, AC-power is reced and regulated in the recer feeding power to
the inverter and baery converter.
• DC power is converted to AC in the inverter passing it on to the load.
• Power is maintained from the baery during a power failure.
• The converter increases voltage appropriately for the inverter

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 9
Uninterrupble Power Supply
Eciency Opmizer Funcon
The Eciency Opmizer funcon is a new feature for the UPS adding cost eecveness, minimizing power loss
and reducing power consumpon. Alternang between bypass and on-line modes is achieved automacally and
in accordance with the condions of the ulity power. On-line mode may be used during mes of intermient
power supply, and bypass mode when power ows smoothly in order to obtain greatest eciency. Irregularies
can be detected in less than a second, and on-line mode reacvated immediately. Switching back to online mode
occurs when input voltage is outside ±10% or nominal (±15% selectable), when input frequency is outside of ±3Hz
or when no input line is available.
Although high eciency is standard, the default operaon is in on-line mode. Bypass can be acvated in the LCD
panel, though on-line can be run permanently if preferred.
Free Run Mode
The UPS operates in free run mode when input frequency is outside of the selected input frequency range. Free
run mode is when output frequency does not match input frequency. When starng the UPS, the frequency regu-
laon detected is 50 or 60 Hz ±0.25Hz. Please refer to chapter 7.2 if you want bypass available while running in
free run mode.
Diagnosc Tests
When you start the UPS, a diagnosc test is automacally executed that checks electronics, baery, and reports
any problems on the LCD display.
An advanced baery management system always monitors the condions of the baeries sends any fore warn-
ings if replacement is needed. Otherwise every 30 days of normal mode operaon, a baery discharge test is
performed and any problems reported on the LCD display.
Except during the rst 24 hours aer startup while the UPS is in charging mode (please see chapter 7.2), diagnosc
tests can be performed manually from the front panel at any me.
System Conguraon
The UPS device and the internal backup baery make up the system. Depending on the site and load requirements
of the installaon, certain addional opons are available as a tailored soluon.
Planning a UPS system, the following should be taken into consideraon:
• The total demand of the protected system shall dictate the output power rang (VA). Allow a margin for
future expansion or calculaon inaccuracies from measuring power requirements.
• Backup me needed will indicate the baery size needed. If load is less than the UPS nominal power rang
then actual backup me is longer.
• The following opons are available:
• External Baery Cabinets
• Transformer cabinets
• Maintenance bypass switches
• Connecvity opons (relay card, SNMP/WEB card)

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 10
Uninterrupble Power Supply
The following UPS models are available:
Model Backup me with internal baeries Recharge me to 90% capacity
T90-700 5 min 3 hours
T90-1000 6 min 3 hours
T90-1500 5 min 3 hours
T90-2000 6 min 3 hours
T90-3000 5 min 3 hours
Addional External Baery Cabinets are available if more back-up me is needed.
System Conguraon
Informaon presented here is vital to all personnel and please also read the UPS safety manual.
Storage and Transportaon
Please handle with extreme cauon since a high amount of energy is contained with the baeries. Always keep the
unit in posion as marked on the packaging and never drop the unit.
Installaon
If ammable substances such as gases or fumes are present or if the room is airght, a safety hazard situaon ex-
ists, in which no electrical equipment should be operated.
The instrucons in this manual explain how to install the UPS safely. Not acknowledging such electrical hazards
may be fatal, so keep this manual for all future reference.
WARNING!
It is strongly advisable not to open the UPS cabinet as the components have very high voltage and
touching them may be fatal. Only a technician from the manufacturer or an authorized agent may
service the unit.
This UPS unit’s output receptacles carry live voltage even when not connected to a power supply as
it has its own energy source.
User’s Operaons
The only operaons that users are permied to do are:
• Turning the UPS unit on and o
• Operang the users interface
• Connecng data interface cables
• Changing the baeries
All such operaons are to be performed exactly as instructed in this manual. The greatest care possible must be
taken for any of these operaons and any change thereof may prove very hazardous to the operator.

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 11
Uninterrupble Power Supply
Storage
Please adhere to the following instrucons if the UPS is not installed immediately:
• Store the equipment as is in its original packing and shipping carton
• Do not store in temperatures outside the range of +15°C to +25°C.
• Ensure that the equipment is fully protected from wet or damp areas and from moist air.
In order to maintain the vitality of the baeries, ensure that the UPS is recharged every 6 months for at least 8
hours.
Installaon
Environment
Ensure that all environmental concerns and requirements are met according to these technical specicaons, oth-
erwise the safety of installaon personnel cannot be guaranteed and the unit may malfuncon.
Ensure that you remember the following when locang the UPS system and baery opons:
• Avoid extremes of temperature and humidity. Maximal baery life can be aained with a recommended
temperature range of 15 °C to 25 °C.
• Provide protecon for the equipment from moisture.
• Space and venlaon requirements must be met. Ensure there is 100mm behind and 50mm on the sides
of the UPS for venlaon.
• Ensure that the front of the UPS remains clear for user operaon.
The External Baery Cabinets has to be installed next to the UPS or under the UPS.
Installaons with accessories of “Vercal” and “Wall-mounted” types:
Please install the vercal and wall-mounted types of units according to the following illustraon.
5 in 1 RACK-MOUNT BRACKETS : 94A-VM1K-000*4 , 641-5008-410*16

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 12
Uninterrupble Power Supply

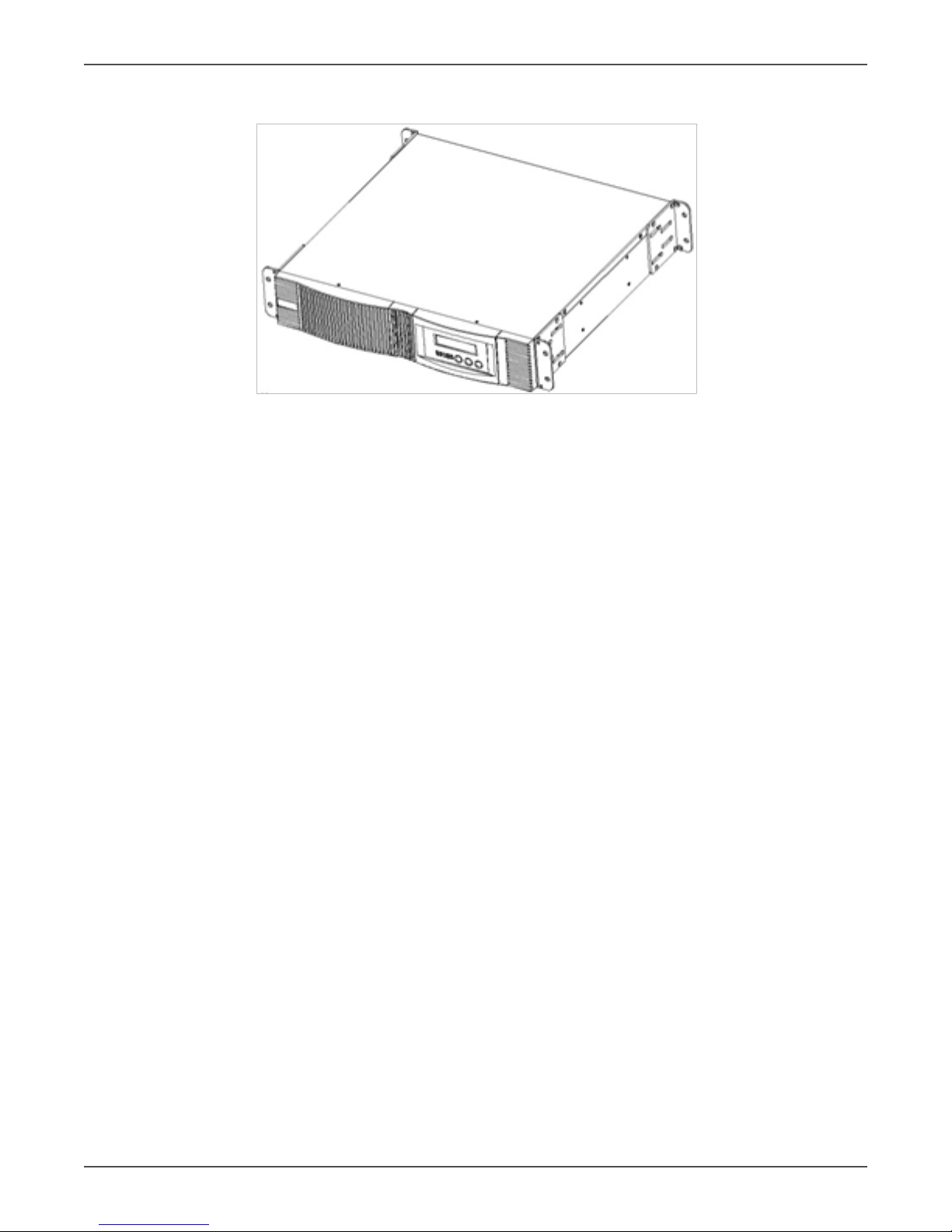

1. 19” Rack installaon:
Mount the 2U rack-mount in a 19-inch EIA 310 C standard rack.
2. 23” Rack installaon:
Change the posion of the two mounng brackets to mount the 2U rack-mount in a 23-inch EIA 310 C standard
rack.
19” rack
23” rack

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 13
Uninterrupble Power Supply
3. Tower installaon:
Move the mounng brackets from the front to the side and aach the brackets by screws. Then let the UPS stand
with the vercal direcon as the below pictures shown.
4. Wall installaon:
Move the mounng brackets from the front to the side and aach the brackets by screws. Then mount the UPS
to the wall as the below pictures shown.

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 14
Uninterrupble Power Supply
5. Installaon with rear Bracket:
We can use bracket to support the rear side of UPS or baery cabinet.

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 15
Uninterrupble Power Supply
Rear Panel Views
700-1.5kVA Rear Panel

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 16
Uninterrupble Power Supply
Rear Panel Views
2kVA-3kVA Rear Panel

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 17
Uninterrupble Power Supply
RM(1U) 700-1KVA Rear Panel

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 18
Uninterrupble Power Supply
RM(2U) 700/1K/1.5KVA Rear Panel

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 19
Uninterrupble Power Supply
RM(2U) 700/1K/1.5KVA Rear Panel

Xtreme Power Conversion Corporaon
T90 User’s Manual
Page 20
Uninterrupble Power Supply
Connecon To Mains And Loads
• Ensure that the UPS is disconnected from mains and loads while connecng the External Baery Cabinets,
if needed.
• Use the baery cable that comes with the External Baery Cabinet to connect the External Baery Cabinet
to the UPS. Connect a second baery cabinet to the rst one with the cable provided if more than one is
to be installed.
• Be aware of UPS parameters and changing the Baery pack quanty when using the external baery cabi-
nets (see chapter 7.2)
• Connect the Input cable to the UPS and connect the other end to a grounded outlet. The baeries will
automacally charge when connected to the mains. Please realize that although you may start using the
UPS immediately, maximum back-up me will sll not be available, so it is recommended to charge the
baeries for a minimum of 8 hours before use.
• If unit instantly shows a “Site Wiring Fault”, rotate the connector (Schuko) (see chapter 7.4).
• Aer charging, connect the loads to the UPS (see the example in g 3).
• Do not connect any devices that have the possibility of overloading the UPS or drawing half-wave reced
current, such as hair dryers or vacuum cleaners.
• Should computer or alarm connecons be used, use connecons according to chapter 6 of the manual
provided with that opon. The connecons can be referred to on the rear panel.
The installaon is now complete.
Example of Installaon of Plug & Play products
