Xtreme Power Conversion XVT?600 Guide












XtremeValueTowerSeries
(XVT)



User’s&InstallationManual


XtremePowerConversion™Corporation

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)
TABLEOFCONTENTS
SAFETYINSTRUCTIONS..................................................................................................................................3
PRODUCTDESCRIPTION................................................................................................................................5
DETERMININGTHEPOWERREQUIREMENTSOFYOUREQUIPMENT...........................................................7
HARDWAREINSTALLATIONGUIDE...............................................................................................................7
QUICKSTARTSOFTWAREINSTALLATIONGUIDE...........................................................................................9
REPLACINGTHEBATTERY...........................................................................................................................14
DEFINITIONSFORLEDINDICATORS............................................................................................................15
ALARMS.......................................................................................................................................................15
TROUBLESHOOTING....................................................................................................................................16
SPECIFICATIONS..........................................................................................................................................17
SHIPPINGLIST.............
OBTAININGSERVICE................................................................................................................................19
.................................................................................................................................18
XTREMEPOWERCONVERSION™(XPC)CORPORATIONLIMITEDWARRANTY...........................................20

[2]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)
SAFETYINSTRUCTIONS
ATTENTION:TosafelyinteractwithandenjoyallthefeaturesandbenefitsoftheseXtremePower
ConversionUninterruptiblePowerSupplies(UPS),pleasereadandfollowallinstallationandoperation
instructionscompletely.TheseUPSaredesignedtoprovidepowerprotectionforconnectedelectronic
equipment.
PleasereadthismanualbeforeinstallingtheXVT‐SeriesUPSmodelsXVT‐600,XVT‐800,XVT‐1200,and
XVT‐1500asitprovidesimportantinformationthatshouldbefollowedduringinstallationand
maintenanceoftheUPSandbatteries,allowingyoutocorrectlysetupyoursystemforthemaximum
safetyandperformance.Includedisinformationoncustomersupportandfactoryservice,ifitis
required.IfyouexperienceaproblemwiththeUPS,pleaserefertotheTroubleshootingsectioninthis
manualtocorrecttheproblem.Iftheproblemisnotcorrected,pleasecollectinformationsothatthe
TechnicalSupportpersonnelcanmoreeffectivelyassistyou.
CAUTION:Anychangesormodificationsnotexpresslyapprovedbythemanufacturerofthisdevice
couldvoidtheuser’sauthoritytooperatetheequipment.
FCCNotice:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
DigitalDevicepursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceinresidentialinstallation.Thisequipmentgeneratesusesand
canradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,
maycauseharmfulinterferencetoradiocommunications.Thereisnoguaranteethatinterferencewill
notoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioor
televisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuseris
encouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:
1. Reorientorrelocatethereceivingantenna.
2. Increasetheseparationbetweentheequipmentandreceiver.
3. Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
4. Consultthedealeroranexperiencedtechnicianforhelp.Anyspecialaccessoriesneeded
forcompliancemustbespecifiedintheinstruction.
CAUTION:Ashielded‐typepowercordisrequiredinordertomeetFCCemissionlimitsandto
preventinterferencetothenearbyradioorTVreception.Itisessentialthatonlythesuppliedpower
cordbeused.UseonlyshieldedcablestoconnectI/Odevicestothisequipment.
CAUTION:Anychangesormodificationsnotexpresslyapprovedbythemanufacturerofthisdevice
couldvoidtheuser’sauthoritytooperatetheequipment.
[3]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)

IMPORTANTSAFETYINSTRUCTIONS:
(SAVETHESEINSTRUCTIONS)
Thismanualcontainsimportantsafetyinstructions.PleasereadandfollowALLinstructionscarefully
duringtheinstallationandoperationoftheUPS.Readthismanualthoroughlybeforeattemptingto
unpack,install,oroperate.
CAUTION!Topreventtheriskoffireorelectricshock,installinatemperatureandhumidity
controlledindoorarea,freeofconductivecontaminants.(Pleaseseespecificationsforacceptable
temperatureandhumidityrange).
CAUTION!Toreducetheriskofelectricshock,donotremovetheUPScover.QualifiedService
PersonnelmustperformALLrepairsandmaintenance.Nouserserviceablepartsinside.
CAUTION!HazardouslivepartsinsidecanbeenergizedbythebatteryevenwhentheACinput
powerisdisconnected.
CAUTION!UPSmustbeconnectedtoanACpoweroutletwithfuseorcircuitbreakerprotection.
DonotplugintoanACwalloutletthatisnotgrounded.Ifyouneedtode‐energizethisequipment,turn
offandunplugtheUPS.
DONOTUSEFORMEDICALORLIFESUPPORTEQUIPMENT!XtremePower
doesnotsellproductsforlifesupportormedicalapplications.DONOTusetheseUPSinany
circumstancesthatwouldaffectoperationorsafetyofanylifesupportequipmentorwithanymedical
applicationsorpatientcare.
NOTICE!NotforuseinacomputerroomasdefinedintheStandardforProtectionofElectronics
Computer/DataProcessingEquipment.
NOTICE!Anacceptableoutlet(baseduponUPSSpecifications)shallbeinstalledneartheequipment
andshallbeeasilyaccessible.
[4]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)

PRODUCTDESCRIPTION

UPSFunctionality:TheXVTUPSproductsuseLine‐InteractiveAutomaticVoltageRegulation
(AVR)UPStechnology.UndernormalACpoweroperation,theinputpowerflowsthroughtheAVR
circuit,regulatingtheincomingACpowertotheoutputoftheUPSandtheloadconnected.Iftheinput
powerdisappears,theInvertercircuitisswitchedontoprovideoutputfromthebatteriescontained
withintheUPS.


[5]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)
 

Battery/SurgeOutlets:Providesbattery‐powered/surgeoutletsfortheconnected
equipment,andinsuresuninterruptibleoperationofyourequipmentduringapowerfailure.
PowerSwitch:Canbeusedasamasteron/offswitchforequipmentconnectedtothebattery‐
poweredoutlets.
PowerOnIndicator:ThisLEDisilluminatedwhentheutilityconditionisnormalandtheUPS
outletsareprovidingpower,freeofsurgesandspikes.
CircuitBreaker:Thecircuitbreakerthatprovidesoverloadandfaultprotection.
USB:Port/protocolthatprovidescommunicationbetweentheUPSandPCNetwork.
[6]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)

DETERMININGTHEPOWERREQUIREMENTSOFYOUR
EQUIPMENT
1. MakesurethetotalVolt‐Amp(VA)requirementsofyourconnectedequipmentdoesnotexceed
themaximumVAratingfortheUPS.ThemaximumVAratingsareshownintheSpecifications
sectionofthisdocument.
2. Ensurethattheequipmentpluggedintothebattery‐poweredoutletsdoesnotexceedtheUPS
ratedcapacity.IfUPSratedcapacitiesareexceeded,anoverloadconditionmayoccurandcause
theUPStoshutdownandtripthecircuitbreaker.
3. IfthepowerrequirementsofyourequipmentarelistedinvaluesotherthanVolt‐Amps(VA),
convertWatts(W)orAmps(A)intoVAbydoingthecalculationsbelow.Note:Theequation
belowonlycalculatesthemaximumamountofVAthattheequipmentcanuse,notwhatis
typicallyusedbytheequipmentatanygiventime.Usersshouldexpectusagerequirementsto
beapproximately60%ofthevaluetoestimatepowerrequirements:
_____Watts(W)x1.67=_____VAor_____Amps(A)x120=_____VA
Addthetotalsforalloftheequipmentandmultiplythistotalby0.65tocalculateactualpower
requirements.
Note:Manyfactorscanaffecttheamountofpowerthatyourcomputersystemwillrequire.The
totalloadthatyouwillbeplacingonthebattery‐poweredoutletsshouldnotexceed85%ofthe
UPScapacity.
HARDWAREINSTALLATIONGUIDE
1. YournewUPSmaybeusedimmediatelyuponreceipt,however,chargingthebatteryforatleast
4hoursisrecommendedtoensurethatthebatteriesmaximumchargecapacityisachieved.
Chargelossmayoccurduringshipmentandstorage.Torechargethebattery,plugthepower
cordintothecorrecttypeACwalloutletandturnthepowerswitchon.Note:XtremePower
unitswillchargesthebatterywiththepowerswitchineithertheonoroffposition.
2. WiththeUPSoffandunplugged,connectyourcomputer,monitor,and/oranyotherexternally
poweredequipmentintothebatterypowersuppliedoutlets.DONOTplugalaserprinter,
copier,spaceheater,vacuum,orotherlargeelectricaldeviceintotheUPS.Thepower
demandsofthesedeviceswilloverloadandpossiblydamagetheUPS.
3. PlugtheUPSintoa2pole,3wiregroundedreceptacle(ACwalloutlet)asratedinthe
Specificationssectionofthisdocument.Makesurethewalloutletisprotectedbyafuseor
circuitbreakeranddoesnotserviceequipmentwithlargeinrushelectricaldemands(e.g.
refrigerator,copier,etc).Note:DONOTuseextensioncordsorpowerorsurgestripsonthe
inputortheoutputoftheUPS.
[7]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)
4. DepressthepowerswitchtoturntheUPSon.ThepoweronLEDindicator,andchargingLEDwill
illuminateaftertheUPSinitialtesttoindicatetheUPSisswitched“ON”.
5. Ifanoverloadisdetected,anaudiblealarmwillsoundandtheUPSwillemitonelongbeep
every2‐4seconds.Tocorrectthis,turntheUPSoffandunplugatleastonepieceofequipment
fromthebattery‐poweredoutlets.Wait10seconds.Makesurethecircuitbreakerisdepressed
andthenturntheUPSon.
6. YourUPSisequippedwithanauto‐chargefeature.WhentheUPSispluggedintoanACwall
outletandthereisacceptableACvoltagepresent,thebatterywillautomaticallyrecharge.
Chargingiscontrolledbyfirmwaretorapidlychargeunitsto15VDC(600/800VAunits)and
29VDC(1200/1500VAunits).Afterthisthresholdismet,theXVTplacesafloatchargeto
maintainbatteryenergy,andthecharginglightwillcontinuetostayonduringthistime.
7. Tomaintainoptimalbatterycharge,leavetheUPSpluggedintoanACwalloutletwiththe
powerswitchturnedonatalltimes.
8. TostoreyourUPSforanextendedperiodoftime,coverandstoreitwiththebatteryfully
charged.Rechargethebatteryeverytwomonthstomaintainbatterylife.
[8]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)


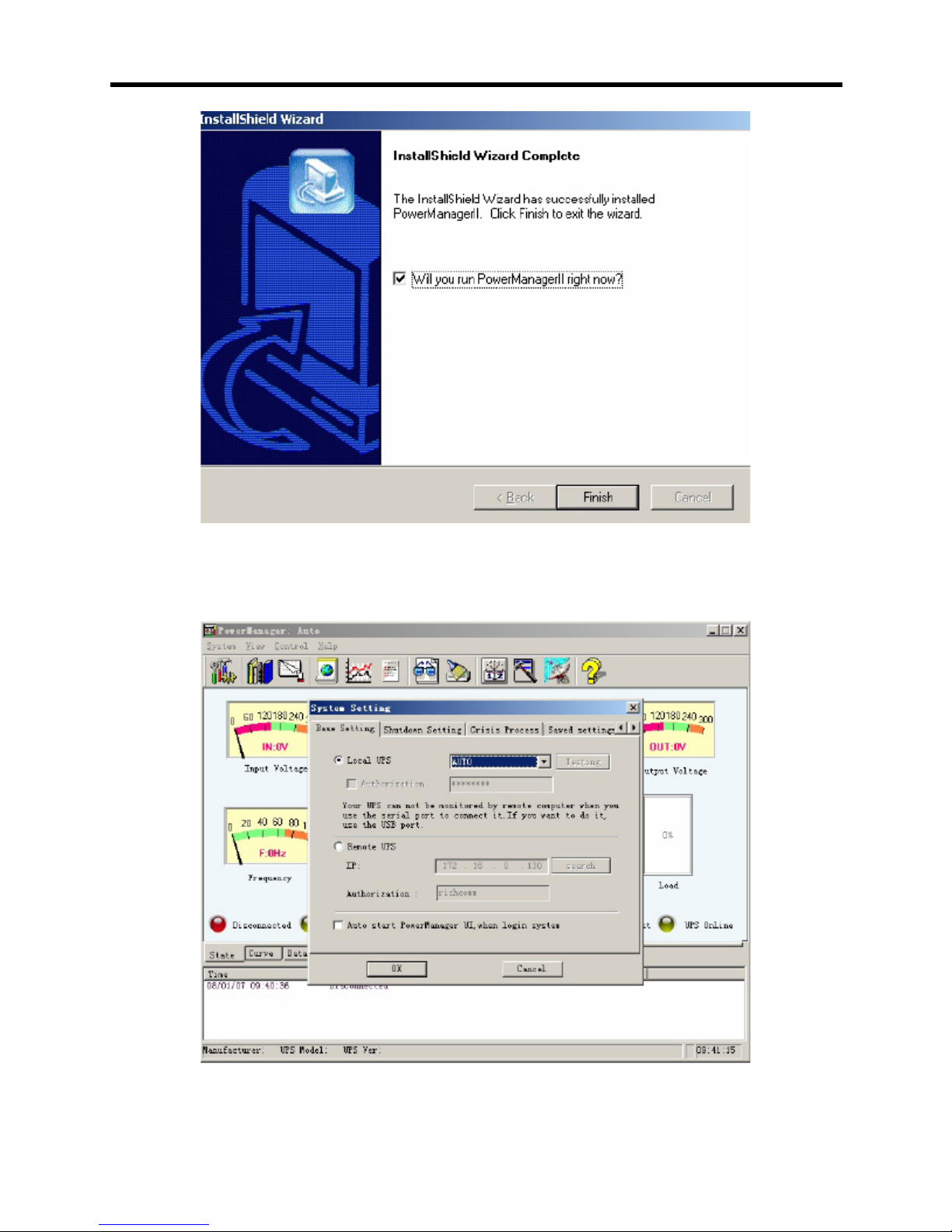

QUICKSTARTSOFTWAREINSTALLATIONGUIDE
1. LocatetheUSBCableinsidethebox.
2. InsertoneendoftheUSBCableintotheUPSandtheotherintoaUSBportonyourcomputer.
3. InserttheCDintoyourcomputersCDdrive.
4. Whenthesoftwareinterfacerequestsaserialnumber,locateandinputtheserialnumberfrom
theCDsoftwarejacket.
5. Followthesoftwaresetupprompts.
6. QuickstartSoftwareInstallationGuide.

[9]

XVT‐600,XVT‐800,XVT‐1200,XVT‐1500USER’SMANUALUNINTERRUPTIBLEPOWERSUPPLY(UPS)

Inputusername,companynameandserialnumberintothesoftwareinterface.
Note:theserialnumberisontheCDsoftwarejacket.

Chooseinstallationlocationandclick“Next”
