Xtreme Power Conversion M90 Guide

M90 & M90L Modular Online
Three-Phase UPS
15kVA, 20kVA, 30kVA, 40kVA, 45kVA, 60kVA Models
User & Installaon Manual
www.xpcc.com | © 2019 Xtreme Power Conversion Corporaon. All rights reserved. (Rev 1/8/19)

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 2
Uninterrupble Power Supply
Table of Contents
Safety...........................................................................................................4
Important Safety Instrucons..........................................................................................................4
EMC.................................................................................................................................................4
Installaon Informaon...................................................................................................................4
Maintenance....................................................................................................................................4
Recycling the Used Baery..............................................................................................................5
Installaon...................................................................................................5
Inial Inspecon..............................................................................................................................5
Installaon Environment.................................................................................................................5
Unpacking........................................................................................................................................6
Moving the Cabinet.........................................................................................................................8
Types of UPS Cabinet.......................................................................................................................9
Exterior.............................................................................................................................................9
Internal Mechanisms.....................................................................................................................13
Control Panel.............................................................................................14
LCD Display....................................................................................................................................14
Introducon of Modules................................................................................................................15
Power Cable...................................................................................................................................18
Wiring............................................................................................................................................18
Power Module Installaon............................................................................................................20
Operaon Mode and UPS Operaon...........................................................23
Block Diagram of UPS....................................................................................................................23
Operaon Mode............................................................................................................................23
UPS Operaon...............................................................................................................................27
Control Panel and Display Descripon........................................................35
Introducon...................................................................................................................................35
Screen Descripon.........................................................................................................................38
Alarm List...................................................................................................................................... 57

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 3
Uninterrupble Power Supply
History Record...............................................................................................................................59
Interface and Communicaon....................................................................60
X1-Baery Cabinet Temperature Detecon Port...........................................................................61
X2-Remote EPO Input Port............................................................................................................61
Other Communicaon Interface....................................................................................................62
Troubleshoong.........................................................................................62
Service.......................................................................................................65
Replacement Procedures Of Power Module..................................................................................65
Specicaons.............................................................................................65
Conformity and Standards.............................................................................................................65
Environmental Characteriscs.......................................................................................................66
Mechanical Characteriscs............................................................................................................66
Electrical Characteriscs (Input Recer)......................................................................................66
Electrical Characteriscs (Intermediate DC Circuit).......................................................................66
Electrical Characteriscs (Inverter Output)....................................................................................67
Electrical Characteriscs (Bypass Mains Input).............................................................................67
Obtaining Service.......................................................................................69
Xtreme Power Conversion Limited Warranty...............................................7
0Appendix A: Baery Cabinet Installaon..................................................71
Assembly.......................................................................................................................................71
Internal Baery Wiring..................................................................................................................74
External Baery Wiring..................................................................................................................74
Baery Replacement.....................................................................................................................74

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 4
Uninterrupble Power Supply
Safety
Important Safety Instrucons
This UPS contains LETHAL VOLTAGES. All repairs and service must be performed by AUTHORIZED SERVICE PERSON-
NEL ONLY. There are NO USER SERVICEABLE PARTS inside the UPS.
WARNING:
• The UPS designed for commercial and industrial purpose, it is forbidden to apply for any life sustainment
and support.
• The UPS system contains its own energy source. The output terminals may carry live voltage even when
UPS is disconnected to an AC source.
• To reduce the risk of re or electrical shock, UPS installaon has to be in a controlled room where tem-
perature and humidity are monitored. Ambient temperature must not exceed 40°C. The system is only for
indoor use.
• Ensure all power is disconnected before installaon or service.
• Service and maintenance should be performed by qualied personnel only.
Before working on this circuit
• Isolate Uninterrupble Power System (UPS).
• Then check for Hazardous Voltage between all terminals including the protecve earth.
Risk of Voltage Backfeed
The isolaon device must be able to carry the UPS input current.
EMC
WARNING:
This is a product for commercial and industrial applicaon in the second environment - installaon restricons or
addional measures may be needed to prevent disturbances.
Installaon Informaon
WARNING:
• Installaon must be performed by qualied personnel only.
• The cabinets must be installed on a level oor suitable for computer or electronic equipment.
• The UPS cabinet is heavy. If unloading instrucons are not closely followed, cabinet may cause serious
injury.
• Do not lt the cabinets more than 10 degree.
• Before applying electrical power to the UPS, make sure the Ground conductor is properly installed.
• Installaon and Wiring must be performed in accordance with the local electrical laws and regulaons.
• The disconnecon device should be chosen based on the input current and should break line and neutral
conductors - four poles for three phases.
Maintenance
• Only qualied service personnel should perform the baery installaon.
• The following PRECAUTIONS should be observed:
1. Remove watches, rings, or other metal objects.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 5
Uninterrupble Power Supply
2. Use tools with insulated handles.
3. Wear rubber gloves and boots.
4. Do not lay tools or metal parts on top of baeries or baery cabinets.
5. Disconnect the charging source prior to connecng or disconnecng terminal.
6. Check if the baery is inadvertently grounded. If it is, remove the source of grounding. Contacng
with any part of the ground might result in electrical shock. The likelihood of such shock can be
prevented if such grounds are removed during installaon and maintenance.
• UPS is designed to supply power even when disconnected from the ulity power. Aer disconnect the ul-
ity and DC power, authorized service personnel should aempt internal access to the UPS.
• Do not disconnect the baeries while the UPS is in Baery mode.
• Disconnect the charging source prior to connecng or disconnecng terminals.
• Baeries can result in a risk of electrical shock or burn from high short circuit current.
• When replacing baeries, use the same number of sealed, lead-acid baeries.
• Do not open or mulate the baery. Release electrolyte is harmful to the skin and eyes, and may be toxic.
Recycling the Used Baery
• Do not dispose of the baery in a re. Baery may explode. Proper disposal of baery is required. Refer
to your local codes for disposal requirements.
• Do not open or mulate the baery. Released electrolyte is harmful to the skin and eyes. It may be toxic.
• Do not discard the UPS or the UPS baeries in the trash. This product contains sealed, lead-acid baeries
and must be disposed properly. For more informaon, contact your local recycling/reuse or hazardous
waste center.
• Do not discard waste electrical or electronic equipment (WEEE) in the trash. For proper disposal, contact
your local recycling/reuse or hazardous waste center.
Installaon
Inial Inspecon
1. Visually examine if there is any damage inside and outside of packages in the process of the transportaon. If
any damage, report it to the carrier immediately.
2. Verify the product label and conrm the consistency of the equipment.
3. If the equipment needs to be returned, carefully repack the equipment by using the original packing material
that came with.
Installaon Environment
1. The UPS is designed for indoor use only and should be located in a clean environment with adequate venla-
on to keep the environmental parameters within the required specicaon.
2. Make sure that transportaon routes (e.g. corridor, door gate, elevator, etc.) and installaon area can accom-
modate and bear the weight of the UPS, the external baery cabinet and handling equipment.
3. The UPS uses forced convecon cooling by internal fans. Cooling air enters the module through venlaon
grills located at the front of the cabinet and exhausted through grills located in the rear part of the cabinet.
Please do not block the venlaon holes.
4. Ensure that the installaon area is spacious for maintenance and venlaon.
5. Keep the temperature of installaon area around 30°C and humidity within 90%. The highest operang al-
tude is 1000 meters above sea level.
6. If necessary, install a system of room extractor fans to avoid formaon of room temperature. Air lters are
necessary if the UPS is operated in a dusty environment.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 6
Uninterrupble Power Supply
7. It is recommended that you parallel the external baery cabinets to the UPS. The following instrucons of
clearances are suggested:
• Keep a clearance of 40” from the top of the UPS for maintenance, wiring and venlaon.
• Keep a clearance of 40” from the back of the UPS and the external baery cabinets for venlaon.
• Keep a clearance of 60” from the front of the UPS and the external baery cabinets for maintenance and
venlaon.
8. For safety concerns, we suggest that you shall:
• Equip with CO2 or dry powder re exnguishers near the installaon area.
• Install the UPS in an area where the walls, oors and ceilings were constructed by reproof materials.
9. Do not allow unauthorized personnel to enter the installaon area. Assign specic personnel to keep the UPS
key.
Unpacking

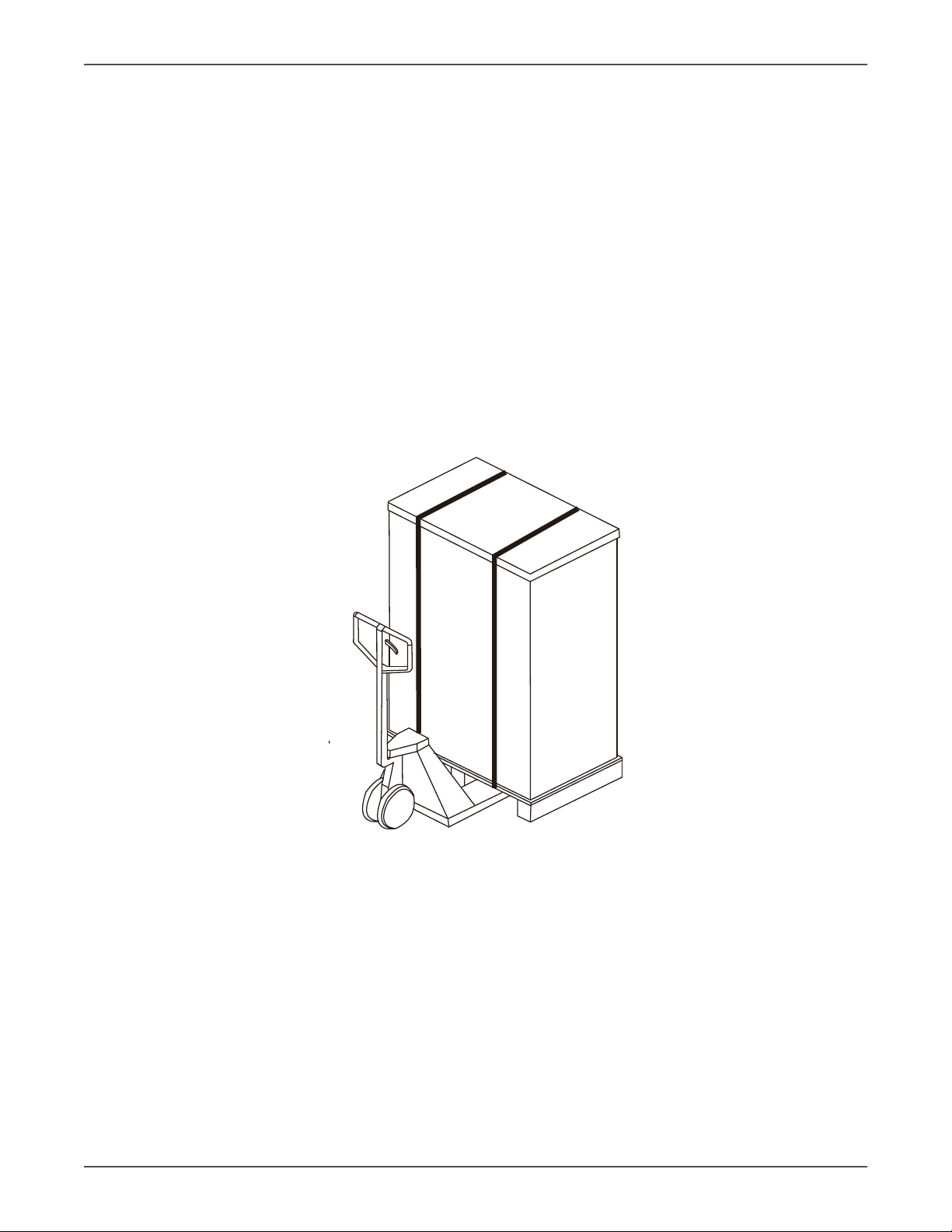

1. Use a forkli to move the product to installed area. Please make sure the bearing capacity of forkli is suf-
cient.
2. Please follow the order in the gures below to remove carton and foams.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 7
Uninterrupble Power Supply
1
2
3
3. Remove 2 xing cabinet plates and loosen leveling feet by rotang them counterclockwise. Then, move the
cabinet from the pallet.
4. To x the cabinet in posion, simply rotate leveling feet clockwise.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 8
Uninterrupble Power Supply
Moving the Cabinet
The UPS is xed on the pallet with 2 xing cabinet plates. When removing it, pay aenon to the movement of
the casters to avoid accidents. The cabinet can be pushed forward or backward only. Pushing it sideward is not al-
lowed. When pushing the cabinet, pay aenon not to overturn it as the gravity center is high.
1. If you need to move the UPS over a long distance, please use appropriate equipment like a forkli. Do not use
the UPS casters to move over a long distance.
2. Aer the UPS has been removed from the pallet to ground, we suggest that at least three people move the
UPS to the installaon area. One person holds a lateral side of the UPS with hands, another holds the other
lateral side of the UPS with hands, and the other person pushes the UPS either from the front side or from the
back side to the installaon area and avoid pping the UPS.
3. The casters are designed to move on level ground. Do not move the UPS on an uneven surface. This might
cause damage to the casters. Toppling the UPS could also damage the unit.
4. Ensure that the weight of UPS is within the designated bearing capacity of any handling equipment.
5. At the boom of the UPS, the two casters help you to move the UPS to a designated area. Before you move the
UPS, please turn the two leveling feet counterclockwise to raise them o the ground. This protects the leveling
feet from damage when moving the UPS.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 9
Uninterrupble Power Supply
Types of UPS Cabinet
There are two types of UPS cabinets. One is the power cabinet only and the other is the power cabinet stacked on
the baery cabinet.
M90 M90L
Cabinet Type
Baery Locaon Internal External
Switch Unit 1 1
Max. Power Module 3(20K) 3(20K)

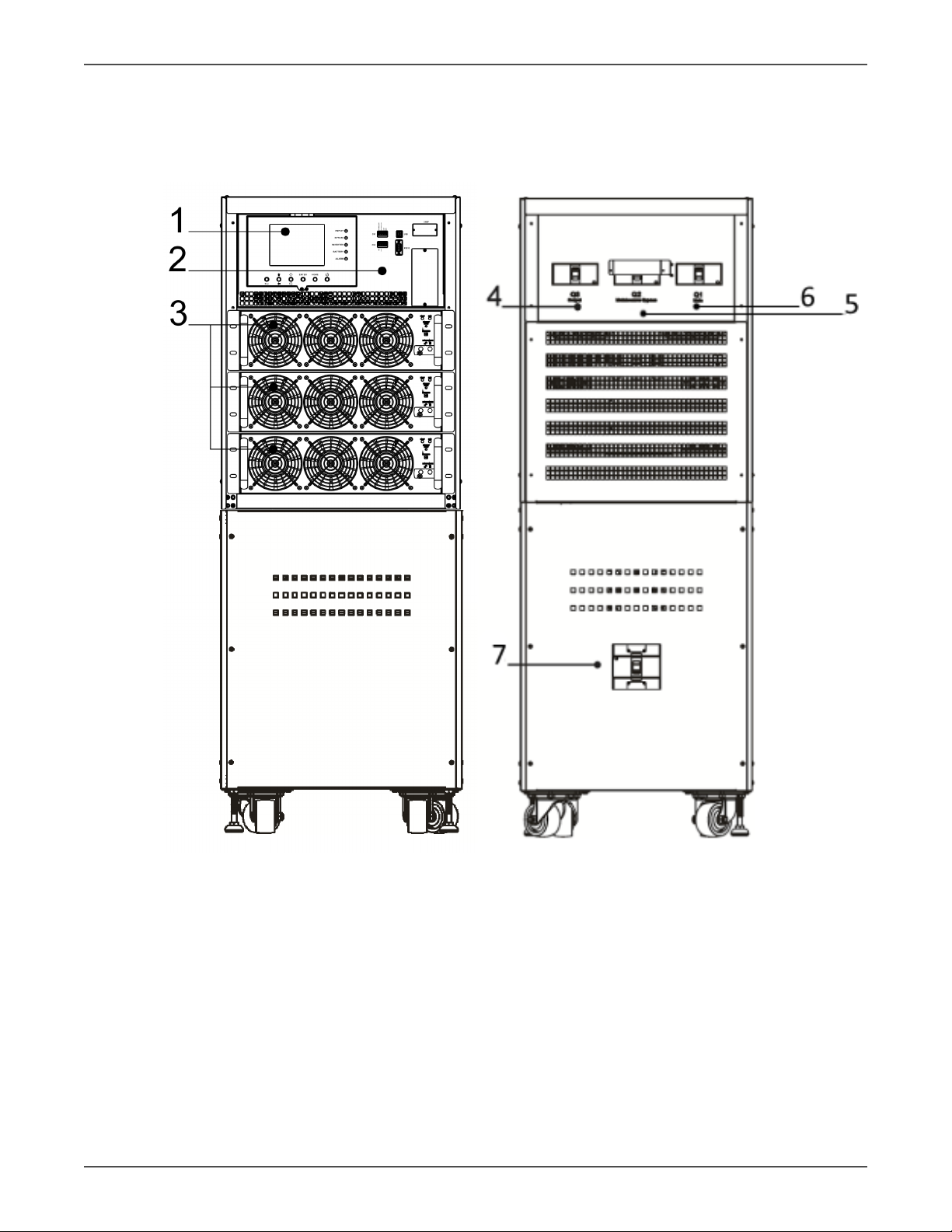

Exterior
In the front of the UPS, there are control interface (LCD Panel), communicaon slots, communicaon ports and 3
Power Module slots.
All wiring terminal blocks are allocated in the back of cabinet. The side panels are locked by screws. The casters at
the boom of the UPS cabinet can be used to move over for short distances. There are two leveling feet to x and
stabilize the UPS cabinet on the ground.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 10
Uninterrupble Power Supply
Mechanical Data
Dimensions
UPS cabinet Width Depth Height
M90 20.2756 “ 39.370079 “ 55.905512 ”
M90L 20.2756 “ 39.370079 “ 30.03937 ”

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 11
Uninterrupble Power Supply

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 12
Uninterrupble Power Supply
Front / Rear View
Front View: You will see the Power Module and control interface (LCD Panel).
Rear View: You will see the Main, Maintenance Bypass, Output and baery breakers which is installed on the bat-
tery cabinet.
Front View Rear View
1. LCD Panel
2. Control interface
3. Power module
4. Q3 output breaker
5. Q2 maintenance bypass breaker
6. Q1 main (input) breaker
7. Baery breaker (M90 only)

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 13
Uninterrupble Power Supply
Internal Mechanisms
Breakers

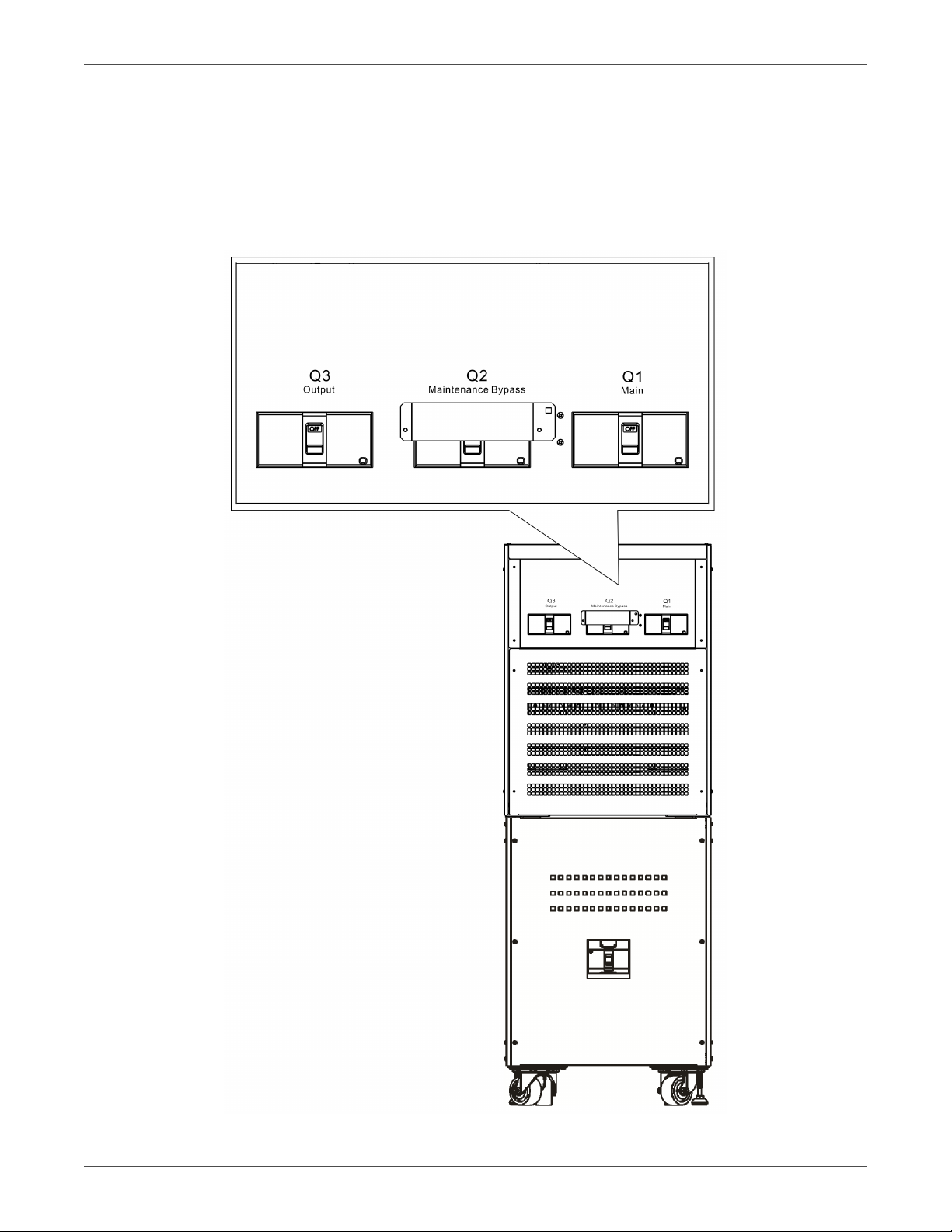

At the rear of the cabinet, you can see Main/Maintenance Bypass/Output breakers. If the cabinet type is with the
baery, there is a baery breaker as well.
Rear View/Output, Maintenance Bypass, and Input Breakers

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 14
Uninterrupble Power Supply
Wiring Terminal Blocks
Open the UPS’s back doors and you will see the wiring terminal blocks.
No. Item Funcon Descripon
1Output Block Connects the crical loads Includes R, S, T and Neutral terminals.
2Bypass Input Block Connects bypass AC source Includes R, S, T and Neutral terminals.
3Main Input Block Connects main AC source Includes R, S, T and Neutral terminals.
4For UPS Grounding For UPS grounding Includes one grounding terminal.
5Baery Input Block Connects an external baery cabinet Includes: Posive (+), Negave (-) and
Neutral (N) terminals.
Rear View & Wiring Terminal Block
Control Panel
LCD Display
Through the graphic LCD display, the user can easily understand the operaon mode of UPS. In addion, the mea-
surement, parameters, versions of rmware and warnings can be browsed in the friendly interface.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 15
Uninterrupble Power Supply
LED Indicators
LED Color Status Denion
INPUT Green
On Input source is normal.
Flashing Input source is abnormal.
O No input source
BYPASS Yellow
On Load on Bypass.
Flashing Input source is abnormal.
O Bypass not operang.
INVERTER Green On Load on inverters.
O Inverters not operang.
BATTERY Red
On Load on Baery.
Flashing Low baery
O Baery converter is normal and baery is charging.
ALARM Red
On UPS fault.
Flashing UPS alarm.
O Normal.
Funcon Keys
Control Key Descripon
Esc
• When it is the Main screen, you can enter menu by pressing ESC key.
• Return to previous screen, when screen is not in Main screen.
• Return to previous value in the same row, so you can change it. For example, when
changing 4-digit password, press “Esc” to allow cursor back to previous digit.
(Up) (Le) Key for menu page navigaon or digit modicaon.
(Down) (Right) Key for menu page navigaon or digit modicaon.
Enter Conrmaon of commands, or cursor displacement.
Home Return to Main screen.
Power On/O Turn on UPS or turn o UPS.
Introducon of Modules
The design of Power Module make maintenance and replacement quick and easy.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 16
Uninterrupble Power Supply
The modular and hot-swappable design of Power Module makes it a highly cost-eecve soluon to meet your
power requirement. The number of Power Modules installed in the UPS can be based on the inial needs. Once
the power requirement increases, you can easily install more Power Modules without interrupng the operaon
of the system.
20kVA Power Modue
Power Module
Each Power Module is shipped with its own package. It has to be installed during the UPS system installaon.
The capacity of each Power Module is 20KVA/18KW. It includes a power factor correcon recer, a baery char-
ger, an inverter and control circuit.
No. Item Descripon
1Fan
The Power Module uses forced convecon cooling by these fans. Cooling air enters
the module through venlaon grills and exhalaon exhausts through grills located
at the rear of the module. Please do not block the venlaon area.
2Ready Switch Unlock it before removing the Power Module. Lock it when the Power Module is
well installed. Then the Power Module can start to work.
3DIP Switches There are three DIP switches for Power Module address seng. In the same cabi-
net, each Power Module ID MUST be exclusive.
4Baery Start Buon When AC input is not exisng, use this buon to start baery power for UPS.
5FAULT LED
ON The Power Module is in fault condion or the Ready Switch is
unlocked.
ON/OFF 0.5 sec The Power Module IDs conict.
ON/OFF 0.15 sec The stac switch is not found.
6RUN LED
ON The Power Module normally works as a slave module.
ON/OFF 0.5 sec The Power Module normally works as a master module.
ON/OFF 0.15 sec The CAN Bus communicaon doesn’t work.

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 17
Uninterrupble Power Supply
DIP switch seng and Module Address
Module Address DIP SWITCH Module Address DIP SWITCH
0
1 2 3
1
1 2 3
2
1 2 3
3
1 2 3
4
1 2 3
5
1 2 3
6
1 2 3
7
1 2 3
Power Module ID Assignment
According to the Module Address and the posion of SW1 and SW2, the Power Module’s ID is assigned. These two
switches, SW1 & SW2 are mounted in the Parallel board which is located at the back of UPS cabinet.
Parallel Board
The SW1 and SW2 posions have been well installed before leaving factory. It’s not necessary to change it for
single UPS system applicaon.
Module ID Assignment
SW1 & SW2 Module Address Module ID SW1 & SW2 Module Address Module ID
SW1SW2
0 0
SW1SW2
0 9
1 1 1 10
2 2 2 11
3 3 3 12
4 4 4 13
5 5 5 14
6 6 6 15
7 7 7 16

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 18
Uninterrupble Power Supply
SW1SW2
018
SW1SW2
027
1 19 1 28
2 20 2 29
3 21 3 30
4 22 4 31
5 23 5 32
6 24 6 33
725 734
Power Cable
Please follow the local wiring regulaons. Follow environmental condions and refer to IEC60950-1.
AC input and output maximum current and power cable conguraon.
Model 20KVA 40KVA 60KVA
Current (A) 60.1 120.2 180.3
Power cable (mm2) 16 50 95
Fixaon torque force (lb-in) 20 20 20
Note: Installer has to consider the max. current and wiring gauge when considering future extension.
DC input maximum current and power cable conguraon.
Model 20KVA 40KVA 60KVA
Current (A) 98 196 294
Power cable (mm2) 25 95 150
Fixaon torque force (lb-in) 20 20 20
Wiring
WARNING:
• Before wiring, make sure the AC input and baery power are completely cut o.
• Make sure the breakers, Main Breaker (Q1), Maintenance Breaker (Q2), Output Breaker (Q3) and baery
breaker are all in the OFF posion.
Installaon Drawing

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 19
Uninterrupble Power Supply
UPS GTo User Safety ground
Input1
R
S
T
N
To Main SUPPLY
(Power Cables)
Input2
R
S
T
N
Output
R
S
T
N
To Critical Load
(Power Cables)
BAT
+
N
-
To External BATTERY
(Power Cables)
UPS Cabinet Wiring
AC source connecon
This UPS is for Single input applicaon, connect Input1 to the AC power source and use 3 short wires to connect
Input1 and Input2.
Warning: These three wires are required for Maintenance Bypass power source.
The sequence of three phase, R, S and T must be connected accordingly. The wrong sequence will alarm a warning
when the UPS is powered. The N must be connected rmly. A warning message will be indicated, if the N is not
connected well.
External Baery Cabinet Connecon

Xtreme Power Conversion Corporaon
M90 User’s Manual
Page 20
Uninterrupble Power Supply
External Baery Cabinet Wiring
Aer the baery is completely installed, be sure to set up nominal baery voltage, baery capacity and maximum
charging current in LCD seng. Otherwise, if baery seng is dierent from actual installaon, the UPS will keep
warning.
Power Module Installaon
The weight of Power Module is over 30 kg so at least two persons are required for handling.
Insert the Power Module
Warning: The power Modules installed in the same cabinet must at the same rang.
1. Adjust the DIP switch posions to set the dierent Module Address.
