XTRONIC Platinum Edition 2000-XTS Assembly instructions

Instructions & Tips

PLEASE READ THIS MANUAL BEFORE USING YOUR NEW
X-Tronic® Model #2000-XTS “Platinum Edition” Ultrasonic Cleaner
Thank you for purchasing our new X-Tronic® Model #2000 Platinum Edition
2.0 Liter Ultrasonic Cleaner. This new model is one of the most Technologically
Advanced Ultrasonic Cleaners on the USA Market Today featuring Frequency
Sweeping & Degassing Functions.
This manual is provided to ensure safe and effective use of this unit and to
maintain this instrument in proper working condition. Be sure to keep this booklet
in a handy place near the unit for future reference.
CONTENTS
1 – X-Tronic 2000-XTS Platinum Edition 2.0 Liter Stainless Steel Ultrasonic
Cleaner
1 – Stainless Steel Fine Mesh Cleaning Basket
1 – Stainless Steel Wire Rack for hanging jewelry, rings, small hangable
parts, etc.
1 – Double 400 ml Beaker Holder (Beakers Not Included)
1 – Stainless Steel Tank Cover
Note: Although this unit is advertised as a 2.0 Liter Ultrasonic Cleaner, this measurement
of volume is based on what has become an International Measurement Standard for
ultrasonic cleaner sold in all markets. More specific information about this is in the
SPECIFICATIONS below.
FEATURES
Piezoelectric Transducer
Digital Display of Time & Temperature
Sweeping Function
Degassing Function
SPECIFICATIONS
• Model: 2000-XTS
• Size of Unit: 8.50” L x 7.00” W x 6.50” H
• International Standard Volume Rating: 2.0 Liters
• Actual Volume Filled to Top of Tank: 1.80 Liters
• Volume Filled to 0.50” Over Fill Line: 1.60 Liters
• Size of Cleaning Tank: 5.625” (Tapers down to 5.125”) in Length, 5.25”
(Tapers down to 3.75”) in Width
• Depth of Cleaning Tank: 3.75” in Depth
• Minimum Fill Line: 2.875” From Bottom of Tank – Should be filled to no
more than 3.375” in Depth
• Cleaning Area Dimensions with S/S Mesh Basket inserted: 4.875” L x
4.875” W x 2.50” D
• Steady State Power Consumption: 150 Watts –
Ultrasonic Power: 50 Watts
• Operation Frequency: 40kHz
• 110/120V – 60Hz

- 3 -

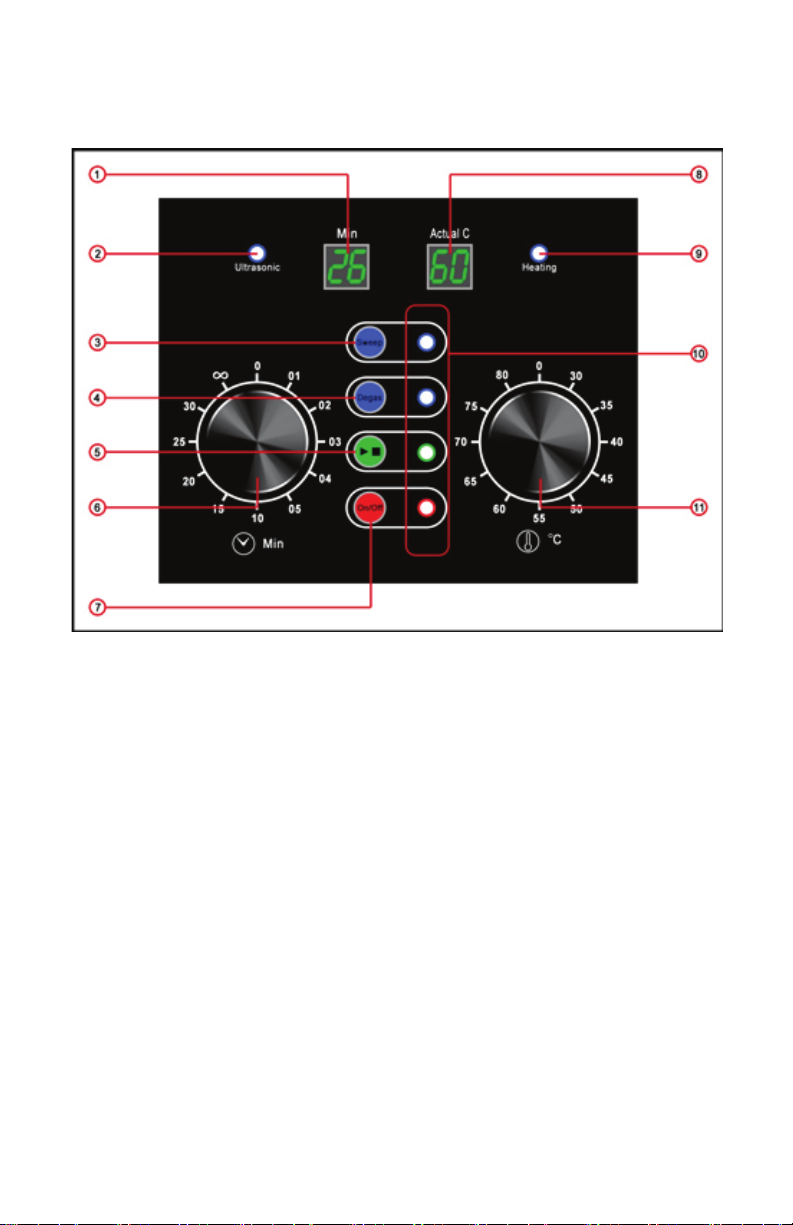

CONTROL PANEL FUNCTION DIAGRAM
1. LED Timer Readout
2. Ultrasonic Indication Lamp(indicates On when lit)
3. Sweep Function Key (On/Off) (indicates On when lit)
4. Degassing Function Key (On/Off) (indicates On when lit)
5. Ultrasonic Function Key (On/Off) (indicates On when lit)
6. CleaningTimeSetKnob(5MinuteIncrements&FullOn(∞))
7. Ultrasonic Cleaner Main On/Off Switch (indicates On when lit)
8. LED Temperature Display
9. Heating Indication Lamp (indicates On when lit)
10. Function Keys Indication Lamps (indicates On when lit)
11. Heating Temperature Set Knob (0° Celsius to 80° Celsius)

- 4 -
SHORT HISTORY & OVERVIEW OF ULTRASONIC CLEANERS
Ultrasonic cleaning was first introduced to commercial/industrial business in
the early 1950’s and became commonplace as relatively inexpensive home
appliances in the 1970’s.
Ultrasonic cleaning is a process based on a Cavitation Effect caused by high
frequency ultrasonic waves that vibrate millions of tiny bubbles to agitate the
liquid in order to clean contamination and dislodge small particles of dust/dirt/oil/
etc. from substrates such as metal, plastics, glass, ceramic, etc. It is these tiny
bubbles that implode violently that cause this cavitation, which have great impact
and provide intense scrubbing action on the surface of the object you want to
clean. Additionally, these bubbles are small enough to penetrate even the most
microscopic crevices on objects, cleaning them thoroughly and consistently.
Most all hard, non-absorbent materials (metals, plastics, etc.) that cannot be
chemically attacked by the cleaning fluid used in ultrasonic cleaning are suitable
for ultrasonic cleaning.
Ultrasonic cleaning is also widely used to remove flux residue from soldered
circuit boards.
Note: Ultrasonic cleaning does NOT sterilize the objects being cleaned and
spores and viruses will remain on the objects after cleaning. In the medical field,
sterilization of the object will normally follow the ultrasonic cleaning process.
SAFETY INSTRUCTIONS
• We highly suggest that you operate the unit while plugged directly into
a grounded outlet with the attached power cord. If you have to use an
extension cord, never use an extension cord that is not grounded.
• Do not attempt to remove any screws or panels from the unit. There are
no user serviceable parts inside the unit.
• To avoid electric shock, never touch the cord or socket with wet hands.
• Do not fill the unit while it is plugged in.
• Always fill the unit with water a little above the fill line that is inside the
cleaning tank. You will see an indentation in the metal on the inside of the
unit’s tank, approximately .75 inch from the top of the tank, and this is the
minimum fill line.
• Always unplug the unit immediately after use and before emptying.
• To avoid electric shock, NEVER immerse the unit into water or any other
kind of liquid.
• NEVER fill the tank with Abrasive or Corrosive Chemicals such as
Mineral Spirits, Lacquer Thinner, Xylene, Acetone, etc.
• NEVER leave the unit unattended when plugged in.

- 5 -
SWEEPING FUNCTION
Sweep Technology is featured in all of our X-Tronic Ultrasonic Cleaners. An
ultrasonic cleaner with a Sweeping Function uses multiple ultrasonic frequencies
in one tank no matter how many transducers are built into the unit. In ultrasonic
cleaning, sweeping is defined as a purposeful deviation from the center
frequency during operation as a function of time. The result of using this function
is there will be no dead spots in the cleaning tank and will make for a much
superior cleaning result of your object.
Ultrasonic cleaners without the Sweeping Function use just one single frequency
to create the cavitation effect in the unit and this means that there will be dead
spots in the cavitation and thus the cleaning of that object will be inferior.
By using the Sweeping Function, every object you put in your tank to be cleaned
will have perfect uniform cavitation cleaning that object with no dead spots.
Our recommendation is to use the Sweeping Function every time you
ultrasonically clean any object because with Ultrasonic Sweep Cleaning we know
you will be much more satisfied with the results.
DEGASSING FUNCTION
All X-Tronic Ultrasonic Cleaners also feature a Degassing Function.
A degassing process should be undertaken each time fresh cleaning solutions
are prepared. You have the option of not degassing fresh ultrasonic cleaning
solutions but the penalty is decreased cleaning efficiency and effectiveness.
The Degassing Function pulses the ultrasonic power on and off. During the on
phase the bubbles form and coalesce, and during the off phase they rise to the
surface and burst. This is why cleaners equipped with a degassing function are
more efficient than those not so equipped.
So when you mix a fresh cleaning solution in your tank, we highly recommend
that you turn on the Degassing Feature and run it for approximately 5 minutes.
PIEZOELECTRIC TRANSDUCERS
All X-Tronic Ultrasonic Cleaners are manufactured with Piezoelectric Transducers
which have high efficiency, large amplitude, low heat, and stable output
unaffected by variations in load.
The high mechanical quality of Piezoelectric transducers ensures that these
sandwich-type ultrasonic transducers offer high electro-acoustical efficiency and
low heat generation. The mechanical connection of the Piezoelectric elements
assures a large amplitude output.

- 6 -
PROCEDURE FOR PREPARING YOUR ULTRASONIC CLEANER FOR
CLEANING
1. Plug the unit into a grounded outlet.
2. Fill the tank with water up to (or a little over) the fill mark on the inside of the
tank. Do not fill with water more than 1/2 inch from the top rim of the tank.
3. Turn On the Ultrasonic Cleaner Main On/Off Switch.
4. Select your cleaning temperature by turning the Temperature Dial to the
appropriate temperature. Please note that 90% of the time you will be
ultrasonic cleaning most objects between 70° Celsius and 80° Celsius.
5. TurntheCleaningTimeSetKnobtotheInfinitySign(FullOn/∞)atthis
time.
6. Wait for the water to heat up to the temperature you set. This will show in
the LED Temperature Display.
7. When the LED Temperature Display shows the actual temperature you
set it at, add the ultrasonic cleaning solution (of your choice) to the water.
Please note that we do not sell an ultrasonic cleaning solution, but we have
always had very good results using Alconox® Products which can be found
many places on the web.
8. Turn on the Degassing Function for 5 minutes by pushing the Blue
Degassing Function Key (#4 above).
9. After you have degassed the solution for 5 minutes, then turn the degassing
function Off by pushing the Degassing Function Key. You are now ready to
ultrasonically clean your object(s).

- 7 -
PROCEDURE TO ULTRASONICALLY CLEAN YOUR OBJECT
1. Turn the unit Off for 1 Second and back on to reset the Temperature & Time
to 0.
2. Turn the Time Set Knob to the desired amount of minutes you would like
for cleaning your object(s). Note that most all objects will be thoroughly
cleaned in 15 to 30 minutes.
3. Turn the Temperature Knob back to your first selected temperature or
whatever temperature you are going to clean your object(s) at. Note that
this will show the temperature in the Temperature Display as you have
already heated up the solution.
4. If desired, turn On the Sweep Function (highly recommended) for the entire
cleaning time.
Note during cleaning; DO NOT use the Degassing Function as it is not
needed during cleaning. This is why the programming in the ultrasonic unit
will NOT let the Sweeping Function and the Degassing Function to work/
run at the same time.
5. Set the Cleaning Basket or Wire Rack into the tank.
6. Put the objects into the basket or hang from the wire rack to clean them.
7. After the unit has run for the allotted time you set, it will automatically shut
off. When this happens, all Function Key Indication Lamps (LED’s) will shut
off but the bottom Main On/Off Switch Lamp. You can now shut the unit
completely Off by pushing the On/Off Switch and unplugging the unit.
SPECIAL INSTRUCTIONS
When you are cleaning objects that have air pockets in them, you may wish to
rotate the object you are cleaning a couple of times (under the water/cleaning
solution) to get these air pockets out before ultrasonic cleaning them.
Do not put any object directly on the bottom of the tank to be cleaned – always
use the cleaning basket, wire rack or place it in a beaker filled with water/cleaning
solution while the beaker is being held in place by the beaker holder.
We do NOT recommend placing the lid on the unit during the cleaning process as
it is not needed during the cleaning process.

- 8 -
GENERAL SAFETY RULES - SAVE THESE INSTRUCTIONS!
Refer to them often and use them to instruct others
on the proper use of this product.
READ AND FULLY UNDERSTAND ALL INSTRUCTIONS AND WARNINGS
PRIOR TO USING THIS UNIT. FAILURE TO COMPLY WITH PROCEDURES
AND SAFE GUARDS MAY RESULT IN SERIOUS INJURY OR PROPERTY
DAMAGE. YOUR PERSONAL SAFETY IS YOUR RESPONSIBILITY! THIS UNIT
WILL NOT WORK PROPERLY IF ASSEMBLED OR USED INCORRECTLY!
1. KEEP AWAY FROM CHILDREN AND PETS - THIS IS NOT A TOY! NEVER
LEAVE RUNNING UNIT UNATTENDED. Always monitor the unit while in
use and never leave the unit plugged in around an unmonitored child/pet.
Teach your children the proper respect for all electrical appliances. YOU
ARE RESPONSIBLE FOR THE SAFETY OF ANY CHILDREN IN THE
VICINITY OF THIS UNIT WHEN IT IS AND/OR IS NOT IN USE! ADULT/
PARENTAL SUPERVISON IS REQUIRED AT ALL TIMES!
2. CHECK FOR DAMAGED PARTS PRIOR TO USE. Check that all parts
are operating properly and perform their intended functions. Check for
any conditions that may affect the unit’s operations. DO NOT use if the
power cord is damaged or frayed, or if at any time the power cord becomes
damaged or frayed or if the unit does not seem to be functioning as it
normally has for you in the past.
3. ALWAYS DISCONNECT THIS UNIT FROM THE POWER SOURCE
BEFORE SERVICING, CHANGING ACCESSORIES OR CLEANING THE
UNIT. UNPLUG THE UNIT WHEN NOT IN USE. DO NOT PLUG INTO AN
ALREADY DAMAGED ELECTRICAL OUTLET.
4. MAKE SURE THE POWER SOURCE/POWER BUTTON IS IN THE OFF
POSITION PRIOR TO UNPLUGGING FROM OR PLUGGING INTO AN
OUTLET.
5. DO NOT USE SHARP UTENSILES INSIDE ANY PART OF THE UNIT.
EXAMPLE: FORKS, KNIVES, PICKS, TONGS, ETC. DO NOT MODIFY
THE UNIT.
6. THE MANUFACTURER AND SELLER OF THIS UNIT DO NOT ASSUME
ANY RESPONSIBLITY IN THE CASE OF IMPROPER USE OF THIS
PRODUCT OR IMPROPER MONITORING WHEN IN USE. Improper use
of this product voids all guarantees/warranties.
7. Electrical repair or any other type of major service must be done by
X-Tronic International, Inc. Proof of purchase must be provided by
consumer prior to any repair/service acceptance. The seller will use only
factory original parts and accessories. Modification of the electrical or any
other major component of this unit by the consumer voids all guarantess/
warranties.

- 9 -
8. DO NOT PULL THE POWER CORD TO UNPLUG. Unplug by the plug end.
DO NOT use extension cords with this appliance.
9. Be sure the main unit is stable during use. All four feet should be secure
on a level surface. Do not move the unit when it is powered on. DO
NOT OPERATE ON FLAMMABLE SURFACES SUCH AS CARPET, A
TOWEL, OR OTHER FLAMMABLE PRODUCTS. DO NOT USE NEAR
POTENTIALLY COMBUSTIBLE PRODUCTS/MATERIALS.
10.DO NOT OPERATE OUTDOORS OR NEAR ANY FLAMMABLE OR
COMBUSTIBLE MATERIALS. INDOOR USE ONLY! DO NOT USE
DURING ELECTRICAL STORMS.
11. To prevent electric shock DO NOT IMMERSE THE MAIN UNIT IN WATER
OR LIQUID. Serious injury from electric shock could result. DO NOT
operate near running water or in areas where condensation can collect.
12.Turn unit off and disconnect from the power source before cleaning the
components of this machine. READ ALL DIRECTIONS FIRST on how
to clean this unit before attempting to clean it. To clean the main unit -
turn power off - unplug unit from the power source - wipe with a damp
washcloth. Clean all parts immediately after use. Thoroughly dry all parts!
Even the slightest amount of moisture remaining on parts can cause
electric shock or fire. After cleaning, make sure the unit and all parts are
completely dry before reconnecting to the power source.
13.DO NOT OPERATE on a hot stove top. DO NOT ALLOW THE POWER
CORD TO DRAPE OVER THE UNIT OR ANY HOT SURFACE.
14.Certain parts have share edges - use caution when handling these parts.
Certain parts can scratch household surfaces. Proper care of these parts
is required to prevent damage to other surfaces or to your person. You are
responsible for how you handle these parts and this product.
15.DO NOT USE UNDER THE INFLUENCE OF ALCOHOL OR DRUGS.
16.IT IS IMPORTANT TO MONITOR THIS PRODUCT WHILE IN USE.
NEVER LEAVE THIS UNIT UNATTENDED WHEN PLUGGED INTO AN
OUTLET OR IN THE ON POSITION. READ AND FULLY UNDERSTAND
ALL INSTRUCTIONS AND WARNINGS PRIOR TO USING THIS UNIT.

All X-Tronic Products come with 3-Year Guarantee, valid only in the 48
Contiguous United States. If you purchase this product and ship it to
a destination outside of the 48 Contiguous United States this warranty
becomes null and void. This Guarantee covers the main unit itself.
Consumable parts such as soldering tips, heating elements, nozzles, etc.
are not covered by this warranty.
The first 30 Days are covered by a Money Back or Replacement
Guarantee from the date of the receipt of the product. If your product
becomes damaged in shipment or is found to be defective in any way
during this period, we will replace or issue a complete refund for your
product upon return. We will pay all shipping involved during this first 30-
day period.
The remainder of the 3 Years (after the first 30 days) is covered by a
FREE REPAIR Guarantee (parts and labor included). If anything becomes
defective during this period we will fix the issue and provide a full service
inspection to your product, shipping (to & from) will be paid by the buyer.
Please email us at [e-mail] to set up a service request.
Returns of New/Unused Products
If you have Buyer's Remorse and decide that you do not want the product,
it must be returned NEW & UNUSED in the original box and you will pay
the return shipping. PLEASE NOTE: There will be a 10% Restocking Fee
and original Shipping Costs (if applicable) will not be refunded. Used
product cannot be returned.
3-YEAR WARRANTY
                 





























X-Tronic International, Inc.
2159 Magnum Circle, Lincoln, NE 68522
844-861-4762
[e-mail] •www.XTronicUSA.com
How To Register Your Warranty
Go to www.XTronicUSA.com. Click on "Register Your Warranty" tab and
fill out the form. This is a fully secure website. Your information will never
be sold or misused in any way. This registration site is strictly for order
verification that will be used to speed up the process should you ever
need to use your Warranty for service.
                































- 11 -

QUESTIONS, PROBLEMS
OR COMPLIMENTS?
Thank You for purchasing this
X-Tronic International Product!
We are grateful for your business!
All of our X-Tronic International Products are inspected
then sealed with our NEW Product Seal prior to
shipment. Our goal is to ensure Quality, Completeness,
and Satisfaction for your order.
For Any Questions, Problems, or
Compliments please call or email us.
If you would like to shop for other X-Tronic International Products
Please visit our website
www.XTronicUSA.com
Toll Free: 844-861-4762
[e-mail]
Our Business Hours are:
Monday - Thursday: 8am - 4pm CST
Friday: 8am - Noon CST


