Xtrons HD108THD User manual

USER MANUAL
Thank you for buying this XTRONS product. Please read through these instructions so you will
know how to operate this product properly. After you have finished reading the instructions,
keep this document in a safe place for future reference.
HD108THD

/05*$&0'*/5&/%&%64&
0VSQSPEVDUTBSFEFTJHOFEUPFOBCMFWJFXJOHPGWJEFP
0/-:GPSSFBSTFBUPDDVQBOUTBOEBSFOPUJOUFOEFEGPS
WJFXJOHCZUIFESJWFSXIFOUIFWFIJDMFJTJONPUJPO
4VDIVTFNJHIUEJTUSBDUUIFESJWFSPSJOUFSGFSFXJUIUIF
ESJWFSTTBGFPQFSBUJPOPGUIFWFIJDMFBOEUIVTSFTVMUJO
TFSJPVTJOKVSZPSEFBUI4VDIVTFNJHIUBMTPWJPMBUF
TUBUFPSMPDBMMBXT
.BOVGBDUVSFSEJTDMBJNTBOZMJBCJMJUZGPSBOZCPEJMZ
JOKVSZPSQSPQFSUZEBNBHFUIBUNJHIUSFTVMUGSPNBOZ
JNQSPQFSPSVOJOUFOEFEVTF
NOTE: Features and specifications listed in this manual are subject to
change without notice.
/05*$&4

Contents
1
Precaution .........................................................................................................
Checking part names and functions .......................................................
Remote control ...............................................................................................
Playing a disc ...................................................................................................
USB/SD ...............................................................................................................
Using AV input and AV output ..................................................................
Listening over the vehicle’s speakers .....................................................
Using the external wireless IR headset ..................................................
Using an HDMI source ..................................................................................
Appendix ...........................................................................................................
2
4
6
10
10
10
10
11
11
12

Precaution
Before installing this product
- Use this unit with a 12-volt battery and negative grounding only. Failure to do so
- To avoid shorts in the electrical system, be sure to disconnect the (-) battery cable
2
Certain country and government laws may prohibit or restrict the placement and
use of this product in your vehicle. Please comply with all applicable laws and
regulations regarding the use, installation and operation of this product.
If you want to dispose this product, do not mix it with general household waste.
There is a separate collection system for used electronic products in accordance
with legislation that requires proper treatment, recovery and recycling.
Important safety information
WARNING
- Do not attempt to install or service this product by yourself. Installation or
may result in a fire or malfunction.
before installation.
servicing of this product by persons without training and experience in
electronic equipment and automotive accessories may be dangerous and could
expose you to the risk of electric shock, injury or other hazards.

- Do not disassemble or modify this product, as there are high-voltage components
3
WARNING
To avoid battery exhaustion
Be sure to run the vehicle engine while using this product. Using this product without
running the engine can drain the battery.
- Do not allow this product to come into contact with liquids. Electrical shock could
- If liquid or foreign matter should get inside this product, park your vehicle in a safe
- If you notice smoke, a strange noise or odor from this product, or any other
result. Also, damage to the product, smoke and overheating could result from
contact with liquids.
place, turn the ignition switch off (ACC OFF) immediately and consult your dealer.
Do not use this product in this condition because doing so may result in a fire,
electric shock, or other failure.
abnormal signs on the screen, turn off the power immediately and consult your
dealer. Using this product in this condition may result in permanent damage to the
system.
inside which may cause an electric shock. Be sure to consult your dealer for internal
inspection, adjustments or repairs.
Do not install this product in a vehicle that does not have an ACC wire or circuitry
available.

4

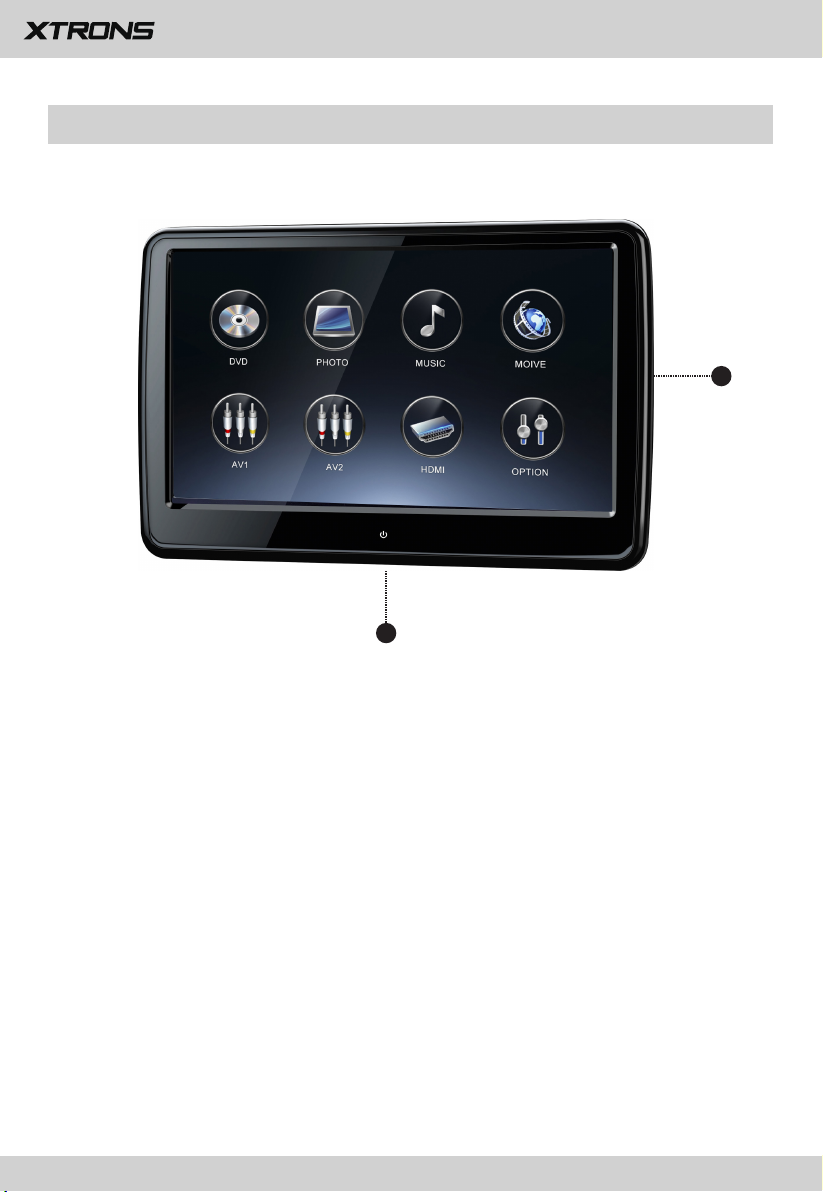

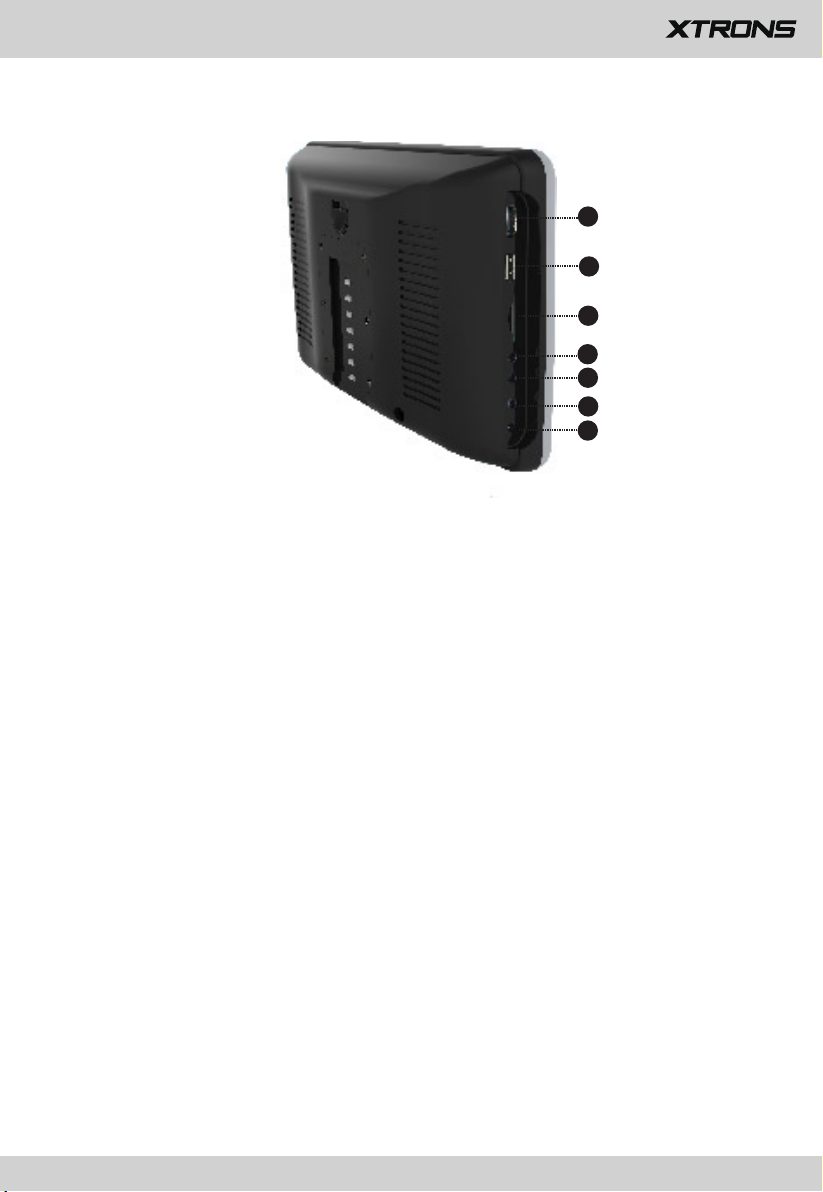

Checking part names and functions
1
1. Power button
Touch to turn on or turn off the power.
2
2. Disc loading drive
Put in a disc to play.

5
3
4
5
6
7
9
8
3. HDMI port
Connect a device to the product using an optional appropriate HDMI cable or
adapter.
4. USB port
Plug a USB storage device into the USB port.
5. SD card slot
Insert an SD memory card into the SD card slot.
6. AV input jack
Use to receive AV signals from another device.
7. AV output jack
Use to output AV signals from the product.
8. Headset jack
Use to connect an external headset to the product.
9. DC input jack
Use to connect DC 12V power supply.

6

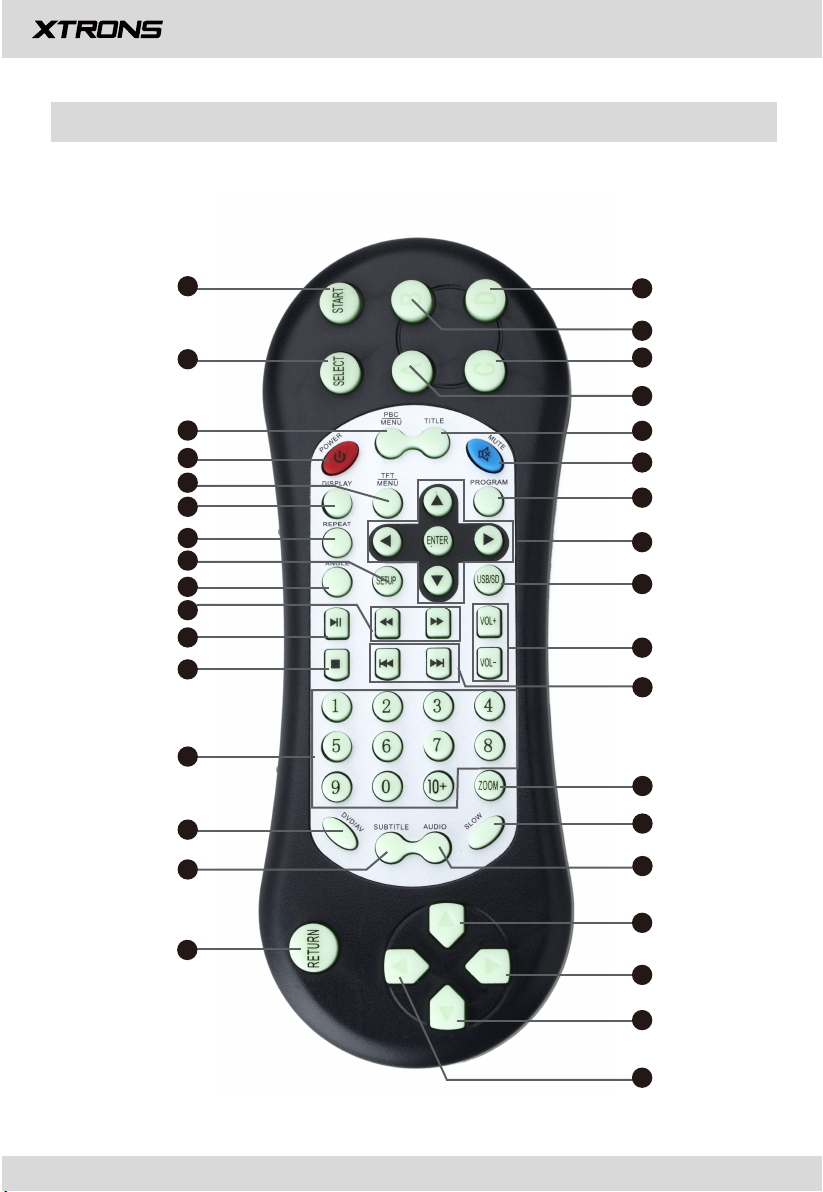

Remote control
21
24
20
22
23
28
25
26
27
29
30
31
32
33
34 1
2
3
4
5
6
7
9
10
8
11
13
14
15
16
12
17
18
19

7
1. D button
Action button in Game mode.
2. B button
Action button in Game mode.
3. C button
Action button in Game mode.
4. A button
Action button in Game mode.
5. TITLE
Press to display the title number during DVD playback.
6. MUTE
Press to mute. Press again to unmute.
7. PROGRAM
8. Direction buttons
Press to move in a specified direction.
9. USB/SD
Press to choose to play files in USD mode or in SD mode.
10. VOL+/VOL-
Press to turn the volume up or down.
11. /
Press to skip to the previous track/chapter or skip to the next track/chapter.
12. ZOOM
Press to zoom in during DVD playback.
13. SLOW
Press to slow down the playback speed.

8
14. AUDIO
Press to choose Left, Right or Stereo for the audio channel.
15. Up direction button in Game mode
16. Right direction button in Game mode
17. Down direction button in Game mode
18. Left direction button in Game mode
19. RETURN
Press to return to the previous menu.
20. SUBTITLE
Press to display the subtitle during DVD playback.
21. DVD/AV
Press to select DVD mode or AV mode.
22. Number buttons
Press to choose a track or a chapter by the track number or chapter number during
DVD playback.
23.
Press to stop playback.
24.
Press to pause or resume playback.
25. /
Press to perform rewind or perform fast-forward.
26. ANGLE
Press to adjust the viewing angle during DVD playback.

9
Point the remote control in the direction of the front panel to operate.
- The remote control may not function properly in direct sunlight.
- Do not store the remote control in high temperatures or direct sunlight.
- Do not let the remote control fall onto the floor, where it may become jammed
Using the remote control
under the brake or accelerator pedal.
27. SETUP
Press to display the setup menu.
28. REPEAT
Repeat play.
29. DISPLAY
Press to turn OSD (on-screen display) on or off.
30. TFT MENU
Press to display the menu.
31. POWER
Press to turn on or turn off the power.
32. PBC MENU
Press to display the DVD menu during DVD playback.
33. SELECT
34. START
Press to start playing games in Game mode.

10
Playing a disc
You can play a normal music CD, Video-CD or DVD-Video using the built-in drive of
this product.
USB/SD
Plug a USB storage device into the USB port, or insert an SD memory card into the
SD card slot, and then it will automatically switch to USB mode or SD mode.
Before removing the USB storage device or ejecting an SD memory card, stop
playback.
Using AV input and AV output
An external video source, video game system, or other audio/video devices can be
connected to the AV input.
The product provides an AV output for optional video monitor(s). This output will
provide the AV signals that duplicate the picture/audio being processed by the
product to an additional monitor or video display.
Listening over the vehicle’s speakers
The product uses a wireless FM transmitter to send audio through the vehicle’s
speakers.
To listen over your speakers:
1. Make sure mute is off. Select FM mode on the screen, and then select a FM
frequency as described below.
Put in a disc with the label side up.
To take a disc out, stop playback first, and then open the disc loading drive.

11
The product saves the frequency you select, and returns to it each time the
product is turned on. You may want to store the FM transmitter frequency as a
preset of your radio for ease of use.
Note: If there seems to be a strong station on the FM transmitter frequency, and you
are hearing a radio station mixed in with the system audio, change the FM transmitter
frequency. Avoid frequencies used by local radio stations.
The external FM modulator frequencies are FM 87.7, 87.9, 88.1, 88.3, 88.5, 88.7,
88.9, 106.7, 107.1 and 107.5.
Using the external wireless IR headset
A separately sold wireless IR headset is required for utilizing the IR transmitter
function.
2. Turn on the car radio. Tune to the FM frequency displayed on the screen, such
as FM 88.1.
3. If no audio is heard, try changing the FM transmitter frequency and re-tuning
the radio to the new frequency.
A dual channel wireless IR headset has a two-position slide switch labeled “A/B”.
When the switch is in the “A” position, the headset plays audio from the source
designated as “IR A.” When the switch is in the “B” position, the headset plays
audio from the source designated as “IR B.”
Using an HDMI source
You can display the video image output by the device connected to this product.
An appropriate HDMI cable or adapter (sold separately) is required for connection.

12
Appendix
Troubleshooting
If you have problems operating this product, please refer to this section. The most
common problems are listed below, along with likely causes and solutions.
- Car engine has not been started. Start the car engine.
- Incorrect wiring connection. Check the wiring.
- Fuse has been damaged. Replace fuse.
No power
- Volume is too low. Adjust volume.
- Incorrect wiring connection. Check the wiring.
No sound
- The disc is inserted upside down. Insert the disc with the label upward.
- The disc is dirty. Clean the disc.
- The disc is cracked or otherwise damaged. Insert a normal, round disc.
- The files on the discs are in an irregular file format. Check the file format.
- The disc format cannot be played back. Replace the disc.
- The loaded disc is a type this product cannot play. Check what type of disc it is.
Disc does not play
- Video DVD settings do not match with the DVD. Adjust video DVD settings.
- Video connection is incorrect.
Image flashes or distorted
- Set the FM transmitter to an alternate radio station. Then tune the radio to the
Audio static through the vehicle’s speakers
newly selected station.
- Ensure the car battery is fully charged and in good condition.
- Avoid using the product without running the engine.
The product resets when I start my vehicle

13
Handling and Care of Discs
- Use only conventional, fully circular discs. Do not use shaped discs.
- Do not use cracked, chipped, warped, or otherwise damaged discs as they may
damage the built-in drive.
- Use 12-cm discs. Do not use 8-cm discs or an adapter for 8-cm discs.
- When using discs with printed on label surfaces, check the instructions and the
warnings of the discs. Depending on the discs, inserting or ejecting may not be
possible. Using such discs may result in damage to this equipment.
- Do not attach labels, write on or apply chemicals to the surface of the discs.
- Do not attach commercially available labels or other materials to the discs.
- To clean a disc, wipe it with a soft cloth, moving outward from the center.
- Condensation may temporarily impair the built-in drive’s performance.
- Playback of discs may not be possible because of disc characteristics, disc format,
recorded application, playback environment, storage conditions and so on.
- Road shocks may interrupt disc playback.
- Read the precautions for discs before using them.
Playable Discs
DVD, SVCD, VCD, DVD-5, CD, CD-R, CD-RW, DVD-9, DVD-R, DVD-RW, DVD+R, and
DVD+RW discs can be played on this built-in DVD drive.
For installation and technical advice please visit forum.xtrons.co.uk/
forum.xtrons.co.uk/

www.xtrons.com
