TABLE OF CONTENTS
Submersibles: (Pages 1 – 61) Page
Safety Warnings .............................................................3-5
Typical Systems ..............................................................6-7
Motor Cooling................................................................... 8
Troubleshooting...........................................................9-11
Amprobe Instructions..................................................... 12
Ohmmeter Instructions .................................................. 13
Measuring Insulation Resistance................................... 14
Coil Checkout.................................................................. 15
Relay Checkout ..........................................................16-17
Contactor Checkout ....................................................... 18
Overload Checkout ........................................................ 19
Capacitor Checkout........................................................ 20
Fuse Checkout................................................................. 21
Voltage Checkout ......................................................22-25
Amperage Checkout.................................................26-27
Wire Diagrams............................................................28-33
Cable Checkout .........................................................34-35
Motor Insulation & Winding Resistance..................36-39
1Ø Motor Data and Wire Sizing...............................40-45
3Ø Motor Data and Wire Sizing...............................46-51
Aquavar SOLO Wire Sizing.......................................52-53
3Ø 6" – 10" Motor Data.............................................54-59
Pressure Tank Checkout ............................................60-61
Jet Pumps: (Pages 62 – 99)
Typical Systems ..........................................................62-63
Jet Pumps ...................................................................64-67
Troubleshooting.........................................................68-73
Voltage Check ................................................................. 74
Amperage Checks .....................................................75-76
Ohmmeter Checks ....................................................77-86
Pressure Switch Adjustment Checkout ........................ 87
Checking Suction Lift.................................................87-89
Pressure Control Valves.................................................. 90
Rotation............................................................................ 91
Three Phase Unbalance ............................................92-93
Transformer Sizes.......................................................94-95
Quick Start Guides.....................................................96-99

3
Safety Warnings
SAFETY WARNINGS
TO AVOID SERIOUS OR FATAL PERSONAL INJURY OR
MAJOR PROPERTY DAMAGE, READ AND FOLLOW ALL
SAFETY INSTRUCTIONS IN MANUAL AND ON PUMP.
THIS MANUAL IS INTENDED TO ASSIST IN THE
INSTALLATION AND OPERATION OF THIS UNIT AND
MUST BE KEPT WITH THE PUMP.
This is a SAFETY ALERT SYMBOL.
When you see this symbol on the pump
or in the manual, look for one of the
following signal words and be alert to the
potential for personal injury or property
damage.
Warns of hazards that WILL cause
serious personal injury, death or major
property damage.
Warns of hazards that CAN cause serious
personal injury, death or major property
damage.
Warns of hazards that CAN cause per-
sonal injury or property damage.
NOTICE: INDICATES SPECIAL INSTRUCTIONS
WHICH ARE VERY IMPORTANT AND
MUST BE FOLLOWED.
THOROUGHLY REVIEW ALL INSTRUCTIONS AND
WARNINGS PRIOR TO PERFORMING ANY WORK
ON THIS PUMP.
MAINTAIN ALL SAFETY DECALS.
DANGER
CAUTION
WARNING

4
WARNING
WARNING
SAFETY WARNINGS
All electrical work must be performed by
a qualified technician. Always follow the
National Electrical Code (NEC), or the Canadian Electri-
cal Code, as well as all local, state and provincial codes.
Code questions should be directed to your local electrical
inspector. Failure to follow electrical codes and OSHA safety
standards may result in personal injury or equipment dam-
age. Failure to follow manufacturer’s installation instructions
may result in electrical shock, fire hazard, personal injury or
death, damaged equipment, provide unsatisfactory perfor-
mance, and may void manufacturer’s warranty.
Standard units are not designed for use in
swimming pools, open bodies of water,
hazardous liquids, or where flammable gases exist. Well must
be vented per local codes. See specific pump catalog bulletins
or pump nameplate for all agency Listings.
Disconnect and lockout electrical power
before installing or servicing any electri-
cal equipment. Many pumps are equipped with automatic
thermal overload protection which may allow an overheated
pump to restart unexpectedly.
Never over pressurize the tank, piping or
system to a pressure higher than the tank's
maximum pressure rating. This will damage the tank, voids
the warranty and may create a serious hazard.
Protect tanks from excessive moisture and
spray as it will cause the tank to rust and
may create a hazard. See tank warning labels and IOM for
more information.
Do not lift, carry or hang pump by the
electrical cables. Damage to the electri-
cal cables can cause shock, burns or death.
Use only stranded copper wire to pump/
motor and ground. The ground wire must
be at least as large as the power supply wires. Wires should
be color coded for ease of maintenance and troubleshooting.
WARNING
WARNING
WARNING
Important notice: Read safety instructions before
proceeding with any wiring.
WARNING
WARNING

5
WARNING
WARNING
WARNING
WARNING
WARNING
WARNING
DANGER
WARNING
Install wire and ground according to
the National Electrical Code (NEC), or
the Canadian Electrical Code, as well as all local, state and
provincial codes.
Install an all leg disconnect switch where
required by code.
The electrical supply voltage and phase
must match all equipment requirements.
Incorrect voltage or phase can cause fire, motor and control
damage, and voids the warranty.
All splices must be waterproof. If using
splice kits follow manufacturer’s
instructions.
Select the correct type and NEMA grade
junction box for the application and
location. The junction box must insure dry, safe wiring
connections.
All motors require a minimum
5' submergence for proper refill check
valve operation.
Failure to permanently ground the pump,
motor and controls before connecting to
power can cause shock, burns or death.
All three phase (3Ø) controls for sub-
mersible pumps must provide Class 10,
quick-trip, overload protection.
4" motors ≥2 HP require a minimum
flow rate of .25 ft/sec. or 7.62 cm/sec.
past the motor for proper motor cooling. The following are
the minimum flows in GPM per well diameter required for
cooling: 1.2 GPM/4", 7 GPM/5", 13 GPM/6", 20 GPM/7",
30 GPM/8" or 50 GPM in a 10" well.
Pumps ≥2 HP installed in large tanks
should be installed in a flow inducer
sleeve to create the needed cooling flow or velocity past the
motor.
WARNING
WARNING
SAFETY WARNINGS
Well Pump Langley for Water Well Pump Service in Langley & Aldergrove.

6
Two-Wire System Illustrated
CAUTION
All electrical equipment must be connected
to supply ground. Follow applicable code
requirements.
Protected Power Supply
To House Piping
Disconnect
Switch
Shut-off
Valve
Union
Pressure
Relief Valve
Drain
Tap
Tank Tee
Check Valve ➁
Frost Level
Check
Valve ➀
Pitless
Adapter ➀
Pressure
Switch
RULE OF THUMB
1. Use same size or larger
pipe as discharge on pump.
2. Always use a check valve
for every 200 ft. of vertical pipe.
➀On installations with a pitless adapter
the top check valve should be below
the pitless, not at the tank, as the
discharge line should be pressurized
back to the pitless.
➁On installations with well seals or well
pits it is allowable to locate the top
check valve near the tank.
TYPICAL SYSTEM

7
TYPICAL SYSTEM
Motor Cooling, Temperature
and Time Ratings
All 4 inch CentriPro motors may be
operated continuously in water up to
86º F. Optimum service life will be
attained by maintaining a minimum
ow rate past the motor of .25 feet per
second. Use a Flow Sleeve if velocity
is below the .25'/sec, if the well is top
feeding or when the pump is used in a
large body of water or large tank.
Six (6) inch canned design motors from
5 – 40 HP will operate in water up to
95º F (35º C), without any de-rating of
horsepower, with a minimum ow rate of
.5 ft./sec. past the motor. 6" – 50 HP and
all 8" – 10" motors can operate in 77º F
(25º C) water with .5'/sec velocity past
the motor.
One way to make a ow sleeve is to install a well seal
above the pump discharge and slip a piece of casing
over the pump and afx it to the well seal. Drill three
holes at 120º intervals on the lower section of the casing
and insert (3) screws and nuts through the casing, just
touching the motor. Tighten the nuts out against the
casing. Insure that the screws do not protrude out too
far as you don’t want them catching on well joints.
Pump Cooling and Lubrication
In addition to motor cooling, another reason to
maintain minimum ow rates is pump lubrication. All
manufacturers’, either on curves or in selection charts,
show minimum ows. This insures that rotating pump
parts are properly lubricated to prolong service life and
reduce friction. A dead headed pump will super heat
water very quickly, and hot water has no lubricity.
FLOW SLEEVE

8
IMPORTANT
This manual is intended ONLY for use by
professionals familiar with NEC (National
Electric Codes) electrical codes and
hydraulic and safety procedures of pump
installations.
TECHNICAL DATA
Minimum Flow Rates for
Proper Motor Cooling
3.75" Dia. CP = FE = CP =
Well or 4" CP or 5.5" Dia. 5.38" Dia. 7.52" Dia.
Sleeve FE Motor 6" CP 6" FE 8" CP
Diameter .25'/sec Motor Motor Motor
(inches) .5'/sec. .5'/sec. .5'/sec.
GPM Required
4 1.2 – – –
5 7 – – –
6 13 7 9 –
7 20 23 25 –
8 30 41 45 9
10 50 85 90 53
12 80 139 140 107
14 110 198 200 170
16 150 276 280 313
Multiply gpm by .2271 for m3/Hr.
Multiply gpm by 3.785 for l/min.

9
TROUBLESHOOTING
RULE OF THUMB
Remember, there may be other
system problems caused by
auxiliary controls not covered in
this booklet.
Probable Cause
1. Motor thermal protector
tripped
a. Incorrect control box
b. Incorrect or faulty
electrical connections
c. Faulty thermal protector
d. Low voltage
e. Ambient temperature of
control box/starter too
high
f. Pump bound by foreign
matter
g. Inadequate submergence
2. Open circuit breaker or
blown fuse
3. Power source inadequate
for load
4. Power cable insulation
damage
5. Faulty power cable splice
Recommended Action
1. Allow motor to cool, ther-
mal protector will automati-
cally reset
a – e. Have a qualied elec-
trician inspect and repair,
as required
f. Pull pump, clean,
adjust set depth
as required
g. Conrm adequate unit
submergence in
pumpage
2. Have a qualied electri-
cian inspect and repair, as
required
3. Check supply or generator
capacity
4 – 5. Have a qualied electri-
cian inspect and repair, as
required
Pump Motor Not Running

10
TROUBLESHOOTING
Probable Cause
1. Faulty or incorrectly installed
check valve
2. Pump air bound
3. Lift too high for pump
4. Pump bound by foreign
matter
5. Pump not fully submerged
6. Well contains excessive
amounts of air or gases
7. Excessive pump wear
8. Incorrect motor rotation
– 3Ø only.
Recommended Action
1. Inspect check valve, repair
as required
2. Successively start and
stop pump until ow is
delivered
3. Review unit performance,
check with dealer
4. Pull pump, clean, adjust set
depth as required
5. Check well recovery, lower
pump if possible
6. If successive starts and
stops does not remedy,
well contains excessive air
or gases
7. Pull pump and repair as
required
8. Reverse any two motor
electrical leads
Little or No Liquid Delivered by Pump

11
TROUBLESHOOTING
Probable Cause
1. No power
2. Incorrect voltage
3. Defective pressure switch
4. Loose wire connections
5. Cable insulation damaged
6. Damaged or poor splice
7. Pump bound by sand or
abrasives
Recommended Action
1. Check for tripped circuit
breaker
2. Check with voltmeter
3. Inspect switch points and
wires
4. Check all connections and
splices
5. Perform cable check with
ohmmeter
6. Perform cable check with
ohmmeter
7. Pull pump and repair as
required
Pump Will Not Start or Run. . .
Probable Cause
1. Waterlogged tank
2. Check valve broken or stuck
open
3. Improper switch setting
4. Improper switch placement
5. Leaks in piping
6. Tank too small for pump
Recommended Action
1. Check tank pressure when
empty of water
2. Replace check valve
3. Adjust switch
4. Move switch closer to tank
5. Replace defective pipe
6. Install larger tank
Pump Starts Too Frequently. . .

12
The Amprobe is a multi-range, combination
ammeter and voltmeter.
Voltmeter Scales: 150 Volts 600 Volts
Ammeter Scales: 5 Amps 40 Amps
15 Amps 100 Amps
1. When used as an ammeter, the tongs are
placed around the wire being measured
with the rotary scale on the 100 amp
range. Then rotate the scale back to the
smaller ranges until an exact reading is
indicated.
2. When used as a voltmeter, the two leads are
clipped into the bottom of the instrument
with the rotary scale on the 600 volt range.
If the reading is less than 150 volts, rotate
the scale to the 150 volt range to get a more
exact reading.
AMPROBE/OHMMETER INSTRUCTIONS

13
The Ohmmeter is used for measuring the
electrical resistance of a wire circuit. The unit of
measurement is called an Ohm.
1. The knob at the bottom of the Ohmmeter is
adjustable through six ranges:
RX1= R x 1
RX10 = R x 10
RX100 = R x 100
RX1000 = R x 1,000
RX10K = R x 10,000
RX100K = R x 100,000
2. The round center knob is for the purpose of
adjusting the instrument to zero (0) after
clipping the two ohmmeter leads together.
This must be done every time the range
selection is changed.
If your ohmmeter
is digital readout
type, refer to the
instructions that
came with it.
CAUTION
Use Ohmmeter only with power off.
AMPROBE/OHMMETER INSTRUCTIONS

14

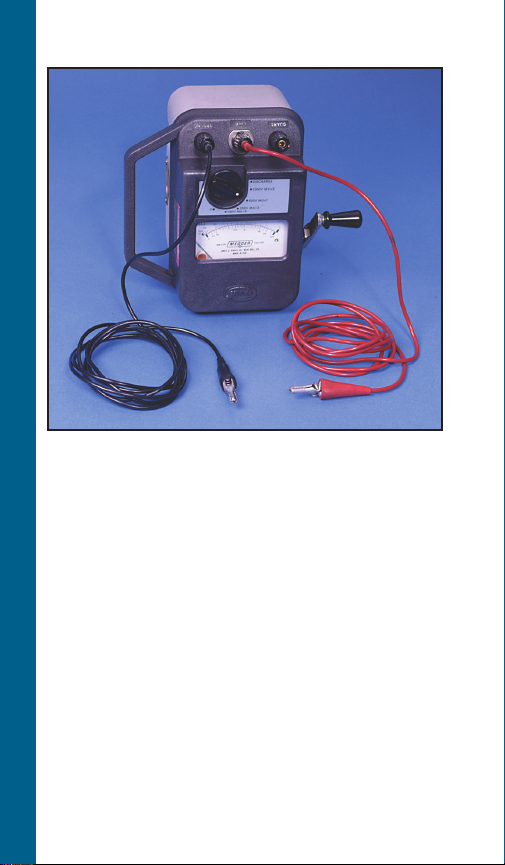

MEASURING INSULATION RESISTANCE
This instrument is used to measure insulation
resistance to ground. It consists of a crank-
turned magneto, on the side of the case, and
will give very close readings calibrated di-
rectly in ohms. It is cranked at a moderate rate
of speed, approximately 120 rpm, until the
pointer reaches a steady deflection.
1. If the ohm value is normal, the motor
windings are not grounded and the cable
insulation is not damaged.
2. If the ohm value is below normal, either the
windings are grounded or the cable insula-
tion is damaged. Check the cable at the well
seal as the insulation is sometimes damaged
by being pinched.
Megger

15
COIL CHECKOUT
Coil with Ohmmeter
1. Set R x 1000.
2. Connect leads as shown.
3. Reading: Should register some value,
Approx. 200-1000 ohms.
What It Means –
Infinity reading indicates coil is open. Zero
reading indicates coil is shorted. In either case,
the coil should be replaced.
A reading of 200-1000 ohms indicates coil is
ok.
!
WARNING!
Open master breaker and disconnect all
leads from starter to avoid damage to
meter or electric shock hazard. Connect
the ohmmeter leads as shown above.

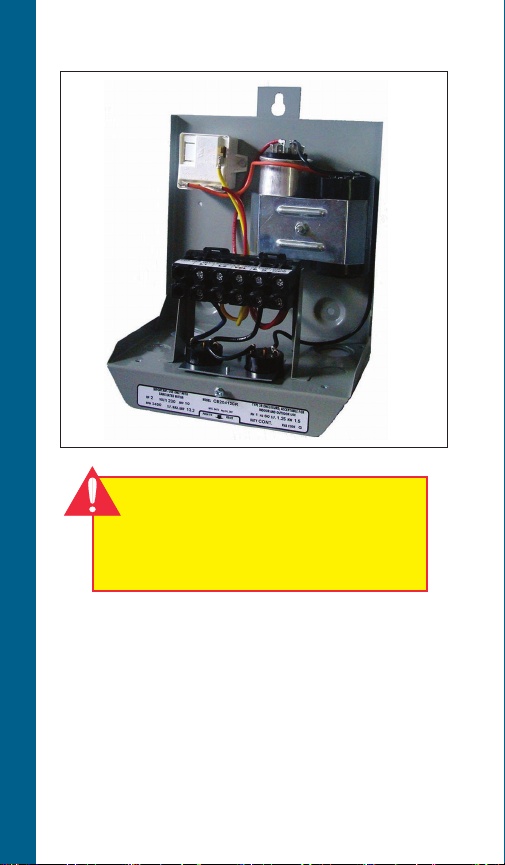

16

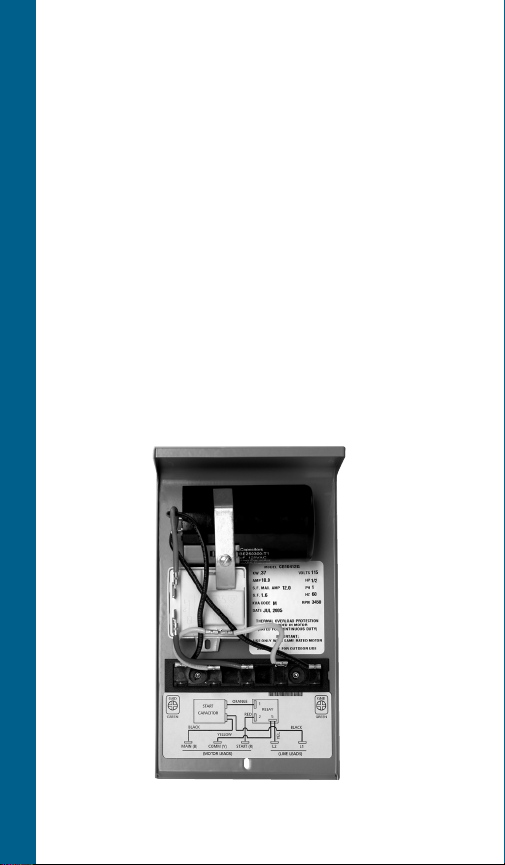

Voltage Relay
CONTROL BOXES (CENTRIPRO OR F.E.)
Checking Relay with Ohmmeter
A. Voltage Relay Tests
Step 1, Coil Test
1. Meter setting: R x 1,000.
2. Connections: #2 & #5.
3. Correct meter readings:
For 115 Volt Boxes:
.7 – 1.8 (700 to 1,800 ohms).
For 230 Volt Boxes
4.5 – 7.0 (4,500 to 7,000 ohms).
RELAY CHECKOUT

17
Step 2, Contact Test
1. Meter setting: R x 1.
2. Connections: #1 and #2.
3. Correct meter reading:
Zero for all models.
B. F.E. Blue Relay - Solid State
1⁄3– 1 HP QD Control Boxes
Used from 1994 until present time:
Step 1, Triac Test
1. Meter setting: R x 1,000.
2. Connections: Cap and B terminal.
3. Correct meter reading: Innity for all
models.
Step 2, Coil Test
1. Meter setting: R x 1.
2. Connections: L1 and B.
3. Correct meter reading:
Zero ohms for all models.
RELAY CHECKOUT
Voltage Relay
CONTROL BOXES (CENTRIPRO OR F.E.)

18
Additional information on troubleshooting
and replacement parts for 1Ø Control Boxes
is available in the MAID; Motor Application
and Installation Manual. It is also available
online at www.xyleminc.com/brands/
gouldswatertechnology.

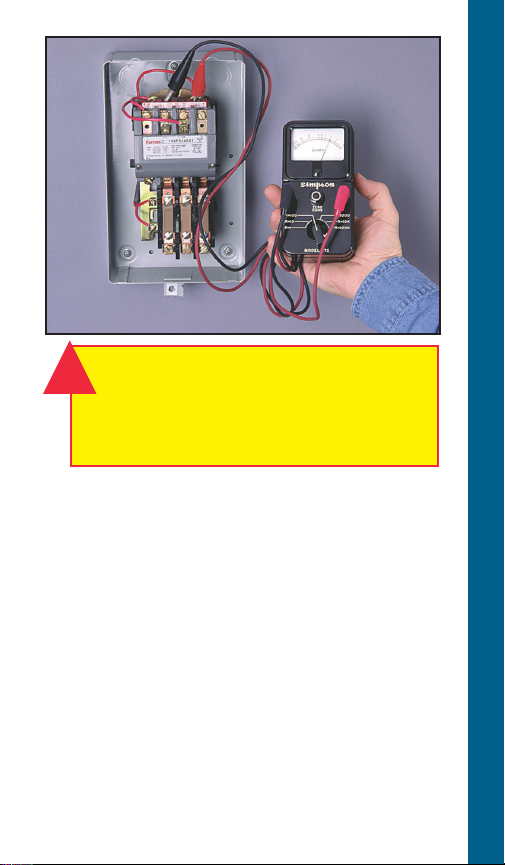

Checkout Procedure
for Magnetic and Other
Contactors
Contactor Coil Test
(Disconnect lead from one side of coil)
1. Meter setting: R X 100
2. Connections: Coil terminals
3. Correct meter reading: 180 to
1,400 ohms
Contactor Contact Test
1. Meter Setting: R X 1
2. Connections: L1 & T1 or L2 & T2
3. Manually close contacts
4. Correct meter reading: Zero ohms
CONTACTOR CHECKOUT

19
For 1½ HP (and Larger)
Control Box
1. Set Ohmmeter at “R x 1”
2. Connect the Ohmmeter leads to Terminal
#1 and #3 on each Overload Protector.
3. Reading should be not more than 0.5
Ohms maximum on the scale.
CSCR or Mag. Contactor Control Box
OVERLOAD CHECKOUT

20
Capacitor with Ohmmeter
1. Disconnect leads to capacitor post.
2. Setting: R x 1,000
3. Connect ohmmeter leads to capacitor posts.
4. Reading: Pointer should swing toward zero,
then back toward innity.
CAUTION
Discharge the capacitor before making
this check. (A screwdriver can be used
to make contact between capacitor’s
posts.)
CAPACITOR CHECKOUT
