Dear customer,
Thank you very much for supporting YABER!
Please read this manual thoroughly before using the projector. If you have
any issues, email your order number and the problem to
Actually, many problems can be easily solved by setting, such as no signal,
no sound, blueteeth connection failed, WiFi connection failed, dark spots,
choppy animation etc. We promise all the projectors have been 100%
carefully checked and packaged before shipping.
If you have any questions, could you please contact us so that the problem
can been solved. And give us an opportunity to improve. We guarantee we
will provide you a satisfactory solution.
Thanks for your understanding!
YABER Service Team
TIPS:
1.Do not place projector in too warm or too cold room, because the high
temperature or low temperature will shorten lifespan of the device. The
working environment would be 5Я~35Я better.
2.If there are black spots on the projection screen, please don't worry,
please contact via email, we can send you a
video about how to remove the dust.
3.The ventilation is equipped for the projector to work stably. Don't cover the
vent with cloth, blanket or other things. Don't insert anything into the slit of
the projector, or it may produce a short circuit or an electric shock to your
device and cause damage.
4.The projector shall be strictly protected from strong impact, extrusion and
vibration. Do not try to move and on strong impact, extrusion and vibration.
Do not try to move and the internal circuit faults.
5.Lens, as the core component of the projector, is directly related to the
picture definition and effect. The excessive dust thereon will affect image
quality. The dirty lens shall be wiped with soft cotton cloth for the glass lens
surface. Hard cloth or abrasives shall not be used.
02
PACKAGE LIST
YABER Pro U9 Projector*1
HDMI Cable*1
Cleaning Cloth*1
Remote Control*1
3-in-1 AV Cable
User Manual*1
Power Cord*1
Lens Cover*1
Cleaning Kit*1
Projector Screen*1
PROJECTOR SPECIFICATIONS
Model No. Pro U9
Native
Resolution
Display
Technology
Color Gamut
Recommended
Projection
Distance
Power
Voltage
Picture File
Projection
Method
Video File
Audio File
1920*1080P
LCD
16.7M Full
8.8-14ft
AC100-240V
JPG/JPEG/
BMP/PNG
Front/Rear on Desk, Front/ Rear on Ceiling
3GP/AVI/MP4/MPG/VOB/TS/M2TS/DAT/MKV
MP3/APE/AAC/FLAC/OGG/MID/M4A
Keystone
Correction
Light Source
Aspect Ratio
Minimum
Projection
Distance
Projector
Weight
Interfaces
Manual Vertical/Horizontal
LED
4:3/16:9
5.5ft
2.64lb
HDMI*2/USB*2/3.5mm
Headphone jack/AV
03
1
2
3/11
4
5
6/7
8
9
10
12
13
14
15
16
17
Foot pad
IR Window
Projector lens
Power Cord Port
Headphone Jack
HDMI Ports
USB Ports
AV Port
Speakers
Vents
Focus Ring
Detachable Dust
Filter Switch
Detachable Dust Filter
Bottom label
Rubber Pads
Increase the height of the projector
Infrared signal receiver
Optical coated glass lens
Power Cord Port
3.5mm Headphone Output
HDMI 1 input / HDMI 2 input
USB port above
USB port below: USB-T port
Audio input
Speakers stereo 5w
Prevent the projector from overheating
Adjust the focus ring to get the clearest image
Push the switch from the right to open the
detachable dust filter
Clean the dust (if the screen has a black spot)
Nameplate on the bottom of the projector
Protective pads/remove to install ceiling mount
1
2
3
4
Power
Menu Key
OK
Arrow Keys
Turn on/off the power
Tips: Pro U9 fuselage buttons are touch-screen buttons, which can be operated with a
light touch.
Operate in av or hdmi mode
Confirm the option
5 Source Select the input signal soucre
6 Back Return to the previous menu
Used to adjust the parameter of the projector in the
menu mode
12
6
4
3
1. Power Key
2. Menu
3. OK Key
4. Arrow Key
5. Source
6. Back
5
05
REMOTE CONTROL
1
2
3
4
5
6
7
8
9
10
11
12
Turn on/off the power
Make system settings
Can make some basic adjustments of the screen after clicking during
the video playback
Operate in av or hdmi mode
Volume down
Confirm selection or select video to play
Close the sound
Select the input signal soucre
Used to adjust the parameter of the projector in the menu mode
Back to the main menu
Return to the previous menu
Volume up
M
M
S
S
06
Note:
1).Install 2 pieces of AAA batteries into the remote before using it. Do not
combine new batteries with old ones in remote controller, which can cause
operation failure due to insufficient power supply.
2).When using the remote controller, please make sure that the signal
transmitter of the remote controller aims at infrared signal receiver of the
projector.
3).If you are not using the remote controller for an extended period, please
take out batteries to prevent batteries leakage.
INSTALLATION
1. Installation Method
The projector can be hanged on the ceiling with special hanger frame, and
placed on the stable desk to project the image according to the operating
environment and requirements. In addition, the projector can be installed with
following methods:
1.Front projection Ceiling mount
3.Front projection Table mount
2.Rear projection Ceiling mount
4.Rear projection Table mount
Keep the projector at a height where its lens is axial symmetry to the screen.
If this is not possible, use the keystone correction function to adjust the
projection image.
If you want to get a free projection screen,please contact us via
07
Aspect Ratio: 16:9
Distance (ft.) Screen Size
5.50
7.80
10.80
13.00
16.40
50"
70"
100"
120"
150"
The recommended projection distance is about 10.8ft,the shortest projection
distance is 5.5ft.
The image size depends on the distance between projector and screen,
there may be 3% deviation among above listed data. Different settings cause
various distances.
2. Install on the Ceiling
A.Please purchase an universal projector ceiling mount;
B.Remove the four rubber pads on the bottom of the projector, you will see
the screw holes and use the M4*10mm screws for installing the ceiling, and
then install it.
Screwholes
08
1)Press the power key on the remote or projector, the indicator light will turn
blue;
2)Adjust the focus ring on the left side of the projector to get the best image
performance; (If it is still blurry, please try to adjust the projection distance.)
3)Use the 4D keystone function of the projector to get a rectangle projection
screen;
4)Connect the external device (Smart phone, iPad, Fire tv stick, TV box,
DVD player, Computer, etc.) in the corresponding interfaces of the projector,
please be sure to select the corresponding source. If you do not select the
correct source, the projector will not be able to detect the signal;.
5)Select the " " menu,enter the [ Other Setting],then you can select the
option [ Language Setting ] to set your preferred language.
STARTING PROJECTOR
IMAGE ADJUSTMENT
When using the projector for the first time, it normally displays an unclear
image. This is due to the lens being out of focus or the incorrect trapezoid
setting.
Please follow the below steps to correct:
PS: Select the [Screen Mirroring] menu,enter the [Settings] menu-[System
Setting] menu, then you can select the option [Language] to set the preferred
language of your Screen Mirroring system.

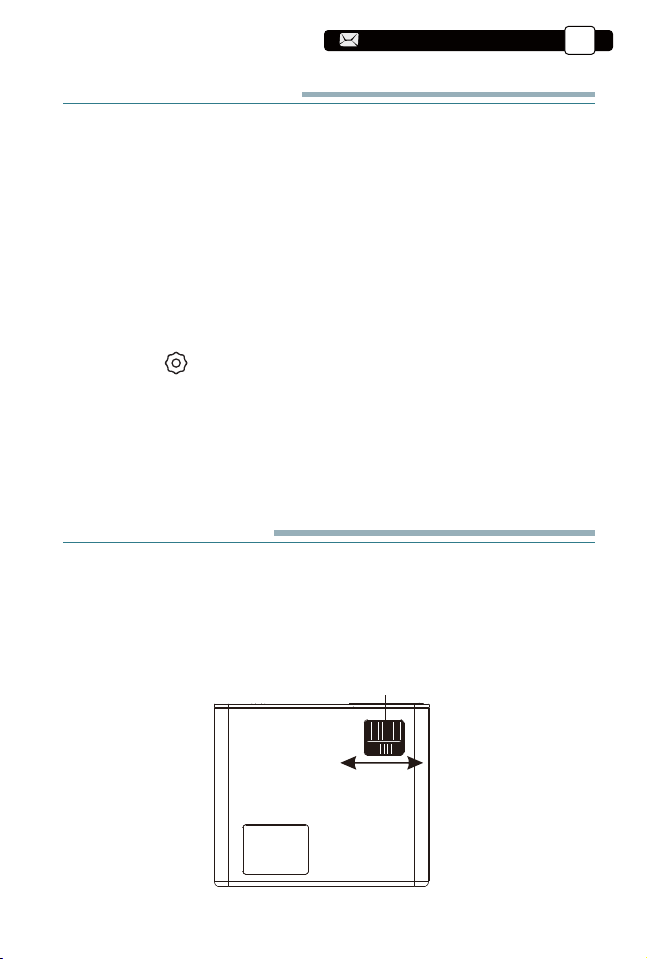

1. Focus Adjustment
Focus Ring
09
SETTING UP THE PROJECTOR
The projector's home page is as follow.
1. Select The Input Signal Source
Select the desired input signal source (HDMI1/HDMI2/AV) on the home-page
2. Image adjustment
Please follow the below steps to correct:
Adjust the image size to get the best image size by moving the projector back
and forth, then rotate the lens to get the best focus. Use the 4D&4P keystone
function (4 Corner keystone& 4 Side keystone）of the projector to get a
rectangle projection screen.
3. Select the Signal Source
Press the "S" button on the remote control or the projector and choose
between: "AV", "VGA", "HDMI " Connect the external device (Smart phone,
iPad, Fire tv stick, TV box, DVD player, Computer, etc.) in the correspond -
ing interfaces of the projector, please be sure to select the corresponding
source. If you do not select the correct source, the projector will not be able to
detect the signal. And you can see the homepage "Video" "Music" "Picture"
"Signal Source""IOS Cast""Miracast".
Signal Source
Video Music Picture Office
IOS Cast Miracast
Source
AV
VGA
HDMI1
HDMI2
10
Signal Source
Video Music Picture Office
IOS Cast Miracast

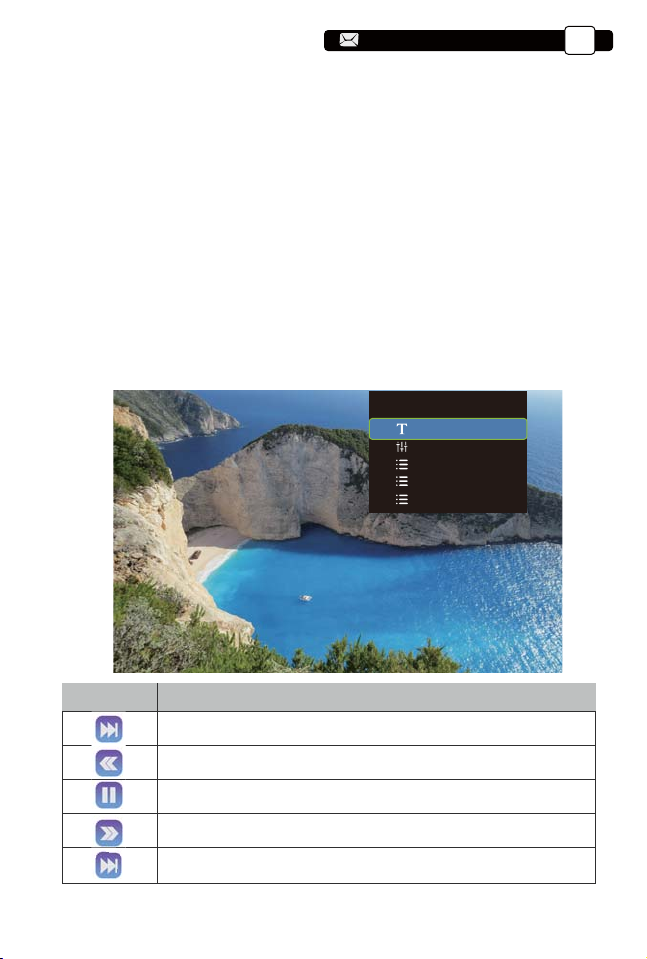

2.2. Video Interface
Menu Function
Switch to the previous video
Fast Backward,rewinds the video back quickly while playing it.
The rewinding speed ranges from 2X to 32X
Play or pause the current videot
Fast Forward, pushes the video to move forward quickly while
playing it. The forward speed ranges from 2X to 16X
Switch to the next video
2. USB Disk Input Mode
1). Input the USB Disk,Select the option [ Video/Music/Picture/Office ];
2). Select the desired file (or folder to enter the subfolder) in the USB disk,
then press the [ OK ] button to play it.
TIPS:
A.Pro U9 upgraded projector supports U disk to directly play PPT, Word,
Excel files;
B.If you enter from the [Video] menu, you can only play the video, The same
as other 3 option.
2.1. Play Video/Music/Picture/Office in the USB Disk Input Mode
Player Menu
Subtitle options
Audio options
Advanced options
Screen Scale
Speed
11
Play Mode
Play
Auto Play
Switching time
Cancel OK
5S
Open the file you want to play, press the "M" button on the remote control or
projector, you can select three play modes: paly, auto play, switching time.
2.4. Office Play Interface
1. Press the " " button on the remote control ,You can directly open the
music list and play directly
2. Press the " " button on the remote control ,You can set the music play
mode, single loop/random play, etc.
2.3. Music Play Interface
Player Menu Include Function
Subtitle options
Audio options
Advanced options
Speed
Subtitle On-Off,Subtitle Switching,
Subtitle advanced
Track Switch
Forward revind
0.25-2
set multiple modes of video
subtitles
You can set the audio mode
You can set the video to fast
forward or rewind
Video playback multiple
12
On/Off
WIFI
Add new network
Always scanning
WIFI
Nearby WIFI
...
..
..
3.1. iOS Cast (for iOS Devices)
1.Go to home page -- Select the [ ] menu -- Select the [ WiFi Setting ] menu
-- Open the WiFi function -- Select your home WiFi from the list -- Connect the
Y9 projector to your home WiFi.
3. WiFi Setting
Wireless Connection
Warming Tips:
①The fluency of screen mirroring with wireless connection will be affected by
the network environment. A bandwidth of 100Mbit or more is recommended
when using screen mirroring.
②Make sure your mobile device is close to the projector when using wireless
connection. A distance within 1 meter is recommended.
③Some mobile devices may not support screen mirroring due to the compati-
bility.
④Any questions, please feel free to email YABER via
Blueteeth
13
Signal Source
Video Music Picture Office
IOS Cast Miracast
1.Go to home page -- Select the [ Miracast ] menu -- Press the OK button to
enter the [ Miracast Setting ] Menu.
3.2. Miracast (for Android Devices)
Signal Source
Video Music Picture Office
IOS Cast Miracast
2.Back to home page -- Select [ iOS Cast ] menu -- Press the OK button to
enter the [ iOS Cast ] menu.
3.Select the [ Settings ] menu on your iOS device -- Turn on the [ Wi-Fi ]
function -- Connect your iOS device to the same home network as the
projector.
4.Open the [ Control Center ] on your iOS device -- Select the [ Screen
Mirroring ] function -- Select and connect the iOS Cast receiver named [
U9-iOSCast-xxxx ] -- your iOS device screen will be displayed on the
projection screen after 3 seconds.
14
3.On your Android device, tap [ Settings ] -[ WLAN Display ] -Turn [ Wi-Fi ]
ON, Connect your home WiFi.
Note:
1.Different brands of Android phones have different operations for select
Screen Mirroring Display, please refer to your phone’ s manual. [ Mul-
tiscreen/Wireless display/WLAN display/Screen mirroring/Wireless projec-
tion/Smart view etc. ]
2.Not all Android phones support this function. Please make sure it is sup-
ported before use.
2.Select the [ Settings ] menu on your Android device -- Select the [ Screen
mirroring ] function -- Select your Miracast receiver named [ Pro U9-An-
Cast-XXXX ] -- your Android device screen will be displayed on the projec-
tion screen after 3 seconds.
Pro U9-An-Cast-XXXX Pro U9-An-Cast-XXXX
(1) Go to home page -- Select the [ ] -- Select the [ Blueteeth Setting ].
(2) Open the Blueteeth function and your Blueteeth device.
(3) Select [Availiable Device], click to begin/stop search the Blueteeth devices
nearby.
(4) Choose the Blueteeth device desired and press OK, wait a few seconds for
a successful Blueteeth connection.
4. Blueteeth Setting
15
Blueteeth
5. Image Setting
Note:
1.The Pro U9 projector is compatible with the Blueteeth headsets, Bluet-
eeth speakers and Airpods, but not the Blueteeth keyboards or Blueteeth
phones.
2. When connecting a Blueteeth speaker, Need to disconnect from the
previously connected device or turn off the previous Blueteeth device,
make sure the speaker is waiting for pairing, Otherwise the projector
cannot search for Blueteeth or cannot connect to Blueteeth speakers.
3. If you have any question, please feel free to email YABER via
Select “ ” menu on the projector’s home page
Signal Source
Video Music Picture Office
IOS Cast Miracast
Signal Source
Video Music Picture Office
IOS Cast Miracast
On/off
Blueteeth
Device name
Search for Blueteeth devices
Nearby equipment
...
..
..
16
4-corner keystone
Keystone Setting
4-style keystone
Reset
6.1 4-corner Keystone：0~50
6. Keystone Setting
When the projection screen is not rectangular, it can be adjusted by 4-point
keystone correction.
Step 1: Press the button to select the [4-corner Keystone] menu, then
press the [ OK ] bottom to enter the submenu.
Step 2: Keep pressing the OK button on the remote control or projector to
select the point.
Step 3: Press the arrow keys on the remote or projector to adjust the
horizontal or vertical parameters, until the projection screen becomes the
desired rectangle.
Image setting Include Function
Picture Mode
Brightness
Contrast
Saturation
Sharpness
Color Temperature
NR
Over scan
Standard, Warm, User, Cool
0~100
0~100
0~100
0~100
Standard, Warm, User, Cool
Medium, High，Low，OFF
ON,OFF
Switch among the image mode
Adjust the brightness parameter to 100
Adjust the contrast parameter 0-100
Adjust saturation parameters 0-100
Adjust sharpness parameters 0-100
Adjust color temperature
Noise setting
Over scan
17
Other manuals for Pro U9
1
Table of contents
Languages:
Other Yaber Projector manuals
