Yaesu FT DX 9000 CONTEST - 2 Manual

Exploded View
Alignment
Block Diagram
Interconnection Diagram
RX-1 Unit
RX-2 Unit (D, MP Type, RXU-9000)
BPF-1 Unit
BPF-2 Unit (D, MP Type, RXU-9000)
AF Unit
TX Unit
DVS Unit
LOCAL Unit
REF Unit
VRF-1 Unit
VRF-2 Unit (D, MP Type, RXU-9000)
RX-TUNE Unit
SENSOR-A Unit (D Type, MTU-160)
SENSOR-C Unit (D Type, MTU-80/40)
SENSOR-E Unit (D Type, MTU-30/20)
LCD-CNTL Unit (D Type, TFT-9000)
CNTL Unit
MEMORY Unit (D, MP Type, DMU-9000)
TUNER-MAIN Unit (D, Contest Type)
TUNER-MAIN-A Unit (MP Type)
TUNER-CNTL Unit
ANT Unit (D, Contest Type)
ANT-A Unit (MP Type)
TUNE-1 Unit (D Type, MTU-160)
TUNE-2 Unit (D Type, MTU-80/40)
TUNE-3 Unit (D Type, MTU-30/20)
PC-FIL Unit
MIC-A Unit
MIC-B Unit
PA-B Unit (D, Contest Type)
PA-A Unit (MP Type)
PS Unit (MP Type)
SCP-1 Unit
SCP-2 Unit (D, MP Type, RXU-9000)
VR-A Unit
VR-B Unit
VR-C Unit (D, MP Type, RXU-9000)
VR-D Unit
VR-E Unit
VR-F Unit
SW-A Unit
SW-B Unit
SW-C Unit
SW-D Unit (D Type, TFT-9000)
SW-E Unit
SW-G Unit (D Type, TFT-9000)
SW-J Unit
SW-N Unit
ENC-A Unit
CONNECT-A Unit (D, MP Type, DMU-9000)
CONNECT-B Unit (D, MP Type, DMU-9000)
JACK Unit
LINK Unit
Contest / MPType Front Panel PCB
BACK-LIGHT Unit
JACK-S Unit
SW-K Unit
SW-L Unit
SW-M Unit
VR-G Unit
FT DX 9000 series
Technical supplement
Contents
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
©2005 VERTEX STANDARD CO., LTD. EH010H90A

Exploded View-1
Exploded View
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U20406007 BINDING HEAD SCREW M4X6B 9
U31406007 OVAL HEAD SCREW M4X6B 8
U34308001 TAPTITE SCREW M3X8 4
U24425007 TAPTITE SCREW M4X25B 4
U70005002 PLAIN WASHER FW5NI 2
Case ASSY
Accessories
VXSTD P/N Description Qty.
P0091365 RCA Plug 6
P0090008 1/4-inch 3-contact Plug 2
P0090034 3.5 mm 2-contact Plug 2
P0091046 3.5 mm 3-contact Plug 1
P0091004 4-pin DIN Plug 1
P0091006 5-pin DIN Plug 1
P0091419 7-pin DIN Plug 1
P0090651 8-pin DIN Plug 1
P0091086 CONNECTOR W/FUSE BLACK 5A (VOL 55) 1
T9017780 AC Power Code 100V 2WP (JPN, D/Contest Type) 1
T9017882 AC Power Code 117V3WP (USA, D/Contest Type) 1
T9013285 AC Power Code 220V3W (Europe, D/Contest Type) 1
T9013285 AC Power Code 220V3W (UK, D/Contest Type) 1
T9013283A AC Power Code 234V3WP (Australia, D/Contest Type) 1
T9101549 Microphone Extend Cable (8Pin-Modular) 1
T9101275B SP CABLE 1.1M (MP Type) 2
Q9000838A CF Card 64MB (D/MP Type) 1
CP8124001 Remote Control Keypad FH-2 1
Panel ASSY
CP8401001 (POW:200)
CP8401002 (POW:400)
CP8401003 (CE Type, POW:200)
CP8401004 (CE Type, POW:400)
TOP CASE ASSY
RA0719500
LEG (x2 pcs)
CP8405001
CP8405002 (CE Type)
BOTTOM CASE ASSY
RA072460A
LEG (x2 pcs)
RA072470A
LEG (x2 pcs)



























RA0794400 (x4 pcs)
GASKET (L=80mm)
(CE Type)
RA0794500 (x4 pcs)
GASKET (L=400mm)
(CE Type)
RA0643400 (x2 pcs)
SIDE CASE

Exploded View-2
Exploded View
Frame ASSY (1)
Non-designated parts are available only as part of a designated assembly.
REF. VXSTD P/N Description Qty.
U20308007 BINDING HEAD SCREW M3X8B 4
U20306002 BINDING HEAD SCREW M3X6NI 4
U24306002 TAPTITE SCREW M3X6NI 6
U03306002 SEMS SCREW ASM3X6NI 16
U03306002 SEMS SCREW ASM3X6NI (MP Type) 20
U03308002 SEMS SCREW ASM3X8NI 17
U20206002 BINDING HEAD SCREW M2.6X6NI 4
U20206002 BINDING HEAD SCREW M2.6X6NI (CE Type) 8
U24306007 TAPTITE SCREW M3X6B 1
U24206002 TAPTITE SCREW M2.6X6NI 9
U20206007 BINDING HEAD SCREW M2.6X6B 2
U45308007 TAPTITE SCREW M3X8B 8
U66300001 FLANGE NUT N3 8
RA066060A
REAR PANEL (MP Type)
S5000257 (x4 pcs)
SPACER (L=55mm)
S5000256 (x4 pcs)
SPACER (L=16mm)
S5000281 (x4 pcs)
SPACER (L=20mm)
(CE Type)
S5000256 (x3 pcs)
SPACER (L=16mm)
CONTROL Unit
PC-FIL Unit
PC Unit
CONNECT-A Unit
CONNECT-B Unit
DSP-1 Unit
DSP-2 Unit
PA-B ASSY
(D/Contest Type)
PWR SUPPLY ASSY
(D/Contest Type) TUNE ASSY
TUNER ASSY
SPEAKER ASSY
PA-A ASSY
(MP Type)
PS ASSY (MP Type)
RA0700100
TRAY HOLDER
RA0643000
SHIELD CASE COVER
RA0643100
SHIELD CASE
RA0699900
SHIELD CASE COVER
RA0700000
SHIELD CASE RA0793500
SHIELD CASE COVER
(CE Type)


























S5000256 (x4 pcs)
SPACER (L=16mm)




























SPEAKER ASSY












M4090177
SPEAKER (x2 pcs)
N6090108
SLIDE SWITCH






REF Unit
RA0717700
SPONGE RUBBER
(D/Contest Type)
RA064800A
BAFFLE PLATE
RA0728300
LABEL










RA0794100 (x3 pcs)
GASKET (L=100mm)
(CE Type)
RA0794200 (x3 pcs)
GASKET (L=100mm)
(CE Type)
RA0794100 (x3 pcs)
GASKET (L=100mm)
(CE Type)
RA0795100
SHEET (CE Type)
RA0717800
SHEET
RA079530A
SHIELD COVER (CE Type)
RA0794200
GASKET (L=100mm)
(CE Type)
RA0795100 (CE Type)
SHEET
PC Unit

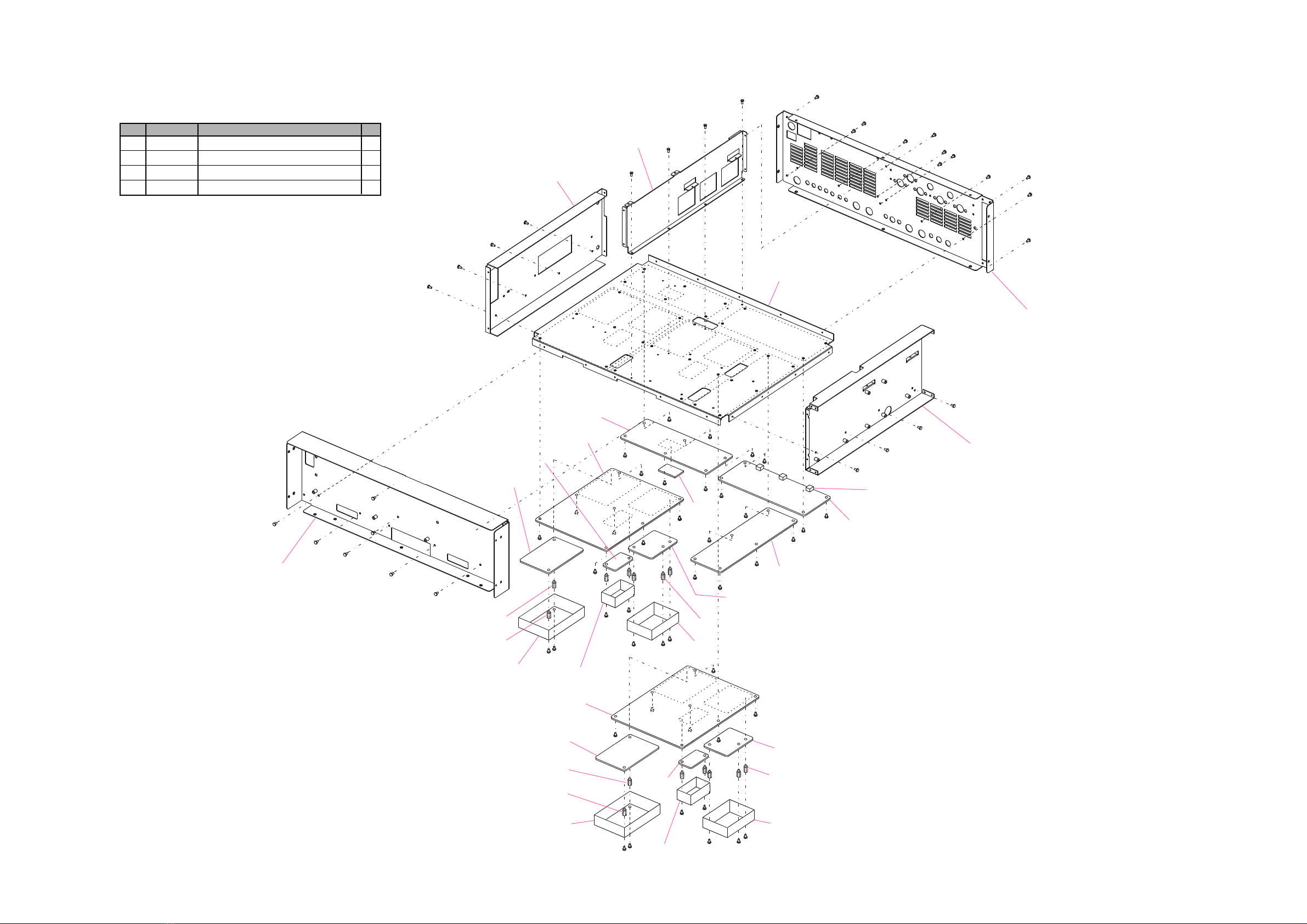

Exploded View-3
Exploded View
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24306007 TAPTITE SCREW M3X6B 12
U24306002 TAPTITE SCREW M3X6N 31
U03308002 SEMS SCREW ASM3X8NI 30
U03306002 SEMS SCREW ASM3X6NI 14
Frame ASSY (2)
TX Unit
REF Unit
SCP-2 Unit
(W/O Contest Type)
VRF-2 Unit
(W/O Contest Type)
RX-2 Unit
(W/O Contest Type)
BPF-2 Unit
(W/O Contest Type)
AF Unit
DVS Unit
RA0642600
CENTER FRAME
RA0642500
SIDE FRAME R
RA064750B
REAR PANEL (D/Contest Type)
RA066060A
REAR PANEL (MP Type)
RA064240A
SIDE FRAME L
RA0642300
FRONT FRAME
RA0642200
MAIN FRAME
SCP-1 Unit
VRF-1 Unit
RX-1 Unit
BPF-1 Unit









































































S5000269 (x5 pcs)
SPACER (L=15mm)
RA0744900
SHIELD CASE COVER
RA0745100
SHIELD CASE COVER
RA0745000
SHIELD CASE COVER
S5000268
SPACER (L=10mm)
RA0744900
SHIELD CASE COVER
RA0745100
SHIELD CASE COVER
RA0745000
SHIELD CASE COVER
S5000269 (x5 pcs)
SPACER (L=15mm)
S5000268
SPACER (L=10mm)
S5000268
SPACER (L=10mm)
S5000268
SPACER (L=10mm)
RA0806700
GASKET (x3 pcs)

Exploded View-4
Exploded View
FT DX 9000D Type Panel ASSY
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U30206007 FLAT HEAD SCREW M2.6X6B 5
U51308007 HEX SOCKET BOLT M3X8B 13
U24204001 TAPTITE SCREW M2.6X4 1
U00106007 PAN HEAD SCREW M2X6B 4
U9900191 HEX SOCKET SCREW M3X6B (~Lot3) 2
U9900191 HEX SOCKET SCREW M3X6B (Lot4~) 1
U91408007 HEX SOCKET SCREW M4X8B (Lot4~) 1
Panel Frame Assy
Panel B
Panel C
Panel A
Panel E
Panel G
Panel F
Panel D






















U9900192
WAVE WASHER
R6151760
NUT (x4 pcs)
R0134990A
COIL SPRING
R3135000A
WASHER
RA0744600
SLEEVE
RA0651600
RUBBER RING
RA065140A
KNOB SKIRT
RA065130A (~Lot3)
RA065130B (Lot4~)
KNOB BASE
RA0652400
RUBBER RING
RA0652100
KNOB BASE
(W/ HEX SOCKET SCREW)
RA0654900
KNOB ASSY
(x2 pcs)
RA0654400
KNOB ASSY
(x2 pcs)
RA0649300
KNOB ASSY (x4 pcs)
RA0655200
KNOB ASSY
RA0648800
KNOB ASSY (x4 pcs)
RA0649000
KNOB ASSY
RA0648500
KNOB ASSY
RA0654700
KNOB ASSY
RA0654200
KNOB ASSY
RA0649800
KNOB ASSY
RA0650100
KNOB ASSY
RA0649500
KNOB ASSY
RA0702100
KNOB ASSY
RA0702000
KNOB ASSY
RA0651800
KNOB ASSY
RA0705000
KNOB ASSY
(x5 pcs)
RA0704600
KNOB ASSY
(x5 pcs)
 (~Lot3)
 (Lot4~)
RA0649300
KNOB ASSY
RA0648800
KNOB ASSY


Exploded View-5
Exploded View
FT DX 9000 Contest Type Panel ASSY
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U30206007 FLAT HEAD SCREW M2.6X6B 5
U51308007 HEX SOCKET BOLT M3X8B 13
U24204001 TAPTITE SCREW M2.6X4 1
U00305001 PAN HEAD SCREW M3X5 2
U9900191 HEX SOCKET SCREW M3X6B (~Lot3) 2
U9900191 HEX SOCKET SCREW M3X6B (Lot4~) 1
U91408007 HEX SOCKET SCREW M4X8B (Lot4~) 1
Panel Frame Assy
Panel B
Panel C2
Panel A2
Panel E2
Panel G
Panel F2
Panel D




















U9900192
WAVE WASHER
R6151760
NUT (x4 pcs)
R0134990A
COIL SPRING
R3135000A
WASHER
RA0744600
SLEEVE
RA0651600
RUBBER RING
RA065140A
KNOB SKIRT
RA065130A (~Lot3)
RA065130B (Lot4~)
KNOB BASE
RA0652400
RUBBER RING
RA0652100
KNOB BASE
(W/ HEX SOCKET SCREW)
RA0654900
KNOB ASSY
(x2 pcs)
RA0654400
KNOB ASSY
(x2 pcs)
RA0649300
KNOB ASSY
RA0648800
KNOB ASSY
RA0702100
KNOB ASSY
RA0702000
KNOB ASSY
RA0651800
KNOB ASSY
RA0705000
KNOB ASSY
(x5 pcs)
RA0704600
KNOB ASSY
(x5 pcs)
RA0719200
HOLDER PLATE
RA0719300
HOLDER PLATE
RA0718900
KNOB ASSY
RA0738500
KNOB ASSY
RA0718900
KNOB ASSY
RA0738500
KNOB ASSY





 (~Lot3)
 (Lot4~)

Exploded View-6
Exploded View
FT DX 9000MP Type Panel ASSY
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U30206007 FLAT HEAD SCREW M2.6X6B 5
U51308007 HEX SOCKET BOLT M3X8B 13
U24204001 TAPTITE SCREW M2.6X4 1
U00305001 PAN HEAD SCREW M3X5 2
U9900191 HEX SOCKET SCREW M3X6B (~Lot3) 2
U9900191 HEX SOCKET SCREW M3X6B (Lot4~) 1
U91408007 HEX SOCKET SCREW M4X8B (Lot4~) 1
Panel Frame Assy
Panel B
Panel C2
Panel A
Panel E
Panel G
Panel F2
Panel D


















U9900192
WAVE WASHER
R6151760
NUT (x4 pcs)
R0134990A
COIL SPRING
R3135000A
WASHER
RA0744600
SLEEVE
RA0651600
RUBBER RING
RA065140A
KNOB SKIRT
RA065130A (~Lot3)
RA065130B (Lot4~)
KNOB BASE
RA0652400
RUBBER RING
RA0652100
KNOB BASE
(W/ HEX SOCKET SCREW)
RA0654900
KNOB ASSY
(x2 pcs)
RA0654400
KNOB ASSY
(x2 pcs)
RA0649300
KNOB ASSY (x4 pcs)
RA0655200
KNOB ASSY
RA0648800
KNOB ASSY (x4 pcs)
RA0649000
KNOB ASSY
RA0648500
KNOB ASSY
RA0654700
KNOB ASSY
RA0702100
KNOB ASSY
RA0702000
KNOB ASSY
RA0651800
KNOB ASSY
RA0705000
KNOB ASSY
(x5 pcs)
RA0704600
KNOB ASSY
(x5 pcs)
RA0719200
HOLDER PLATE
RA0719300
HOLDER PLATE

RA0718900
KNOB ASSY
RA0738500
KNOB ASSY
RA0718900
KNOB ASSY
RA0738500
KNOB ASSY
RA0649300
KNOB ASSY
RA0648800
KNOB ASSY





 (~Lot3)
 (Lot4~)

Exploded View-7
Exploded View
Panel Frame ASSY
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U20305001 BINDING HEAD SCREW M3X5 4
U00204001 PAN HEAD SCREW M2.6X4 5
U24204001 TAPTITE SCREW M2.6X4 27
U51308007 HEX SOCKET BOLT M3X8B 1
U51315007 HEXA SOCKET BOLT M3X15B 2
U24210007 TAPTITE SCREW M2.6X10B 3
U9900004 TAPTITE SCREW M2X4 2
U34206001 TAPTITE SCREW M2.6X6 4
U00304007 PAN HEAD SCREW M3X4B 10
U20206002 BINDING HEAD SCREW M2.6X6NI 4
U00104001 PAN HEAD SCREW M2X4 4
U62012001 VOLUME NUT 12X14X2 (P1) 3
RA0681400
HOLDER
RA0681300
HOLDER
RA0687000
HOLDER
RA0688100
LIGHT SHEET
RA0688000
REFLECTOR
RA0679500
HOLDER
RA0679400
HOLDER
RA0679300
HOLDER
Q7000544 (UMBER)
Q7000545 (BLUE)
VFD MODULE
RA0668000 (FTDX9000D)
RA0667900 (FTDX9000 Contest)
RA0668100 (FTDX9000MP)
NAME PLATE
RA0657700
PANEL
RA0677300
BASE
RA0657600
PANEL FRAME
RA0677400
BASE
RA0677500
WINDOW
SW-J Unit
VR-E Unit
SW-F Unit
SW-B Unit
SW-A Unit
SW-C Unit
VR-A Unit
VR-B Unit
JACK Unit
RA0711400
PLATE
RA0696700
REFLECTOR SHEET
RA0687100
LIGHT GUIDE
RA0687200
LIGHT GUIDE
RA068770A
KNOB BASE
RA0679900
KNOB
RA0680000
KNOB
RA0680100
KNOB
M0290065A (200W UMBER)
M0290067A (200W BLUE)
M0290069 (400W UMBER)
M0290070 (400W BLUE)
METER
M0290066 (UMBER)
M0290068 (BLUE)
METER
Q9000833
ROTARY ENCODER
Q9000833
ROTARY ENCODER
RA0711500
LIGHT GUIDE (x2 pcs)
This metal fittings are attached
to CONNECTOR J9901.
This metal fittings are attached
to CONNECTOR J9903.
RA071590A
SPACER
(x2 pcs)
RA0715100
LIGHT SHEET
RA0725600
LIGHT SHEET
RA0724200
LIGHT SHEET
RA0718600
LIGHT SHEET
RA0724100
DOUBLE FACE
RA0693400
DOUBLE FACE
RA0693500
DOUBLE FACE

























































Panel C (or Panel C2)
This washer are attached to
ROTARY ENCODER.
LINK Unit

Exploded View-8
Exploded View
Note

Exploded View-9
Exploded View
Panel A
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U20205001 BINDING HEAD SCREW M2.6X5 2
U00204001 PAN HEAD SCREW M2.6X4 2
U9900035 TAPTITE SCREW M2X3 4
RA0658500
PANEL
RA0682200
KNOB
RA0682400
KNOB
RA0682500
KNOB
R6054387B
SPECIAL NUT
RA0681000
COVER
RA0680900
HOLDER
RA0690000
SPECIAL NUT (x4 pcs)
RA0682300
KNOB
RA0715600
SPONGE RUBBER (x8 pcs)
RA0679600
PLATE
VR-C Unit
RA0715700
SPACER (x2 pcs)
RA0649300
KNOB ASSY (x4 pcs)
RA0655200
KNOB ASSY
RA0648800
KNOB ASSY (x4 pcs)
RA0649000
KNOB ASSY
RA0648500
KNOB ASSY
RA0654700
KNOB ASSY 








Exploded View-10
Exploded View
Panel B
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U9900004 TAPTITE SCREW M2X4 1
U9900035 TAPTITE SCREW M2X3 1
U44A08007 TAPTITE SCREW M2.5X8B 2
RA067720A
KNOB
RA0679200
HOLDER
RA0658600
PANEL
RA066940A
KNOB BASE
RA066880A
KNOB BASE
RA0680700
KNOB (x2 pcs)
RA0680800
KNOB
RA0680200
KNOB
RA0680300
KNOB
RA0680600
KNOB
RA0680500
KNOB
RA0680400
KNOB
RA066950A
KNOB BASE (x3 pcs)
RA0693600
LIGHT SHEET
MIC-A Unit
P1091231
CONNECTOR
RA0676900
KNOB (x5 pcs)
RA0687300
LIGHT GUIDE




RA0715000
SPONGE RUBBER

Exploded View-11
Exploded View
Panel C
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U20205001 BINDING HEAD SCREW M2.6X5 4
U00106007 PAN HEAD SCREW M2X6B 4
U9900004 TAPTITE SCREW M2X4 2
VR-F Unit
RA0676700
HOLDER PLATE
RA0658700
PANEL
RA0676800
RUBBER KNOB
RA0676600
LIGHT GUIDE (x5 pcs)
SW-D Unit
RA0654200
KNOB ASSY
RA0649800
KNOB ASSY
RA0650100
KNOB ASSY
RA0649500
KNOB ASSY
RA0676500
KNOB
RA0676300
KNOB (x2 pcs)
RA0676400
KNOB (x4 pcs)










This nut are attached
to VR9251.
This washer are attached
to VR9251.

Exploded View-12
Exploded View
Panel D
RA0667400
RUBBER KNOB
RA0664800
KNOB (LSB)
RA0667000
KNOB (A M)
RA0664900
KNOB (USB)
RA0665000
KNOB (CW)
RA0665100
KNOB (AM)
RA0665200
KNOB (FM)
RA0665300
KNOB (RTTY)
RA0665400
KNOB (PKT)
RA0665900
KNOB (TXW)
RA0665500
KNOB (STO)
RA0665800
KNOB (SPLIT)
RA0665700
KNOB (NAR)
RA0665600
KNOB (RCL)
RA0666000
KNOB (CS)
RA0666500
KNOB (A B)
RA0667300
RUBBER KNOB
RA0666100
KNOB (FAST)
RA0666300
LIGHT GUIDE
RA0666200
KNOB (LOCK)
RA0666400
LIGHT GUIDE
RA0666600
KNOB (B A)
RA0666700
KNOB (A B)
RA0666800
KNOB (V/M)
RA0666900
KNOB (M A)
RA066720A
KNOB(TX)
RA066710A
KNOB(RX)
RA0658800
PANEL
RA0667500
LIGHT GUIDE (x14pcs)
RA0664400
KNOB
RA0664500
KNOB
RA0664600
LIGHT GUIDE
RA0664700
LIGHT GUIDE
RA0667800
LIGHT GUIDE

Exploded View-13
Exploded View
Panel E
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U20106001 BINDING HEAD SCREW M2X6 2
U24205001 TAPTITE SCREW M2.6X5 1
U24204001 TAPTITE SCREW M2.6X4 3
U9900004 TAPTITE SCREW M2X4 1
U60100301 HEX NUT N2 2
RA0658900
PANEL
RA0682600
KNOB
RA0687400
LIGHT GUIDE
RA0690000
SPECIAL NUT
RA067290A
HOLDER
VR-D Unit
RA0648800
KNOB ASSY
RA0649300
KNOB ASSY
RA0715700
SPACER
RA0724400
LIGHT SHEET 








MEMORY Unit

Exploded View-14
Exploded View
Panel F
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U20305001 BINDING HEAD SCREW M3X5 4
U07140102 PAN HEAD SCREW M1.7X4NI#1 3
U24204001 TAPTITE SCREW M2.6X4 4
U9900019 TAPTITE SCREW M2X6 7
U32240101 FLAT HEAD SCREW M2X4 #1 4
U00103002 PAN HEAD SCREW M2X3NI 1
U30308002 FLAT HEAD SCREW M3X8NI 4
SW-G Unit
Q7000546
LCD MODULE
RA0659000
PANEL
RA0670400 (24.5)
RA0670500 (28)
RA0670600 (50)
RA0670700 (TRV)
RA0670800 (GEN)
RA0670900 (ENT)
RA0671000 (V-B)
RA0671100 (MNU)
KNOB CAP
RA0669600 (1.8)
RA0669700 (3.5)
RA0669800 (5)
RA0669900 (7)
RA0670000 (10)
RA0670100 (14)
RA0670200 (18)
RA0670300 (21)
KNOB CAP
RA0671200 (F1)
RA0671300 (F2)
RA0671400 (F3)
RA0671500 (F4)
RA0671600 (F5)
RA0671700 (F6)
RA0671800 (F7)
RA0671900 (DISP)
KNOB CAP
RA0672000
RUBBER KNOB (x2 pcs)
RA0672100
RUBBER KNOB
RA0672200
LIGHT GUIDE (x3 pcs)
RA067240A
LCD HOLDER
RA067250A
HOLDER PLATE
(x2 pcs)
RA0672600
WINDOW
RA0686800
DOUBLE FACE
(x2 pcs)
RA0686900
SHEET (x2 pcs)
INVTER Unit
LCD-CNTL Unit
RA0724000
SPONGE RUBBER (x2 pcs)





















RA0794000 (x4 pcs)
GASKET (L=140mm)
(CE Type)
RA0794300 (x2 pcs)
GASKET (L=70mm)
(CE Type)

RA0803100
GASKET (L=70mm)
(CE Type)
RA0803200
GASKET (L=40mm)
(CE Type)
RA0793600
SHIELD COVER
(CE Type)
S5000270 (x2 pcs)
SPACER (L=15mm)
(CE Type)
S5000282 (x2 pcs)
SPACER (L=20mm)
(CE Type)
RA0794400 (x2 pcs)
GASKET (L=80mm)
(CE Type)
LCD-CNTL Unit





Exploded View-15
Exploded View
Panel G
RA0659100
PANEL
RA0676000
RUBBER KNOB
RA0676100
RUBBER KNOB
RA0675800
LIGHT GUIDE
RA0675800
LIGHT GUIDE
RA0674800
KNOB
RA0674800
KNOB
RA0674900
KNOB
RA0676200
RUBBER KNOB
RA0673900
LIGHT GUIDE
RA0673800
KNOB
RA0674300
KNOB
RA0674200
KNOB
RA0674100
KNOB
RA0674000
KNOB
RA0675300
LIGHT GUIDE
RA0675200
LIGHT GUIDE
RA0675100
LIGHT GUIDE
RA0675000
LIGHT GUIDE
RA0674700
KNOB
RA0674600
KNOB
RA0674500
KNOB
RA0674400
KNOB
RA0675400
LIGHT GUIDE
RA0675700
LIGHT GUIDE
RA0675600
LIGHT GUIDE
RA0675500
LIGHT GUIDE
RA0675900
LIGHT GUIDE

Exploded View-16
Exploded View
Panel A2 (Contest /MP Type)
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U20205001 BINDING HEAD SCREW M2.6X5 3
U24205001 TAPTITE SCREW M2.6X5 4
RA0714600
PANEL
RA0716700
HOLDER
JACK-S Unit
This metal fittings are
attached to CON-
NECTOR J7320.
This metal fittings are
attached to CON-
NECTOR J7322.








Exploded View-17
Exploded View
Panel C2 (Contest /MP Type)
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U00104001 PAN HEAD SCREW M2X4 4
RA0713600
SHEET
RA0713500
LIGHT GUIDE
RA0713100
KNOB BASE
RA0713400
KNOB (x2 pcs)
RA0713300
HOLDER PLATE
SW-L Unit




RA0713200
PANEL

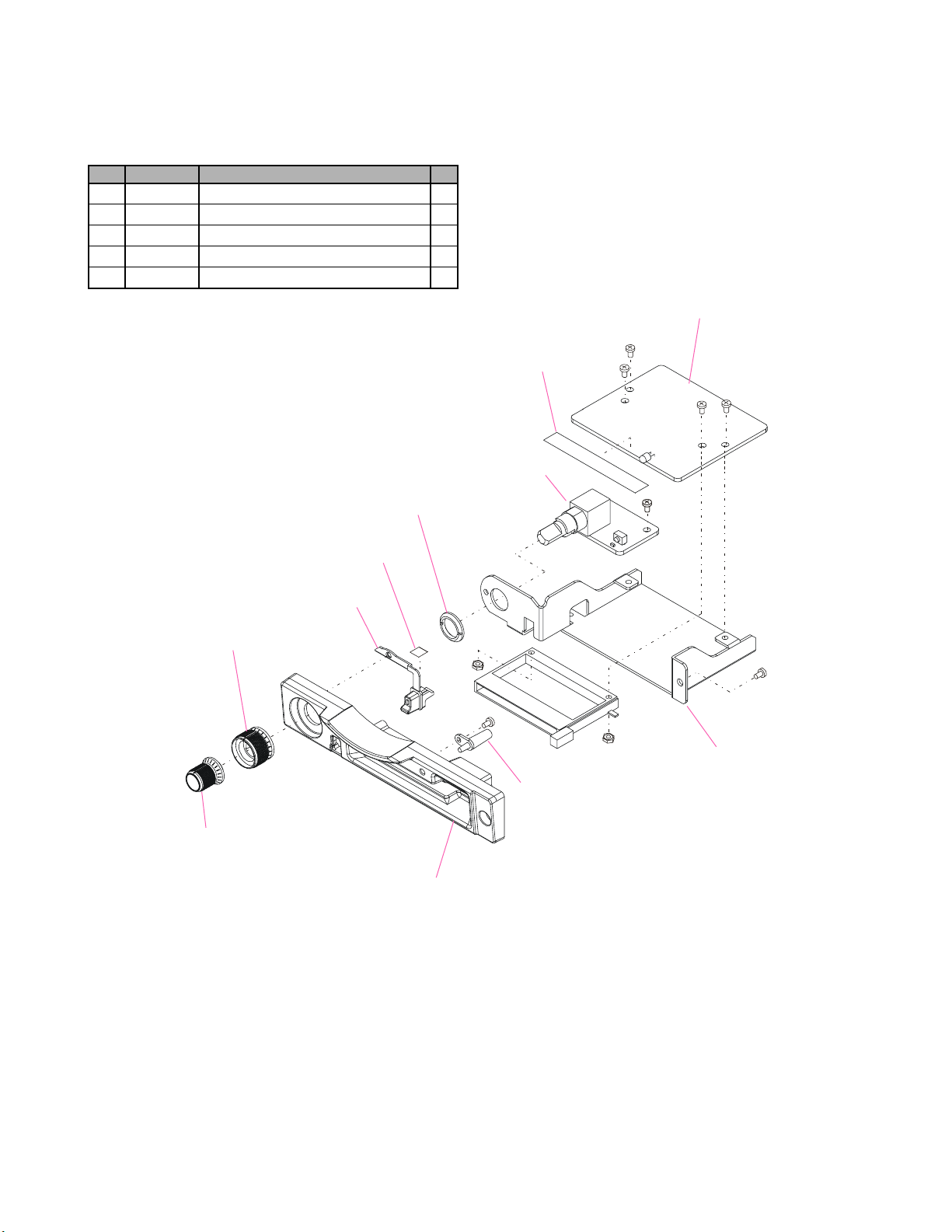

Exploded View-18
Exploded View
Panel E2 (Contest /MP Type)
Non-designated parts are available only as part of a designated
assembly.
REF. VXSTD P/N Description Qty.
U24205001 TAPTITE SCREW M2.6X5 2
U24104001 TAPTITE SCREW M2X4 2
RA0682600
KNOB
RA0690000
SPECIAL NUT
RA067290A
HOLDER
RA0729500
NET
RA0729600
BLIND SHEET
RA0714700
PANEL




VR-D Unit
RA0648800
KNOB ASSY
RA0649300
KNOB ASSY
