English
The purpose of the precautions detailed below is to ensure that this product is used safely without fear either of accidental
injury to you or other people or of damage to property. The instructions presented together with precautions are extremely
important in terms of ensuring safety, and therefore, they should be fully observed.
After reading this Owner’s Manual, ensure that it is kept in a safe, convenient location for future reference.
PRECAUTIONS Please read carefully before proceeding.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of
physical injury to you or others, or damage to the instrument or other property.
These precautions include, but are not limited to, the following:
• Assemble this product in the proper sequence by following the assembly instructions in this manual. Also, make sure
to tighten the bolts regularly. Failure to do so might result in damage to the product or even injury.
• If this product is used with a rack system or cymbal stand, do not place the rack or stand on a sloping, unstable sur-
face, or on steps. The rack or stand can overturn or be damaged, resulting in injury.
• If this product is used with a rack system or cymbal stand, make sure all bolts are tightened firmly. Also, when adjust-
ing the height or angle, be sure to proceed slowly when loosening bolts. Loose bolts can result in the rack overturning
or parts dropping, causing injury.
• Be careful when children are close to or touching the product. Careless movement around the product can result in
injury.
• When setting the pads, pay close attention to the handling and setting of cables. Carelessly placed cables can cause
the user and others to trip and fall.
• Do not alter the product. Doing so can result in injury or damage/deterioration to the product.
• Keep small parts out of the reach of infants.Your children may accidentally swallow them.
NOTICE
• Do not press or scrape the playing surface of your pad unit with drum sticks as this may decrease the sensitivity or
diminish the playing “feel.”
• Do not step on or place heavy objects on the product. It may result in damage.
• Do not use or keep the product in places with extremely high temperature (places in direct sunlight, close to a heater,
in a closed car, etc.) or high humidity (bathroom, outside on a rainy day, etc.). Doing so can result in deformation, dis-
coloration, damage or deterioration.
• Never leave any materials which are easily color-transferable, such as rubber items, on the drum pad surface. Other-
wise, the color of the material can be transferred to the drum pad surface. Be especially careful of this when you store
the drum pads.
• When cleaning the product, use a soft and dry/slightly damp cloth. Do not use paint thinners, solvents, alcohol, clean-
ing fluids, or chemical-impregnated wiping cloths.
• When connecting and disconnecting cables, be sure to hold the plug and not the cable itself. In addition, avoid plac-
ing heavy items on top of cables and do not allow them to touch sharp edges. Failure to avoid these precautions can
lead to cable breakage and disconnection.

6
INFORMATION
• The illustrations as shown in this manual are for instructional purposes only, and may appear somewhat different
from those on your product.
• The company names and product names in this manual are the trademarks or registered trademarks of their respec-
tive companies
• The shell of this product is made from natural wood. The difference between the patterns, such as the wood grain, is
natural and unique to your instrument.

7
Thank you for purchasing the Yamaha ELECTRONIC DRUM PAD XP105T-X, XP105T-M, XP125T-X, XP125T-M,
XP125SD-X or XP125SD-M. This electronic drum pad can be used in your home or a studio, or onstage for live perfor-
mances.
For proper assembly and safe use, read this manual carefully before using it.After you have read the manual, keep it in a
safe and handy place for future reference.
The illustrations show the XP125SD-X electronic drum pad, but the information applies to the other electronic drum pads
(except where indicated).
Package Contents........................................................ 8
Specifications............................................................... 8
Pad & Trigger Input Jacks ............................................ 9
Setting Up .................................................................... 9
Connections................................................................. 9
Rubber Rim Replacement.......................................... 10
Head Tension Adjustment (mesh pad only)................ 10
Head Replacement (mesh pad only)...........................11
Troubleshooting.......................................................... 12
Contents

8
To customers who purchased a Pads Set, refer to the attached “Assembly Manual” included with the Pads Set when con-
firming package contents.
Package Contents
Specifications
XP105T-X, XP105T-M Tom Pad (10")
Size: 297 (W) × 322 (D) × 117 (H) mm (Clamp bolt not included.)
Sensor System: Head sensor (piezo), rim sensor (piezo)
Output jack: Standard stereo phone jack
XP125T-X, XP125T-M Tom Pad (12")
Size: 347 (W) × 372 (D) × 127 (H) mm (Clamp bolt not included.)
Sensor System: Head sensor (piezo), rim sensor (piezo)
Output jack: Standard stereo phone jack
XP125SD-X, XP125SD-M Snare Pad (12")
Size: 347 (W) × 329 (D) × 127 (H) mm (Clamp bolt not included.)
Sensor System: Head sensor (piezo), rim sensor (piezo)
Output jack: Standard stereo phone jack
*The contents of this manual apply to the latest specifications as of the publishing date.To obtain the latest manual, access the Yamaha
website then download the manual file. Since specifications, equipment or separately sold accessories may not be the same in every
locale, please check with your Yamaha dealer.

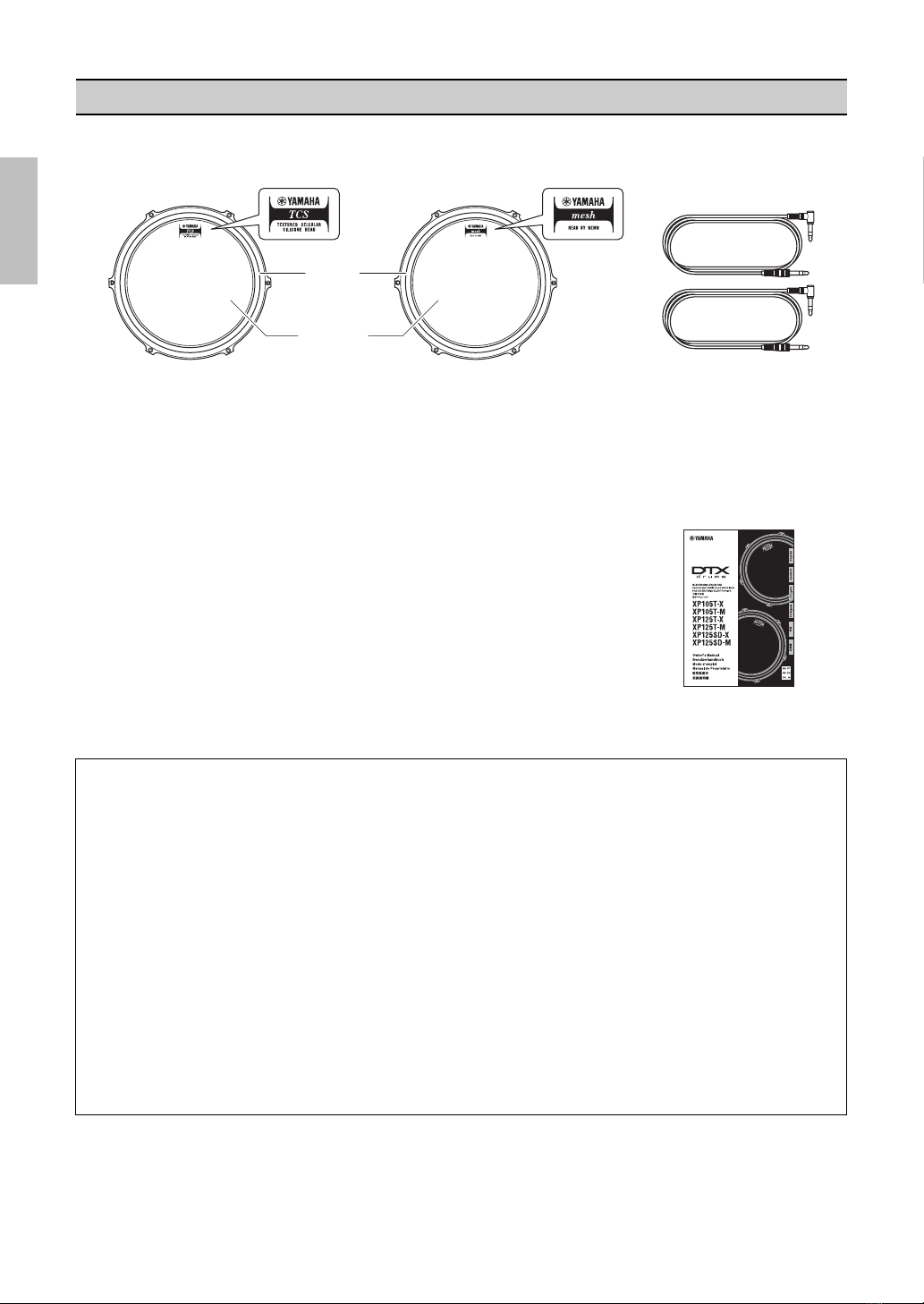

Rim
Head
TCS pad
(XP105T-X, XP125T-X,
XP125SD-X)
TCS pad and mesh pad can be distinguished by the logo mark on the head.
qMain unit × 1
Mesh pad
(XP105T-M, XP125T-M,
XP125SD-M)
wStereo phone cable
× 2 (clear, black)
The two cables are identical in
function. Simply choose the
one you want to use and keep
the unused one in a safe place.
eOwner’s Manual
(this booklet) × 1

9
The function of the XP series pads varies according to which trigger input jack on the Drum Trigger Module the pad is con-
nected. Refer to the owner’s manual included with the drum trigger module and/or to the page for your specific product on
the Yamaha website for information on the functions relevant to trigger input jacks.
Tom-tom drum (XP105T-X, XP105T-M,
XP125T-X, XP125T-M)
After setting up your rack system (Yamaha RS series, etc.)
or a standard tom stand (Yamaha WS series, etc.), attach
the pad as shown in the illustration. Insert the tom holder
(hexagonal bar) qon your rack or tom stand into the pad,
and firmly tighten the wing bolt wto secure.
Snare drum (XP125SD-X, XP125SD-M)
Before set up, make sure to prepare a snare stand e
which fits your snare drum diameter (Yamaha SS662,
etc.), and set the drum firmly onto the stand so that it does
not wobble.
Use the supplied stereo phone cable to connect the output jack on the XP series pad to the input jack on the DTX Series
drum Trigger Module. Insert the L-shaped connector into the output jack (OUTPUT) on the pad.
Pad & Trigger Input Jacks
Setting Up
CAUTION
• Make sure that the pad is securely attached to the rack or stand. If the bolt is not tightened securely, the pad may
slip or fall down, causing injury. Also, if the rack or stand is placed on an unstable surface, etc., the rack or
stand may fall over, resulting in injury.
Connections
OUTPUT

10
The rubber rim is made from consumable material, and may need to be replaced depending on normal wear and tear. For
information on replacement parts, contact your dealer or qualified Yamaha service personnel.
When attaching the rubber rim, make sure that it covers from the outside to the inside of the hoop circumference.
After attaching, make sure that the rubber rim fits all the way around.
The rubber rim replacement is now complete.
• The drum key can be found in the pad set package.
• Avoid over-tightening the bolts. If you hear a creaking sound in the wooden body, loosen the bolts slightly.
• The head is properly tightened when the surface is smooth, with no wrinkles, yet sinks a little when you press
the center.
• Unlike acoustic drums, electronic drums have the same tone even when the head tension is changed. Adjusting
the head tension is necessary to adjust the feel and prevent malfunction.
Rubber Rim Replacement
Head Tension Adjustment (mesh pad only)
• The drum key bolts fixing the head can be loosened while using. Each time before you play, adjust the
head tension to prevent rattling and loosening of the head.
To adjust the head tension, tighten or loosen the six drum key bolts on the outside of the head in the
order shown in the figure below. Make sure to tighten or loosen the drum key bolts evenly. If you tighten
or loosen only one, the head tension will not be even.

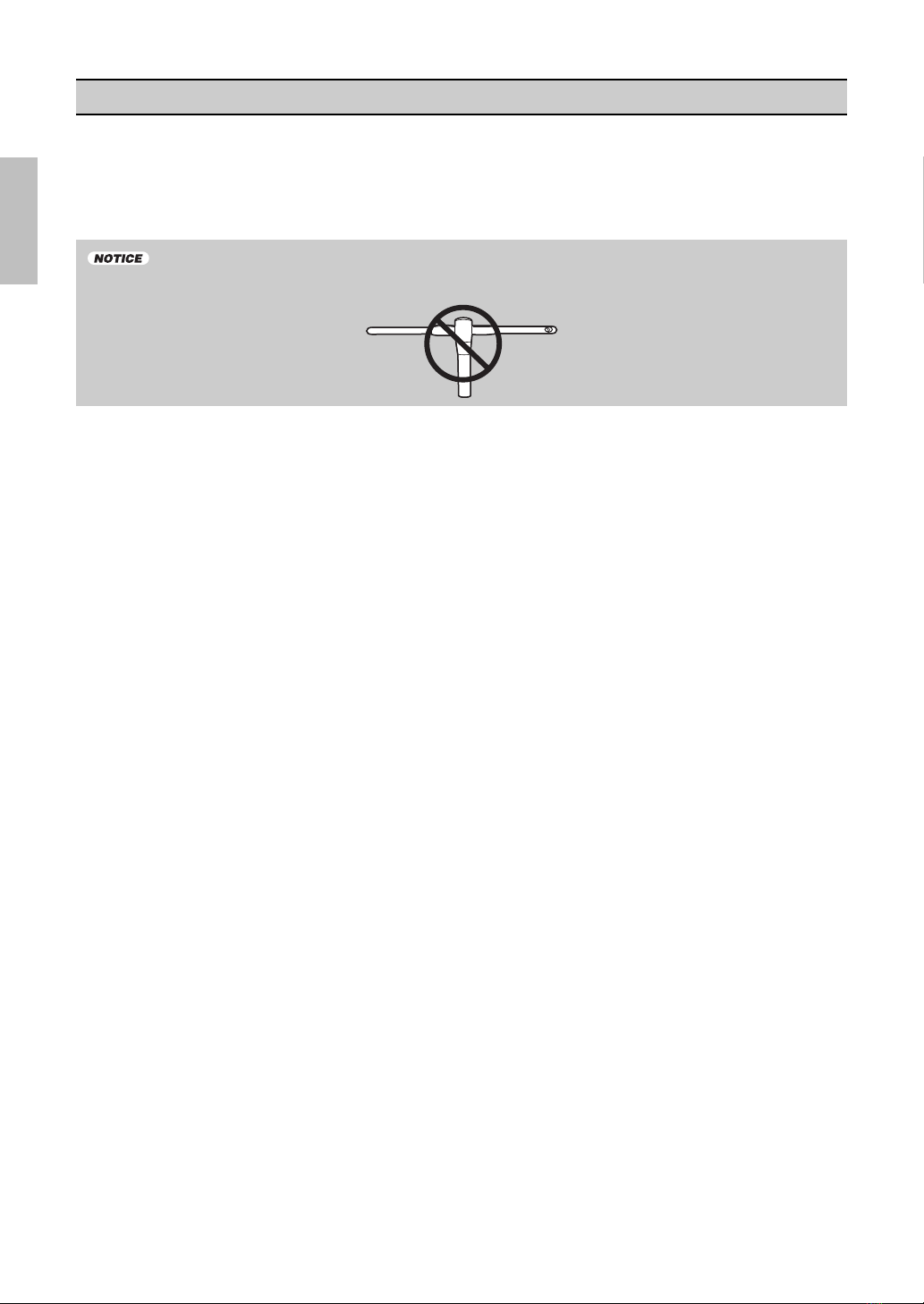

• Do not use a long handle drum key (such as a high-torque drum key or high-tension drum key) to tighten the head.
Over-tightening can damage your drum.
Rubber rim
Hoop
1
3
2
5
6
4
Loosen
Tighten

11
The mesh pad is made from consumable material, and may need to be replaced to prevent malfunction when
partial discoloration, sagging, fraying, tearing, or scraping appears. For information on replacement parts, con-
tact your dealer or qualified Yamaha service personnel.
1. Remove the rubber rim.
2. Remove all six drum key bolts using the drum key.
The drum key can be found in the pad set package.
3. Remove the hoop.
4. Remove the old head, and then replace it with the new one. (The head can be installed in any direction.)
5. Attach the hoop, and then temporarily fix it with the drum key bolts.
6. Attach the rubber rim.
When attaching the rubber rim, make sure that it covers from the outside to the inside of the hoop circumfer-
ence. After attaching, make sure that the rubber rim fits all the way around.
7. Adjust the head tension.
Refer to the “Head Tension Adjustment (mesh pad only)” (on page 10).
The head replacement is now complete.
Head Replacement (mesh pad only)
• The head of the TCS pad (XP105T-X, XP125T-X, XP125SD-X) is not replaceable.
When the head is damaged, consult your dealer or qualified Yamaha service personnel.
• Do not touch the parts inside the pad (sensor, circuit board, etc.) or press the head, to avoid causing damage to
the parts.

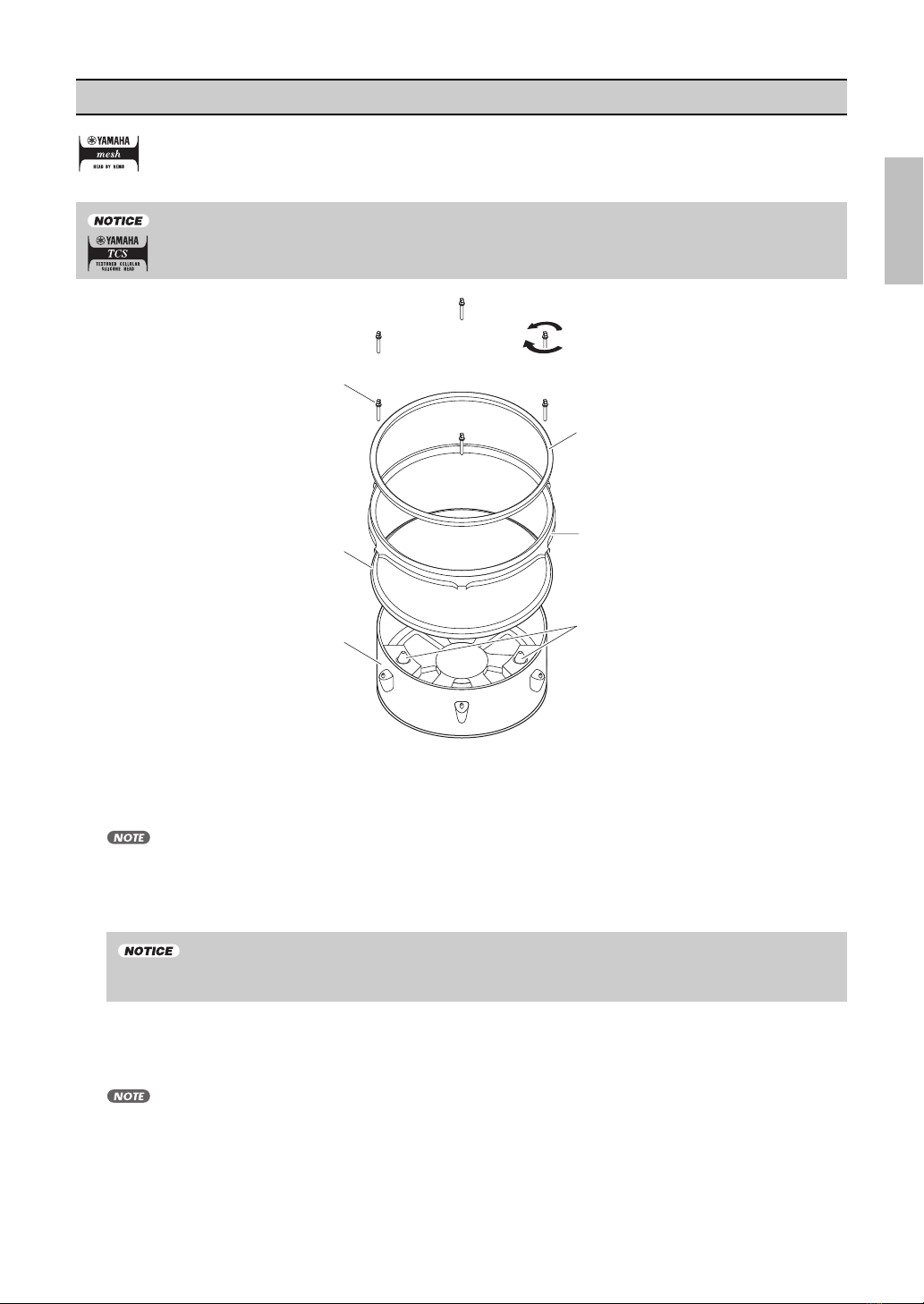

Shell
Rubber rim
Head
Drum key bolt
Hoop
Sensor
Loosen
Tighten

12
No Sound,Volume is Low, Sound output does not match your feeling
Is the mesh pad head tension loose? Loose head tension may cause various problems. (See “Head Tension Adjustment
(mesh pad only).”)
Are the drum key bolts loose? The drum key bolts fixing the head can be loosened while using. Tighten the bolts regu-
larly.
Is the pad connected to the correct input number of the DTX Series Drum Trigger Module using the supplied stereo
phone cable? Refer to the owner’s manual included with the drum trigger module and/or to the page for your specific
product on the Yamaha website for information on the functions relevant to trigger input jacks.When a pad is connected
with a mono phone cable, the voices assigned to the rim sections are not produced.
Refer to the owner’s manual included with the drum trigger module and/or to the page for your specific product on
the Yamaha website regarding the problems described above and any other problems that you may be experienc-
ing. If a solution cannot be found to the problem after consulting the manuals, contact the dealer from whom you
purchased the product.
Troubleshooting
• Do not use a long handle drum key (such as a high-torque drum key or high-tension drum key) to tighten the head.
Over-tightening can damage your drum.

MEMO

MEMO

Drums Limited Warranty
LIMITED WARRANTY ON YAMAHA DRUMS, HARDWARE AND ACCESSORY PRODUCTS
Thank you for selecting a YAMAHA product. YAMAHA products are designed and manufactured to provide a high level of defect-free
performance. Yamaha Corporation of America (“YAMAHA”) is proud of the experience and craftsmanship that goes into each and every
YAMAHA product. YAMAHA sells its products through a network of reputable, specially authorized dealers and is pleased to offer you, the
Original Owner, the following Limited Warranty, which applies only to products that have been (1) directly purchased from YAMAHA’s
authorized dealers in the fifty states of the USA and District of Columbia (the “Warranted Area”) and (2) used exclusively in the Warranted
Area. YAMAHA suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized YAMAHA dealer or
YAMAHA Customer Service if you have any questions.
THIS WARRANTY COVERS THE LISTED PRODUCTS AGAINST DEFECTS IN MATERIALS OR WORKMANSHIP.
Warranty Term
Duration of Warranty from Date of
Type of Product Purchase by or for the Original Owner
Acoustic Drum Shells, Finish, Drum Hardware, Freestanding Hardware, Pedals, Hardware Accessories 5 Years
Electronic Drums Modules, Pads, Accessories, Hardware, Pedals 1 Year
Coverage: YAMAHA will, at its option, repair or replace the product covered by this warranty if it becomes defective, malfunctions or
otherwise fails to conform with this warranty under normal use and service during the term of this warranty, without charge for labor or
materials. Repairs may be performed using new or refurbished parts that meet or exceed YAMAHA specifications for new parts. If
YAMAHA elects to replace the product, the replacement may be a reconditioned unit. You will be responsible for any installation or
removal charges and for any initial shipping charges if the product(s) must be shipped for warranty service. However, YAMAHA will pay
the return shipping charges to any destination within the USA if the repairs are covered by the warranty. This warranty does not cover (a)
damage, deterioration or malfunction resulting from accident, negligence, misuse, abuse, improper installation or operation or failure to
follow instructions according to the Owner’s Manual for this product; any shipment of the product (claims must be presented to the
carrier); repair or attempted repair by anyone other than YAMAHA or an authorized YAMAHA Service Center; (b) any unit which has been
altered or on which the serial number has been defaced, modified or removed; (c) normal wear and any periodic maintenance; (d)
deterioration due to perspiration, corrosive atmosphere or other external causes such as extremes in temperature or humidity; (e)
damages attributable to power line surge or related electrical abnormalities, lightning damage or acts of God; or (f) RFI/EMI (Interference/
noise) caused by improper grounding or the improper use of either certified or uncertified equipment, if applicable. Any evidence of
alteration, erasing or forgery of proof-of-purchase documents will cause this warranty to be void. This warranty covers only the Original
Owner and is not transferable.
In Order to Obtain Warranty Service: Warranty service will only be provided for defective products within the Warranted Area. Contact
your local authorized YAMAHA dealer who will advise you of the procedures to be followed. If this is not successful, contact YAMAHA at
the address, telephone number or website shown below. YAMAHA may request that you send the defective product to a local authorized
YAMAHA Servicer or authorize return of the defective product to YAMAHA for repair. If you are uncertain as to whether a dealer has been
authorized by YAMAHA, please contact YAMAHA’s Service Department at the number shown below, or check Yamaha’s website at http://
usa.yamaha.com. Product(s) shipped for service should be packed securely and must be accompanied by a detailed explanation of the
problem(s) requiring service, together with the original or a machine reproduction of the bill of sale or other dated, proof-of-purchase
document describing the product, as evidence of warranty coverage. Should any product submitted for warranty service be found
ineligible therefore, an estimate of repair cost will be furnished and the repair will be accomplished only if requested by you and upon
receipt of payment or acceptable arrangement for payment.
Limitation of Implied Warranties and Exclusion of Damages: ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE APPLICABLE PERIOD OF
TIME SET FORTH ABOVE. YAMAHA SHALL NOT BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR
DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF
USE OR INTERRUPTION OF PERFORMANCES OR ANY CONSEQUENCES. YAMAHA’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS
LIMITED TO REPAIR OR REPLACEMENT OF THE PRODUCT, AT YAMAHA’S OPTION. SOME STATES DO NOT ALLOW LIMITATIONS ON
HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. This Warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. This is the only express warranty applicable to the product specified herein; Yamaha neither
assumes nor authorizes anyone to assume for it any other express warranty.
If you have any questions about service received or if you need assistance in locating an authorized YAMAHA Servicer, please contact:
CUSTOMER SERVICE
Yamaha Corporation of America
6600 Orangethorpe Avenue, Buena Park, California 90620-1373
Telephone: [phone] • http://usa.yamaha.com
Do not return any product to the above address without a written Return Authorization issued by YAMAHA.

For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.
Pour plus de détails sur les produits, veuillez-vous adresser à Yamaha
ou au distributeur le plus proche de vous figurant dans la liste suivante.
Die Einzelheiten zu Produkten sind bei Ihrer unten aufgeführten
Niederlassung und bei Yamaha Vertragshändlern in den jeweiligen
Bestimmungsländern erhältlich.
Para obter detalhes de produtos, entre em contato com o representante mais
próximo da Yamaha ou com o distribuidor autorizado relacionado a seguir.
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Toronto, Ontario M1S 3R1,
Canada
Tel: [phone]
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Avenue, Buena Park, CA 90620,
U.S.A.
Tel: [phone]
MEXICO
Yamaha de México, S.A. de C.V.
Av. Insurgentes Sur 1647 Piso 9, Col. San José
Insurgentes, Delegación Benito Juárez, México,
D.F., C.P. 03900, México
Tel: [phone]
BRAZIL
Yamaha Musical do Brasil Ltda.
Praça Professor José Lannes, 40, Cjs 21 e 22, Brooklin
Paulista Novo CEP 04571-100 – São Paulo – SP,
Brazil
Tel: [phone]
ARGENTINA
Yamaha Music Latin America, S.A.,
Sucursal Argentina
Olga Cossettini 1553, Piso 4 Norte,
Madero Este-C1107CEK,
Buenos Aires, Argentina
Tel: [phone]
PANAMA AND OTHER LATIN
AMERICAN REGIONS/
CARIBBEAN REGIONS
Yamaha Music Latin America, S.A.
Edificio Torre Davivienda, Piso: 20
Avenida Balboa, Marbella, Corregimiento de Bella
Vista, Ciudad de Panamá, Rep. de Panamá
Tel: [phone]
THE UNITED KINGDOM/IRELAND
Yamaha Music Europe GmbH (UK)
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, U.K.
Tel: [phone]
GERMANY
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: [phone]
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Europe GmbH, Branch
Switzerland in Thalwil
Seestrasse 18a, 8800 Thalwil, Switzerland
Tel: [phone]
AUSTRIA/CROATIA/ CZECH REPUBLIC /
HUNGARY/ROMANIA/SLOVAKIA/
SLOVENIA
Yamaha Music Europe GmbH, Branch Austria
Schleiergasse 20, 1100 Wien, Austria
Tel: [phone]
POLAND
Yamaha Music Europe
Sp.z o.o. Oddziałw Polsce
ul. Wielicka 52, 02-657 Warszawa, Poland
Tel: [phone]
BULGARIA
Dinacord Bulgaria LTD.
Bul.Iskarsko Schose 7 Targowski Zentar Ewropa
1528 Sofia, Bulgaria
Tel: [phone]
MALTA
Olimpus Music Ltd.
Valletta Road, Mosta MST9010, Malta
Tel: [phone]
NETHERLANDS/BELGIUM/
LUXEMBOURG
Yamaha Music Europe, Branch Benelux
Clarissenhof 5b, 4133 AB Vianen, The Netherlands
Tel: [phone]
FRANCE
Yamaha Music Europe
7 rue Ambroise Croizat, Zone d'activités de Pariest,
77183 Croissy-Beaubourg, France
Tel: [phone]
ITALY
Yamaha Music Europe GmbH, Branch Italy
Via Tinelli N.67/69 20855 Gerno di Lesmo (MB),
Italy
Tel: [phone]
SPAIN/PORTUGAL
Yamaha Music Europe GmbH Ibérica, Sucursal
en España
Ctra. de la Coruña km. 17,200, 28231
Las Rozas de Madrid, Spain
Tel: [phone]
GREECE
Philippos Nakas S.A. The Music House
19th klm. Leof. Lavriou 190 02 Peania – Attiki,
Greece
Tel: [phone]
SWEDEN
Yamaha Music Europe GmbH Germany filial
Scandinavia
JA Wettergrensgata 1, 400 43 Göteborg, Sweden
Tel: [phone]
DENMARK
Yamaha Music Denmark,
Fillial of Yamaha Music Europe GmbH, Tyskland
Generatorvej 8C, ST. TH., 2860 Søborg, Denmark
Tel: [phone]
FINLAND
F-Musiikki Oy
Antaksentie 4
FI-01510 Vantaa, Finland
Tel: [phone]
NORWAY
Yamaha Music Europe GmbH Germany -
Norwegian Branch
Grini Næringspark 1, 1332 Østerås, Norway
Tel: [phone]
ICELAND
Hljodfaerahusid Ehf.
Sidumula 20
IS-108 Reykjavik, Iceland
Tel: [phone]
CYPRUS
Nakas Music Cyprus Ltd.
Nikis Ave 2k
1086 Nicosia
Tel: + 357-22-511080
Major Music Center
21 Ali Riza Ave. Ortakoy
P.O.Box 475 Lefkoşa, Cyprus
Tel: [phone]
RUSSIA
Yamaha Music (Russia) LLC.
Room 37, entrance 7, bld. 7, Kievskaya street,
Moscow, 121059, Russia
Tel: [phone]
OTHER EUROPEAN REGIONS
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Tel: [phone]
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: [phone]
TURKEY
Yamaha Music Europe GmbH
Merkezi Almanya Türkiye İstanbul Şubesi
Mor Sumbul Sokak Varyap Meridian Business
1.Blok No:1 113-114-115
Bati Atasehir Istanbul, Turkey
Tel: [phone]
ISRAEL
RBX International Co., Ltd.
P.O Box 10245, Petach-Tikva, 49002
Tel: [phone]
OTHER REGIONS
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328,
Jebel Ali FZE, Dubai, UAE
Tel: [phone]
THE PEOPLE’S REPUBLIC OF CHINA
Yamaha Music & Electronics (China) Co., Ltd.
2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
Shanghai, China
Tel: [phone]
HONG KONG
Tom Lee Music Co., Ltd.
11/F., Silvercord Tower 1, 30 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
Tel: [phone]
INDIA
Yamaha Music India Private Limited
P-401, JMD Megapolis, Sector-48, Sohna Road,
Gurugram-122018, Haryana, India
Tel: [phone]
INDONESIA
PT. Yamaha Musik Indonesia (Distributor)
Yamaha Music Center Bldg. Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: [phone]
KOREA
Yamaha Music Korea Ltd.
11F, Prudential Tower, 298, Gangnam-daero,
Gangnam-gu, Seoul, 06253, Korea
Tel: [phone]
MALAYSIA
Yamaha Music (Malaysia) Sdn. Bhd.
No.8, Jalan Perbandaran, Kelana Jaya, 47301
Petaling Jaya, Selangor, Malaysia
Tel: [phone]
SINGAPORE
Yamaha Music (Asia) Private Limited
Block 202 Hougang Street 21, #02-00,
Singapore 530202, Singapore
Tel: [phone]
TAIWAN
Yamaha Music & Electronics Taiwan Co., Ltd.
2F., No.1, Yuandong Rd., Banqiao Dist.,
New Taipei City 22063, Taiwan (R.O.C.)
Tel: [phone]
THAILAND
Siam Music Yamaha Co., Ltd.
3, 4, 15, 16th Fl., Siam Motors Building,
891/1 Rama 1 Road, Wangmai,
Pathumwan, Bangkok 10330, Thailand
Tel: [phone]
VIETNAM
Yamaha Music Vietnam Company Limited
15th Floor, Nam A Bank Tower, 201-203 Cach
Mang Thang Tam St., Ward 4, Dist.3,
Ho Chi Minh City, Vietnam
Tel: [phone]
OTHER ASIAN REGIONS
https://asia-latinamerica-mea.yamaha.com/
index.html
AUSTRALIA
Yamaha Music Australia Pty. Ltd.
Level 1, 80 Market Street, South Melbourne,
VIC 3205 Australia
Tel: [phone]
NEW ZEALAND
Music Works LTD
P.O.BOX 6246 Wellesley, Auckland 4680,
New Zealand
Tel: [phone]
REGIONS AND TRUST
TERRITORIES IN PACIFIC OCEAN
https://asia-latinamerica-mea.yamaha.com/
index.html
NORTH AMERICA
CENTRAL & SOUTH AMERICA
EUROPE
AFRICA
MIDDLE EAST
ASIA
OCEANIA
DMI28 Head Office/Manufacturer: Yamaha Corporation 10-1, Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650, Japan
(For Europe) Importer: Yamaha Music Europe GmbH Siemensstrasse 22-34, 25462 Rellingen, Germany

Manual Development Group
©2020 Yamaha Corporation
Published 08/2020
2020年8月发行
MWXY-A0
VDS7720
雅马哈乐器音响 （中国）投资有限公司
上海市静安区新闸路1818 号云和大厦2楼
客户服务热线：4000517700
公司网址：http://www.yamaha.com.cn
厂名：萧山雅马哈乐器有限公司
厂址：浙江省杭州市萧山经济技术开发区红泰六路777号
