Yamaha DTXPRESS IV User manual

DRUM TRIGGER MODULE
OWNER’S MANUAL
EN
CANADA
Yamaha Canada Music Ltd.
135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: [phone]
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: [phone]
MEXICO
Yamaha de México S.A. de C.V.
Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: [phone]
BRAZIL
Yamaha Musical do Brasil Ltda.
Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: [phone]
ARGENTINA
Yamaha Music Latin America, S.A.
Sucursal de Argentina
Viamonte 1145 Piso2-B 1053,
Buenos Aires, Argentina
Tel: [phone]
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanización Marbella,
Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: [phone]
THE UNITED KINGDOM
Yamaha-Kemble Music (U.K.) Ltd.
Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: [phone]
IRELAND
Danfay Ltd.
61D, Sallynoggin Road, Dun Laoghaire, Co. Dublin
Tel: [phone]
GERMANY
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]
SWITZERLAND/LIECHTENSTEIN
Yamaha Music Central Europe GmbH,
Branch Switzerland
Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: [phone]
AUSTRIA
Yamaha Music Central Europe GmbH,
Branch Austria
Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]
CZECH REPUBLIC/SLOVAKIA/
HUNGARY/SLOVENIA
Yamaha Music Central Europe GmbH,
Branch Austria, CEE Department
Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]
POLAND
Yamaha Music Central Europe GmbH
Sp.z. o.o. Oddzial w Polsce
ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
Tel: [phone]
THE NETHERLANDS/
BELGIUM/LUXEMBOURG
Yamaha Music Central Europe GmbH,
Branch Benelux
Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: [phone]
FRANCE
Yamaha Musique France
BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: [phone]
ITALY
Yamaha Musica Italia S.P.A.
Combo Division
Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: [phone]
SPAIN/PORTUGAL
Yamaha-Hazen Música, S.A.
Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: [phone]
GREECE
Philippos Nakas S.A. The Music House
147 Skiathou Street, 112-55 Athens, Greece
Tel: [phone]
SWEDEN
Yamaha Scandinavia AB
J. A. Wettergrens Gata 1
Box 30053
S-400 43 Göteborg, Sweden
Tel: [phone]
DENMARK
YS Copenhagen Liaison Office
Generatorvej 6A
DK-2730 Herlev, Denmark
Tel: [phone]
FINLAND
F-Musiikki Oy
Kluuvikatu 6, P.O. Box 260,
SF-00101 Helsinki, Finland
Tel: [phone]
NORWAY
Norsk filial av Yamaha Scandinavia AB
Grini Næringspark 1
N-1345 Østerås, Norway
Tel: [phone]
ICELAND
Skifan HF
Skeifan 17 P.O. Box 8120
IS-128 Reykjavik, Iceland
Tel: [phone]
OTHER EUROPEAN COUNTRIES
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]
TURKEY/CYPRUS
Yamaha Music Central Europe GmbH
Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]
OTHER COUNTRIES
Yamaha Music Gulf FZE
LB21-128 Jebel Ali Freezone
P.O.Box 17328, Dubai, U.A.E.
Tel: [phone]
THE PEOPLE’S REPUBLIC OF CHINA
Yamaha Music & Electronics (China) Co.,Ltd.
25/F., United Plaza, 1468 Nanjing Road (West),
Jingan, Shanghai, China
Tel: [phone]
HONG KONG
Tom Lee Music Co., Ltd.
11/F., Silvercord Tower 1, 30 Canton Road,
Tsimshatsui, Kowloon, Hong Kong
Tel: [phone]
INDONESIA
PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: [phone]
KOREA
Yamaha Music Korea Ltd.
Tong-Yang Securities Bldg. 16F 23-8 Yoido-dong,
Youngdungpo-ku, Seoul, Korea
Tel: [phone]
MALAYSIA
Yamaha Music Malaysia, Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: [phone]
PHILIPPINES
Yupangco Music Corporation
339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,
Makati, Metro Manila, Philippines
Tel: [phone]
SINGAPORE
Yamaha Music Asia Pte., Ltd.
#03-11 A-Z Building
140 Paya Lebor Road, Singapore 409015
Tel: [phone]
TAI WAN
Yamaha KHS Music Co., Ltd.
3F, #6, Sec.2, Nan Jing E. Rd. Taipei.
Taiwan 104, R.O.C.
Tel: [phone]
THAILAND
Siam Music Yamaha Co., Ltd.
891/1 Siam Motors Building, 15-16 floor
Rama 1 road, Wangmai, Pathumwan
Bangkok 10330, Thailand
Tel: [phone]
OTHER ASIAN COUNTRIES
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]
AUSTRALIA
Yamaha Music Australia Pty. Ltd.
Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
Tel: [phone]
NEW ZEALAND
Music Houses of N.Z. Ltd.
146/148 Captain Springs Road, Te Papapa,
Auckland, New Zealand
Tel: [phone]
COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN
Yamaha Corporation,
Asia-Pacific Music Marketing Group
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]
NORTH AMERICA
CENTRAL & SOUTH AMERICA
EUROPE
AFRICA
MIDDLE EAST
ASIA
OCEANIA
HEAD OFFICE Yamaha Corporation, Pro Audio & Digital Musical Instrument Division
Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650
Tel: [phone]
SY38
Yamaha Drums global web site:
http://www.global.yamaha.com/products/music/drums.html
Yamaha Manual Library
http://www.yamaha.co.jp/manual/
For details of products, please contact your
nearest Yamaha representative or the authorized
distributor listed below.
Pour plus de détails sur les produits, veuillez-vous
adresser à Yamaha ou au distributeur le plus
proche de vous figurant dans la liste suivante.
Die Einzelheiten zu Produkten sind bei Ihrer
unten aufgeführten Niederlassung und bei
Yamaha Vertragshändlern in den je weiligen
Bestimmungsländern erhältlich.
Para detalles sobre productos, contacte su tienda
Yamaha más cercana o el distribuidor autorizado
que se lista debajo.
Per ulteriori dettagli sui prodotti, rivolgersi al più
vicino rappresentante Yamaha oppure a uno dei
distributori autorizzati elencati di seguito.
Neem voor details over producten alstublieft
contact op met uw dichtstbijzijnde Yamaha-
vertegenwoordiging of de geautoriseerde
distributeur uit het onderstaande overzicht.
U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation
© 2006 Yamaha Corporation
WH33230 608POAP?.?-01A0
Printed in China

PLEASE KEEP THIS MANUAL
This product utilizes batteries or an external power supply
(adapter). DO NOT connect this product to any power supply or
adapter other than one described in the manual, on the name
plate, or specifically recommended by Yamaha.
WARNING: Do not place this product in a position where anyone
could walk on, trip over ,or roll anything over power or connecting
cords of any kind. The use of an extension cord is not recom-
mended! If you must use an extension cord, the minimum wire size
for a 25’ cord (or less ) is 18 AWG. NOTE: The smaller the AWG
number ,the larger the current handling capacity. For longer exten-
sion cords, consult a local electrician.
This product should be used only with the components supplied
or; a cart, rack, or stand that is recommended by Yamaha. If a cart,
etc., is used, please observe all safety markings and instructions
that accompany the accessory product.
SPECIFICATIONS SUBJECT TO CHANGE:
The information contained in this manual is believed to be correct
at the time of printing. However, Yamaha reserves the right to
change or modify any of the specifications without notice or obliga-
tion to update existing units.
This product, either alone or in combination with an amplifier and
headphones or speaker/s, may be capable of producing sound lev-
els that could cause permanent hearing loss. DO NOT operate for
long periods of time at a high volume level or at a level that is
uncomfortable. If you experience any hearing loss or ringing in the
ears, you should consult an audiologist.
IMPORTANT: The louder the sound, the shorter the time period
before damage occurs.
Some Yamaha products may have benches and / or accessory
mounting fixtures that are either supplied with the product or as
optional accessories. Some of these items are designed to be
dealer assembled or installed. Please make sure that benches are
stable and any optional fixtures (where applicable) are well
secured BEFORE using.
Benches supplied by Yamaha are designed for seating only. No
other uses are recommended.
NOTICE:
Service charges incurred due to a lack of knowledge relating to
how a function or effect works (when the unit is operating as
designed) are not covered by the manufacturer’s warranty, and are
therefore the owners responsibility. Please study this manual care-
fully and consult your dealer before requesting service.
ENVIRONMENTAL ISSUES:
Yamaha strives to produce products that are both user safe and
environmentally friendly. We sincerely believe that our products
and the production methods used to produce them, meet these
goals. In keeping with both the letter and the spirit of the law, we
want you to be aware of the following:
Battery Notice:
This product MAY contain a small non-rechargeable battery which
(if applicable) is soldered in place. The average life span of this
type of battery is approximately five years. When replacement
becomes necessary, contact a qualified service representative to
perform the replacement.
This product may also use “household” type batteries. Some of
these may be rechargeable. Make sure that the battery being
charged is a rechargeable type and that the charger is intended for
the battery being charged.
When installing batteries, do not mix batteries with new, or with
batteries of a different type. Batteries MUST be installed correctly.
Mismatches or incorrect installation may result in overheating and
battery case rupture.
Warning:
Do not attempt to disassemble, or incinerate any battery. Keep all
batteries away from children. Dispose of used batteries promptly
and as regulated by the laws in your area. Note: Check with any
retailer of household type batteries in your area for battery dis-
posal information.
Disposal Notice:
Should this product become damaged beyond repair, or for some
reason its useful life is considered to be at an end, please observe
all local, state, and federal regulations that relate to the disposal of
products that contain lead, batteries, plastics, etc. If your dealer is
unable to assist you, please contact Yamaha directly.
NAME PLATE LOCATION:
The name plate is located on the bottom of the product. The model
number, serial number, power requirements, etc., are located on
this plate.You should record the model number, serial number, and
the date of purchase in the spaces provided below and retain this
manual as a permanent record of your purchase.
Model
Serial No.
Purchase Date
SPECIAL MESSAGE SECTION
92-BP (bottom)

3
DTXPRESS
IV
Owner’s Manual
Introduction
Thank you for purchasing the YAMAHA DTXPRESS IV.
The DTXPRESS IV is a compact drum trigger module that includes a wealth of rich, high-
quality drum voices and is compatible with snare pads equipped with a pad controller. It also
has a comprehensive variety of features that help you build your drumming and rhythm sec-
tion skills, a built-in sequencer for recording your own songs and performances, an effective
Groove Check function that helps you tighten your timing, and a versatile, multi-function
metronome for enhancing your practice sessions. Moreover, it provides a large selection of
preset songs that you can play along with and improve your ability in a variety of musical
styles.
To get the most out of your DTXPRESS IV, please read this manual carefully. After reading
through the manual, make sure to store it in a safe place so that you can refer back to it
again as needed.
Accessories
Yamaha AC power adaptor (PA-3C)*
Module stand
Module stand fastening screws x 2
Owner’s Manual (this book)
*May not be included depending on your particular area. Please check with your Yamaha dealer.
About the Descriptions and Conventions in this Manual
• [DRUM KIT], [CLICK], etc.
Panel buttons and controls are indicated with [ ] (brackets).
• [SHIFT] + [DRUM KIT], etc.
This means to simultaneously hold down the [SHIFT] button and press the [DRUM KIT] button.
•[
<<
<<
]/[>>
>>
], etc.
This means that you can use either the [<<
<<
] button or [>>
>>
] button in the operation.
• “Completed!”, etc.
Words in quotation marks indicate a message shown on the LCD display.
The illustrations and LCD screens as shown in this owner’s manual are for instructional purposes only, and may
appear somewhat different from those on your instrument.

4
DTXPRESS
IV
Owner’s Manual
PRECAUTIONS
PLEASE READ CAREFULLY BEFORE PROCEEDING
* Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical
shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
• Only use the voltage specified as correct for the instrument. The required
voltage is printed on the name plate of the instrument.
• Use the specified adaptor (PA-3C or an equivalent recommended by Yamaha)
only. Using the wrong adaptor can result in damage to the instrument or
overheating.
•Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it.
•Do not place the AC adaptor cord near heat sources such as heaters or radiators,
and do not excessively bend or otherwise damage the cord, place heavy objects
on it, or place it in a position where anyone could walk on, trip over, or roll
anything over it.
• Do not open the instrument or attempt to disassemble the internal parts or
modify them in any way. The instrument contains no user-serviceable parts. If it
should appear to be malfunctioning, discontinue use immediately and have it
inspected by qualified Yamaha service personnel.
• Do not expose the instrument to rain, use it near water or in damp or wet
conditions, or place containers on it containing liquids which might spill into
any openings. If any liquid such as water seeps into the instrument, turn off the
power immediately and unplug the power cord from the AC outlet. Then have
the instrument inspected by qualified Yamaha service personnel.
• Never insert or remove an electric plug with wet hands.
• Do not put burning items, such as candles, on the unit.
A burning item may fall over and cause a fire.
• If the AC adaptor cord or plug becomes frayed or damaged, or if there is a
sudden loss of sound during use of the instrument, or if any unusual smells or
smoke should appear to be caused by it, immediately turn off the power switch,
disconnect the adaptor plug from the outlet, and have the instrument inspected
by qualified Yamaha service personnel.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage
to the instrument or other property. These precautions include, but are not limited to, the following:
• When removing the electric plug from the instrument or an outlet, always hold
the plug itself and not the cord.
• Unplug the AC power adaptor when not using the instrument, or during
electrical storms.
•Do not connect the instrument to an electrical outlet using a multiple-connector.
Doing so can result in lower sound quality, or possibly cause overheating in the
outlet.
•Do not expose the instrument to excessive dust or vibrations, or extreme cold or
heat (such as in direct sunlight, near a heater, or in a car during the day) to
prevent the possibility of panel disfiguration or damage to the internal
components.
• Do not use the instrument in the vicinity of a TV, radio, stereo equipment,
mobile phone, or other electric devices. Otherwise, the instrument, TV, or radio
may generate noise.
• Do not place the instrument in an unstable position where it might accidentally
fall over.
• Before moving the instrument, remove all connected adaptor and other cables.
• When setting up the product, make sure that the AC outlet you are using is
easily accessible. If some trouble or malfunction occurs, immediately turn off
the power switch and disconnect the plug from the outlet. Even when the power
switch is turned off, electricity is still flowing to the product at the minimum
level. When you are not using the product for a long time, make sure to unplug
the power cord from the wall AC outlet.
• Use only the stand/rack specified for the instrument. When attaching the stand
or rack, use the provided screws only. Failure to do so could cause damage to
the internal components or result in the instrument falling over.
•Do not place objects in front of the instrument's air vent, since this may prevent
adequate ventilation of the internal components, and possibly result in the
instrument overheating.
Power supply/AC power adaptor
Do not open
Water warning
Fire warning
If you notice any abnormality
Power supply/AC power adaptor
Location
(3)-11
1/2

5
DTXPRESS
IV
Owner’s Manual
• Before connecting the instrument to other electronic components, turn off the
power for all components. Before turning the power on or off for all
components, set all volume levels to minimum. Also, be sure to set the volumes
of all components at their minimum levels and gradually raise the volume
controls while playing the instrument to set the desired listening level.
• When cleaning the instrument, use a soft, dry cloth. Do not use paint thinners,
solvents, cleaning fluids, or chemical-impregnated wiping cloths.
•Never insert or drop paper, metallic, or other objects into the gaps on the panel.
If this happens, turn off the power immediately and unplug the power cord from
the AC outlet. Then have the instrument inspected by qualified Yamaha service
personnel.
•Do not place vinyl, plastic or rubber objects on the instrument, since this might
discolor the panel.
•Do not rest your weight on, or place heavy objects on the instrument, and do not
use excessive force on the buttons, switches or connectors.
• Do not use the instrument/device or headphones for a long period of time at a
high or uncomfortable volume level, since this can cause permanent hearing
loss. If you experience any hearing loss or ringing in the ears, consult a
physician.
• Never attempt to turn off the power while data is being written to Flash ROM
(while a "now storing..." message is shown). Turning the power off in this state
results in loss of all user data and may cause the system to freeze (due to
corruption of data in the Flash ROM). This means that this instrument may not
be able to start up properly, even when turning the power on next time.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the instrument, or data that is lost or destroyed.
Always turn the power off when the instrument is not in use.
Even when the power switch is in the “STANDBY” position, electricity is still flowing to the instrument at the minimum level. When you are not using the instrument for a long
time, make sure you unplug the AC power adaptor from the wall AC outlet.
•This product incorporates and bundles computer programs and contents in which Yamaha owns copyrights or with respect to which it has license to
use others’ copyrights. Such copyrighted materials include, without limitation, all computer software, style files, MIDI files, WAVE data, musical
scores and sound recordings. Any unauthorized use of such programs and contents outside of personal use is not permitted under relevant laws. Any
violation of copyright has legal consequences. DON'T MAKE, DISTRIBUTE OR USE ILLEGAL COPIES.
• Copying of the commercially available musical data including but not limited to MIDI data and/or audio data is strictly prohibited except for your
personal use.
• The company names and product names in this Owner’s Manual are the trademarks or registered trademarks of their respective companies.
Connections
Maintenance
Handling caution
Saving data
(3)-11
2/2

6
DTXPRESS
IV
Owner’s Manual
The DTXPRESS IV is equipped with a high-quality 32-polyphony tone generator that produces
realistic voices, includes a high-performance, multi-function metronome, a built-in sequencer
and a variety of songs—all combined into a compact, portable package.The DTXPRESS IV is an
exceptionally versatile instrument that can be used in a variety of situations such as live perfor-
mance, personal practice, and much more.
■ Drum Triggers
•Built into the unit are twelve trigger input jacks and a hi-hat controller jack. The instrument also features jacks that are
compatible with two-zone or three-zone pads (pads that transmit different signals depending on the area that is hit).
Moreover, the snare drum jack is compatible with pad-controller-equipped pads. This lets you adjust the ‘virtual’
snares and the tuning—just as you would with an acoustic snare drum. All in all, the DTXPRESS IV has the operabil-
ity, functionality and performance that is virtually equivalent to an acoustic drum kit.
•You can connect the DTXPRESS IV to an acoustic drum kit by using drum triggers such as Yamaha DT20. The setup
data such as the trigger input types and sensitivity can be customized to suit your playing preferences, style and partic-
ular setup.
•Also included in the unit are 50 preset drum kits which naturally contain acoustic drum kits, and cover a wide range of
music genres, such as rock, funk, jazz, reggae, Latin, etc. Moreover, User kit memory is available for storing 20 sets.
With this, you can set up your own original drum kits using the various drum voices.
* The word “trigger” refers to the means by which hitting a pad sends a signal to the DTXPRESS IV as to what sound to play on the
built-in tone generator and how loud the sound should be played.
■ Tone Generator
• The DTXPRESS IV is equipped with a high-quality, 16-bit AWM2 (PCM) tone generator with 32-voice polyphony
that produces dynamic voices or exceptional realism. The voices—totalling 427—cover a wide range sounds, such as
authentic acoustic drums, unique electronic percussion, sound effects, and much more. The instrument also features a
built-in high-quality digital reverb for enhancing the sound.
■ High-performance Metronome
• The DTXPRESS IV provides with a comprehensive, multi-function metronome, allowing various click settings for
each note value. Each note value can be assigned its own separate click sound and pitch. You can also set a timer that
will determine when the click stops and set breaks which how many measures the click will play and then be muted.
•The DTXPRESS IV also features a “Tap” function that lets you set the tempo for the song or click by tapping in tempo
on a pad to any tempo you like. This lets you set whatever tempo you desire for playing or practicing.
■ Sequencer
• The built-in sequencer contains a wide variety of 63 preset songs. Two functions that make the DTXPRESS IV great
for practice are the Drum Mute Function, which mutes a specific drum part, and the Bass Solo function, which lets you
play along with just the song’s bass part. The DTXPRESS IV also allows you to record your performance in real
time—and allows you to play along with your recorded performance data.
• In addition to one main song that is controlled from the panel, three pad songs can be individually controlled and
simultaneously played by trigger input from the pads.
■ Groove Check
•The Groove Check function monitors your playing and provides instant feedback on your rhythmic skills, providing a
powerful way to quickly improve your technique. It includes a Rhythm Gate function that produces sounds only if
your timing is accurate, and also has a Challenge mode that evaluates your playing, giving you a letter grade—and
makes mastering the drums easier and more fun than ever before.
■ Interface
•AMIDI OUT jack on the rear panel lets you connect other devices and play sounds from an external tone generator or
synchronize the metronome with an external sequencer. Also provided are an AUX IN jack, which lets you plug in and
play along with an external audio device, such as a CD player or MD player, and a headphones jack for convenient
practice without disturbing others.
Main Features

7
DTXPRESS
IV
Owner’s Manual
Introduction ............................................................3
Accessories...............................................................3
About the Descriptions and Conventions in
this Manual................................................................3
Main Features ...........................................................6
Controls and Functions.........................................8
Top Panel..................................................................8
Rear Panel ................................................................9
1 Connections ....................................................10
1 Connecting the Pads ..........................................10
DTXPRESS IV Standard Set...........................10
DTXPRESS IV Special Set .............................11
Setting up with Acoustic Drums.......................11
2 Setting Up the Power Supply..............................12
3 Connecting to Speakers or Headphones............12
4 Turning the Power On.........................................13
5 Selecting the Trigger Setup ................................14
2 Time to Play.....................................................15
Adjusting the Hi-hat.................................................16
Pad Controller Settings ...........................................17
3 Playing Along With the Click .........................18
Click Out Select.......................................................20
Tap Tempo Function ...............................................21
LED Display Setting ................................................21
4 Playing Along With a Song ............................22
Pad Function Settings .............................................23
5 Using the Groove Check Function ............... 24
Groove Check Mode............................................... 24
6 Record Your Performance............................. 26
Recording System .................................................. 26
7 Create Your Own Original Drum Kit ............. 28
Factory Set ............................................................. 35
8 Trigger Setup Edit .......................................... 36
Trigger Setup procedure......................................... 36
Explanations of Each Display Page........................ 37
Error Messages ................................................... 40
Trobleshooting .................................................... 40
Index..................................................................... 42
Appendix.............................................................. 43
MIDI Data Format ................................................... 43
LCD Displays .......................................................... 44
MIDI Implementation Chart..................................... 47
Drum Voice List ...................................................... 48
Preset Drum Kit List................................................ 49
Preset Song List ..................................................... 49
Specifications.......................................................... 50
Contents

8
DTXPRESS
IV
Owner’s Manual
Controls and Functions
q Drum Kit button (DRUM KIT)
•For entering the Drum Kit Select display
. (p. 15)
•Hold the [SHIFT] button and press the [DRUM KIT] button to
enter the Trigger Setup Select page
. (p. 14)
• This button can also be used to temporarily mute all sounds of
all voices.
w Click button (CLICK)
•For entering the Click (Metronome) Setting page. (p. 18)
•Hold the [SHIFT] button and press the [CLICK] button to enter
the Groove Check Setting display
. (p. 24)
e Song button (SONG
>>
>>
/
■
)
•For entering the Song Select page
. (p. 22)
•Hold the [SHIFT] button and press the [SONG >>
>>
/
■
] button to
enable recording standby mode for the DTXPRESS IV.
• Press this button to start/stop song playback or recording.
r Shift button (SHIFT)
Holding this button and pressing another specific button switches
to the function printed above each button on the top panel.
t Select buttons (
<<
<<
,
>>
>>
)
•For selecting an item you want to edit (the selected item
flashes). If there are multiple pages either before or after the
page currently displayed, the buttons are used to view the next
or previous page. Hold the button to continuously move the
flashing cursor.
• Press these two buttons together to scroll continuously back
and forth through the pages. Holding the [
<
] button first and
pressing the [
>
] button moves to the previous page while
holding the [ > ] button first and pressing the [ < ] button moves
to the next.
• Hold the [SHIFT] button and press the [
<
]/[
>
] buttons to
select the trigger input you want to edit.
y Click ON/OFF button ( ON/OFF)
•For starting/stopping the click sound (metronome). (
p. 18 )
•Hold the [SHIFT] button and press the [ ON/OFF] button to
enter the Tap Tempo Setting page. (p. 21)
u Save/Enter button (SAVE/ENTER)
•For saving data or executing an operation (Enter).
•Hold the [SHIFT] button and press the [SAVE/ENTER] button
to enter the Utility page, which is used to make overall settings
for operating the DTXPRESS IV.
i Click lamp
The red lamp lights on the first beat of every measure when the
click or a song is playing. The other beats are indicated with a
green light.
o LED display
For indicating the tempo, the number selected in the current page,
or the click timer depending on the setting made. (p. 21)
!0 LCD display
For displaying important information and data used in operating
the DTXPRESS IV.
!1 Jog dial
Rotate the jog dial to change the value selected with the cursor
(the flashed item to be edited) in the display. Rotate the dial to the
right (clockwise) to increase the value, and to the left to decrease.
The jog dial can also be used to change the layer (A/B) and for
Drum mute.
Hold the [SHIFT] button and rotate the knob to change the cur-
rent tempo.
~~~~~YAMAHA ~~~~
~~~DTXPRESS IV~~
8.8.8.
q
o
i
w
er yu
t
!0
!1
Top Panel

Controls and Functions
9
DTXPRESS
IV
Owner’s Manual
!2 MIDI OUT jack
For sending data from the DTXPRESS IV to an external MIDI
device. With this jack, you can use the DTXPRESS IV as a con-
trol device to trigger voices from an external tone generator, or
synchronize song playback or the click of the DTXPRESS IV
with the playback of an external sequencer. (p. 13)
!3 Trigger Input jacks (1SNARE thru 8KICK/9)
For connecting pads or drum triggers (Yamaha DT20, etc.) to
receive trigger signals.
Connect external pads such as a snare, tom, etc., according to the
indication below each input. (p. 10, 11)
1SNARE .....................Compatible with three-zone pads and the pad
controller.
2TOM1/10, 3TOM2/11, 4TOM3/12, 8KICK/9
.............................. Mono x 2 inputs
A Y-shaped cable (stereo plug—mono jack x
2; refer to the illustration below) can be used to
trigger inputs 9, 10, 11, and 12 (monaural pad).
Also, if the KP65 kick pad is connected to this
jack with a stereo cable, the external pad input
jack on the KP65 can be used as the input for
input jacks 9, 10, 11, or 12.
5RIDE, 6CRASH ..... Compatible with three-zone pads.
7HI HAT .....................Compatible with stereo pads (with switches)
!4 Hi-hat controller jack (HI HAT CONTROL)
For connecting a hi-hat controller. (p. 10, 11)
* Use a cable with a stereo plug (shown below) when connect-
ing a hi-hat controller.
!5 Output jacks (OUTPUT L/MONO, R)
For connecting the DTXPRESS IV to an external amplifier, mixer,
etc.
For mono playback use the L/MONO jack. For stereo playback
connect both L and R jacks. (p. 12)
!6 Headphones jack (PHONES)
Connect a set of stereo headphones to this jack to monitor the
DTXPRESS IV. (p. 12)

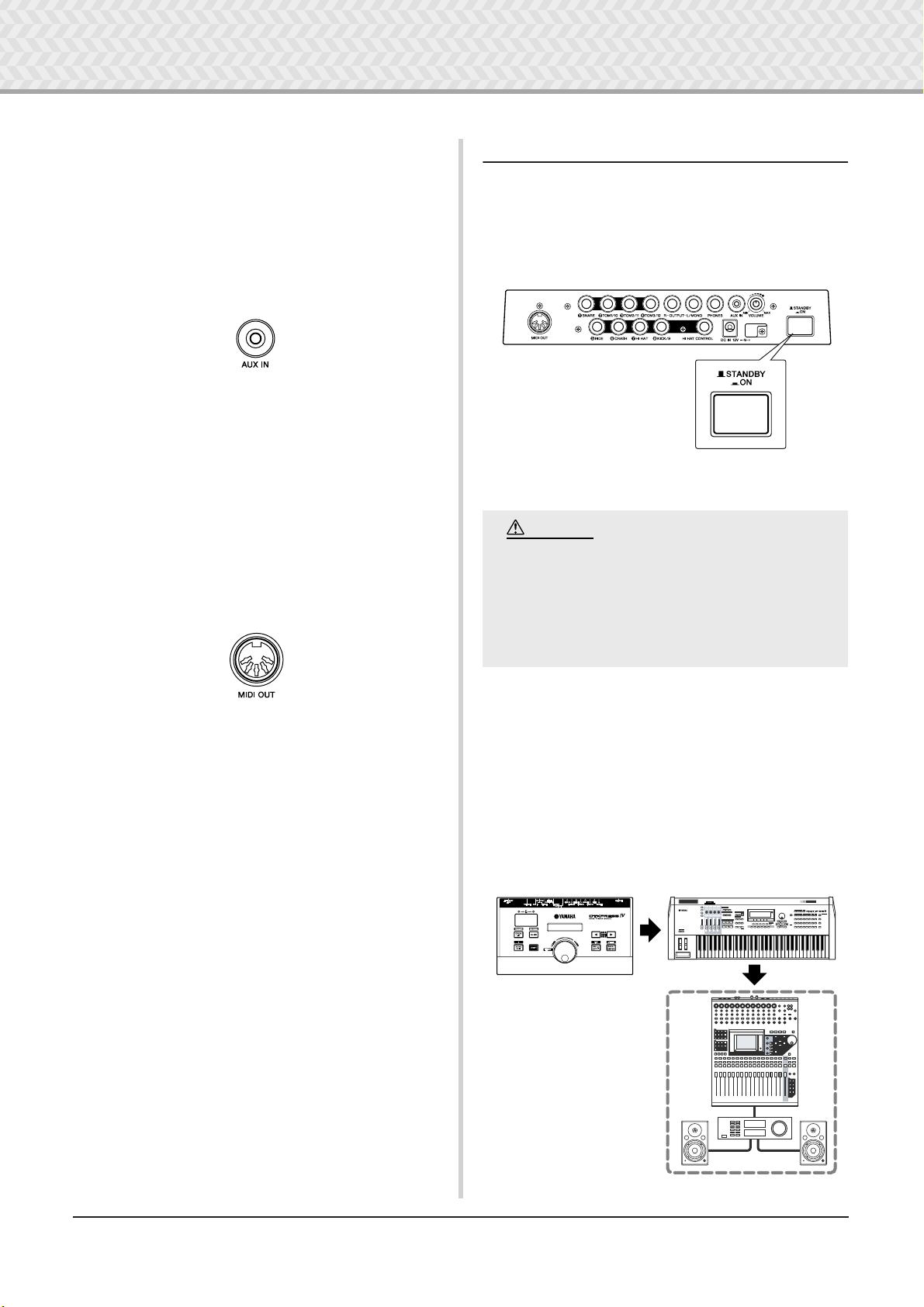

!7 AUX IN jack
Connect the output of an external audio device, etc., to this jack
(stereo mini jack). (p. 13)
This is convenient for playing along with music from a CD
player, etc.
* Use the volume control on the external device to adjust the
volume balance.
!8 Master Volume (VOLUME)
Adjusts the DTXPRESS IV’s overall volume (output level of the
signal sent via the OUTPUT jacks and PHONES jack). Rotate the
knob clockwise to increase the volume, or counter-clockwise to
decrease it.
!9 Power supply jack (DC IN 12V)
Connect the supplied AC power adaptor to this jack. To prevent
the adaptor from becoming unplugged, secure the cable to the
cable clip.
@0 Cable clip
Prevents the power cord from accidentally becoming unplugged.
(p. 12)
@1 POWER Switch
The power is turned on when the button is set to this position:
(>). The power is off when set this way: (?).
!2 !3 !6 !7 !8!5
!4 !9 @0 @1

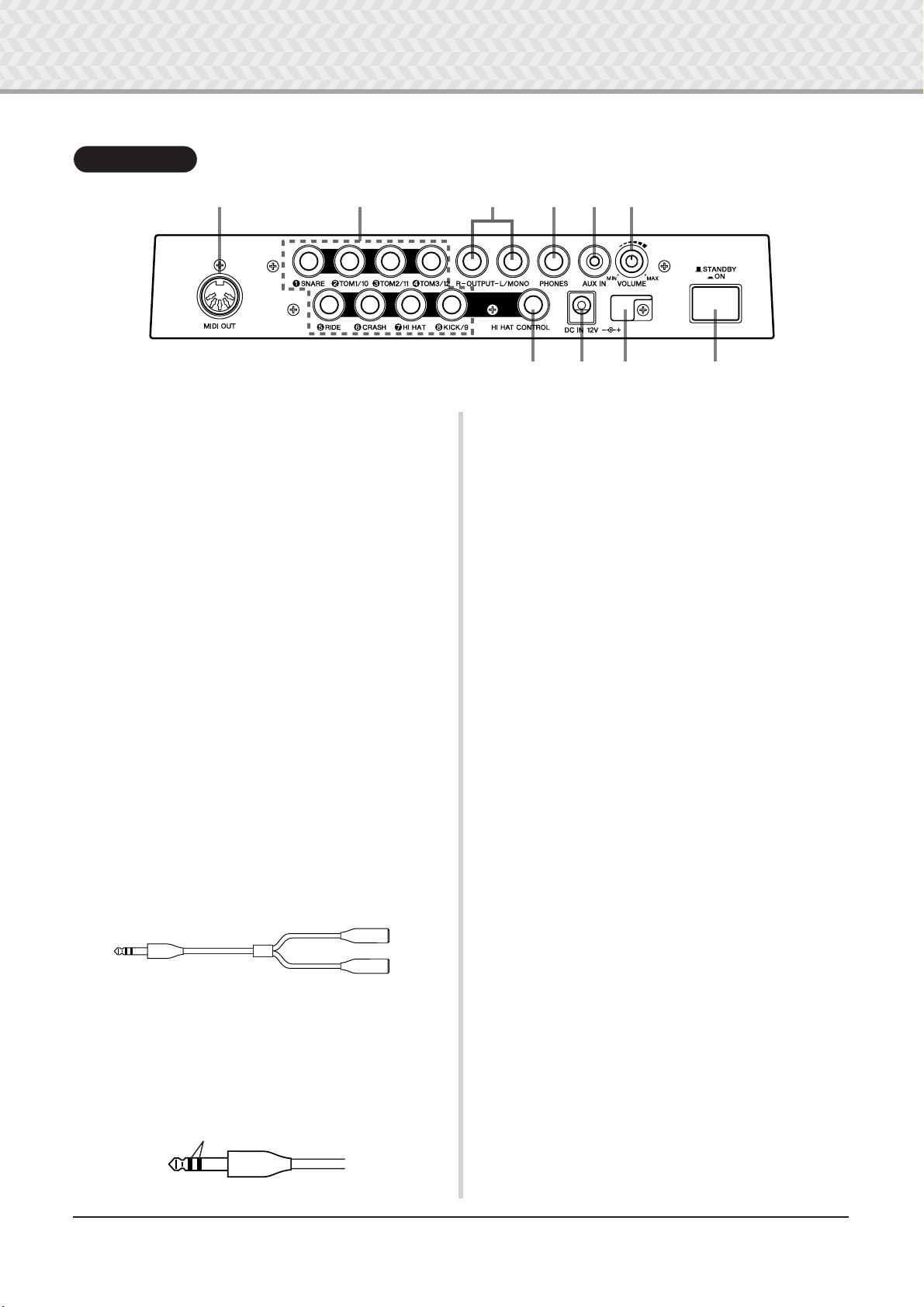

Rear Panel
Stereo phone plug
Mono phone jack
Mono phone jack
●Y-shaped cable
Double insulator

10 DTXPRESS IV Owner’s Manual
1Connections
In this chapter, you’ll learn how to set up the DTXPRESS IV. Read these instructions carefully
and in the following order to ensure that the instrument sounds and operates properly:
1 Connecting the Pads →2 Setting Up the Power Supply (p. 12) →3 Connecting to Speakers or Head-
phones (p. 12) →4 Turning the Power On (p. 13) →5 Selecting the Trigger Setup (p. 14)
1 Connecting the Pads
Referring to the illustration below, connect the output cable from each pad to each Trigger Input jack located on the rear panel of the DTX-
PRESS IV. All Trigger Input jacks are conveniently labeled (1SNARE, etc.), so make sure each pad is connected to its corresponding
Trigger Input jack.
!! IMPORTANT !!
You’ll need to change the Trigger Settings of the DTXPRESS IV according to the type of drum set you are using
(Standard Set/Special Set/Acoustic Drums, etc.). If the setting is not appropriate, problems may occur—such
as improper sound, or inappropriate volume balance among the pads.
Refer to the “Selecting the Trigger Setup” section on page 14 on how to select the appropriate setup.
To prevent electric shock and damage to the devices, make sure the power is switched OFF on the DTXPRESS
IV and all related devices before making any connections to the DTXPRESS IV’s input and output jacks.
CAUTION

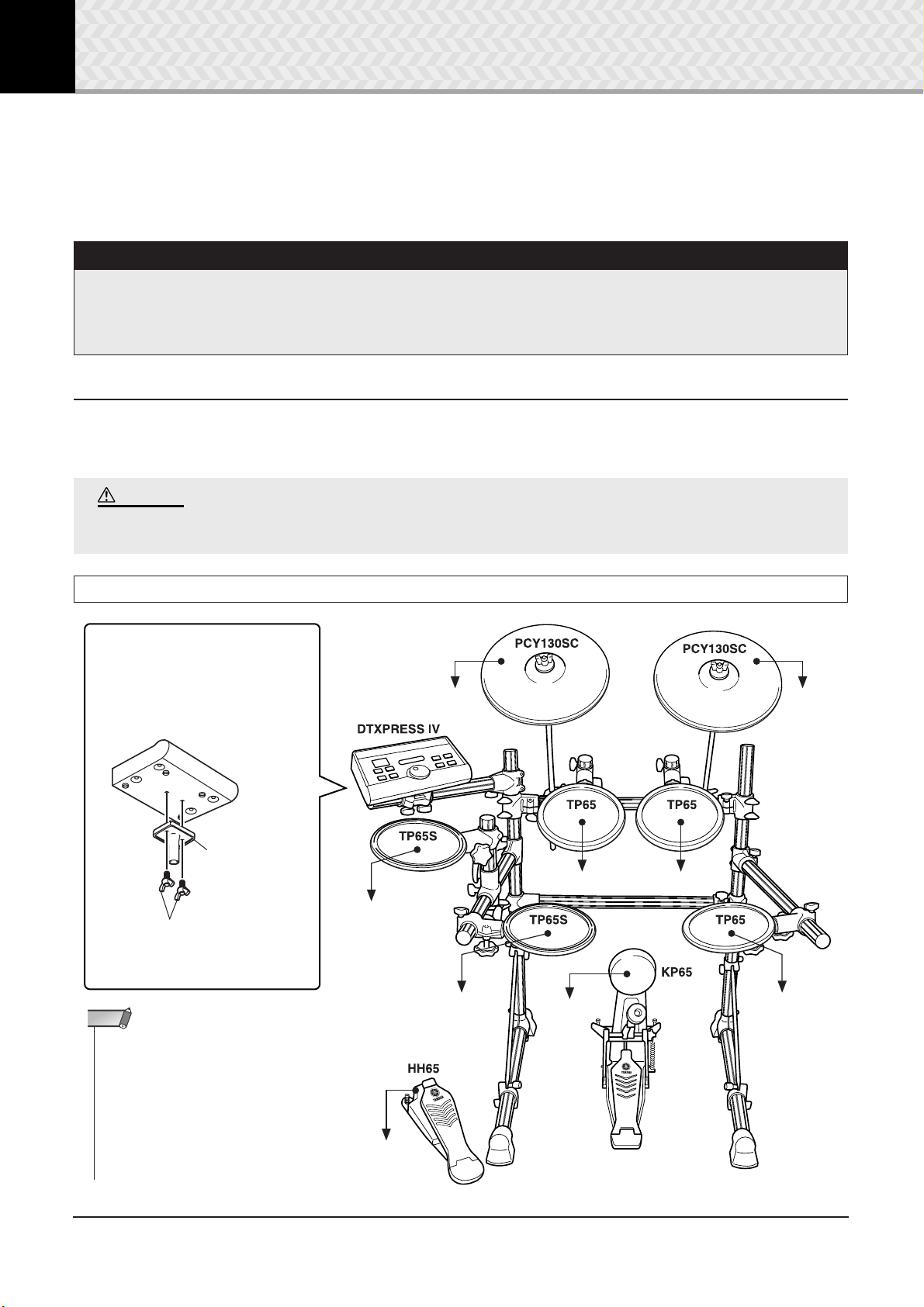

DTXPRESS IV Standard Set
•The module stand having four holes
(included with the RS70 drum rack sys-
tem) cannot be used for the DTXPRESS
IV. Use only the module stand w ith two
holes included with the DTXPRESS IV.
•The hi-hat pad can also be attached to the
pipe to which the DTXPRESS IV is
attached.
NOTE
Attaching the Module Stand
Attach the included module stand to
the DTXPRESS IV using the module
stand fastening screws.
To 1SNARE To 8KICK
To 2TOM1 To 3TOM2
To 4TOM3
To HI HAT
CONTROL
To 7HI HAT
To 6CRASH To 5RIDE
DTXPRESS IV
Module stand
(included)
Module stand fastening
screws (2; included)
* Be sure to use the included screws.
*Foot pedal is not included
in the Standard Set.

1 Connections
11
DTXPRESS IV Owner’s Manual
The DTXPRESS IV can be played from an acoustic drum kit if the kit is fitted with an optional set of drum triggers (such as Yamaha DT20
Drum Triggers) and the triggers are properly connected to the input jacks of the DTXPRESS IV.
DTXPRESS IV Special Set
Setting up with Acoustic Drums
Attaching the Module Stand
Attach the included module stand to
the DTXPRESS IV using the module
stand fastening screws.
* Be sure to use the included screws.
When assembling the Special Set, the legs
of the rack must be slid backwards to
maintain proper balance of the set. For
details, refer to the assembly instructions
of the rack system.
CAUTION
To 1SNARE
To 8KICK
To 2TOM1 To 3TOM2
To 4TOM3
To HI HAT
CONTROL
To 6CRASH To 5RIDE
DTXPRESS IV
Module stand
(included)
Module stand fastening screws
(2; included)
* First, connect the RHH130’s [PAD]
output jack to the 7HI HAT jack on
the DTXPRESS IV, then connect the
RHH130’s [HI HAT CONTROL] out-
put jack to the HI HAT CONTROL
jack on the DTXPRESS IV.
To the external pad input
jack of KP65 (kick pad)
To 7HI HAT
*Foot pedal is not included in the
Special Set.

1 Connections
12 DTXPRESS IV Owner’s Manual
2 Setting Up the Power Supply
A special power source adaptor supplies power to the DTX-
PRESS IV.
2-1. Make sure that the power switch of the DTXPRESS IV is
set to the STANDBY(?) position.
2-2. Connect the DC plug of the included AC power adaptor to
the DC IN jack on the rear panel.
To prevent the cord from being unplugged accidentally,
wrap the cord around the cable clip and secure it.
2-3. Connect the other end of the power cord to an AC outlet.
3 Connecting to Speakers or
Headphones
Since the DTXPRESS IV has no built-in speakers, you’ll need an
external audio system or a set of stereo headphones to properly
monitor it.
●OUTPUT L/MONO, R jacks (standard mono phone)
These jacks allow you to connect the DTXPRESS IV to an exter-
nal amplifier + speakers and produce full, amplified sound, or
connect the DTXPRESS IV to audio recording equipment for
recording your own performance.
* Use the DTXPRESS IV’s OUTPUT L/MONO jack when
connecting to a device with a mono input.
●PHONES jack (standard stereo phone jack)
Use the VOLUME knob on the rear panel to adjust the headphone
volume.
Make sure that the power adaptor’s cord is not
bent at an extreme angle when wrapping the
cord around the clip. Doing this can damage or
sever the cord and create a fire hazard.
•Please use the included AC power adaptor.The
use of any other adaptors may cause irregular
operation or damage to the device.
• Only use the voltage specified as correct for
the DTXPRESS IV. The required voltage is
printed on the name plate of the DTXPRESS IV.
•Unplug the AC Power Adaptor when not using
the DTXPRESS IV, or during electrical storms.
CAUTION
WARNING
CAUTION
Whenever making connections, make sure that
the plug on the cable being used corresponds to
the type of jack on the device.
Do not use the DTXPRESS IV at a high volume
level for a long period of time, or your hearing
may be damaged.
Headphones
Monitor system for the DTX series
MS100DRJ, MS50DRJ, etc.
OUTPUT L/MONO and R jacks PHONES jack
CAUTION
CAUTION

1 Connections
13
DTXPRESS IV Owner’s Manual
●AUX IN jack (stereo mini phone jack)
The audio output from a MP3 player or CD player connected to
the AUX IN jack can be mixed with the sound of the DTXPRESS
IV and transmitted via the OUTPUT jacks or PHONES jack. This
jack can be used when you want to play along with your favorite
songs.
* Use the volume control on the external device (MP3 player,
etc.) to adjust the volume balance.
●MIDI OUT jack
The MIDI functions on the DTXPRESS IV lets you play voices
on an external tone generator with the pads of the DTXPRESS
IV, or synchronize the DTXPRESS IV’s song or click playback
with the playback of an external sequencer.
About MIDI
MIDI (Musical Instrument Digital Interface) is a worldwide standard
that enables you to connect instruments and computers—of different
manufacturers and different types—and transmit performance and
other data among them.
* Also, use a MIDI cable that is not more than 15 meters in
length. Using a longer cable may result in irregular operation
and other problems.
4Turning the Power On
4-1. Make sure the volume settings of the DTXPRESS IV and
external devices are turned down to the minimum.
4-2. Turn the power on (>) by pressing the [STANDBY/ON]
switch on the rear panel of the DTXPRESS IV, then turn on
the power of the amplifiers.
4-3. To turn off the power, press the [STANDBY/ON] switch
again.
●Connecting a Mixer or MIDI Devices
Make sure that all volume settings are turned down all the way to
the minimum. Then turn on the every device in your setup in the
order of MIDI masters (controllers), MIDI slaves (receivers),
then audio equipment (mixers, amplifiers, speakers, etc.).
When powering down the setup, first turn down the volume for
each audio devices, then switch off each device in the reverse
order (first audio equipment, then MIDI).
Even when the instrument is turned off, electric-
ity is still flowing to the instrument at the mini-
mum level. When you are not using the
DTXPRESS IV for a long time, make sure to
unplug the AC power adaptor from the wall AC
outlet.
CAUTION
MUSICPRODUCTION SYNTHESIZER
*~~DTXPRESS~IV~*
*~~~Welcome!~~~*
8.8.8.
3
Audio equipment
(first mixer, then amplifier)
1
DTXPRESS IV (MIDI Master)
2
MIDI slave

1 Connections
14 DTXPRESS IV Owner’s Manual
5 Selecting the Trigger Setup
This setting lets you select the Trigger Setup that most closely
matches the trigger output levels and functions of your pads.
Select an appropriate Trigger Setup for your drum kit from the
pre-programmed Trigger Setups in the DTXPRESS IV.
Use the operation described below to select the Trigger Setup you
want to use.
●Procedure
5-1. Press the [SHIFT] + [DRUM KIT] buttons to view Page 1 in
the Trigger Setup Select display (TRG1).
5-2. Rotate the jog dial to select the Trigger Setup that matches
the drum kit you are using.
●Trigger Setup List
TRG1~~~ååååååååå
1~:SP~Med~~~~~~‚
Tr igger Setup
TRG1~~~ååååååååå
4~:STD~Med~~~~~‚
•If you want to replace some of the pads from the DTXPRESS IV
Standard Set / Special Set, refer to the operation on page 36 (Trig-
ger Setup Edit) after the above setting is done, to make sure that
the settings (such as sensitivity) are appropriate for each pad.
NOTE
●About Connecting Pads
• The DTXPRESS IV’s input jack parameters are preset with
settings suitable for pads when an appropriate Trigger Setup
is selected. If you intend to connect any other type of pad or
a drum trigger (Yamaha DT20, etc.) to the input jack, that
jack’s parameters (sensitivity, etc.) should be changed to set-
tings that suit the particular pad. Pad sensitivity is set in the
Trigger Setup Select display’s Page 3 [TRG3 Gain] setting
(p. 38).
•Pad-controller-equipped pads like the TP120SD, TP100,
etc., can be connected to Trigger Input jack 1SNARE.
• Three-zone pads like the TP65S, PCY150S, PCY130SC,
etc., can be connected to Trigger Input jacks 5RIDE and
6CRASH.
•7HI HAT is a stereo input type jack. Pads equipped with
trigger switches like the TP65S, PCY65S, PCY130S, etc.
can be connected to this jack.
• The 2TOM1/10, 3TOM2/11, 4TOM3/12 jacks corre-
spond to a two-trigger input that uses a stereo jack for L and
R. A Y-shaped cable (stereo plug—mono jack x 2) can be
used to input two trigger signals.
• The 8KICK/9 jack accepts a two-trigger input using a ste-
reo cable and jack for L and R signals. A Y-shaped cable
(stereo plug—mono jack x 2) can be used to input two trig-
ger signals.
Also, if the KP65 kick pad is connected to the DTXPRESS
IV’s input jack 9 with a stereo cable, the external pad input
jack on the KP65 can be used as the input for Input jack 9.
• In addition to the 8KICK/9 jack, the 2TOM1/10,
3TOM2/11, and 4TOM3/12 jacks can be used to connect
a second bass drum pedal to create a double-bass drum set.
* In the default setting, "1. SP Med" for Special Drum Set is selected.
No. Name Features
1 SP Med
for Special Drum Set
Normal setting
2 SP Dyna
Wide dynamic range. This setting is designed for maximum expressive control, allow-
ing performance subtleties over a wide dynamic range. Excessive vibration however,
may result in crosstalk (sound being produced by other pads).
3 SP Easy Controlled dynamic range delivers stable trigger detection. This setting is designed
for producing a smoother, more uniform sound with reduced volume fluctuations.
4 STD Med
for Standard Drum Set
Normal setting
5 STD Dyna
Wide dynamic range. This setting is designed for maximum expressive control, allow-
ing performance subtleties over a wide dynamic range. Excessive vibration however,
may result in crosstalk (sound being produced by other pads).
6 STD Easy Controlled dynamic range delivers stable trigger detection. This setting is designed
for producing a smoother, more uniform sound with reduced volume fluctuations.
7 DT10/20 — Use for DT10/20 drum trigger systems applied to acoustic drums.
8
|
11
UserTrig — Allows creation of custom trigger setups. (
→ Settings are made using Trigger Setup
Edit on page 36.)

15
DTXPRESS IV Owner’s Manual

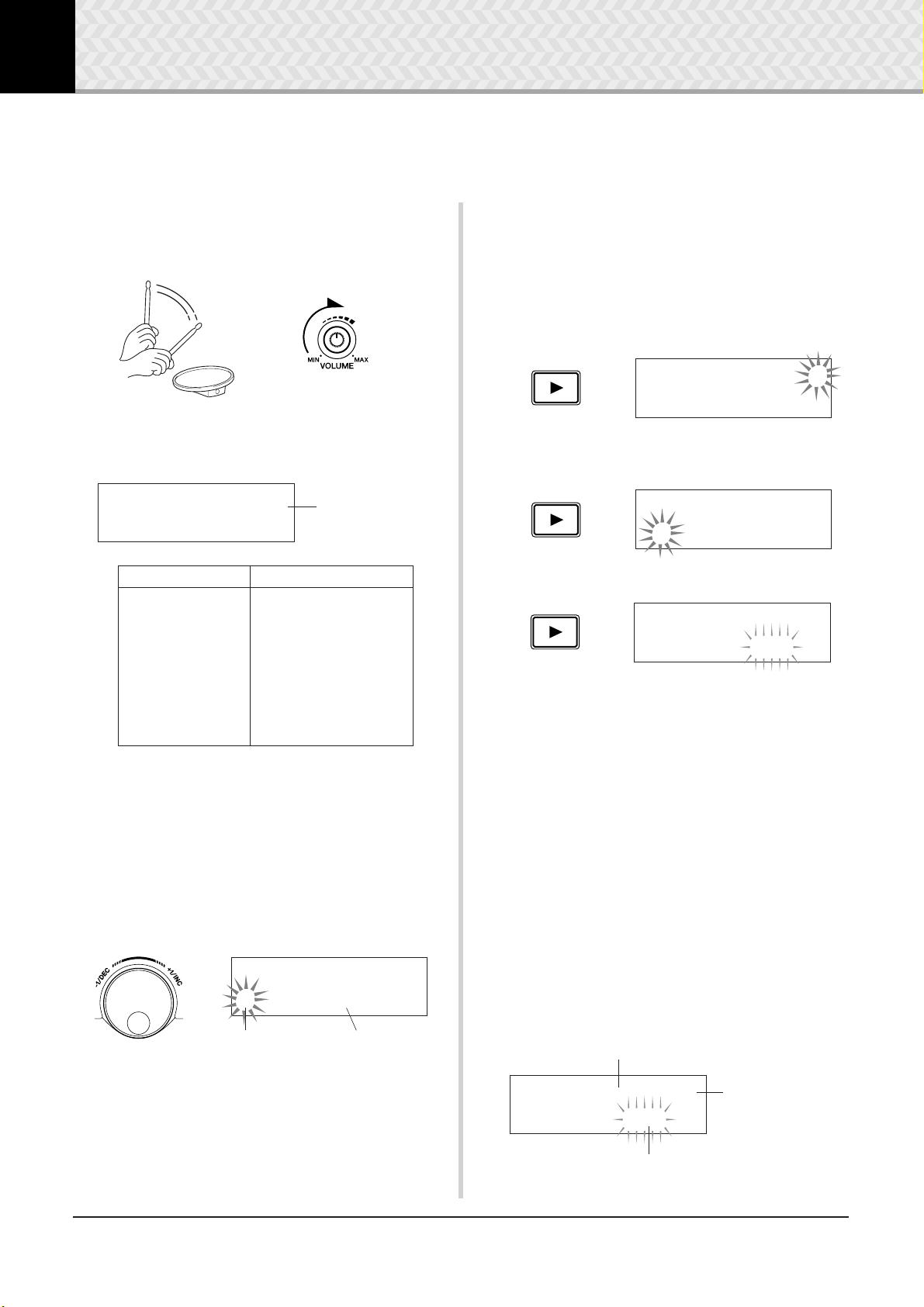

2 Time to Play
Now that your DTXPRESS IV is properly connected, it’s time to make some music!
1
Play the DTXPRESS IV
While hitting the pads, turn the VOLUME knob on the rear
panel to raise the overall volume to a comfortable level.
The trigger input level will be displayed in the bar graph in
the upper right corner of the display. The bar graph indicates
the input levels of the following input jacks.
2
Select a Drum Kit
A ‘Drum Kit’ is a collection of drum sounds (or voices) that
play when you hit the pads. Try selecting some of the Drum
Kits (1–50) and enjoy the variety of sounds and drum setups
available.
* Preset Drum Kit List (p. 49)
Rotate the jog dial to select a Drum Kit.
Try out the different drum kits and select one drum kit you
like.
* Some Drum Kits have pad songs and drum loops that start
playback when the corresponding pad is hit.
3
Change the Volume for Each Pad
Change the volume for each pad and adjust the overall bal-
ance of the Drum Kit.
Press the [>] button once in the previous Drum Kit Select
page.
The following display appears and the flashing cursor is at
“˙” in the LCD.
Press the [>] button again to move the flashing cursor to the
“S” position, the first character of “S01:OakCustom”.
Press the [>] button twice to view the KIT 3 page.
Use the [<]/[>] buttons in this manner to select the desired
item (the cursor flashes). When the page only contains a sin-
gle item, pressing the [<]/[>] buttons will select the next or
previous page.
*The “‚” mark on the lower right side of the display indicates
that a succeeding page is available. Likewise, the “”” mark
on the lower left side of the display indicates that a previous
page is available.
In the KIT 3 page, hit the pad for which you want to change
the volume. The selected pad (input jack) is shown in the
upper half of the display.
Rotate the jog dial to adjust the volume (the value is flashing)
of the pad.
*Some drum voices have two voices in a layer (in other words,
two voices sound at the same time when a pad is hit). In case
of two-layer voices, select the ˙or ¶mark in the upper right
side of the display (press the [<]/[>] buttons so that the
mark flashes, and use the jog dial to select) then adjust each
volume.
Bar graph (from left) Corresponding input jacks
1
2
3
4
5
6
7
8
9
1SNARE
2TOM1/10
3TOM2/11
4TOM3/12
5RIDE
6CRASH
7HI HAT
8KICK
8PAD9
Bar graph
KIT1~~~∑åååååø¥å
1~:Oak~Custom~~‚
KIT1~~~ååååååååå
1~:Oak~Custom~~‚
Drum kit Number Drum kit Name
KIT2~~~ƒsnare~~˙
”S01:OakCustom~‚
KIT2~~~ƒsnare~~˙
”S01:OakCustom~‚
KIT3~~~ƒsnare~~˙
”~~Volume=120~~‚
KIT3~~~™tom1~~~˙
”~~Volume=120~~‚
Volume (0–127)
Pad (Input jack)
Layer (˙/¶)

2 Time to Play
16 DTXPRESS IV Owner’s Manual
4
Change the Output Sound Quality
Use the Master Equalizer found on Utility Page 5 to change
the output sound quality. Overall settings for the DTXPRESS
IV are set in the Utility pages.
First, press the [SHIFT] + [SAVE/ENTER] buttons to view
the Utility pages.
Press the [>] button five times to view Utility Page 5.
Now use the Master Equalizer (two-band shelving type) set-
ting to change the sound quality.
“Lo=” is for the low-range gain setting (+0dB to +12dB) and
“Hi=” for the high-range gain setting (+0dB to +12dB).
Press the [<]/[>] buttons to move the flashing cursor to the
item you want to set, then rotate the jog dial to set its value.
You can also adjust or set the individual pad voices,
tuning, reverb type/level, and other settings that fine
tune the DTXPRESS IV (p. 28).
An asterisk “*” will appear next to “KIT3” in the
display once the volume is changed, indicating
that the kit has been edited. This asterisk will
disappear after the Store operation (p. 34) is car-
ried out. If a different drum kit is selected, etc.,
before carrying out the Store operation, the cur-
rent settings will return to their original condi-
tion. If you want to keep changes made to the
data, make sure you carry out the Store opera-
tion.
CAUTION
KIT3*~~™tom1~~~˙
”~~Volume=110~~‚
Utility (Page 1)
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
UTIL5~MasterEQ
”Lo=+~2~Hi=+~2~‚
UTIL5~MasterEQ
”Lo=+~8~Hi=+~0~‚
Adjusting the Hi-hat
Hi-hat adjustment is used to determine the point at which
the hi-hat closes when the hi-hat pedal (foot controller) is
pressed. You can also set the threshold at which foot
‘splashes’ are produced.
* This setting is only valid when a foot controller is con-
nected to the HI HAT CONTROL jack. The setting has no
effect on a foot controller connected to any other jack.
Operation
1. Press the [SHIFT] + [SAVE/ENTER] buttons to view
Utility Page 1.
Use this display to adjust the hi-hat.
2. To set the point at which the hi-hat closes, move the
flashing cursor to the “HHofs=” value then use the
jog dial to adjust the value.
The range of adjustment is -32 to 0 to +32. Smaller
values produce a shallower closing point.
To set the ease at which foot splashes are produced,
move the flashing cursor to the “T=” value then use
the jog dial to adjust the value.
Settings include “off” and a range of 1 to 127. Larger
values make foot splashes that are long and easier to
produce. When this is set to “off,” foot splashes are
not produced.
*Too high a value will make foot splashes too easy to pro-
duce, resulting in the continuous production of foot
splashes when the pedal is held down continuously.
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
UTIL1~Hi-hat
HHofs=-12~T=~~5‚
UTIL1~Hi-hat
HHofs=-12~T=~20‚

2 Time to Play
17
DTXPRESS IV Owner’s Manual

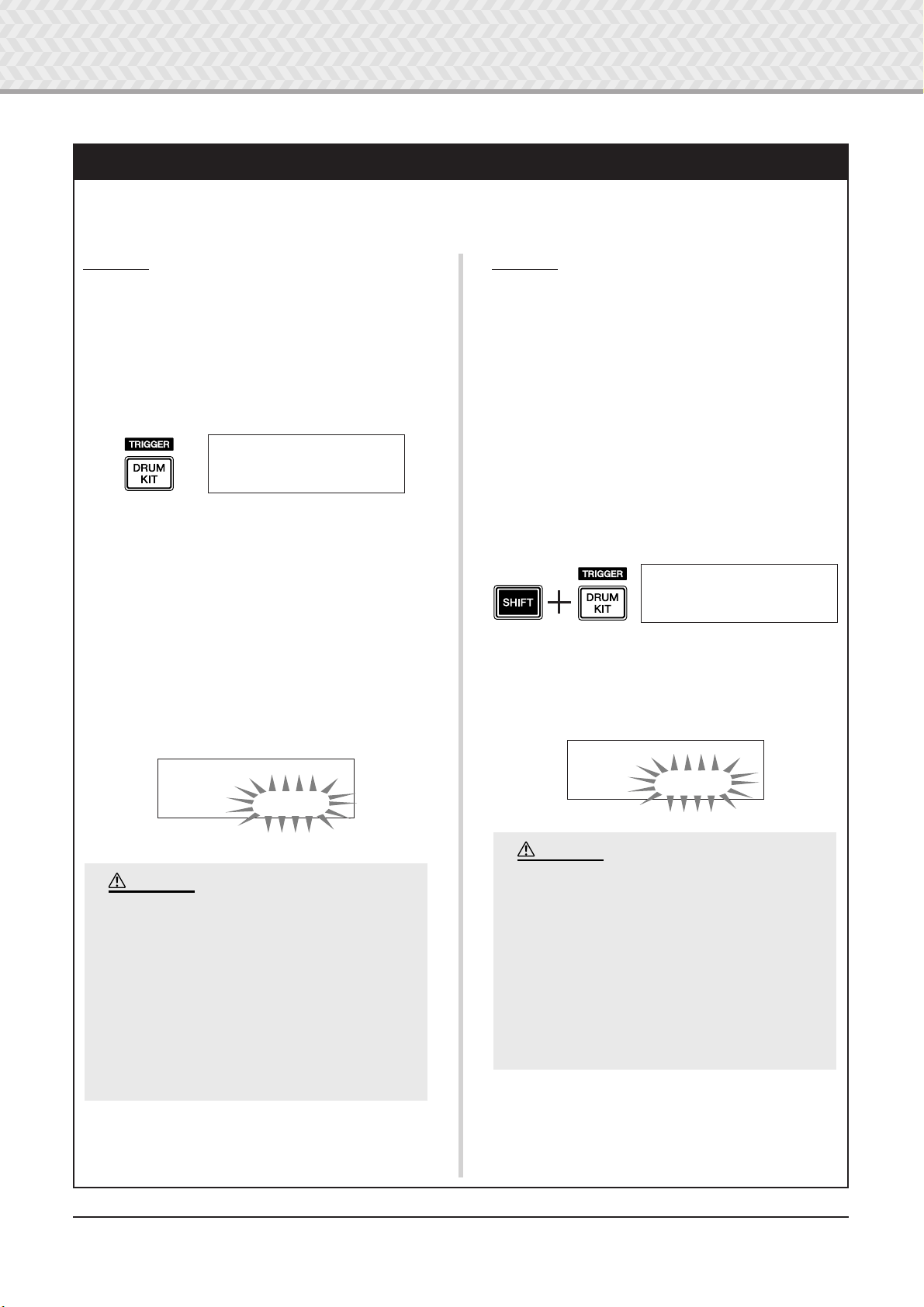

Pad Controller Settings
When a pad-controller-equipped pad (TP100, etc.) is connected, you can adjust the snares setting and tightness, tuning, or
tempo by rotating the pad controller knob of the pad.
Operation (for Special Set users)
In the default setting, you can adjust the snares setting
and tightness using the pad controller of the TP100 (the
snare drum pad). To use functions other than the snares
adjustment, change the setting as follows.
1. Press the [DRUM KIT] button to enter the Drum Kit
Select display.
2. Next, continue pressing the [>] button until Page 22
of the Drum Kit Select pages is called up.
3. Rotate the jog dial to change the value for
“PadCtl=”. You can select from the following func-
tions.
off .......... No function is assigned.
snares .... Adjusting the snares setting and tight-
ness (also affects the open rim sound)
tuning
.... Tuning adjustment (also affects the open
rim sound)
tempo ...... Adjusting the tempo
Operation (Replacing the pad with one equipped
with pad controller)
Here’s how you can use the pad with pad controller
(TP100) as a snare drum.
1. Use the TP100’s supplied cable to connect the TP100
with trigger input 1SNARE on the DTXPRESS IV.
*Use ONLY the TP100’s supplied cable. If another cable is
used, the pad controller or the pad may not perform prop-
erly.
*The other trigger input jacks other than the 1SNARE are
not compatible with pad-controller-equipped pads. The
pad controller will not work if this type of pad is connected
to a trigger input jack other than 1SNARE.
2. Press the [SHIFT] + [DRUM KIT] buttons to view the
Tr igger Setup display.
3. Next, press the [>] button once to view the following
display (pad type).
Hit the snare pad to view “ƒsnare” in the upper half
of the display, then rotate the jog dial to set
“Type=~TP1/Snr.”
4. Now you are ready to use the pad-controller-
equipped pad.
See the section “Operation (for Special Set users)” in
the left column to change the function you want to
use for the pad controller.
KIT1~~~_________
1~:Oak~Custom~~‚
KIT22*
”PadCtl=tuning~‚
An asterisk “*” will appear next to “KIT22”
in the display if the data has been changed.
This asterisk will disappear after the Store
operation (p. 34) is carried out. If a different
drum kit is selected or the power is turned
off before carrying out the Store operation,
the current settings will return to their origi-
nal condition. If you want to keep changes
made to the data, make sure to carry out the
Store operation.
CAUTION
TRG1~~~ååååååååå
4~:STD~Med~~~~~‚
TRG2*~ƒsnare~~0%
”Type=~TP1/Snr~‚
An asterisk “*” will appear next to “TRG2” in
the display if the data has been changed.
This asterisk will disappear after the Store
operation (p. 36) is carried out. If a different
drum kit is selected or the power is turned
off before carrying out the Store operation,
the current settings will return to their origi-
nal condition. If you want to use the selected
pad again, make sure to carry out the Store
operation.
CAUTION

18 DTXPRESS IV Owner’s Manual

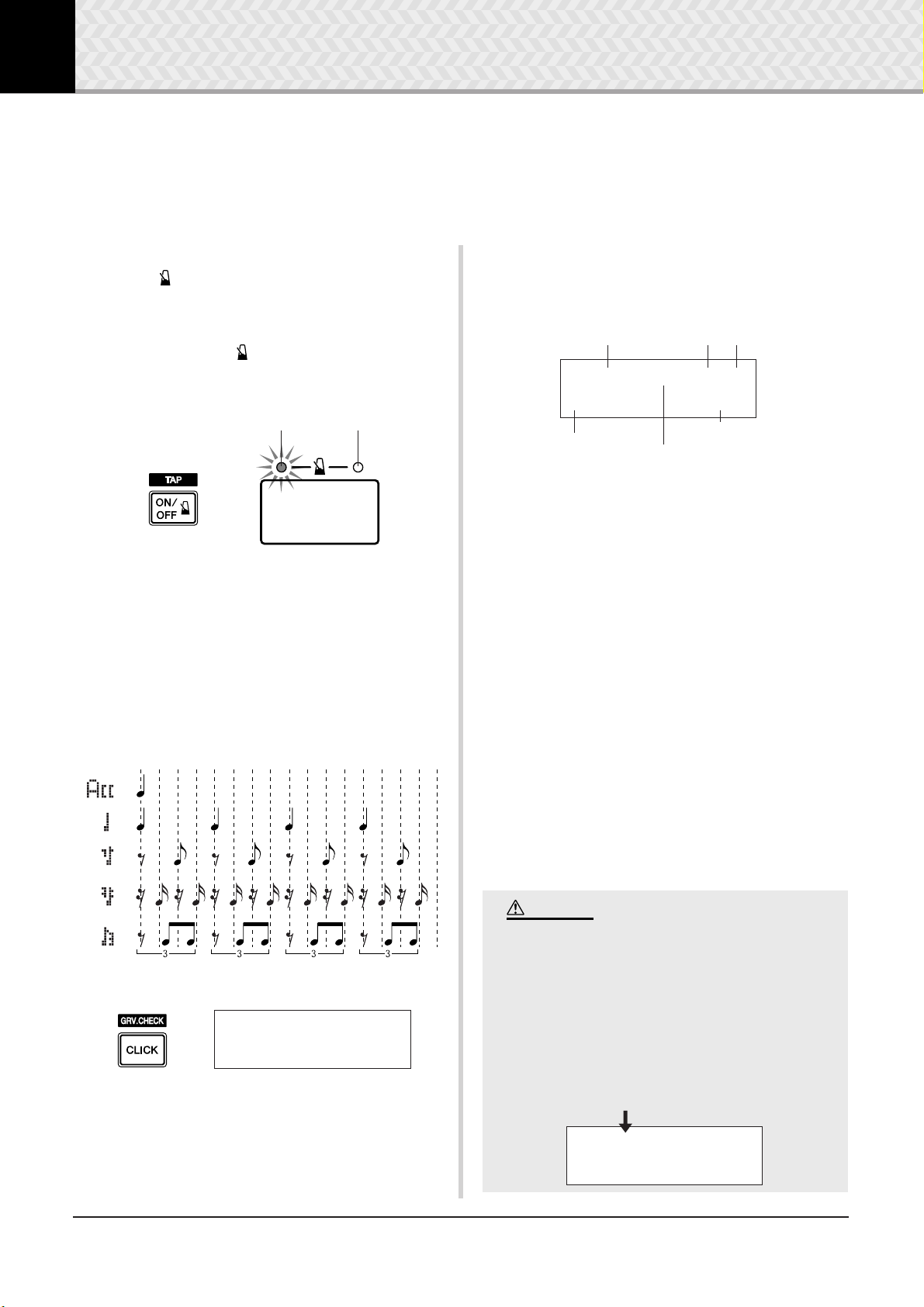

3 Playing Along With the Click
Play the DTXPRESS IV along with the click (metronome).
The DTXPRESS IV is equipped with a high-performance metronome that gives you a compre-
hensive variety of settings and allows you to create complex rhythms.
1
Start the Click (Metronome)
Press the [ ON/OFF] button to start the click sound. The
left lamp lights in red on the first beat of every measure when
the click is playing. Other beats are indicated with the right
lamp in green. The click tempo (q=) is also indicated on the
LED display. Press the [ ON/OFF] button again to stop.
*If tempo is not shown, change the LED display setting (p.
21) to “Disp=tempo.”
2
Set the settings for Click Set,Tempo, Beat,
etc.
By fine tuning the different note value clicks that are shown
in the illustration below, the DTXPRESS IV can be used to
create a variety of click patterns. The patterns you set are
called Click Sets, and you can save up to 30 original patterns
in the DTXPRESS IV’s memory.
Example: Beat timings used when Beat=4
Press the [CLICK] button to view Click Setting Page 1.
Use this display to select the desired Click Set, and then set
the beat, tempo, timer, and the click sound’s overall volume.
Press the [<]/[>] buttons to move the flashing cursor to the
item you want to set, then rotate the jog dial to set its value.
• Click Set Number [Range] 1 to 30
Selects the Click Set to be used.
• Beat [Range] 1 to 9
Determines the click’s time signature.
•Tempo [Range] 30 to 300
Determines the click’s tempo (q=).
* The tempo can also be set using the Tap Tempo Func-
tion. This function lets you set the song or click’s tempo
by tapping in tempo on a pad. With this, you can set the
tempo to one that feels best to you. Refer to page 21 for
more information.
• Click Timer [Range] 0 to 600 seconds (in 30-second
steps)
This function is used to automatically stop the click at the
time set in this setting.
*The value (the remaining number of seconds) of the Click
Timer can be shown in the LED display. Refer to page 21
for more information.
• Click Master Volume [Range] 0 to 16
Determines the click’s overall volume.
* When the flashing cursor is not positioned here, the
speaker icon will be displayed.
123
1st beat (red) Other beats (green)
CLK1~~~~∫~B=4~÷ç
1~:User~~~⁄=123‚
An asterisk “*” will appear next to “CLK1” in the
display if settings for beat and tempo are
changed. This asterisk will disappear after the
Store operation (p. 20) is carried out. If a differ-
ent Click Set is selected, etc., before carrying
out the Store Operation, the current settings will
return to their original condition. If you want to
keep changes made to the data, make sure to
carry out the Store Operation.
Tempo
Click Setting display (page 1)
Click Timer
Click Master Volume
Click Set Number:
Click Set Name
Beat
CLK1~~~~∫~B=4~÷ç
1~:User~~~⁄=123‚
CAUTION
CLK1*~~~∫~B=4~÷ç
1~:User~~~⁄=130‚

3 Playing Along With the Click
19
DTXPRESS IV Owner’s Manual
3
Create Your Own Original Click Set
Press the [>] button to view Click Setting Page 2.
Use this display to set the individual volume levels (0 to 9)
for each of the five click beats. Set the volume level to “0” if
you don’t want the beat to sound. Use this page to create your
own original click set.
*For details about the five click beats, see the illustration
example “Beat timings used when Beat=4” in step 2 on page
18.
4
Set the Click Measure Break
Press the [>] button to view Click Setting Page 3.
The Click Measure Break puts a muted “break” for the num-
ber of measures decided with the “Brk” setting (off, 1 to 9)
after the click has played for the number of measures deter-
mined by the “Meas” setting (1 to 9). When values are set as
above, the click is played for a measure then muted for 3
measures.
* Decide the number of measures to be muted at “Brk=” then
the number of measures to be played at “Meas=.”
* If the setting “Brk=off” is used, the click will not be muted.
5
Set the Click Sound Set
Press the [>] button to view page 4 in the Click Setting dis-
play.
The Click Sound Set is used to assign the five different click
sounds that are produced by the metronome. The sounds are
changed as a group.
[Range] Metronome, Wood Block, Percussion,
Agogo, Stick, Pulse, UserClick
With the “UserClick” setting you can use the CLK5 and
CLK6 pages to fine-tune the click sound settings.
6
Set the User Click Sounds
Press the [>] button to view Click Setting Page 5.
You can assign a different drum voice to each of the five click
voices.
* This setting is only available if “UserClick” is selected in
the CLK4 page.
First, select the click value type (A˘, ⁄, ‹, ßß, Œ) in the
upper half of the display, then move the flashing cursor to the
lower half of the display and select the voice you want to
assign to the click.)
First, select the voice category.
● Voice Category
K: Kick
S: Snare
T: Tom
C: Cymbal
H: Hi-hat
P: Percussion
E: Effect
Next, select the voice number and voice name. If the voice
number is set to “
00 ,” the indication “ NoAssign ” is shown
for the voice name and no sound will be produced.
7
Tuning the User Click Sounds
Press the [>] button to view Click Setting Page 6.
You can individually tune each of the five click sounds.
* This setting is only available if “UserClick” is selected in
the CLK4 page.
First, select the click value type in the upper half of the dis-
play, and then move the flashing cursor to the lower half of
the display and set the tuning value in semitones (-24.0 to 0 to
+ 24.0).
CLK2*~A˘=9~⁄=9
”~‹=6~ßß=4~Œ=2~‚
CLK3*MeasBreak
”Meas=1~Brk=3~~‚
CLK4*Sound
”~1:Metronome~~‚
Voice Category/Voice Number: Voice Name
CLK5*Sound=¤
”E20:Click1~~~~‚
Click Value Type
Click Value Type
Tuning
CLK6*Sound=¤
”~~Tune=+~0.0

3 Playing Along With the Click
20 DTXPRESS IV Owner’s Manual
8
Save an Original Click Set
After creating your own original Click Set, save it in the
DTXPRESS IV’s memory using the Store Operation
described below.
8-1. Press the [SAVE/ENTER] button. The following dis-
play will appear.
8-2. Rotate the jog dial to select the destination memory
number (1 to 30) to which you want to store the Click
Set.
8-3. If you want to change the Click Set name, press the
[<]/[>] buttons to move the flashing cursor to the
character you want to edit, then rotate the jog dial to
select the desired character. A Click Set name can con-
tain a maximum of six characters, and these can be
selected from the following list.
8-4. Press the [SAVE/ENTER] button again. A prompt
appears asking you to confirm the Store operation.
8-5. Press the [SAVE/ENTER] button to actually execute
the Store operation.
*To cancel the Store operation, press any button
except for the [SAVE/ENTER] and [SHIFT] buttons.
(When “Are you sure?” appears in the display, the jog
dial will also cancel the operation.)
The following display appears after the Store opera-
tion is complete.
Any changes made to the data will be lost if
another Click Set is selected before carrying out
the store operation. If you want to keep settings
or changes, make sure to carry out the Store
Operation.
CAUTION
Click Set Name
CLK~save~to~1
:[User~~]
Store Destination
space
!"#$%&'()*+,-./0123456789:;<=>?@
ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^_`
abcdefghijklmnopqrstuvwxyz{|}≥≤
CLK~save~to~1
~Are~you~sure~?
~~~Completed!
Click Out Select
The DTXPRESS IV lets you select from which output jack
the signal of the click (metronome) is sent. Click output
and performance output can be routed to separate out-
puts.
Operation
1. First, press the [SHIFT] + [SAVE/ENTER] buttons to
call up the Utility display.
2. Next, press the [>] button twice to call up the follow-
ing display.
3. Rotate the jog dial to select the output from the out-
puts listed below.
mix This is the standard output setting. The click sig-
nal is output from both the OUTPUT L and R
jacks.
clickL The click signal is output from the OUTPUT L
jack only. All drum performance and song play-
back are output in mono via the OUTPUT R jack.
clickR The click signal is output from the OUTPUT R
jack only. All drum performance and song play-
back are output in mono via the OUTPUT L jack.
* The PHONES jack outputs the same signal as the OUT-
PUT jacks. The settings in this section would then also be
applied to the PHONES jack’s stereo L and R.
•You can use the Factory Set operation to reset the click sets 1
through 30 to their original factory condition. However,
please proceed with caution because carrying out this opera-
tion will rewrite the DTXPRESS IV’s entire contents (all
Click Sets, User Trigger Setups 8–11, User Drum Kits 51–70,
User Songs 64–83, Utility settings) with the data that was set
in the unit’s memory when it was shipped from the factory (p.
35).
NOTE
UTIL1~Hi-hat
HHofs=~~0~T=~~5‚
UTIL2~Click
”OutSel=mix~~~~‚
