Introduction
Congratulations on your purchase of your new Yamaha.
This manual will provide you with a good basic understanding of the operation and main-
tenance of this machine.
If you have any questions regarding the operation or maintenance of your machine,
please consult a Yamaha dealer.
TIP
• Yamaha continually seeks advancements in product design and quality.
Therefore, while this manual contains the most current product information available at
the time of printing, there may be minor discrepancies between your machine and this
manual. If there is any question concerning this manual, please consult a Yamaha
dealer.
• This manual should be considered a permanent part of this machine and should
remain with this machine when resold.
* Product and specifications are subject to change without notice.
PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPER-
ATING THE MACHINE.
WARNING
MX175, MX200, MX250, MX300, MX360, MX400
OWNER’S MANUAL
©2018 by Yamaha Motor Powered
Products Co., Ltd.
1st Edition, May 2018
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Powered
Products Co., Ltd.
is expressly prohibited.
Printed in China
P/N LIT-19626-02-65
7VE-F8199-72-E0.book 1 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

Important manual information
Particularly important information is distinguished in this manual by the following nota-
tions.
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
A WARNING indicates a hazardous situation which, if not avoided, could result in
death or serious injury.
A NOTICE indicates special precautions that must be taken to avoid damage to the
machine or other property.
A TIP provides key information to make procedures easier or clearer.
WARNING
NOTICE
TIP
7VE-F8199-72-E0.book 2 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

Contents
Safety information .................... 1
General safety information .................. 1
Exhaust fumes are poisonous............. 1
Fuel is highly flammable and 
poisonous............................................ 1
Engine and muffler may be hot ........... 2
Electric shock prevention .................... 3
Accidental engine start prevention ...... 4
Rotating parts...................................... 4
Location of important labels ................ 5
Controls and features .............. 9
Description .......................................... 9
General view (MX175/MX200)......... 9
General view (MX250/MX300/
MX360, Manual starting models) ... 10
General view (MX360/MX400, 
Electric starting models) ................ 10
General view (MX360/MX400, 
Electric starting models with 
canister equipped separately)........ 11
Control function ................................. 12
Engine switch................................. 12
Oil warning light (Red) ................... 12
Fuel tank cap ................................. 13
Fuel cock lever............................... 13
Recoil starter.................................. 13
Choke lever.................................... 14
Throttle lever.................................. 14
Before operation..................... 15
Preparation........................................ 15
Fuel................................................ 15
Engine oil ....................................... 17
Connecting the battery
(For electric starting models) ......... 18
Pre-operation check .......................... 18
Pre-operation check....................... 18
Operation................................. 19
Precautions for use ........................... 19
Starting the engine ............................ 19
MX175/MX200 ............................... 19
MX250/MX300/MX360 (Manual
starting).......................................... 20
MX360/MX400 (Electric starting) ... 22
Stopping the engine .......................... 23
MX175/MX200............................... 23
MX250/MX300/MX360/MX400 ...... 24
High altitude operation ...................... 25
Periodic maintenance ............ 26
The importance of maintenance ....... 26
Maintenance schedule ...................... 26
Maintenance chart ......................... 26
Spark plug inspection........................ 28
Carburetor adjustment ...................... 29
Engine oil replacement ..................... 29
Air filter/foam element ....................... 30
Spark arrester ................................... 32
(For MX175/MX200) ...................... 32
(Except for MX175/MX200) ........... 34
Fuel cock........................................... 36
Fuel tank filter ................................... 37
Fuse replacement (For electric 
starting models) ................................ 37
Storage .................................... 39
Drain the fuel..................................... 39
Engine............................................... 41
Troubleshooting ..................... 42
Engine won’t start ............................. 42
Manual starting models ................. 42
Electric starting models (MX360/
MX400) .......................................... 44
Specifications ......................... 48
MX175............................................... 48
MX200............................................... 49
MX250............................................... 50
MX300............................................... 51
MX360............................................... 52
MX400............................................... 53
7VE-F8199-72-E0.book 1 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

Contents
Consumer information............54
Machine identification ........................54
For MX175/MX200 .........................54
Except for MX175/MX200 ..............54
Identification number records ............54
Exhaust emission control
system and components ........56
49states .............................................56
49states and California ......................57
Index.........................................58
7VE-F8199-72-E0.book 2 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

1
Safety information
General safety information
• Do not allow children to operate the multi-purpose
engine.
• Do not place any obstacles on the multi-purpose
engine.
• Do not sit or stand on the multi-purpose engine.
Exhaust fumes are poisonous
• Using a multi-purpose engine indoors CAN KILL
YOU IN MINUTES. Multi-purpose engine exhaust
contains carbon monoxide. This is a poison you can-
not see or smell.
• NEVER use inside a home or garage, EVEN IF
doors and windows are open.
• Only use OUTSIDE and far away from windows,
doors, and vents.
Fuel is highly flammable and poison-
ous
• Always turn off the engine when refuelling.
• Never refuel while smoking or in the vicinity of an
open flame.
7VE-F8199-72-E0.book 1 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

2
Safety information
• Take care not to spill any fuel on the engine or muf-
fler when refueling.
• Do not leave the multi-purpose engine inside the
vehicle or in the trunk.
• If you swallow any fuel, inhale fuel vapor, or allow any
to get in your eye(s), see your doctor immediately. If
any fuel spills on your skin or clothing, immediately
wash with soap and water and change your clothes.
• When refueling, do not place the fuel tank cap near
the muffler.
• When operating or transporting the machine, be sure
it is kept upright. If it tilts, fuel may leak from the car-
buretor or fuel tank.
Engine and muffler may be hot
• Place the machine in a place where pedestrians or
children are not likely to touch the machine.
7VE-F8199-72-E0.book 2 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

3
Safety information
• Avoid placing any flammable materials near the
exhaust outlet during operation.
• In order to prevent overheating, ensure adequate air-
flow by keeping the machine at least 1 m (3 ft) from
objects or other equipment.
• Do not operate the engine with a dust cover or other
objects covering it.
• When covering the multi-purpose engine, be sure to
do so only after the engine and muffler have com-
pletely cooled down.
Electric shock prevention
• Never operate the engine in rain or snow.
7VE-F8199-72-E0.book 3 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

4
Safety information
• Never touch the machine with wet hands or electrical
shock will occur.
Accidental engine start prevention
• To prevent the engine from accidentally starting, be
sure to stop the engine and remove the spark plug
caps before doing any service.
Rotating parts
• Keep hands, feet, hair and clothing away from the
rotating parts.
• Never operate the multi-purpose engine without
shroud, covers or guards.
7VE-F8199-72-E0.book 4 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

5
Safety information

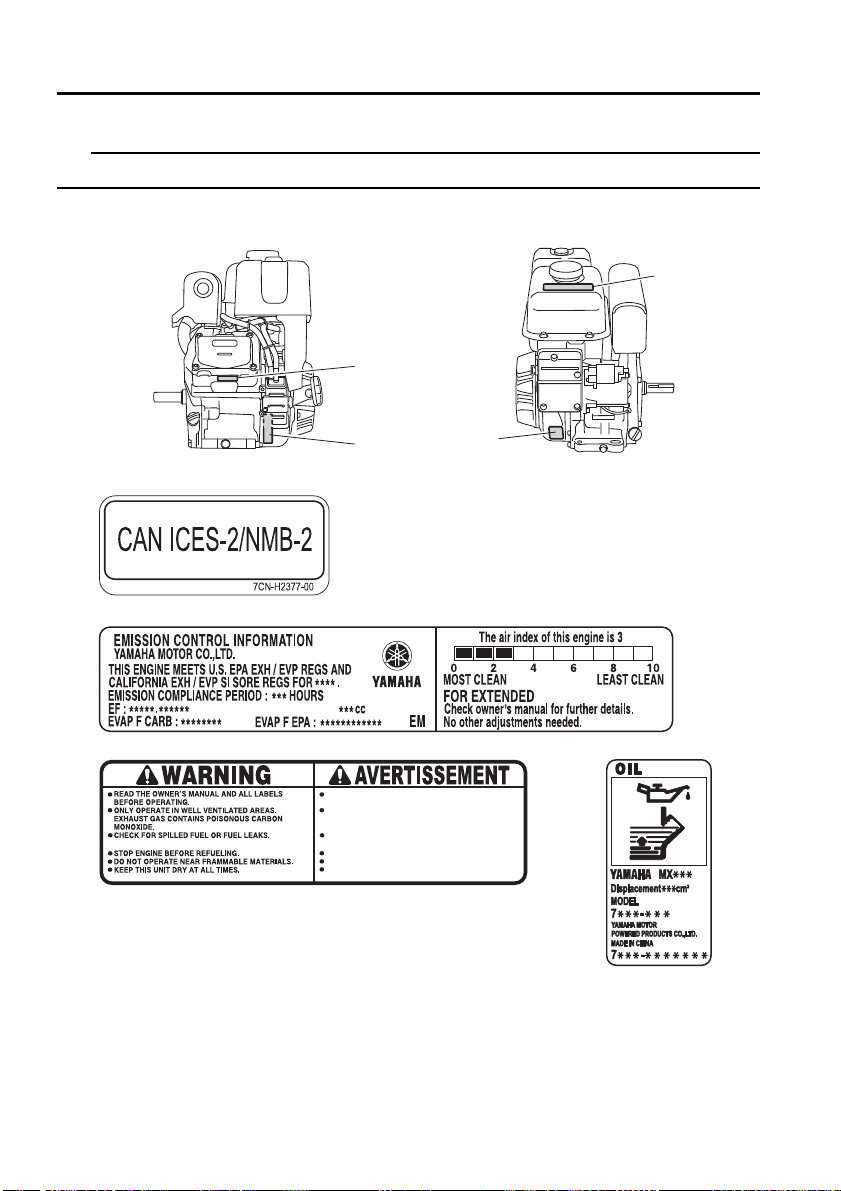

Location of important labels

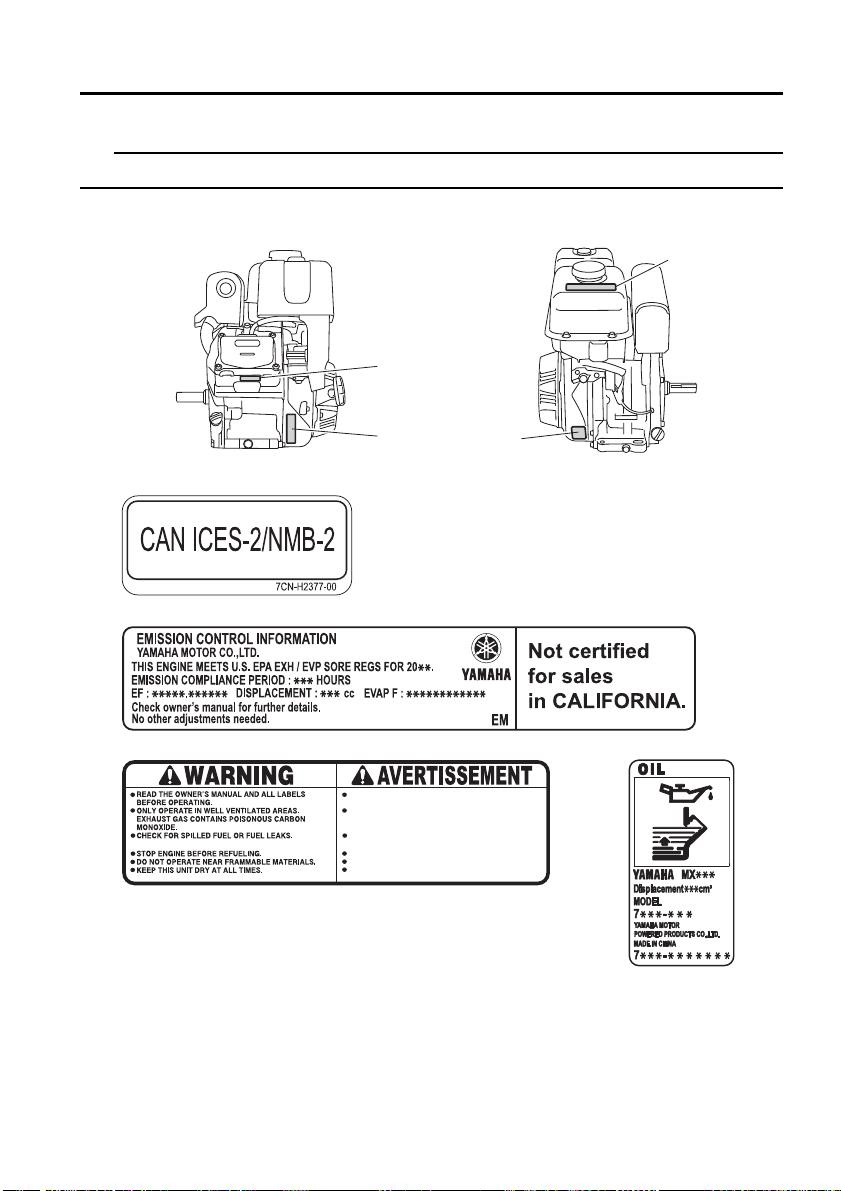

Please read the following labels carefully before operating this machine.
TIP
Maintain or replace safety and instruction labels, as necessary.
MX175/MX200
14
3
2
LISEZ LE MANUEL DU PROPRIÉTAIRE ET TOUTES LES
ÉTIQUETTES AVANT L'UTILISATION.
NE FAITES FONCTIONNER QUE DANS DES LIEUX BIEN AÉRÉS.
LES GAZ D'ÉCHAPPEMENT CONTIENNENT DU MONOXYDE DE
CARBONE NOCIF.
VÉRIFIEZ QU'IL N'Y A PAS DE FUITES DE CARBURANT OU DE
CARBURANT RENVERSÉ.
ARRÊTEZ LE MOTEUR AVANT DE FAIRE LE PLEIN.
NE PAS UTILISER PRÈS DE MATÉRIAUX INFLAMMABLES.
GARDEZ L'APPAREIL AU SEC ENTOUTES CIRCONSTANCES.
7CN-F4162-60
1
3
2
4
7VE-F8199-72-E0.book 5 ページ ２０１８年６月２０日 水曜日 午後４時１４分
Downloaded from ManualsNet.com search engine

6
Safety information
Please read the following labels carefully before operating this machine.
TIP
Maintain or replace safety and instruction labels, as necessary.
MX250/MX300
1
3
2
1
23
7VE-F8199-72-E0.book 6 ページ ２０１８年６月２０日 水曜日 午後４時１４分
Downloaded from ManualsNet.com search engine

7
Safety information
Please read the following labels carefully before operating this machine.
TIP
Maintain or replace safety and instruction labels, as necessary.
MX360/MX400
1
24
3
LISEZ LE MANUEL DU PROPRIÉTAIRE ET TOUTES LES
ÉTIQUETTES AVANT L'UTILISATION.
NE FAITES FONCTIONNER QUE DANS DES LIEUX BIEN AÉRÉS.
LES GAZ D'ÉCHAPPEMENT CONTIENNENT DU MONOXYDE DE
CARBONE NOCIF.
VÉRIFIEZ QU'IL N'Y A PAS DE FUITES DE CARBURANT OU DE
CARBURANT RENVERSÉ.
ARRÊTEZ LE MOTEUR AVANT DE FAIRE LE PLEIN.
NE PAS UTILISER PRÈS DE MATÉRIAUX INFLAMMABLES.
GARDEZ L'APPAREIL AU SEC ENTOUTES CIRCONSTANCES.
7CN-F4162-60
1
2
34
7VE-F8199-72-E0.book 7 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

8
Safety information
Please read the following labels carefully before operating this machine.
TIP
Maintain or replace safety and instruction labels, as necessary.
MX360/MX400 (For canister equipped separately)
1
24
3
LISEZ LE MANUEL DU PROPRIÉTAIRE ET TOUTES LES
ÉTIQUETTES AVANT L'UTILISATION.
NE FAITES FONCTIONNER QUE DANS DES LIEUX BIEN AÉRÉS.
LES GAZ D'ÉCHAPPEMENT CONTIENNENT DU MONOXYDE DE
CARBONE NOCIF.
VÉRIFIEZ QU'IL N'Y A PAS DE FUITES DE CARBURANT OU DE
CARBURANT RENVERSÉ.
ARRÊTEZ LE MOTEUR AVANT DE FAIRE LE PLEIN.
NE PAS UTILISER PRÈS DE MATÉRIAUX INFLAMMABLES.
GARDEZ L'APPAREIL AU SEC ENTOUTES CIRCONSTANCES.
7CN-F4162-60
DISPLACEMENT :
1
34
2
7VE-F8199-72-E0.book 8 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

9
Controls and features
Description
General view (MX175/MX200)
1 Fuel tank cap 8 Fuel tank
2 Air filter case cover 9 Throttle lever
3 Spark plug 10 Recoil starter handle
4 Carburetor 11 Fuel cock lever
5 Oil drain bolt 12 Engine switch
6 Oil filler cap 13 Choke lever
7 Muffler 14 Fuel tank filter
8
7
6
5
4
3
2
1
14
13
12
11
9
10
7VE-F8199-72-E0.book 9 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

10
Controls and features
General view (MX250/MX300/MX360, Manual starting models)
General view (MX360/MX400, Electric starting models)
1 Fuel tank cap 9 Oil warning light (Red)
2 Air filter case cover 10 Engine switch
3 Carburetor 11 Recoil starter handle
4 Oil drain bolt 12 Throttle lever
5 Oil filler cap 13 Fuel cock cup
6 Spark plug 14 Fuel cock lever
7 Muffler 15 Choke lever
8 Fuel tank 16 Fuel tank filter
1 Fuel tank cap 9 Oil warning light (Red)
2 Air filter case cover 10 Engine switch
3 Carburetor 11 Recoil starter handle
4 Oil drain bolt 12 Throttle lever
5 Oil filler cap 13 Fuel cock cup
6 Spark plug 14 Fuel cock lever
7 Muffler 15 Choke lever
8 Fuel tank 16 Fuel tank filter
8
7
6
54
3
2
116
15
14
13
12
11
9
10
8
7
6
54
3
2
116
15
14
13
12
11
9
10
7VE-F8199-72-E0.book 10 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

11
Controls and features
General view (MX360/MX400, Electric starting models with canister
equipped separately)
1 Fuel tank cap 10 Oil warning light (Red)
2 Air filter case cover 11 Engine switch
3 Carburetor 12 Recoil starter handle
4 Canister assembly 13 Throttle lever
5 Oil drain bolt 14 Fuel cock cup
6 Oil filler cap 15 Fuel cock lever
7 Spark plug 16 Choke lever
8 Muffler 17 Fuel tank filter
9 Fuel tank
9
8
7
65
3
2
117
16
15
14
13
12
10
11
4
7VE-F8199-72-E0.book 11 ページ ２０１８年６月２０日 水曜日 午後４時１４分
Downloaded from ManualsNet.com search engine

12
Controls and features

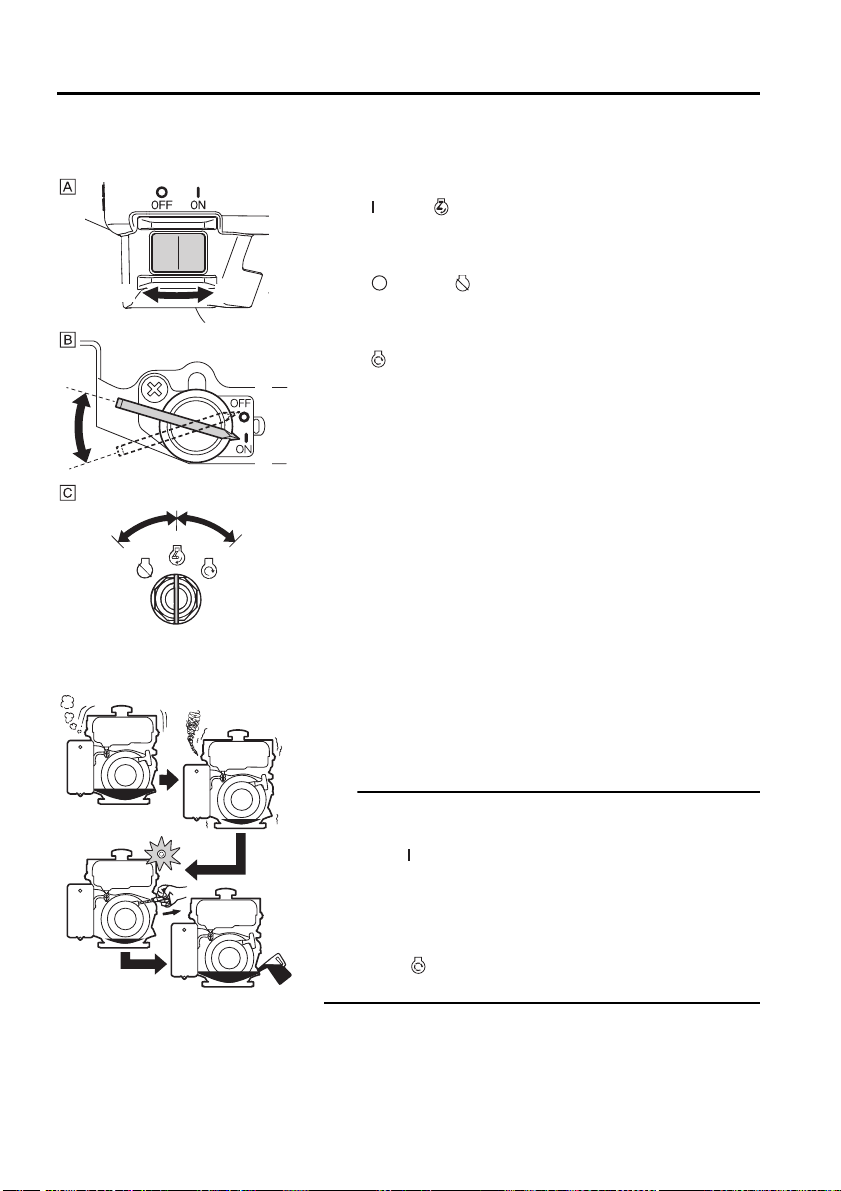

Control function
Engine switch
The engine switch controls the ignition system.
Ignition circuit is switched on.
The engine can be started.
Ignition circuit is switched off.
The engine will not run.
Starting circuit is switched on.
The starter motor starts and the engine can be started.
After starting the engine, take your hand off the switch
immediately.
Oil warning light (Red)
When the oil level falls below the lower level, the oil
warning light comes on and then the engine stops
automatically. Unless you refill with oil, the engine will
not start again.
TIP
(Manual starting models)
If the engine stalls or does not start, turn the engine
switch to “ ” (ON) and then pull the recoil starter. If the
oil warning light flickers for a few seconds, the engine
oil is insufficient. Add oil and restart.
(Electric starting models)
If the engine stalls or does not start, turn the engine
switch to “ ” (START). If the oil warning light comes
on, the engine oil is insufficient. Add oil and restart.
12
2
1
1
23
1. “ ” (ON)/“ ” (ON)
2. “ ” (OFF)/“ ” (STOP)
3. “”(START)
AManual starting models (MX175/MX200)
BManual starting models (MX250/MX300/MX360)
CElectric starting models (MX360/MX400)
7VE-F8199-72-E0.book 12 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

13
Controls and features
Fuel tank cap
Remove the fuel tank cap by turning it counterclock-
wise.
Fuel cock lever
The fuel cock supplies fuel from the fuel tank to the car-
buretor.
The fuel cock has two positions.
With the lever in this position, fuel flows to the carbure-
tor. Normal using is done with the lever in this position.
With the lever in this position, fuel will not flow. Always
turn the lever to this position when the engine is not
running.
Recoil starter
The recoil starter is used to start the engine.
Pull the recoil starter slowly until it is engaged, then pull
it briskly.
TIP
Pull the recoil starter handle after turning the engine
switch to “ ” (ON)/“ ” (ON).
12
1
22
1. OPEN/ON
2. OFF
AMX175/MX200
BMX250/MX300/MX360/MX400
1
1. Recoil starter handle
• Pull the recoil starter handle straight.
• Return the recoil starter handle slowly.
• Do not touch the recoil starter handle while the
multi-purpose engine is operating.
NOTICE
7VE-F8199-72-E0.book 13 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine

14
Controls and features
Choke lever
Starting a cold engine requires a richer air-fuel mixture,
which is supplied by the choke lever.
TIP
Functions and specification differs depending on the
models.
Throttle lever
Throttle lever controls the engine speed.
Lever position to idle the engine.
Decrease engine speed.
Increase engine speed.
1
701-033
1
1. Choke lever
AMX175/MX200
BMX250/MX300/MX360/MX400
12
12
1. “”
2. “”
AMX175/MX200
BMX250/MX300/MX360/MX400
7VE-F8199-72-E0.book 14 ページ ２０１８年６月１３日 水曜日 午後３時１５分
Downloaded from ManualsNet.com search engine
