Yamaha DVD-C950 User manual
SERVICE MANUAL
100937
SERVICE MANUAL
REPAIR NOTES............................................................ 8
DISASSEMBLY PROCEDURES ............................9–10
BLOCK DIAGRAM......................................................11
WIRING DIAGRAM.....................................................12
PRINTED CIRCUIT BOARD ................................13–24
SCHEMATIC DIAGRAM.......................................25–41
EXPLODED VIEW.......................................................42
MECHANICAL PARTS ...............................................43
■ CONTENTS
TO SERVICE PERSONNEL.....................................2–3
PREVENTION OF ELECTROSTATIC DISCHARGE .....
4
LOCALE MANAGEMENT INFORMATION .................4
FRONT PANEL .............................................................5
REMOTE CONTROL PANEL.......................................5
REAR PANEL ............................................................... 6
SPECIFICATIONS.....................................................6–7
DIMENSIONS ................................................................7
INTERNAL VIEW ..........................................................8
DVD-AUDIO/VIDEO SA-CD PLAYER
DVD-C950
DVD-C950
This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.
It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already
known and understood by the users, and have therefore not been restated.
WARNING: Failure to follow appropriate service and safety procedures when servicing this product may result in personal
injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons,
we advise all YAMAHA product owners that any service required should be performed by an authorized YAMAHA
Retailer or the appointed service representative.
IMPORTANT: The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or
recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.
The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service
departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and
specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the
distributor's Service Division.
WARNING: Static discharges can destroy expensive components. Discharge any static electricity your body may have
accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).
IMPORTANT: Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.
IMPORTANT NOTICE
’05.03
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
2
DVD-C950
■TO SERVICE PERSONNEL
1. Critical Components Information
Components having special characteristics are marked Z
and must be replaced with parts having specifications equal
to those originally installed.
2. Leakage Current Measurement (For 120V Models Only)
When service has been completed, it is imperative to verify
that all exposed conductive surfaces are properly insulated
from supply circuits.
●Meter impedance should be equivalent to 1500 ohms
shunted by 0.15µF.
●Leakage current must not exceed 0.5mA.
●Be sure to test for leakage with the AC plug in both
polarities.

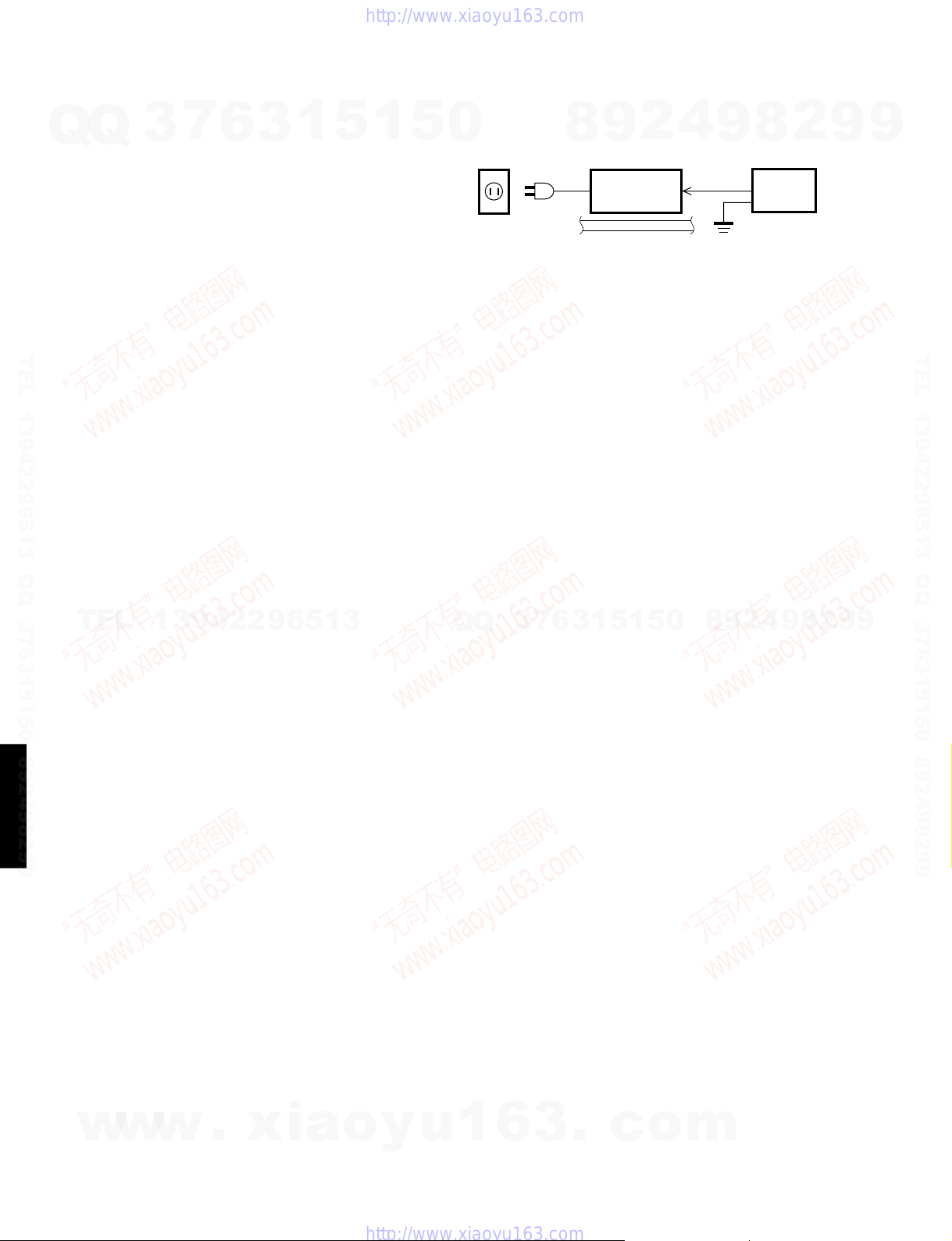

AC LEAKAGE
TESTER OR
EQUIVALENT
EQUIPMENT
UNDER TEST
INSULATING
TABLE
WALL
OUTLET
WARNING: Laser Safety
This product contains a laser beam component. This component may emit invisible, as well as visible radiation,
which may cause eye damage. To protect your eyes and skin from laser radiation, the following precautions must
be used during servicing of the unit.
1) When testing and/or repairing any component within the product, keep your eyes and skin more than 30 cm away from
the laser pick-up unit at all times. Do not stare at the laser beam at any time.
2) Do not attempt to readjust, disassemble or repair the laser pick-up, unless noted elsewhere in this manual.
3) CAUTION : Use of controls, adjustments or performance of procedures other than those specified herein may result in
hazardous radiation exposure.
WARNING: CHEMICAL CONTENT NOTICE!
The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or
plastic (where applicable) components may also contain traces of chemicals found by the California Health and
Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR
ANY REASON WHATSOEVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes
or expose eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product, wash your hands
before handling food.
Laser Emitting conditions:
1) When the Top Cover is removed, and the STANDBY/ON SW is turned to the "ON" position, the laser component will
emit a beam for several seconds to detect if a disc is present. During this time (5-10 sec.) the laser may radiate through
the lens of the laser pick-up unit. Do not attempt any servicing during this period!
If no disc is detected, the laser will stop emitting the beam. When a disc is loaded, you will not be exposed to any laser
emissions.
2) The laser power level can be adjusted with the VR on the pick-up PWB, however, this level has been set by the factory
prior to shipping from the factory. Do not adjust this laser level control unless instruction is provided elsewhere in this
manual. Adjustment of this control can increase the laser emission level from the device.
THE DVD AUDIO/VIDEO PLAYER SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT PROPERLY QUALIFIED
SERVICE PERSONNEL.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
3
DPX-1200
DVD-C950
Laser Diode Properties
Type: Semiconductor laser GaAlAs
Wave length: 650 nm (DVD)
780 nm (VCD/CD)
Output Power: 7 mW (DVD/VCD/CD)
Beam divergence: 60 degree
VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE
LASER-SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.
VARNING! : OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN.
WARNING
The use of optical instruments with this product will increase eye hazard.
Repair handling should take place as much as possible with a disc loaded inside the player.
CLASS1L ASERPRODUCT
LASERK LASSE1 PRODUKT
LUOKAN 1 LASERLAITE
KLASS1 LASERAPPARAT
PRODUIT LASERD ECLASSE1
CAUTION
VISIBLE AND INVISIBLE LASER RADIATION WHEN
OPEN. AVOID EXPOSURE TO BEAM
ADVARSEL
SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING
UNDGÅ UDSÆTTELSE FOR STRÅLING
ADVARSEL
SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL
ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING
SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR
DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO !
AVATTAESSA OLETALTTIINA NÄKYVÄLLE JA
NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE, ÄLÄ KATSO SÄTEESEEN
VORSICHT
SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG
WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER
VISIBLE AND INVISIBLE LASER RADIATION WHEN
OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION
RAYONNEMENT LASERVISIBLE ET INVISIBLE EN
CAS D'OUVERTURE EXPOSITION DANGEREUSEAU FAISCEAU
CLASS 1 LASER PRODUCT
LASER KLASSE 1 PRODUKT
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
PRODUIT LASER DE CLASSE 1
Warning for power supply
The primary side of the power supply carries live mains voltage when the player is connected to the mains
even when the player is switched off !
This primary area is not shielded so it is possible to touch copper tracks and/or components when servicing the player.
Service personnel have to take precautions to prevent touching this area or components in this area.
Note:
The screws on the DVD mechanism may never be touched, removed or re-adjusted.
Handle the DVD mechanism with care when the unit has to be exchanged!
The DVD mechanism is very sensitive for dropping or giving shocks.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
4
DVD-C950
■PREVENTION OF ELECTROSTATIC DISCHARGE
■LOCALE MANAGEMENT INFORMATION
Locale Management Information : This DVD player is designed and manufactured to respond to the Locale
Management Information that is recorded on a DVD disc. If the Locale number described on the DVD disc does not
correspond to the Locale number of this DVD player, this DVD player cannot play this disc.
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended
for home and other limited viewing uses
only unless otherwise authorized by
Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
q
w
r
w
t
t
r
w
y
e
t
The laser diode in the traverse unit (optical pickup) may be damaged due to static electricity from clothes or the human
body. Use caution to prevent electrostatic damage when servicing or handling the laser diode.

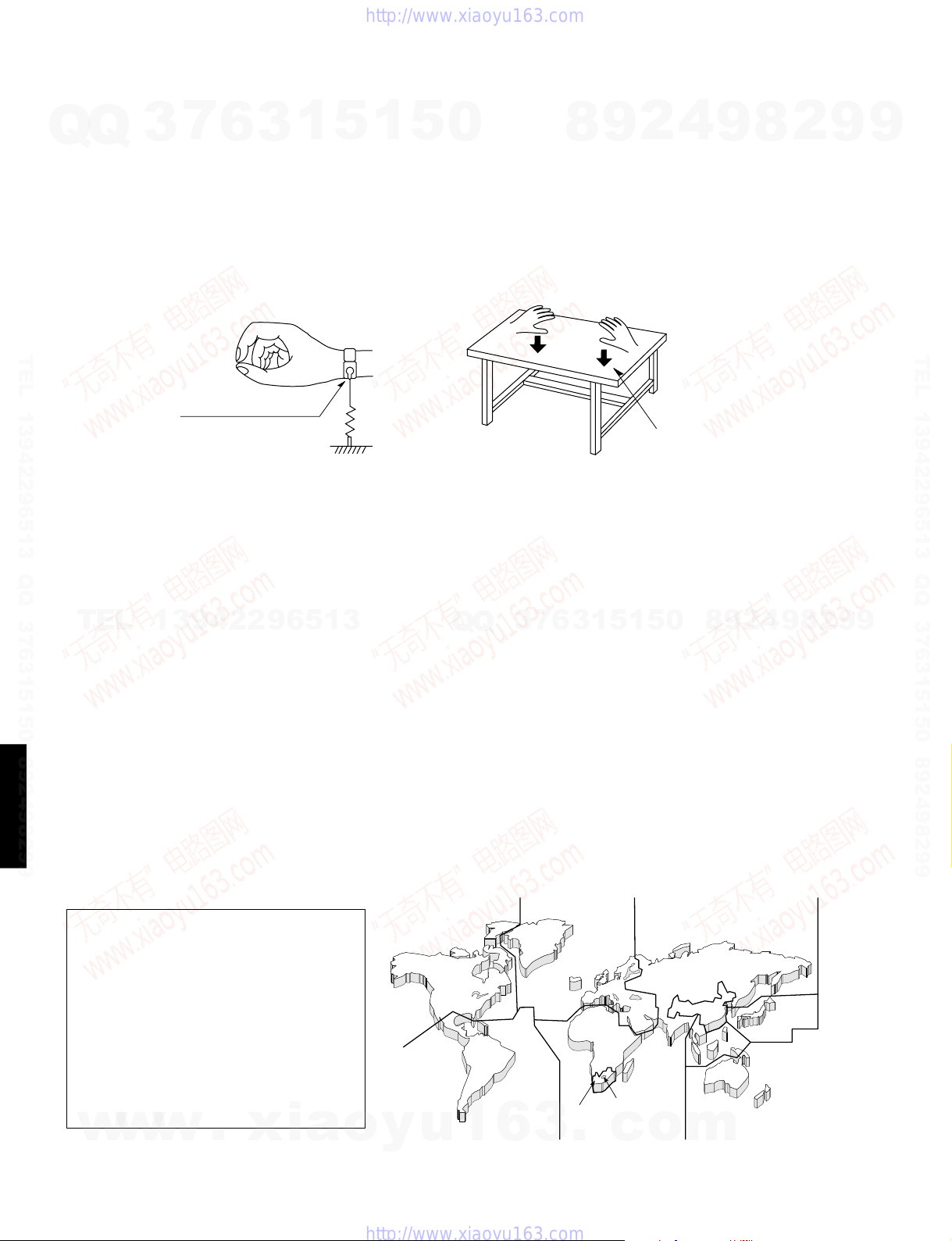

1. Grounding for electrostatic damage prevention
1. Worktable grounding
Put a grounded conductive material (sheet) or iron sheet on the area where the optical pickup is placed.
2. Human body grounding
Use an anti-static wrist strap to discharge the static electricity from your body.
2. Handling of the optical pickup
1. To prevent damage to the optical pickup replacement parts during transportation and before installation, both ends
of the laser diode are short-circuited. After installing the new part, remove the short circuit according to the correct
procedure in this service manual.
2. Do not use a tester to check the laser diode in the optical pickup. The power supply in the tester will damage the
laser diode.
3. Handling Precautions for the Traverse Unit (Optical Pickup)
1. Handle the traverse unit (optical pickup) gently, as it is an extremely high-precision assembly.
2. The flexible cable lines may break if an excessive force is applied to it. Use caution when handling the cable.
3. The semi-fixed resistor for laser power adjustment should not be adjusted. Do not turn the resistor.
1MΩ
Conductive material
(sheet) or steel sheet
Anti-static wrist strap
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
6
DVD-C950
PLAYBACK SYSTEM
DVD-Video
DVD-Audio
SA-CD multichannel and SA-CD stereo
Video CD and SVCD
CD
PICTURE CD
CD-R, CD-RW
DVD+R, DVD+RW
DVD-R, DVD-RW
VIDEO PERFORMANCE
Video (CVBS) Output 1 Vpp into 75 ohms
S-Video Output Y: 1 Vpp into 75 ohms
C: 0.3 Vpp into 75 ohms
Component Video Output Y: 1 Vpp into 75 ohms
Pb/Cb Pr/Cr: 0.7 Vpp into 75 ohms
Black Level Shift On/Off
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525
Playback Multistandard (PAL/NTSC)
AUDIO FORMAT
Digital Mpeg/Dolby Digital/ Compressed Digital
DTS
PCM 16, 20, 24 bits
fs, 44.1, 48, 96 kHz
MP3 (ISO 9660)
24, 32, 56, 64, 96, 128, 256 kbps
fs 16, 22.05, 24, 32, 44.1, 48kHz
WMA 32–192 kbps, mono, stereo
Full decoding of Dolby Digital and DTS multi-channel sound
Analog Sound Stereo
Dolby Surround compatible downmix from Dolby Digital
multi-channel sound
Dolby Pro Logic II
3D sound for virtual 5.1 channel sound on 2 speakers
■SPECIFICATIONS
■REAR PANEL
▼DVD-C950 U model
AUDIO PERFORMANCE
DA Converter 24 bits, 192kHz
Signal-Noise (1kHz) 105 dB
Dynamic Range (1kHz) 95 dB
DVD fs 96 kHz 2 Hz - 44 kHz
fs 48 kHz 2 Hz - 22 kHz
SVCD fs 48 kHz 2 Hz - 22 kHz
fs 44.1 kHz 2 Hz - 20 kHz
CD/VCD fs 44.1 kHz 2 Hz - 20 kHz
Distortion and Noise (1kHz) 0.0035%
CONNECTIONS
Y Output Cinch (green)
Pb/Cb Output Cinch (blue)
Pr/Cr Output Cinch (red)
S-Video Output Mini DIN, 4 pins
Video Output Cinch
Audio Output (L+R) Cinch
Digital Output 1 coaxial, 1 optical
IEC60958 for CDDA / LPCM
IEC61937 for MPEG1/2, Dolby
Digital and DTS
6 Channel Analog Output
Audio Front L/R Cinch (white/red)
Audio Surround L/R Cinch (white/red)
Audio Center Cinch (blue)
Audio Subwoofer Cinch (black)
HDMI Output TYPE A x 1
GENERAL
Dimensions (w x h x d) 435 x 75 x 425 mm
(17-1/8" x 3" x 16-3/4")
Weight Approx. 5.5 Kg (12 lbs 2 oz)
Finish Black Color
POWER SUPPLY
Power inlet U model 120V, 60Hz
Power usage Approx. 20W
Power usage standby < 1W
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
7
DPX-1200
DVD-C950
ACCESSORIES Remote Control x1
Batteries x2
Audio/Video Cable x1
* Typical playing time for movie with 2 spoken languages
and 3 subtitle languages
* Specifications subject to change without prior notice.
U ......... USA model
Manufacturedunderlicensefrom
Dolby Laboratories. “Dolby”,
“Pro Logic” and the double-D
symbol are trademarks of Dolby
Laboratories.
“
DTS” and “DTS Digital
Surround” are registered
trademarks of Digital Theater
Systems, Inc.
“DivX”, “DivX Certified”, and
associated logos are trademarks
of DivXNetworks, Inc and are
used under license.
“DCDi” is a trademark of
Faroudja, a division of Genesis
Microchip, Inc.
HDMI,theHDMI logo and High
Definition Multimedia Interface
are trademarks or registered
trademark of HDMI Licensing
LLC.
Unit : mm (inch)
75
(3") 425 (16-3/4")
435 (17-1/8")
■DIMENSIONS
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
8
DVD-C950
■REPAIR NOTES
1. DVD 5-Disc Changer Module
The DVD 5-Disc Changer Module consists of the CM
Unit and Tray Ass'y. The DVD 5-Disc Changrer
Module is supplied as a whole. Neither the CM Unit
nor Tray Ass'y can be supplied independently.
2. Power Supply Unit
The power supply unit has to be replaced in case of
failure.
3. PCB Assembly
When a failure has occurred in the PCB assembly, re-
place each P.C.B.
■INTERNAL VIEW
qPOWER SUPPLY UNIT
wRS232C P.C.B.
eDVD 5-DISC CHANGER MODULE
rAV (2) P.C.B.
tPSCAN P.C.B.
yAV (1) P.C.B.
uMONO P.C.B.
iBRACKET FRONT
oFRONT (2) STANDBY/ON P.C.B.
!0 FRONT (1) DISPLAY P.C.B.
!1 FRONT (3) OPEN/CLOSE P.C.B.
qewry
i
t
u
o!0 !1
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
9
■DISASSEMBLY PROCEDURES
See exploded view for item numbers
Mounting
Dismounting
Front (3) Open/Close Board [1200]
➔Remove cable connections.
[1101]
➔Remove 5 screws. [252]
➔Dismount board.
Front (2) Standby/ON Board [1200]
➔Remove cable connections.
[1100]
➔Remove 3 screws. [252]
➔Release 2 catches.
➔Dismount board.
FrontPanel [101]
➔Remove 2 cable connections.
[1105][1109]
Remove 2 screws. [260]
(Bracket Front to bottom frame)
➔
Unlock Front panel from frame by
releasing successively 4 snaps.
(2 on the side and 2 on the bottom)
➔
➔Remove 2 screws. [300] (Fig. 1)
Dismount Clamper Ass'y. (Fig. 1)
➔
Solder the lands of the Optical Pick Up.
(Fig. 2)
➔
Top Cover [240]
➔Remove 7 screws. [260]
(4 on side and 3 rear side)
➔Lift top cover from rear side
to remove.
Mono Board [1300]
➔Open Tray.
➔Remove 8 cable connections.
[1101][1102][1104][1105]
[1301][1303][1304][1305]
➔Remove 4 screws. [260]
(Board to bottom frame)
➔Dismount Mono Board.
AV (1) Board [1500]
➔Open Tray.
➔Remove 11 cable connections.
[1100][1101][1102][1103]
[1109][1200][1300][1310]
[1400][1401][1460]
➔Remove 1 screw. [252]
(Board to Rear Panel)
➔Remove 1 screw. [260]
(Board to side frame)
➔Dismount AV (1) Board.
Power Supply Unit [1000]
➔Open Tray.
➔Remove 2 cable connections.
[W101][W102]
➔Remove 2 screws. [260]
(Board to bottom frame)
➔Release 2 spacers locking.
(Board to bottom frame)
➔Dismount Power Supply Unit.
AV (2) Board [1500]
➔Open Tray.
➔Remove 2 cable connections.
[1300][1310]
➔Remove 4 screws. [252]
(Board to Rear Panel)
➔Dismount AV (2) Board.
Bracket Front
➔Remove 4 screws. [252]
(Bracket Front to Front Panel)
Remove Bracket Front.
➔
Front (1) Display Board [1200]
➔Remove 2 screws. [251]
➔Dismount board.
Tray
DVD 5-Disc Changer Module
Ass’y
➔
Remove stopper screw [300]
on the Tray.
(See Removal of Tray Ass'y)
➔Open Tray.
(See HOW TO MANUALLY
EJECT THE TRAY)
(See HOW TO MANUALLY
EJECT THE TRAY)
(See HOW TO MANUALLY
EJECT THE TRAY) (See HOW TO MANUALLY
EJECT THE TRAY)
(See HOW TO MANUALLY
EJECT THE TRAY)
PSCAN Board [1800]
➔Open Tray.
➔Remove 3 cable connections.
[1000][1302][1402]
➔Remove 1 screw [252] and
1 screw [260].
(Board to Rear Panel)
➔Remove 2 screws [260].
(Board to bottom frame)
➔Dismount PSCAN Board.
(See HOW TO MANUALLY
EJECT THE TRAY)
RS232C Board [1700]
➔Open Tray.
➔Remove cable connections.
[CB1]
➔Remove 1 screw [252] and
2 jack screws.
(Board to Rear Panel)
➔Dismount RS232C Board.
(See HOW TO MANUALLY
EJECT THE TRAY)
➔Gently pull the tray out.
CM Unit
➔
Remove 4 cable connections.
[1101][1102][1305][1460]
➔Remove 5 screws. [260]
➔Dismount CM unit.
1.7 mm
T6
2.7 mm
T10
When disassembling, use the special screw driver with tip shape in figure.
W101 CB1
130211011305
1402
1200
1101
1102
1310
1300
1103
1400
1105
1100
1401
1109 1460
1000
1304
1301
1104
11101200 1300
1112 1101
1100
15001102 1503
W102 View A
View B
A
B
1303
●Cable Connctions
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
10
Fig. 4
Fig. 5
●Precaution for installation of the Tray Ass'y.
On Tray Ass'y setting.
Check the Direction of marking “▲” on gear
according to this drawing.
Gear/L0
Front Panel
Gear/L01 Marking

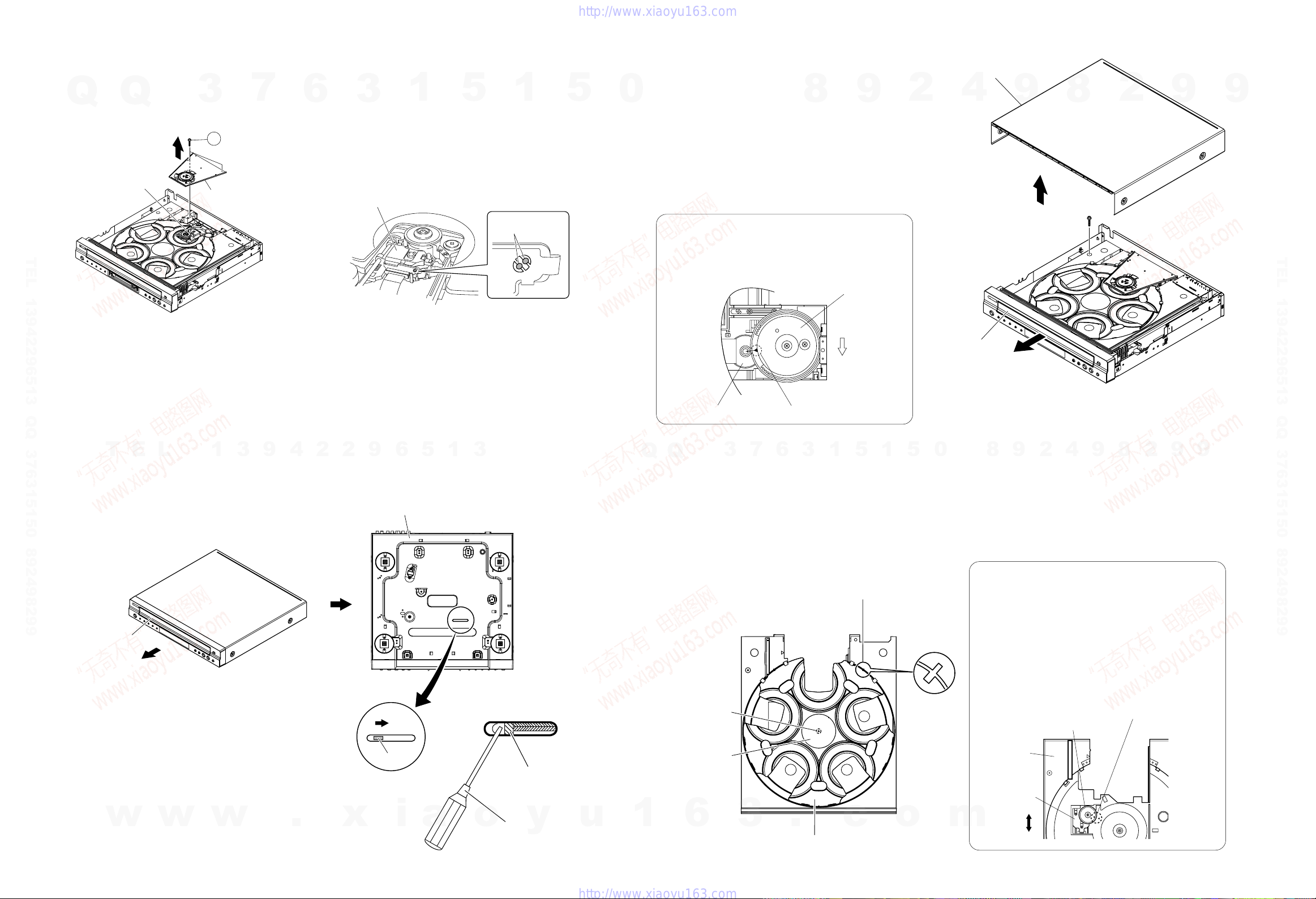

1. Removal of Tray Ass'y
* The Tray Ass’y cannot be supplied independently. The
Tray Ass’y is contained in DVD 5-Disc Changer Module
and supplied as a DVD 5-Disc Changer Module.
a. Remove the Top Cover.
b. Open Tray (see HOW TO MANUALLY EJECT THE
TRAY).
c. Remove 1 screw ( q ).
d. Remove the Tray Ass'y.
Fig. 3
2. Removal of Table
* The Table cannot be supplied independently. The Table
is contained in DVD 5-Disc Changer Module and
supplied as a DVD 5-Disc Changer Module.
a. Remove the Plate/Table in Fig. 6.
b. Remove 1 screw ( w ) and then take off the Table in
Fig. 6. IMPORTANT: Installation of Table.
Install the table according to the following procedure.
1) Slide the Lever so that the Gear/RT becomes
free. (Fig.7)
2) With the “▲” mark on the Gear/RT aligned
with the same mark on the Tray, lock it with
the Lever. (Fig.7)
3) Install the Table by aligning it to the thick line
on “ /” mark. (Fig.6)
*Check that the Table is locked after installation.
Lever
Tray
Gear/RT1 Fit the Gear/RT to “▲” mark.
Fig. 7
Fig. 6
Lock
Unlock
●HOW TO MANUALLY EJECTTHETRAY
a. Turn the player bottom up.
b. Move the slider in the direction indicated with a screw
driver until the tray is ejected.
c. Gently pull the tray out.
Tray
Bottom Frame Rear
Front
Slider
b.
a.
c.
Screw Driver
Slider
b. d.
Top Cover
Tray Ass'y
a.
q
Table
Plate/ Table
Fit the table to the thick line on " / " mark.
w
Clamper Ass'y
Traverse Unit
300
Opticai Pick Up
●Preventive measure for laser diode from electrostatic breakdown
When replacing the Mono Board or DVD 5-Disc Changer Module, solder between lands of the Optical Pick Up
P.C.B. to protect the laser diode against electrostatic breakdown.
Fig. 1 Fig. 2
Notes
•Use an anti-static soldering iron to short-circuit and unshort-
circuit laser diode.
•After you have finished repairing, remove the solder from the
short-circuit location.
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
12345678
A
B
C
D
E
F
DVD-C950
11
■BLOCK DIAGRAM
ANAL FILTER
VOLUME CONTROL
MIXER
VOLUME CONTROL
DAC ANAL FILTER
DAC ANAL FILTER
VOLUME CONTROL
MIXER
INTERPOL FILTER
INTERPOL FILTER DAC
INTERPOL FILTER
MUTE
GND
CONTROL
VOLUME CONTROL
DAC ANAL FILTER
DAC ANAL FILTER
VOLUME CONTROL
MIXER
VOLUME CONTROL
DAC ANAL FILTER
SERIAL PORT
:2
1
CONTROL PORT/
MODE SELECT
INTERPOL FILTER
INTERPOL FILTER
INTERPOL FILTER
INTERFACE
CONTROL
DATAAUDIO
INTERPOLATOR
8 x
uP
INTERFACE
8 x MOD SCF
INTERPOLATOR
DIV.
CLK
SCF
MOD
DE-AMPHASIS
AOUTR+
AK4382A
AOUTR-
CDTI
CSN DZFL
CCLK
VS
AOUTL-
SDIN1
MUTEC2
MUTEC1
MCLK
SDIN4
SDTI
VSS
SDIN3
SDIN2
SDIN1
SCLK
SDIN2
L7805
MCLK
SCLK1
VLC
PDN
VD
VA
RST_
AOUTA3
MUTEC3
LRCK1
AOUTL+
DIF0|SDA|CDIN
AOUTB3
AOUTB2
AOUTB1
LRCK
MCLK
M2
M1|AD0|CS_
LRCK
FILT+
DIF1|SCL|CCLK
GND
BICK
AOUTA2
AOUTA1
CS4360-KZ
VQ
VLS
GND
IN OUT
DZFR
SDIN3
VDD
OUT
POWER SUPPLY UNIT Secondary
AV (1) Board AV (2) BoardAV (1) BoardMONO Board
FRONT Board
DVD
5-DISC
CHANGER
MODULE
TRAVERSE
UNIT
KHM310 MOTOR
DRIVE
Board
CM-PH1
Board
111 225
103
102
215
105
7
11
12
217
219
218
213
214
222
4
3
2
6
5
1
10
170
3
2
4
8
7
6
9
10
11
12
16
14 1
513
822
27
26
24
23
20
19
28
921
23
24
22
21
10
89
OPTICAL OUT
DIGITAL OUT
0.5Vpp, 75 ohms
8 MHz
19
CVBS OUT
1Vpp, 75 ohms
S VIDEO OUT
1Vpp, 75 ohms
D
PSCAN Board
RS232C Board
YUV OUT
0.7Vpp, 75 ohms
PROGRESSIVE/
INTERLACE
VIDEO
DAC
ADV7310
I/O
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
ABCDEFGH
1
2
3
4
5
6
DVD-C950
12
■WIRING DIAGRAM
+1V8
+1V8
C
11
-24V
GND
STDBY_CTRL
11
VolB ( not used )
8
9
19
LED_DOWNMIX
+5VSTBY
LED_HDMI
LED_PROGRESSIVE
KEY_B01
12
FMN-V SM
DAC_RST
PCM_Data_EX_sLR (op)
PCM_Data_Sub/Cen
+5VL
+5VL
GND
GND
+5VL
GND
C_REF
CVBS_REF
GND
DAC_STDBY
I2C_DATA
VINTRQ
10
8
9
VolA ( not used )
Dig Aud Sig
DISC3_Y
DISC4_Y
DISC5_Y
10
11
12
GND
CE
22
SPDIF_out
GND
FMN-22-V
16
SCL_DAC
SDA_DAC
1
+5VL
R_V
GND
4
3
Y_REF
GND
DISC4_Y
1
GND
4
21
20
Audio Signal
21
G_Y
LED_PROGRESSIVE
I2C_CLK
LED_DOWNMIX
GND_B
11
12
10
GND
-12V
+12Vstby
+3V3
To control
12
CVBS
CVBS_REF
15
18
19
GND
B_REF
G_REF
8
7
I2C_CLK
GND_D
1KHZ ( not used )
SDA
STDBY_CTRL
SCL
1
1
GND
1500
SFW30R-2STE 1
24
IR
3
2
FMN SM 1.0 H
6
1
8
14
1
Y
3
NC / Line 2
20
2
3
4
4
2
IRQ
1
11
12
FMN 1.0 H
GND_D
GND_D
I2C_DATA
GND
RC6_OUT6
PCMDATA_LO
25
+3V3
+3V3
GND
-12V
GND
+5V
7
10
DISC1_Y
GND_B
7
8
9
8
7
5
6
NC
+1V8
PCM_Data_EX_sLR (op)
DAC_RST
I2C_CLK
I2C_DATA
4
5
6
11
10
2
20
7
G_REF
GND
PCM_Data_sLR
PCM_Data_Sub/Cen
C_REF
2
3
4
5
6
7
8
GND
NC
NC
PCMCLK
PCMSCLK
FMN 1.0 V
Mic_det
GND
AV_MUTE
GND
B_U
9
8
10
11
7
8
9
10
11
2
3
4
5
6
28
5
2
3
4
5
6
6
7
8
10
DISC5_Y
R_V
G_Y
16
20
+1V8_Sense
16
SPDIF_PCM_Data_MIC_IN
+5VL
10
9
8
PCMLRCLK
GND
I2C_DATA
GND
2
3
23
22
DISC1_Y
3
6
23
5
4
3
9
7
12
3
GND
I2C_CLK
FR
1101
R_REF
KEY_B02
GND
DAC
AK4382A
+12Vstby
GND
KEY_B01
7
GND_D
GND_D
IR
DISC3_Y
GND_D
30
4
5
GND
GND
4
5
6
8
9
8
7
5
4
+5VL
B_REF
P50
SCART1/Line3
GND
+1V8
GND
STDBY_CTRL
GND
Y_REF
GND_B
+5VL
+5VSTBY
KEY_B02
Mic_det
1
LFE
1
2
3
4
5
6
5
6
19
18
7
GND
GND
5
RT
2
+5VSTDBY
DISC2_Y
1105
2
1
3
26
29
13
14
15
SCART1/Line3
SCART0/Line3
LT
6
P50
C
2
Y
LED_HDMI
19
10
1
10
11
3
PCM_Data_LR
7
GND
GND
4
6
GND
GND
GND
PCM_Data_LR
GND
FMN SM 1.0 H
3
4
5
SPDIF_out
GND
24
23
22
21
GND
14
13
12
CVBS
B_U
15
16
17
+3V3
12V
1XXX
8
9
GND
+8V
+8V
2
GND
GND
GND_B
+5VL
GND_D
+5VSTDBY
DISC2_Y
9
12
13
15
+8V
9
8
4
5
NC / Line 2
7
8
918
17
9
PCMSCLK
PCMDATA_LO
GND
PCMCLK
PCMLRCLK
SCART0/Line3
6
5
6
7
+5VL
5
6
I2C_CLK
GND_D
7
8
9
AV_MUTE
SPDIF_PCM_Data_MIC_IN
1301
1
10
11
1
SURR_L
GND
GND
GND
GND
FL
SFW12S-2STE 1
6
7
SCL
IRQ
SFW24R-2STE 1
1
11
12
2
3
4
+5VL
GND
GND
SURR_R
GND
MUTE_TVLR
MUTE_FLR
MUTE
1KHZ ( not used )
RC6_OUT
-24V
GND
STDBY_CTRL
SPDIF_OUT
GND
Interface connection
9
1
2
8
9
10
1
10
11
12
12V
12
13
14
15
Video Signal
Interface connections
1
+5VD
MUTE_TVLR
MUTE_FLR
MUTE
7
6
5
4
3
GND
SURR_L
GND
GND
GND
GND
1104
10
7
GND
GND
GND
8
7
2
3
17
18
11
12
13
14
15
16
1
2
22
22
13
12
11
10
9
2
1
14
3
2
1
SURR_R
12
13
14
15
16
17
18
19
2
20
FR
LT
GND
SFW8R-2STE 1
GND
NC
NC
GND
RST
SDA
1305
20
21
7
VINTRQ
19
18
17
16
15
GND
SPDIF_OUT
GND
FL
FMN-09-V
1
2
3
4
5
6
5
4
5
6
7
8
3
4
5
1
2
STDBY_CTRL
RST
R_REF
24
VolA ( not used )
VolB ( not used )
GND
GND
CE
LFE
GND
GND
RT
GND
GND
GND
FMN 1.0 V
6
27
28
29
3
30
21
27
STDBY_CTRL
GND
14
I2C_DATA
I2C_CLK
+5VD
GND
16
17
9
GND
2
GND
+12V
13
2
4
+5V
SCL-DAC
I2C_DATA
1
FMN-22-V
1300
FMN 1.0 H
GND
+12V
1
2
3
+5V
TBLPOS
GND
1
SDA-DAC
PCM_Data_sLR
21
22
23
24
MUTE_LFE_CE
MUTE_SLR
25
26
8
9
MUTE_LFE_CE
MUTE_SLR
8
9
1200
FRONT (2) STANDBY/ON
BOARD
1200
FRONT (3) OPEN/CLOSE
BOARD
1503
1460
1200
FRONT (1) DISPLAY
BOARD
1500
AV (2)
BOARD
1000
POWER
SUPPLY
UNIT
1500
AV (1)
BOARD
1300
MONO BOARD
SD6.3 MOTOR
DRIVE
BOARD
TRAVERSE
UNIT
KHM310
12P
8102
10P
8103
9P
8508
22P
8502
12P
9P
8600
30P
8601
16P
8602
12P
8603
8P
24P
6P
1107
1106
1100
1
2
3
+5V
TBLPOS
GND
1101
2P
3P
CM-PH1
BOARD
8
IR_SW
RC6_IN
I2C_CLK
RESET
+5VStdby
GND
I2C_CLK
+5VStdby
RESET
STDBY_CTRL
I2C_DATA
5
6
GND
1
2
3
4
5
7
7
6
4
3
2
1
STDBY_CTRL
I2C_DATA
IR_SW
RC6_IN
8
1700
RS232C BOARD 8P
U/C
AV_GND
Y
+5VL
CEC
GND_D
+3V3
GND_D
Video Signal
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
SDA 5V
SCL 5V
GND
27M CLK
GND
YB(0)
GND
YB(1)
GND
YB(2)
GND
YB(3)
+5V
YB(4)
+3V3D
YB(5)
+3V3D
YB(6)
GND
YB(7)
GND
PCM MCLK
GND
NC
GND
SPDIF IN
GND
INT
GND
Interface connection
5
6
9
AV_GND
DLINE1
3
7
8
GND_D
V/CVBS
AV_GND
DPDDETN
DLINE3
DLINE2
1
2
5
3
4
1
10
2
AV_GND
11
12
13
4
+5VA
+3V3
+12V_Power
6
7
GND_D
DPDDETN
DLINE3
V_GND
9
13
V_GND
DLINE2
DLINE1
+5VA
V_GND
V/CVBS
12
11
8
6
U/C
V_GND
Y
1
5
7
10
2
3
4
GND_D
+5VL
+3V3
GND_D
CEC2
1
4
3
5
6
7
+3V3
+12V_Power
1
GND
VDATA7
GND
23
24
VDATA0
GND
GND
NC
GND
SPDIFOUT
HDMI_IRQ
NC
GND
25
26
NC
VDATA5
NC
I2C_DATA
27
28
29
VDATA1
GND
7
8
9
SFW30R-2STE 1
27M
I2C_CLK
GND
GND
6
VDATA4
VDATA3
NC
VDATA6
22
15
14
2
20
21
GND
NC
16
17
18
19
GND
VDATA2
4
30
3
13
10
11
12
5
8
7
6
1
9
5
10
FMN SM 1.0 H
4
3
2
5
6
7
8
9
3
4
1
10
2
FMN SM 1.0 H
10P 8500
30P
8606
1800
PSCAN
BOARD
13P 8505 7P
IR_SW
RESET
RC6_IN
+5VL
+5Vstdby
GND_D
-24V
+12VL
STDBY_CTRL
mute_uP
IR_SW
RESET
RC6_IN
+5VL
+5Vstdby
GND_D
-24V
+12VL
STDBY_CTRL
mute_uP
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
13
■PRINTED CIRCUIT BOARD The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
MONO BOARD
SD6.3 1305 AV (1) BOARD 1460
CM-PH1 BOARD 1101
MOTOR DRIVE BOARD 1100
MOTOR DRIVE Board Top View
CM-PH1 Board Top View
RS-232C
REMOTE
CONTROL
INOUT
AV (1) BOARD 1103
1
8
916
1
7
814
130
31
50
51
80
81
100
RS232C Board Top View
RS232C Board Bottom View
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
14
■PRINTED CIRCUIT BOARD The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
MONO Board Top View
AV (1) BOARD 1100FRONT (1) DISPLAY
BOARD 1110
MOTOR DRIVE BOARD 1107
TRAVERSE KHM310
TRAVERSE KHM310
AV (1) BOARD 1101
AV (1) BOARD 1200
PSCAN BOARD 1000
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
15
■PRINTED CIRCUIT BOARD The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
MONO Board Bottom View
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
16
■PRINTED CIRCUIT BOARD
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
AV (2) BOARD 1503 AV (2) BOARD 1500
MONO BOARD
SD6.3 1301 MONO BOARD
SD6.3 1303 MONO BOARD
SD6.3 1104 POWER SUPPLY
UNIT 1101 FRONT (1) DISPLAY
BOARD 1112
PSCAN BOARD 1302 MOTOR DRIVE BOARD 1106
PSCAN BOARD 1402
RS232C BOARD CB1
AV (1) Board Top View
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
17
■PRINTED CIRCUIT BOARD The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
AV (1) Board Bottom View
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
18
■PRINTED CIRCUIT BOARD
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
AV (1) Board Testpoint View
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
19
■PRINTED CIRCUIT BOARD The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)
AV (1) BOARD 1300 AV (1) BOARD 1310
AV (2) Board Top View
AV (2) Board Bottom View AV (2) Board Testpoint View
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
DVD-C950
20
■PRINTED CIRCUIT BOARD
The first digit of a component indicates the component type.
1xxx : Connector 3xxx : Resistor 5xxx : Coil 7xxx : IC, Transistor, FET
2xxx : Capacitor 4xxx : SMD jumper 6xxx : Diode 9xxx : Wire jumper
FOR INFORMATION ONLY (NO REPLACEMENT PARTS WILL BE AVAILABLE)

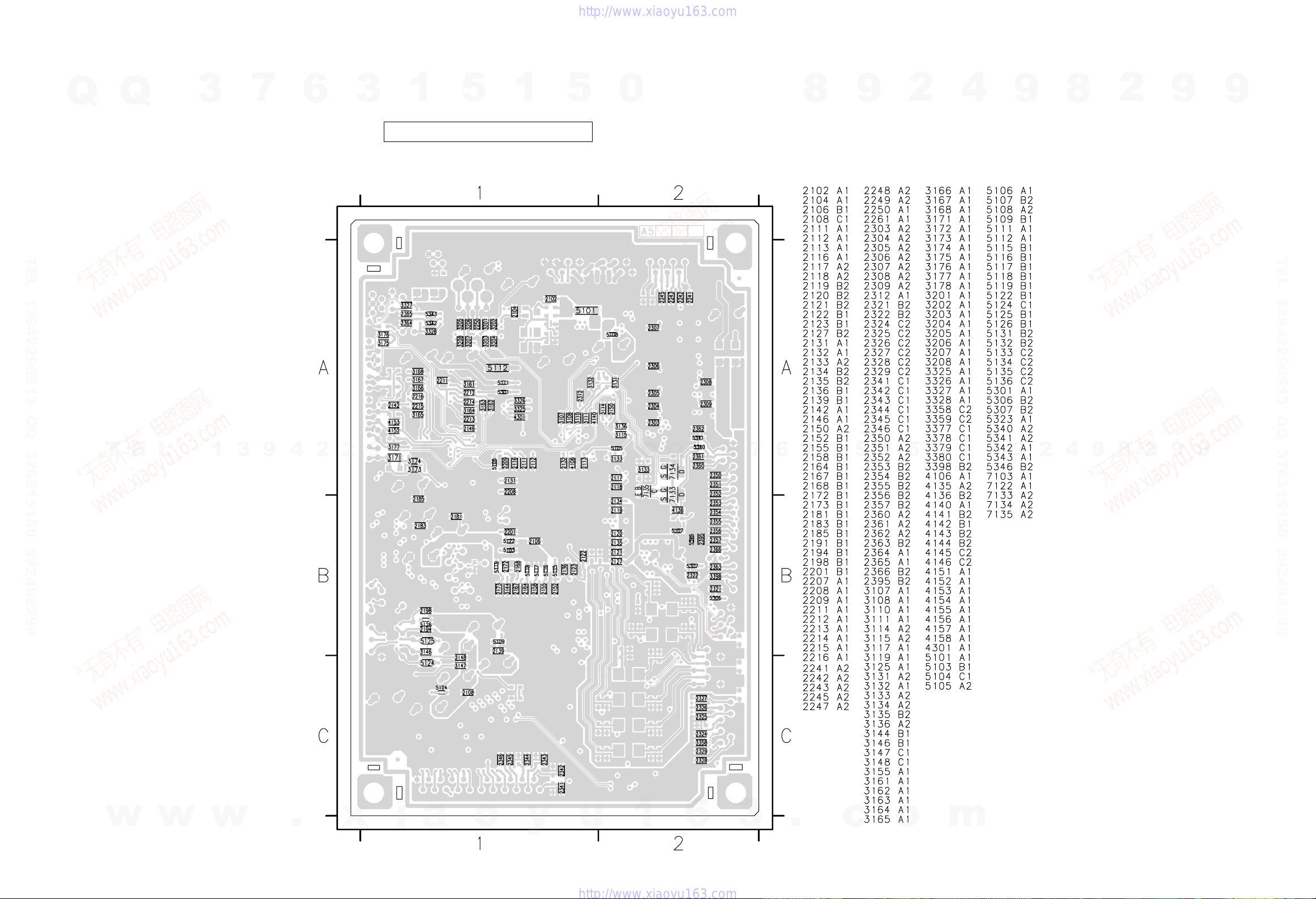

PSCAN Board Top View
MONO BOARD 1304
AV (1) BOARD 1401AV (1) BOARD 1102
YPBPRHDMI SCAN MODE
PROGRESSIVE
INTERLACE
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
Other manuals for DVD-C950
1
Table of contents
Other Yamaha Media Player manuals
Yamaha
Yamaha CD-N500 User manual
Yamaha
Yamaha TSX-112 User manual
Yamaha
Yamaha MCX-A300 User manual
Yamaha
Yamaha MCX-P200 User manual
Yamaha
Yamaha RX-Z11 - AV Receiver Use and care manual
Yamaha
Yamaha NP-S303 User manual
Yamaha
Yamaha DVD-S2500 User manual
Yamaha
Yamaha MCX-P200 User manual
Yamaha
Yamaha DISKLAVIER E3 CLASSIC User manual
Yamaha
Yamaha MCX-RC100 User manual
