YASKAWA CIMR-JC User manual

Quick Start Guide
YASKAWA AC Drive J1000
Compact V/f Control Drive
Models: 200 V Class, Three-Phase Input: 0.1 to 5.5 kW
200 V Class, Single-Phase Input: 0.1 to 2.2 kW
400 V Class, Three-Phase Input: 0.2 to 5.5 kW
MANUAL NO. TOEP C710606 27A
Type: CIMR-JC
To properly use the product, read this manual thoroughly
and retain for easy reference, inspection, and maintenance.
Ensure the end user receives this manual.

EN2 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide

YASKAWA Electric TOEP C710606 27A AC Drive - J1000 Quick-Start-Guide
J1000
Quick Start Guide
ENGLISH
1 Safety Instructions and General Warnings ..................... 2
2 Mechanical Installation...................................................... 7
3 Electrical Installation......................................................... 9
4 Keypad Operation.............................................................. 16
5 Start Up............................................................................... 18
6 Parameter Table................................................................. 22
7 Troubleshooting................................................................. 25
8 Instructions for UL and cUL.............................................. 28

EN4 YASKAWA Electric TOEP C710606 27 AC Drive - J1000Quick Start Guide
1 Safety Instructions and General Warnings
1 Safety Instructions and General Warnings
Yaskawa Electric supplies component parts for use in a wide variety of industrial applica-
tions. The selection and application of Yaskawa products remain the responsibility of the
equipment designer or end user. Yaskawa accepts no responsibility for the way its products
are incorporated into the final system design. Under no circumstances should any Yaskawa
product be incorporated into any product or design as the exclusive or sole safety control.
Without exception, all controls should be designed to detect faults dynamically and fail
safely under all circumstances. All products designed to incorporate a component part man-
ufactured by Yaskawa must be supplied to the end user with appropriate warnings and
instructions as to the safe use and operation of that part. Any warnings provided by Yaskawa
must be promptly provided to the end user. Yaskawa offers an express warranty only as to
the quality of its products in conforming to standards and specifications published in the
manual. NO OTHER WARRANTY, EXPRESS OR IMPLIED, IS OFFERED. Yaskawa
assumes no liability for any personal injury, property damage, losses, or claims arising from
misapplication of its products.
General Warnings
The following conventions are used to indicate Safety messages in this manual:
WARNING
• Read and understand this manual before installing, operating or servicing this drive.
• All warnings, cautions, and instructions must be followed.
• All work must be performed by qualified personnel.
• The drive must be installed according to this manual and local codes.
• Heed the safety messages in this manual.
The operating company is responsible for any injuries or equipment damage resulting from
failure to heed the warnings in this manual.
DANGER
Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.

1 Safety Instructions and General Warnings
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN5
ENGLISH
Safety Warnings
NOTICE
Indicates a property damage message.
WARNING
Electrical Shock Hazard
• Do not attempt to modify or alter the drive in any way not explained in this manual.
Failure to comply could result in death or serious injury.
Yaskawa is not responsible for any modification of the product made by the user. This product
must not be modified.
• Do not touch any terminals before the capacitors have fully discharged.
Failure to comply could result in death or serious injury.
Before wiring terminals, disconnect all power to the equipment. The internal capacitor remains
charged even after the power supply is turned off. The charge indicator LED will extinguish
when the DC bus voltage is below 50 Vdc. To prevent electric shock, wait at least one minute
after all indicators are off and measure the DC bus voltage level to confirm safe level.
• Do not allow unqualified personnel to use equipment.
Failure to comply could result in death or serious injury.
Maintenance, inspection, and replacement of parts must be performed only by authorized
personnel familiar with installation, adjustment, and maintenance of AC drives.
• Do not remove covers or touch circuit boards while the power is on.
Failure to comply could result in death or serious injury.
• Make sure the protective earthing conductor complies with technical standards and local
safety regulations.
The leakage current of this drive exceeds 3.5 mA. Therefore, according to IEC 61800-5-1,
automatic power supply interruption in case of discontinuity of the protective earthing
conductor must be provided or a protective earthing conductor with a cross section of at least
10 mm2(Cu) or 16 mm2(Al) must be used.
• Use appropriate equipment for residual current monitoring/detection (RCM/RCD).
This drive can cause a residual current with a DC component in the protective earthing
conductor. Where a residual current operated protective or monitoring device is used for
protection in case of direct or indirect contact, always use an RCM or RCD of type B according
to IEC 60755.
• Always ground the motor-side grounding terminal.
Improper equipment grounding could result in death or serious injury by contacting the motor
case.

1 Safety Instructions and General Warnings
EN6 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
• Do not perform work on the drive while wearing loose clothing, jewelry or without eye
protection.
Failure to comply could result in death or serious injury.
Remove all metal objects such as watches and rings, secure loose clothing, and wear eye
protection before beginning work on the drive.
• Never short the output circuits of the drive.
Do not short the output circuits of the drive. Failure to comply could result in death or serious
injury.
Sudden Movement Hazard
• System may start unexpectedly upon application of power, resulting in death or serious
injury.
Clear all personnel from the drive, motor, and machine area before applying power. Secure
covers, couplings, shaft keys, and machine loads before applying power to the drive.
Fire Hazard
• Do not use an improper voltage source.
Failure to comply could result in death or serious injury by fire.
Verify that the rated voltage of the drive matches the voltage of the incoming power supply
before applying power.
• Do not use improper combustible materials.
Failure to comply could result in death or serious injury by fire.
Attach the drive to metal or other noncombustible material.
• Do not connect AC line power to output terminals U, V, and W.
• Make sure that the power supply lines are connected to main circuit input terminals R/
L1, S/L2, T/L3 (or R/L1 and S/L2 for single-phase power).
Do not connect the AC power line to the output motor terminals of the drive. Failure to comply
could result in death or serious injury by fire as a result of drive damage from line voltage
application to output terminals.
• Tighten all terminal screws to the specified tightening torque.
Loose electrical connections could result in death or serious injury by fire due to overheating of
electrical connections.
CAUTION
Crush Hazard
• Do not carry the drive by the front cover.
Failure to comply may result in minor or moderate injury from the main body of the drive
falling.
WARNING

1 Safety Instructions and General Warnings
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN7
ENGLISH
Burn Hazard
• Do not touch the heatsink or braking resistor hardware until a powered-down cooling
period has elapsed.
NOTICE
Equipment Hazard
• Observe proper electrostatic discharge procedures (ESD) when handling the drive and
circuit boards.
Failure to comply may result in ESD damage to the drive circuitry.
• Never connect or disconnect the motor from the drive while the drive is outputting voltage.
Improper equipment sequencing could result in damage to the drive.
• Do not perform a withstand voltage test on any part of the drive.
Failure to comply could result in damage to the sensitive devices within the drive.
• Do not operate damaged equipment.
Failure to comply could result in further damage to the equipment.
Do not connect or operate any equipment with visible damage or missing parts.
• Install adequate branch circuit short circuit protection per applicable codes.
Failure to comply could result in damage to the drive.
The drive is suitable for circuits capable of delivering not more than 100,000 RMS symmetrical
Amperes, 240 Vac maximum (200 V Class) and 480 Vac maximum (400V Class).
• Do not use unshielded cable for control wiring.
Failure to comply may cause electrical interference resulting in poor system performance. Use
shielded twisted-pair wires and ground the shield to the ground terminal of the drive.
• Do not allow unqualified personnel to use the product.
Failure to comply could result in damage to the drive or braking circuit.
• Do not modify the drive circuitry.
Failure to comply could result in damage to the drive and will void warranty.
Yaskawa is not responsible for modification of the product made by the user. This product must
not be modified.
CAUTION

1 Safety Instructions and General Warnings
EN8 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
Precautions for CE Low Voltage Directive Compliance
This drive has been tested according to European standard EN61800-5-1: 2007, and it fully
complies with the Low Voltage Directive. The following conditions must be met to maintain
compliance when combining this drive with other devices:
Do not use drives in areas with pollution higher than severity 2 and overvoltage category 3
in accordance with IEC664.
Ground the neutral point of the main power supply for 400 V Class drives.
Precautions for UL/cUL Standards Compliance
This drive is tested in accordance with UL standard UL508C and complies with UL require-
ments.
• Check all the wiring to ensure that all connections are correct after installing the drive and
connecting other devices.
Failure to comply could result in damage to the drive.
• Do not connect unapproved LC or RC interference suppression filters, capacitors, or
overvoltage protection devices to the output of the drive.
Using unapproved filters could result in damage to the drive or motor equipment.
NOTICE

ENGLISH
2 Mechanical Installation
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN9
2 Mechanical Installation
Upon Receipt
Please perform the following tasks after receiving the drive:
• Inspect the drive for damage. If the drive appears damaged upon receipt, contact your sup-
plier.
• Verify receipt of the correct model by checking the information on the nameplate. If you
have received the wrong model contact your supplier.
Installation Environment
For optimum performance life of the drive, install the drive in an environment that meets the
conditions listed below.
Environment Conditions
Installation Area Indoors
Ambient Temperature
-10 °C to +50 °C
When using an enclosure panel, install a cooling fan or air conditioner in the
area to ensure that the air temperature inside the enclosure does not exceed the
specified levels.
Do not allow ice to develop on the drive.
Humidity 95% RH or less and free of condensation
Storage Temperature -20 °C to +60 °C
Surrounding Area
Install the drive in an area free from:
• oil mist and dust
• metal shavings, oil, water or other foreign materials
• radioactive materials
• combustible materials (e.g., wood)
• harmful gases and liquids
• excessive vibration
•chlorides
• direct sunlight
Altitude 1000 m or less
Vibration 10 - 20 Hz at 9.8 m/s2, 20 - 55 Hz at 5.9 m/s2
Orientation Install the drive vertically to maintain maximum cooling effects.

2 Mechanical Installation
EN10 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
Installation Orientation and Spacing
Always install the drive in an upright position.
Leave space around the unit for proper cooling
as shown in the figure on the right.
Note: Several units can be installed closer
together than shown in the figure by
using “Side-by-Side” mounting. For
details please refer to the instruction
manual.
Dimensions
Model
CIMR-JC Dimensions (mm) Weight (kg)
W H D W1 H1 H2 D1 D2 d
BA0001 68 128 76 56 118 5 6.5 67.5 M4 0.6
BA0002 68 128 76 56 118 5 6.5 67.5 M4 0.6
BA0003 68 128 118 56 118 5 38.5 109.5 M4 1.0
BA0006 108 128 137.5 96 118 5 58 129 M4 1.7
BA0010 108 128 154 96 118 5 58 145.5 M4 1.8
2A0001 68 128 76 56 118 5 6.5 67.5 M4 0.6
2A0002 68 128 76 56 118 5 6.5 67.5 M4 0.6
2A0004 68 128 108 56 118 5 38.5 99.5 M4 0.9
2A0006 68 128 128 56 118 5 58.5 119.5 M4 1.1
2A0010 108 128 129 96 118 5 58 120.5 M4 1.7
2A0012 108 128 137.5 96 118 5 58 129 M4 1.7
2A0020 140 128 143 128 118 5 65 134.5 M4 2.4
4A0001 108 128 81 96 118 5 10 72.5 M4 1.0
4A0002 108 128 99 96 118 5 28 90.5 M4 1.2
4A0004 108 128 137.5 96 118 5 58 129 M4 1.7
4A0005 108 128 154 96 118 5 58 145.5 M4 1.7
4A0007 108 128 154 96 118 5 58 145.5 M4 1.7
4A0009 108 128 154 96 118 5 58 145.5 M4 1.7
4A0011 140 128 143 128 118 5 65 134.5 M4 2.4
30mm 30mm
100mm
100mm Air
Air
D
D2
D1
d
H
W1
W
H2 H1

ENGLISH
3 Electrical Installation
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN11
3 Electrical Installation
The figure below shows the main and control circuit wiring.
R/L1
S/L2
T/L3
S1
S2
S3
S4
S5
B1+1 - +2 B2
L1
L2
L3
U/T1
V/T2
W/T3
+24 V
SINK
SOURCE
MA
MB
MC
+24 V 8 mA
M
U
V
W
SC
AM
AC
+V
A1
AC
2 kΩ
DC reactor
(option)
For 1-phase
power supply use
R/L1 and S/L2
Terminals marked -,+1,+2,B1,B2 are for
connecting an option. Do not wire AC
power lines to these terminals.
Filter
Fuses
Main
Switch Forward/Stop
Reverse/Stop
External Fault
Fault Reset
Multi-speed 1
Multi-function
digital inputs
(default setting)
Link
Thermal
relay
Braking
resistor
(option)
J1000
Ground
Multi-function relay output
250 Vac / 30 Vdc (10 mA to 1A)
(default setting)
Fault
DIP
switch S3
Shielded ground
terminal
Analog input power supply
+10.5 Vdc, max. 20 mA
Analog input
Monitor output
(default setting)
Analog output
0 to +10 Vdc (2mA)
(Output frequency)
Shielded
Cable
Symbols:
Use twisted pair cables
Use shielded twisted pair cables
Indicates a main circuit terminal
Indicates a control circuit terminal.
Power
Supply
DIP switch S1
Option unit
connector
IV
Analog input
0 to 10 V (20 kΩ) or
0/4 to 20 mA (250 Ω)

3 Electrical Installation
EN12 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
Wiring Specification
Main Circuit
Use the line filters listed up in the table below when wiring the main circuit. Make sure not
to exceed the given tightening torque values.
Model
CIMR-JC
EMC Filter Type Recom.
Motor cable
[mm²]
Main Circuit Terminal Sizes
Schaffner R/L1,S/L2,T/L3, U/T1,
V/T2,W/T3, - , +1, +2 B1, B2 GND
BA0001 FS23638-10-07 2.5 M3.5 M3.5 M3.5
BA0002 FS23638-10-07 2.5 M3.5 M3.5 M3.5
BA0003 FS23638-10-07 2.5 M3.5 M3.5 M3.5
BA0006 FS23638-20-07 2.5 M4 M4 M4
BA0010 FS23638-20-07 4 M4 M4 M4
2A0001 FS23637-8-07 2.5 M3.5 M3.5 M3.5
2A0002 FS23637-8-07 2.5 M3.5 M3.5 M3.5
2A0004 FS23637-8-07 2.5 M3.5 M3.5 M3.5
2A0006 FS23637-8-07 2.5 M3.5 M3.5 M3.5
2A0010 FS23637-14-07 2.5 M4 M4 M4
2A0012 FS23637-14-07 4 M4 M4 M4
2A0020 FS23637-24-07 6 M4 M4 M4
4A0001 FS23639-5-07 2.5 M4 M4 M4
4A0002 FS23639-5-07 2.5 M4 M4 M4
4A0004 FS23639-5-07 2.5 M4 M4 M4
4A0005 FS23639-10-07 2.5 M4 M4 M4
4A0007 FS23639-10-07 2.5 M4 M4 M4
4A0009 FS23639-10-07 2.5 M4 M4 M4
4A0011 FS23639-15-07 2.5 M4 M4 M4

3 Electrical Installation
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN13
ENGLISH
Input Fuse Selection
Branch circuit protection shall be provided by any of the following:
• Non-time delay Class J, T, or CC fuses sized at 300% of the drive input rating
Note: Unavailable models are A6T6 with 2A0002, A6T15 with 2A0004 or
4A0004, A6T20 with 4A0005, and A6T25 with 4A0007.
• Time delay Class J, T, or CC fuses sized at 175% of the drive input rating
• Time-delay Class RK5 fuses sized at 225% of the drive input rating
Model
CIMR-JC Non-Time Delay
Class-T Fuse Type
(Manufacturer: Ferraz) Fuse Ampere
Rating (A)
Fuse Type
(Manufacturer:
Bussmann)
500 Vac, 200 kAIR
Fuse Ampere
Rating (A)
Single-Phase 200 V Class
BA0001 A6T6 6 FWH-25A14F 25
BA0002 A6T10 10 FWH-25A14F 25
BA0003 A6T20 20 FWH-60B 60
BA0006 A6T40 40 FWH-80B 80
BA0010 A6T40 40 FWH-100B 100
Three-Phase 200 V Class
2A0001 A6T3 3 FWH-25A14F 25
2A0002 A6T6 6 FWH-25A14F 25
2A0004 A6T15 15 FWH-25A14F 25
2A0006 A6T20 20 FWH-25A14F 25
2A0008 A6T25 25 FWH-70B 70
2A0010 A6T25 25 FWH-70B 70
2A0012 A6T30 30 FWH-70B 70
2A0018 A6T40 40 FWH-90B 90
2A0020 A6T40 40 FWH-90B 90
Three-Phase 400 V Class
4A0001 A6T3 3 FWH-40B 40
4A0002 A6T6 6 FWH-40B 40
4A0004 A6T15 15 FWH-50B 50
4A0005 A6T20 20 FWH-70B 70
4A0007 A6T25 25 FWH-70B 70
4A0009 A6T25 25 FWH-90B 90
4A0011 A6T30 30 FWH-90B 90

3 Electrical Installation
EN14 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
Control Circuit
Use wires within the specification listed below. For safe wiring use solid wires or flexible
wires with ferrules. The stripping length or ferrule length should be 6 mm.
EMC Filter Installation
This drive has been tested in accordance with European standards EN61800-3:2004. In order
to comply to the EMC standards, wire the main circuit as described below.
1. Install an appropriate EMC noise filter to the input side.See the list above or refer to the
instruction manual for details.
2. Place the drive and EMC noise filter in the same enclosure.
3. Use braided shield cable for the drive and motor wiring.
4. Remove any paint or dirt from ground connections for minimal ground impedance.
5. Install an AC reactor at drives smaller than 1 kW for compliance with the
EN61000-3-2. Refer to the instruction manual or contact your supplier for details.

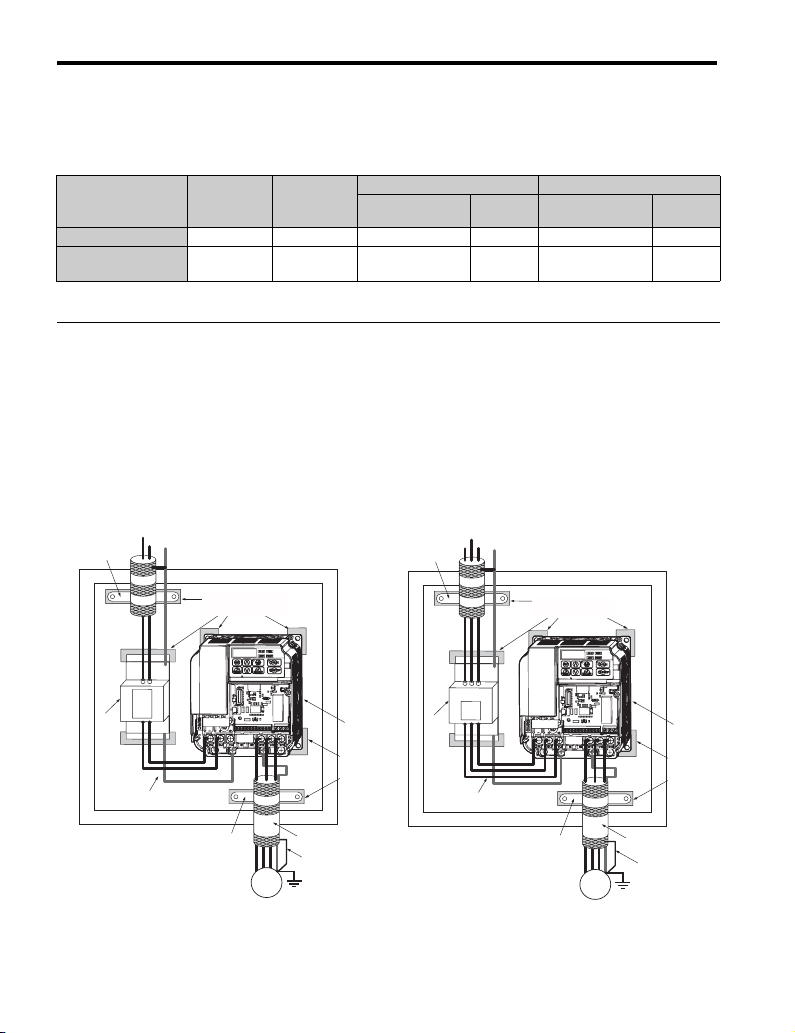

EMC Standards Compliant Wiring of Single- and Three Phase Units
Terminal Screw Size Tightening
Torque N·m
Bare Wire Terminal Ferrule-Type Terminal
Applicable wire
size mm2Recomm. mm2Applicable wire size mm2Recomm. mm2
MA, MB, MC M3 0.5 to 0.6 0.25 to 1.5 0.75 0.25 to 1.0 0.5
S1-S5, SC, +V, A1,
AC, AM M2 0.22 to 0.25 0.25 to 1.0 0.75 0.25 to 0.5 0.5
N
L1
E
NL1 PE
Wiring distance as
short as possible
Cable shield
grounding clamp
Drive
Cable clamp
Braid shielded motor
cable
EMC
Filter
Grounding Surface
(remove any paint)
Metal plate
Panel or mounting wall
M
Grounding
Surface
(remove any
paint)
Ground shield at
motor side
L3L2 L1
E
L1 PE
Wiring distance as
short as possible
Cable shield
grounding clamp
Drive
Cable clamp
Braid shielded motor
cable
EMC
Filter
Grounding Surface
(remove any paint)
Metal plate
Panel or mounting wall
M
Grounding
Surface
(remove any
paint)
Ground shield at
motor side
L3
L2

3 Electrical Installation
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN15
ENGLISH
Main and Control Circuit Wiring
Wiring the Main Circuit Input
Consider the following precautions for the main circuit input.
• Use only circuit breakers that have been designed specifically for drives.
• When using residual current monitoring or detection devices (RCM/RCD), make sure the
devices are designed for use with AC drives (e.g. type B according to IEC 60755).
• If using a ground fault circuit breaker, make sure that it can detect both DC and high fre-
quency current.
• If using an input switch is used, make sure that the switch does not operate not more than
once every 30 minutes.
• Use a DC reactor or AC reactor on the input side of the drive:
–To suppress harmonic current.
–To improve the power factor on the power supply side.
–When using an advancing capacitor switch.
–With a large capacity power supply transistor (over 600 kVA).
Wiring the Main Circuit Output
Consider the following precautions for the output circuit wiring.
• Do not connect any other load than a 3 phase motor to the drives output.
• Never connect a power source to the drives output.
• Never short or ground the output terminals.
• Do not use phase correction capacitors.
• If using a contactor between the drive and motor, it should never be operated when the
drive is outputting a voltage. Operating while there is voltage output can cause large peak
currents, thus tripping the over current detection or damage the drive.
Ground Connection
Take the following precautions when grounding the drive:
• The drive must always be connected to ground in accordance to the general technical stan-
dards and local regulations.
As the leakage current produced by the drive exceeds 3.5 mA, according to IEC 61800-5-
1, at least one of the conditions below must be satisfied:
–The cross-section of the protective earthing conductor must be at least 10 mm2(Cu)
or 16 mm2(Al).
–The power supply must be disconnected automatically in case of discontinuity of
the protective earthing conductor.
• Keep ground wires as short as possible.

3 Electrical Installation
EN16 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
• Always make sure the ground impedance is conformed to the requirements of local safety
and installation regulations.
• Never share the ground wire with other devices such as welding machines, etc.
• Do not loop the ground wire when using more than one drive.
Control Circuit Wiring Precautions
Consider the following precautions for wiring the control circuits.
• Separate control circuit wiring from main circuit wiring and other high-power lines.
• Separate wiring for control circuit terminals MA, MB, MC (contact output) from wiring
to other control circuit terminals.
• For external control power supply use a UL Listed Class 2 power supply.
• Use twisted-pair or shielded twisted-pair cables for control circuits to prevent operating
faults.
• Ground the cable shields with the maximum contact area of the shield and ground.
• Cable shields should be grounded on both cable ends.
Main Circuit Terminals
Terminal Type Function
R/L1, S/L2, T/L3 Main circuit power sup-
ply input
Connects line power to the drive.
Drives with single-phase 200 V input power use terminals R/L1
and S/L2 only (T/L3 is not used).
U/T1, V/T2, W/T3 Drive output Connects to the motor.
B1, B2 Braking resistor For connecting a braking resistor.
+1, +2 DC reactor connection Linked at shipment. Remove the link to install a DC choke.
+1, – DC power supply input For connecting a DC power supply.
(2 terminals) Ground Terminal For 200 V class: Ground with 100 Ωor less
For 400 V class: Ground with 10 Ωor less

3 Electrical Installation
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN17
ENGLISH
Control Circuit Terminals
The figure below shows the control circuit terminal arrangement.
There are two DIP switches, S1 and S3, located on the control board
Control Circuit Terminal Functions
SW1 Switches analog input A1 between voltage and current input
SW3 Used to select sourcing (PNP)/sinking (NPN, default) mode for the digital inputs (PNP requires
external 24 Vdc power supply)
Type No. Terminal Name (Signal) Function (Signal Level), Default Setting
Multi-
Function
Digital
Inputs
S1
to
S5 Multi-function digital input 1 to 5
Photocoupler inputs, 24 Vdc, 8 mA
Note: Drive preset to sinking mode (NPN). When using
source mode, set DIP switch S3 to “SOURCE” and use an
external 24 Vdc (±10%) power supply.
SC Multi-function input common Sequence common
Analog
Input
A1 Analog input 0 to +10 Vdc (20 kΩ) resolution 1/1000
0/4 to 20 mA (250 Ω) resolution: 1/500
+V Analog input power supply +10.5 V (max allowable current 20 mA)
AC Frequency reference common 0 V
Multi-
Function
Relay
Output
MA N.O. (fault) Digital relay output
30 Vdc, 10 mA to 1 A
250 Vac, 10 mA to 1 A
MB N.C. output (fault)
MC Digital output common
Monitor
Output AM Analog monitor output 0 to 10 Vdc (2 mA or less), Resolution: 1/256 (8 bit)
AC Monitor common 0 V
S1 S2 S3 S4 S5 SC A1 +V AC AM AC
MCMBMA
Use a straght-edge screwdriver
with a blade width of max 2.5 mm
and a thickness of max 0.6 mm to
release the terminals

EN18 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
4 Keypad Operation
4 Keypad Operation
LED Operator and Keys
The LED operator is used to program the drive, to start/
stop it, and to display fault information. The LEDs indi-
cate the drive status.
Keys and Functions
Display Name Function
Data Display Area Displays the frequency reference, parameter number, etc.
ESC Key Returns to the previous menu.
RESET Key Moves the cursor to the right.
Resets a fault.
RUN Key
Starts the drive in the LOCAL mode. The Run LED
• is on, when the drive is operating the motor.
• flashes during deceleration to stop or when the frequency reference is 0.
• flashes quickly the drive is disabled by a DI, the drive was stopped using a fast
stop DI or a run command was active during power up.
Up Arrow Key Scrolls up to select parameter numbers, setting values, etc.
Down Arrow Key Scrolls down to select parameter numbers, setting values, etc.
STOP Key Stops the drive.
ENTER Key Selects modes, parameters and is used to store settings.
LO/RE Selection
Key
Switches drive control between the operator (LOCAL) and the control circuit
terminals (REMOTE). The LED is on when the drive is in the LOCAL mode
(operation from keypad).
ALM LED Light Flashing: The drive is in an alarm state.
On: The drive is in a fault state and the output is stopped.
REV LED Light On: The motor rotation direction is reverse.
Off: The motor rotation direction is forward.
DRV LED Light On: The drive is ready to operate the motor.
Off: The drive is in the Verify, Setup, Parameter Setting mode.
FOUT LED Light On: The output frequency is displayed on the data screen.
Off: Anything else than the output frequency is displayed on the data screen.
STOP
RUN
STOP
ALM
REV
DRV
FOUT

4 Keypad Operation
YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide EN19
ENGLISH
Menu Structure and Modes
The following illustration explains the operator keypad menu structure.
XXXX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
DRV LED is off.
The motor can not be started.
:
:
:
:
Key operation description
Turn the power on (DRV flashes)
Forward Selection Reverse Selection<1>
Output Frequency
Output Current
Output Voltage
Monitor Display
Verify Menu
Setup Mode
Parameter Setting Mode
DRV LED is on.
A Run command will start the motor.
The Monitor Displays are used to
read out drive data like terminal
status, output frequency, fault
information etc.
The Verify Menu lists up all
parameters which are unequal to
the default setting.
The Setup Mode can be used to
set up a minimum list of
parameters necessary to run the
application.
In the Parameter Setting Mode all
drive parameters can be set up.
The LED is lit when
LOCAL is selected
<1> Switching to reverse:

EN20 YASKAWA Electric TOEP C710606 27 AC Drive - J1000 Quick Start Guide
5 Start Up
5StartUp
Drive Setup Procedure
The illustration below shows the basic setup procedure. Each step is explained more detailed
on the following pages.
Select Normal / Heavy Duty
Set/check the basic parameters:
Connect the load, run the motor and check the operation
Fine tune and set application parameters if necessary.
Final check the operation and verify the settings.
Drive is ready to run the application
Intstall and wire the drive as explained.
Turn the power on.
Initialize the drive if necessary using parameter A1-01.
START
* b1-01, b1-02 for frequency reference and RUN command source
* H1-, H2-, H3-, H4-, to configure the I/Os
* Frequency reference values
* C1-, C2- for Acceleration/Deceleration times and S-curves
* E1-, E2- V/f pattern and motor data
Run the motor without load, check the operation and verify, if the
upper controller (e.g. PLC,...) commands to the drive work as
desired.
