YASKAWA SOLECTRIA XGI 1500 Series User manual

Commercial 1500VDC String Inverter
SOLECTRIA XGI™1500
Smart Grid Feature and Modbus Manual
Models: XGI 1500-125/125 XGI 1500-125/150
XGI 1500-150/166 XGI 1500-166/166

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 2 of 30
Contents
Introduction............................................................................................................................................31
SunSpec Overview ................................................................................................................................31.1
Data Types ............................................................................................................................................31.2
Modbus Overview..................................................................................................................................42
Value, Scale Factor, and Units...............................................................................................................42.1
Read/Write.............................................................................................................................................42.2
XGI1500 Smart Grid Features................................................................................................................43
Power Limiting .......................................................................................................................................54
Power Factor Control.............................................................................................................................75
Reactive Power Control .........................................................................................................................96
Volt-Var Control ...................................................................................................................................117
Volt-Watt Control..................................................................................................................................148
Frequency-Watt Control.......................................................................................................................179
Voltage Ride Through..........................................................................................................................1910
Frequency Ride Through .....................................................................................................................2311
Ramp Rate Settings.............................................................................................................................2612
Power Enable/Disable..........................................................................................................................2813
Inverter Restart....................................................................................................................................3014

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 3 of 30
Introduction1
This manual explains the SunSpec protocol using Modbus for SOLECTRIA XGI 1000 inverters. This does not
include the history of either SunSpec or Modbus or the details regarding the creation of the protocols. It is
expected that the person(s) reading this manual have a clear understanding of both SunSpec and Modbus.
SunSpec Overview1.1
SunSpec organizes all registers into defined groups called models. Each model begins with a header to identify
it and its length. Only the models listed in this document are supported by SOLECTRIA XGI 1000 inverters. See
Section 0 for the list of supported models.
Within each model, not all registers are supported. Unsupported registered are marked as “Reserved”. Only
use supported registers.
Data Types1.2
Several data types are used in this document.
acc32: An accumulated value that fills two registers. This is used for a value that increases over time.
bitfield16: Group of 16 individual bits that fills one register. This is used to select non-mutually
exclusive options, such as alarms.
bitfield32: Group of 32 individual bits that fills two registers. This is used to select non-mutually
exclusive options, such as alarms.
enum16: Enumerated type that fills one register. This is used to select mutually exclusive options, such
as the state of the inverter.
float32: Floating point number that fills two registers.
int16: Signed integer that fills one register.
string: Group of registers that are used to hold an alphanumeric value. Size depends on the string and
must be read for each string.
sunssf: SunSpec scale factor.
uint16: Unsigned integer that fills one register.
uint32: Unsigned integer that fills two registers.
uint64: Unsigned integer that fills four registers.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 4 of 30
Modbus Overview2
Registers can be read using Modbus function code three (3) and certain registers can be written with Modbus
function code six (6). When reading or writing to a group of registers, such as reading a string, make sure that
the read command starts at the lowest address of the group and is of the appropriate length size for the
group.
Value, Scale Factor, and Units2.1
Many registers use a scale factor to communicate the value as an integer. The scale factor and units explain
how the value is read. See Equation 2.1 as an example of how to interpret the result of reading Address 40075,
as shown in Table 2.1.
Table 2.1 - Example of Value, Scale Factor, and Units
Address
Size
Name
Value
Type
Units
Scale factor
R/W
Description
40075
1
AphC
-
uint16
A
A_SF
R
Phase C AC current
40076
1
A_SF
-1
uint16
-
-
R
Scale factor - AC current
Equation 2.1 - Example of Applying Value, Scale Factor, and Units
  󰇛󰇜  
Read/Write2.2
The R/W column determines whether a value is read-only (R), write-only (W), or read-write (RW). Only write
to W or RW registers.
XGI1500 Smart Grid Features3
The XGI1500 firmware provides several grid support features to help maintain grid stability and reliability.
These features can either be activated, deactivated or updated via web-based GUI or using software which
supports Modbus TCP/IP.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 5 of 30
Power Limiting4
This feature allows the inverter to reduce the output from what it could produce given available resources.
Power limiting request typically occurs because of transmission congestion or lack of transmission access. It
can also occur due to excess generation during low load periods.
The image below shows the default setting of Power Limiting. The default state of this feature is deactivated.
Example:
If the cutomer wants to enable this feature and run the inverter at 80% of rated power. The procedure via the
web-based GUI is shown below.
Write “ 80.0 ” to Power Limit
Click the little box on the top left corner of the configuration window to enable Power Limiting

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 6 of 30
Click Save button to apply the settings to local inverter
The alternative method is to use software which supports Modbus TCP/IP. The register address is shown
below.
To implement the same setting, the procedure is shown below.
Write “ 800 “ to register 40295
Write “ 1 “ to register 40299

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 7 of 30
Power Factor Control5
This feature allows inverter to control the power factor at the point of common coupling (PCC). This can
maintain the power quality and stability of the overall electrical system. A power factor adjustment gives the
utility greater flexibility to supply the power quality required by the loads.
The image below shows the default setting of the Power Factor Control. The default state of this feature is
deactivated.
Example:
If the cutomer wants to enable this feature and set the PF to +0.8. The procedure via the web-based GUI is
shown below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 8 of 30
Write “ +0.8 ” to Power Factor
Click the little box on the top left corner of the configuration window to enable Power Factor
Click Save button to apply the setting to local inverter
The alternative method is to use software which supports Modbus TCP/IP. The register address is shown
below.
To implement the same setting, the procedure is shown below.
Write “ 80 “ to register 40300
Write “ 1 “ to register 40304

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 9 of 30
Reactive Power Control6
The feature allows inverter to stabilize the grid by compensating the reactive power. The image below shows
the default setting of Reactive Power Control. The default state of this feature is deactivated.
Example:
If the cutomer wants to enable this feature and set the inverter to run at 60% of maximum reactive power
capability. The procedure via the web-based GUI is shown below.
Write “ -60 ” to Constant Var
Click the little box on the top left corner of the configuration window to enable Reactive Power Control
Click Save button to apply the settings to local inverter
The alternative method is to use software which supports Modbus TCP/IP. The register address is shown
below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 10 of 30
To implement the same settings, the procedure is shown below.
Write “ -600 “ to register 40306
Write “ 1 “ to register 40312

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 11 of 30

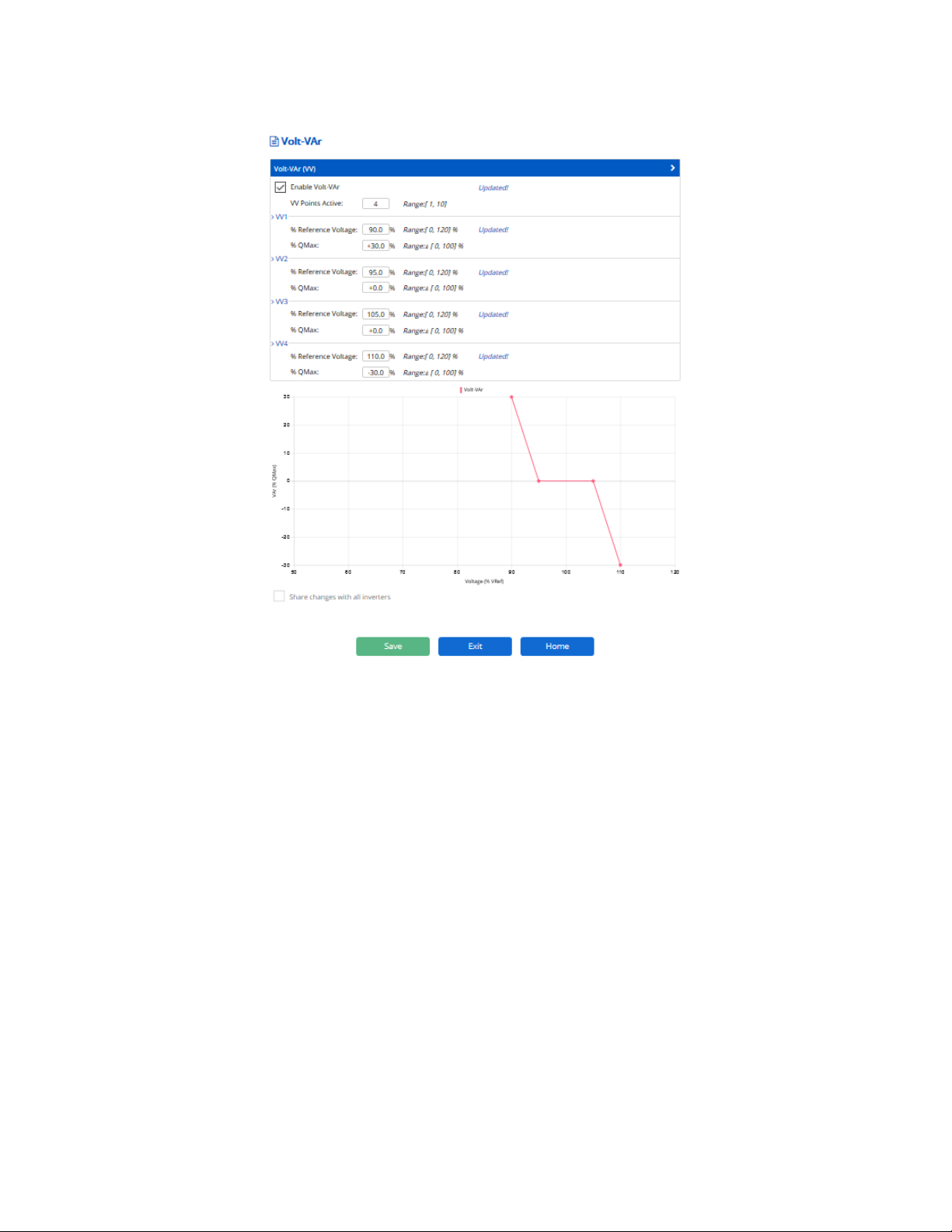

Volt-Var Control7
This feature allows the inverter to supply or absorb reactive power as a function of voltage, in order to
maintain a stable grid voltage. A curve must be defined to use this feature.
The image below shows the default setting of Volt-Var Control. The default state of this feature is deactivated.
Example:
If the cutomer wants to enable this feature. The procedure via the web-based GUI is shown below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 12 of 30
Write “ 4 “ to VV Points Active
Write “ 90.0” to VV1 %Voltage Ref
Write “ +30.0 to VV1 %QMax
Write “ 95.0” to VV2 %Voltage Ref
Write “ +0.0 to VV2 %QMax
Write “ 105.0” to VV3 %Voltage Ref
Write “ +0.0 to VV3 %QMax
Write “ 110.0” to VV4 %Voltage Ref
Write “ -30.0 to VV4 %QMax
Click the little box on the top left corner of the configuration window to enable Volt-Var
Click Save button to apply the settings to local inverter
The alternative method is to use software which supports Modbus TCP/IP. The register address is shown
below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 13 of 30
To implement the same curve, the procedure is shown below.
Write “ 4 “ to register 40940
Write “ 900” to register 40942
Write “ 300 to register 40943
Write “ 950” to register 40944
Write “ 0 to register 40945
Write “ 1050” to register 40946
Write “ 0 to to register 40947
Write “ 1100” to register 40948
Write “ -300 to register 40949
Write “1” to register 40931 to enable Volt-Var Control

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 14 of 30

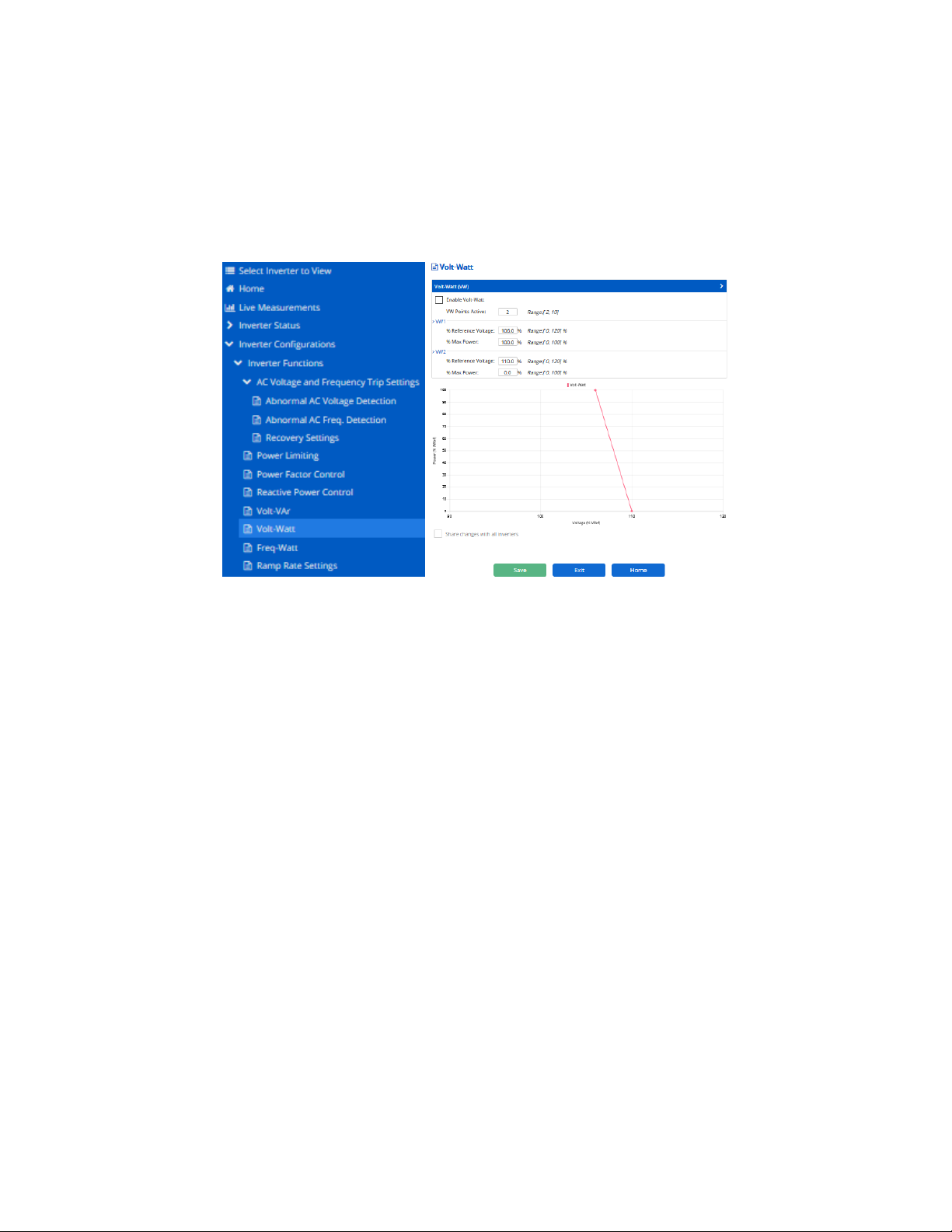

Volt-Watt Control8
This feature helps to support the grid voltage by changing the inverters active power output as the grid
voltage fluctuates. A curve must be defined to use this feature.
The image below shows the default setting of Volt-Vatt Control. The default state of this feature is
deactivated.
Example:
If the cutomer wants to enable this feature. The procedure via the web-based GUI is shown below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 15 of 30
Write “ 4 ” to VW Points Active
Write “ 102.0 ” to VW1 Voltage Ref
Write “ 100.0 ” to VW1 Max Power
Write “ 105.0 ” to VW2 Voltage Ref
Write “ 90.0 ” to VW2 Max Power
Write “ 108.0 ” to VW3 Voltage Ref
Write “ 50.0 ” to VW3 Max Power
Write “ 110.0 ” to VW4 Voltage Ref
Write “ 0.0 ” to VW4 Max Power
Click the little box on the top left corner of the configuration window to enable Volt Watt Control
Click Save button to apply the settings to local inverter
The alternative method is to use software which supports Modbus TCP/IP. The register address is shown
below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 16 of 30
To implement the same curve, the procedure is shown below.
Write “ 4 “ to register 41006
Write “ 1020” to register 41008
Write “ 1000 to register 41009
Write “ 1050” to register 41010
Write “ 900” to register 41011
Write “ 1080” to register 41012
Write “ 500” to to register 41013
Write “ 1100” to register 41014
Write “ 0 ” to register 41015
Write “1” to register 40997 to enable Volt-Watt control

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 17 of 30
Frequency-Watt Control9
This function helps to change inverter active power output with fluctuations in grid frequency. This will
provide frequency support to the electric grid. As frequency increases, the desired response of the inverter is
to decrease active power output.
The image below shows the default setting of Freq-Watt Control. The default state of this function is
deactivated.
Example:
If the cutomer wants to enable this funtion. The procedure via the web-based GUI is shown below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 18 of 30
Write “ 4 ” to FW Points Active
Write “ 60.30 ” to Frequency
Write “ 100.0 ” to % Max Power
Write “ 60.80 ” to Frequency
Write “ 90.0 ” to % Max Power
Write “ 61.50 ” to Frequency
Write “ 60.0 ” to % Max Power
Write “ 62.00 ” to Frequency
Write “ 0.0 ” to % Max Power
Click the little box on the top left corner of the configuration window to enable Freqency-Watt Control
Click Save button to apply the settings to local inverter
The alternative method is to use software which supports Modbus TCP/IP. The register address is shown
below.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 19 of 30
To implement the same curve, the procedure is shown below.
Write “ 4 “ to register 41072
Write “ 6030” to register 41073
Write “ 1000 to register 41074
Write “ 6080” to register 41075
Write “ 900” to register 41076
Write “ 6150” to register 41077
Write “ 600” to to register 41078
Write “ 6200” to register 41079
Write “ 0 ” to register 41080
Write “1” to register 40963 to enable Freq-Watt Control
Voltage Ride Through10
This function allows inverter to response to low and high voltage transients that are outside the normal
operation range of the electric gird.
The image below shows the default setting of abnormal voltage trip settings. The default setting follows
IEEE1547-2014 and the function is always enabled.

Modbus Map SOLECTRIA XGI 1500 (Rev A)
DOCR-XXXXXX 20 of 30
Example:
If the cutomer wants to change to Rule 21 instead of IEEE1547. The procedure via the web-based GUI is shown
below.
