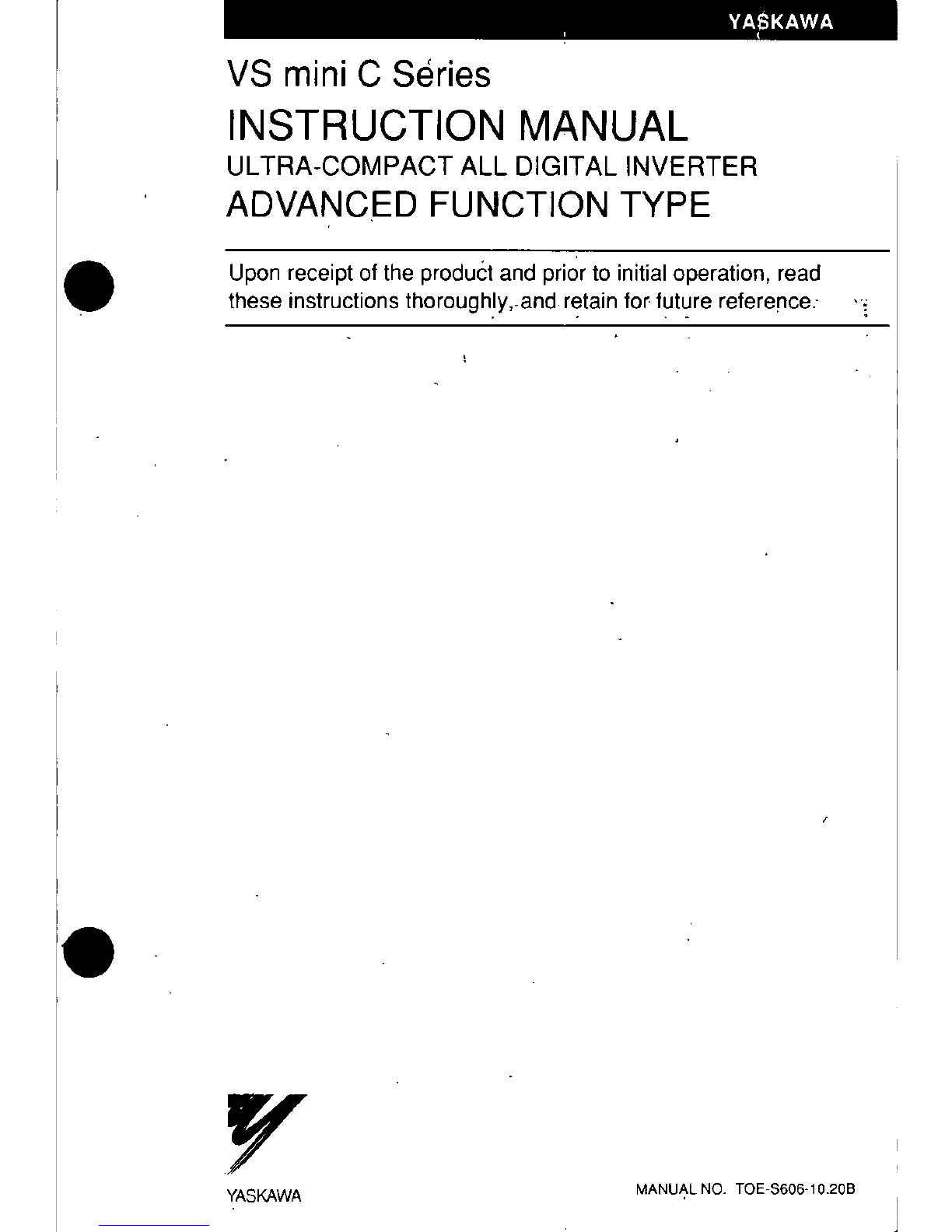

YASKAWA VS mini C Series User manual

YASKAWA
VS mini C Series
INSTRUCTION MANUAL
ULTRA-COMPACT ALL DIGITAL INVERTER
ADVANCED FUNCTION TYPE
Upon receipt of the product and prior to initial operation, read
these instructions thoroughly,and retain for future reference.-,_
V
YASKAWA MANUAL NO. TOE S606-10.20B

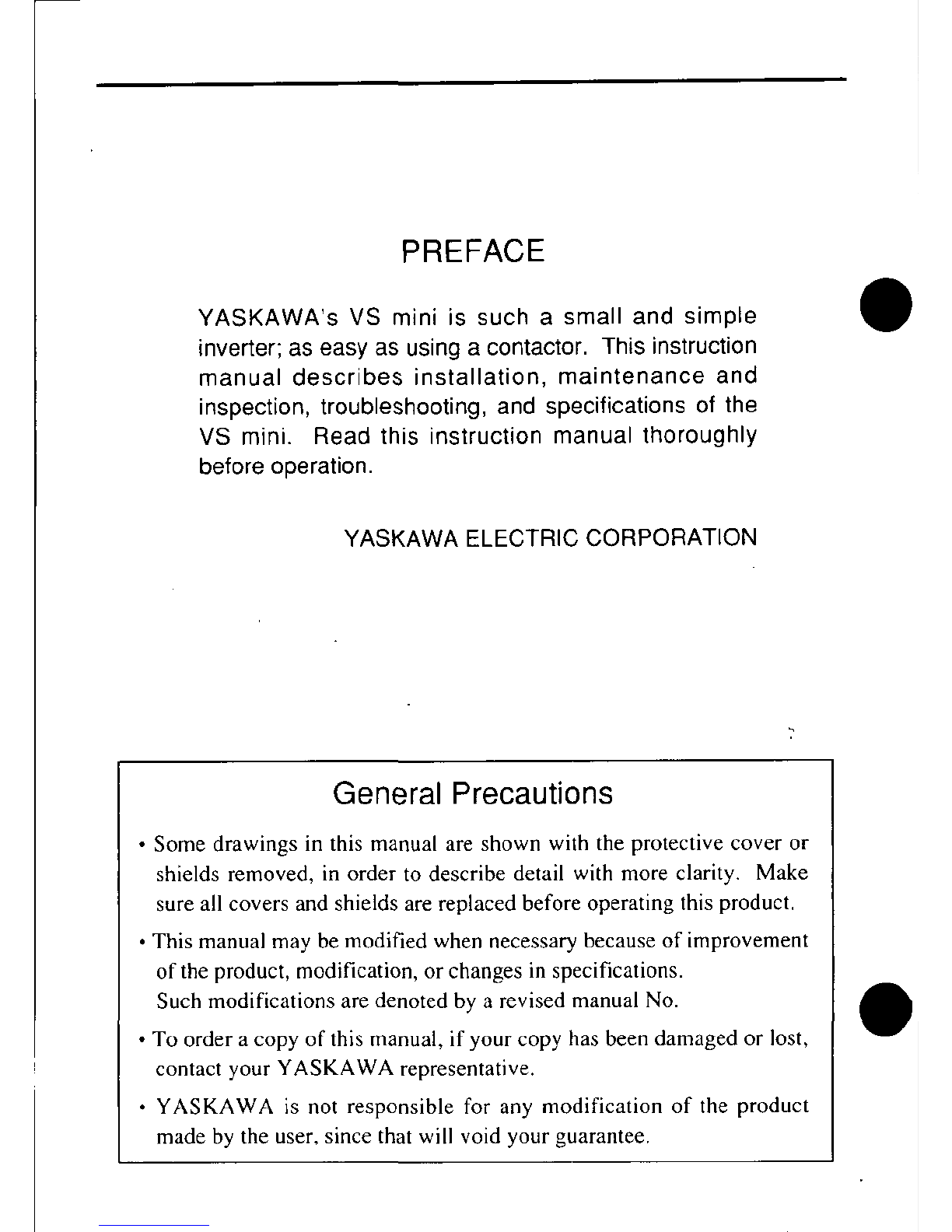

PREFACE
YASKAWA's VS mini is such a small and simple
inverter; as easy as using a contactor. This instruction
manual describes installation, maintenance and
inspection, troubleshooting, and specifications of the
VS mini. Read this instruction manual thoroughly
before operation.
YASKAWA ELECTRIC CORPORATION
?
General Precautions
• Some drawings in this manual are shown with the protective cover or
shields removed, in order to describe detail with more clarity. Make
sure all covers and shields are replaced before operating this product.
• This manual may be modified when necessary because of improvement
of the product, modification, or changes in specifications.
Such modifications are denoted by a revised manual No.
• To order a copy of this manual, if your copy has been damaged or lost,
contact your YASKAWA representative.
• YASKAWA is not responsible for any modification of the product
made by the user, since that will void your guarantee.

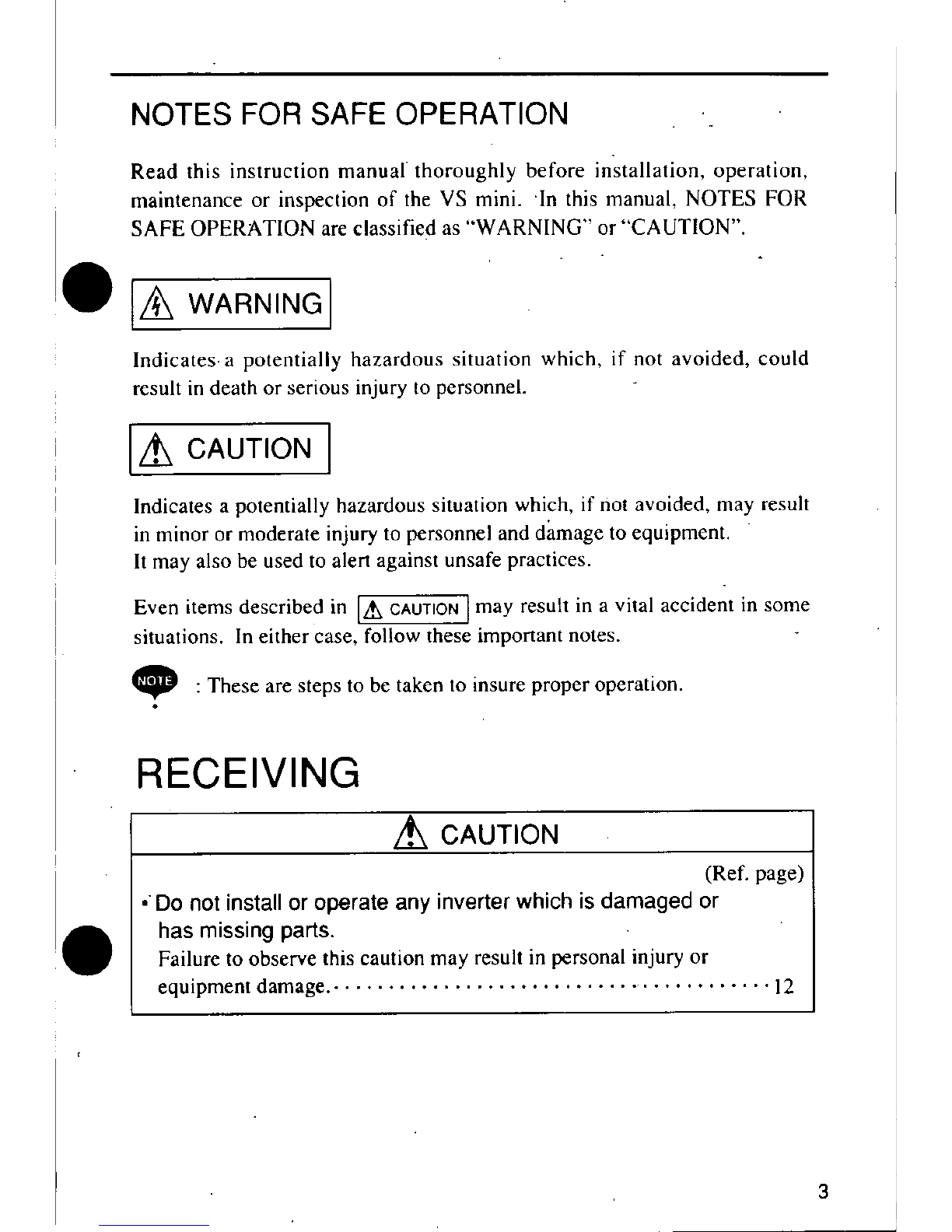

NOTES FOR SAFE OPERATION
Readthis instruction manual thoroughly before installation, operation,
maintenance or inspection of the VS mini. In this manual, NOTES FOR
SAFE OPERATION are classified as "WARNING" or "CAUTION".
lndicates, a potentially hazardous situation which,if not avoided, could
result in death or serious injury to personnel.
Indicates a potentially hazardous situation which, if not avoided,may result
in minor or moderate injury to personnel and d;amage to equipment.
It may also be used to alert against unsafe practices.
Even items described in _ may result in a vital accident in some
situations. In either case,follow these important notes.
O : These are steps to be taken to insure proper operation.
RECEIVING
/_ CAUTION
(Ref. page)
•" Do not install or operate any inverter which is damaged or
has missing parts.
Failure to observe this caution may result in personal injury or
equipment damage.- ....................................... 12

MOUNTING
/_ CAUTION
(Ref. page)
• Life the cabinet by the cooling fin. When moving the
unit, never lift by the plastic case or the terminal covers.|
Otherwise, the main unit may be dropped causing damage
to the unit.. ............................................. 14
• Mount the inverter on nonflammable material (i.e. metal).
Failure to observe this caution can result in a fire.. .............. 14
• When mounting units in an enclosure, install a fan or
other cooling device to keep the intake air temperature
below 122"F (50°C).
Overheating may cause a fire or damage to the unit.. ............ 15
• The VS mini generates heat. For effective cooling,
mount it vertically.
Refer to the figure in "Mounting Dimensions" on page15.
WIRING
Z_x WARNING
(Ref. page)
• Only commence wiring after verifying that the power
supply is turned OFF.
Failure to observe this warning can result in an electrical shock
or a fire.- ................................................ 16
• Wiring should be performed only by qualified personnel.
Failure to observe this warning can result in an electrical shock
or a fire.- ................................................ 16
• When wiring the emergency stop circuit, check the wiring
thoroughly before operation.
Failure to observe this warning can result in personal injury. • ..... 16

(Ref. page)
•Make sure to ground the ground terminal Q.
(Ground resistance : 100_ or less)
Failure to observe this warning can result in an electrical shock
or a fire., ................................................ 17
A'k CAUTION
(Ref.page)
• Verify that the inverter rated voltage coincides with the
AC power supply voltage..
Failure toobservethiscautioncan resultin personalinjury
or a fire.
• Do not perform a withstand voltage test of the inverter.
It may cause semi-conductor elements to be damaged.
• To connect a braking resistor, braking resistor unit or
braking unit, follow the procedures described in
this manual.
Improperconnectionmay causeafire.- ........................ 17
• Make sure to tighten terminal screws of the main circuit
and the control circuit.
Failure to observe this caution can result in a malfunction,
damage or a fire.- ......................................... 16
• Never connect the AC main circuit power supply to
output terminals U, V and W.
The inverter will be damaged and invalidate the
guarantee.. ................................. .............. 16
• Do not connect or disconnect wires or connectors
while power is applied to the circuit.
Failure to observe this caution c_/nresult in personal injury.
• Do not change signals during operation.
The machine or the inverter may be damaged.
5
J

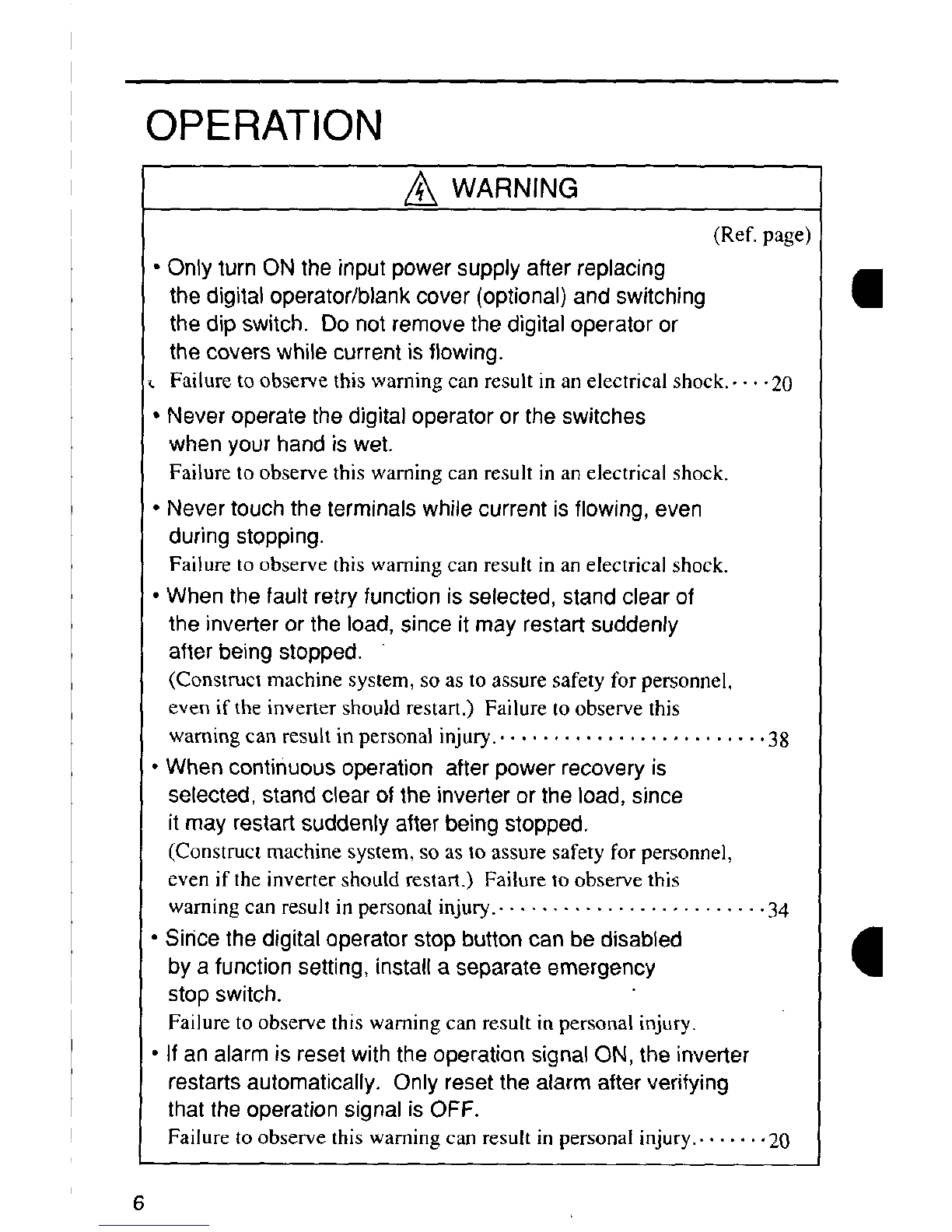

OPERATION
/_ WARNING
(Ref. page)
• Only turn ON the input power supply after replacing
the digital operator/blank cover (optional) and switching
the dip switch.Do not remove the digital operator or
the covers while current is flowing.
Failure to observe this warning can result in an electrical shock.. - ••20
• Never operate the digital operator or the switches
when your hand is wet.
Failure to observe this warning can result in an electrical shock.
• Never touch the terminals while current is flowing,even
during stopping.
Failure to observe this warning can result in an electrical shock.
•When the fault retry function is selected, stand clear of
the inverter or the load, since it may restart suddenly
after being stopped.
(Construct machine system, so as to assure safety for personnel,
even if the inverter should restart.) Failure to observe this
warning can result in personal injury.. ........................ 38
• When continuous operation after power recovery is
selected, stand clear of the inverter or the load, since
it may restart suddenly after being stopped.
(Construct machine system, so as to assure safety for personnel,
even if the inverter should restart.) Failure to observe this
warning can result in personal injury.- ........................ 34
• Since the digital operator stop button can be disabled
by a function setting, install a separate emergency
stop switch.
Failure to observe this warning can result in personal injury.
• If an alarm is reset with the operation signal ON, the inverter
restarts automatically.Only reset the alarm after verifying
that the operation signal is OFF.
Failure to observe this warning can result in personal injury.. ...... 20
6

Z_ CAUTION "
(Ref. page)
• Never touch the heatsink or'braking resistor since
the temperature is very high.
Failure to observe this caution can result in harmful burns
to the body.
• Since it is easy to change operation speed from low to
high speed, verify the safe working range Of the motor
and machine before operation.
Failure toobserve this caution can result in personal injury
and machine damage.
• Install a holding brake separately if necessary.
Failure to observe this caution can result in personal injury.
• Do not change signals during operation.
The machine or the inverter may be damaged.
• All the constants of the inverter have been preset
at the factory. Do not change the settings unnecessarily.
The inverter may bedamaged..• -."........................... 20
MAINTENANCE AND INSPECTION
/_ WARNING
(Ref. page_
Never touch high-voltage terminals in the inverter.
Failure to observe this warning can result in an electrical shock ...... 59
Disconnect all power before performing maintenance
or inspection. Then wait at least one minute after
the power supply is disconnected and all LED's are
extinguished.
The capacitors are still chargecl and can be dangerous." ............ 59

WARNING
(Ref. page)
Do not perform withstand voltage test on any part
of the VS mini.
This electronic equipment uses semiconductors and is
vulnerable to high voltage.. ................................. 59
Only authorized personnel should be permitted to perform
maintenance, inspections or parts replacement.
[Removeall metalobjects (watches,bracelets,etc.)
before operation.[
(Usetoolswhich areinsulatedagainstelectrical shock.)
Failure to observe this warning can result in an electrical shock,. .... 59
/_ CAUTION
(Ref. page)
• The control PC board employs CMOS ICs.
Do not touch the CMOS elements.
They are easily damaged by static electricity.. .................. 59
• Do not connect or disconnect wires or connectors
while power is applied to the circuit.
Failure to observethiscaution canresult in personalinjury.. ....... 59
Others
wAaNING I
•Nevermodifytheproduct.
Failure to observe this warning can result in an electrical shock or
personal injury and will invalidate the guarantee.

WARNING LABEL
A warning label is displayedon the front cover of the inverter,as shown
below. Follow these inslructions when handling the inverter.
PLASTIC COOLINGFIN _ Digital operator JVOP-120
CASE /
,,A,OS\,ERM,NAL
IND_CAIOR_ COVER
_TERMINAL
COVERS
Warning Label
Z_ WARNING
May cause
electric shock.
• Disconnect all
power before
opening terminal
cover of unit. Wait
1 minute until DC
Bus capacitors
discharge.

CONTENTS
NOTES FOR SAFE OPERATION .............................. 3
1. RECEIVING ............................................................. 12
•Checking the Name Plate .............................................. 12

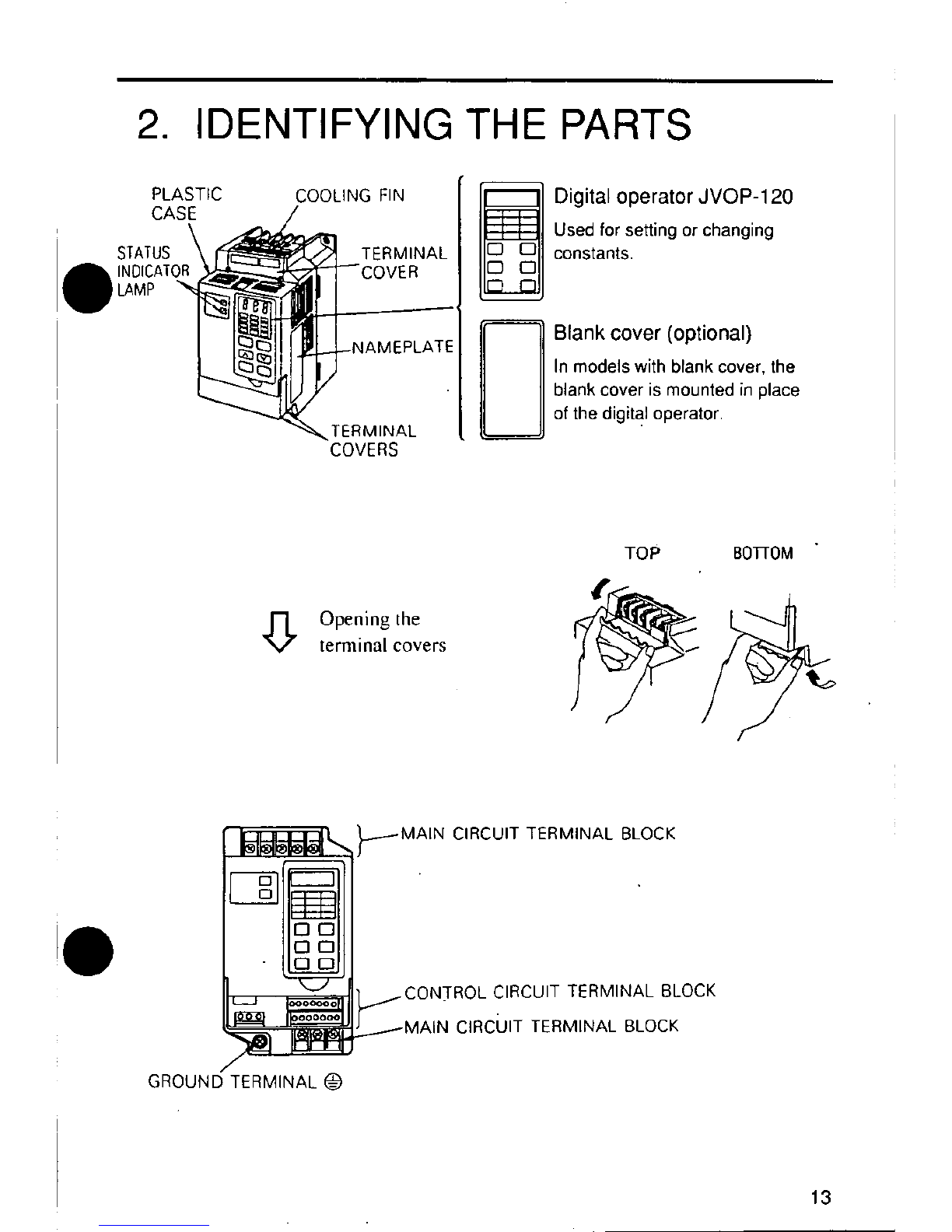

2.IDENTIFYINGTHE PARTS..................................13 •

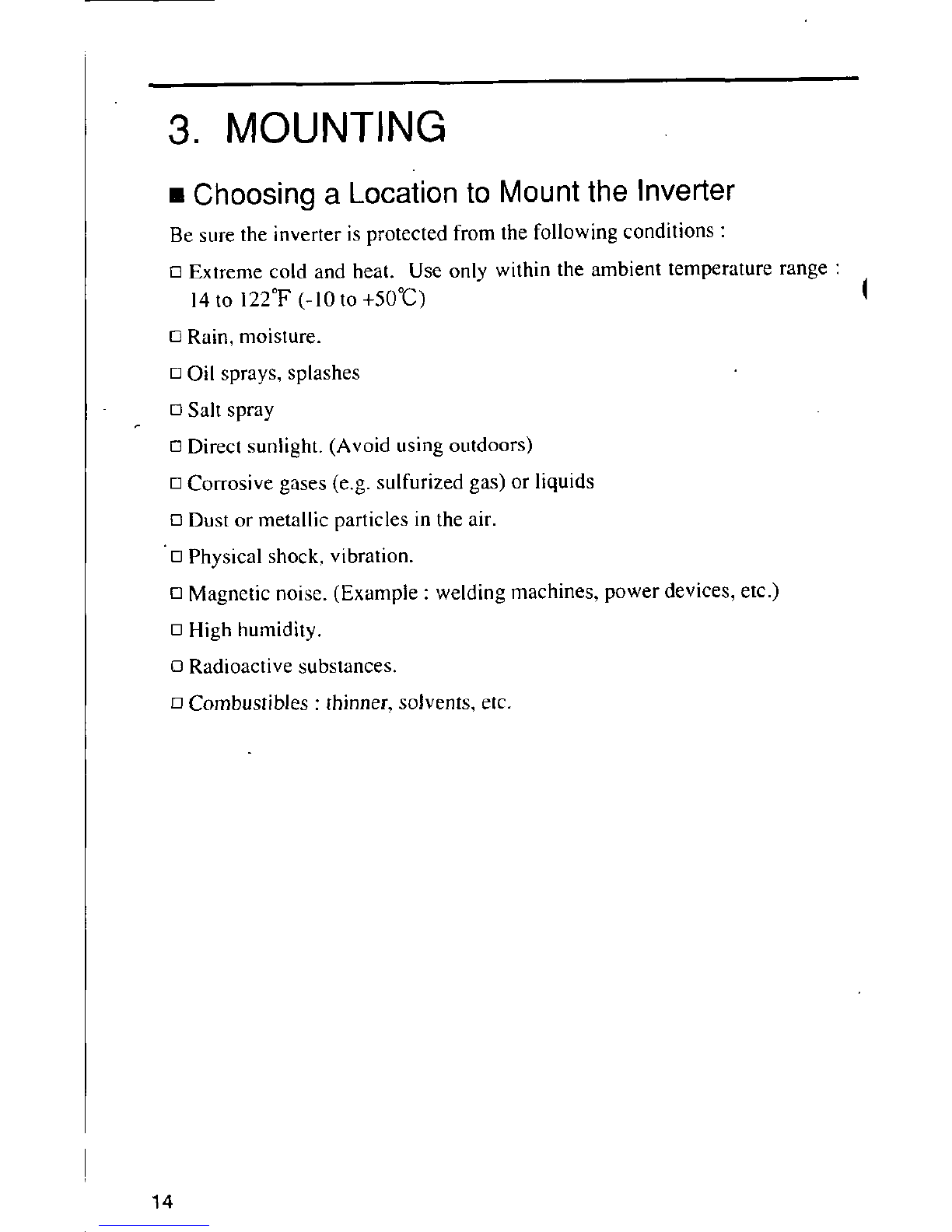

3. MOUNTING ............................................................. 14
• Choosing a Location to Mount the Inverter ......................... 14
m Mounting Dimensions .................................................... 15

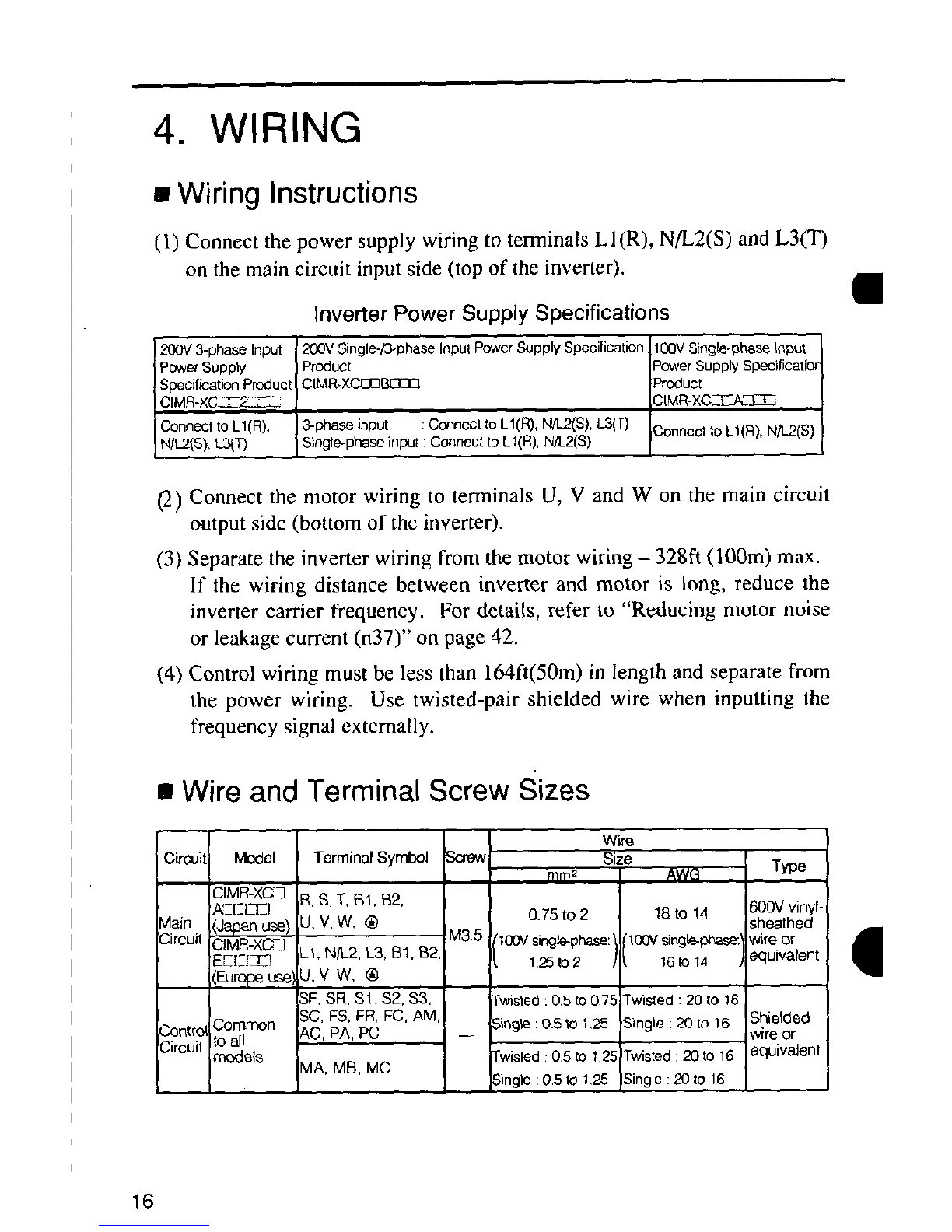

4. WIRING .................................................................... 16
Wiring Instructions ........................................................ 16
nWire and Terminal Screw Sizes ....................................... 16

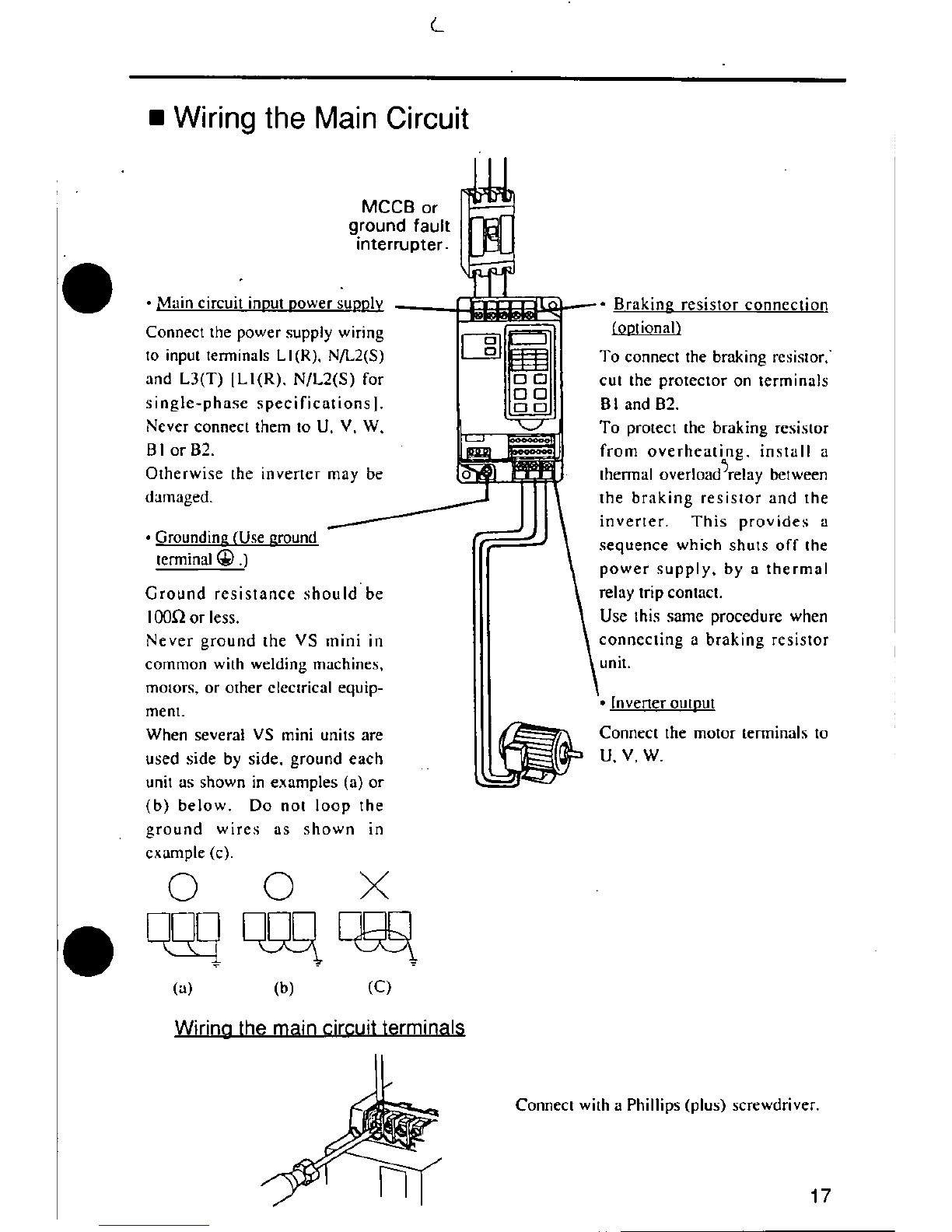

• Wiring the Main Circuit .................................................. 17

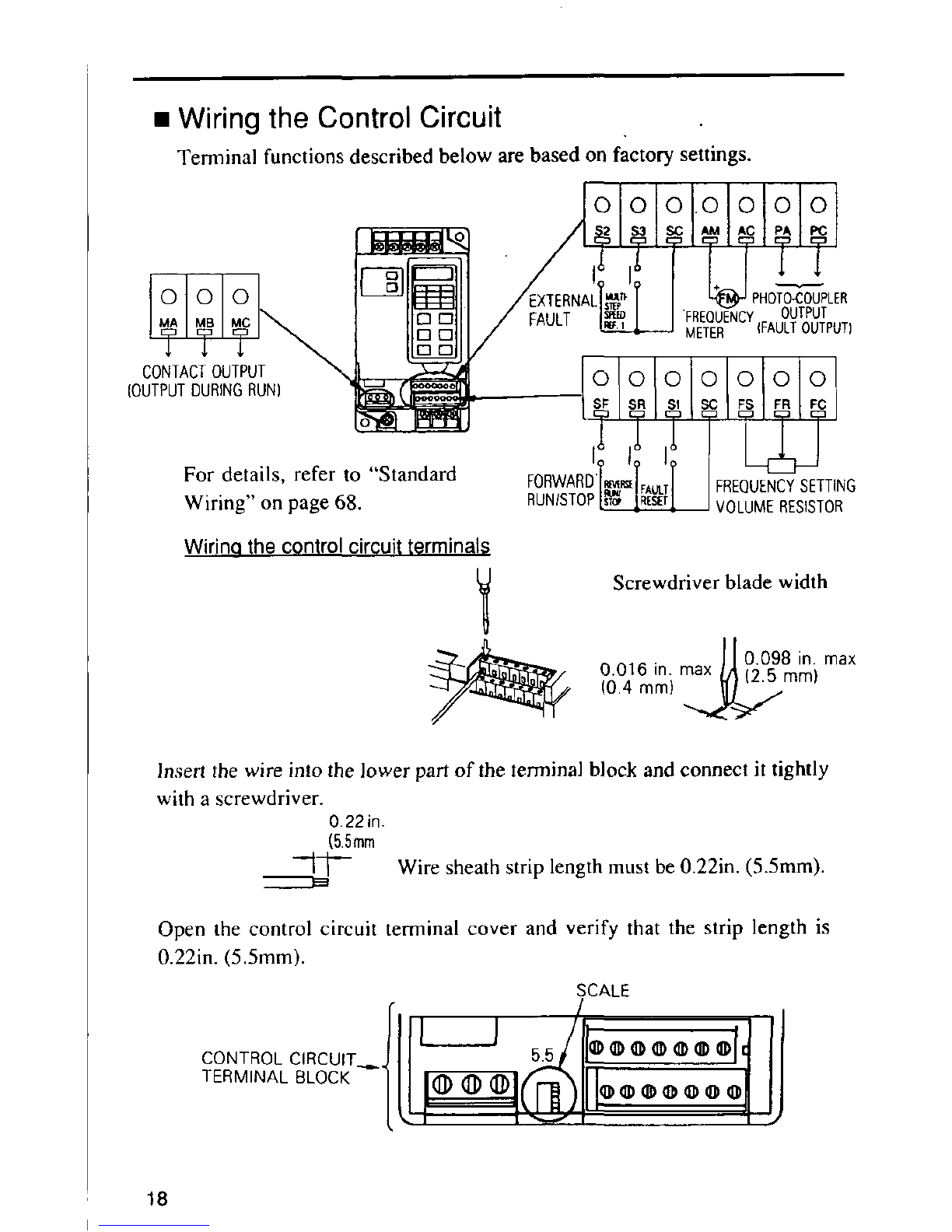

m Wiring the Control Circuit ............... : ............................... 18

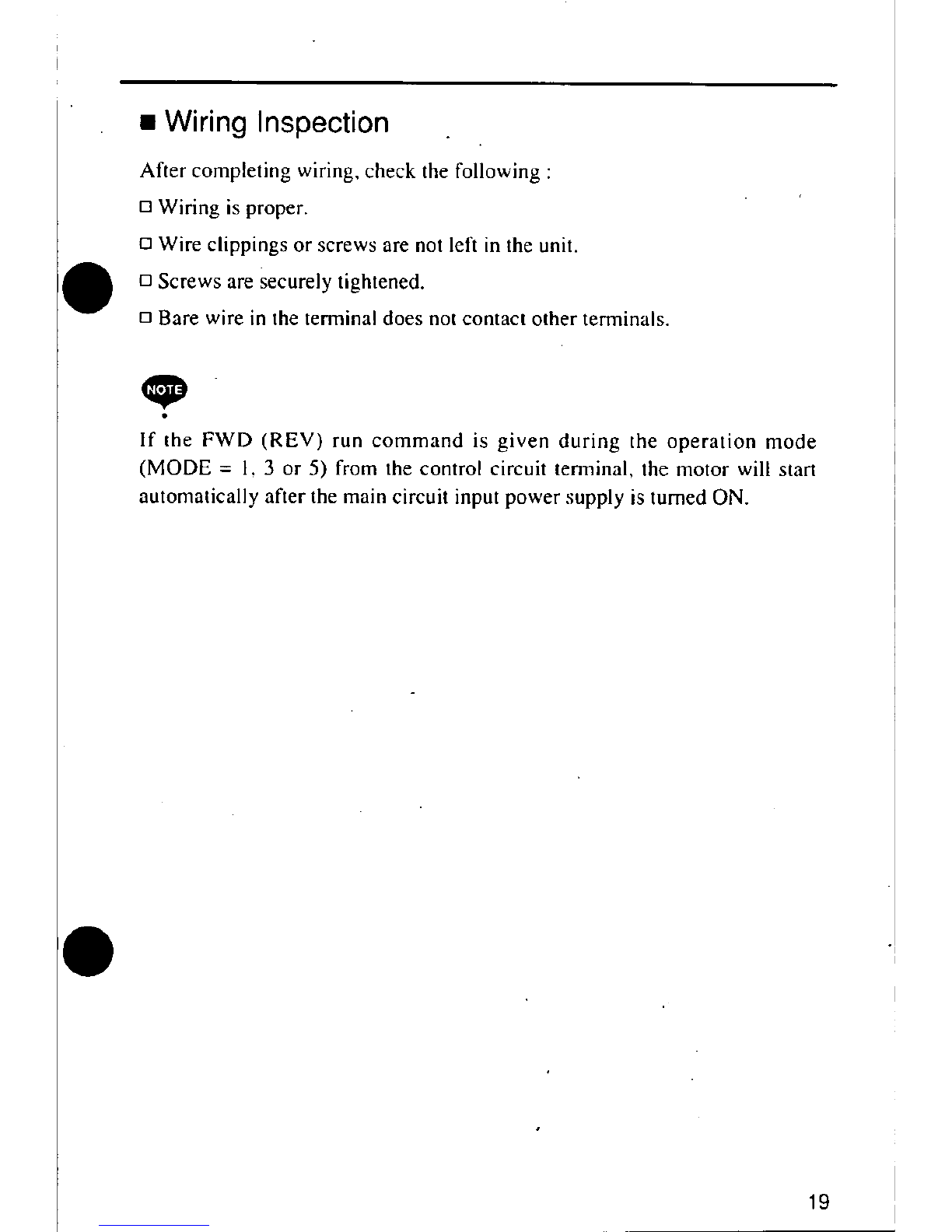

mWiring Inspection .......................................................... 19

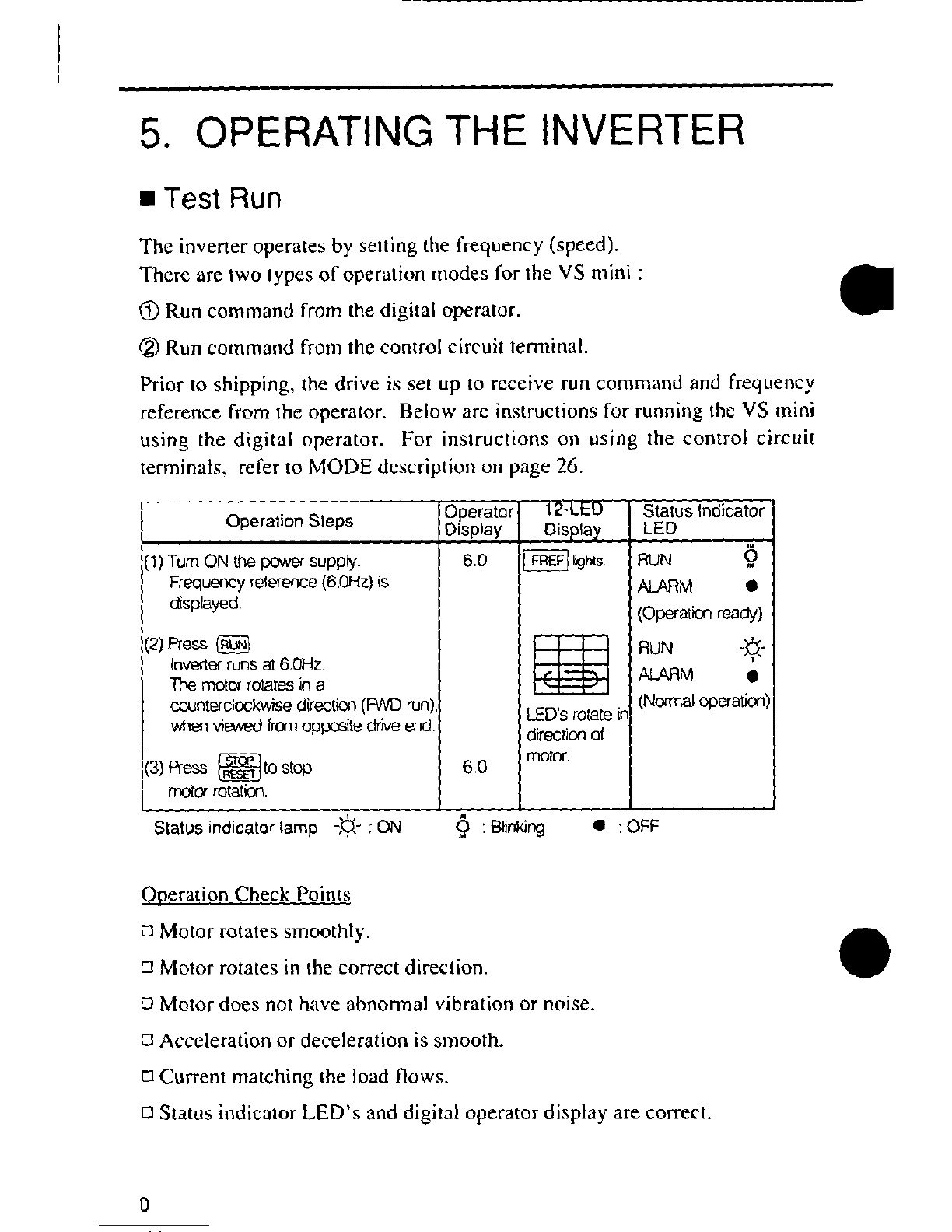

5. OPERATING THE INVERTER ............................ 20
m Test Run .................................................................... 20
m Operating the Digital Operator ........................................ 21
• LED Description ........................................................... 23
• Simple Data Setting ...................................................... 27
6.PROGRAMMING FEATURES.............................29
• Constant Set-up and Initialization .................................... 29
• Setting Operation Conditions .......................................... 30
Reverse run prohibit (n05) ............................................ 30
Multi-step speed selection ............................................ 30
Operating at low speed ................................................ 31
d
Adjusting frequency setting signal .................................. 32 •
Adjusting frequency upper and lower limits ...................... 33
Using two accel/decel times.......................................... 33
Automatic restart after momentary
power loss (n36) ........................................................ 34
Soft-start characteristics (n49) ....................................... 34
10

Torque detection ........................................................ 35
Frequency detection (n53) ............................................ 37
Jump frequencies (n56 to n59) ....................................... 38
Continuing operation by automatic fault reset (n60) ............ 38
Operating coasting motor without trip .............................. 39
Holding accel/decel temporarily ...................................... 40
Using frequency meter or ammeter (n44) ......................... 41
Calibrating frequency meter or ammeter (n45) .................. 41
Reducing motor noise or leakage current (n37) ................. 42
Operator stop key selection (n61) ................................... 43
• Selecting Stopping Method ............................................. 44
Selecting stopping method (n03) .................................... 44
Applying DC injection braking ........................................ 45
• Building Interface Circuits with External Devices ................. 46
Using input.signals (n06, n07, n08) ................................. 46
Using output signals (n09, nl0) ...................................... 49
• Setting Frequency by Current Reference Input .................... 50
• Adjusting Motor Torque .................................................. 51
Adjusting torque according to application ......................... 51
Preventing motor from stalling (Current limit) .................... 54
• Decreasing Motor Speed Fluctuation ................................ 56
Slip compensation ..................................... _................. 56
• Motor Protection .......................................................... 57
Motor overload detection .............................................. 57
7. MAINTENANCE AND INSPECTION .................. 59
8. FAULT DIAGNOSIS AND
CORRECTIVE ACTIONS ..................................... 60
, 9. SPECIFICATIONS ................................................. 66
• Standard Specifications ................................................. 66
• Standard Wiring ........................................................... 68
• Dimensions ................................... : ............................. 70
• Recommended Peripheral Devices ................................... 72
• Constants List .............................................................. 74
tl

1. RECEIVING
After unpacking the VS mini,check the following :
Verify that the part numbers match your purchase order or packing slip.
a Check the unit for physical damage that may have occurred during
shipping.
If any part of VS mini is missing or damaged, call for service immediately.
• Checking the Name Plate
Japan Domestic Standards for Types of 3-phase,
200VAC, 0.13HP (0. IkW)
INVERTERMODEL_/" M3OEL: CIMR-XCJA20P1 SPEC: "_
INPUISPEC._| JJ'-_LfT:AC3PH ',',','2£0-230V50/60Hz 0.gA I
OUTPUTSPEC._ IOJTF'UT : AC 3 PH 0-230V0.3k.VA0.aA •
LOTN0._/LOT N_" MASS 05k_l -- MASS
SERIAL"0--LSERNO; P_G:__.J--PROM.0
CIMR --XCJA OP1
vS miniseries 0Pt : O.13HP(0.1kW)
OP2 : 0.25HP (0.2kW)
Type to
J : Low-carriertype1P5: 2HP (1.5kW)
B: Low-noise type"P" indicates a decima_point.
Specifications Voltage class
A : Japan domestic standards 2 : Three-phase, 20OV
E: Europeanstandards t3: Single-/three-phase, 2OOV
A : Single-phase, 100V*
* Low-carrier type is not
provided for this class.

2. IDENTIFYING THE PARTS
PLASTIC COOLINGFIN
Digital operator JVOP- 120
, CASE _._._
\ _ _ Usedforsettingorchanging
STATUS
\
TERMINAL constants.
INDICAiO.R,,_p_COVE R
NAMEPLATE Blank cover (optional)
Inmodels with blank cover, the
blank cover is mounted in place
of the digital operator.
_TERMINAL
COVERS
TOP BoTr0M
terminal covers
_ }_.._-MAIN CIRCUIT TERMINAL BLOCK
[_! ,,:
I 1
or'n
Orn
rno
'x.j' _.....ICONTROL CIRCUITTERMINAL BLOCK
I_Z] _ L_....._MAIN CIRCUITTERMINAL BLOCK
GROUND TERMINAL (_)
13

3. MOUNTING
[] Choosing a Location to Mount the Inverter
Be sure the inverter is protected from the following conditions :
D Extreme cold and heat. Use only within the ambient temperature range :
14to122°F(-10to+50°C) I
t3 Rain, moisture.
[] Oil sprays, splashes
D Salt spray
o Direct sunlight. (Avoid using outdoors)
[] Corrosive gases (e.g. sulfurized gas) or liquids
D Dust or metallic particles in the air.
[] Physical shock vibration.
[] Magnetic noise. (Example : welding machines, power devices, etc.)
[] High humidity.
o Radioactive substances.
rnCombustibles :thinner, solvents, etc.
14

15

4. WIRING
.. Wiring Instructions
(1) Connect the power supply wiring toterminals LI(R), N/L2(S) and L3(T)
on the main circuit input side (top of the inverter).
Inverter Power Supply Specifications
200V3-phaseInpul 1200VSingle-/3-phaseInpel PowerSupplySpecification 100VSingle-phaseIflput
PowerSupply PrOduct PowerSupplySpecificatiol
SpecificationProductICIMRoXC23E2_SZ3 Product
'CIMFI-XC--2_ ' CIMR-XC_a--_
Connectto L1(R). 3-phaseinput :Connectto LI(R), N/L2(S),L3(T) ConnecttoLI(R), N/L2.(5)
N/L2(S).L3(1) Single-phaseinput:ConnecttoLI(R),N/L2(S)
(2) Connect the motor wiring to terminals U, Vand W on the main circuit
output side (bottom of the inverter).
(3) Separate the inverter wiring from the motor wiring - 328ft (100m) max.
If the wiring distance between inverter and motor is long, reduce the
inverter carrier frequency. For details, refer to "Reducing motor noise
or leakage current (n37)" on page 42.
(4) Control wiring must be less than 164fl(5om) in length and separate from
the power wiring. Use twisted-pair shielded wire when inputting the
frequency signal externally.
" Wire and Terminal Screw Sizes
Wire
Circuit Model Terminal Symbol 3o'e_ Size
mEn2 _WG Type
CIMR-XC_7 :_,S, T, 81, [32,
_ZIZIT_I 0.75to 2 18to 14 600Vvinyl-
Vlain (Ja_qnuse) J, V, W, (_ M3,5 sheathed m
rtOOVsing_phase:_ qgOVsing_-pt_ase wireor
Circuit CIMR-X_ZI _1,N/L2.,L3, B1. B2 } equivalentE/ISl-[I 1.25Io2 16to14
(F_uropeuse J,V,W,
_F.SR, $1. $2, $3,twisted :0,5 to075 Twisted: 20 to t8
3C, FS, FR, FC, AM, _hielded
._,ontrolCommon 5ingle: O.Sto t25 Single :201o 16
2ircuit to all a.C,PA,PC -- wire or
models Fwisted:05 to t25 Twisted: 20to 16 equivalent
VIA, MB, MC
3ingle:05 to 125 Single:20 to 16
16

• Wiring the Main Circuit
MCCB or
ground fault II [dll
interrupter. _
• Main circuit inout dower suoplv _ _• Brakin_ resistor connection
C..... tthep ...... pply wiring I[_[_ ,ootiona,)
to input terminals LI(R),N/L2(S) i_--_1[_ To connect the braking resistor. •
and L3(T) ILl(R). N/L2(S) for I I][30 cut the protector on terminals
.... / IIOIE]dO 9
s,ngle-ph .... peclflcat ,..... , 1o_ BI and B_.
Never connect them to U. V. W. __ "xTZT" To protect the braking resistor
BI orB2. _ from overheating, install a
Otherwise the inverter may be _ Ibermal overload3relay between
damaged. _ III the braking resist .... d the
•/ill inverter. This provides a
•Groundm_ (Use _round r_""-.,.--..._ _ sequence which shuts off the
terminal(_) III _ " w
............. III \ p..... pply. by a tb.... I
G .... d resist ..... hould be III \ relay trip contact.
100f_ or I.... III \ Use thi..... proced .... hen
.....g....d,hevsmi.ii. III \ ......,_.gabra._ngresistor
....... ith weldingm_chi.... III \.nit.
motors, orother electrical equip- III
..... Ill _ .Invert .... tout
Wh........ tVSminiunit .... II1_ c.....t the motorterm,na,s ,o
used side by side. ground each |1_ U. V, W.
unit as shown in examples (a) or _""_"
(b) below. Do not loop the
ground wires as shown in
example (c).
(3 (3 X
(a) (b) (C)
Wirino the main circuit terminals
Connect with a Phillips (plus) screwdriver.
17

• Wiring the Control Circuit
Terminal functions described below are based on factory settings.
/
0 0 0.0 0 0 0
LT#T P,OTO_OU_LE,
CONTACT OUTPUT
,OUTPUTOURING IOLOLOIoIoIoIoI
I_ I'_ I& I=_I'=sIN I'=cI
refer ..... II _ _ I[_IT I_, I
For details, to "Standard PRWAR_-T
• . u u/,mEn,/FAOtT|I FREQUENCYSETTING
Wiring" on page 68. RUN/STOPI_JREstr_I I VOLUMERESISTOR
Wirino the control circuit terminals
t Screwdriver blade width
//0.098io._n_x
0.016 in._mm)
(0.4 ram)
In,sen the wireinto the lower partof the terminal block and connect it tightly
with a screwdriver.
0.22in.
(5.5mm
"_-_- Wire sheath strip length must be 0.22in. (5.5mm).
Open the control circuit terminal cover and verify that the strip length is
0.22in. (5.5mm).
SCALE
TERMINAL BLOCK _/
L
18

• Wiring Inspection
After completing wiring, check the following :
[] Wiring is proper.
[] Wire clippings or screws are not left in the unit.
[] Screws are securely tightened.
[] Bare wire in the terminal does not contact other terminals.
O
If the FWD (REV) run command is given during the operation mode
(MODE = 1, 3 or 5) from the control circuit terminal, the motor will starl
automatically after the main circuit input power supply is turned ON.
19

5. OPERATING THE INVERTER
• Test Run
The inverter operates by setting the frequency (speed).
There are two types of operation modes for the VS mini :
(_) Run command from the digital operator.
(_) Run command from the control circuit terminal.
Prior to shipping, the drive is set up to receive run command and frequency
reference from the operator. Below are instructions for running the VS mini
using the digital operator. For instructions on using the control circuit
terminals, refer to MODE description on page 26,
Operator t 2-LED Status Indicator
Operation Steps Display Displa_ LED
1)TurnONthepowersupply. 6.0 _ lights. RUN
Frequencyreference(6,0Hz)is ALARM •
displayed.{Operatk3nready)
(2)_ {_ pzpzpzIRUN ;,_-
Inverterrunsat6,0Hz. _ ALARM •
The moto_ rotates in a
c_ountercleckwisedirectk3o(FWDrun), LED'srotatein (Normaloperation)
whenviewedfromoppos_edriveend. directionof
(3)Press _ tostop 6.0 mote,'.
mot_ rotation.
Status indicator lamp -,'_- ; ON _ : Blinking • : OFF
Operation Check Points
o Motor rotates smoothly.
c1Motor rotates in the correct direction.
D Motor does not have abnormal vibration or noise.
uAcceleration or deceleration is smooth.
Current matching the load flows.
O Status indicator LED's and digital operator display are correct.
