MECHATROLINK COMMUNICATIONS INTERFACE UNIT
VS-606V7 OPTION UNIT
INSTRUCTIONS
MODEL: SI-T/V7

Copyright ©2004 YASKAWA ELECTRIC CORPORATION
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording,
or otherwise, without the prior written permission of Yaskawa. No patent liability is assumed
with respect to the use of the information contained herein. Moreover, because Yaskawa is con-
stantly striving to improve its high-quality products, the information contained in this manual is
subject to change without notice. Every precaution has been taken in the preparation of this
manual. Nevertheless, Yaskawa assumes no responsibility for errors or omissions. Neither is
any liability assumed for damages resulting from the use of the information contained in this
publication.

3
Introduction
Thank you for purchasing a Vector-control General-purpose VS-606V7 Inverter and a SI-T/
V7 MECHATROLINK-I/MECHATROLINK-II Communications Interface Unit (called “SI-
T/V7 Unit” below).
This manual describes the operation and specifications of the SI-T/V7 Unit, which connects
to the MECHATROLINK-I/MECHATROLINK-II open field network for exchanging data.
Be sure that you have read and understood this manual before attempting to operate the SI-
T/V7 Unit.
For details on operating the Inverter itself, refer to the VS-606V7 Series Instruction Manual
(TOE-S606-11).
Yaskawa Electric, Inc.
General Precautions
• The diagrams in this manual may be indicated without covers or safety shields in order to show
details. Be sure to restore covers or shields before operating the Inverter, and operate the Inverter
according to the instructions provided in this manual.
• The products and specifications described in this manual or the contents and presentation of the
manual may be changed without notice to improve the product and/or the manual.
• When ordering a new copy of the manual due to damage or loss, contact your Yaskawa represen-
tative or the nearest Yaskawa sales office and provide the manual number shown on the front
cover.
• Any modifications to the product by the customer invalidate the warranty, and Yaskawa accepts no
responsibility for the results of any modifications

4
Safety Precautions
Carefully read this manual and all other documentation provided with the product before
attempting to install, operate, inspect, or perform maintenance on the product. Within this
manual, safety-related precautions are classified a “warnings” and “cautions.”
Indicates precautions that, if not heeded, could possibly result in loss of life or seri-
ous injury.
Indicates precautions that, if not heeded, could result in relatively less serious or
minor injury, or damage to the equipment.
Failure to heed even a precaution classified as a caution can result in serious consequences
depending on the situation. All precautions contain important information, so make sure that
they are followed carefully.
Indicates important information that the user should make careful note of, even though it is
not classified as a caution.
WARNING
CAUTION
IMPORTANT

5
Confirmations upon Delivery
Installation and Wiring
Settings
• Never use an Option Unit that is damaged or missing components.
Doing so can result in injury.
• Never touch the inside of the Inverter with your hands.
Doing so can result in electric shock.
• Before installing or removing the Option Unit, or performing wiring operations, always turn OFF the
power to the Inverter and wait until the specified period of time has elapsed after all the Inverter
indicators have turned OFF. (The time is shown on the Inverter’s front cover.)
Failure to do so can result in electric shock.
• Do not allow cables to be damaged, subjected to stress, placed under heavy objects, or pinched.
Doing so can result in electric shock, faulty operation, or damage to the equipment.
CAUTION
WARNING
• Never touch the Option Unit terminals directly with your hands.
Doing so can result in damage from static electricity.
• Insert the connectors securely.
Failure to do so can result in damage or faulty operation of devices.
• Do not carelessly change the Inverter’s settings.
Doing so can result in damage or faulty operation of devices.
CAUTION
CAUTION

6
Warranty Information
Free Warranty Period and Scope
Warranty Period
This product is warranted for twelve months after being delivered to Yaskawa's customer or
if applicable eighteen months from the date of shipment from Yaskawa's factory, whichever
comes first.
Scope of Warranty
Inspections
Periodic inspections must be conducted by the customer. However, upon request, Yaskawa
or one of Yaskawa's Service Centers can inspect the product for a fee. In this case, if after
conferring with the customer, a Yaskawa product is found to be defective due to Yaskawa
workmanship or materials and the defect occurs during the warranty period, then this fee
will be waived and the problem remedied free of charge.
Repairs
If a Yaskawa product is found to be defective due to Yaskawa workmanship or materials and
the defect occurs during the warranty period, Yaskawa will provide a replacement, repair the
defective product, and provide shipping to and from the site free of charge.
However, if the Yaskawa Authorized Service Center determines that the problem with a
Yaskawa product is not due to defects in Yaskawa's workmanship or materials, then the cus-
tomer will be responsible for the cost of any necessary repairs. Some problems that are out-
side the scope of this warranty are:
• Problems due to improper maintenance or handling, carelessness, or other reasons where
the customer is determined to be responsible.
• Problems due to additions or modifications made to a Yaskawa product without
Yaskawa's understanding.
• Problems due to the use of a Yaskawa product under conditions that do not meet the rec-
ommended specifications.
• Problems caused by natural disaster or fire.
• Or other problems not due to defects in Yaskawa workmanship or materials.
Warranty service is only applicable within Japan.
However, after-sales service is available for customers outside of Japan for a reasonable fee.
Contact your local Yaskawa representative for more information.
Exceptions
Any inconvenience to the customer or damage to non-Yaskawa products due to Yaskawa's
defective products whether within or outside the warranty period are NOT covered by this
warranty.

7
Restrictions
• The SI-T Unit was not designed or manufactured for use in devices or systems that may
directly affect or threaten human lives or health.
• Customers who intend to use the product described in this manual for devices or systems
relating to transportation, health care, space aviation, atomic or electric power, or under-
water use must contact their Yaskawa representatives or the nearest Yaskawa sales office
beforehand.
• This product has been manufactured under strict quality-control guidelines. However, if
this product is to be installed in any location where failure of this product could involve
or result in a life-and-death situation or loss of human life or in a facility where failure
may cause a serious accident or physical injury, safety devices must be installed to mini-
mize the likelihood of any accident.

8
CONTENTS
Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Safety Precautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
Warranty Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Restrictions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
1 Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
2 Checking the Product - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 9
2.1 Nameplate - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -9
2.2 Parts List - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10
3 Component Names and Settings - - - - - - - - - - - - - - - - - - - - 10
3.1 Component Names - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -10
3.2 Communications Connectors (CN2) - - - - - - - - - - - - - - - - - - 11
3.3 LED Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
3.4 Switch Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
4 Installation and Wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - 14
4.1 Installing the SI-T/V7 Unit - - - - - - - - - - - - - - - - - - - - - - - - - 14
4.2 MECHATROLINK Communications Cables - - - - - - - - - - - - - 16
5 Inverter Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 17
6 Communications Specifications - - - - - - - - - - - - - - - - - - - - - 18
Revision History

1 Overview
9
1Overview
The SI-T/V7 Interface Unit is an interface unit that connects to the MECHATROLINK-I or
MECHATROLINK-II high-speed field network for communicating with the host controller.
By installing the SI-T/V7 Unit to a VS-606V7-series Inverter, various applications are enabled;
monitoring of the run/stop status and the operating conditions as well as the changing and the
referencing of the settings for the Inverter constants from the host controller.
The SI-T/V7 Unit can be installed in the following Inverters.
• VS-606V7-series Inverter, software No. 5650.
• VS-606V7-series Inverter, software No. 573X.
Note: 1. “X” indicates the design revision order.
2. The Inverter software will soon be updated from version No. 5650
to No. 573X.
VS-606V7 Inverter with an SI-T/V7 Unit does not conform to CE Marking, although the VS-606V7
Inverter itself conforms to CE Marking.
2 Checking the Product
Check the following items as soon as the product is delivered.
Contact your Yaskawa representative immediately if any failure should be found concerning the
above items.
2.1 Nameplate
The following diagram shows the nameplate on the side of the SI-T/V7 Unit.
* “X” indicates the design revision order.
IMPORTANT
Item Method
Is there any discrepancy between the shipment and
what was ordered?
Check the information printed on the Unit. (Refer to 2.1.)
Has the product been damaged in any way? Inspect the entire exterior of the Unit for any damage that
may have occurred during shipping.
Are the contents of the package correct? Check the contents shown in the table below.
SER NO :
YASKAWA ELECTRIC
CORPORATION
LOT NO :
PRG :
CODE NO : 73606-V706X
INTERFACE UNIT SI-T/V7
MASS : 0.5kg
MADE IN
JAPAN MS
Manufacturing No.
Lot No.
Program No.
Code No.*
SI-T/V7 Unit type
Mass

10
2.2 Parts List
The SI-T/V7 Unit contains the following parts.
3 Component Names and Settings
3.1 Component Names

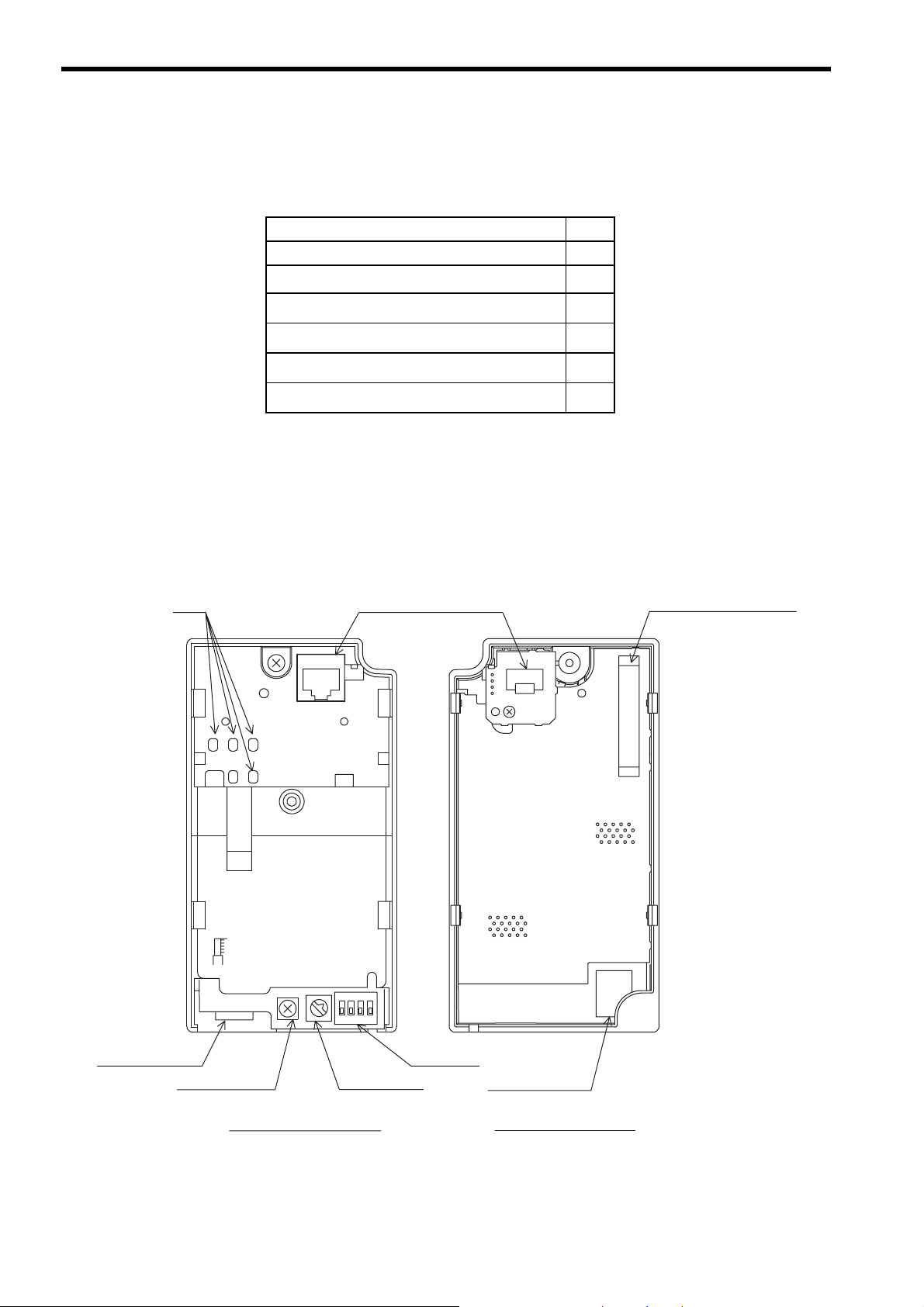

The following diagram shows the SI-T/V7 Unit external appearance and component names.
Parts Name Qty
SI-T/V7 Communications Interface Unit 1
Mounting fixture 1
M3 ×8 SW screw 1
Grounding cable (small) 1
Grounding cable (medium) 1
Grounding cable (large) 1
5.5
mm
LED
Communications
connector (CN2) Communications
connector (CN2)
DIP switch
Modular plug (CN10)
Rotary switch
Optional connector (CN1)
Front of the SI-T/V7 Unit
Ground terminal
Rear of the SI-T/V7 Unit

3 Component Names and Settings
11
3.2 Communications Connectors (CN2)
The communications connectors connect the SI-T/V7 Unit to the communications lines of
the MECHATROLINK-I or MECHATROLINK-II . The following table shows the pin num-
bers and their functions.

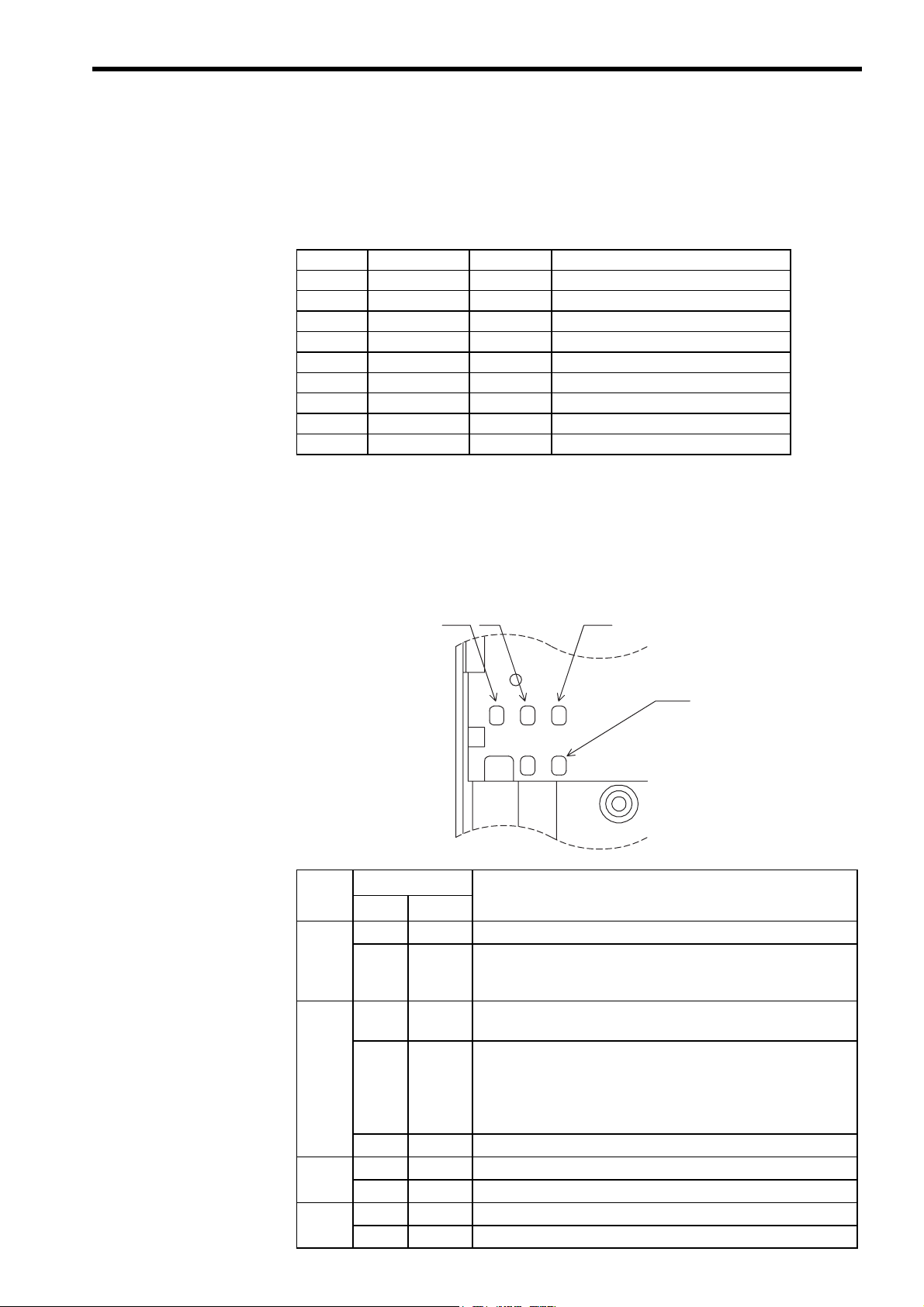

3.3 LED Indicators
The LED indicators indicate the status of the communications of the MECHATROLINK-I
or MECHATROLINK-II and the SI-T/V7 Unit.
However, these indicates are for maintenance checks at Yaskawa. Use the Digital Operator
to check the status.
Pin No. Signal Name I/O Function
A1 (NC) −Not used.
A2 SRD−I/O Send/receive data (-)
A3 SRD+ I/O Send/receive data (+)
A4 (NC) −Not used.
B1 (NC) −Not used.
B2 SRD−I/O Send/receive data (-)
B3 SRD+ I/O Send/receive data (+)
B4 (NC) −Not used.
Shell Shield −Not used.
Name Display Explanation
Color Status
RUN Green Lit Normal operation
−Not lit Communications CPU stopped, resetting hardware, RAM check
error, DPRAM check error, station address setting error, or
Inverter model code error
ERR Red Lit Watchdog timeout error, communications error, or resetting hard-
ware
Red Blinking ROM check error (once), RAM check error (twice)*, DPRAM
check error (3 times)*, communications ASIC self-diagnosis error
(4 times) *, ASIC RAM check error (5 times), station address set-
ting error (6 times) *, Inverter model code error (7 times) *
*: Indicates the number of blinking.
−Not lit No communications error or self-diagnosis error
TX Green Lit Sending data
−Not lit Sending of dara stopped, hardware reset
RX Green Lit Searching for receiving carrier
−Not lit No receiving carrier found, resetting hardware
RUN TX RX
ERR

12
3.4 Switch Setting

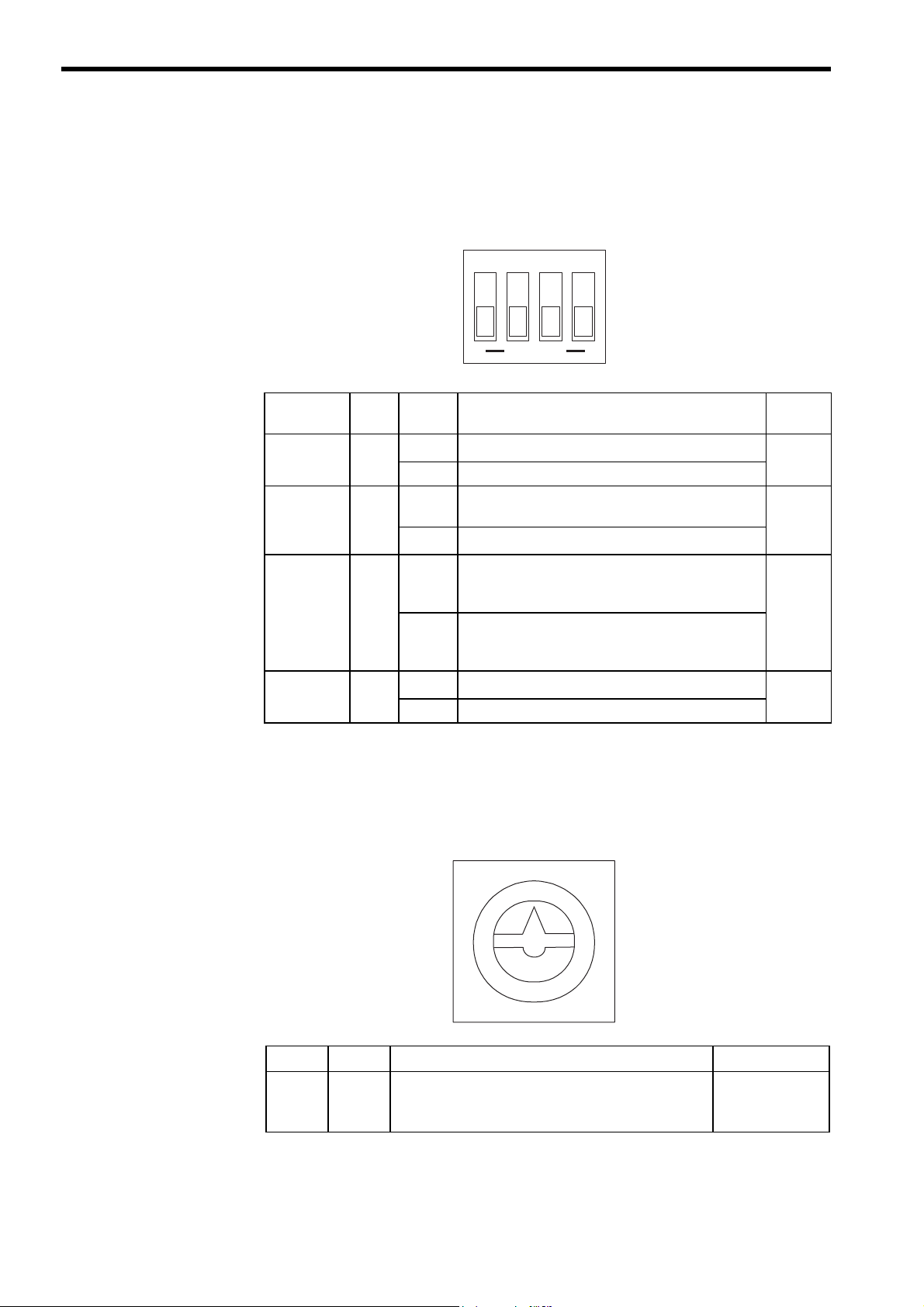

DIP Switch
The following table shows the SI-T/V7 Unit DIP switch settings.
* 1. Invalid if S1-1 is OFF (4 Mbps) and S1-2 is ON (32-byte data transmission).
* 2. For maintenance. Always leave this switch OFF.
Rotary Switch
The following table shows the SI-T/V7 Units rotary switch settings.
Note: Although the range that can be set by S1-3 and S2 is from 20 to 3F,
20 and 3F are invalid (the ERR LED indicator blinks six times).
Therefore, the actual setting range is from 21 to 3E.
Refer to the following section Station-number Setting for details.
Name Label Status Function Factory
Setting
Baud rate S1-1 OFF 4 Mbps (MECHATROLINK-I)*1 ON
ON 10 Mbps (MECHATROLINK-II)
Data length S1-2 OFF 17-byte data transmission (MECHATROLINK-I/
MECHATROLINK-II)
ON
ON 32-byte data transmission (MECHATROLINK-II)*1
Station
address
S1-3 OFF Set the10’s digit of the station number to 2. Invalid if
the maximum number of units including the S2 of
the rotary switch is 20.
OFF
ON Set the 10’s digit of the station number to 3. Invalid
if the maximum number of units including the S2 of
the rotary switch is 3F.
Maintenance S1-4 OFF Normally OFF*2 OFF
ON Not used.
Label Status Function Factory Setting
S2 0 to F Set the 1’s digit of the station number.
Invalid if the maximum number of units including the
S1-3 is 20 or 3F.
1
1432
OFF
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
0

3 Component Names and Settings
13
Station-number Setting
A station number is set by both the S1-3 DIP switch and the S2 rotary switch. Station num-
bers from 21 to 3E are valid. Although 20 or 3F can be set as a station number, do not use
these settings because they will be faulty.
S1-3:Set the 10’s digit of the station number.
OFF = 2 (2X)
ON = 3 (3X)
S2: Set the 1’s digit of the station number.
0 = 0 (X0)
1 = 1 (X1)
x x
x x
F = F (XF)
Switch Setting and Station Number
SI-3 S2 Station
Number
S1-3 S2 Station
Number
OFF 0 Fault ON 0 30
OFF 1 21 ON 1 31
OFF 2 22 ON 2 32
OFF 3 23 ON 3 33
OFF 4 24 ON 4 34
OFF 5 25 ON 5 35
OFF 6 26 ON 6 36
OFF 7 27 ON 7 37
OFF 8 28 ON 8 38
OFF 9 29 ON 9 39
OFF A 2A ON A 3A
OFF B 2B ON B 3B
OFF C 2C ON C 3C
OFF D 2D ON D 3D
OFF E 2E ON E 3E
OFF F 2F ON F Fault

14
4 Installation and Wiring
Route the MECHATROLINK communications cables separately from the main circuit wiring and
other power lines.
4.1 Installing the SI-T/V7 Unit
Use the following procedure to mount the SI-T/V7 Unit after removing the Inverter’s Digital
Operator and front cover.
Be sure to complete the wiring to the Inverter before installing the SI-T/V7 Unit, because the
terminals of the Inverter are hidden from view after the Unit is installed.
1. Turn OFF the Inverter’s main-circuit power supply and wait one minute.
2. Confirm that all the indicators on the Inverter have turned OFF, wait until the specified
period of time has elapsed (the time is shown on the Inverter’s front cover), and then
remove the Digital Operator and the front cover.
3. Use nippers to cut off the cover of the Inverter’s CN2 connector in the three places-
marked as A in Fig. 1. Be careful that the covers do not fall into the Inverter Unit. If
pieces do fall in, be sure to remove them.
4. Align the mounting fixture with the C tab, and use M3 ×8 SW screws to secure the fix-
ture B.
5. Before installing the SI-T/V7 Unit on the Inverter, connect the grounding cable to the
grounding terminal as shown in Fig. 2 . Three types of grounding cables for various
Inverter capacities are provided. Connect the appropriate cable with a crimp terminal.
6. When installing the SI-T/V7 Unit onto the Inverter Unit, make sure that it is straight.
Align the modular plug (CN10) of the SI-T/V7 Unit with the modular plug (CN1) of the
Inverter, and connector (CN2) with the connector for the SI-T/V7 Unit (CN2).
7. Tighten the screw at position D to affix the SI-T/V7 Unit to the Inverter Unit. The screw
is already screwed in on the Inverter Unit.
8. Return the Digital Operator and the front cover to their original positions.
• Before installing or removing the Option Unit, or performing wiring operations, always turn OFF the
power to the Inverter and wait until the specified period of time has elapsed after all the Inverter
indicators have turned OFF. (The time is shown on the Inverter’s front cover.)
Failure to do so can result in electric shock.
WARNING
IMPORTANT

4 Installation and Wiring
15
Fig. 1 Front of the Inverter Fig. 2 Front of the SI-T/V7 Unit
5.5
mm
CN1
CN2
5.5
mm
Mounting fixture
Connector for SI-T/V7 Unit (CN2)
Modular plug (CN1)
Modular plug (CN10)
--Grounding cable (blue)
To Inverter ground terminals
Ground terminal
D
C
B
A

16
4.2 MECHATROLINK Communications Cables
Wiring
Wire the MECHATROLINK communications cables to the communications connector
(CN2).
• For communications cables, use special shielded twisted-pair cables for MECHATROLINK com-
munications.
Recommended cable: JEPMC-W603- *
*  is the length (m).
With USB male connector
• Install MECHATROLINK communications cables apart from main-circuit wiring and other elec-
trical and power lines.
• Connect the terminator (model No.: JEPMC-W6022) on the end of the communication lines.
• Maximum transmission distance is 50 m.
• Minimum wiring distance between stations is 0.5 m.
Communications Wiring Example
The following diagram is an example of communications wiring around the Inverters.
Fig. 3 Connection Diagram with VS-606V7 (3-phase, 200 VAC, 0.1kW)
IMPORTANT
NC
SRD-
D-
SRD+
SLD
MECHATROLINK
controller
Inverter
3-phase, 200 VAC,
0.1 kW
M
SI-T/V7
3-phase power supply
200 to 230 VAC
R
S
T
U
V
W
E
* If there are noise influences on communication,
remove the grounding cable.
SRD-
SRD+
NC
SLD
SRD-
SRD+
NC
SLD

5 Inverter Setting
17
5 Inverter Setting
Perform the following constant setting, whenever necessary, before starting communications
between the Inverter and the MECHATROLINK-I/MECHATROLINK-II master.
To run or stop through the MECHATROLINK communications, set 3 to n003. To set frequency,
set 9 to n004.
For details, refer to the VS-606V7 Series Instruction Manual (TOE-S606-11).
Constant No. Name Description Factory Setting
n003 Run command
selection
0: Digital Operator
1: Control circuit terminal
2: MEMOBUS communications
3: Communications Option Card (Optional)
0
n004 Frequency reference
selection
0: Digital Operator
1: Frequency reference 1 (n024)
2: Voltage reference (0 to 10V)
3: Current reference (4 to 20 mA)
4: Current reference (0 to 20 mA)
5: Pulse train reference
6: MEMOBUS communications
7: Voltage reference of the Digital Operator circuit terminal (0 to 10V)
8: Current reference of the Digital Operator circuit terminal (4 to 20 mA)
9: Communications Option Card (Optional)
0

18
6 Communications Specifications
* 1. The baud rate is 4 Mbps for MECHATROLINK-I, and 10 Mbps for
MECHATROLINK-II.
* 2. For MECHATROLINK-I, a cycle is 2 ms. For MECHATROLINK-II, a
cycle is 1 ms to 8 ms for a 32-byte data transmission, and 500 µs to 8
ms for a 17-byte data transmission.
* 3. For MECHATROLINK-I, only a 17-byte data transmission can be
selected.
* 4. The maximum number of connectable stations changes depending on
the types and settings of the host controller, baud rate, or communica-
tions cycle. For details, refer to the manuals of your controller.
Communications cycle: Integral multiple of transmission cycles
(depending on the host controller settings).
Example: If the host controller is an MP2300
• For MECHATROLINK-II (32-byte transmission,
2-ms communications cycle): 21 stations max. (21 slaves can be
set, but then the maximum number of connectable Inverters will
be 16.)
• For MECHATROLINK-II (32-byte transmission,
1-ms communications cycle): 9 stations max.
• For MECHATROLINK-II (17-byte transmission,
1-ms communications cycle): 15 stations max.
• For MECHATROLINK-I: 14 stations max.
* 5. At the maximum transmission distance of 50 m, the maximum number
of slaves is 15.
Item Contents
Baud rate 4 Mbps or 10 Mbps*1
Access mode Start-stop synchronization, master/slave method
Transmission cycle 500 µs to 8 ms*2
Max. transmission distance 50 m*5
Data length 17-byte data transmission or 32-byte data transmission*3
Max. number of slaves 30*4 *5

Revision History
The revision dates and numbers of the revised manuals are given on the bottom of the back cover.
Date of Printing Rev. No. Section Revised Content
June 2004 −First edition
July 2004 Revision: Layout size (A4 →A5)
December 2004 Addition: Warranty Information
3 Addition: Station-number Setting
October 2005 Back cover Revision: Address
MANUAL NO. TOBP C730600 03B
Printed in Japan July 2004 04-6
C1
Date of
printing
Date of original
publication
Revision number
1
2
3

YASKAWA ELECTRIC CORPORATION
In the event that the end user of this product is to be the military and said product is to be
employed in any weapons systems or the manufacture thereof, the export will fall under
the relevant regulations as stipulated in the Foreign Exchange and Foreign Trade
Regulations. Therefore, be sure to follow all procedures and submit all relevant
documentation according to any and all rules, regulations and laws that may apply.
Specifications are subject to change without notice
for ongoing product modifications and improvements.
©2004-2005 YASKAWA ELECTRIC CORPORATION. All rights reserved.
IRUMA BUSINESS CENTER (SOLUTION CENTER)
480, Kamifujisawa, Iruma, Saitama 358-8555, Japan
Phone [phone] Fax [phone]
YASKAWA ELECTRIC AMERICA, INC.
2121 Norman Drive South, Waukegan, IL 60085, U.S.A.
Phone [phone] Fax [phone]
YASKAWA ELETRICO DO BRASIL COMERCIO LTD.A.
Avenida Fagundes Filho, 620 Bairro Saude-Sao Paulo-SP, Brazil CEP: 04304-000
Phone [phone] Fax [phone]
YASKAWA ELECTRIC EUROPE GmbH
Am Kronberger Hang 2, 65824 Schwalbach, Germany
Phone [phone] Fax [phone]
YASKAWA ELECTRIC UK LTD.
1 Hunt Hill Orchardton Woods Cumbernauld, G68 9LF, United Kingdom
Phone [phone] Fax [phone]
YASKAWA ELECTRIC KOREA CORPORATION
7F, Doore Bldg. 24, Yeoido-dong, Youngdungpo-Ku, Seoul 150-877, Korea
Phone [phone] Fax [phone]
YASKAWA ELECTRIC (SINGAPORE) PTE. LTD.
151 Lorong Chuan, #04-01, New Tech Park 556741, Singapore
Phone [phone] Fax [phone]
YASKAWA ELECTRIC (SHANGHAI) CO., LTD.
No.18 Xizang Zhong Road. Room 1702-1707, Harbour Ring Plaza Shanghai 200001, China
Phone [phone] Fax [phone]
YASKAWA ELECTRIC (SHANGHAI) CO., LTD. BEIJING OFFICE
Room 1011A, Tower W3 Oriental Plaza, No.1 East Chang An Ave.,
Dong Cheng District, Beijing 100738, China
Phone [phone] Fax [phone]
YASKAWA ELECTRIC TAIWAN CORPORATION
9F, 16, Nanking E. Rd., Sec. 3, Taipei, Taiwan
Phone [phone] Fax [phone]
YA S K AWA
3 -0
MECHATROLINK COMMUNICATIONS INTERFACE UNIT
VS-606V7 OPTION UNIT
INSTRUCTIONS
Printed in Japan October 200504-6
MANUAL NO. TOBP C730600 03C
05-7⑦
