YELLOWRIVER YR-380BSW User manual

GUANGDONG YA GE LAI LIGHTING & AUDIO LIMITED
380W Beam+Wash+Spot Moving
Head
(Model:YR-380BSW)
Please read this manual carefully
before you use this machine

1
Contents
Section 1. Getting Started
Unpacking
Safety Instruction
Instructions and remarks
Section 2. Set Up
Installation
installation requirements:
Controlling Board
Machine Connection
Master Slave Mode Introductions
Section 3. Troubleshooting
Troubleshooting
Section 4. Reference
Menu
DMX Protocol
Specification

2
Section 1. Getting Started
Unpacking
Safety Instruction
Instructions and remarks
Unpacking
1pc fixture(lamp installed)
1pc User Manual
1pc Power Cable
1pc Signal Cable
2pc Fast-lock Omega Clamp (1/4 turn)
Thanks for using our YR-380BSW moving beam. Carefully unpack the box and check the
contents to ensure that all parts are present and in good conditions. If anything damaged
during transit, notify the shipper immediately and keep the packing material for inspection.
Again, please save the carton and all packing materials. If the fixture must be returned to

3
manufacturer, it is important that the fixture be returned in the original manufacturer box
and packing.
Safety Instruction
Please conserve this manual as operation guidance. If you sell this product to other user,
please make sure that they also receive this user manual.
Always make sure that you are connecting to the proper voltage and the line voltage not
higher than stated on the decal or rear panel of the fixture.
This lighting is intended to indoor use only. To prevent risk of fire or shock, do not expose
fixture to rain or moisture. Make sure there are no flammable, explosive or corrosive
materials surrounded in 10 /*-meters while operating.
The unit must be installed in a location with adequate ventilation, at least 5m away from
adjacent surfaces. Be sure that no ventilation slots are blocked.
Fixture may carry high heat, do not aim at objective exceeding 2 minutes.
Safe wire should be used to install machine. Bearing of safe wire should be 3 times of the
machine weight.
Always disconnect from the power source before servicing or replacing fuse/lamp
and be sure to replace with same fuse/lamp size and type. Cut off power before moving,
repairing and cleaning the machine.
To avoid electric shock, all fixtures must be connected to circuits with a suitable ground.
Always secure fixture using a safety chain and carrying handles. Never carry the fixture by
its cord.
Do not operate at ambient temperatures higher than 104℉(40℃).
In case of failure or misfunction occurred, stop using the unit immediately. Never try to
repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or
For your safe,please read this user manual carefully before turn on the fixture. This
machine should be operated by qualified engineer!

4
malfunction. Please contact the nearest authorized technical assistance center. Buy the
same spare parts/components from manufacturer directly.
Make sure the power cord is never crimped or damaged.
Avoid direct eye exposure to the light source while it is on.
Do not power on and power off the fixture in a short time.
When use DMX controller, please make sure that there is no interference sources (e.g.
intercom, high frequency radio waves and radiation source.
Caution!
There are no user serviceable parts inside the unit. Do not open the housing or attempt any
repairs yourself. If exceptional problem happen, please contact related after-sale
department or manufacturer.
Any damage that cased by violating this manual is out of insurance, our company will not take
the responsibility.
Instructions and remarks
Warning. Electric shock
The light source inside this lamp should be replaced by our company or our service agent or
person with similar qualification
1.Check whether the power supply and voltage are normal before use. If the voltage
fluctuates greatly, it is recommended to use voltage stabilizer or voltage regulator.
2.The equipment belongs to the first-level protective lamps. The power cord of the product
must be grounded and well grounded when used
3.This equipment shell temperature around 40 to 60 ℃while work, do not touch the shelll
4.The internal components of the equipment must be purchased from the manufacturer
5. Use the console control as far as possible avoid neighbors have interference sources
(example: wireless walkie-talkie, high frequency source, etc.)

5
6. When using this product, the same signal lines within 20 meters maximum control 20 sets
of the same products, beyond this range should be an additional signal amplification devices
amplify the signal to use
7. Light source in use, must be controlled within the indicated the use time of light source, out
of timer, please change the lamp;
Section 2. Set Up
Installation
Installation requirement
Controlling Board
Machine connection
Master Slave Mode Introductions
Installation
This machine should be mounted through the screw holes of truss. Safety wire is a must
to
fix fixture well. Make sure truss and safety wire have strong load capacity to bear 3 times
weight than fixture at least.
This machine should be installed by qualified technician.

6
Installation requirement
1. The product shall be free from corrosive vapors and gases in the operating environment
and shall not contain inflammable and explosive articles.
2. Keep the distance between the light outlet direction and the subject at least more than 3
meters.
3.The direction of the light is an optical lens. No external force can hit the glass in the process
of operation. If the lens is damaged, it can only be used after the professional technician
replacing the lens of the same specifications .
4. When the outer cover of the power cord is damaged, it must be replaced with a new power
cord of the same specification by relevant professional personnel before use.
5.When the product is hung and installed, the load bearing of the hanging device shall be at
least 3 times greater than the weight of the product, and the safety rope shall be fastened on
the auxiliary hanging device of the lamp, and the load bearing of the safety rope shall be
more than 3 times greater than the weight of the product.
6. The lens and light source of this product must be fully used together. When any part is
damaged, it shall be replaced by relevant professional personnel before it can be used again.
7. In the operating environment, it must be determined that the current voltage provided is
within the range required by this specification
Well grounded.
8.When changing the light source, disconnect the power first, open the head plastic cover,
and open the bracket of the light source area, and change the light source with the same
specification .
The company reserves the right to amend this product manual without prior notice
Controlling Board

7
Machine Connection
Cables must have a male XLR connector on one end and a female XLR connector on the other
end.
A word on termination: DMX is a resilient communication protocol,
however errors still occasionally occur. Termination reduces signal errors, and therefore best
practices include use of a terminator in all circumstances. If you are experiencing problems
with erratic fixture behavior, especially over long signal cable runs, a terminator may help
improve performance.
To build your own DMX Terminator: Obtain a 120-ohm, 1/4-watt
resistor, and wire it between pins 2&3 of the last fixture. They are also readily available from
specialty retailers.
Complimentary signal cable can transmits signals to 20 unit fixtures at most.
Signal amplifier is a must to connect more fixtures

8
Master Slave Mode Introductions
Set one of the machines as the host, select self-running, set the other machines as the
slave, and the slave machines as the DMX address code 001 state, connect the signal line. At
this time, the slave machines accept the host control, and the functions are synchronized with
the current functions of the host.
Section 3. Troubleshooting
Troubleshooting
Problem
Probable
cause(s)
Remedy
No power to
fixture
Check power cables
Primary fuse
blown
Replace fuse
No response
from fixture
when power
is applies
Secondary fuse
Replace fuse

9
blown
Controller not
connected
Connect controller
Incorrect
addressing of
the fixtures
Check address setting on fixture
and controller
Bad data link
connection
Inspect cables and correct poor
connections and/or broken
cables.
Conflict between
tracking and
vector control
Eliminate scene cross-fade on
controller
Data link not
terminated
Insert termination plug in output
of last fixture
Fixture
resets but
does not
respond
correctly to
controller(D
MX mode
operation)
Defective fixture
or 2 devices
transmitting on
link
Bypass fixtures one at a time
until normal operation is
regained:unplug both
connectors and connect them
directly together
Colors
cannot be
mixed
Random color
mixing is on
Turn off random color mixing
Fixture does
not reset
correctly
Electronic or
mechanical
failure
Contact service technician
Lamp missing or
blown
Disconnect fixture and replace
lamp
No light,
lamp cuts
out
intermittentl
y,or burns
out too
quickly
Fixture or lamp is
too hot
Allow fixture to cool. If problem
persists,contact service
technician

10
Section 4. Reference
Menu

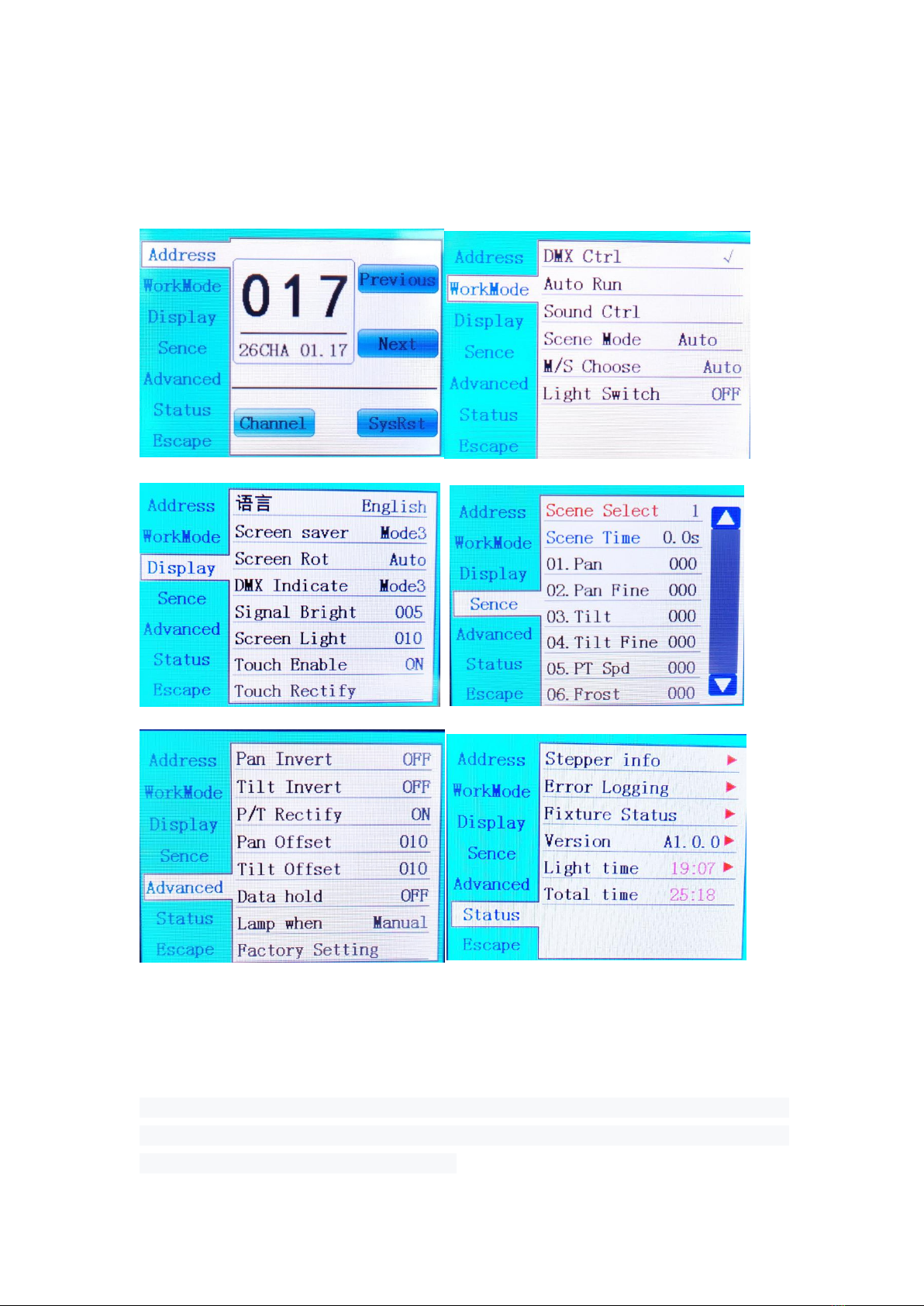

2.1 Address setting Introductions:
Select "last one" or "next one", the lamp will automatically calculate the address
code of the next one or the last one according to the current address code and
channel data, which can be quickly set

11
Click the address code number to enter the number editing window, where you
can set any valid address code. The lamp will automatically get the current
channel number of the lamp and automatically filter the unavailable address
code(512-Current channel number)
Support RDM protocol , the fixture address code can remotely be set by RDM .
Channel mode: different channel modes can be selected circularly;
Light reset: reset all the motors.
2.2 operation mode:
DMX mode
console mode, receive DMX signal, RDM signal
Auto mode
Fixture automatically run according to built-in program
Sound
active
mode
When the lamp detects strong sound in the voice control
mode, the lamp will automatically run a scene according to
the built-in program, otherwise, the scene of the last time will
be maintained
Runs as a set of scenarios, supporting up to 10 custom editing
scenarios
1~10
Outputs the specified scenario
Scene
mode 01
Auto
The scene is automatically looped out in the set time
(non-0) sequence, and the scene with time 0 is
automatically skipped and ignored
Master-sla
When it is not in DMX mode, select the mode of data output,

12
and the fixture will automatically detect the state of DMX and
automatically switch the output to prevent data conflict
Master
unit
The fixture runs by built-in program. If DMX has no
signal, it will output data (synchronization);
otherwise, it will not output data
Slave
unit
Fixture operate as built-in program and does, no
output data (not synchronous with other fixtures)
ve
Auto
If there is no signal from DMX, the fixture will
operate by built-in program; otherwise, the fixture
will operate by DMX signal
When the confirmation dialog box pops up, select "SURE" to
confirm the current operation, turn on or off the light bulb,
and the time interval is limited to 30 seconds
Turn
off
The current bulb output is off
Lamp
switches
Turn
on
The current bulb output is on
2.3 Display Settings
Set the display language
English
English support
Language
Chinese
Chinese support
Screen
saver
After setting up the screen for 30 seconds without any
operation,display’s content or instructions:

13
Off
Keep the final action page,screen on
Model 1
Screen off
Model 2
Screen black ,The address code of light is
displayed in the lower left corner
Model 3
Display trademark information, address
code, and run mode
Set the display direction of the screen
OFF
No display rotation
ON
Display rotation
Screen
rotation
Automat
ic
Automatic detection of light hanging
direction, automatic change of display
direction
Set the indication mode of DMX signal indicator light
Model 1
It lights on when there is a signal and goes off
when there is no signal
Model 2
It lights off when there is a signal and on
when there is no signal
DMX
instruction
s
Model 3
The lights flashes when there is a signal and
turns off when there is no signal
Set the brightness of the signal indicator
Signal
indicating
brightness
1~10
10 grades
Set the brightness of the screen backlight after 10
seconds without operation, all lights on during operation
Screen
backlight
1~10
10 grades
Touch
screen
switch
Select whether to disable the touch screen. When the
screen touch is accidentally damaged, you can disable
the touch function and set the light with auxiliary input
Touch
When the screen touch is not accurate, you can enter the

14
correction
correction page to correct the screen
2.4 Scene Mode:
Under this page, the light will not receive DMX console data, and the edited data
will be immediately reflected on the light. The content of the page depends on
the currently selected channel, and the displayed channel content and sequence
are consistent with the channel table of light. Through this page, 10 scenes can
be edited, as shown in the following table:
Select the currently desired scene
Scene
choice
1~10
10 scene setting format
Sets the retention time of the current scene when auto
run,Unit 0.1s
0
The current scene does not participate in
automatic scene output
Scene
time
1-255
0..1 s-25.5s
1. Pan
0-255
……
0-255
……
0-255
N.
Function
0-255
Set the data of each channel, and the
display content and sequence correspond
to the channel table of the light
If the effective reset data is edited in the reset channel in the scene, the light will
be reset, but after the reset, the value of the corresponding reset channel will be
automatically reset to prevent repeated continuous reset.

15
2.5 Advanced Setup:
Set Pan direction of rotation
Off
Do not reverse
Pan
Reverse
On
Reverse
Set Tilt direction of rotation
Off
Do not reverse
Tilt
Reverse
On
Reverse
Set whether the fixture detects Pan/Tilt out-of-step
and corrects
Off
Do not correct position after out of step
Optocoupl
er Revise
On
Automatically correct position after out of
step and record out of step fault.
Set the position of zero point of Pan
Pan Offset
4-150
Set the position of zero point of Tilt
Tilt Offset
4-48
When setting no DMX signal of the signal,the
machine’s output state:
Off
When no signal,all motors and light source
return to the position and state of reset
complete.
Data-hold
On
When no signal,keep the last frame of DMX
data output.
Set the bulb’s first open mode after power on.
Light Up
Mode
Light up
after
power
Turn on the light bulb first and reset the
lamp after 30 seconds.

16
Select light up after power on,after power on,wait for 30s to let the bulb fully
initiate,start reset after bulb’s internal voltage is stable enough,if voltage is
stable,recommend to select “light up after power on mode”
When the machine cannot adjusted to its position,please check if shut down the
“optocoupler revise”.
After unplug the signal cord,if the fixture’s position is not output as
intended,please check the set of “data-hold”.
2.6 status information
Display information status of all motors and signals in
the fixture
Hall
Not displayed, indicating that the motor
has no Hall correction, 0 means the
motor leaves the correction position, and
1 means the motor is in the correction
position.
status
Display motor reset completion status
Pan
Display real-time position values of pan
optocoupler feedback
Motor
information
Tilt
Display real-time position values of tilt
optocoupler feedback
on
Light up
after
reset
Reset the machine after 3s’ power on ,then
light up.
Manual
light up
When complete reset,light up by menu or
manual console
Factory
Settings
The confirmation box pops up, and after selecting
"SURE", the lamp parameters return to the factory
Settings

17
Optocouple
r
Display the status of the two signals of
the pan and tilt optocouplers, binary
Display the last 8 fault records of the lamp reset and
operation. The fault record is not saved after power off。
Fault data
Total number of faults detected after
power-on
12::03
Power-on time when the fault
occurs,unit is in minutes
Hall fault
The motor does not detect a valid Hall
signal when the motor is reset.
Hall short
circuit
when the motor is reset,the Hall signal
detected is always valid.
Optocouple
r fault
No valid optocoupler signal detected
when motor reset
Out of step
Corresponding motor out of step during
operation
Bump rod
When the motor is reset,bump the
positioning rod
Lamp
failure
The bulb is accidentally extinguished
Sensor
fault
The temperature sensor signal is
abnormal,
Fault/ state us
record
Fan fault
The main fan is not working properly.
Display key status data of the current fixture for
reference
Communic
ation
0~100%, Communication quality of the
internal data of the luminaire
Error count
The total number of error frames
detected after power-on, accumulated
Fixture status
Light
Display the temperature of the current

18
source
temperatur
e
light source, "---" means no detection
Display
panel
temperatur
e
Display the temperature of the current
display panel or the ambient
temperature in the vicinity
Sensor 1
temperatur
e
Displays current motherboard
temperature or the ambient temperature
of the motherboard installation location
Display the information and version of the current
luminaire, an important reference for after-sales
maintenance
Device
The name of the fixture, the same as the
device information of the RDM
Model
Model of the luminaire, same as the
model information of the RDM
Display
board
Display board firmware version and
serial number
Version
information
Motherboar
d 1
Motherboard 1 firmware version and
serial number
Light source
time
Record the total accumulated time of the light source
on,the unit is in minutes, the user can manually
removes it.
Fixture time
Record the total accumulated time of the light on,unit
is in minutes, not clearable
DMX Protocol
20 CH MODE:

19
CH
Function
Number
Description
CH1
Pan
0-255
0-540 degrees
CH2
Pan
fine-tuning
0-255
0-2 degrees
CH3
Tilt
0-255
0-270 degrees
CH4
Tilt
fine-tuning
0-255
0-1 degrees
CH5
Pan and tilt
speed
0-255
From fast to slow
0-127
no
CH6
Frost
128-255
Enter the frost
CH7
Dimmer
0-255
0-100% dimmer
0-3
Lights close
4-103
From slow to fast Pulse strobo
104-107
Lights on
108-207
From slow to fast Shade strobe
208-212
Lights on
213-251
From slow to fast Random
strobe
CH8
Strobo
252-255
Lights on
0-4
White
5-9
White+Color 1
10-14
Color 1
15-19
Color 1+Color 2
CH7
Color
20-24
Color 2
Table of contents
Other YELLOWRIVER Lighting Equipment manuals
Popular Lighting Equipment manuals by other brands

Vision & Control
Vision & Control DL30x30-IR850/UDC/-a Instructions for use

Lightolier
Lightolier CALCULITE COMPACT FLUORESCENT DOUBLE & CORNER WALL WASHER... Installation

NEXELO
NEXELO SUPREME STIC user manual

Elation
Elation DW PROFILE user manual

Graytechnos
Graytechnos photom MiNi 365A instruction manual

ALASKA
ALASKA Aurora LightPad user guide

Cooper safety
Cooper safety Ceag 28011 Mounting and operating instructions

Naber
Naber MOOD HE installation manual

Spa Electrics
Spa Electrics Atom Installation & owner's manual

Vision & Control
Vision & Control DL30x90-IR850/24V Instructions for use

EuroLite
EuroLite LED KLS-406 user manual

Genaray
Genaray BLT-60 user manual
