OWNER’S
MANUAL
YETI SB100

4. 5.
TABLE OF CONTENTS
BRAND OVERVIEW 06
FRAME FEATURES 08
GEOMETRY 10
MAINTENANCE SCHEDULE 12
SETUP
OVERVIEW 12
SHOCK SETUP 14
DERAILLEUR HANGER INSTALL 18
TECHNICAL
ASSEMBLY OVERVIEW 22
EXPLODED VIEWS 28
REBUILD KITS 30
LEGAL
WARRANTY 34
CONTACT INFORMATION 35

6. 7.6. 7.
CONGRATULATIONS ON YOUR
PURCHASE OF A NEW YETI.
WELCOME TO THE TRIBE.
We are condent your new bicycle will exceed
your expectations for value, performance, and
ride quality. Each frameset and component
has been custom specied and designed to
enhance your riding experience. Whether you
are a beginner cyclist, or a seasoned pro,
your Yeti bicycle will provide endless hours of
two-wheeled fun.
This model specic manual is designed to
be used in conjunction with the general Yeti
Owner’s Manual and the manuals supplied by
the suspension manufacturers. If you did not
receive the Yeti owner’s manual or the manual
provided by the suspension manufacturer,
download the materials o the Internet, or
contact your local dealer.
Bicycling can be a hazardous activity
even under the best of circumstances.
Proper maintenance of your bicycle is your
responsibility and when done properly helps
reduce the risk of injury and damage to your
bicycle.
This manual outlines basic setup and
maintenance recommendations of your new
Yeti. Because it is impossible to anticipate
every situation or condition that may occur
during the assembly, setup, and maintenance
of your bicycle, Yeti recommends that all
service and repairs be performed by your
local authorized Yeti Dealer.
This manual contains many “Warnings” and
“Cautions” concerning the consequences
of failure to maintain or inspect your bicycle.
The word “Warning” indicates a potentially
hazardous situation in which , if not avoided,
could result in serious injury or death. The
word “Caution” indicates a potentially
hazardous situation in which, if not avoided
may result in minor injuries or damage to
your bicycle or a component of your bicycle.
Be sure to read and understand all of the
Warnings and Cautions listed in the manual.
Warning: Make sure you review and understand the warnings, instructions, and content of this manual and accompanying
manuals for your bicycle.
Warning: Technological advances have made bicycles and bicycle components more complex and the pace of innovation is
increasing. It is impossible for this manual or the accompanying manuals to provide all the information required to properly
repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical for you to have work
performed by an authorized Yeti retailer.

8. 9.
1. The SB100 delivers 100mm of travel with our patented Switch
Infinity Technology that has been redesigned for this short travel
frame. Efficient pedaling performance while still smooth and
continuous when the going gets rough.
2. Top of the top Turq Series frames and our Carbon series both offer
the same geometry and efficiency in all models.
3. The SB100 does away with the front derailleur mount, making it a 1x
drive specific frame. This increases stiffness in the frame, making
the SB100 one of the stiffest bikes in our lineup.
4. 2 bolt ISCG 05 chain guide mounts are included on the SB100 in
case you want to go for some extra drivetrain security for the rowdy
sections.
5. The SB100 uses an integrated 41mm / 52mm tapered headset. This
system allows for the headset bearings to be contained inside the
head tube for an overall lower ride height, more simplified
installation, and increased stiffness.
6. The SB100 uses a 37.5mm stroke, 190mm eye to eye Float DPS
shock, by Fox Racing Shox.
7. Custom guards on the seat stay, chain stay and down tube keep
things quiet while riding and protect the frame.
8. The SB100 features internally molded routing tubes for all cables,
making the bike quiet and clean looking as well as reducing
maintenance and cable rub.
9. Dedicated 12 x 148 Boost dropouts and integrated hanger with axle
threads for strength, stiffness, ease of hanger and wheel installation.
1.
THE LOWDOWN 
THE SBAND ITS
F
EATURES.
PATENTED SWITCH INFINITY SUSPENSION SYSTEM REDESIGNED FOR 100MM OF TRAVEL
2. HIGH MODULUS CARBON FIBER MAIN FRAME AND SWING ARM
3. INTEGRATED 2-BOLT ISCG-05 MOUNTS
4. TAPERED INTEGRATED HEADTUBE (41MM / 52MM)
5. CUSTOM DOWN TUBE PROTECTOR AND CHAIN GUARDS
6. INTERNALLY MOLDED CARBON TUBES INSIDE OF FRAME FOR HASSLE-FREE CABLE ROUTING
7. INTEGRATED AXLE AND DERAILLEUR HANGER SYSTEM
8. BOOST HUB SPACING, FRONT AND REAR
9. CUSTOM SWITCH INFINITY FENDER
10. CLEARANCE FOR STANDARD SIZED WATER BOTTLE INSIDE MAINFRAME
11. UNINTERRUPTED SEAT TUBE FOR COMPATIBILITY WITH LONGER TRAVELED DROPPER POSTS

10. 11.
GEOMETRY
FIT
X-SMALL 4’11” (150 CM) - 5’3” (160 CM)
SMALL 5’3” (160 CM) - 5’7” (170 CM)
MEDIUM 5'7" (170 CM) - 5'11" (180 CM)
LARGE 5'11" (180 CM) - 6'3" (191 CM)
X-LARGE 6'1" (185 CM) - 6'6" (198 CM)
FOX 34 / 10MM FORK
SM MD LG XL
A WHEEL 29” 29” 29” 29”
B REACH 407.1 432.1 452.1 472.1
C EFF. TOP TUBE 576.7 605.2 630.3 657.2
D STACK 602 612.1 627.1 647.2
E HEAD TUBE LENGTH 96.2 107 123.2 144.7
F SEAT TUBE LENGTH 393 419 457 495
G EFF. SEAT TUBE ANGLE 74.3 74.2 74.1 74
H HEAD TUBE ANGLE 67.8 67.8 67.8 67.8
I MECH. TRAIL 96 95.9 95.9 95.9
J BB DROP 37.9 37.9 38 38
K EST. BB HEIGHT 332.1 332.1 332332
L CHAINSTAY LENGTH 437 437 437 437
M FRONT-CENTER 685.2 714.2 740.0 768.3
N WHEELBASE 1122.3 1151.4 1177.4 1205.5
O STAND OVER 724 724 723.9 723.9
P AXLE TO CROWN 530.2 530.2 530.2 530.2
Q FORK OFFSET 44 44 44 44
*All measurements are in millimeters
C
K
F
N
E
G
H
I
B
L
M
A
D
J

12. 13.
KEEP YOUR YETI FRESH
AND CLEAN
OVERVIEW
KEY TORQUE SPECS
Following these guidelines will help maintain the performance of your bicycle and prevent
more serious problems from arising. It is important to remember that service intervals can vary
depending on climate, trail conditions and riding frequency. If you are unsure about working on
your own bicycle, contact your authorized Yeti Dealer for more information on general bicycle
maintenance.
TORQUE
Yeti strongly recommends using a torque wrench when assembling your frame. Torque
specifications for individual parts on the SB100 are listed below, as well as in the step by
step assembly instructions later in the manual. For general bicycle maintenance please
consult the torque specifications of the component you are adjusting.
PART NUMBER DESCRIPTION TORQUE (NM)
300030295 SHOCK BOLT, 8MM, FLAT HEAD 9
300030057 INFINITY LINK BOLTS (TI STUD 8.0X49MM) 10
200020313 PIVOT HARDWARE, MAIN, 17MM 40
300030294 SS PIVOT BOLTS , 15MM 35
300030293 BOLT, LINK PIVOT,MALE 15MM 8
WEEKLY
MONTHLY
3 MONTHS
ANNUALLY
CLEAN AND LUBE CHAIN
CHECK TIRE PRESSURE
CLEAN BIKE OF MUD AND DEBRIS
CHECK BRAKE FUNCTION
CHECK SHOCK PRESSURE
CHECK FOR LOOSE BOLTS AND TIGHTEN, IF NECESSARY
CHECK HEADSET AND TIGHTEN / LOOSEN, IF NECESSARY
THOROUGHLY CLEAN PIVOT POINTS WITH A RAG (DO NOT LUBRICATE)
LUBE INFINITY LINK EVERY 40 HRS. (YETI HEAVY MOLYBDENUM GREASE)
CHECK / REPLACE BRAKE PADS
CHECK TIRES FOR WEAR
CHECK SPOKE TENSION. RETENTION, IF NECESSARY
CHECK CHAIN FOR WEAR. REPLACE IF NECESSARY
COMPLETE TUNE-UP PERFORMED BY AN AUTHORIZED YETI DEALER
SCHEDULE

18. 19.

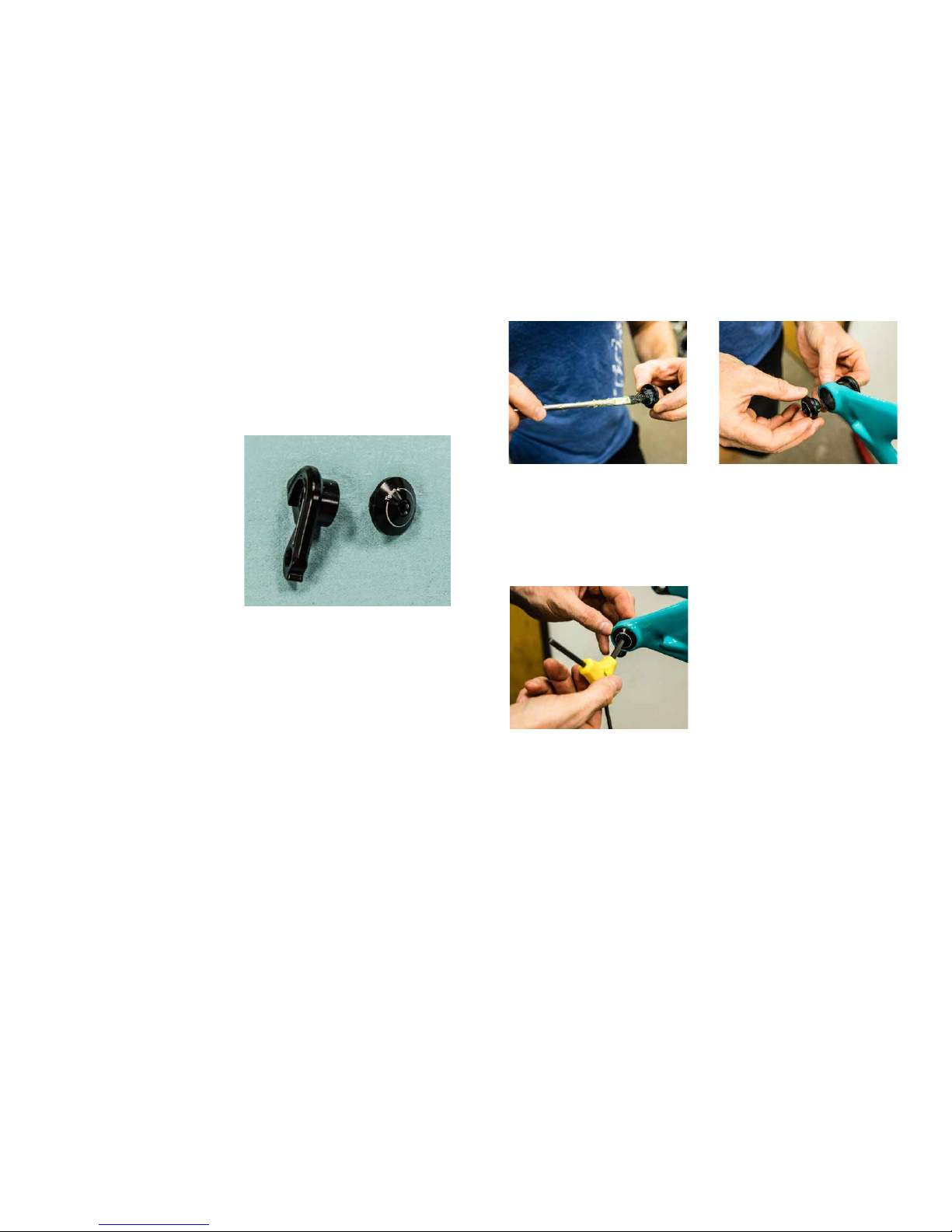

01. HANGER PREP 02. HANGER CAP SEAT
Lightly grease the threads and outside surface of
the hanger and cap where it interfaces with the
frame. The hanger will t into its space on the
inside of the swing arm and should press easily
into the frame.
Place the hanger into the recess on the inside of
the swing arm. Thread the hanger cap into the
hanger. The hanger cap REVERSE threads into
the hanger from the outside of the swing arm.
Start threading the cap by hand.
03. TIGHTENING
Using a 6mm allen key, tighten the hanger cap
into the hanger. REMEMBER, it is REVERSE
THREADED. Follow the “Tighten” arrow on the
cap. Finish tightening with a torque wrench if
available.
*Torque to 80 in/lbs (9Nm)
NOTE: The hanger cap is REVERSE
THREADED. Be careful not to strip out the
Hanger tool faces. The cap is marked with a
tighten direction arrow.
Inspect the frame around the hanger seat
for any suspicious damage to the carbon
any time you replace a derailleur hanger,
especially if you are replacing the hanger due
to damage to the hanger.
YETI TIPS TOOLS NEEDED
• 6mm Allen key
• Grease
DERAILLEUR HANGER INSTALL

CLICK TO VIEW SETUP GUIDE

22. 23.
FRAME ASSEMBLY
Make sure your tools are in good condition.
A worn allen key can round the hex on a bolt
not allowing for proper torque.
Torque settings are listed throughout the
instructions and on page 13 of this manual.
It is important to prep all bolt threads. The
instructions denote whether to use a Loctite
compound or grease.
YETI TIPS TOOLS NEEDED
Warning: Service on Yeti bicycles requires special knowledge
and tools. Yeti Cycles recommends that all service and
repairs be performed by an authorized Yeti Dealer
• 2.5mm allen key
• 5mm allen keys
•6mm allen key
•8mm allen key
•T25 allen key
• Guide pin tool (2)
• Torque wrench
•Cassette tool
•Flat head screw
driver
• Grease
• Blue (242) Loctite
•Silver anti-seize
01.
All the parts you’ll need to get your
SB100 frame assembled. Please refer
to the exploded view later in this manual
for more information.
02.
Install 2x Bearing Lockrings (200020311)
into the SS Pivots on the Rear Triangle.
Tighten to hand tight using a cassette tool.
03.
Install one Grease Zerk (200020314) into
each Main Pivot bolt with a flat head
screwdriver. Zerk end should be flush with
the end of the Main Pivot bolt.
04.
Install 2x H20 Bolts (300030010) and
Washers to front triangle.
*Torque: 4 Nm

24. 25.
ASSEMBLY
.
Prep 4X Flat Head Ti Male bolts
(300030156) with blue Loctite. Install a
Flat Head Male Ti Bolt through the Front
Triangle into the Ti Female Bolts. Repeat
for all four locations
0.
Install a short Ti Female Bolt (300030301)
from the inside of the shaft eyelet through
the frame. Use a guide pin to help
installation if necessary. Repeat for all four
mounting holes.
06.
Use a guide pin to line up the shaft eyelet
holes with the frame.
ASSEMBLY
0.
Use a ball-end wrench to prevent the inner
Ti Female Bolts from rotating. Torque the
4x Flat Head Ti Male Bolts to 12 Nm.
.
Apply a light coat of grease to the shaft of
the Female Link Pivot Bolt (300030292).
Slide the Alloy Link onto the Front Triangle
and install the Female Link Pivot Bolt.
11.
Grease the threads of the Male Link Pivot
Bolt (300030293). Install into Female Link
Pivot Bolt.
*Torque to 8 Nm
12 .
Install the rear shock eyelet into the Link.
Make sure that the shock controls are facing
downwards, and secure with guide pins
(note they will not pass through the frame).
0.
Push the SB100 Switch Infinity Link into
the frame

26. 27.
14.
Install front Shock Bolt.
*Torque: 9 Nm
ASSEMBLY
13.
Grease heads of 2X Shock Bolt (300030295).
Install Shock Bolt into the rear shock eyelet.
*Torque: 9 Nm
ASSEMBLY
1.
Slide the Rear Triangle over the Main Pivot
onto the Switch Infinity Link. Secure with 2x
Main Pivot Bolt (200020313).
*Torque: 40 Nm
1.
Install 2x Seat Stay Pivot Bolts
(300030294) through the Swingarm
and into the Link.
*Torque: 35 Nm
1.
Clip the Switch Infinity Fender (400100194)
onto the four switch infinity mounting bolts.
Orient the fender so the small raised lip on the
backside is at the top
1.
With a needle-type grease gun, fill grease
into the Main Pivot Grease Zerks until a small
amount of grease is purged through the
Switch Infinity seals. Clean off any excess
grease with a clean cloth or rag.
1.
Apply grease to the outside circumference of
the Derailleur Hanger and threads of the
Hanger Cap (300060073). Install onto the
rear triangle. Hanger threads are REVERSE
THREADED.
*Torque: 9 Nm 

 .
EXPLODED VIEW
4.2
6.4
6.5
1.6
1.5
6.6
2.6
6.7
6.9
2.5
3
6.1
2.3
2.2
2.4
2.1
2.7.1 2.7.2
1.1
4.1
5.1
5.2
6.12
6.12
1.3
6.8
6.9
1.4
1.2
GREASE
LOCTITE
PREP KEY
6.4
6.5
6.6
NYLO N
PATCH
6.10

3.
3.
ITEM# PART # DESCRIPTION QTY
1 N/A SB100 FRONT TRIANGLE ASSEMBLY
1.1 N/A SB100 FRONT TRIANGLE 1
1.2 300070006 ICE AXE HEAD BADGE 1
1.3 400100173 SB100 DT PROTECTOR 1
1.4 300060072 YETI SEAT CLAMP STANDARD 1
1.5 300030010 BOLT-CAP H20 (M5 X 0.8 X 16MM) 2
1.6 300030148 WASHER, 5.1X8.9X1MM 2
2N/A SB100 SWING ARM ASSEMBLY 1
2.1 N/A SB100 SWINGARM 1
2.2 400100174 SB100 CS/SS PROTECTOR
2.3400100175 SB100 CS LOWER PROTECTOR 1
2.4300020001 BEARING, 17X30X7, 6903-2RS MAX 2
2.5300020052 BEARING, 15X28X7/10 LLU MAX-E 2
2.6200020311 LOCKRING, SS PIVOT 2
2.7 300060073 12X148 HANGER STD KIT GEN3 1
2.7.1300060074 12X148 HANGER STANDARD GEN3 1
2.7.2 300060075 12X148 HANGER CAP GEN3 1
300787 FOX LINEAR BEARING 74.0MM ASSEMBLY
4 N/A SHOCK ASSEMBLY SB100
4.1 N/A FOX FLOAT DPS 190X37.5MM 1
4.2 N.A FOX MOUNT KIT 25.0MM 1
5.1
N/A SB100 LINK ASSEMBLY 1
5
300040499 SB100 LINK - ALLOY
5.2300020052 BEARING, 15X28X7/10 LLU MAX-E 2
N/A SB100 ASSEMBLY PARTS
6.1 400100194 FENDER, SWITCH INFINITY INT CLIP 1
EXPLODED VIEW PARTS LIST
ITEM# PART # DESCRIPTION QTY
200020313 PIVOT HARDWARE, MAIN, 17MM PYRAMID HEAD 2
6.5 200020314 GREASE ZERK, FOX 2
6.6 300030294 BOLT, SS PIVOT, 15MM 2
6.7 300030292 STUD, LINK BEARING, FEMALE 15MM 1
6.8 300030293 BOLT, LINK PIVOT, MALE 15MM 1
6.9 300030156 SHOULDER BOLT, M6X1 FH, TI 4
6.10 300030301 BOLT, TI FEMALE 8.0 X 11.75MM 4
6.11 300030295 SHOCK BOLT, 8MM, FLAT HEAD 2
N/A 100425006 AXLE, YETI BOLT ON, 12X148MM 1
N/A 400100177 FRAME PROTECTOR KIT, SB100 (GLOSS) 1
N/A 400100171 FRAME PROTECTOR KIT, SB100 (MATTE) 1
N/A 300070010 OWNERS MANUAL 1
6
6.4
1
1

3.3.
REBUILD KITS
PART # QTY
200020316
DESCRIPTION
SB100 MASTER REBUILD KIT
2
PIVOT HARDWARE, MAIN, 17MM PYRAMID HEAD 2
GREASE ZERK, FOX
2
300030301 BOLT, TI FEMALE 8.0 X 11.75MM
2
300020001 BEARING 6903 MAX
4
2
4
300030156 SHOULDERBOLT, M6X1 FH, TI 4
300030289 BOLT, TI STUD 8.0X49.0MM 2
300030292 STUD, LINK BEARING, FEMALE 15MM 1
BOLT, LINK PIVOT, MALE 15MM 1
300030294 BOLT, SS PIVOT, 15MM 2
2
400100176 1
200020317 SB100 BEARING REBUILD KIT
BEARING 6903MAX 2
300020052 BEARING 6902 LLU MAX-E 4
PART # QTY
200020318
DESCRIPTION
SB100 HARDWARE REBUILD KIT
200020311 LOCKRING, SS PIVOT 2
200020313 PIVOT HARDWARE, MAIN, 17MM PYRAMID HEAD 2 2
200020314 GREASE ZERK, FOX 2
4
4
300030289 BOLT, TI STUD 8.0X49.0MM 2
STUD, LINK BEARING, FEMALE 15MM 1
300030293 BOLT, LINK PIVOT, MALE 15MM 1
BOLT, SS PIVOT, 15MM 2
300030295 2
400100194 1
200020313
200020314
200020311LOCKRING, SS PIVOT
BEARING 6902 LLU MAX-E
300020052
300030293
300030295SHOCK BOLT, 8MM, FLAT HEAD
FENDER, SWITCH INFINITY G2
300020001
300030301 BOLT, TI FEMALE 8.0 X 11.75MM
SHOULDER BOLT, M6X1 FH, TI
300030156
300030292
300030294
SHOCK BOLT, 8MM, FLAT HEAD
FENDER, SWITCH INFINITY INT CL
400100147 PROTECTOR KIT SB100
400100173 SB100 DT PROTECTOR 1
400100174 SB100 CS/SS PROTECTOR 1
400100175 SB100 CS LOWER PROTECTOR 1
1
400100176 SB100 INFINITY COVER KIT
400100194 FENDER, SWITCH INFINITY INT CLIP 1
SB100 PROTECTOR SHEET - GLOSS
400100179
400100180 SB100 PROTECTOR SHEET - MATTE 1

3.
WARRANTY
HERE’S EVERYTHING YOU NEED TO KNOW ABOUT OUR LIFETIME WARRANTY:
All 2019 (or newer) frames, including the Switch Infinity, are covered for life against damage
due to manufacturing defects for the original purchaser. Paint and finish are covered for 1-year.
We will repair or replace, at our discretion, any frame we deem defective. There are a few
conditions: you must register it online at YetiCycles.com and you must take it to an authorized
Yeti Cycles dealer for processing. Warranty does not cover damage due to ordinary wear and
tear, neglect or intentional destruction. From a slingshot or your truck.
If you happen to have a crash or non-warranty situation, we’ll get you back on the trail with a
reasonable replacement price. Same conditions as above.
Lifetime Warranty applies to all 2019 and newer frames (including the SB100). Model year 2018
and older frames will be covered under our previous warranty (5-year or 2-year based on time
of purchase).
Simple as that. No fine print.
DISCLAIMER
YETI Cycles is not responsible for any damages to you or others arising from riding,
transporting or other use of your bicycle. In the event that your frame breaks or malfunctions,
YETI Cycles shall have no liability or obligation beyond the repair or replacement of your frame
pursuant to the terms outlined in the warranty.
*If you have a warranty concern, please contact your authorized Yeti dealer.
YETI CYCLES
621 Corporate Circle, Unit B
Golden, CO 80401
(p) 303-278-6909
(f) 303-278-6906
www.yeticycles.com
BUSINESS HOURS
Monday-Friday
8AM-11:30AM, 1:00PM-5:30PM
(Mountain Time)
3.
