Yeti SnowMX CARGORAK Operating and maintenance manual

INSTALLATION PROCEDURE
1. Make sure that the YETICAN mount is already installed. You
cannot install the cargo rack without the YETICAN mount.
2. Insert the rear cargo rack plastic mount provided over the two
rear brackets and secure it with both“Quick pins”.
3. Position the CARGORAK front into the YETICAN installed front
mount.
4. Centre the CARGORAK rear plastic mount to the centre screw
on the bumper for reference.
5. Using a Sharpie trace the edges of the mount onto the chassis
6. Peel back the sticky foam pad and position it within the mark-
ings you just made
7. Drill through holes in foam with a sharp 7/32” bit.
8. Secure the mount with the screws provided in the package
using blue Locktite.
10. Peel and insert the small foam blocks in the depressions of
the rear cargo mount.
11. Remount your CARGORAK and secure it with the “Quick
pins” provided.
CARGORAK INSTALLATION
Our Cargo Rack is built with strong CNC aluminum
channels . There are three available sizes that match
to the length of your YETI.
To assemble your “CARGORAK” follow these instructions
or refer to our website at: www.yetisnowmx.ca
Centre on bumper screw
CARGORAK MOUNT
YETICAN MOUNT
7/32 Bit
Foam Blocks
“CARGORAK” ASSEMBLY
YETICAN - UTILITY CAN
6
7
1
2
9
10
5
8
8
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
1
YPAC1666D6
MOUNT, REAR CARGO RACK
1
2
YPAC2230D2
BRACKET, REAR CARGO MOUNT
2
5
YPAC1949D6
120"- YPAC1952D6 137"-
YPAC1953D6
PLATE, 129" CARGO RACK
2
6
YPAC1950D1
SHAFT, CARGO RACK, LOWER
4
7
YPAC1951D1
SHAFT, CARGO RACK, UPPER
2
8
YPAC2229D2
BRACKET, FRONT CARGO MOUNT
2
9
YPAC1693D2
PIN, QUICK, BUTTON HANDLE, 1.5" GRIP, .25" DIA
2
10
YPHW2298
BOLT, M6-1.0 X 14mm, SOCKET HEAD 5mm DRIVE, Ti
2218 20
120” 129” 137”

Other Yeti Bicycle Accessories manuals

Yeti SB100 User manual

Yeti

Yeti SB100 User manual

Yeti SB135/LR User manual

Yeti

Yeti SB135/LR User manual

Yeti SB130/LR User manual

Yeti

Yeti SB130/LR User manual

Yeti SB160 User manual

Yeti

Yeti SB160 User manual

Yeti SB150 User manual

Yeti

Yeti SB150 User manual

Yeti SB140/LR User manual

Yeti

Yeti SB140/LR User manual

Yeti SB120 User manual

Yeti

Yeti SB120 User manual

Yeti CNC Stylus User manual

Yeti

Yeti CNC Stylus User manual

Yeti ARC User manual

Yeti

Yeti ARC User manual

Popular Bicycle Accessories manuals by other brands

Buddyrider Pet Seat installation instructions

Buddyrider

Buddyrider Pet Seat installation instructions

Continental Refrigerator Ergon Series Original instructions

Continental Refrigerator

Continental Refrigerator Ergon Series Original instructions

Halfords Bicycle Computer owner's manual

Halfords

Halfords Bicycle Computer owner's manual

The Hive e*thirteen TRS Assembly

The Hive

The Hive e*thirteen TRS Assembly

Crivit Pro CBGT 4 A1 operating instructions

Crivit Pro

Crivit Pro CBGT 4 A1 operating instructions

Carry Freedom Bamboo Trailer instructions

Carry Freedom

Carry Freedom Bamboo Trailer instructions

moon LUXEIUM series User guideline

moon

moon LUXEIUM series User guideline

Koso XR-01S Installation

Koso

Koso XR-01S Installation

Yakima HoldUp Plus2 instructions

Yakima

Yakima HoldUp Plus2 instructions

Sigma BC 906 user manual

Sigma

Sigma BC 906 user manual

CAMPAGNOLO V3 instruction manual

CAMPAGNOLO

CAMPAGNOLO V3 instruction manual

FSA Tandem Crank ZS035 Service instructions

FSA

FSA Tandem Crank ZS035 Service instructions

Babboe Carve instruction manual

Babboe

Babboe Carve instruction manual

Pioneer SGX-CA500 quick guide

Pioneer

Pioneer SGX-CA500 quick guide

Linus Lunch Rack installation guide

Linus

Linus Lunch Rack installation guide

H2O Audio SIS iV6-75 instruction manual

H2O Audio

H2O Audio SIS iV6-75 instruction manual

Fulcrum RACING ZERO DB user manual

Fulcrum

Fulcrum RACING ZERO DB user manual

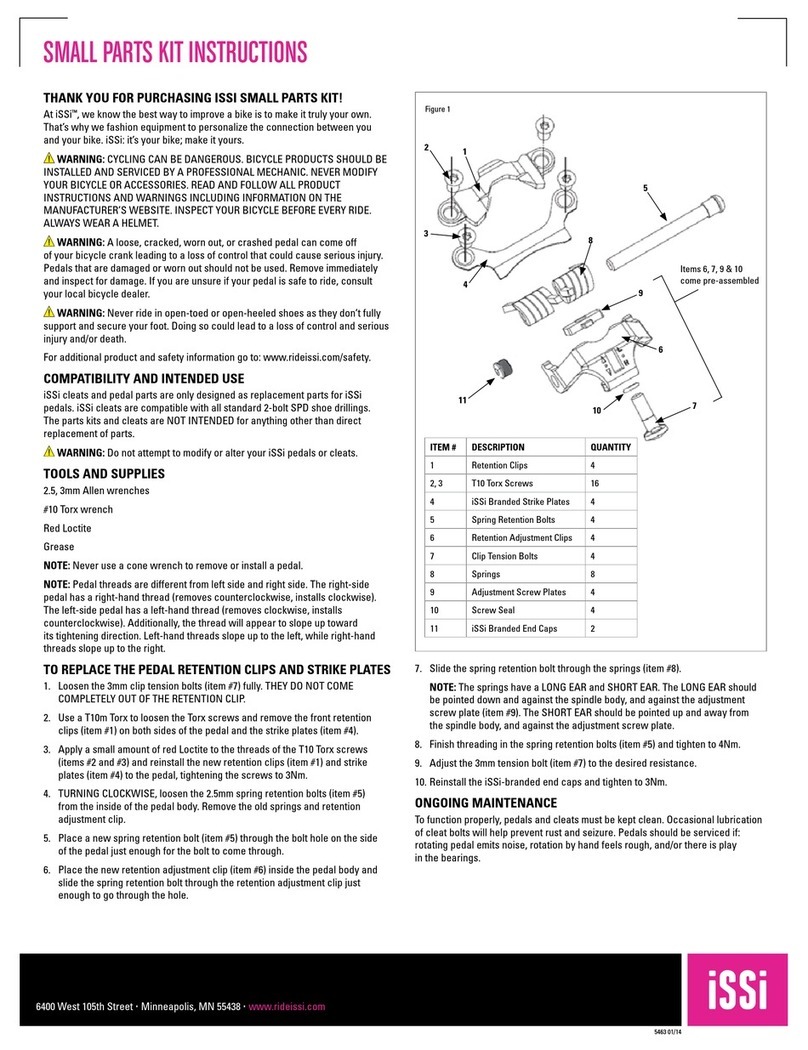

ISSI SMALL PARTS KIT instructions
