OWNER'S MANUALYETI SB130/LR

3.4.
BRAND OVERVIEW 05
FRAME FEATURES 07
GEOMETRY 09
MAINTENANCE SCHEDULE 11
TECHNICAL
ASSEMBLY OVERVIEW 17
EXPLODED VIEWS
REBUILD KITS 6
LEGAL
WARRANTY 35
CONTACT INFORMATION 36
7
TABLE OF CONTENTS

5.6.
CONGRATULATIONS ONYOUR PURCHASE OF A NEW YETI. We are confident your new bicycle will
exceed your expectations for value,
performance, and ride quality. Each
frameset and component has been custom
specified and designed to enhance your
riding experience. Whether you are a
beginner cyclist, or a seasoned pro, your Yeti
bicycle will provide endless hours of two-
wheeled fun.
This model specific manual is designed to
be used in conjunction with the general Yeti
Owner’s Manual and the manuals supplied
by the suspension manufacturers. If you did
not receive the Yeti owner’s manual or the
manual provided by the suspension
manufacturer, download the materials off
the Internet, or contact your local dealer.
Bicycling can be a hazardous activity
even under the best of circumstances.
Proper maintenance of your bicycle is your
responsibility and when done properly helps
reduce the risk of injury and damage to your
bicycle.
This manual outlines basic setup and
maintenance recommendations of your new
Yeti. Because it is impossible to anticipate
every situation or condition that may occur
during the assembly, setup, and
maintenance of your bicycle, Yeti
recommends that all service and repairs be
performed by your local authorized Yeti
Dealer.
This manual contains many “Warnings” and
“Cautions” concerning the consequences of
failure to maintain or inspect your bicycle.
The word “Warning” indicates a potentially
hazardous situation in which , if not
avoided, could result in serious injury or
death. The word “Caution” indicates a
potentially hazardous situation in which, if
not avoided may result in minor injuries or
damage to your bicycle or a component of
your bicycle. Be sure to read and
understand all of the Warnings and
Cautions listed in the manual.
Warning: Make sure you review and understand the warnings, instructions, and content of this manual and accompanying
manuals for your bicycle.
Warning: Technological advances have made bicycles and bicycle components more complex and the pace of innovation
is increasing. It is impossible for this manual or the accompanying manuals to provide all the information required to
properly repair and/or maintain your bicycle. In order to help minimize the chances of an injury, it is critical for you to have
work performed by an authorized Yeti retailer.

7.8.
1. The SB130 delivers 130 mm (137mm for SB130 LR)of travel with our
patented Switch Infinity Technology. Efficient pedaling performance
while still smooth and continuous when the going gets rough.
. High modulus carbon provides a stiff, strong and light weight chassis.
3. Colleted pivot axles help create a stiff interface between the front
and rear triangles of the frame. Custom Enduro Max sealed
bearings keep things moving freely at the pivots.
4. The SB130/LR does away with the front derailleur mount, making it
a 1x drive specific frame. This increases stiffness in the frame.
5. ISCG 05 chain guide mounts are included on the SB130/LR if case
you want to go for some extra drivetrain security in the rowdy
sections.
6. Using our integrated head tube on the SB130 allows for a larger
head tube with more area, increased stiffness, and lower overall
ride height without compromising any performance.
. The SB130 uses a 10 x 5.5mm Float  shock, by Fox Racing Shox
8. Custom guards on the seat stay, chain stay and down tube
keep things quiet while riding and protect the frame.
9. The SB130/LR features internal routing for all cables, making the bike
quiet and clean looking as well as reducing cable rub on the paint.
Dedicated 12 x 148 Boost dropouts and integrated hanger with axle
threads for strength, stiffness, ease of hanger and wheel installation.
1. SWITCH INFINITY TECHNOLOGY PATENTED SUSPENSION SYSTEM
2. HIGH MODULUS CARBON FIBER MAIN FRAME AND SWING ARM
3. COLLET AXLE SYSTEM ON PIVOTS REDUCES BEARING WEAR
4. OPTIMIZED FOR 1X DRIVETRAINS ONL Y
5. ISCG 05 CHAINGUIDE MOUNTS
6. INTERATED EAD TUBE 41MM/5MM
7. SUSPENSION BY FOX
8. CUSTOM DEBRIS AND CHAIN SLAP GUARDS
9. INTERNAL CABLE ROUTING
10. INTEGRATED AXLE AND DERAILLEUR HANGER SYSTEM
10.
THE LOWDOWN ON THE SB130/LR ANDITS FEATURES. 10 x 55mm Float  shock for SB130 LR.

9.10.
FITMEDIUM 5'5" (165 CM) - 5'11" (180 CM)
LARGE 5'10" (178 CM) - 6'3" (191 CM)
X-LARGE 6'1" (185 CM) - 6'7" (200 CM)
SMALL 5'1" (155 CM) - 5' " (10 CM)
M
B
L
I
J
O
C
N
H
G
E
F
D
A
K
MD LG XL
A 410 450 495
B EFF. TOP TUBE LENGTH 601.9 625.2 653.4
C HEAD TUBE ANGLE 65.5 65.5 65.5
D EFF. SEAT TUBE ANGLE 77.0 76.9 76.9
E CHAINSTAY LENGTH 433 433 433
F
SEAT TUBE LENGTH
1205.6 1230.2 1259.7
G EST. BB HEIGHT 337.7 337.7 337.7
H STANDOVER 725.9 728.2 730.6
I HEAD TUBE LENGTH 99.2 110.2 121.2
JAXLE TO CROWN 557.1 557.1 557.1
KFORK OFFSET 44 44 44
L
WHEELBASE
614.8
MREACH 460.2 480.2
NFRONT CENTER 772.6
O136.5 136.5 136.5
SM
380
570.7
65.5
77.1
433
1173.9
337.6
723.5
95.0
557.1
44
611.0
430.2
740.9
136.5
505.2
797.2 826.7
VERTICAL FORK TRAVEL
STACK 624.8 634.8
GEOMETRYFOX 36 / 150MM FORK

9.10.
FITMEDIUM 5'5" (165 CM) - 5'11" (180 CM)
LARGE 5'10" (178 CM) - 6'3" (191 CM)
X-LARGE 6'1" (185 CM) - 6'7" (200 CM)
SMALL 5'1" (155 CM) - 5' " (10 CM)
M
B
L
I
J
O
C
N
H
G
E
F
D
A
K
MD LG XL
A 410 450 495
B EFF. TOP TUBE LENGTH 603.4 626.7 655.0
C HEAD TUBE ANGLE 65.1 65.1 65.1
D EFF. SEAT TUBE ANGLE 76.6 76.5 76.4
E CHAINSTAY LENGTH 433.2 433.2 433.2
F
SEAT TUBE LENGTH
1209.8 1234.4 1263.9
G EST. BB HEIGHT 340.9 340.8 340.8
H STANDOVER 731.5 733.7 735.8
I HEAD TUBE LENGTH 99.2 110.2 121.2
JAXLE TO CROWN 567.1 567.1 567.1
KFORK OFFSET 44 44 44
L
WHEELBASE
618.3
MREACH 455.6 475.6
NFRONT CENTER 776.6
O145.1 145.1 145.1
SM
380
572.1
65.1
76.6
433.2
1178.1
341.0
729.3
95.0
567.1
44
614.3
425.5
744.8
145.1
500.6
801.1 830.7
VERTICAL FORK TRAVEL
STACK 628.4 638.5
GEOMETRYFOX 36 / 160MM FORK

11.12.
TOREYeti strongly recommends using a torque wrench when assembling your frame. Torque
specifications for individual parts on the SB130/LR are listed below, as well as in the
step by step assembly instructions later in the manual. For general bicycle maintenance
please consult the torque specifications of the component you are adjusting.
EY TORE SPECSPART NUMBER DESCRIPTION TORQUE (NM)
300040485 MAIN PIOT ALE 12
00003 SS PIOT BOLT, FEMALE 16
30003096 COLLET ALE 30.510.5 M101.0 13
300040454 COLLET WEDE BOLT, LARE 14
30003093 LIN, PIOT ARDWARE, MALE, 15MM 15
30006003 1148 DERAILLEUR ANER 10
30003005 SCS M6x1.0 0L, SWITC LIN MOUNT 1
300040486 COLLET WEDE BOLT, SMALL 8
100425006 AXLE, YETI BOLT ON, 12X148MM 12-15
300030151 BOLT, TI MALE, M6 X 12.0 MM 10
200020311 20
LOCRIN, 6902-2RS
WEEKLY
MONTHLY
3 MONTHS
ANNUALLY
CHECK TIRE PRESSURE
CLEAN BIKE OF MUD AND DEBRIS
CHECK BRAKE FUNCTION
CHECK SHOCK PRESSURE
CHECK FOR LOOSE BOLTS AND TIGHTEN, IF NECESSARY
CHECK HEADSET AND TIGHTEN / LOOSEN, IF NECESSARY
THOROUGHLY CLEAN PIVOT POINTS WITH A RAG (DO NOT LUBRICA TE)
LUBE INFINITY LINK EVERY 40 HRS. (YETI HEAVY MOLYBDENUM GREASE)
CHECK / REPLACE BRAKE PADS
CHECK TIRES FOR WEAR
CHECK SPOKE TENSION. RETENTION, IF NECESSARY
CHECK CHAIN FOR WEAR. REPLACE IF NECESSARY
COMPLETE TUNE-UP PERFORMED BY AN AUTHORIZED YETI DEALER
KEEP YOUR YETI FRESHAND CLEANOVERVIEWFollowing these guidelines will help maintain the performance of your bicycle and
prevent more serious problems from arising. It is important to remember that service
intervals can vary depending on climate, trail conditions and riding frequency. If you
are unsure about working on your own bicycle, contact your authorized Y eti Dealer for
more information on general bicycle maintenance.
SCHEDULECLEAN AND LUBE CHAIN

01.
With a 3mm allen key, remove the lower
cable port access cover near the bottom
bracket.
02.
Install your seatpost housing into the
head tube port, pushing until it exits near
the lower cable port access hole.
04.
While pushing the housing into the head
tube port, continue pushing the cable
up the seat tube through the access
port until the housing exits the seat
tube.
01.
Remove the lower cable port access
cover with a 3mm allen key.
02.
Drop a Park Tool Router tool down
the seat tube until it exits the access
port.
03.
Push your seatpost housing into the frame
from the headtube port until it exits near the
access port.
05.
Pull router tool back through the frame
until your housing exits the seat tube.
04.
Outside of the access port, connect
the Park router tool to the housing.
02. At the same time, pull the shifter housing
out of the head tube port while pushing the
seatpost housing into the seat tube until
the double barb exits the head tube.
SIFTERPush the shifter housing into the lower
head tube port on the non-drive side.
Feed the housing back to the ports on
the rear triangle and eventually out near
the drive-side dropout.
01. YRALIC SETPSRoute a section of shifter housing through the frame using the steps described in Standard Setups. Connect the double-barb to the
shifter housing and the seatpost housing
at the seat tube.
BRAEPush the brake line into the frame starting at the
rear triangle, feeding it forward to the ports into
the front triangle and out the head tube.
03.
Use your finger to help push the
housing around the bend in the frame
up into the seat tube.
PAR TOOL SETP1314
SEAT POST ROUTINGSTAAR SETP

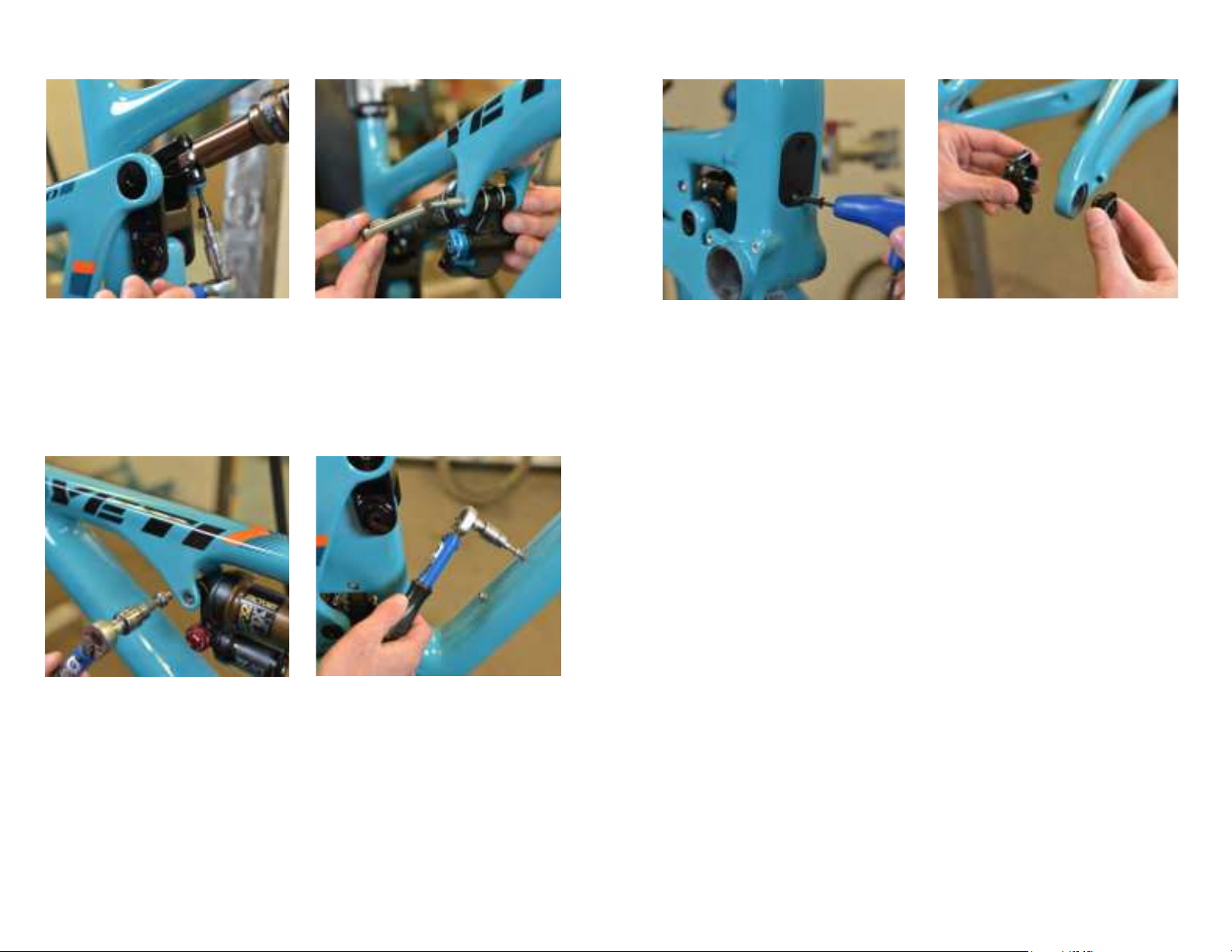

01.
With a 5mm allen wrench, remove the main
pivot Collet Wedge Bolt
02.
With a 10mm allen wrench, remove the Main
Pivot Collet Axle. The Collet Nut on the drive
side can remain in the frame.
03.
Rotate your swingarm upwards to access
both grease zerks and expose the whole
Switch Infinity link. With a clean rag and
mild detergent, clean any mud, dust, or
debris off the Switch Infinity Link.
04.
Using a needle-type grease gun, push new
grease into the two Switch Infinity grease
ports until you see grease extruding from
the shaft seals.
05.
Wipe off any excess grease that was
pushed out of the seals.
06.
Lower the swingarm and re-install your Main
Pivot Collet Bolt prepped with Blue 243
Loctite
*Torque to 12 Nm
07.
Install the Main Pivot Collet Wedge and
*Torque to 14 Nm.
15.16.SWITCH INFINITY SERVICE

17.18
TOOLS EEE
YETI TIPSMake sure your tools are in good condition.
A worn allen key can round the hex on a
bolt not allowing for proper torque.
Torque settings are listed throughout the
instructions. It is important to prep all bolt
threads. The instructions denote whether to
use a Loctite compound or grease.
Warning: Service on Yeti bicycles requires special
knowledge and tools. Yeti Cycles recommends that all
service and repairs be performed by an authorized Yeti
Dealer
• 3mm allen key
• 4mm allen keys
• 5mm allen keys
• 6mm allen key
• 10mm allen key
• Guide pin tool (Or two)
• Cassette tool
• Torque wrench
• Grease
• Blue (243) Loctite
01.
All the parts you’ll need to get your SB130/LR
frame assembled. Please refer to the exploded
view later in this manual for more information.
02.
Press the Shock Eyelet Spacer into the rear
shock eyelet using an arbor press or vise.
03.
Apply a light coat of grease to the threads of the
Rear Triangle at the Seat Stay Pivots. Install x
Bearing Lockring (200020311) with a cassette tool.
*Torque to 20 Nm.
04.
Slide 4x Washer 30003014 over 4x M6 Cap
Screw (3000300) and apply Blue Loctite 43
or similar to the threads.
Insert the 4x Cap Screws into the frame and
place a black Infinity Link washer on each bolt.
Orient the washers such that the flat surfaces are
facing the window in the frame where the Switch
Infinity Link is mounted.
FRAME ASSEMBLY

19.20.
07.
Place the Upper and Lower Extenders together so that the bearings touch in the middle. Orient the Upper
threaded extender toward the top and slide into the Link 000031. Secure with a uide Pin.
06.
Apply a light coat of grease to the inner
surfaces of x Extender Bearing Races
300040505. Place one each into the Upper
and Lower Shock Extenders 00003 and
000033.
05.
Install the Switch Infinity Link into the frame by
rocking it into place over the bolts and black
Switch Washers. The grease zerks should face
the non-drive side. Tighten the 4x bolts by
hand, then torue in a cross pattern to  Nm
0.
rease shaft of the Link Pivot Female Bolt 000038. Place the Link onto the Front
Triangle as shown and secure with Link Pivot Female Bolt. Install Link Pivot Male
Bolt 30003093 prepped with Blue 243 Loctite.
*Torque to 15 Nm.
0.
Slide a 41mm Titanium Female bolt with Washer 300030069 through the Link/Extender
Assembly. Secure with a Ti Male Bolt 300030151  Washer 30003006 prepped
with Blue 243 Loctite.
*Torque to 10 Nm.
ASSEMBLYASSEMBLY

21.22.
12 .
Rotate Swingarm Forward and move Upper and
Lower Shock Extenders out of the way.
Install one eyed Bolt 00003 prepped
with Blue 243 Loctite from the inside of the link,
threading the Female Bolt onto it. Draw the
eyed Bolt into assembly and make sure its key
nests into the keyway on the Link bore.
12 .
Torue Seatstay Pivot Female Bolt to 6 Nm
Repeat process for opposite side.
10.
Apply a light coat of grease to the Rear Triangle in the Main Pivot bores and lightly grease the shaft of
the Main Pivot Collet Axle 300040485 and prep the threads with Blue 243 Loctite. Slide the Rear
Triangle over the Switch Infinity Link and install Main Pivot Collet Axle 300040485 through assembly.
Install Collet Nut 30003085 and tighten Axle until any play is removed.
*Torque to rou 12 Nm
11.
rease threads and wedge of Large Collet
Wedge Bolt 300040454. Install into the Main
Pivot Axle and Torque to  Nm
12a.
rease shaft of x Seatstay Pivot Female Bolt
000036. Install one Seatstay Pivot Female
Bolt 000036 through the Rear Triangle
and into the link.
13.
Open the Upper and Lower Shock Extenders
and position the Shock into the frame, allowing it
to sit between the two Extender aws. Secure
front eyelet with a uide Pin
14.
Install Collet Axle 30003096 from the Lower
Extender through the Shock and threading into
the Upper Extender. Prep threads with Blue
243 Loctite and grease the shaft.
*Torque to 3 Nm
ASSEMBLYASSEMBLY

23.24.
16.
Install 45mm Titanium Female Bolt
3000309 with Washer 300030069
through the front shock mount.
1.
Install x Washer 300030148 onto x 0 Bolt
300030010 and grease threads. Install into
front triangle and secure hand tight.
*Torque 4-5 Nm
15.
rease threads and wedge of small Collet
Wedge Bolt 300040486 and install into short
Collet Axle.
Torque to 8 Nm.
1.
Install Lower Cable Port Cover 300040504
onto bottom of frame and secure with Flat
ead Bolts (300030299).
*Torque to 4-5 Nm
20.
rease outer surface of Derailleur anger
30006003. Install into Rear Triangle and
secure with anger Cap 30006005.
ASSA
*Torque to 10 Nm
17.
Secure front shock mount with Titanium Male
Bolt 300030151 prepped with Blue 243
Loctite and Washer 30003006.
Torque to 10 Nm FRAME ASSEMBLY IS COMPLETE. ASSEMBLYASSEMBLY

NOTE: Saddle cent ered on
st raight lengt h of rails.
MEASURE FROM TOP OF SEAT TUBE TO BOTTOM OF DROPPER POST AS SHOWN BELOW (MEASUREMENTS IN MM)125 150 175
190 220 220
220 250 260
228 258 290
228 258 290
SM
MD
LG
XL FOX TRANSFER POST SIZE
FRAME SIZE
MAX INSERTION (X)
X
To check out our shock setup guide, paste https://shocksetup.yeticycles.com/bikes into your browser.
25.26.
FOX TRANSFER POST INSERTION GUIDE

27.28
16 15 14 13 12 11 10 9 8 7 6 5
2.1
2.3
2.2
4.12
4.10
4.11
4.8
4.9
4.7
4.25
4.24
4.27
4.28
1.3
4.15
4.17
1.2
4.194.18
3
4.14
4.13
4.22
4.21.2
4.20.1
4.3
4.16
4.17
4.23
4.6
4.194.18
4.1.2
4.5
4.1.1
4.2
4.4
4.26
4.29
2.4
PREP KEY
LOCTITE
GREASE
4.20.2
NYLON
PATCH
4.30
EXPLODED VIEW

29.30
ITEM# PART # DESCRIPTION QTY
1 N/A SB30 FRONT TRIANGLE ASSEMBLY
1.1 N/A SB130 FRONT TRIANGLE 1
1.2 300070006 ICE AXE HEAD BADGE 1
1.3 400100186 DT PROTECTOR 1
1
1
1
1
2 N/A SB30 SWING ARM ASSEMBLY
2.1 N/A SB130 SWING ARM
1
2.2 40010018SB130 PROTECTOR CS/SS
1
4.1SB130 LIN SUB-ASSEMBL1
4.1.1 300040500 SB130 LIN1
4.1. 3000005BEARIN 690-RS ETENDED, 15  8  /10 
4. 000036 BOLT, SS PIOT, FEMALE 
4.300003 LIN PIOT ARDWARE, EED, LON
4.40000311 LOCRIN, 690-RS 
4.000001 SWITC INFINIT 1 MECANISM1
4.8 30003005BOLT, M6  1.0, 0L 4
4.9 30003014 WASER 6.3101 MM 4
4.11 300040454 COLLET WEDE SUB-ASSEMBL 15MM 1
4.11.1 30003068 COLLET BOLT M8  1.5 1
4.11. 3000306COLLET WEDE 15MM 1
4.11.3 300040450 SPIRAL RETAININ RIN 0.3  0.349 INCES 1
ITEM# PART # DESCRIPTION QTY
4.130003085 COLLET NUT M15  1.5 1
4.13 30003096 COLLET ALE 30.5  10.5 M10  1.0 1
4.14 300040486 COLLET WEDE SUB-ASSEMBL 10 MM 1
4.14.1 30003084 COLLET BOLT M5  .8 1
4.14. 30003083 COLLET WEDE 10MM 1
4.14.330004048 SPIRAL RETAININ RIN 0.5  0. INCES 1
4.15 3000309BOLT MASTER, TI FEMALE, 8  45.0 1
4.16 30003098 BOLT MASTER, TI FEMALE, 8  41.0 1
4.1 300030069 WASER 8.5  1.5  0.5 MM 
4.18 300030151 BOLT, TI MALE, M6  1.0 MM 
4.19 30003006WASER 6.5  1.5 0.5 MM 
4.000003 ASSEMBL SOC ETENDER TOP 60MM 1
4.0.130004050SOC ETENDER TOP 60MM 1
4.0. 3000003BEARIN, 398 MA DBL, 81910/11 1
4.1000033ASSEMBL SOC ETENDER, BOTTOM 60MM
4.1.1 300040503 SOC ETENDER BOTTOM 60MM 1
4.1. 3000003BEARIN, 398 MA DBL, 81910/11 1
4. 300040505 SOC ETENDER BEARIN ETENSION 
4.3 30006008ASSEMBL ETI SEAT CLAMP - BOLT ON 31.6 1
4.3.1N/ACOLLAR, BOLT ON, ETI SEAT CLAMP, 31.6 1
4.3. N/ABARREL NUT, ETI SEAT CLAMP, BOLT ON 1
4.3.3300030010 BOLT, M5  0.8, 16L 1
4.4 300040504 CABLE PORT COER 1
4.5 30003099 
4.6 3000005BEARIN 690-RS ETENDED, 15  8  /10 
4. 300030010 BOLT, M5  0.8. 16L 
2.3 400100188 SB130 PROTECTOR CS - LOWER
2.4 400100193 SB130 CS PROTECTOR - INNER
3N/A :)30 :/OC2 (::E4)3@
1
N/A :)30 :4(33 P(RT: (::E4)3@
000030
4.530003093 LIN, PIOT ARDWARE, MALE, 15MM 1
4.6000038STUD, LIN BEARIN, FEMALE, 15MM 1
4.10 300040485 COLLET ALE 15MM
4.8300030148 WASER 5.1  8.9  1.0 MM
4.9
4.30
300030300
300060073
SOC EELET SPACER
12 X 148 HANGER KIT G3 1
1

BOLT, FLAT EAD, M5  0.8  16
2
3.1 N/A FOX REDUCER 8 X 36MM
EXPLODED VIEW PARTS LIST1

31. 32.
PART # QTY
200020333
DESCRIPTION
:)30 4(:TER RE)<03+ 20T
0000311 LOCRIN, SS PIOT 
00003 SOC ETENDER 60MM TOP W/BEARIN1
000033 SOC ETENDER 60MM BOTTOM W/BEARIN1
000036 BOLT, SS PIOT, FEMALE 
00003 LIN PIOT ARDWARE, EED, LON2
000038 STUD, LIN BEARIN, FEMALE 15MM, 48.5L 1
30000045 BEARIN F690 RS 815 OUT2
30000054
30003005
BEARIN 690 LLU MA-E
BOLT CAP M6104
30003006WASER SS 6.5MM ID 1.5MM 
300030069 WASER SS 8.5MM ID 1.5MM 
300030151 BOLT-TI-MALE M61MM 
30003014 WASER 10  6.  1 4
30003085 COLLET ALE NUT M151.511
30003093 1
30003096
ALE, MALE, 15MM  16MM, M101.0
COLLET ALE 30.510.5 M101.01
3000309BOLT MASTER, TI FEMALE, 8  45.0 1
30003098 BOLT MASTER, TI FEMALE, 8  41.0 1
30003099 BOLT, FLAT EAD, M5  0.8  16 
300030300 SOC EELET SPACER 1
300040454 COLLET-WEDE ASSEMBL EN1
300040485 ALE COLLET 155.5S13T 1
300040486 COLLET-WEDE ASSEMBL - M10 1 20002033:)30 )E(R05. RE)<03+ 20T
3000003BEARIN 398 RS MA DBL ROW 
30000045 BEARIN F690 RS 815 OUT
3000005BEARIN 690 LLU MA-E 4
300040504 CABLE PORT COER 1
300040505 SOC ETENDER BEARIN ETENSION 
PART # QTY
DESCRIPTION
:)30 /(R+>(RE 20T
LOCRIN, SS PIOT 
SOC ETENDER 60MM TOP W/BEARIN1
SOC ETENDER 60MM BOTTOM W/BEARIN1
BOLT, SS PIOT, FEMALE 
LIN PIOT ARDWARE, EED, LON2
STUD, LIN BEARIN, FEMALE 15MM, 48.5L 1
BOLT CAP M6104
WASER SS 6.5MM ID 1.5MM 
WASER SS 8.5MM ID 1.5MM 
BOLT-TI-MALE M61MM 
WASER 10  6.  1 4
COLLET ALE NUT M151.511
1
ALE, MALE, 15MM  16MM, M101.0
COLLET ALE 30.510.5 M101.01
BOLT MASTER, TI FEMALE, 8  45.0 1
BOLT MASTER, TI FEMALE, 8  41.0 1
BOLT, FLAT EAD, M5  0.8  16 
SOC EELET SPACER 1
COLLET-WEDE ASSEMBL EN1
ALE COLLET 155.5S13T 1
COLLET-WEDE ASSEMBL - M10 1
CABLE PORT COER 1
SOC ETENDER BEARIN ETENSION 
REBUILD KITS20002033
0000311
00003
000033
000036
00003
000038
30003005
30003006
300030069
300030151
30003014
30003085
30003093
30003096
3000309
30003098
30003099
300030300
300040454
300040485
300040486
300040504
300040505

3334
400100186 SB130 DT PROTECTOR 1
40010018SB130 CS/SS PROTECTOR 1
400100188 SB130 CS LOWER PROTECTOR 1
300040493 SB130 CS INNER PROTECTOR 1
200020039
30003099 BOLT, FLAT EAD, M5  0.8  16 
300040504 CABLE PORT COER 1
PART # QTY
DESCRIPTION
:)30 PORT COVER 20T
:)30 .E5  PROTECTOR 20T
00009
REBUILD KITS CONTINUED

35.36.
LIFETIME WARRANTYHERE’S EVERYTHING YOU NEED TO KNOW ABOUT OUR LIFETIME WARRANTY:
All 2019 (or newer) frames, including the Switch Infinity, are covered for life against damage
due to manufacturing defects for the original purchaser. Paint and finish are covered for 1-
year. We will repair or replace, at our discretion, any frame we deem defective. There are a
few conditions: you must register it online at yeticycles.com and you must take it to an
authorized Yeti Cycles dealer for processing. Warranty does not cover damage due to
ordinary wear and tear, neglect or intentional destruction. From a slingshot or your truck.
If you happen to have a crash or non-warranty situation, we’ll get you back on the trail with a
reasonable replacement price. Same conditions as above.
Lifetime Warranty applies to all 2019 and newer frames (including the SB100). Model year
2018 and older frames will be covered under our previous warranty (5-year or 2-year based
on time of purchase).
Simple as that. No fine print.
DISCLAIMER
YETI Cycles is not responsible for any damages to you or others arising from riding,
transporting or other use of your bicycle. In the event that your frame breaks or
malfunctions, YETI Cycles shall have no liability or obligation beyond the repair or
replacement of your frame pursuant to the terms outlined in the warranty.
*If you have a warranty concern, please contact your authorized Yeti dealer.
YETI CYCLES
621 Corporate Circle, Unit
B Golden, CO 80401
(p) 303-278-6909
(f) 303-278-6906
www.yeticycles.com
BUSINESS HOURS
Monday-Friday
8AM-11:30AM,
1:00PM-5:30PM (Mountain
Time)
