YitaHome FTLFFS-0012 User manual

ASSEMBLY INSTRUCTIONS
Pure & Easy
MASSAGE RECLINER SOFA
CONTACT US:
,
󾋸󾋿󾋿󾋿󾋾󾋸󾋾󾋿󾋷󾋿󾋻󾋿󾋷󾋷󾋻󾋺󾋷󾋿󾋷󾋷󾋸󾋹󾋷󾋷


󾋸
󾋹“”󽦁
󾋺“”
FTLFFS-0012
FTLFFS-0013
FTLFFS-0014
FTLFFS-0015
AJAGS-V 1

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
1 2
1. Two or more people are needed to complete the installation.
2. Please protect the wires and remote control accessories from damage during
installation.
X1
Reference Image Description Qty.X1
Reference Image Description Qty.
Chair base
X1
Left armrest
（Left）
X1
Backrest
X1
Right armrest
(Right)
X1
Remote control
X1
X2
Anti-fall bracket
Lift controller
Power cord

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
3 4
2Backrest
（Left ）
（Right ）
1Right armrestLeft armrestChair base

4
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
56
33 Anti-fall bracket X2
#1
#11 #22
#2
Connecting Wires:
Connect wires to the corresponding color - red to red, white to white.
Connect black wire #1 to black wire #2.
Connect black wire #11 to black wire #22.
(The head of wire #22 can be further secured to wire #11 with the rotatable
snap-on joint. To unplug the connection, users need to first detach the snap-on joint.)
#11
#22
#2
#1
From chair base
From backrest

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
7 8
Installation Completed
#3
#4
#4
#11 #22
Power cord
Remote control
4Remote control Lift controller
Connect the remote control to black wire #3.
Insert the power cord into the power supply socket that is located on the left of the
chair’s base back.
There are two other sockets on the lower right side. Link wire #4 behind the right armrest
to the left socket, and connect the lift controller to the right socket in the lower right
corner behind the chair base.
Power cord
Lift controller
Remote control
#3
Lift controller
From backrest
From chair base
From right armrest
#2#1
After connecting all electric wires, turn on the red switch located at the back of the chair
base. The indicator light will turn red to signify that the chair is powered on.
Power cord
Switch

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
9 10
How to recline?
How to descent the footrest and have the chair stand?

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
11 12

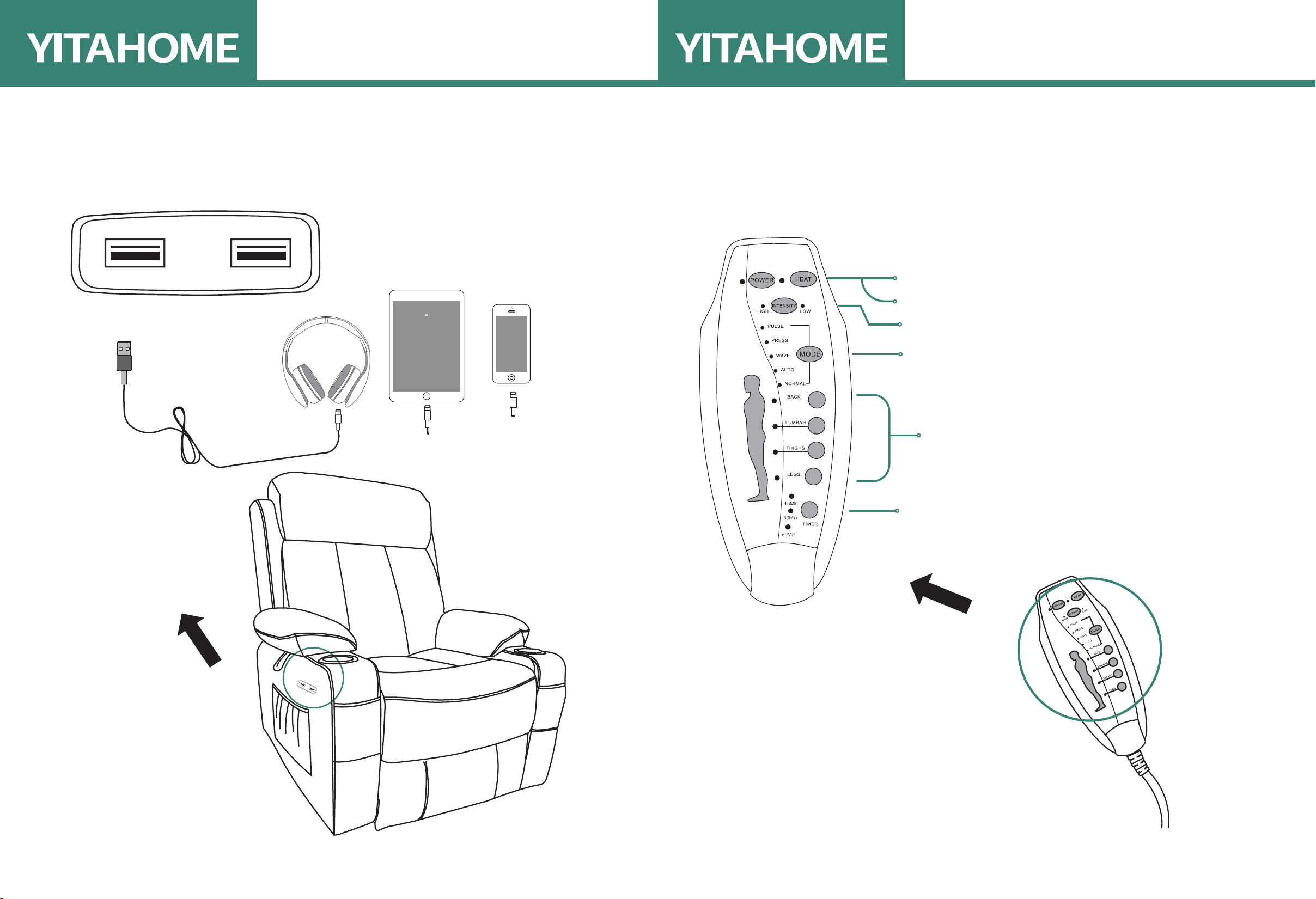

How to use the massage function?
POWER: Turn on/off remote control.
HEAT:Turn on/off heat function for lumbar part only .
ITENSIITY:Press to adjust massage intensity (low, high)
MODE:Press to select 5 different vibration modes
(pulse, press, wave, auto, normal).
Press to select which part of body the massage
should focus on (back, lumbar, thighs, legs)
TIMER:15 mins/30 mins/60 mins
Dual USB charge ports on the outside of the right
armrest.

（Left ）
（Right ）
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
13 14
Pull out the arms from the chair base.Please note that you need to take apart the backrest
before removing the armrests.
Force apart the buckles while taking the backrest out from the armrests.
