York YAFS012-018 User manual

Heating and Air Conditioning
AFFINITY & AFFINITY ADVANCED
GEOTHERMAL HEAT PUMPS
SINGLE AND DUAL CAPACITY
MODELS:
YAFS012 - 018
(1 THRU 1.5 NOMINAL TONS)
YAFT026 - 072
(2 THRU 6 NOMINAL TONS)
Due to continuous product improvement, specifications are
subject to change without notice.
Visit us on the web at www.york-geothermal.com
Additional rating information can found at
www.ahridirectory.org
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
SUBMITTAL SET
(2
THRU
6
NOMINAL
TONS)
MODELS:
YZFS018
YZFT026 - 072
(2 THRU 6 NOMINAL TONS)

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 2 Page _____ of _____
Model Nomenclature - Affinity
Model Nomenclature - Affinity Advanced
YZF T038 T L 1 4 1 C A 0 D *
1-3 4 4-6 8 9 1011121314151617
Model
YZF –Affinity Advanced
Forced Air
Stage
T–Dual Capacity
Unit Capacity
026, 038, 049
064, 072
Discharge Configuration
T–Top (Vertical)
S–Side (Horizontal)
E–End (Horizontal)
B–Bottom (Vertical)
Air Configuration
L–Left
R–Right
Voltage
1 – 208-230/60/1
Hot Water Generation Option
0 – No HWG, No IntelliStart®
1 – HWG with Factory Installed Pump,
No IntelliStart1
3 – No HWG, IntelliStart1
4 – HWG with Factory Installed Pump,
IntelliStart1
Vintage
* – Factory Use Only
Controls
D–Aurora Performance and
Refrigeration Package
Air Coil Option
0 – Standard, Uncoated
Filter Options
A - 2" MERV 11 Filter
Water Coax Option
C–Copper
N–CuproNickel
Blower Option
1 – Variable Speed ECM
4 – 5-Speed ECM
Rev.: 04/27/2021
Notes:
1 – IntelliStart available 026-072
2 – Symphony/AWL not available
YAF T038 T L 1 4 1 C A 0 A *
1-3 4 4-6 8 9 1011121314151617
Model
YAF –Affinity Forced Air
Stage
S –Single Speed (012, 018, 022,
030, 036, 042, 048, 060, 070)
T –Dual Capacity (026, 038, 049,
064, 072)
Unit Capacity
012, 018, 022, 026, 030, 036, 038,
042, 048, 049, 060 ,064, 070, 072
Discharge Configu ratio n
T –Top (Vertical)
S –Side (Horizontal)
E –End (Horizontal)
B –Bottom (Vertical 022-072)
Air Configuration
L –Left
R –Right
Voltage
1 – 208-230/60/1
Hot Water Generation Option
0 – No HWG, No IntelliStart®
1 – HWG with Factory Installed Pump,
No IntelliStart1
3 – No HWG, IntelliStart
4 – HWG with Factory Installed Pump,
IntelliStart1, 2
Vintage
* – Factory Use Only
Controls
A –AuroraTM Base Control
Air Coil Option
0 – Standard, Uncoated
Filter Options
A - 2" MERV 11 Filter
Water Coax Option
C –Copper
N –CuproNickel
Blower Option
0 - PSC ( 012 Only)
1 – Variable Speed ECM (018-072)
4 – 5-Speed ECM (022-072)
Rev.: 04/27/21
Notes:
1 – HWG available 018-072
2 – IntelliStart available 022-072
3 – Symphony/AWL not available

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Cooling capacities based upon 80.6°F DB, 66.2°F WB entering air temperature
Heating capacities based upon 68°F DB, 59°F WB entering air temperature
All ratings based upon 208V operation
Variable Speed ECM or 5-Speed ECM Motor
AHRI/ASHRAE/ISO 13256-1
English (IP) Units
Model Capacity
Modulation
Flow Rate
Water Loop Heat Pump Ground Water Heat Pump Ground Loop Heat Pump
Cooling
EWT 86° F
Heating
EWT 68° F
Cooling
EWT 59° F
Heating
EWT 50° F
Cooling Brine
Full Load 77° F
Part Load 68° F
Heating Brine
Full Load 32°F
Part Load 41°F
gpm cfm Capacity
Btuh
EER
Btuh/W
Capacity
Btuh COP Capacity
Btuh
EER
Btuh/W
Capacity
Btuh COP Capacity
Btuh EER Heating
Capacity COP
026 Full 8 950 24,900 16.8 30,100 5.5 27,700 24.0 23,900 4.8 26,400 19.6 19,500 4.0
026 Part 7 750 18,900 18.6 22,000 6.1 22,200 29.7 17,500 4.9 21,000 26.0 16,400 4.5
038 Full 9 1300 36,500 17.0 43,300 5.5 40,000 24.4 35,000 4.9 38,200 19.7 28,500 4.2
038 Part 8 1150 26,500 19.0 31,300 6.4 29,900 32.1 24,900 5.1 29,500 28.0 22,900 4.8
049 Full 12 1600 49,100 17.2 59,000 5.5 54,100 24.5 47,200 4.6 50,800 19.3 38,200 4.0
049 Part 11 1400 36,300 19.1 41,700 6.1 41,600 33.0 33,600 4.7 39,800 27.4 31,000 4.4
064 Full 16 1800 62,300 16.4 73,900 5.2 69,000 23.9 60,400 4.6 65,500 19.3 47,300 3.8
064 Part 14 1500 45,800 18.1 53,200 5.9 53,000 30.7 43,500 4.8 50,500 26.5 38,200 4.3
072 Full 18 2000 70,100 15.6 88,000 4.8 79,000 22.0 71,000 4.3 73,800 18.2 55,400 3.7
072 Part 16 1500 54,200 17.0 66,000 5.1 61,500 27.6 52,700 4.3 59,400 24.9 47,400 3.9
018 Single 5 600 17,400 15.7 23,000 5.3 20,600 26.0 18,700 4.6 18,500 18.3 14,500 3.8
022 Single 8 800 18,100 15.6 23,700 6.0 21,900 27.5 19,500 5.0 19,200 18.7 15,000 4.0
030 Single 8 1000 27,000 18.9 32,900 5.6 31,200 29.5 26,000 4.8 28,100 22.0 20,500 3.9
036 Single 9 1200 32,300 18.8 36,500 5.7 36,800 28.8 29,200 4.9 33,700 22.0 24,400 4.2
042 Single 11 1300 39,000 18.6 45,600 5.8 43,900 28.1 36,100 4.9 40,700 21.7 28,900 4.0
048 Single 12 1500 44,100 16.3 55,600 5.4 50,300 25.9 44,700 4.7 45,900 18.8 36,400 4.0
060 Single 15 1800 61,100 16.4 74,100 5.5 66,900 24.3 59,200 4.7 62,200 18.4 47,900 4.0
070 Single 18 2000 66,200 15.3 85,000 5.0 75,000 22.9 68,000 4.4 69,100 17.6 54,000 3.7
NOTE: 018 not available with 5-Speed ECM motor 7/15/2015
AHRI/ISO 13256-1 Performance Ratings
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 3 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
AHRI/ISO 13256-1 Performance Ratings cont.
Cooling capacities based upon 80.6°F DB, 66.2°F WB entering air temperature
Heating capacities based upon 68°F DB, 59°F WB entering air temperature
A
ll ratings based upon 208V operation
PSC Motors
AHRI/ASHRAE/ISO 13256-1
English (IP) Units
Model Modulation
Capacity
Flow Rate
Water Loop Heat Pump Ground Water Heat Pump Ground Loop Heat Pump
Cooling
EWT 86°F
Heating
EWT 68°F
Cooling
EWT 59°F
Heating
EWT 50°F
Cooling Brine
Full Load 77°F
Part Load 68°F
Heating Brine
Full Load 32°F
Part Load 41°F
gpm cfm Capacity
Btuh
EER
Btuh/W
Capacity
Btuh COP Capacity Btuh
EER
Btuh/W
Capacity
Btuh COP Capacity Btuh
EER
Btuh/W
Capacity
Btuh COP
012 Single 4 400 11280 14 14800 5 13200 23.1 12000 4.2 12000 16.5 9500 3.5
018 Single 5 600 17400 14.8 23000 5.1 20600 24.7 18700 4.3 18500 17.3 14500 3.5
022 Single 8 850 17200 13.6 23500 5.9 20100 25.5 19400 4.8 17700 16.2 15000 3.8
030 Single 8 900 26800 17.9 32900 5.3 30800 27.1 26000 4.7 27900 21.1 20300 3.7
036 Single 9 1200 31500 14.8 40200 5.3 35100 24.4 29200 4.5 32900 19.2 24400 3.8
042 Single 11 1300 38300 15.4 45600 5.2 42300 23.3 36000 4.3 40300 18.5 28900 3.5
048 Single 12 1500 43200 13.3 55600 4.9 48900 22.3 44700 4.2 45500 16 36400 3.7
060 Single 15 1800 61000 15.2 74100 5.2 66600 22.8 57300 4.4 62300 17.4 46100 3.7
070 Single 18 2000 66200 14.4 85000 4.6 73500 20.8 67100 4 69100 16.6 53500 3.4
7/15/2015
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 4 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Energy Star Rating Criteria
In order for water-source heat pumps to be Energy Star rated they must meet or
exceed the minimum efficiency requirements listed below. Tier 3 represents the
current minimum efficiency water source heat pumps must have in order to be
Energy Start rated.
Tier 3: 1/1/2012 – No Effective End Date Published
Water-to-Air EER COP
Ground Loop 17.1 3.6
Ground Water 21.1 4.1
Water-to-Water
Ground Loop 16.1 3.1
Ground Water 20.1 3.5
Energy Star Compliance Table
Model Tier 3
Ground Water Ground Loop
012 PP
018 E, P E, P
022 E, X, P E, X, P
026 E, X E, X
030 E, X, P E, X, P
036 E, X, P E, X, P
038 E, X E, X
042 E, X, P E, X, P
048 E, X, P E, X, P
049 E, X E, X
060 E, X, P E, X, P
064 E, X E, X
070 E, X E, X
072 E, X E, X
1/29/12
E - Unit with Variable Speed ECM Blower
X - Unit with 5-Speed ECM Blower
P - Unit with PSC Blower
AHRI/ISO 13256-1 Performance Ratings cont.
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 5 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.

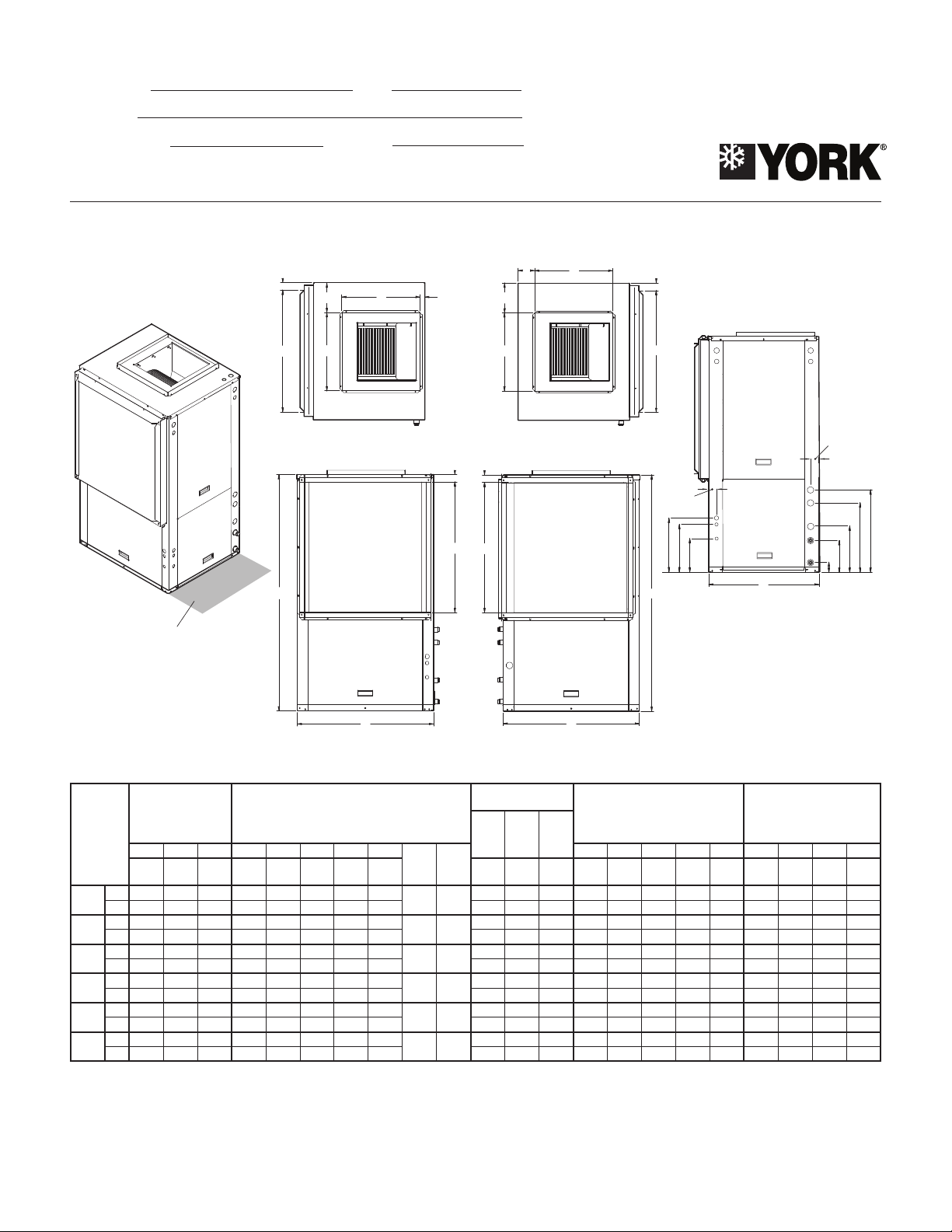

Vertical Dimensional Data
Top Air Discharge
Vertical
Top Flow
Model
Overall Cabinet Water Connections
Electrical
Connections Discharge Connection
duct flange installed (±0.10 in)
Return Connection
using std deluxe filter rack
(±0.10 in)
I
3/4 in.
cond
J
1/2 in.
cond
K
1/2 in.
cond
ABCDEFGH
Loop
Water
FPT
HWG
Sweat
(I.D.)
LMNOPQRS T
Width Depth Height
Loop
In
Loop
Out
HWG
In
HWG
Out
Cond-
ensate
Power
Supply
Ext
Pump
Low
Voltage
Supply
Width
Supply
Depth
Return
Depth
Return
Height
012 in. 22.2 22.5 34.5 2.3 5.3 11.9 14.9 8.6
1 in.
Swivel
1/2 in.
Female
6.9 9.4 11.7 6.1 3.7 10.0 10.0 0.7 2.4 18.1 14.2 1.7
cm. 56.4 57.2 87.6 5.9 13.5 30.2 37.8 21.8 17.5 23.9 29.7 15.5 9.4 25.4 25.4 1.8 6.1 46.0 36.1 4.3
018 in. 22.5 26.5 39.4 2.3 5.3 13.4 16.4 9.6
1 in.
Swivel
1/2 in.
Female
6.9 9.4 11.7 6.3 0.7 14.0 14.0 2.7 2.3 22.0 18.0 2.0
cm. 57.2 67.3 100.1 5.8 13.5 34.0 41.7 24.4 17.5 23.9 29.7 16.0 1.8 35.6 35.6 6.9 5.8 55.9 45.7 5.1
022-
030
in. 22.5 26.5 48.5 2.0 7.0 13.5 16.5 10.2
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3 6.1 0.8 14.0 14.0 4.4 1.7 22.2 26.0 1.7
cm. 57.2 67.3 123.2 5.1 17.8 34.3 41.9 25.9 24.1 30.7 36.3 15.5 2.0 35.6 35.6 11.2 4.3 56.4 66.0 4.3
036-
038
in. 25.6 31.6 50.4 2.3 7.3 15.9 18.9 10.6
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3 6.9 1.1 18.0 18.0 3.8 1.7 28.1 26.0 1.7
cm. 65.0 80.3 128.0 5.8 18.5 40.4 48.0 26.9 24.1 30.7 36.3 17.5 2.8 45.7 45.7 9.7 4.3 71.4 66.0 4.3
042-
049
in. 25.6 31.6 54.4 2.3 7.3 15.9 18.9 10.6
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3 6.9 1.1 18.0 18.0 3.8 1.7 28.1 30.0 1.7
cm. 65.0 80.3 138.2 5.8 18.5 40.4 48.0 26.9 24.1 30.7 36.3 17.5 2.8 45.7 45.7 9.7 4.3 71.4 76.2 4.3
060-
072
in. 25.6 31.6 58.4 2.3 7.3 15.9 18.9 10.6
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3 6.9 1.1 18.0 18.0 3.8 1.7 28.1 34.0 1.7
cm. 65.0 80.3 148.3 5.8 18.5 40.4 48.0 26.9 24.1 30.7 36.3 17.5 2.8 45.7 45.7 9.7 4.3 71.4 86.4 4.3
Condensate is 3/4 in. PVC female glue socket and is switchable from side to front
Unit shipped with deluxe 2 in. (field adjustable to 1 in.) duct collar/filter rack extending from unit 3.25 in. and is suitable for duct connection.
Discharge flange is field installed and extends 1 in. [25.4 mm] from cabinet
Decorative molding and/or water connections extend 1.2 in. [30.5 mm] beyond front of cabinet.
Top auxiliary electric heat power knockouts are 1.125" and 1.375".
7/11/12
LEFT RETURN RIGHT RETURN
FRONT
TOP
2ft [61cm]
Primary Service Access
TOP
ADEHFKJ I G
1.9in
[4.8cm]
1.9in
[4.8cm]
M
R
Q
N
O
L
R
N
O
L
PQ
RIGHT SIDE
B
C
B
LEFT SIDE
S
T
S
T
C
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 6 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.

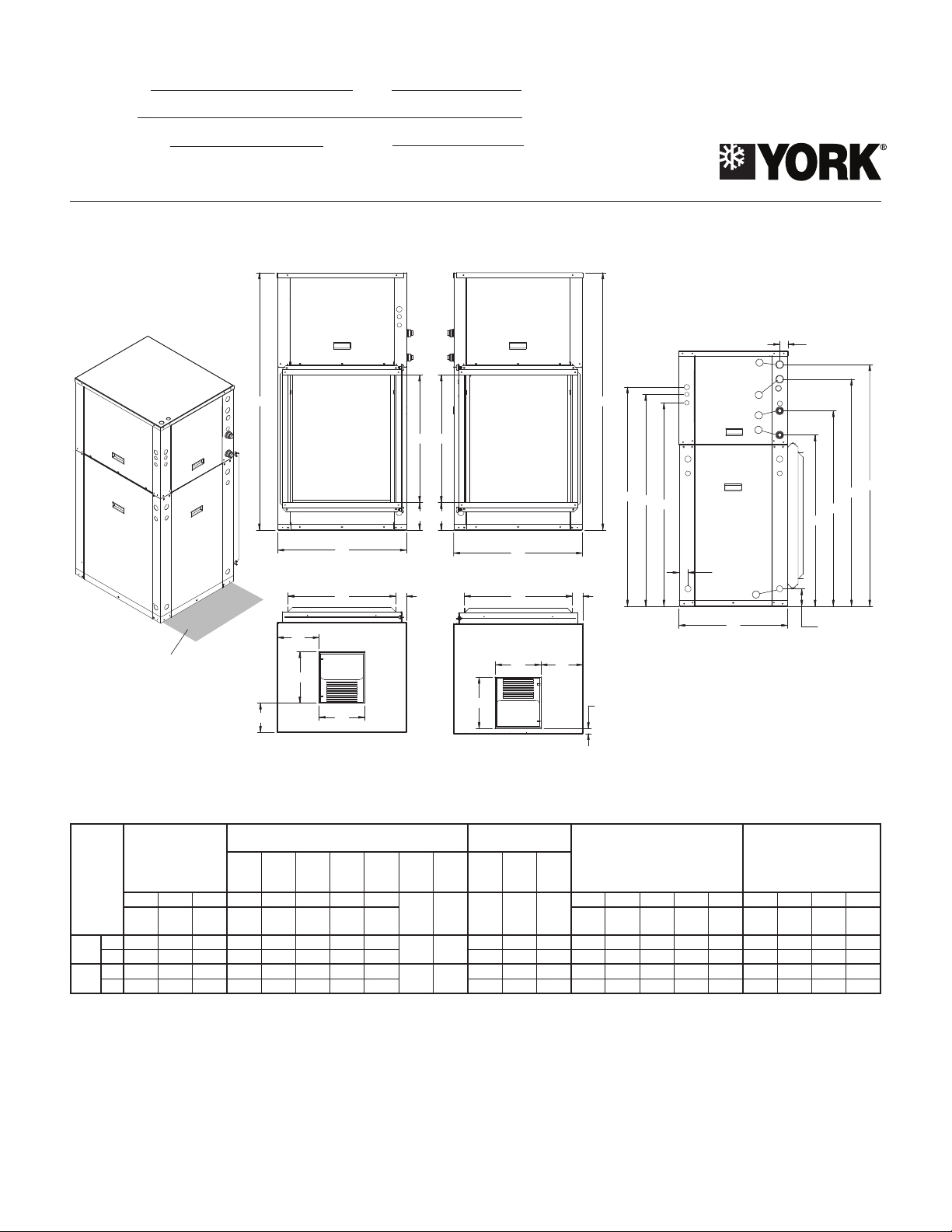

Vertical Dimensional Data cont.
Bottom Air Discharge
Bottom
Flow
Models
Overall Cabinet
Water Connections Electrical
Knockouts Discharge Connection
duct flange installed (±0.10 in)
Return Connection
using std deluxe filter rack
(±0.10 in)
12345
I
3/4 in.
cond
J
1/2 in.
cond
K
1/2 in.
cond
ABCDEFGH
Loop
Water
FPT
HWG
Sweat
(I.D.)
Power
Supply
Ext
Pump
Low
Voltage
LMNOPQRS T
Width Depth Height In Out HWG
In
HWG
Out
Con-
densate
Supply
Width
Supply
Depth
Return
Depth
Return
Height
022-
030
in. 22.5 26.5 52.5 35.3 40.2 46.7 49.7 3.6
1 in.
Swivel
1/2 in.
Female
41.9 43.6 45.1 8.6 6.0 9.3 10.5 1.0 2.2 22.2 26.0 5.6
cm. 57.2 67.3 133.4 89.7 102.1 118.6 126.2 9.1 106.4 110.7 114.6 21.8 15.2 23.6 26.7 2.5 5.6 56.4 66.0 14.2
036-
072
in. 25.5 31.5 62.5 43.4 48.4 57.0 60.0 3.6
1 in.
Swivel
1/2 in.
Female
48.9 50.8 52.2 9.1 4.8 13.4 13.6 1.5 1.8 28.1 34.0 5.6
cm. 64.8 80.0 158.8 110.2 122.9 144.8 152.4 9.1 124.2 129.0 132.6 23.1 12.2 34.0 34.5 3.8 4.6 71.4 86.4 14.2
Condensate is 3/4 in. PVC female glue socket and is switchable from side to front
Vertical bottom flow unit shipped with deluxe 2 in. (field adjustable to 1 in.) duct collar/filter rack extending from unit 3.25 in. and is suitable
for duct connection.
Decorative molding and/or water connections extend 1.2 in. (30.5mm) beyond front of cabinet.
Top auxiliary electric heat power knockouts are 1.125" and 1.375".
7/11/12
2ft [61cm]
Primary Service Access
LEFT SIDE RIGHT SIDE
B
C
S
T
B
C
S
T
LEFT RETURN RIGHT RETURN
RQ
LN
OP
A
FRONT
D
E
FG
H
I
J
K
1.90
(4.7 cm)
1.70
(4.3 cm)
1
2
3
4
5
RIGHT BOTTOM DISCHARGE
FLOOR FOOT PRINT
R
O
N
L
M
LEFT BOTTOM DISCHARGE
FLOOR FOOT PRINT
Q
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 7 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.

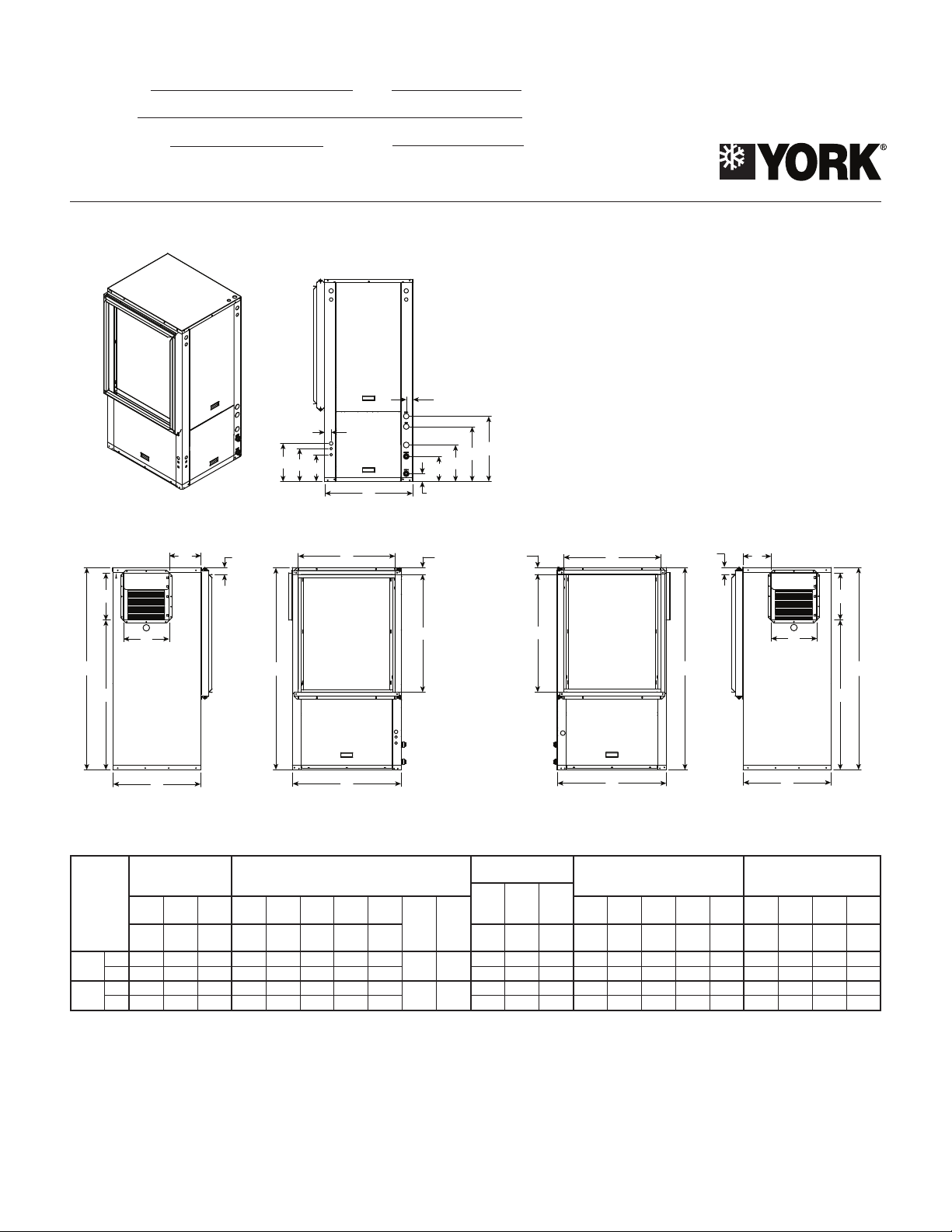

Vertical Dimensional Data cont.
Rear Air Discharge
Vertical
Rear
Discharge
Models
Overall Cabinet Water Connections
Electrical
Connections Discharge Connection
duct flange installed (±0.10 in)
Return Connection
using std deluxe filter rack
(±0.10 in)
I
3/4 in.
cond
J
1/2 in.
cond
K
1/2 in.
cond
ABCDEFGH
Loop
Water
FPT
HWG
Sweat
(I.D.)
LMNOPQRS T
Width Depth Height
Loop
In
Loop
Out
HWG
In
HWG
Out
Cond-
ensate
Power
Supply
Ext
Pump
Low
Voltage
Supply
Width
Supply
Depth
Return
Depth
Return
Height
042-
049
in. 25.6 31.6 54.4 2.3 7.3 15.9 18.9 10.6
1”
Swivel
1/2”
female
9.5 12.1 14.3 13.3 13.6 39.4 9.1 8.1 1.7 28.1 30.0 1.7
cm. 65.0 80.3 138.2 5.8 18.5 40.4 48.0 26.9 24.1 30.7 36.3 33.8 34.5 100.1 23.1 20.6 4.3 71.4 76.2 4.3
060-
072
in. 25.6 31.6 58.4 2.3 7.3 15.9 18.9 10.6
1”
Swivel
1/2”
female
9.5 12.1 14.3 13.3 13.6 43.4 9.1 8.1 1.7 28.1 34.0 1.7
cm. 65.0 80.3 148.3 5.8 18.5 40.4 48.0 26.9 24.1 30.7 36.3 33.8 34.5 110.2 23.1 20.6 4.3 71.4 86.4 4.3
Condensate is 3/4 in. PVC female glue socket and is switchable from side to front
Unit shipped with deluxe 2 in. (field adjustable to 1 in.) duct collar/filter rack extending from unit 3.25 in. and is suitable for duct connection.
Discharge flange is field installed and extends 1 in. [25.4mm] from cabinet
Decorative molding and/or water connections extend 1.2 in. [30.5mm] beyond front of cabinet.
Top auxiliary electric heat power knockouts are 1.125" and 1.375".
7/11/12
REAR VIEW
LEFT RETURN
SIDE VIEW
RIGHT RETURN
SIDE VIEW
LEFT RETURN
REAR VIEW
RIGHT RETURN
FRONT
CCCC
AA
A
BB
D
EHFG
I
J
K
LL
M
N
M
N
P
OQ
QRR
SS
TT
1.90
1.90
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 8 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Units Not Shown Above L O
Right Return End Discharge in 2.8 4.6
cm 7.1 11.8
Right Return Side Discharge in 4.9 6.9
cm 12.4 17.5
Left Return End Discharge in 4.9 7.6
cm 12.4 19.4
Left Return Side Discharge in 2.8 6.9
cm 7.1 17.5
Horizontal
Model
Overall Cabinet Water Connections
Electrical
Connections Discharge Connection
duct flange installed (±0.10
in)
Return Connection
using std deluxe filter rack
(±0.10 in)
I
3/4 in .
cond
J
1/2 in.
cond
K
1/2 in.
cond
ABCDEFGH
Loop
Water
FPT
HWG
Sweat
(I.D.)
LMNOPQRS
Width Depth Height In Out HWG
In
HWG
Out
Cond-
ensate
Power
Supply
Ext
Pump
Low
Voltage
Supply
Height
Supply
Depth
Return
Depth
Return
Height
012 in. 22.5 44.0 17.3 2.3 5.3 11.9 14.9 8.0
1 in.
Swivel
1/2 in.
Female
6.9 9.5 11.7 4.1 7.3 9.7 5.8 1.7 17.8 14.6 1.4
cm. 57.2 111.8 43.9 5.8 13.5 30.2 37.8 20.3 17.5 24.1 29.7 10.4 18.5 24.6 14.7 4.3 45.2 37.1 3.6
018 in. 22.5 53.0 19.3 2.3 5.3 13.8 16.8 8.0
1 in.
Swivel
1/2 in.
Female
6.9 9.5 11.7 1.8 10.5 9.5 8.2 2.2 21.8 16.5 1.5
cm. 57.2 134.6 49.0 5.8 13.5 35.1 42.7 20.3 17.5 24.1 29.7 4.6 26.7 24.1 20.8 5.6 55.4 41.9 3.8
022-
030
in. 22.5 63.0 19.3 2.0 7.0 13.5 16.5 0.8
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3 2.3 10.5 9.4 5.8 2.8 30.5 16.9 1.3
cm. 57.2 160.0 49.0 5.1 17.8 34.3 41.9 2.0 24.1 30.7 36.3 5.8 26.7 23.9 14.7 7.1 77.5 42.9 3.3
036-
038
in. 25.6 72.0 21.3 2.3 7.3 15.9 18.9 0.8
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3
SEE
CHART
13.6 13.2
SEE
CHART
2.8 35.5 18.9 1.3
cm. 65.0 182.9 54.1 5.8 18.5 40.4 48.0 2.0 24.1 30.7 36.3 34.5 33.5 7.1 90.2 48.0 3.3
042-
049
in. 25.6 77.0 21.3 2.3 7.3 15.9 18.9 0.8
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3
SEE
CHART
13.6 13.2
SEE
CHART
2.8 40.4 18.9 1.3
cm. 65.0 195.6 54.1 5.8 18.5 40.4 48.0 2.0 24.1 30.7 36.3 34.5 33.5 7.1 102.6 48.0 3.3
060-
072
in. 25.6 82.0 21.3 2.3 7.3 15.9 18.9 0.8
1 in.
Swivel
1/2 in.
Female
9.5 12.1 14.3
SEE
CHART
13.6 13.2
SEE
CHART
2.8 45.4 18.9 1.3
cm. 65.0 208.3 54.1 5.8 18.5 40.4 48.0 2.0 24.1 30.7 36.3 34.5 33.5 7.1 115.3 48.0 3.3
Condensate is 3/4 in. PVC female glue socket and is switchable from side to front
Unit shipped with deluxe 2 in. (field adjustable to 1 in.) duct collar/filter rack extending from unit 3.25 in. and is suitable for duct connection.
Discharge flange is field installed and extends 1 in. [25.4mm] from cabinet
Decorative molding and/or water connections extend 1.2 in. [30.5mm] beyond front of cabinet.
7/11/12
2ft [61cm]
Primary Service Access
B
C
2.1in [5.4cm]
H
L
ON
M
S
R
QP
MOUNT (2) HANGER BRACKETS
AS SHOWN TO ALLOW ACCESS
TO FILTER
AS SHOWN LR UNIT (RR UNIT ON OPPOSITE SIDE—SAME DIMENSIONS)
SIDE DISHCARGE VIEW END VIEW
TOP VIEW
A
S
FRONT VIEW
DE F G
KJ I
1.9in
[4.8cm]
O
L
Horizontal Dimensional Data
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 9 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Physical Data
Single Speed
Model SINGLE SPEED
012 018 022 030 036 042 048 060 070
Compressor (1 each) Rotary Scroll
Factory Charge R410a, oz [kg]
(Aluminum tube and fin air coil) Vertical 36 [1.02] 42 [1.19] 56 [1.58] 64 [1.81] 82 [2.32] 84 [2.38] 92 [2.60] 112 [3.17] 134 [3.79]
Factory Charge R410a, oz [kg]
(Aluminum tube and fin air coil) Horizontal 36 [1.02] 48 [1.36] 54 [1.53] 64 [1.81] 76 [2.15] 84 [2.38] 92 [2.60] 88 [2.49] 110 [3.11]
Factory Charge R410a, oz [kg] (Copper
tube/Aluminum fin air coil) Vertical 42 [1.19] 40 [1.13] 62 [1.76] 80 [2.26] 84 [2.38] 92 [2.60] 100 [2.83] 120 [3.40] 150 [4.25]
Factory Charge R410a, oz [kg]
(Copper tube/Aluminum fin air coil) Horizontal 42 [1.19] 40 [1.13] 60 [1.70] 80 [2.26] 84 [2.38] 92 [2.60] 100 [2.83] 120 [3.40] 122 [3.46]
Blower Motor & Blower
Blower Motor Type/Speeds
VS ECM n/a Variable Speed ECM
5-Spd ECM n/a n/a 5 Speed ECM
PSC PSC -
4 Speeds PSC - 3 Speeds
Blower Motor- hp [W]
VS ECM n/a 1/2 [373] 1/2 [373] 1/2 [373] 1/2 [373] 1/2 [373] 1/2 [373] 1 [746] 1 [746]
5-Spd ECM n/a n/a 1/2 [373] 1/2 [373] 1/2 [373] 1 [746] 1 [746] 1 [746] 1 [746]
PSC 1/10 [75] 1/6 [134] 1/5 [149] 1/3 [249] 1/2 [373] 1/2 [373] 1/2 [373] 1 [746] 1 [746]
High Static Blower Motor - hp [W] VS ECM n/a n/a n/a n/a 1 [746] 1 [746] 1 [746] n/a n/a
PSC n/a n/a 1/ [249] 1/3 [249] 1/2 [373] 3/4 [560] 3/4 [560] n/a n/a
Blower Wheel Size
(Dia x W), in. [mm]
VS ECM &
5-Spd ECM n/a 9 x 7
[229 x 178]
9 x 7
[229 x 178]
9 x 7
[229 x 178]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
PSC 6 x 8
[152 x 203]
9 x 7
[229 x 178]
9 x 7
[229 x 178]
9 x 7
[229 x 178]
1 0 x 1 0
[254 x 254]
1 0 x 1 0
[254 x 254]
1 0 x 1 0
[254 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
High Static Blower Wheel Size
(Dia x W), in. [mm]
VS ECM n/a n/a n/a n/a 1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254] n/a n/a
PSC n/a n/a 9 x 7
[229 x 178]
9 x 7
[229 x 178]
1 0 x 1 0
[254 x 254]
1 0 x 1 0
[254 x 254]
1 0 x 1 0
[254 x 254] n/a n/a
Coax and Water Piping
Water Connections Size - Swivel - in [mm] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4]
HWG Connection Size - Female Sweat I.D.
- in [mm] n/a 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7]
Coax & Piping Water Volume - gal [l] 0.35 [1.3] 0.40 [1.5] 0.7 [2.6] 1.0 [3.8] 1.3 [4.9] 1.3 [4.9] 1.6 [6.1] 1.6 [6.1] 2.3 [8.7]
Vertical
Air Coil Dimensions (H x W), in. [mm] 16 x 16
[406 x 406]
19 x 20
[483 x 508]
24 x 20
[610 x 542]
28 x 20
[711 x 542]
28 x 25
[711 x 635]
3 2 x 2 5
[813 x 635]
3 2 x 2 5
[813 x 635]
3 6 x 2 5
[914 x 635]
3 6 x 2 5
[914 x 635]
Air Coil Total Face Area, ft2 [m2] 1.8 [0.167] 2.6 [0.242] 3.3 [0.310] 3.9 [0.362] 4.9 [0.451] 5.6 [0.570] 5.6 [0.570] 6.3 [0.641] 6.3 [0.641]
Air Coil Tube Size, in [mm] 3/8 [9.5] 5/16 [7.9] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5]
Air Coil Number of rows 3 3 3 3 3 3 3 4 4
Filter Standard - 2” [51mm]
Pleated MERV11 Throwaway, in [mm]
16 x 20
[406 x 508]
20 x 24
[508 x 610]
28 x 24
[712 x 610]
28 x 24
[712 x 610]
28 x 30
[712 x 762]
32 x 30
[813 x 762]
32 x 30
[813 x 762]
36 x 30
[914 x 762]
36 x 30
[914 x 762]
Weight - Operating, lb [kg] 165 [75] 200 [91] 293 [133] 308 [140] 353 [160] 368 [167] 408 [185] 443 [201] 468 [212]
Weight - Packaged, lb [kg] 185 [84] 220 [100] 313 [142] 328 [149] 373 [169] 388 [176] 428 [194] 463 [210] 488 [221]
Horizontal
Air Coil Dimensions (H x W), in. [mm] 16 x 16
[406 x 406]
18 x 21
[457 x 533]
18 x 27
[457 x 686]
18 x 30
[457 x 762]
20 x 35
[508 x 889]
20 x 40
[508 x 1016]
20 x 40
[508 x 1016]
20 x 45
[508 x 1143]
20 x 45
[508 x 1143]
Air Coil Total Face Area, ft2 [m2] 1.8 [0.167] 2.6 [0.242] 3.4 [0.316] 3.9 [0.362] 4.9 [0.451] 5.6 [0.570] 5.6 [0.570] 6.3 [0.641] 6.3 [0.641]
Air Coil Tube Size, in [mm] 3/8 [9.5] 5/16 [7.9] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5]
Air Coil Number of rows 3 3 3 3 3 3 3 3 3
Filter Standard - 2” [51mm] Pleated MERV11
Throwaway, in [mm]
1 - 16 x 20
[406 x 508]
1 - 18 x 24
[457 x 610]
1 - 18 x 32
[457 x 813]
1 - 18 x 32
[457 x 813]
1 - 20 x 37
[686 x 940]
1 - 20 x 20
[508 x 508]
1 - 20 x 22
[508 x 559]
1 - 20 x 20
[508 x 508]
1 - 20 x 22
[508 x 559]
1 - 20 x 25
[508 x 635]
1 - 20 x 22
[508 x 559]
1 - 20 x 25
[508 x 635]
1 - 20 x 22
[508 x 559]
Weight - Operating, lb [kg] 165 [75] 200 [91] 300 [136] 315 [143] 368 [167] 403 [183] 418 [190] 453 [205] 478 [217]
Weight - Packaged, lb [kg] 185 [84] 220 [100] 320 [145] 335 [152] 388 [176] 423 [192] 438 [199] 473 [215] 498 [226]
7/15/15
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 10 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Physical Data cont.
Dual Capacity
Model DUAL CAPACITY
ND026 ND038 ND049 ND064 ND072
Compressor (1 each) Copeland UltraTech, Dual Capacity Scroll
Factory Charge R410a, oz [kg] (Aluminum tube and fin air coil) Vertical 56 [1.58] 70 [1.98] 93 [2.63] 112 [3.17] 130 [3.68]
Factory Charge R410a, oz [kg] (Aluminum tube and fin air coil) Horizontal 58 [1.64] 76 [2.15] 93 [2.63] 112 [3.17] 136 [3.85]
Factory Charge R410a, oz [kg] (Copper tube / Aluminum fin air coil) Vertical 60 [1.70] 82 [2.32] 93 [2.63] 128 [3.63] 138 [3.91]
Factory Charge R410a, oz [kg] (Copper tube / Aluminum fin air coil) Horizontal 60 [1.70] 82 [2.32] 93 [2.63] 128 [3.63] 138 [3.91]
ECM Blower Motor & Blower
Blower Motor Type/Speeds VS ECM Variable Speed ECM
5-Spd ECM 5 Speed ECM
Blower Motor- hp [W] VS ECM 1/2 [373] 1/2 [373] 1/2 [373] 1 [746] 1 [746]
5-Spd ECM 1/2 [373] 1/2 [373] 1 [746] 1 [746] 1 [746]
High Static Blower Motor - hp [W] VS ECM n/a 1 [746] 1 [746] n/a n/a
Blower Wheel Size (Dia x W), in. [mm]
VS ECM 9 x 7
[229 x 178]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
5-Spd ECM 9 x 7
[229 x 178]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254]
High Static Blower Wheel Size - [Dia. x W], in. [mm] VS ECM n/a 1 1 x 1 0
[279 x 254]
1 1 x 1 0
[279 x 254] n/a n/a
Coax and Water Piping
Water Connections Size - Swivel - in [mm] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4] 1” [25.4]
HWG Connection Size - Female Sweat I.D. - in [mm] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7] 1/2” [12.7]
Coax & Piping Water Volume - gal [l] 0.7 [2.6] 1.3 [4.9] 1.6 [6.1] 1.6 [6.1] 2.3 [8.7]
Vertical
Air Coil Dimensions (H x W), in. [mm] 24 x 20
[610 x 542]
28 x 25
[711 x 635]
3 2 x 2 5
[813 x 635]
3 6 x 2 5
[914 x 635]
3 6 x 2 5
[914 x 635]
Air Coil Total Face Area, ft2 [m2] 3.3 [0.310] 4.9 [0.451] 5.6 [0.570] 6.3 [0.641] 6.3 [0.641]
Air Coil Tube Size, in [mm] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5]
Air Coil Number of rows 33 3 4 4
Filter Standard - 2” [51mm] Pleated MERV11 Throwaway, in [mm] 28 x 24
[712 x 610]
28 x 30
[712 x 762]
32 x 30 [813
x 762]
36 x 30
[914 x 762]
36 x 30
[914 x 762]
Weight - Operating, lb [kg] 293 [133] 358 [162] 408 [185] 453 [205] 468 [212]
Weight - Packaged, lb [kg] 313 [142] 378 [172] 428 [194] 473 [215] 488 [221]
Horizontal
Air Coil Dimensions (H x W), in. [mm] 18 x 27
[457 x 686]
20 x 35
[508 x 889]
20 x 40 [508
x 1016]
20 x 45
[508 x 1143]
20 x 45
[508 x 1143]
Air Coil Total Face Area, ft2 [m2] 3.4 [0.316] 4.9 [0.451] 5.6 [0.570] 6.3 [0.641] 6.3 [0.641]
Air Coil Tube Size, in [mm] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5] 3/8 [9.5]
Air Coil Number of rows 33 3 4 4
Filter Standard - 2” [51mm] Pleated MERV11 Throwaway, in [mm] 1 - 18 x 32
[457 x 813]
1 - 20 x 37
[686 x 940]
1 - 20 x 20
[508 x 508] 1
- 20 x 22 [508
x 559]
1 - 20 x 25 [508
x 635] 1 -
20 x 22 [508
x 559]
1 - 20 x 25 [508
x 635] 1 - 20
x 22 [508 x
559]
Weight - Operating, lb [kg] 300 [136] 368 [167] 418 [190] 463 [210] 480 [218]
Weight - Packaged, lb [kg] 320 [145] 388 [176] 438 [199] 483 [219] 500 [227]
7/15/2015
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 11 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Model Supply
Circuit
Heater Amps Min Circuit Amp Fuse (USA) Fuse (CAN) CKT BRK
208 V 240 V 208 V 240 V 208 V 240 V 208 V 240 V 208 V 240 V
EAS(H)4A Single 13.7 15.8 17.9 20.5 20 20 20 20 20 20
EAM(H)5A Single 17.3 20.0 26.7 30.0 30 30 30 30 30 30
EAM(H)8A Single 27.5 31.7 39.3 44.6 40 45 40 45 40 45
EAM(H)10A Single 34.7 40.0 48.3 55.0 50 60 50 60 50 60
EAL(H)10A Single 34.7 40.0 53.3 60.0 60 60 60 60 60 60
EAL(H)15A
Single 52.0 60.0 75.0 85.0 80 90 80 90 70 100
L1/L2 34.7 40.0 53.3 60.0 60 60 60 60 60 60
L3/L4 17.3 20.0 21.7 25.0 25 25 25 25 20 30
EAL(H)20A
Single 69.3 80.0 96.7 110.0 100 110 100 110 100 100
L1/L2 34.7 40.0 53.3 60.0 60 60 60 60 60 60
L3/L4 34.7 40.0 43.3 50.0 45 50 45 50 40 50
All heaters rated single phase 60 cycle and include unit blower load
All fuses type “D” time delay (or HACR circuit breaker in USA)
Supply wire size to be determined by local codes
6/11/15
Model kW Stages Btu/h Min cfm Model Size Compatibility
208V 230V 208V 230V 012 018 022 026 - 030 036 - 042 048 - 072
EAS(H)4A 2.9 3.8 1 9,700 12,900 250 •
EAM(H)5A 3.6 4.8 1 12,300 16,300 450 •••
EAM(H)8A 5.7 7.6 2 19,400 25,900 550 •••
EAM(H)10A 7.2 9.6 2 24,600 32,700 650 •
EAL(H)10A 7.2 9.6 2 24,600 32,700 1100 ••
EAL(H)15A 10.8 14.4 3 36,900 49,100 1250 ••
EAL(H)20A 14.4 19.2 4 49,200 65,500 1500 •
Order the “H” part number when installed on horizontal and vertical rear discharge units
Air flow level for auxiliary heat (Aux) must be above the minimum cfm in this table
6/11/15
Auxiliary Heat Ratings
Auxiliary Heat Electrical Data
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 12 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
* With optional 1 hp variable speed ECM motor
** With optional IntelliStart®
Rated voltage of 208/230/60/1
A
ll fuses Class RK-5
HACR circuit breaker in USA only
Single Speed Unit with Variable Speed ECM Motor
Model Rated Voltage Voltage
Min/Max
Compressor HWG
Pump FLA
Ext
Loop
FLA
Blower
Motor FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
MCC RLA LRA LRA**
018 208-230/60/1 187/253 10.4 6.7 33.5 N/A 0.4 5.4 4.0 16.5 18.1 20
022 208-230/60/1 187/253 14.0 9.0 48.0 17.0 0.4 5.4 4.0 18.8 21.0 30
030 208-230/60/1 187/253 20.0 12.8 58.3 21.0 0.4 5.4 4.0 22.6 25.8 35
036 208-230/60/1 187/253 22.0 14.1 73.0 26.0 0.4 5.4 4.0 23.9 27.4 40
036* 208-230/60/1 187/253 22.0 14.1 73.0 26.0 0.4 5.4 7.0 26.9 30.4 40
042 208-230/60/1 187/253 26.0 16.6 79.0 28.0 0.4 5.4 4.0 26.4 30.6 45
042* 208-230/60/1 187/253 26.0 16.6 79.0 28.0 0.4 5.4 7.0 29.4 33.6 50
048 208-230/60/1 187/253 31.0 19.8 109.0 38.0 0.4 5.4 4.0 29.6 34.6 50
048* 208-230/60/1 187/253 31.0 19.8 109.0 38.0 0.4 5.4 7.0 32.6 37.6 50
060 208-230/60/1 187/253 41.2 26.4 134.0 47.0 0.4 5.4 7.0 39.2 45.8 70
070 208-230/60/1 187/253 44.2 28.3 178.0 63.0 0.4 5.4 7.0 41.1 48.2 70
7/15/13
Single Speed Unit with 5-Speed ECM Motor
Model Rated
Voltage
Voltage
Min/Max
Compressor HWG
Pump
FLA
Ext
Loop
FLA
Blower
Motor
FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
MCC RLA LRA LRA**
022 208-230/60/1 187/253 14.0 9.0 48.0 17.0 0.4 5.4 4.1 18.9 21.1 30
030 208-230/60/1 187/253 20.0 12.8 58.3 21.0 0.4 5.4 4.1 22.7 25.9 35
036 208-230/60/1 187/253 22.0 14.1 73.0 26.0 0.4 5.4 4.1 24.0 27.5 40
042 208-230/60/1 187/253 26.0 16.6 79.0 28.0 0.4 5.4 7.6 30.0 34.2 50
048 208-230/60/1 187/253 31.0 19.8 109.0 38.0 0.4 5.4 7.6 33.2 38.2 50
060 208-230/60/1 187/253 41.2 26.4 134.0 47.0 0.4 5.4 7.6 39.8 46.4 70
070 208-230/60/1 187/253 44.2 28.3 178.0 63.0 0.4 5.4 7.6 41.7 48.8 70
7/15/13
** With optional IntelliStart®
Rated voltage of 208/230/60/1
A
ll fuses Class RK-5
HACR circuit breaker in USA only
Single Speed Unit with PSC Motor
Model Rated Voltage Voltage
Min/Max
Compressor HWG
Pump FLA
Ext
Loop
FLA
Blower
Motor FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
MCC RLA LRA LRA**
012 208-230/60/1 187/253 7.7 4.9 25.0 N/A - 5.4 0.6 10.9 12.2 15
018 208-230/60/1 187/253 10.4 6.7 33.5 N/A 0.4 5.4 1.1 13.6 15.2 20
022 208-230/60/1 187/253 14.0 9.0 48.0 17.0 0.4 5.4 1.2 16.0 18.2 25
022* 208-230/60/1 187/253 14.0 9.0 48.0 17.0 0.4 5.4 1.5 16.3 18.5 25
030 208-230/60/1 187/253 20.0 12.8 58.3 21.0 0.4 5.4 1.5 20.1 23.3 35
030* 208-230/60/1 187/253 20.0 12.8 58.3 21.0 0.4 5.4 2.8 21.4 24.6 35
036 208-230/60/1 187/253 22.0 14.1 73.0 26.0 0.4 5.4 2.8 22.7 26.2 40
036* 208-230/60/1 187/253 22.0 14.1 73.0 26.0 0.4 5.4 3.5 23.4 26.9 40
042 208-230/60/1 187/253 26.0 16.6 79.0 28.0 0.4 5.4 3.5 25.9 30.1 45
042* 208-230/60/1 187/253 26.0 16.6 79.0 28.0 0.4 5.4 4.6 27.0 31.2 45
048 208-230/60/1 187/253 31.0 19.8 109.0 38.0 0.4 5.4 3.5 29.1 34.1 50
048* 208-230/60/1 187/253 31.0 19.8 109.0 38.0 0.4 5.4 4.6 30.2 35.2 50
060 208-230/60/1 187/253 41.2 26.4 134.0 47.0 0.4 5.4 5.9 38.1 44.7 70
070 208-230/60/1 187/253 44.2 28.3 158.0 63.0 0.4 5.4 5.9 41.8 49.3 70
07/15/13
* With optional high static motor
** With optional IntelliStart®
Rated voltage of 208/230/60/1
A
ll fuses Class RK-5
HACR circuit breaker in USA only
Electrical Data
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 13 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Dual Capacity Unit with Variable Speed ECM Motor
Model Rated
Voltage
Voltage
Min/Max
Compressor HWG
Pump
FLA
Ext
Loop
FLA
Blower
Motor
FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
MCC RLA LRA LRA**
026 208-230/60/1 187/253 18.2 11.6 58.3 21.0 0.4 5.4 4.0 21.4 24.4 35
038 208-230/60/1 187/253 23.8 15.2 83.0 30.0 0.4 5.4 4.0 25.0 28.8 40
038* 208-230/60/1 187/253 23.8 15.2 83.0 30.0 0.4 5.4 7.0 28.0 31.8 50
049 208-230/60/1 187/253 33.0 21.1 104.0 37.0 0.4 5.4 4.0 30.9 36.2 50
049* 208-230/60/1 187/253 33.0 21.1 104.0 37.0 0.4 5.4 7.0 33.9 39.2 60
064 208-230/60/1 187/253 42.3 27.1 152.9 54.0 0.4 5.4 7.0 39.9 46.6 70
072 208-230/60/1 187/253 46.3 29.6 179.2 63.0 0.4 5.4 7.0 42.4 49.8 70
9/1/15
* With optional 1 hp variable speed ECM motor
** With optional IntelliStart®
Rated voltage of 208/230/60/1
A
ll fuses Class RK-5
HACR circuit breaker in USA only
Dual Capacity Unit with 5-Speed ECM Motor
Model Rated
Voltage
Voltage
Min/Max
Compressor HWG
Pump
FLA
Ext
Loop
FLA
Blower
Motor
FLA
Total
Unit
FLA
Min
Circ
Amp
Max
Fuse/
HACR
MCC RLA LRA LRA**
026 208-230/60/1 187/253 18.2 11.6 58.3 21.0 0.4 5.4 4.1 21.5 24.5 35
038 208-230/60/1 187/253 23.8 15.2 83.0 30.0 0.4 5.4 4.1 25.1 28.9 40
049 208-230/60/1 187/253 33.0 21.1 104.0 37.0 0.4 5.4 7.6 34.5 39.8 60
064 208-230/60/1 187/253 42.3 27.1 152.9 54.0 0.4 5.4 7.6 40.5 47.2 70
072 208-230/60/1 187/253 46.3 29.6 179.2 63.0 0.4 5.4 7.6 43.0 50.4 80
9/1/15
** With optional IntelliStart®
Rated voltage of 208/230/60/1
A
ll fuses Class RK-5
HACR circuit breaker in USA only
Electrical Data cont.
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 14 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Single Speed Unit with Variable Speed ECM Motor
Model Max
ESP
Airflow Speed Settings
123456789101112
018 0.50 300 400 500 600 700 800 875 950 1025 1125
GLH Aux
022 0.50 400 500 600 700 800 900 1000 1100 1200
GLH Aux
030 0.50 400 500 600 700 800 900 1000 1100 1200
GLH Aux
036 0.50 650 750 850 1000 1100 1200 1300 1400 1500 1550
GLH Aux
036
w/1hp* 0.75 800 1000 1100 1300 1500 1600 1800 1950 2100 2200
GLH Aux
042 0.50 650 800 900 1050 1150 1250 1350 1450 1550 1600
GLHAux
042
w/1hp* 0.75 800 900 1000 1200 1400 1600 1700 1850 2000 2200 2300 2400
GLH Aux
048 0.50 650 800 900 1050 1150 1250 1350 1450 1550 1600
GLHAux
048
w/1hp* 0.75 800 900 1000 1200 1400 1600 1700 1850 2000 2200 2300 2400
GLH Aux
060 0.75 800 950 1100 1300 1500 1750 1950 2100 2300 2325
GLH Aux
070 0.75 800 950 1100 1300 1500 1750 1950 2100 2300 2325
GLHAux
Factory settings are at recommended G-L-H-Aux speed settings
L-H settings MUST be located within boldface cfm range
“Aux” is factory setting for auxiliary heat and must be equal to or above the “H” setting as well as at least the minimum required for the
auxiliary heat package
“G” may be located anywhere within the airflow table
Cfm is controlled within ±5% up to the maximum ESP
Max ESP includes allowance for wet coil and standard filter
6/8/12
Dual Capacity Unit with Variable Speed ECM Motor
Model Max ESP Airflow Switch Settings
123456789101112
026 0.50 400 500 600 700 800 900 1000 1100 1200
GLH Aux
038 0.50 650 750 850 1000 1100 1200 1300 1400 1500 1550
GLH Aux
038
w/1hp* 0.75 800 1000 1100 1300 1500 1600 1800 1875 1925 2000
GLH Aux
049 0.50 650 800 900 1050 1150 1250 1350 1450 1550 1575
GLHAux
049
w/1hp* 0.75 800 900 1000 1200 1400 1600 1700 1850 2000 2200 2300 2400
GLH Aux
064 0.75 800 950 1100 1300 1500 1750 1950 2100 2300 2325
GLH Aux
072 0.75 800 950 1100 1300 1500 1750 1950 2100 2300 2325
GLHAux
Factory settings are at recommended G-L-H-Aux speed settings
L-H settings MUST be located within boldface cfm range
“Aux” is factory setting for auxiliary heat and must be equal to or above the “H” setting as well as at least the minimum required for the
auxiliary heat package
“G” may be located anywhere within the airflow table
Cfm is controlled within ±5% up to the maximum ESP
Max ESP includes allowance for wet coil and standard filter
6/8/12
Blower Performance Data
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 15 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Single Speed Unit with 5-Speed ECM Motor
Model Motor
Speed
Motor
Tap
T’stat
Cnct.
Blower
Size
Motor
HP
Airflow (cfm) at External Static Pressure (in. wg)
0 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00
022
High 5 W
9 x 7 1/2
980 960 940 930 920 905 890 875 860 840 820 800 745 - - -
Med High 4 Y1 890 878 865 845 825 813 800 785 770 753 735 710 665 - - -
Med 3 830 815 800 788 775 755 735 723 710 690 670 640 600 - - -
Med Low 2 G 780 760 740 703 665 653 640 620 600 585 570 - - - - -
Low 1 625 593 560 535 510 495 480 455 430 410 390 - - - - -
030
High 5
9 x 7 1/2
1407 1381 1354 1327 1300 1267 1233 1201 1168 1131 1094 1009 - - - -
Med High 4 W 1146 1134 1122 1111 1099 1085 1071 1062 1052 1042 1031 966 - - - -
Med 3 Y1 1023 1012 1001 985 969 959 949 937 925 913 901 - - - - -
Med Low 2 978 962 946 934 922 907 891 882 872 858 843 - - - - -
Low 1 G 795 777 759 748 737 718 698 686 673 650 626 - - - - -
036
High 5 W
11 x 10 1/2
1530 1503 1476 1453 1429 1413 1397 1376 1355 1342 1329 1276 1231 1173 - -
Med High 4 Y1 1413 1388 1363 1342 1321 1303 1285 1263 1240 1226 1212 1173 1016 946 - -
Med 3 1355 1325 1294 1276 1258 1235 1212 1188 1164 1144 1123 982 909 883 - -
Med Low 2 1336 1299 1261 1242 1222 1202 1181 1157 1132 1111 1090 937 874 830 - -
Low 1 G 1243 1182 1121 1061 1000 964 928 856 784 744 703 647 592 - -
042
High 5
11 x 10 1
1934 1910 1886 1871 1855 1827 1799 1780 1760 1747 1734 1700 1659 1617 - -
Med High 4 W 1799 1783 1767 1744 1720 1693 1666 1649 1631 1617 1603 1560 1530 1492 - -
Med 3 1694 1680 1666 1642 1617 1592 1567 1552 1537 1519 1500 1453 1421 1372 - -
Med Low 2 Y1 1575 1560 1540 1520 1502 1487 1471 1448 1424 1409 1393 1351 1308 1266 - -
Low 1 G 1454 1406 1358 1333 1308 1285 1261 1239 1217 1198 1179 1072 1002 988 - -
048
High 5
11 x 10 1
1934 1910 1886 1871 1855 1827 1799 1780 1760 1747 1734 1700 1659 1617 - -
Med High 4 W 1799 1783 1767 1744 1720 1693 1666 1649 1631 1617 1603 1560 1530 1492 - -
Med 3 Y1 1694 1680 1666 1642 1617 1592 1567 1552 1537 1519 1500 1453 1421 1372 - -
Med Low 2 1575 1560 1540 1520 1502 1487 1471 1448 1424 1409 1393 1351 1308 1266 - -
Low 1 G 1454 1406 1358 1333 1308 1285 1261 1239 1217 1198 1179 1072 1002 988 - -
060
High 5 W
11 x 10 1
2245 2230 2214 2194 2173 2155 2136 2120 2103 2087 2070 2032 1998 1957 1910 1825
Med High 4 2092 2073 2054 2035 2015 1995 1975 1958 1940 1922 1904 1880 1843 1806 1767 1728
Med 3 1951 1931 1910 1889 1868 1850 1831 1812 1793 1774 1755 1722 1688 1654 1612 1562
Med Low 2 Y1 1812 1796 1780 1761 1741 1718 1695 1682 1668 1651 1633 1591 1555 1518 1480 1433
Low 1 G 1682 1661 1640 1616 1591 1573 1555 1533 1510 1495 1480 1441 1400 1351 1316 1263
070
High 5 W
11 x 10 1
2472 2454 2435 2414 2393 2371 2349 2328 2306 2289 2271 2230 2189 2121 2033 1936
Med High 4 Y1 2271 2248 2225 2205 2184 2166 2147 2129 2110 2094 2078 2039 2011 1977 1930 1846
Med 3 2133 2115 2096 2072 2047 2030 2013 1996 1979 1965 1950 1909 1873 1837 1793 1748
Med Low 2 2008 1985 1962 1939 1915 1898 1880 1862 1843 1828 1812 1774 1742 1703 1669 1635
Low 1 G 1806 1784 1761 1742 1722 1696 1669 1656 1642 1625 1607 1564 1527 1490 1443 1404
Factory speed settings are in Bold
Air flow values are with dry coil and standard filter
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, 400 fpm by 0.12in. wg., and 500 fpm by 0.16 in. wg.
Highest setting is for auxiliary heat (W) and lowest setting is for constant blower (G). The “Y1” and “Y2” settings must be between the
“G” and “W” settings.
The gray wire is not factory wired to the motor and is tied to the wire harness. This wire can be field connected and can be used with 3HT/2CL
thermostats or IntelliZone2 to deliver the required air flow for the Y2 signal.
6/14/12
Blower Performance Data cont.
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 16 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Dual Capacity Unit with 5-Speed ECM
Model Motor
Speed
Motor
Tap
T’stat
Cnct.
Blower
Size
Motor
HP
Airflow (cfm) at External Static Pressure (in. wg)
0 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00
026
High 5 W
9 x 7 1/2
1120 1109 1097 1082 1066 1055 1044 1028 1011 1001 991 932 839 - - -
Med High 4 Y2 1020 1006 991 980 968 950 932 922 911 894 876 849 812 - - -
Med 3 917 906 895 884 872 854 836 824 812 792 772 754 719 - - -
Med Low 2 Y1 836 824 812 794 776 765 754 735 715 703 691 653 631 - - -
Low 1 G 735 721 707 687 666 653 640 622 603 589 574 533 - - - -
038
High 5 W
11 x 10 1/2
1530 1503 1476 1453 1429 1413 1397 1376 1355 1342 1329 1276 1231 1173 - -
Med High 4 Y2 1413 1388 1363 1342 1321 1303 1285 1263 1240 1226 1212 1173 1016 946 - -
Med 3 Y1 1355 1325 1294 1276 1258 1235 1212 1188 1164 1144 1123 982 909 883 - -
Med Low 2 1336 1299 1261 1242 1222 1202 1181 1157 1132 1111 1090 937 874 830 - -
Low 1 G 1243 1182 1121 1061 1000 964 928 856 784 744 703 647 592 - -
049
High 5 W
11 x 10 1
1934 1910 1886 1871 1855 1827 1799 1780 1760 1747 1734 1700 1659 1617 - -
Med High 4 1799 1783 1767 1744 1720 1693 1666 1649 1631 1617 1603 1560 1530 1492 - -
Med 3 Y2 1694 1680 1666 1642 1617 1592 1567 1552 1537 1519 1500 1453 1421 1372 - -
Med Low 2 Y1 1575 1560 1540 1520 1502 1487 1471 1448 1424 1409 1393 1351 1308 1266 - -
Low 1 G 1454 1406 1358 1333 1308 1285 1261 1239 1217 1198 1179 1072 1002 988 - -
064
High 5 W
11 x 10 1
2245 2230 2214 2194 2173 2155 2136 2120 2103 2087 2070 2032 1998 1957 1910 1825
Med High 4 Y2 2092 2073
2054 2035 2015 1995 1975 1958 1940 1922 1904 1880 1843 1806 1767 1728
Med 3 1951 1931 1910 1889 1868 1850 1831 1812 1793 1774 1755 1722 1688 1654 1612 1562
Med Low 2 Y1 1812 1796 1780 1761 1741 1718 1695 1682 1668 1651 1633 1591 1555 1518 1480 1433
Low 1 G 1682 1661 1640 1616 1591 1573 1555 1533 1510 1495 1480 1441 1400 1351 1316 1263
072
High 5 W
11 x 10 1
2472 2454 2435 2414 2393 2371 2349 2328 2306 2289 2271 2230 2189 2121 2033 1936
Med High 4 Y2 2271 2248 2225 2205 2184 2166 2147 2129 2110 2094 2078 2039 2011 1977 1930 1846
Med 3 2133 2115 2096 2072 2047 2030 2013 1996 1979 1965 1950 1909 1873 1837 1793 1748
Med Low 2 Y1 2008 1985 1962 1939 1915 1898 1880 1862 1843 1828 1812 1774 1742 1703 1669 1635
Low 1 G 1806 1784 1761 1742 1722 1696 1669 1656 1642 1625 1607 1564 1527 1490 1443 1404
Factory speed settings are in Bold
Air flow values are with dry coil and standard filter
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, 400 fpm by 0.12in. wg., and 500 fpm by 0.16 in. wg.
Highest setting is for auxiliary heat (W) and lowest setting is for constant blower (G). The “Y1” and “Y2” settings must be between the
“G” and “W” settings.
6/14/12
Blower Performance Data cont.
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 17 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Unit with Standard PSC Motor
Model Motor
Spd
Blower
Size
Motor
HP
Airflow (cfm) at External Static Pressure (in. wg)
0 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00
012
H
6 x 8 1/10
480 450 440 420 410 380 360 340 330 310 300 - - - - -
MH* 440 410 400 380 370 350 330 310 300 280 270 - - - - -
ML 395 370 360 340 330 310 290 280 270 250 240 - - - - -
L 325 310 300 280 270 250 240 230 220 210 200 - - - - -
018
H
9 x 7 1/6
845 835 825 815 800 790 775 755 735 710 680 565 - - - -
M735 730 725 715 705 700 690 675 660 630 600 485 - - - -
L 620 615 610 605 600 590 580 565 550 520 490 - - - - -
022
H
9 x 7 1/5
1110 1095 1080 1065 1045 1020 995 970 945 915 880 810 - - - -
M850 845 835 825 815 805 795 775 755 735 715 - - - - -
L 750 745 740 735 725 715 700 685 670 650 630 - - - - -
030
H
9 x 7 1/3
1290 1270 1245 1220 1190 1160 1125 1090 1055 1020 985 880 760 - - -
M1100 1090 1075 1060 1045 1020 995 970 940 910 875 785 625 - - -
L 910 905 900 895 885 875 865 850 835 810 780 710 560 - - -
036
H
10 x 10 1/2
1665 1640 1610 1580 1550 1515 1480 1450 1415 1315 1215 1090 980 - - -
M1465 1445 1425 1400 1375 1350 1325 1260 1190 1140 1090 990 890 - - -
L 1130 1115 1100 1090 1075 1035 995 965 930 895 860 795 730 - - -
042
H
10 x 10 1/2
2010 1975 1940 1905 1870 1825 1780 1735 1690 1640 1590 1470 1210 - - -
M1670 1650 1630 1610 1590 1560 1530 1495 1460 1425 1390 1190 1080 - - -
L 1220 1215 1210 1295 1200 1180 1160 1130 1100 1060 1020 930 - - - -
048
H
10 x 10 1/2
2010 1975 1940 1905 1870 1825 1780 1735 1690 1640 1590 1470 1210 - - -
M1670 1650 1630 1610 1590 1560 1530 1495 1460 1425 1390 1190 1080 - - -
L 1220 1215 1210 1295 1200 1180 1160 1130 1100 1060 1020 930 - - - -
060
H
11 x 10 1
2430 2400 2365 2330 2290 2255 2215 2180 2140 2095 2045 1945 1835 1715 1510 1330
M2265 2235 2205 2175 2145 2110 2070 2035 2000 1960 1915 1825 1730 1605 1440 1260
L 2075 2050 2020 1995 1965 1940 1915 1885 1850 1820 1785 1720 1610 1505 1335 1175
070
H
11 x 10 1
2430 2400 2365 2330 2290 2255 2215 2180 2140 2095 2045 1945 1835 1715 1510 1330
M 2265 2235 2205 2175 2145 2110 2070 2035 2000 1960 1915 1825 1730 1605 1440 1260
L 2075 2050 2020 1995 1965 1940 1915 1885 1850 1820 1785 1720 1610 1505 1335 1175
2/7/12
Unit with Optional High Static PSC Motor
Model Motor
Spd
Blower
Size
Motor
HP
Airflow (cfm) at External Static Pressure (in. wg)
0 0.05 0.10 0.15 0.20 0.25 0.30 0.35 0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00
022
H
9 x 7 1/3
1290 1270 1245 1220 1190 1160 1125 1090 1055 1020 985 880 760 - - -
M1100 1090 1075 1060 1045 1020 995 970 940 910 875 785 625 - - -
L 910 905 900 895 885 875 865 850 835 810 780 710 560 - - -
030
H
9 x 7 1/2
1365 1340 1325 1305 1280 1250 1215 1180 1140 1100 1055 960 850 - - -
M1040 1040 1035 1030 1020 1005 990 970 945 915 885 810 735 - - -
L 880 880 880 880 875 870 860 840 820 800 775 730 480 - - -
036
H
10 x 10 1/2
1930 1905 1875 1840 1805 1765 1725 1680 1635 1530 1425 1270 1150 1025 - -
M1635 1620 1600 1580 1555 1530 1505 1465 1425 1335 1240 1135 1035 775 - -
L 1230 1230 1225 1215 1200 1165 1130 1095 1060 1035 1005 935 795 675 - -
042
H
10 x 10 3/4
2115 2075 2035 1980 1920 1900 1880 1840 1795 1730 1660 1390 1225 1070 - -
M2005 1980 1950 1910 1865 1815 1765 1725 1685 1585 1485 1315 1140 1025 - -
L 1860 1835 1805 1780 1750 1715 1675 1635 1590 1540 1490 1260 1115 980 - -
048
H
10 x 10 3/4
2115 2075 2035 1980 1920 1900 1880 1840 1795 1730 1660 1390 1225 1070 - -
M2005 1980 1950 1910 1865 1815 1765 1725 1685 1585 1485 1315 1140 1025 - -
L 1860 1835 1805 1780 1750 1715 1675 1635 1590 1540 1490 1260 1115 980 - -
Factory settings are in Bold
High-Static option not available for 012, 018, 060, and 070
Air flow values are with dry coil and standard filter
For wet coil performance first calculate the face velocity of the air coil (Face Velocity [fpm] = Airflow [cfm] / Face Area [sq ft]).
Then for velocities of 200 fpm reduce the static capability by 0.03 in. wg, 300 fpm by 0.08 in. wg, 400 fpm by 0.12in. wg. and 500 fpm by
0.16 in. wg.
1/25/12
Blower Performance Data cont.
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 18 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Operating Limits
Definitions
Abbreviations and Definitions
cfm = airflow, cubic feet/minute
EWT = entering water temperature, Fahrenheit
gpm = water flow in gallons/minute
WPD = water pressure drop, psi and feet of water
EAT = entering air temperature, Fahrenheit (dry bulb/wet bulb)
HC = air heating capacity, MBtu/h
TC = total cooling capacity, MBtu/h
SC = sensible cooling capacity, MBtu/h
kW = total power unit input, kilowatts
HR = total heat of rejection, MBtu/h
HE = total heat of extraction, MBtu/h
HWC = hot water generator capacity, MBtu/h
EER = Energy Efficient Ratio
= Btu output/Watt input
COP = Coefficient of Performance
= Btu output/Btu input
LWT = leaving water temperature, °F
LAT = leaving air temperature, °F
TH = total heating capacity, MBtu/h
LC = latent cooling capacity, MBtu/h
S/T = sensible to total cooling ratio
Operating Limits Cooling Heating
(°F) (°C) (°F) (°C)
Air Limits
Min. Ambient Air 45 7.2 45 7.2
Rated Ambient Air 80 26.7 70 21.1
Max. Ambient Air 100 37.8 85 29.4
Min. Entering Air 50 10.0 40 4.4
Rated Entering Air db/wb 80.6/66.2 27/19 68 20.0
Max. Entering Air db/wb 110/83 43/28.3 80 26.7
Water Limits
Min. Entering Water 30 -1.1 20 -6.7
Normal Entering Water 50-110 10-43.3 30-70 -1.1
Max. Entering Water 120 48.9 90 32.2
NOTE: Minimum/maximum limits are only for start-up conditions, and are meant
for bringing the space up to occupancy temperature. Units are not designed to
operate at the minimum/maximum conditions on a regular basis. The operating
limits are dependent upon three primary factors: 1) water temperature, 2) return
air temperature, and 3) ambient temperature. When any of the factors are at the
minimum or maximum levels, the other two factors must be at the normal level for
proper and reliable unit operation.
HE
gpm x 500
Reference Calculations
Heating Calculations: Cooling Calculations:
LWT = EWT +
LAT (DB) = EAT (DB) -
LC = TC - SC
S/T =
HR
gpm x 500
SC
cfm x 1.08
SC
TC
LWT = EWT -
LAT = EAT +
TH = HC + HW
HC
cfm x 1.08
Notes to Performance Data Tables
The following notes apply to all performance data tables:
• Performance ratings are based on 80°F DB/67°F WB EAT for cooling and 70°F DB EAT for heating.
• Three flow rates are shown for each unit. The lowest flow rate shown is used for geothermal open loop/well water systems with a minimum
of 50°F EWT. The middle flow rate shown is the minimum geothermal closed loop flow rate. The highest flow rate shown is optimum for
geothermal closed loop systems and the suggested flow rate for boiler/tower applications.
• The hot water generator numbers are based on a flow rate of 0.4 gpm/ton of rated capacity with an EWT of 90°F.
• Entering water temperatures below 40°F assumes 15% antifreeze solution.
• For non-standard EAT conditions, apply the appropriate Correction Factor tables.
• Interpolation between EWT, gpm, and cfm data is permissible, extrapolation is not.
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 19 Page _____ of _____

Contractor: P.O.:
Engineer:
Project Name: Unit Tag:
The manufacturer works continually to improve its products. As a result, the design and specifications of each product at the time of order may be changed without notice. Purchaser’s approval of this data set signifies that the equipment is acceptable under the provisions
of the job specification. Statements and other information contained herein are not express warranties and do not form the basis of any bargain between the parties, but are merely the manufacturer’s opinion or commendation of its products. York and Affinity are registered
trademarks of Johnson Controls, Inc., and are used with permission.
Heating Capacity Corrections
Ent Air DB °F Heating Corrections
Htg Cap Power Heat of Ext
45 1.062 0.739 1.158
50 1.050 0.790 1.130
55 1.037 0.842 1.096
60 1.025 0.893 1.064
65 1.012 0.945 1.030
68 1.005 0.976 1.012
70 1.000 1.000 1.000
75 0.987 1.048 0.970
80 0.975 1.099 0.930
11/10/09
Air Flow Corrections (Dual Capacity Part Load)
Airflow Cooling Heating
cfm Per Ton
of Clg % of Nominal Total Cap Sens Cap Power Heat of Rej Htg Cap Power Heat of Ext
240 60 0.922 0.778 0.956 0.924 0.943 1.239 0.879
275 69 0.944 0.830 0.962 0.944 0.958 1.161 0.914
300 75 0.957 0.866 0.968 0.958 0.968 1.115 0.937
325 81 0.970 0.900 0.974 0.970 0.977 1.075 0.956
350 88 0.982 0.933 0.981 0.980 0.985 1.042 0.972
375 94 0.991 0.968 0.991 0.991 0.993 1.018 0.988
400 100 1.000 1.000 1.000 1.000 1.000 1.000 1.000
425 106 1.007 1.033 1.011 1.008 1.007 0.990 1.010
450 113 1.013 1.065 1.023 1.015 1.012 0.987 1.018
475 119 1.017 1.099 1.037 1.022 1.018 0.984 1.025
500 125 1.020 1.132 1.052 1.027 1.022 0.982 1.031
520 130 1.022 1.159 1.064 1.030 1.025 0.979 1.034
5/30/06
Air Flow Corrections (Dual Capacity Full Load and Single Speed)
Airflow Cooling Heating
cfm Per Ton
of Clg % of Nominal Total Cap Sens Cap Power Heat of Rej Htg Cap Power Heat of Ext
240 60 0.922 0.786 0.910 0.920 0.943 1.150 0.893
275 69 0.944 0.827 0.924 0.940 0.958 1.105 0.922
300 75 0.959 0.860 0.937 0.955 0.968 1.078 0.942
325 81 0.971 0.894 0.950 0.967 0.977 1.053 0.959
350 88 0.982 0.929 0.964 0.978 0.985 1.031 0.973
375 94 0.992 0.965 0.982 0.990 0.993 1.014 0.988
400 100 1.000 1.000 1.000 1.000 1.000 1.000 1.000
425 106 1.007 1.034 1.020 1.010 1.007 0.990 1.011
450 113 1.012 1.065 1.042 1.018 1.013 0.983 1.020
475 119 1.017 1.093 1.066 1.026 1.018 0.980 1.028
500 125 1.019 1.117 1.092 1.033 1.023 0.978 1.034
520 130 1.020 1.132 1.113 1.038 1.026 0.975 1.038
5/30/06
Cooling Capacity Corrections
Entering
Air WB °F
Total
Clg Cap
Sensible Cooling Capacity Multipliers - Entering DB °F Power
Input
Heat of
Rejection
60 65 70 75 80 80.6 85 90 95 100
55 0.898 0.723 0.866 1.048 1.185 * *****0.985 0.913
60 0.912 0.632 0.880 1.078 1.244 1.260 ****0.994 0.927
63 0.945 0.768 0.960 1.150 1.175 ****0.996 0.954
65 0.976 0.694 0.881 1.079 1.085 1.270 * * * 0.997 0.972
66.2 0.983 0.655 0.842 1.040 1.060 1.232 * * * 0.999 0.986
67 1.000 0.616 0.806 1.000 1.023 1.193 1.330 1.480 * 1.000 1.000
70 1.053 0.693 0.879 0.900 1.075 1.205 1.404 * 1.003 1.044
75 1.168 0.687 0.715 0.875 1.040 1.261 1.476 1.007 1.141
NOTE: * Sensible capacity equals total capacity at conditions shown. 3/28/12
Correction Factor Tables
Affinity & Affinity Advanced Series
1 - 6 Tons 60Hz
SD2500AK6 06/21 20 Page _____ of _____
