Yowza jupiter plus User manual

※TABLE OF CONTENTS
1. PRECAUTIONS．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． P3
2. BEFORE YOU BEGIN．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． P4
3. SUPPLIED COMPONENTS / SUPPLIED HARDWARE．．．．．．．．．．．．．． P5~P6
4. PARTS LIST．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． P7~P11
5. ELLIPTICAL OVERVIEW．．．．．．．．．．．．．．．．．．．．．．．．． P12~P13
6. ASSEMBLY INSTRUCTIONS．．．．．．．．．．．．．．．．．．．．．．．． P14~P26
7. EXPLODED DIAGRAM．．．．．．．．．．．．．．．．．．．．．．．．．．． P27~P33
8. STABILIZER ADJUSTMENT．．．．．．．．．．．．．．．．．．．．．．．．．． ．P34
9. TRANSPORT INSTRUCTION．．．．．．．．．．．．．．．．．．．．．．．．．． P35
10.CORRECT USE．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． P36
11. IMPORTANT STEPS．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． P37
12. MUSCLE CHART．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． P38
13. STRETCHING ROUTINE．．．．．．．．．．．．．．．．．．．．．．．．．．．． P39
14. WARRANTY．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． P40~P41
15. COMPUTER OPERATION．．．．．．．．．．．．．．．．．．．．．．．．． P42~P56
Yowza Technical Support
877-969-9240
Enter Serial Number: ________________________
Enter Original Sales Order # ________________________
Purchase Date: ______________

http://www.yowzafitness.com/
3
PRECAUTIONS
Open the boxes:
You are now ready to open the boxes of your new equipment. Make sure to inventory all of the parts that are included in the boxes.
Check the Parts List for a full count of the number of parts included for this product to be assembled properly. If you are missing
any parts or have any assembly questions call your local dealer or contact us directly.
Gather your tools:
Before starting the assembly of your unit, make sure that you have gathered all the necessary tools you may require to assemble
the unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the space is free from
anything that may cause injury during assembly. After the unit is fully assembled, make sure there is a comfortable amount of free
area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of another person when
assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 300lbs/136kg, it is not recommended that you
use this product. Serious injury may occur if the user’s weight exceeds the limit shown here. This product is not intended to
support users whose weight exceeds this limit.

4
YOWZA JUPITER PLUS CROSSTRAINER
BEFORE YOU BEGIN
Before assembling or using the exercise cycle, please read the following instructions carefully. They contain important information for
use and maintenance of the equipment as well as for your personal safety. Keep these instructions in a safe place for maintenance
purposes or for ordering spare parts.
Product-Scope: This product is made for home use only and tested up to a maximum body weight of 330lbs/150 kg.
Product-Performance: This ergometer is speed independent, i.e. the performance is independent from pedal frequency.
Product-Feature: The resistance can be changed by the computer.
Use-Scope: The exerciser may not be used by persons with a weight of over 330lbs/150 kg.
Use-Scope: This product is designed for the physical exercise by adults. Please ensure that children only use it under the
supervision of an adult.
Use-Environment: Ensure that those present are aware of possible hazards, e.g. movable parts during training.
Use-Environment: Ensure that sufficient space is available to use the home exerciser.
Use-Environment: Place the home exerciser on an even, non-slippery surface.
Use-Environment: Please ensure that liquids or perspiration never enter the machine or electronic.
Use-Environment: Keep the equipment indoors, away from moisture and dust. Do not put the equipment in a garage or covered
patio, or near water.
Use-Environment: The product is made for home use only. Warranty and manufacturer's liability do not extend to any product or
damage to the product caused by commercial purposes.
User-Health: Consult your physician before starting with any exercise programs to receive advice on the optimal training.
User-Health: Incorrect/excessive training can cause health injuries.
User-Health: If you feel sickness, chest pain, fits of dizziness or breathlessness during your training, immediately stop the training
and consult your physician.
Product-Preparation: Ensure that training only starts after correct assembly, adjustment and inspection of the home exerciser.
Product-Preparation: Follow the steps of the assembly instruction carefully.
Product-Preparation: Only use suitable tools for assembly and ask for assistance if necessary.
Product-Preparation: Only use original Yowza parts as delivered (see checklist).
Use-Preparation: Tighten all adjustable parts to prevent sudden movement while training.
Use-Instruction: Please follow the advice to correct training as detailed in the training instructions.
Use-Instruction: Do not use the home exerciser without shoes or loose shoes.
Use-Safety: Be aware of non-fixed or moving parts whilst mounting or dismounting the home exerciser.
Use-Safety: Use the height adjustment caps on the rear tube to ensure stable position of the home exerciser
Use-Safety: Make sure the front wheels are placed in the correct position: see assembly instruction.
Product-Power-Safety: The unit requires a power supply of 100V –125V / 50-60Hz. It should be connected to a safety socket with
a single 10A fuse. Before commissioning the appliance pay attention to the fact that the correct plug-in power supply unit (observe
marking) has been connected properly
Product-Maintenance: If the equipment is in regular use, check all its components thoroughly every 1 –2 month. Pay particular
attention to the tightness of bolts and nuts. This applies especially to the securing bolts for saddle and handlebars.
Product-Maintenance: Incorrect repairs and structural modifications (e.g. removal or replacement of original parts) may endanger
the safety of the user.
Product-Maintenance: Damaged components may endanger your safety or reduce the lifetime of the equipment. For this reason,
worn or damaged parts should be replaced immediately and the equipment taken out of use until this has been done.
Product-Maintenance: Only use original Yowza spare parts.
Product-Maintenance: Do not under any circumstances carry out electrical repairs or alterations yourself. Always ensure that such
work is done by a properly qualified electrician.
Product-Maintenance: Disconnect the apparatus from the mains before doing repair, maintenance or cleaning work.

http://www.yowzafitness.com/
5
SUPPLIED COMPONENTS
This list identifies the major components you will use to assemble this product.
No.
Description
Qty.
120
Console Side Cover - Front
1
121
Console Side Cover - Rear
1
125
Action Handlebar Cap
2
130
Action Handlebar Lower Cover
4
144
Undercarriage Cover –Left
1
145
Undercarriage Cover –Right
1
153
Pedal Arm Front Pivot Cover
2
202
Console Support Tube
1
310
Action Handlebar –Left
1
311
Action Handlebar –Right
1
419
Incline Frame
1
422
Incline Frame Holder –Rear
2
501
Main Frame
1
108
Console assembly
1
901
Power cord
1
901
x1
108

6
YOWZA JUPITER PLUS CROSSTRAINER

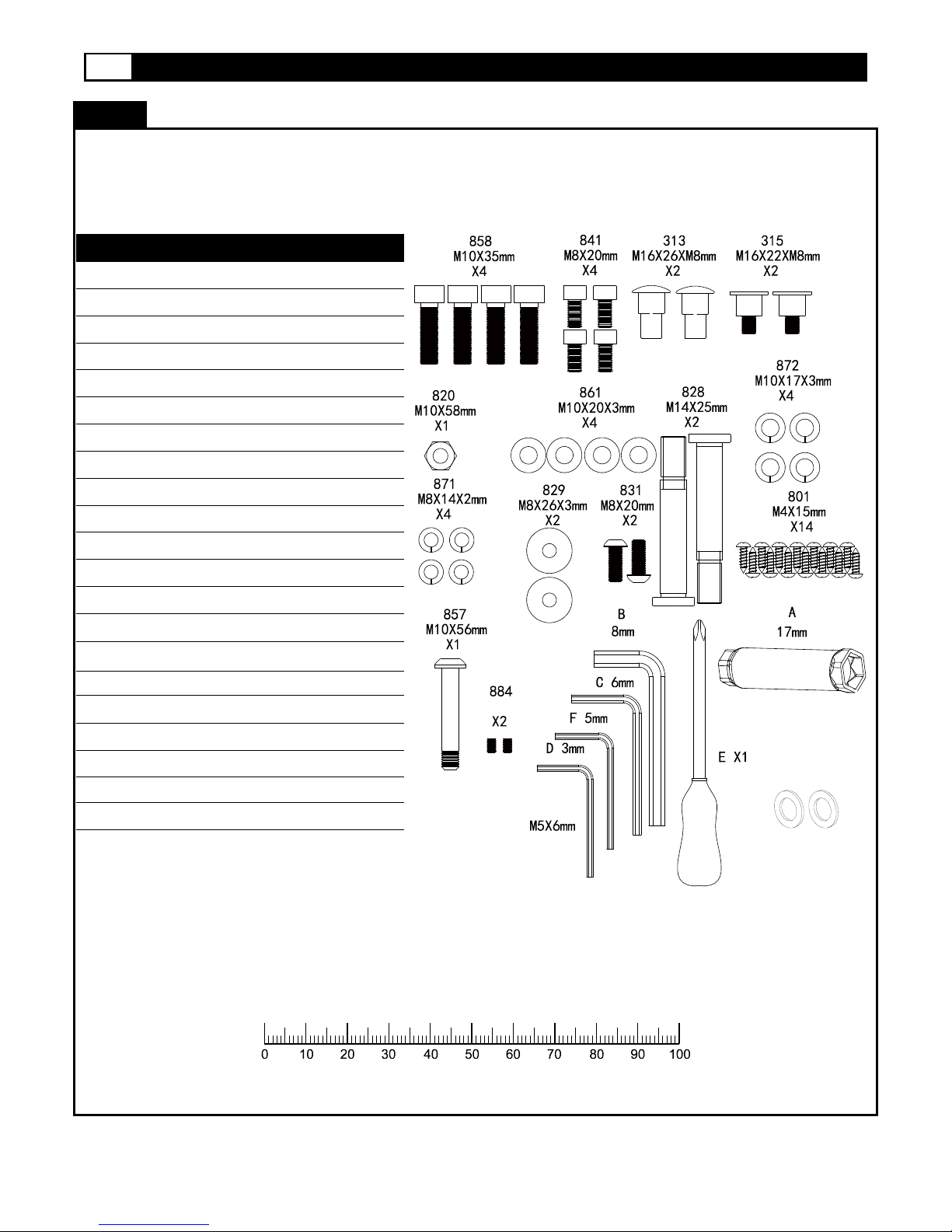

SUPPLIED HARDWARE
This list identifies the hardware you will use to assemble the product. To help distinguish between the various types of
screws and bolts, use the scale below to measure them and compare them to the sizes listed.
No.
Description
Qty.
858
M10x35mm Bolt
4
841
M8x20mm Bolt
4
313
M16x26xM8mm Bolt
2
315
M16x22xM8mm Bolt
2
820
M10x58mm Nut
1
861
M10x20x3mm Washer
4
828
M14x25mm Bolt
2
872
M10x17x3mm Washer
4
857
M10x56mm Bolt
1
871
M8x14x2mm Washer
4
829
M8x26x3mm Washer
2
831
M8x20mm Bolt
2
801
M4x15mm Screw
14
884
M5x6mm Bolt
2
874
Washer ∮16X26X2mm
2
A
17mm Socket
1
B
8mm Allen Key
1
C
6mm Allen Key
1
D
3mm Allen Key
1
E
Screw driver
1
F
5mm Allen Key
1
MILLIMETERS
874
16X26X2mm
X2

http://www.yowzafitness.com/
7
PART LIST
Part No.
Part name
Quantity
101
iPod support seat
1
102
Speaker
2
103
Overlay
1
104
Cushion
1
106
Speaker Cover
2
107
Speaker Bracket Cover
1
108
Console Housing –upper
1
109
Console Housing –lower
1
111
Console Side Cover - L
2
112
Console Side Cover - R
1
113
Fan non-slip mat
1
114
Fan Cover –Upper
1
115
Fan Cover –Lower
1
116
Fan Holder Ring
2
117
Tablet Holder
1
119
Fix Handlebar Foam Grip- 23X3X585
2
120
Console Side Cover - Front
1
121
Console Side Cover - Rear
1
220
Sphere grip
2
221
Sphere grip cover
2
222
Handlebar Foam Grip
2
123
Action Handlebar Cap
2
125
Action Handlebar side cover
2
126
Action Handlebar Cover –LL
1
127
Action Handlebar Cover –LR
1
128
Action Handlebar Cover –RR
1
129
Action Handlebar Cover –RL
1
130
Action Handlebar Lower Cover
4
131
Pivot Cap
2
132
Pivot Arm Cover –LL
1
133
Pivot Arm Cover –LR
1
134
Pivot Arm Bottom Cover –Left
1
135
Pivot Arm Cover –RL
1
136
Pivot Arm Cover –RR
1
137
Pivot Arm Bottom Cover –Right
1
138
Transportation Wheel
2
139
Pedal
2
140
Pedal Soft Cushion
2
141
Pedal Buffer Cover
4
142
Rubber Cushion –Front
2
143
Rubber Cushion –Rear
2
144
Undercarriage Cover –Left
1

8
YOWZA JUPITER PLUS CROSSTRAINER
PART LIST
Part No.
Part name
Quantity
145
Undercarriage Cover –Right
1
146
Oval Tube Cap
2
147
Vent cover
1
148
Frame Inside Cover –Right
1
149
Frame Inside Cover –Left
1
150
Frame Outside Cover –Left
1
151
Frame Outside Cover –Right
1
152
Switch Plate cover
1
153
Pedal Arm Front Pivot Cover
2
154
Transportation wheel cover
2
155
Transportation wheel side cover
2
201
Speaker Bracket
1
202
Console Support Tube
1
235
Hand Pulse Sensor Cover
2
305
Bearing 6004
4
306
Nylon Bushing
2
310
Action Handlebar –Left
1
311
Action Handlebar –Right
1
313
16X26mm-M8 Bolt
2
315
16X22mm-M8 Bolt
2
316
Moving Linkage –Left
1
317
Moving Linkage –Right
1
333
Bearing 2201
2
401
Pedal tube-Right
1
402
Pedal tube- Left
1
403
Pedal Buffer
2
404
Spring Nut
8
405
Moving Linkage Bushing
4
406
Bearing 600WN
4
407
Pedal Support Base
2
408
Rubber Cushion
4
411
Pedal Swing Arm Cap
2
412
Bearing 6002
4
413
Pedal Arm Rear Shaft
2
414
Bearing 2203
2
418
Pedal Swing Arm-L
1
419
Incline Frame
1
420
Pedal Swing Arm-R
1
421
Bushing 26X16X10.7mm
4
422
Incline Frame Holder –Rear
2
423
Incline Frame Holder –Front
2
424
Bushing 25.6X28.6X50mm
2

http://www.yowzafitness.com/
9
PART LIST
Part No.
Part name
Quantity
431
Bearing 6205
4
432
Incline Frame Positioner
1
450
Pedal Arm Bushing-ID21XODX27.5XL24mm
2
455
Elevation gear motor sleeve
1
466
Elevation gear motor
1
501
Main Frame
1
502
Driving belt pulley
1
503
Crank
2
504
Driving belt
1
509
Tension pulley fix plate
1
514
Bearing 6005
2
515
Crank shaft
1
516
Flywheel assembly
1
517
Round Bushing- ID25XOD35X31
1
518
Crank shaft plate
1
519
Flywheel Shaft Fixing plate
1
520
Magnet Bracket
1
521
Bearing 6000
2
525
Motor set
1
531
Bushing -ID25X35X31.2mm
1
532
Flywheel Axle- 10X106-M6
1
533
Bearing 6300
4
535
Bearing Bushing- ID25XOD35X36.2
1
540
Flywheel belt pulley-ID23XOD32X82
1
541
Speed Sensor Holder- OD6X40X10 T-2.0
1
601
4Pin Power Wire –Upper
1
602
4Pin Power Wire –Lower
1
603
3 Pin Elevation gear motor power Wire - 1200mm
1
604
3 Pin Elevation gear motor Limited Wire - 1200mm
1
606
Ground Wire 150mm
1
607
single wire-red 50mm
1
608
2 Core Power Wire
1
609
Speed Sensor-150mm
1
610
6Pin Motor Wire –Lower 170mm
1
611
Power Switch
1
612
Electric outlet
1
613
Control Board
1
614
Transformer
1
703
Aluminum Disk- OD310X3
1
706
Metal shrapnel- 21X13X0.7
12
800
M10X62X20 Bolt
2
801
M4x15mm Screw
42

10
YOWZA JUPITER PLUS CROSSTRAINER
COMPUTER OPERATION
Part No.
Part name
Quantity
802
M5x10mm Bolt
2
803
∮12 C Clip-M32
2
804
Plastic Washer ∮12x20x2mm
2
805
Plastic Washer ∮12x20x0.5mm
2
806
Cup head hex socket cap screw-M8x20mm
2
807
C-Clip-M32
2
809
Spring -OD25x74.47mm
4
810
M5x22mm Bolt
4
811
M8x30mm Bolt
2
812
Washer-∮10x20x5mm
3
813
M10x45mm Bolt
2
814
M10 Nylon Nut
2
815
Cup head hex socket cap screw-M6x12mm
12
816
Washer∮10x20x1.5mm
2
817
M8x25mm Bolt
4
818
Locknut M8
3
820
LocknutM10
4
821
M10x73X23mm Bolt
2
822
Magnet Bracket Shaft- 12X94
1
823
Washer ∮10x26x2mm
1
825
M4x45mm Bolt
1
826
4x19mm Screw
8
827
4.2x16mm Screw
12
828
M14X25mm Bolt
2
829
Washer ∮8x26x3mm
2
830
Spring Washer-∮8X14X2
2
831
M8x20mm Bolt
2
833
M4x12mm Bolt
4
835
C- Clip M40
2
836
M8x12mm Bolt
24
837
8x23x2mm Washer
2
838
C-Clip-M10
2
839
Washer ∮12X20X1mm
4
840
Fixing Insert-OD6X12-9X3
15
841
M8x20mm Bolt
4
842
M6x38mm Bolt
1
843
M6 locknut
1
844
M5X8mm Bolt
7
845
Washer∮6X32X2.5mm
2
847
M8x8mm Bolt
2
848
M10x30mm Bolt
2
849
M10x20mm Bolt
4

http://www.yowzafitness.com/
11
PART LIST
Part No.
Part name
Quantity
851
M5x14mm Bolt
2
852
Washer ∮16X26X2mm
4
853
Thin Nut- M12
1
854
Spring 1.5x25x1.5x5mm
1
855
Washer ∮8X17X1.5mm
11
856
M10x20mm Bolt
4
857
M10x56mm Bolt
1
858
M10x35mm Bolt
4
860
M8x15mm Bolt
4
861
Washer ∮10X20X2mm
4
863
Washer ∮10X20X1.5mm
7
864
M6x10mm Bolt
1
865
M3x14mm Screw
4
867
M5x6mm Screw
2
870
Taper Fixing Insert-Metal Inside
4
871
∮8mm Spring Washer
4
872
∮10mm Spring Washer
10
874
Washer ∮16X26X2mm
2
879
M10x40mm Bolt
1
882
Washer ∮10x33x2mm
2
883
M5x20mm Bolt
2
884
M5x6mm Bolt
2
901
Power Cord
1
902
Hardware kit
1

12
YOWZA JUPITER PLUS CROSSTRAINER
ELLIPTICAL OVERVIEW
Loud speaker
Handle grip
Power switch and
Power socket
Handle pulse sensor
LCD
Action handlebar
Foot Plate
Foot Plate Tube
Tube
Rear Stabilizer tube
Stabilizer tube

http://www.yowzafitness.com/
13
ELLIPTICAL OVERVIEW
Transportation wheel
Front Stabilizer tube
Console
Moving Linkage
Console rear cover
Upright tube

14
YOWZA JUPITER PLUS CROSSTRAINER
STEP1
ASSEMBLY

http://www.yowzafitness.com/
15
STEP2
ASSEMBLY
857
X1
820
X1
858
X4
872
X4
861
X4

16
YOWZA JUPITER PLUS CROSSTRAINER

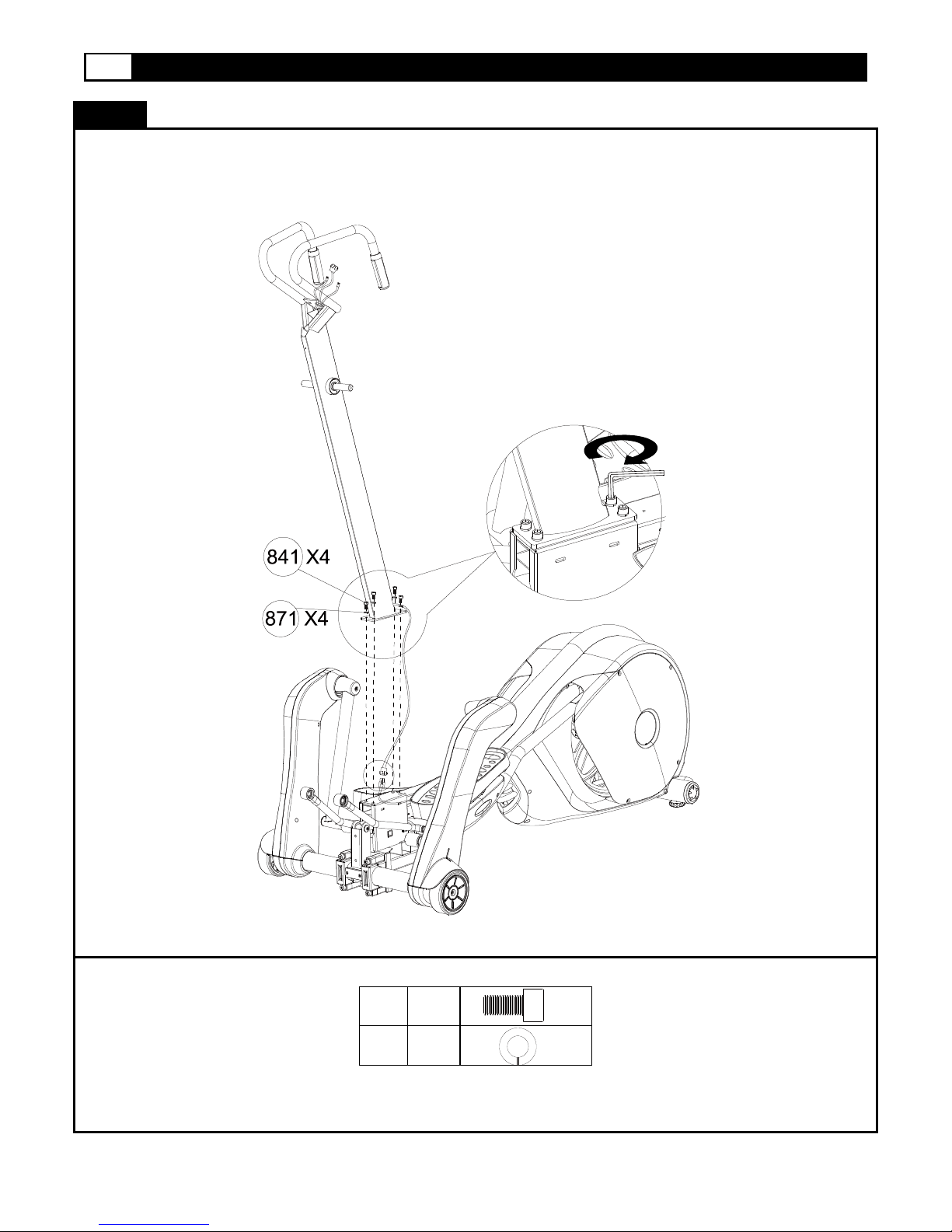

STEP3
ASSEMBLY
841
X4
871
X4

http://www.yowzafitness.com/
17
STEP4
ASSEMBLY
801
X8

18
YOWZA JUPITER PLUS CROSSTRAINER
STEP5
ASSEMBLY
828
X2
884
X2
153
X2
874
X2

http://www.yowzafitness.com/
19

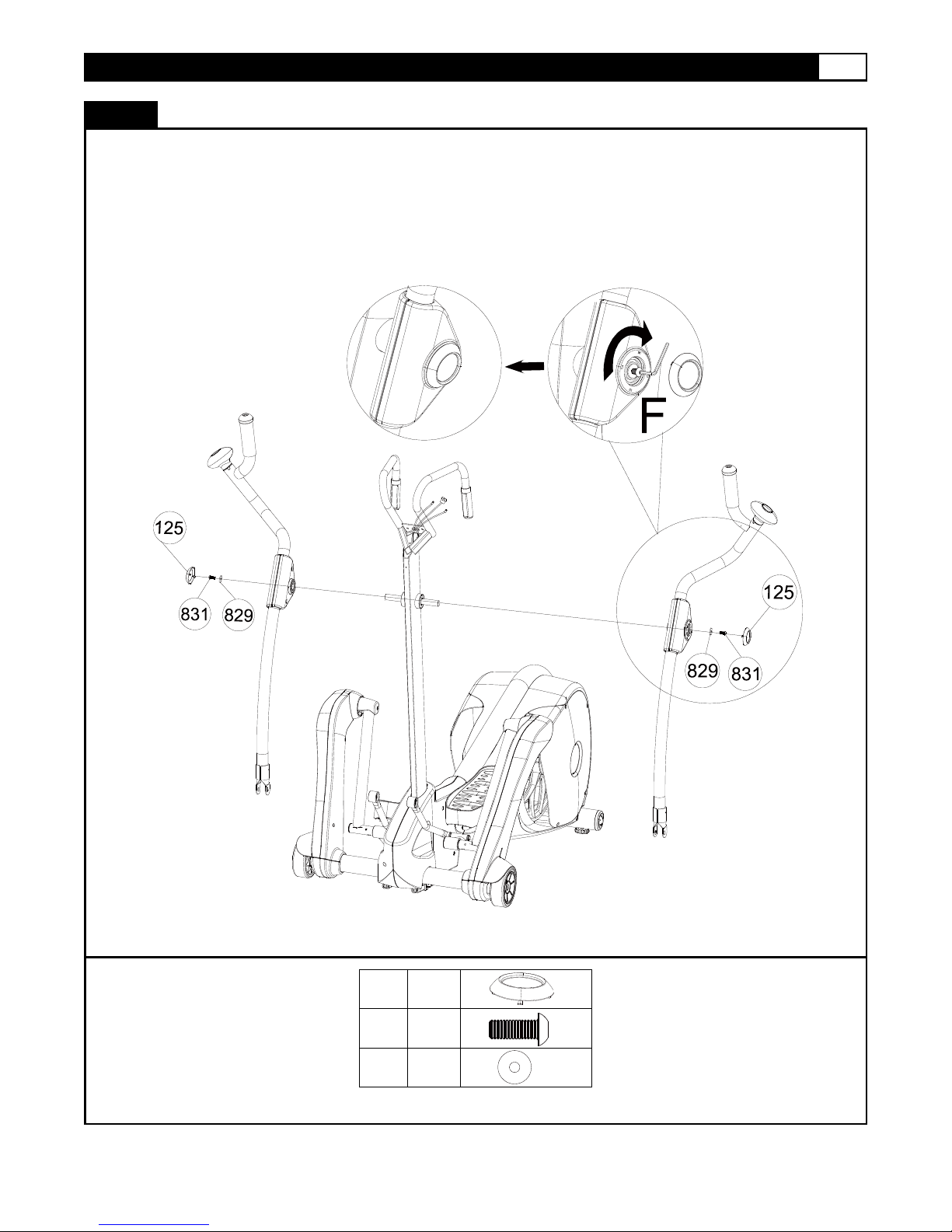

STEP6
ASSEMBLY
125
X2
831
X2
829
X2

20
YOWZA JUPITER PLUS CROSSTRAINER

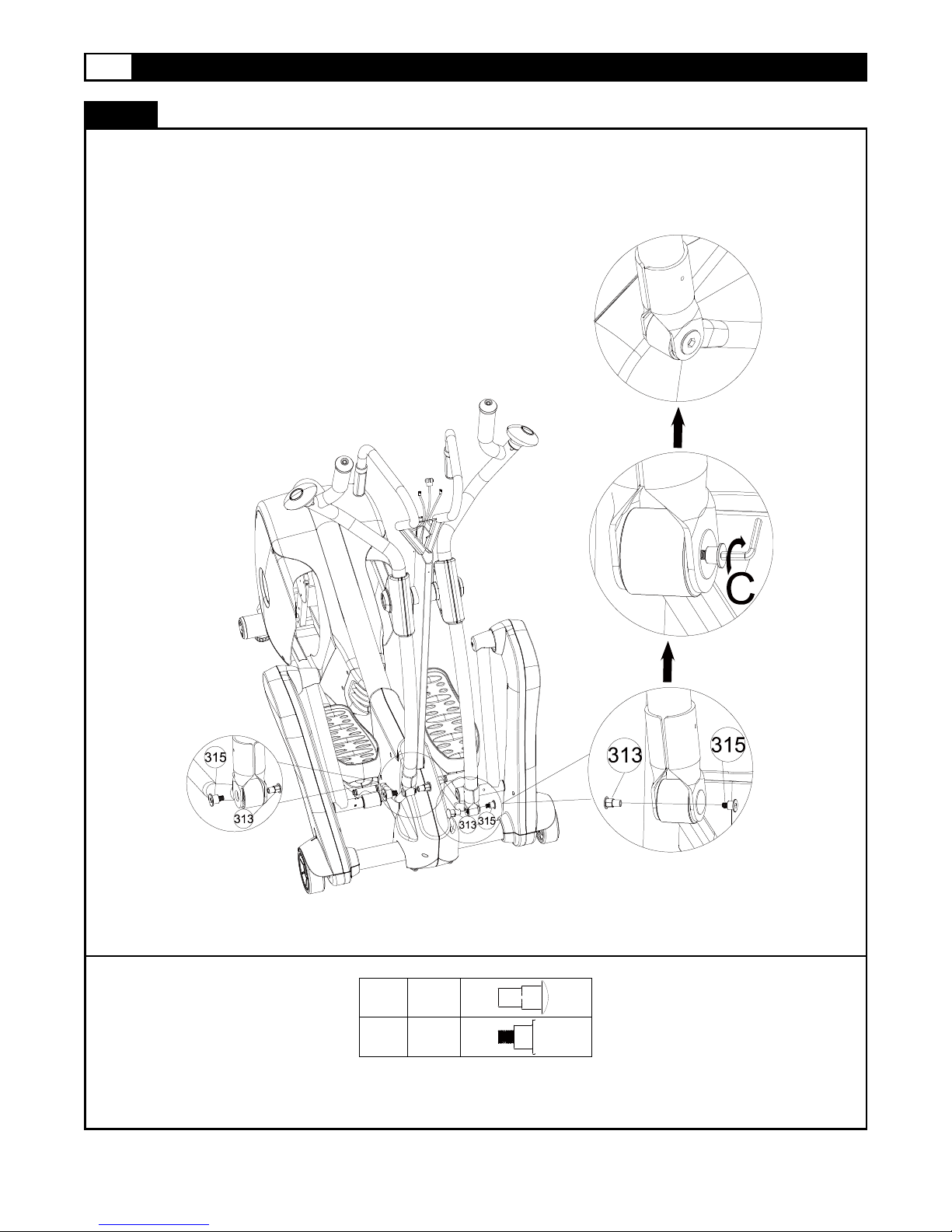

STEP7
ASSEMBLY
313
X2
315
X2
