Yuxin YWH100 User manual

YWH100 IP NETWORK PHONE
Usermanual
Zhengzhou Yuneng Communication Co.,Ltd
www.yntx.com
Nov. 2004

YWH100 IP Phone User manual V1.38
Page1of32
Catalogue
Introduction………………………………………………………………………………………………………………2
Suitable Uses of YWH100 IP Phone……………………………………………………………… 3
Appearance……………………………………………………………………………………………………………… 4
Performance and Features………………………………………………………………………………… 5
Main technical index…………………………………………………………………………………………… 6
Standard and Protocol………………………………………………………………………………………… 7
Electric requirements…………………………………………………………………………………………… 7
Operating requirements…………………………………………………………………………………………7
Installation………………………………………………………………………………………………………………… 8
Configuration…………………………………………………………………………………………………………… 9
1, Phone keypad set…………………………………………………………………………………… 9
2, Configured by WEB ………………………………………………………………………… 15
3, Configured by PalmTool………………………………………………………………… 30
Usage of the Phone……………………………………………………………………………………………… 30
Upgrade YWH100 IP Phone…………………………………………………………………………… 32
View Records………………………………………………………………………………………………………… 33

YWH100 IP Phone User manual V1.38
Page2of32
Introduction
IP is abbreviation of Internet Protocol. An IP phone is a telephone transporting voice
using grouping data package of IP protocol. It can be used widely for audio
communication in the broad band IP Network environment which accord with TCP/IP
protocol, such as in the LAN or WAN of Enterprises and Institutions、Telecom IP phone
services provider’s network and broad band INTERENT user, who log on internet
through LAN 、Cable Modem or XDSL and so on.
The mostly significant features of IP phone is transporting voice message over data
communication network at an extremely low price with excellent sound quality. Using IP
phone, you will save dramatically on international calls and long distance calls.
YWH100 series IP net phone uses unique generalized outline and inner line modes.
It functions much like an ordinary telephone switching between inner line and out line, so
it supplies great conveniences to the users. When YWH100 series IP net phone is in
generalized inner line mode, it can call another YWH100 series IP net phone worldwide
for free. When YWH100 series IP net phone is in generalized out line mode, it can places
calls to ordinary telephones worldwide at a dramatically low price, because YWH100
series IP net phone supports using prepaid card supplied by ISP such as Net2phone or
eTalk. Moreover, it possesses excellent sound quality just like ordinary phones.YWH100
IP Phone has 2X16 English LCD with backlit and supports being set by keypad.
YWH100 series IP Network Phone includes 4 types which called A、B、C and D.
The IP Phone Models is :
Model RJ45 port backlight color
YWH100A(b) white
YWH100A(h) no black
YWH100B(b) white
YWH100B(h)
single
yes black
YWH100C(b) white
YWH100C(h) no black
YWH100D(b) white
YWH100
series
YWH100D(h)
double
yes black

YWH100 IP Phone User manual V1.38
Page3of32
Suitable Uses of YWH100 IP Phone
YWH100 IP Phone is the ideal choice for those who always place international or
long distance calls. If two parties both use YWH100 serial IP Phone, they can
communicate with each other even free.
●Telecom Service Provider and Internet Phone Service Provider;
●Foreign capital or joint venture companies; offices, representative offices or
agencies of foreign companies in China;
●Abroad hotel（Can be arranged at guest rooms or commercial central）；
●Large enterprises, multinational enterprise(Used for international call and long
distance call)
●Middle and small enterprise with import or export business, abroad travel
agencies; study abroad or immigrant mid-agencies;
●Departments relating with international affairs, such as foreign trade department,
association for friendship with foreign countries, turnvereins, athenaeums, foreign experts
bureau and other departments involving foreign affairs
●Colleges and study institutions, such as dorm for abroad students, professors
with close connection with foreign countries;
●Families or persons with close connection with foreign countries, such as
foreigners in China and those who prepare the study abroad

YWH100 IP Phone User manual V1.38
Page4of32
Appearance

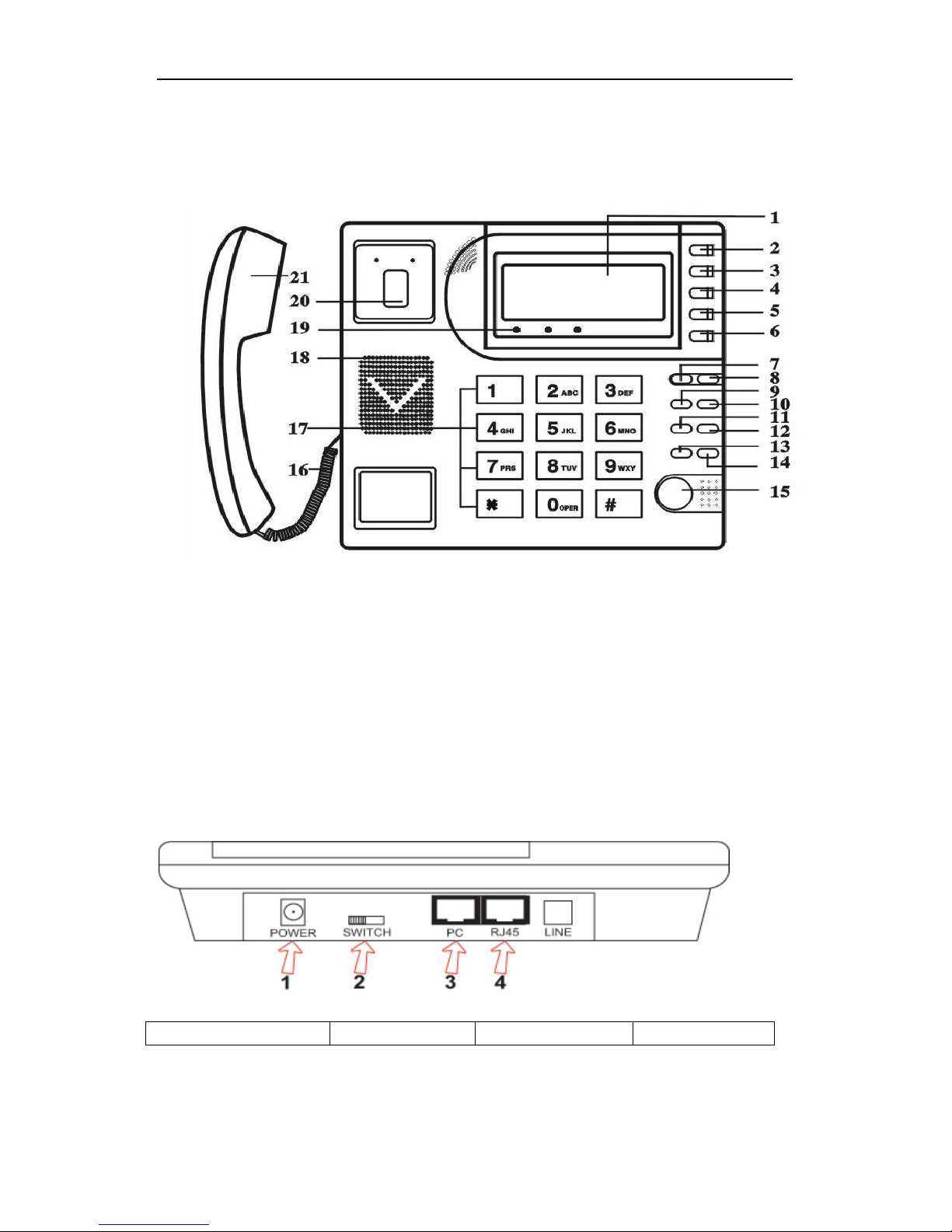

1.Front Panel (See Figure 1 please)
Figure 1 Front Panel
2.Backside view ( see Figure 2)
Figure 2 Backside view
1. Power adapter port 2. Power switch 3.PC(RJ-45) port 4. RJ-45 port
1. LCD 2. Speed Dial 3. Phone Book
4. Back Space 5. Volume + 6. Volume -
7. Service IP 8. Local Number 9. Missed
10. Dialed 11. Answered 12. Call
13. Local IP 14. Redial 15. Spk/Hand free
16．Cord 17. Number 18. Speaker
19. LED 20. Handset

YWH100 IP Phone User manual V1.38
Page5of32
3, Function Keys of IP Phone Introduction (Normal State)
Keys Function
Missed With handset hung, press this key to review missed number
Answered With handset hung, press this key to review received number
Local Num With handset hung, press this key to get phone number
Dialed With handset hung, press this key to review dialed number
Redial While reviewing missed, received or dialed number, press this key to
dial current number
Speak Press this key to have a call without lifting the handset
Volume+ Increase the volumes of handset or speaker; turn over the record
backward
Volume- Decrease the volumes of handset or speaker; turn over the record
forward
Keypad With handset picked or pressing speaker, press this key to dial number
Performance and Features
 Support H.323 v4,compatible with most H.323 v1-v4 system and devices;
 Built in H.323 proxy support to pass NAT;
 Support MGCP RFC2705
 Support SIP RFC3261
 Support Net2phone private protocol
 Fast start and H.245 tunneling;
 Outband DTMF transmit by H.245 user input or Q.931 keypad;
 IEEE 802.3 /802.3 u 10 Base T / 100Base TX
 Major G.7XX and gsm610 audio codec
 Caller ID send and receive by Q.931;
 Provide direct IP address to IP address call mode, direct PSTN call by a voice
gateway ,E.164 phone number call under the mode of GK;
 Automatically gatekeeper discovery in LAN;

YWH100 IP Phone User manual V1.38
Page6of32
 Call PSTN by ITSP’s prepaid card (eTalk,italk,ringtec etc);
 DHCP support for automatically assign IP address and others relevant parameters;
 PPPoE support for ADSL or Cable modem;
 Setting IP Net Phone parameters by standard web browser (such as IE6.0), phone
keypad or standard telnet;
 Upgrade program by FTP mode;
 Support G.723.1 5.3k/6.3k，G.729，G.711 A-Law、μ-Law audio codec algorithm ;
 Dynamic voice detection; Echo cancellation; Comfort noise generation;
 Dynamic voice jitter buffer which minimize effect to the voice caused by the audio
delay and jitter and as a result the quality of voice is high;
 Tone generation and Local DTMF generation and detection according with ITU-T;
 E.164 dial plan and customized dial rules;
 80 entries each for missed call, answered call and dialed call;
 112 entries for quick dial;
 16 entries for voice message;
 2×16 LCD display dial data、caller name 、caller number and so on ;
 Working status indicating Lamps(red、yellow and green) and keypad jacklight;
 Independently digit adjust the volume of handset 、hand free;
 14 function keys for operating and setting phone besides standard keys 0-9,#;
 Speed dialing;
 Adjustable volume for both handset and speaker;
 16 function keys, background LED and states indicating lights;
 Settings by HTTP web browser (IE6.0);
 Advanced settings by Telnet;
 Voice prompt;
 Upgrade by TFTP.
 Hotline

YWH100 IP Phone User manual V1.38
Page7of32
Main technical index
 Main chip: 50Mhz;
 Data storage:2MB SDRAM;
 Program memory: 1MB Flash memory;
 Application Network environment: 10Base-T/100Base-T;
 Echo cancellation:G165 16ms;
 Store quick dial number: 100;
 Record phone number of missed call:80;
 Power loss:2.7W(max);
 Power adapter: input AC 220V,output DC 9V 500mA;
 Employing condition: Ambience temperature 0-40℃（32-104°F）
Relativehumidity 10-95%
Atmosphere pressure 86-106Kpa;
 Overall size:215×190×70mm(L×W×H).
Standard and Protocol
 H.323 V4 calling signal protocol;
 MGCP RFC2705
 SIP RFC3261
 Net2phone,IAX2,WP private protocol
 IEEE 802.3 10Base-T/100Base-TX RJ-45 port;
 Major G.7XX and gsm610 audio codec
 Audio codec algorithm include G.711A,G.711u,G.723.1(5.3k/6.3k) and G.729;
 Quick dial setting and user-defined dial plan setting;
 TCP/IP: Internet Transport and Control Protocol;
 RTP: Real-time transport Protocol;
 RTCP: Real-time Transport Control Protocol;
 G.723.1、G729 VAD/CNG economical bandwidth;

YWH100 IP Phone User manual V1.38
Page8of32
 G165 16ms Echo cancellation;
 DTMF: Tone Detection and Generation;
 DHCP: Dynamic Host Configuration Protocol;
 PPPoE: Point to Point Protocol Over Ethernet;
 DNS: Domain Name Service;
 NTS: Network Time service;
 Telnet: Remote Host log on Protocol;
 FTP: File Transfer Protocol;
 HTTP: Hyper Text transfer Protocol;
 Build in H.323 proxy support;
 Auto search proxy
Electric requirements
 Voltage: 9V DC
 Power: 0.5W (max.)
 Power adapter: AD/DC input 110-230V, 1A 400Ma
 Network interface:1 or 2 RJ-45 Ethernet Connect
Operating requirements
 Operation temperature: 0 to 50°C (32°to 122°F)
 Storage temperature: -30°to 65°C (-22°to 149°F)
 Humidity: 10 to 90% no dew

YWH100 IP Phone User manual V1.38
Page9of32
Installation

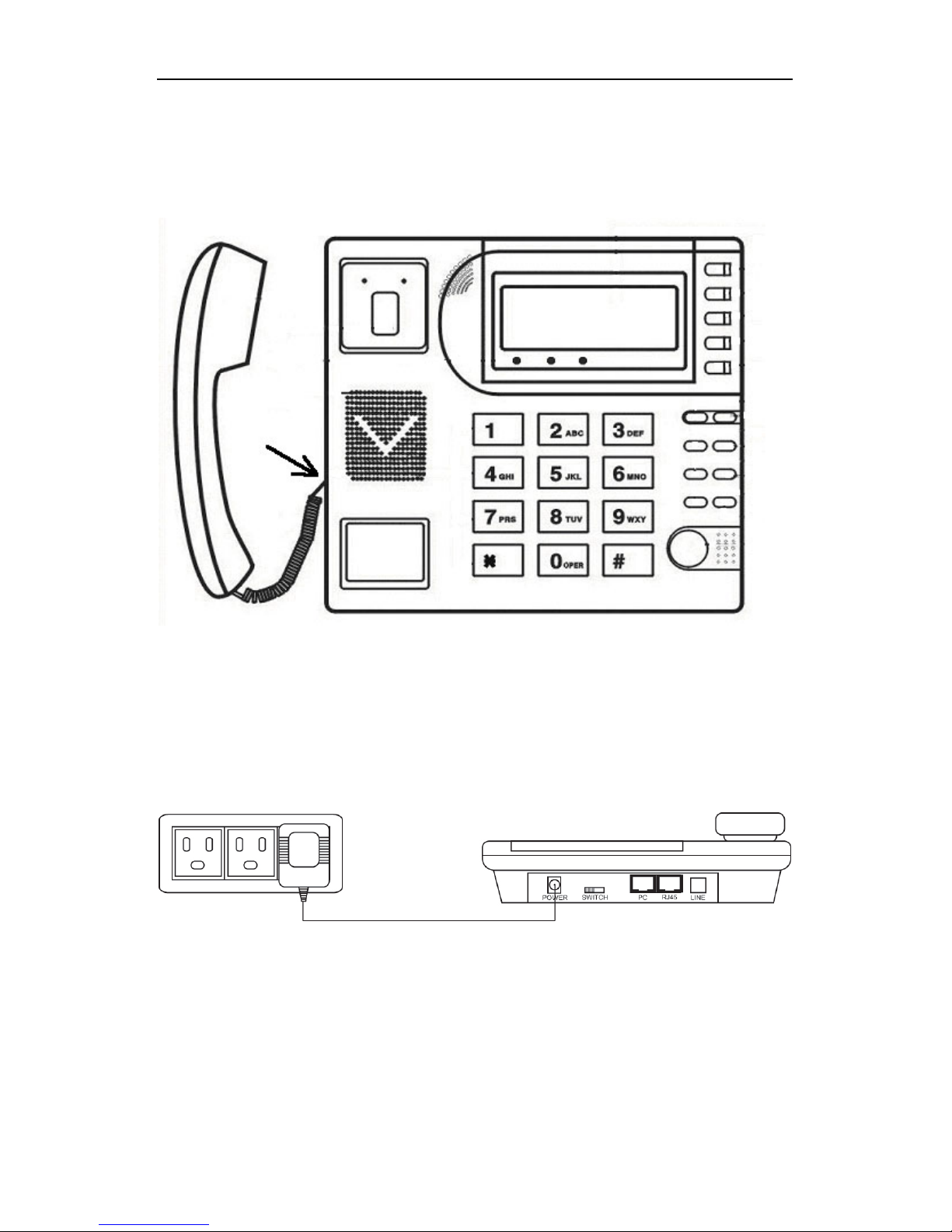

1, Contect Handset and Phone
Insert Hanset cord into handset cord jack of the base. Please see Figure 3.
Figure 3 Handset and base of Phone connection
2, Connect Phone and Power
Palce the phone nearby of Power socket.Plug the power cord adapter into the Power
Jack. Then plug the other end of the power cord adapter into the appropriate power
socket.Refer to Figure 4.
Figure 4 Connect Pwoer
3, Connect the phone into the net
LAN users: Plug one end of the direct-connecting cable into RJ-45 jack which is
located in the back of phone, and connect the other end of calbe to hub. Please see
figure5.

YWH100 IP Phone User manual V1.38
Page10of32
ADSL/Cable Modem users：Plug the RJ-45 Ethernet corssing-over cable into the RJ-45
Ethernet Jack. Plug the other end of the cable into an ADSL/Cable modem router port.
Figure5 LAN Phone connected into net
4, Start Phone
Turn on the phone by pulling the switch to ON. Verify that yellow ,green and red lights are on
together, and then red light is off; green light blinks or is off ; yellow light blinks or is on.
which behalf the success of starting phone and phone enter into normal standby.
Configuration
Four different ways can be used to configure YWH100 IP phone:Phone keypad
set; Web browser, Telnet commands and PalmTool configuration on computer.
1, Phone Keypad set
Note: Default password of YWH100A/B/C/D phone is 1234.

YWH100 IP Phone User manual V1.38
Page11of32
(1)Entering into setting mode
Use the keypad to enter the password of the phone (when debug is not set as
0[disable], default password is 1234; when debug is set as 0[disable], please use super
password 19750407), and then press【#】, till the is displayed. Then enter
the password again and press 【Spk】to let the phone enter setting mode.
(2)Introduce of the function of keypad in the keypad setting mode
Press key Function
Spk /Hand free Enter into submenu of the current menu ;Acknowledge to
modification
Volume/+ Scroll menu forward
Volume/- Scroll menu backward
Local IP Enter into modification status
Redial Cancel current setting ; restore to its father catalogue
Back Space Backspace during the setting
Number keypad Input updating content according to require. Please see
appendix for character represented by each key

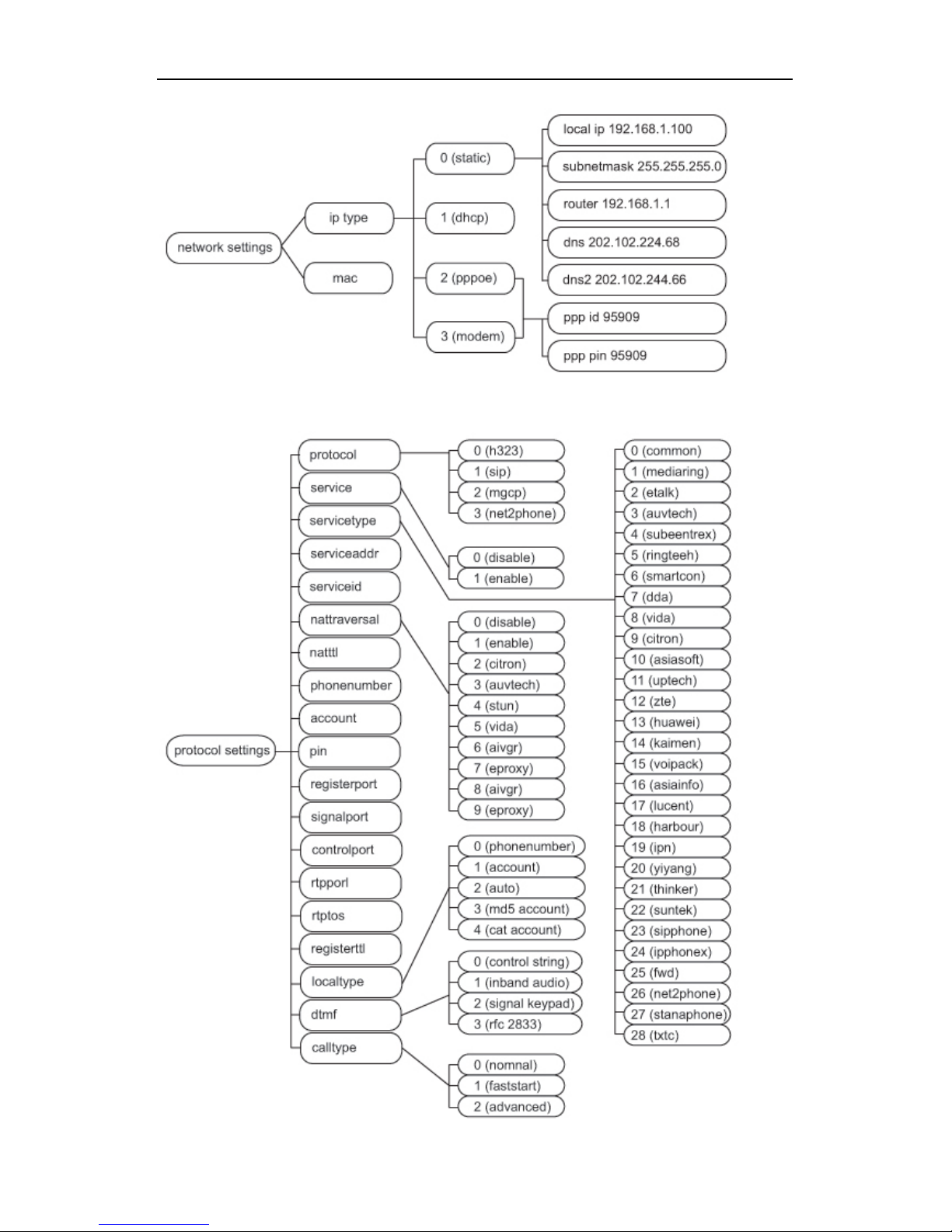

(3) Menu Structure
Password：

YWH100 IP Phone User manual V1.38
Page12of32

YWH100 IP Phone User manual V1.38
Page13of32

YWH100 IP Phone User manual V1.38
Page14of32
(4)Setting example
We take enabling eTalk prepaid card and setting the ID and pin as an example to
explain how to change setting:
①Enter setting mode
Use the keypad to input the password of the phone (when debug is not set as
0[disable], default password is 1234; when debug is set as 0[disable], please use super
password 19750407), and then press【#】, till is displayed. Then enter the
password again and press 【Spk】to let the phone enter setting mode.
②Enable eTalk
Once the phone enter setting mode, will be seen, then press【Vol/+】
to turn over the menu, until is displayed. Please press 【Spk】to enter
submenu and then continually press 【Vol/+】to turn over the menu until
is displayed on the screen. Please press 【Local IP】to enter change
mode, then you will see a cursor flashing at the beginning of the second line. It indicates
that you can change the setting of this item. Then press 【2】to enable eTalk and then
press 【Spk】to confirm. will be seen.
Password：
network
settings
protocol
settings
Servicetype
0[normal]
Servicetype
2[etalk]

YWH100 IP Phone User manual V1.38
Page15of32
③Set eTalk account (0117ETNS)：
press 【Vol/+】to turn over the menu , once is displayed on
the screen, please press 【Local IP】to enter change mode, then you will see a cursor
flashing at the beginning of the second line. It indicates that you can change the setting of
this item. Then press 0117 keys once respectively, 3 key thrice, 8 key twice, 6 key thrice
and 7 key quintic. Then press【Spk】to confirm. After above operation,
the will be displayed on the LCD
④Set eTalk pin (409466193597)
press 【Vol/+】to turn over the menu, once is displayed on
the screen, please press 【Local IP】to enter change mode, then you will see a cursor
flashing at the beginning of the second line. It indicates that you can change the setting of
this item. Then press 409466193597 keys once respectively to input the password, and
then press【Spk】to confirm. After above operation, will be
displayed on the LCD.
⑤Save setting and exit setting
continually press 【Redial】to reach save setting menu . Then please
press【Spk】key to confirm the change. When the menu is displayed on
the LCD, press 【Spk】again to confirm. Once the IP phone restart successfully, the new
setting is effective.
Refer to above operation; you can reach any menu to modify any value. Please refer
to following structure illustrations to learn the values of each menu item. As for the
meaning of each item and value, please refer to Web Browser Setting chapter.
(5)Appendix
The following chart indicate the digital 、letter and mark according to the times
the corresponding character key is pressed in the setting mode.
save
settings
save
Are you sure?
account
account
0117ETNS
pin
pin
409466193597

YWH100 IP Phone User manual V1.38
Page16of32
Press key Press once
Press twice
continuously
Press three
times
continuously
Press four
times
continuously
Press five
times
continuously
1 1 . , ? ！
2 2 A/a B/b C/c
3 3 D/d E/e F/f
4 4 G/g H/h I/I *
5 5 J/j K/k L/l
6 6 M/m N/n O/o #
7 7 P/p Q/q R/r S/s
8 8 T/t U/u V/v
9 9 W/w X/x Y/y Z/z
0 0 space :/@ ;/- '/&
*
# Switch between Uppercase and Lowercase
To make the phone work well, we advice you to restart the phone manually
after the configuration.
2, Configured by WEB
On a PC connecting with the phone or at the same segment of the phone,
double click icon to open the IE browser. Input the IP address of the phone into
address bar ( ), and then input password of the phone into
the following page. From version 1.24, there are two passwords for the IP phone:
ordinary password and super password. Default password 1234 is ordinary password
and super password is 19750407 (the super pin for some PINGHE phone is not
19750407, please ask for the provider of the IP phone). With Debug set 0[disable],
please input super password; while Debug is not set as 0[disable], please input
ordinary password . Then click button. The following configured page
will popup. Refer to Fig 7please.

YWH100 IP Phone User manual V1.38
Page17of32
Figure 7 Http Setting Page
(1)Network Setting
Figure 8 Network Setting Page
●iptype: Set how IP phone gets relevant network parameters by selecting corresponding
item from drop down list.
 static ip: Select this item to authorize users set IP address, subnet mask and router
IP address of IP phone manually.
 dhcp: Select this item to enable DHCP mode. With this system, your LAN or

YWH100 IP Phone User manual V1.38
Page18of32
router automatically assigns all the required network parameters to any device
connected to it when the device log on. YWH100 IP phone is shipped from the
factory with DHCP on. So, if your LAN or router is configured to use DHCP
addressing, the IP phone’s LAN parameters will automatically be configured as
soon as it is connected to the LAN or router and powered up.
 pppoe: Those ADSL and Cable Modem users please select this item for it is a
protocol especially designed for them. With this system, ADSL ISP automatically
assigns all the required IP parameters to any device connected to it when the
device log on.
 modem: If the IP phone used with modem, please select this item to get relevant
network parameters auto. Then please fill ID and pin into ppp id and ppppin fields.
●ppp id: With pppoe or modem selected in iptype drop down list, please enter the user
name here.
●ppp pin: With pppoe or modem selected in iptype drop down list, please enter the
password here.
●local ip: With static ip selected in iptype drop down list, please enter IP address of IP
phone here.
●subnet mask: With static ip selected in iptype drop down list, please enter subnet
mask of IP phone here.
●router ip: With static ip selected in iptype drop down list, please enter router IP
address of IP phone here.
●dns: With static ip selected in iptype drop down list, please enter IP address of DNS
server here.
●dns 2: With static ip selected in iptype drop down list, please enter IP address of
backup DNS server here.
●mac: MAC address is the physical address supplied by the Ethernet NIC. YWH100
phone is shipped from the factory with a unique algorism MAC address printed on the
back of the base.

YWH100 IP Phone User manual V1.38
Page19of32
(2)protocol settings

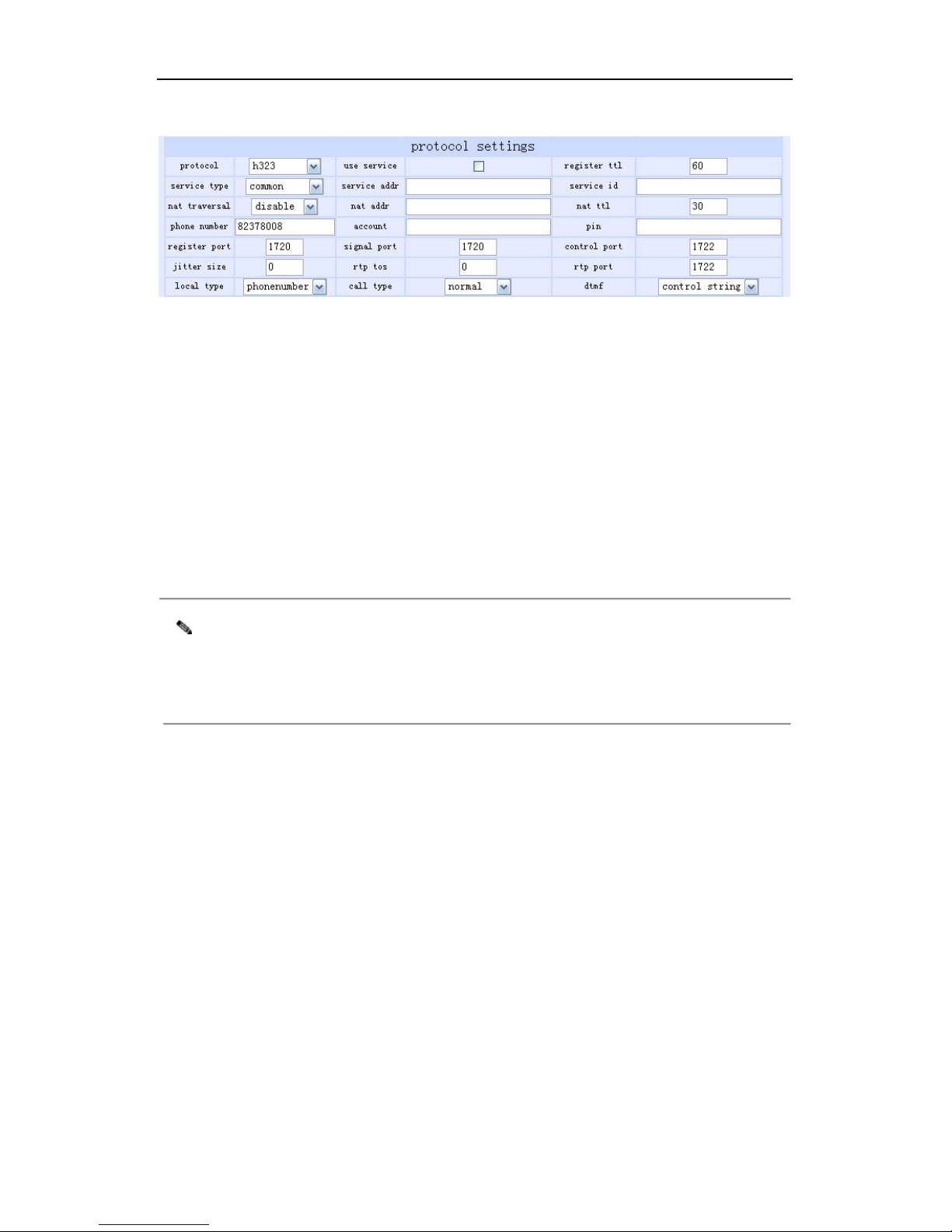

Fig 9 Protocol Setting Page
●protocol: Select an item from dropdown list to set the protocol used by the phone.
 h323: Select this item to set the phone use H323 protocol.
 sip: Select this item to set the phone use SIP protocol.
 mgcp: Select this item to set the phone use MGCP protocol.
 n2p: Select this item to set the phone use Net2phone private system.
 iax2: Select this item to set the phone use IAX2 private system.
 wp: Select this item to set the phone use WP private system
Note With Net2phone selected here, please set other necessary parameters: check
use service option, and then fill IP address or domain name of designated
server into service addr field; then set service port as 6801; fill account and
password of Net2phone card into account and pin fields.
●use service: Enable/disable service by checking/unchecking this box. Different service
responses different protocol as follows:
 With H323 protocol used, the protocol service refers to the gatekeeper searching
the address. To let IP phone call each other by E.164 number, please check this
box and then fill the IP address or domain name of corresponding gatekeeper
into service addr field. Without this check box being selected, the phone can call
by gateway or just by dialing IP address of other IP phone or H323 device (such
as Netmeeting) at the same network segment.
 With MGCP protocol used, the protocol service refers to Call Agent. Please
check this box according to system, and then fill service addr field with Call
