Yuxin YWH201 User manual

YWH201 Usermanual
1
YWH201 IP PHONE
User Guide

YWH201 Usermanual
2
Index
1. PRODUCT OVERVIEW....................................................................................................5
2. FEATURES AND SPECIFICATION................................................................................5
2.1. Hardware Features.....................................................................................................5
2.2. Software Feature........................................................................................................6
2.3. Standard and Protocol...............................................................................................7
2.4. Electric Requirements................................................................................................7
2.5. Size...............................................................................................................................8
2.6. Operating Requirements ...........................................................................................8
3. INSTALLATION ..................................................................................................................8
3.1. Packing List .................................................................................................................8
3.2. Connecting IP Phone.................................................................................................9
4. YWH201 APPEARANCE..................................................................................................9
4.1. YWH201 Phone Illustration..........................................................................................9
4.2. Function Keys ...........................................................................................................11
4.3. LED Functions............................................................................................................13
5. CONFIGURATION GUIDE..............................................................................................14
5.1. Configuration with Keypad ......................................................................................14
5.1.1. Using function keys ......................................................................................14
5.1.2. Network Settings...........................................................................................15
5.1.3. Voice Settings ...............................................................................................16
5.1.4. Protocol Settings...........................................................................................17
5.1.5. Dialplan Settings...........................................................................................18
5.1.6. System Settings............................................................................................18
5.2. Configuration with Web Browser............................................................................18
5.2.1. Network Settings...........................................................................................20
5.2.2. Voice Settings ...............................................................................................21

YWH201 Usermanual
3
5.2.3. Protocol Settings...........................................................................................23
5.2.4. Dial plan Settings..........................................................................................28
5.2.5. System Settings............................................................................................30
5.2.6. Phone Book.....................................................................................................32
6. USING YWH201...............................................................................................................32
6.1. Placing a Call ..............................................................................................................32
6.1.1. Off-hook, On-hook and Hand-free Mode ..................................................32
6.1.2. Dial Directly ...................................................................................................32
6.1.3. Redial .............................................................................................................33
6.1.4. Dial with CALL RECORD ............................................................................33
6.1.5. Dial with PHONE BOOK..............................................................................33
6.1.6. Speed dial......................................................................................................34
6.2. Answering phone calls.............................................................................................34
6.2.1. Answering a call............................................................................................34
6.2.2. Call Hold.........................................................................................................34
6.2.3. Call Waiting ...................................................................................................34
6.2.4. Retrieve the call ............................................................................................35
6.3. Advanced call feature ..............................................................................................35
6.4. Mute............................................................................................................................35
6.5. Checking Message...................................................................................................36
6.6 Save/Delete a CALL RECORD ..............................................................................36
6.7. Edit PHONE BOOK..................................................................................................37
6.7.1. Modify a contact entry..................................................................................37

YWH201 Usermanual
4
6.7.2. Delete a contact entry..................................................................................37
6.7.3. Assign a SPEED DIAL Entry ......................................................................38
6.7.4. Add a contact entry ......................................................................................38
7. FIRMWARE UPGRADE .................................................................................................38
7.1 MANUALLY UPGRADE.......................................................................................................38
7.1.1. Select upgrade item.........................................................................................39
7.1.2. Locate upgrade file..........................................................................................39
7.1.3. Start upgrade ...................................................................................................39
7.2 HTTP AUTO-UPGRADE.......................................................................................................39
7.3 TFTP AUTO-UPGRADE.......................................................................................................40
8. RESTORE FACTORY CONFIGURATION..................................................................40

YWH201 Usermanual
5
1. PRODUCT OVERVIEW
IP is abbreviation for Internet Protocol. An IP phone is a telephone
transporting voice using grouping data package of IP protocol. The networking
using IP protocol such as LAN (Local area network), MAN (Metropolitan area
network) and INTERNET all support using IP phone.
The mostly significant features of IP phone is transporting voice over data
communication network at an extremely low price with excellent sound quality.
Using IP phone, you will save dramatically on international calls and long
distance calls.
YWH201 IP phones provide a complete IP phone system portfolio with ease of
use, superior audio quality, economic physical design, advanced services, and
features.
YWH201 IP phones are accessorized with LCD displays, including keys for call
features and functions. User can configure either through the Keypad or
standard Web Browser.
2. FEATURES AND SPECIFICATION
2.1. Hardware Features
●Main chip—YWH201 (MCU 60MHz ;DSP72 MIPS)
●On chip SRAM—116KB

YWH201 Usermanual
6
●18 Bits High Performance On chip Codec
●Program Memory—2 MB Flash memory
●Display LCD—2 X 16 characters.
●Ethernet Port—2X 10/100M Connectors
●AC/DC adapter—Input AC100--- 230V，Output 9V DC, 1A
2.2. Software Feature
●DHCP support for LAN or Cable modem
●Set phone by web browser or Keypad
●Auto-provision firmware and configuration via TFTP and HTTP ;
●Manual upgrade firmware via HTTP and TFTP;
●Support G.711A/μ;G723.1 5.3K/6.3K; G729; GSM610; iLBC audio
codec
●VAD(Voice active detect)
●CNG (Comfort noise generation)
●Dynamic voice jitter buffer
●G.168/165 compliant 32ms echo cancellation
●Tone generation and Local DTMF re-generation according with ITU-T
●Support the inband ;outband audio DTMF transmission method
●128 entries for phonebook
●64 entries, each for missed calls, answered calls and dialed calls
●Adjustable volume for both handset and speaker

YWH201 Usermanual
7
●Hotline
2.3. Standard and Protocol
●IAX2 (Inter-Asterisk-eXchange V2)
●SIP (RFC2543; RFC3261;RFC3262 ; RFC2976 ; RFC3264 ; RFC3311 ;
RFC3515 ; RFC3666 ; RFC3420 )
●IEEE 802.3 /802.3 u 10 Base T / 100Base TX
●IEEE 802.1P /Q Tag VLAN
●QoS: Support for Layer3 Cos(Diff-Serv) and Layer 2Tos (802.1P/Q)
●TCP/IP: Internet transfer and control protocol
●ARP: Address Resolve Protocol
●ICMP: Internet Control Message Protocol
●VAD/CNG save Bandwidth
●DHCP：Dynamic Host Configuration Protocol
●DNS：Domain Name Server
●TFTP：Trivial File Transfer protocol
●HTTP：Hyper Text Transfer protocol
●SNTP：Simple Network Time Protocol
2.4. Electric Requirements
●Voltage: 9V DC

YWH201 Usermanual
8
●Power: 4.5W (max.)
●Power adapter: AC/DC input 100-230V，Output 9V 0.5A
2.5. Size
195 x 175 x 85 mm (L x W x H)
2.6. Operating Requirements
●Operation temperature: 0 to 50°C (32°to 122°F)
●Storage temperature: -30°to 65°C (-22°to 149°F)
●Humidity: 10 to 90% no dew
3. INSTALLATION
3.1. Packing List
The following list is included in your package. Check this list before installation
to ensure that you have received all items. If any item is not included in the
package, please contact the distributor.
1）One YWH201 Main Case
2）One Handset
3）One Universal Power Adaptor
4）One product qualification and guarantee

YWH201 Usermanual
9
5）One User Guide
3.2. Connecting IP Phone
1. Connect the handset to base: insert the handset cord into a handset cord
jack at the left side of the base.
2. Connect IP phone to Internet: plug the RJ-45 Ethernet cable into the
Ethernet Jack. Plug the other end of the cable into HUB or switch.
3. Power on IP phone: plug the power cord adapter into the Power Jack.
Then plug the other end of the power cord adapter into the appropriate wall
outlet.
4. YWH201 Appearance
4.1. YWH201 Phone Illustration
●YWH201 Phone Front Illustration (Refer to Fig 4.1.1)：

YWH201 Usermanual
10

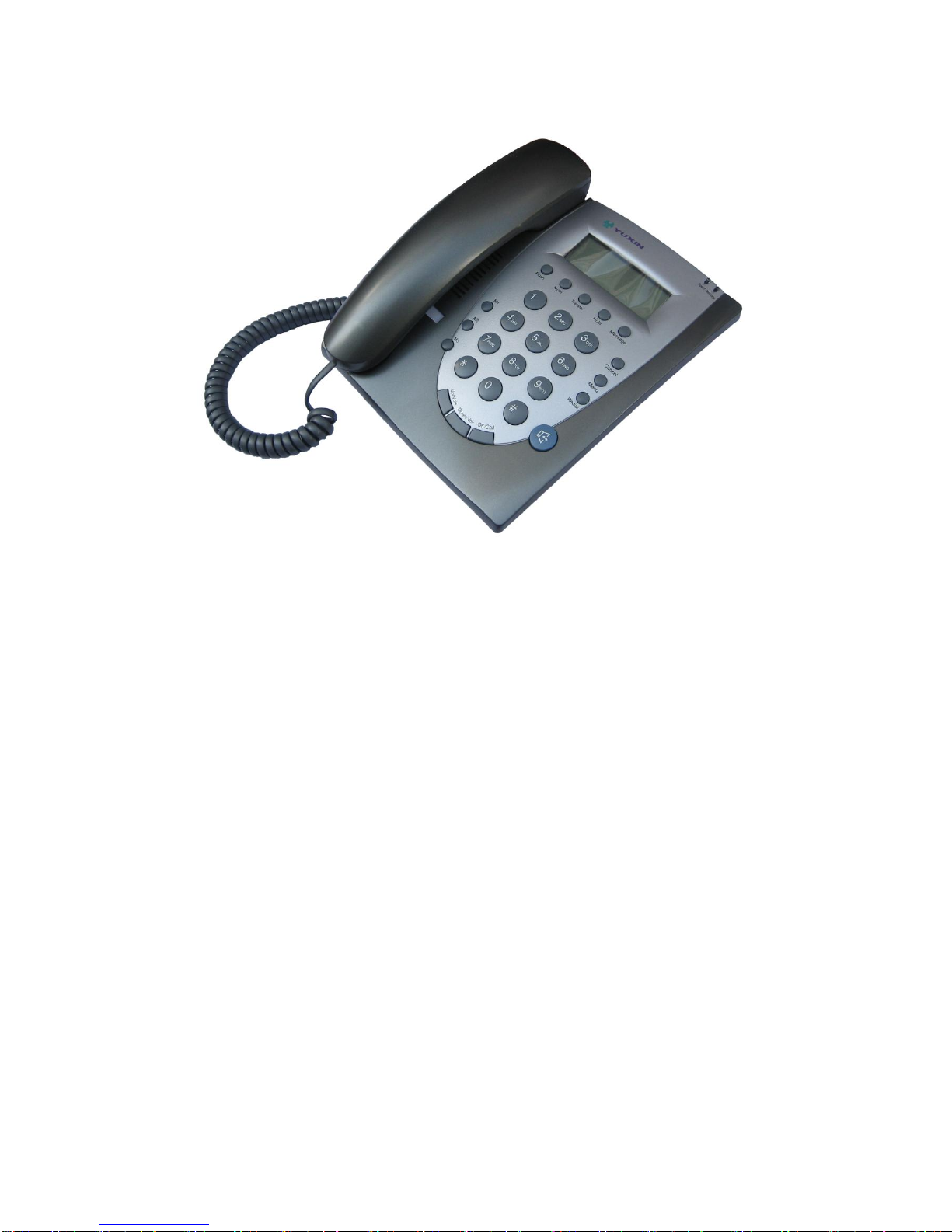

Fig 4.1.1 YWH201 Phone Front Illustration

YWH201 Usermanual
11
●YWH201 Phone Back Illustrations(Refer to Fig 4.1.2 )
Fig 4.1.2 YWH201 Phone Back Illustration
4.2. Function Keys
Keys
Function
Keys
Function
M1-M3
Speed-Dial keys, with which a preset
number will be calling by a single
press.
MENU
With the on-hook, press
this key to enter MENU
mode.
CANCEL
In the menu mode, press this key to
back the upper menu or delete.
0-9；
*,#
12 standard Digit, *
keys are usually used
to Input IP address
that replace·.
VOL＋
With the handset picked，press this key to Increase the volumes of handset;
With the hand-free key pressed, press this key to Increase the volumes of
speaker and ring.
In the MENU mode; press this key to scroll up menu options.

YWH201 Usermanual
12
VOL－
With the handset picked，press this key to decrease the volumes of handset;
With the hand-free key pressed，press this key to decrease the volumes of
speaker and ring.
In the MENU mode; press this key to scroll down menu options.
MESSAGE
Press this key will trigger the
phone to call the pre-set voice
mail service number.
MUTE
Press this key to act
as toggle key to turn
DND on or off during
on-hook mode ;
Mute a current call
and resume.
FLASH
With handset picked or
hand-free key pressed, this key
serves the same function as
beat the hook.
In the call waiting status, Press
this key switch to the waiting
call. The second press will
switch back to current call.
HOLD
Temporarily hold the
current call.
TRANSFER
When the current call on hold,
dial the number to which you
want to transfer :
1. Press this key (This step
REDIAL
Dial the last
connected party from
the phone.

YWH201 Usermanual
13
complete a blind transfer) or
2 Press the call key to complete
a consultative with the new
party, then press this key to put
the first call on hold and keep
the second call as the current
call.(This step completes an
attend transfer)
HANDFREE
Enter hands-free mode. The
second press will switch to the
handset mode.
OK/CALL
In the menu mode，
Press this key to
modify and confirm
the input content
Dial a phone number
or IP address.
4.3. LED Functions
MESSAGE
LED
Turns off: no voice mail.
Flashing: voice mail coming in.
POWER LED
The LED lights up,
indicating that the
power is all right.

YWH201 Usermanual
14
5. Configuration Guide
With the installation done, users can choose the keyboard or HTTP orders
according the personal preference, and set the respective parameters.
5.1. Configuration with Keypad
5.1.1. Using function keys
1. Enter menu mode:
With the phone on-hook, press MENU button to enter the main menu. The
screen will display “Phone Settings”；“Call Record”；“Phone Book”；
“Save&Exit”.Please refer to Fig 5.1.1.

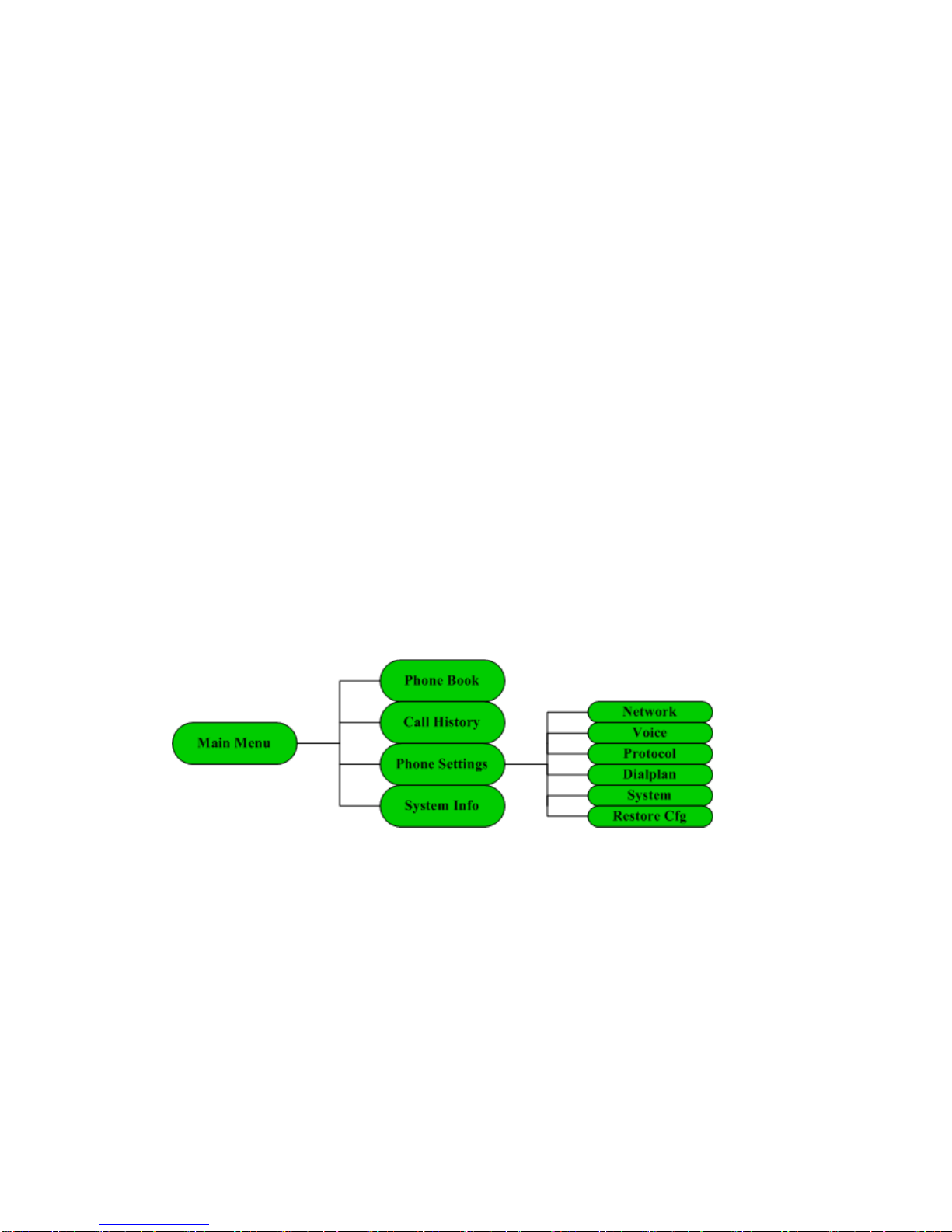

Fig 5.1.1 Main Menu Formation and Phone Settings Illustration
2. Toggle the item
Press UP, DOWN button to scroll though OK options.
3. Enter the submenu
Press OK button to enter the submenu in menu mode.
4. Edit and confirm

YWH201 Usermanual
15
Press OK button to enter the edit mode, when there is no submenu existed.
Press OK button to confirm the item after amending through the key pad.
5. Delete
Press CANCLE button to clear the input content in edit mode.
6. Return to the upper menu
Press CANCLE button back to the upper menu when phone is not in edit
mode.
7. Abort the settings
Pick up the handset or press hand-free key to exit Menu and reject an
amendment.YWH201 IP phone will function with the current settings.
8. Save the settings
When all parameters have been modified, select “Save&Exit”in the main
menu and press OK, YWH201 IP phone will reboot and use the already
modified setting.
5.1.2. Network Settings

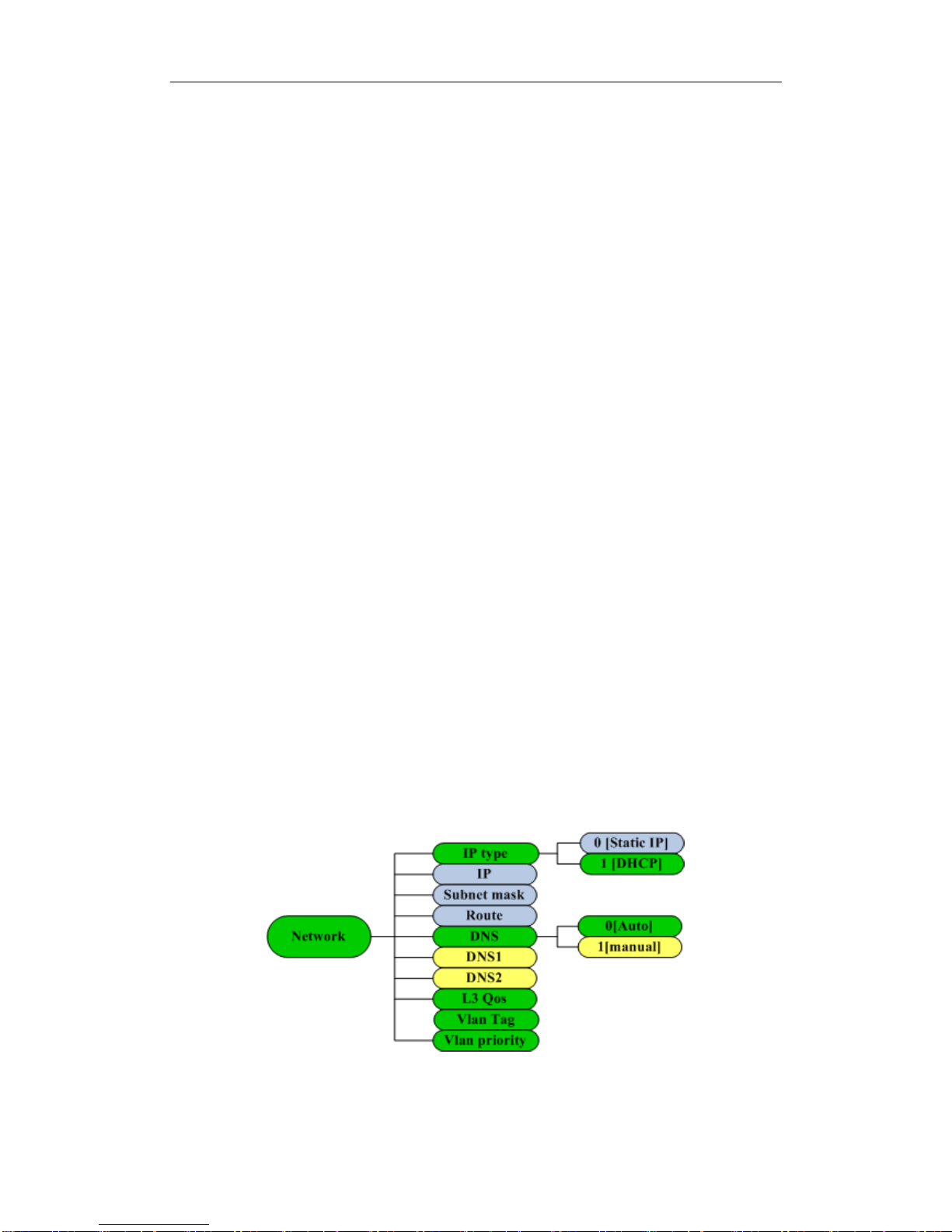

Fig 5.1.2 Network submenu

YWH201 Usermanual
16
Please refer to Fig 5.1.2.
Set IP type:
If 0[Static IP] is selected, IP, Subnet mask and Route will need to be
configured.
If 1[DHCP] selected, there is no need to set IP；Subnet mask；Route. DNS
will display come to heel IP type item on the screen.
Set DNS:
If 0[Auto] is selected, DNS1；DNS2 are default, L3 Qos will display come to
heel DNS item on the screen.
If 1[manual] is selected, DNS1; DNS2 will need to be configured.
About L3Qos;Vlan Tag; Vlan Priority, Please check the Web Configuration
5.2.1 for more details about these items.
5.1.3. Voice Settings

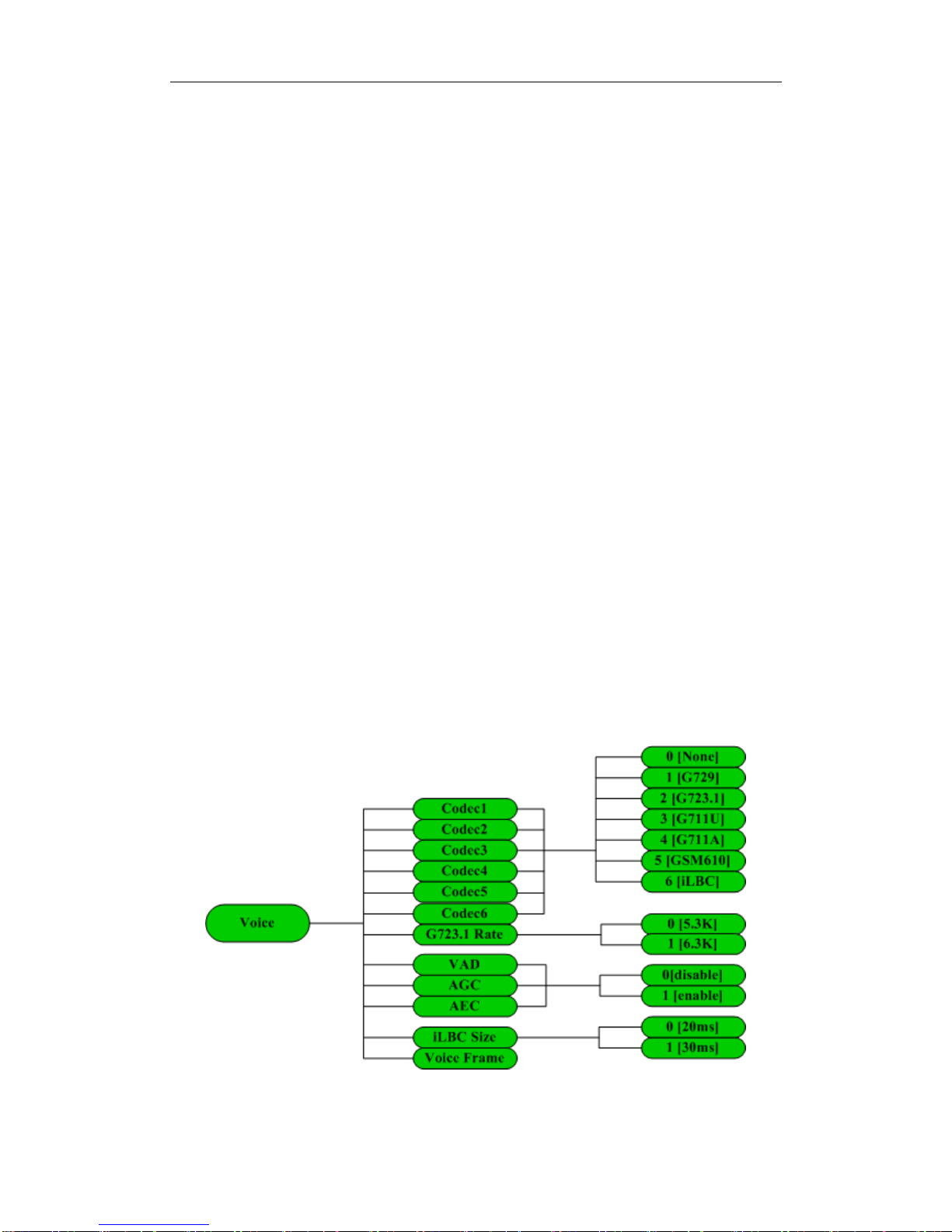

Fig 5.1.3 Voice submenu

YWH201 Usermanual
17
Please check the Web Configuration 5.2.2 for details about these items.
5.1.4. Protocol Settings
SIP
IAX2

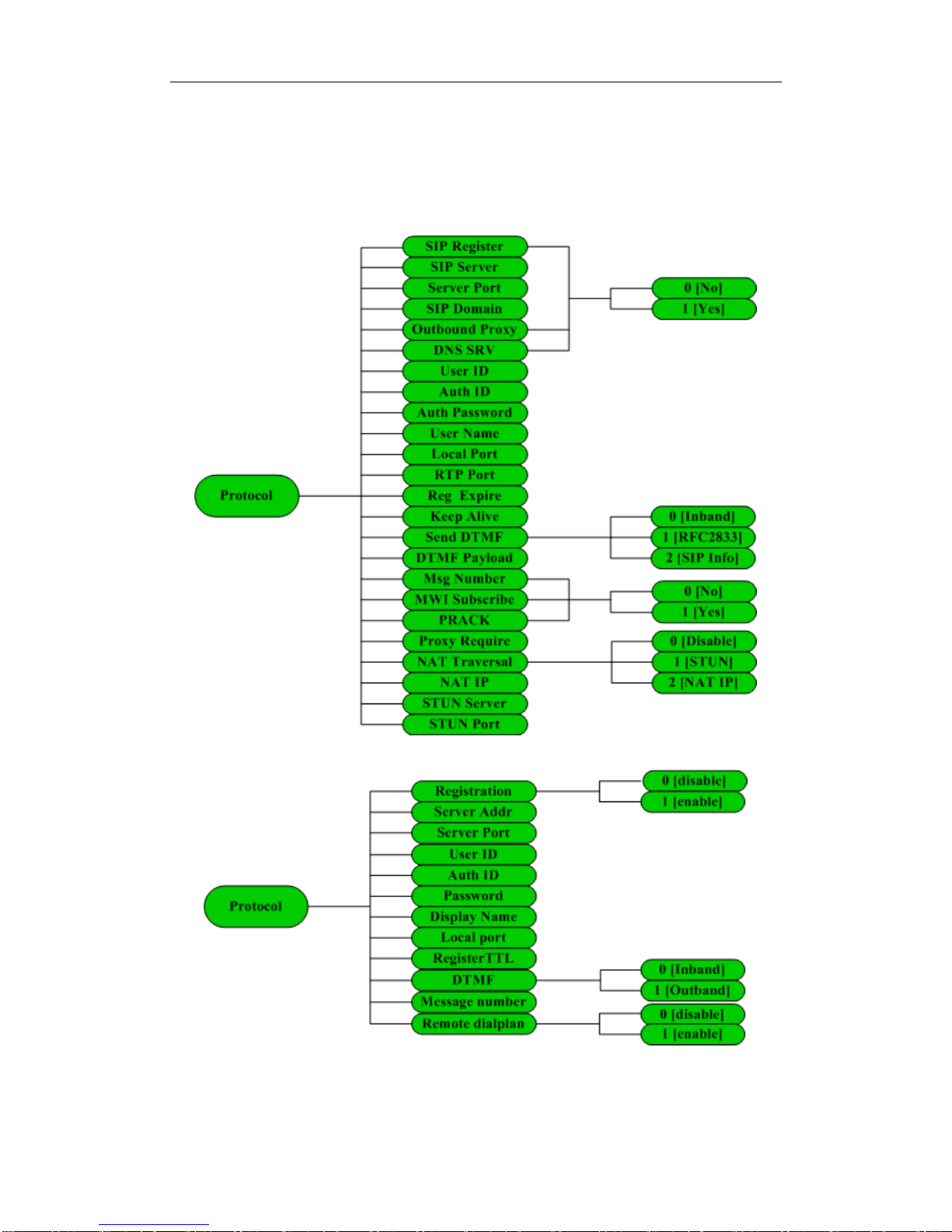

Fig 5.1.4 Protocol submenu

YWH201 Usermanual
18
Please check the Web Configuration 5.2.3 for details about these items.
5.1.5. Dialplan Settings
Fig 5.1.5 Dial plan submenu
Please check the Web Configuration page 5.2.4 for details about these
items.
5.1.6. System Settings
Fig 5.1.6 System submenu
Please check the Web Configuration 5.2.5 for detail about these items.
5.2. Configuration with Web Browser
Double click icon to open the IE browser. Input the IP address of the

YWH201 Usermanual
19
phone into address bar（default IP:168.1.200）;And
then input password of the phone into the following page. Default password:
12345678.
Fig 5.2.1 http settings
NOTE: Be sure that the phone is in the on-hook mode when viewing or setting
YWH201 with web browser.

YWH201 Usermanual
20
5.2.1. Network Settings
Fig 5.2.2 Network Settings
Connection Type
Static IP：Select this item to authorize users to set IP address,
subnet mask and router IP address of IP phone manually.
DHCP：Select this item to enable DHCP mode. With this option,
DHCP server automatically assigns all the required network
parameters to any device connected.
IPAddress
With Connection Type selected in Static IP drop down list,
please enter IP address of IP phone, which is acquired from the
administrator or ISP.
Subnet Mask
With Connection Type selected in Static IP drop down list,
please enter subnet mask of IP phone, which is acquired from the
administrator or ISP.
